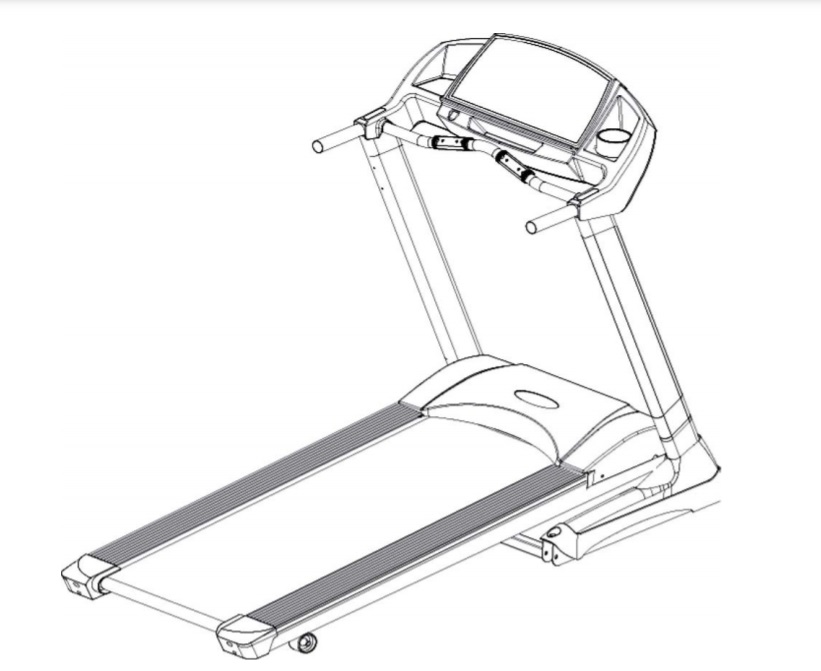

True Fitness - FT200LE

Repair Parts for True Fitness FT200LE

Brand: True Fitness

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: FT200LE

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
890000 9FE0060 41 bolt, m4xp0.7x15 blk No Model Compatibility List $2.23 / Each

2,17
890002 9FT0005 1~1 bolt, .4x16 (100-400ft) No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890003 9FT0009 2 bolt (k-299) No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890004 9FT0013 13 wheel No Model Compatibility List $4.45 / Each

1,8
890006 9FT0016 16 washer, plastic No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890007 9FT0020 20 bolt, m8xp1.25x15 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890008 9FT0021 21 bolt, m10xp1.5x12 No Model Compatibility List $2.23 / Each

1
890009 9FT0022 22 washer No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890010 9FT0023 23 bolt, m10xp1.5x35 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890011 9FT0024 24 bolt, m8xp1.25x40 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890012 9FT0028 28 base No Model Compatibility List $222.36 / Each

2,,17,,17,,17,,17
890013 9FT0029 29 bolt, k-288 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890014 9FT0032 119 hardware package (hth032) No Model Compatibility List $35.58 / Each

2,,17,,17,,17,,17
safety key htha001 890015 9FT0037 37 safety key htha001 Yes Model Compatibility List $53.36 / Each

1,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16
890016 9FT0040 40 bolt, m5xp0.8x10 sae5-10 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890017 9FT0043 43 cover, motor lower p-1314-abs No Model Compatibility List $46.70 / Each

9,,18,,18,,18,,18
890018 9FT0048 48 washer No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890019 9FT0049 49 bolt, m8xp1.25x15 No Model Compatibility List $2.23 / Each

1
890020 9FT0053 53 pin, u shape No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890021 9FT0054 54 pin, r 10x2.0 No Model Compatibility List $2.23 / Each

1,14
switch, power 890022 9FT0058 58 switch, power Yes Model Compatibility List $20.79 / Each

1
sensor 890023 9FT0060 60 sensor speed reed Switch No Model Compatibility List $24.72 / Each

4,20,,20,,20,,20
890024 9FT0068 68 bolt, m4xp0.7x10 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890025 9FT0070 70 washer, bolt 4x12 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890026 9FT0071 71 bolt, m8xp1.25x55 No Model Compatibility List $2.23 / Each

1
890027 9FT0072 72 washer, roller fixing 8x16x1.5t No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890028 9FT0073 73 bolt, m8xp1.25x45 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17,,17,,17,,17,,17,,17,,17
nut, m8xp1.25 890029 9FT0074 45 nut, m8xp1.25 Yes Model Compatibility List $2.23 / Each

2,17
890030 9FT0077 77 bolt, m4x-0.7x20 No Model Compatibility List $5.58 / Each

2,,17,,17,,17,,17
890031 9FT0084 83a bolt, m8xp1.25x40 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17,,17,,17,,17,,17
cover, fixity side 890032 9FT0089 89 cover, fixity side Yes Model Compatibility List $7.33 / Each

2,17,,17,,17,,17
890033 9FT0098 98 washer bolt, m4xp0.7x16 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890034 9FT0099 99 bolt, k-413 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
pad 890035 9FT0101 100 base pad two hole Yes Model Compatibility List $10.73 / Each

1
890036 9FT0102 101 bolt, 4x20 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890037 9FT0104 103 bracket, sensor No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
890038 9FT0106 105 bolt, m5xp0.8x8 No Model Compatibility List $2.23 / Each

2,,17,,17,,17,,17
control cable, t450 xl-500b 890053 9FT45087 87 control cable wire harness upright, t450 xl-500b Yes Model Compatibility List $50.88 / Each

4,19,,19,,19,,19
incline motor, t450 xm-184a 890055 9FT45114 51 js15-A N30128S-R incline motor, jstar t450 xm-184a Yes Model Compatibility List $253.64 / Each

1,10
890060 9PS0063 63 bolt m6 x p1.0 x 10 sce6-10 No Model Compatibility List $2.23 / Each

4,17
890061 9PS0075 75 cable (white) 14awg x 90 x2t xlt002 No Model Compatibility List $2.23 / Each

4,19
890062 9PS0076 76 cable (black) 14awg x 90 x2t xlt001 No Model Compatibility List $2.23 / Each

4,19
890063 9PS0077C 93 cable, (white) xlt004 No Model Compatibility List $2.23 / Each

4,,19,,19,,19,,19,,19,,19
890064 9PS0077D 94 cable, black) xltoo3 No Model Compatibility List $2.23 / Each

4,,19,,19,,19,,19,,19,,19
wheel 1021511 9FT0013 13 1 Front Transport Wheel (Used) No Model Compatibility List $16.98 / Each

1,8
wheel 1021548 9FT0013 97 1 Rear Frame Roller Wheel (Used) No Model Compatibility List $14.99 / Each

1,8
bolt, m10xp1.5x12 1021510 9FT0021 0 1 Frame to Frame Screw M10-1.5x12mm (Used) No Model Compatibility List $9.59 / Each

1
belt, drive ca-210j8 ft210j8 9FT0046 46 1 Drive Belt 20 1/2" Yes Model Compatibility List $67.98 / Each

1,15,23,,23
pin, r 10x2.0 1021525 9FT0054 54 1 Frame to Frame Set Pin (Used) No Model Compatibility List $14.99 / Each

1,14
controller, mef5t 1021559 9FT0055 55 1 Lower Motor Control Board Controller (Used) No Model Compatibility List $372.30 / Each
Out Of Stock 		1,20,,20
switch, power 1021587 9FT0058 58 1 Power Switch (Used) Yes Model Compatibility List $25.48 / Each

1
switch, breaker 1021574 9FT0059 59 1 Circuit Breaker (Used) No Model Compatibility List $8.99 / Each

1,24,,24
bolt, m8xp1.25x55 1021512 9FT0071 0 1 Front Roller Set Scrwe M8-1.25x55mm (Used) No Model Compatibility List $10.79 / Each

1
bolt, m8xp1.25x55 1021561 9FT0071 0 1 Rear Roller Screw M8-1.25x55mm (Used) No Model Compatibility List $10.79 / Each

1
end cap, rear lt -- t100-200 1021599 9FT0075 75 1 Left Rear Endcap (Used) No Model Compatibility List $10.79 / Each

1,18,,18
end cap, rear rt -- t100-200 1021546 9FT0076 76 1 Right Rear Endcap (Used) No Model Compatibility List $10.79 / Each
Out Of Stock 		1,18,,18
belt, running 1021498 9FT0080 80 1 Treadbelt Walking Belt (Used) No Model Compatibility List $53.99 / Each
Out Of Stock 		1,15,23,,23
roller, rear 1021585 9FT0082 82 1 Rear Idler Roller (Used) No Model Compatibility List $53.99 / Each

1,26,,26
Front Drive Roller (Used) 1021572 9FT0082-b 79 1 Front Drive Roller (Used) No Model Compatibility List $71.99 / Each

1
pad 1021573 9FT0101 101 4 Screw on Foot Pad (Used) Yes Model Compatibility List $13.58 / Each

1
incline motor, t450 xm-184a 1021545 9FT45114 114 1 Incline Motor t450 xm-184a (Used) Yes Model Compatibility List $135.98 / Each

1,10
Power Cord Entry Input Socket Inlet (Used) 1021547 9PS0037 37 1 Power Cord Entry Input Socket Inlet (Used) Yes Model Compatibility List $8.99 / Each
Out Of Stock 		1,17
Storage Safety Latch Shock (Used) 1021558 088203030 38 1 Storage Safety Latch Shock (Used) No Model Compatibility List $35.99 / Each
Out Of Stock 		1
Turdan Drive Motor (Used) 1021571 A4D06 45 1 Turdan Drive Motor (Used) Yes Model Compatibility List $338.30 / Each
Out Of Stock 		1,10
Incline Motor Socket Cap Screw M10-1.5x2 1021497 FT200LE-IMSCSM10152 0 1 Incline Motor Socket Cap Screw M10-1.5x2" (Used) No Model Compatibility List $9.59 / Each

1
bolt, m8xp1.25x15 1021560 9FT0049 0 1 Motor Mount Bolt M8-1.25-20mm (Used) No Model Compatibility List $8.99 / Each
Out Of Stock 		1
Front Wheel Axle Bolt M10-1.5 x 56mm (Used) 1021524 FT200LE-WABM101556 0 1 Front Wheel Axle Bolt M10-1.5 x 56mm (Used) No Model Compatibility List $13.58 / Each
Out Of Stock 		1
Tread Deck Mount Flat Head Countersunk Screw M8-1.25x30mm (Used) 1021600 FT200LE-TDMFHCSM812530 0 1 Tread Deck Mount Flat Head Countersunk Screw M8-1.25x30mm (Used) No Model Compatibility List $9.59 / Each

1
890083 90348900 applicator stick No Model Compatibility List $50.97 / Each

16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16
890084 90349000 lubricant, tube of treadbelt (8ml) No Model Compatibility List $5.56 / Each

16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16,,16
890085 9FT0001A cover, console No Model Compatibility List $63.00 / Each

18
890086 9FT0001B cable-upper, control No Model Compatibility List $15.10 / Each

19
890087 9FT0001C safety key-sensor No Model Compatibility List $5.83 / Each

20
890088 9FT0001F receiver, heart rate No Model Compatibility List $50.49 / Each

20
890089 9FT0006 cover,console plstc rear(100-400ft) No Model Compatibility List $70.41 / Each

18
890090 9FT0007 holder, bottle (100-400ft) No Model Compatibility List $6.80 / Each

21
890091 9FT0010 upright (l) w/ decal No Model Compatibility List $61.15 / Each

22
890092 9FT0011 upright (r) w/ decal No Model Compatibility List $61.15 / Each

22
890093 9FT0012 plate, base No Model Compatibility List $64.86 / Each

17
890094 9FT0018 rack, incline No Model Compatibility List $111.18 / Each

21
890095 9FT0038 cylinder ncy-006 No Model Compatibility List $42.62 / Each

17
890096 9FT0041 cover, side (l) p-1103l No Model Compatibility List $18.53 / Each

18
890097 9FT0042 cover, side (r) p-1103r No Model Compatibility List $18.53 / Each

18
890098 9FT0062 cable, fixity uc-1 No Model Compatibility List $1.85 / Each

17
890099 9FT0069 deck fixing plastic No Model Compatibility List $1.85 / Each

25
890100 9FT0078A decal, motor cover No Model Compatibility List $5.56 / Each

18
890101 9FT0086 deck No Model Compatibility List $416.93 / Each

27
890102 9FT0087 cable, control (lower) ft100-200 No Model Compatibility List $24.09 / Each

19
890103 9FT0100 bolt, k-415 No Model Compatibility List $1.85 / Each

17
890104 9FT0113 cover, bolt No Model Compatibility List $1.85 / Each

18
890105 9FT0120 power cord (17504) No Model Compatibility List $48.18 / Each

19
890106 9PS0118 cable, hr xl-488 No Model Compatibility List $18.53 / Each

19,,19,,19,,19,,19,,19,,19,,19
View Drawing
