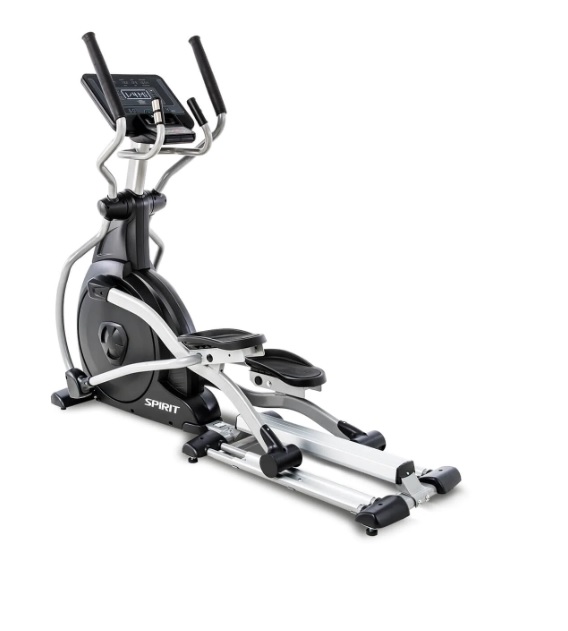

Spirit - CE800

Repair Parts for Spirit CE800 800042

Brand: Spirit

Category: Commercial Ellipticals

Type: Elliptical

Model Name: CE800

Serial Number Prefix: 800042

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Drink Water Bottle Holder 1013136 SpirDrinkWtr1 133 1 Drink Water Bottle Holder No Model Compatibility List $9.59 / Each
Out Of Stock 		9
Handpulse with Cable Assembly (Used) 1029315 000133 44 1 Handpulse with Cable Assembly (Used) Yes Model Compatibility List $20.00 / Each

Drive Pulley (Used) 1029326 P060090-A1 116 1 Drive Pulley (Used) Yes Model Compatibility List $39.00 / Each

8
Generator Brake Controller D151085 D151085 31 1 Generator Brake Controller Yes Model Compatibility List $349.00 / Each

Generator Lead Wire Harness Cable (Used) 1033605 E011006 030-14 1 Generator Lead Wire Harness Cable (Used) No Model Compatibility List $8.00 / Each

4,5,6
1600mm Computer Wire Harness Main Cable E020272 E020272 030-15 1 1600mm Computer Wire Harness Main Cable Yes Model Compatibility List $59.00 / Each

Power Switch assembly On Off Socket with Fuse (Used) 1033617 F030053 142 1 Power Switch assembly On Off Socket with Fuse (Used) Yes Model Compatibility List $19.99 / Each

6
450mm_Reed Switch (speed sensor) F030433 F030433 33 1 450mm_Reed Switch (speed sensor) No Model Compatibility List $29.99 / Each

4
One Grip Top Plate With Wire Only (Used) 1033607 F090204-01 35 2 One Grip Top Plate With Wire Only (Used) No Model Compatibility List $15.00 / Each

1-4 inch -20 x 3-4 inch Hex Bolt J010002-ZZ J010002-ZZ 79 4 1-4 inch -20 x 3-4 inch Hex Bolt Yes Model Compatibility List $5.99 / Each

2
M10 Pedal Arm Axle J080003P-Z1 J080003P-Z1 119 2 M10 Pedal Arm Axle Yes Model Compatibility List $25.99 / Each

3/8 1033614 J021009S2-ZJ 106 2 3/8" × 2-1/4" Button Head Socket Bolt (Used) No Model Compatibility List $3.00 / Each

M8 × P1.25 × 170L_J Bolt - Belt Tension Assembly (Used) 1033621 J083012K 89 1 M8 × P1.25 × 170L_J Bolt - Belt Tension Assembly (Used) No Model Compatibility List $9.99 / Each

M5 × 12mm_Phillips Head Screw (Used) 1033626 J092002-Z1 78 1 M5 × 12mm_Phillips Head Screw (Used) No Model Compatibility List $3.00 / Each

M6 × 15mm_Phillips Head Screw (Used) 1033628 J092503-Z1 103 1 M6 × 15mm_Phillips Head Screw (Used) No Model Compatibility List $3.00 / Each

M8 Nyloc Lock Nut (Used) 1033619 J139262-Y3 82 3 M8 Nyloc Lock Nut (Used) No Model Compatibility List $3.00 / Each

2
M10 Nyloc Nut (Used) 1033620 J139361-Z 118 2 M10 Nyloc Nut (Used) No Model Compatibility List $3.00 / Each

5/16 x 23 x 1.5T Flat Washer (Used) 1033612 J210009 88 14 5/16 x 23 x 1.5T Flat Washer (Used) No Model Compatibility List $2.00 / Each

3/8 1033612 J210022-Z1 120 2 3/8" x 30 x 2.0T Flat Washer (Used) No Model Compatibility List $2.00 / Each

2
Wave Wavy washer O25 J250001-Z4 J250001-Z4 90 1 Wave Wavy washer O25 Yes Model Compatibility List $9.99 / Each

2,3
Wave Washer Wavy 17mm J250002 J250002 91 1 Wave Washer Wavy 17mm Yes Model Compatibility List $8.00 / Each

C Ring Snap Ring J310001-Z4 J310001-Z4 80 1 C Ring Snap Ring Yes Model Compatibility List $8.00 / Each

C Ring Snap Ring 17mm J310002-Z4 J310002-Z4 81 1 C Ring Snap Ring 17mm Yes Model Compatibility List $8.00 / Each

Woodruf anti sheer Key J320002-Z2 J320002-Z2 105 2 Woodruf anti sheer Key Yes Model Compatibility List $12.00 / Each

3.5 x 12mm Screw (Used) 1033625 J396804-Z1 113 1 3.5 x 12mm Screw (Used) No Model Compatibility List $1.00 / Each

2
Rod End Bearing - Pedal Arm Spindle (Used) 1033593 K050007 25 1 Rod End Bearing - Pedal Arm Spindle (Used) No Model Compatibility List $14.99 / Each

Drive Belt 500J - 8 Ribs (Used) 1033618 N010002 27 1 Drive Belt 500J - 8 Ribs (Used) Yes Model Compatibility List $9.99 / Each
15
Transportation Wheel 062 (Used) 1033600 P050015-A1 73 1 Transportation Wheel 062 (Used) No Model Compatibility List $8.00 / Each
Out Of Stock 		8
Side Case Assembly Right (Used) 1033582 P060076 39 1 Side Case Assembly Right (Used) No Model Compatibility List $79.00 / Each

Drive Main Pulley (Used) 1033591 P060090-A1 28 1 Drive Main Pulley (Used) Yes Model Compatibility List $29.00 / Each

8
Roller Wheel Cover P060162-I1 P060162-I1 50 1 Roller Wheel Cover Yes Model Compatibility List $28.99 / Each

Handlebar Plug End Cap (Used) 1033616 P060253-A1 51 1 Handlebar Plug End Cap (Used) Yes Model Compatibility List $5.00 / Each
9
Connecting Arm Cover A Left (Used) 1033596 P180002-I1 54 1 Connecting Arm Cover A Left (Used) No Model Compatibility List $10.00 / Each

Connecting Arm Cover B Right (Used) 1033595 P180003-I1 55 2 Connecting Arm Cover B Right (Used) No Model Compatibility List $10.00 / Each

Connecting Arm Cover B Left (Used) 1033601 P180004-I1 56 1 Connecting Arm Cover B Left (Used) No Model Compatibility List $8.00 / Each

Incline Bottom Cover (Used) 1033603 P190017-I1 43 1 Incline Bottom Cover (Used) No Model Compatibility List $9.99 / Each

Console Mast Cover Left (P100050-I1) (Used) 1033588 PP100050-I1 61 1 Console Mast Cover Left (P100050-I1) (Used) No Model Compatibility List $14.99 / Each

Console Mast Cover Right (P100051-I1) (Used) 1033589 PP100051-I1 62 1 Console Mast Cover Right (P100051-I1) (Used) No Model Compatibility List $14.99 / Each

Round Disk Cover Flywheel (Used) 1033594 PP110014-I1 41 1 Round Disk Cover Flywheel (Used) No Model Compatibility List $14.99 / Each
Out Of Stock
Pedal (L) (P130015A-A1) PP130015A-A1 PP130015A-A1 48 1 Pedal (L) (P130015A-A1) Yes Model Compatibility List $49.99 / Each

Pedal (R) (P130016A-A1) PP130016A-A1 PP130016A-A1 49 1 Pedal (R) (P130016A-A1) Yes Model Compatibility List $49.99 / Each

Front Stabilizer Cover PP190001-I1 PP190001-I1 47 1 Front Stabilizer Cover Yes Model Compatibility List $44.99 / Each

Cross Bar Crank Arm (Used) 1033602 RBB040006-S13 4 1 Cross Bar Crank Arm (Used) No Model Compatibility List $79.00 / Each

8
Crank Arm Axle Assembly (Used) 1033598 RC140009A 13 1 Crank Arm Axle Assembly (Used) No Model Compatibility List $49.00 / Each

Slide Wheel (Used) 1033597 RP050030B 36 1 Slide Wheel (Used) No Model Compatibility List $39.00 / Each

8
Disc Cover Flywheel (Used) 1033584 RP060077-I1 40 1 Disc Cover Flywheel (Used) No Model Compatibility List $39.00 / Each

Disc Cover Flywheel (Used) 1033585 RP060077-I1 40 1 Disc Cover Flywheel (Used) No Model Compatibility List $39.00 / Each

Leveler Adjustable Foot Pad RP060256-A1 RP060256-A1 37 1 Leveler Adjustable Foot Pad Yes Model Compatibility List $24.99 / Each

3
Console Assembly RZESE0270-21 RZESE0270-21 30 1 Console Assembly Yes Model Compatibility List $699.00 / Each

7
6005_Bearing 4000000 K056005 6005_Bearing No Model Compatibility List $21.24 / Each

8
4000001 K056203 6203_Bearing No Model Compatibility List $16.24 / Each

8
O330_Drive Pulley (P060090-A1) 4000002 P060090-A1 O330_Drive Pulley (P060090-A1) Yes Model Compatibility List $43.74 / Each

8
4000021 F030058 M4 5T_Nyloc Nut No Model Compatibility List $74.99 / Each

4000031 RP060256-A1 O35 10m/m_Rubber Foot Assembly Yes Model Compatibility List $14.99 / Each

3
4000042 J010502-Z1 5/16 X 3/4 Hex Head Bolt No Model Compatibility List $2.74 / Each

4000043 J092503-Z1 M6 15m/m_Phillips Head Screw No Model Compatibility List $2.74 / Each

4000114 J260006-Z1 1/4"_Split Washer No Model Compatibility List $2.74 / Each

4000149 B132400-R4 BRACKET RETAINING (ALUMINUM TRACK) SOLE E No Model Compatibility List $6.24 / Each

4000167 P060089-I1 Rear Stabilizer Cover (A) No Model Compatibility List $18.74 / Each

4000168 P060164-I1 Rear Stabilizer Cover (B) No Model Compatibility List $13.74 / Each

4000228 I010061 Overlay Console No Model Compatibility List $31.24 / Each

4000239 P210009-A1 Handle Bar Cover No Model Compatibility List $21.24 / Each

4000240 M030002-Z0 TRACK ALUMINUM (3-HOLE) XE850XE300/700 No Model Compatibility List $41.24 / Each

4000241 RBB050075-R4 CONNECTING ARM ASSEMBLY (R) CE800 No Model Compatibility List $103.13 / Each

4000242 PP110014-PI Round Disk Cover (P110014-JT) No Model Compatibility List $18.74 / Each

Right Angle Power Supply Cord 1001371 E060001 Right Angle Power Supply Cord Yes Model Compatibility List $24.99 / Each
