Replacement Parts for Esprit by Spirit EL7 Residential Ellipticals

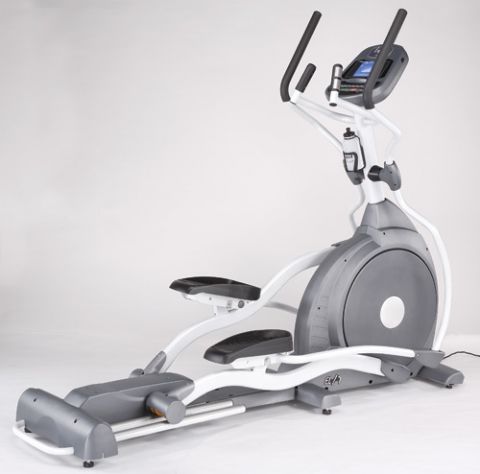

Esprit by Spirit - EL7

Repair Parts for Esprit by Spirit EL7 357007

Brand: Esprit by Spirit

Category: Residential Ellipticals

Type: Elliptical

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

357007

Model Name: EL7

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

EL7.pdf

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
189189	006068	47		Wire harness, Incline Main Connect	Yes	Model Compatibility List	$33.83 / Each
189210	006242	63		Washer, Wave Nylon	Yes	Model Compatibility List	$5.24 / Each
1013144	EL3EL7CRKCOV	53	2	Crank Flywheel Cover (Used)	No	Model Compatibility List	$23.99 / Each	9
800188	N010002	30	1	Drive Belt (500J) (8 rib)	Yes	Model Compatibility List	$59.99 / Each	15
300802	K500027	28		FLYWHEEL-327 X 37 X 8 (6 MAGNET) (Same as K500012)	No	Model Compatibility List	$160.63 / Each	8
800413	N240001	39		Drink Bottle Holder	Yes	Model Compatibility List	$12.44 / Each	9
1018996	006068	0	1	Incline Main Wire Harness (used)	Yes	Model Compatibility List	$35.99 / Each	4

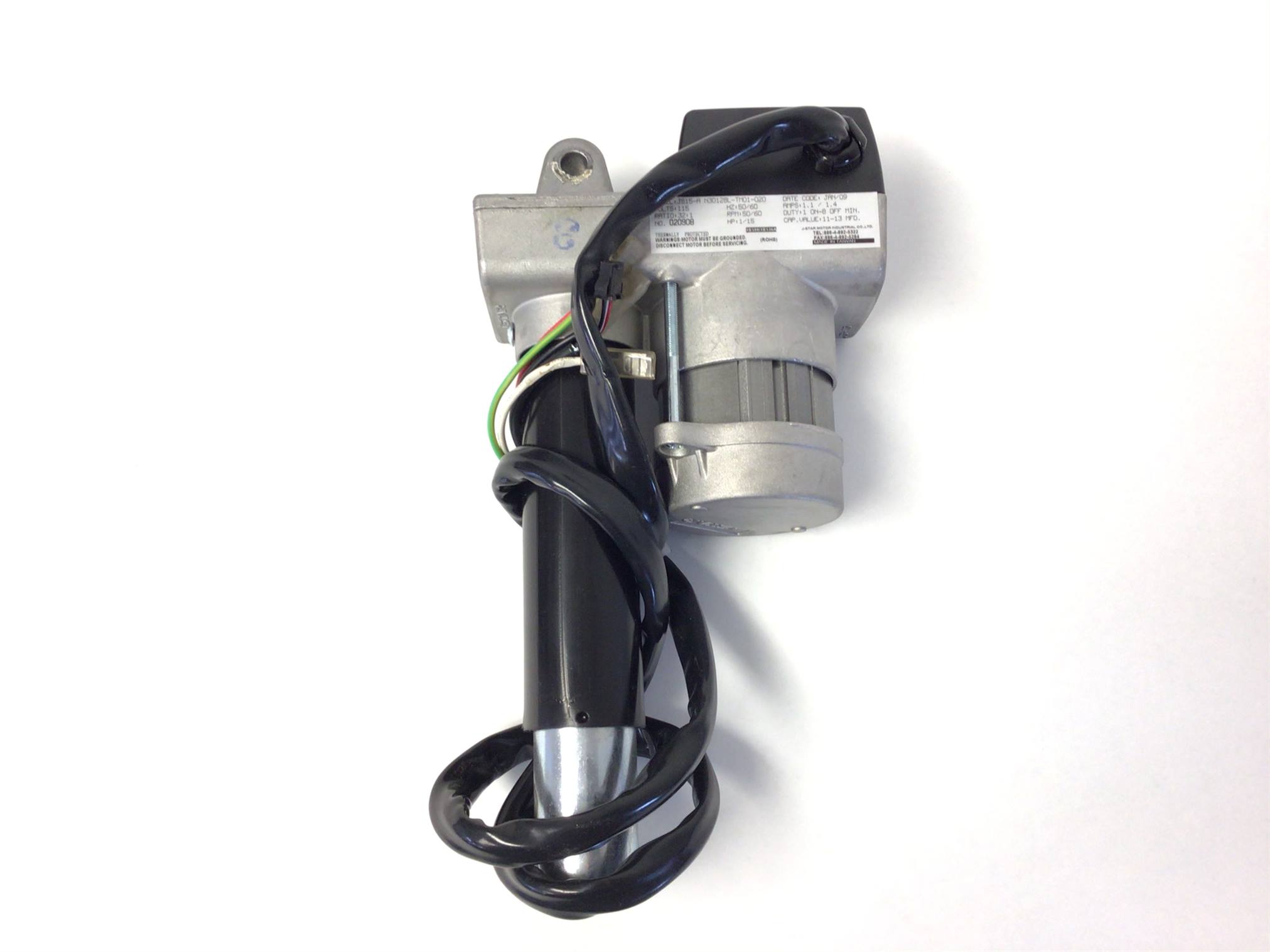

1019358	JS15-A N30128L-TM01-020	105	1	Incline Motor (Used)	Yes	Model Compatibility List	$119.00 / Each	10

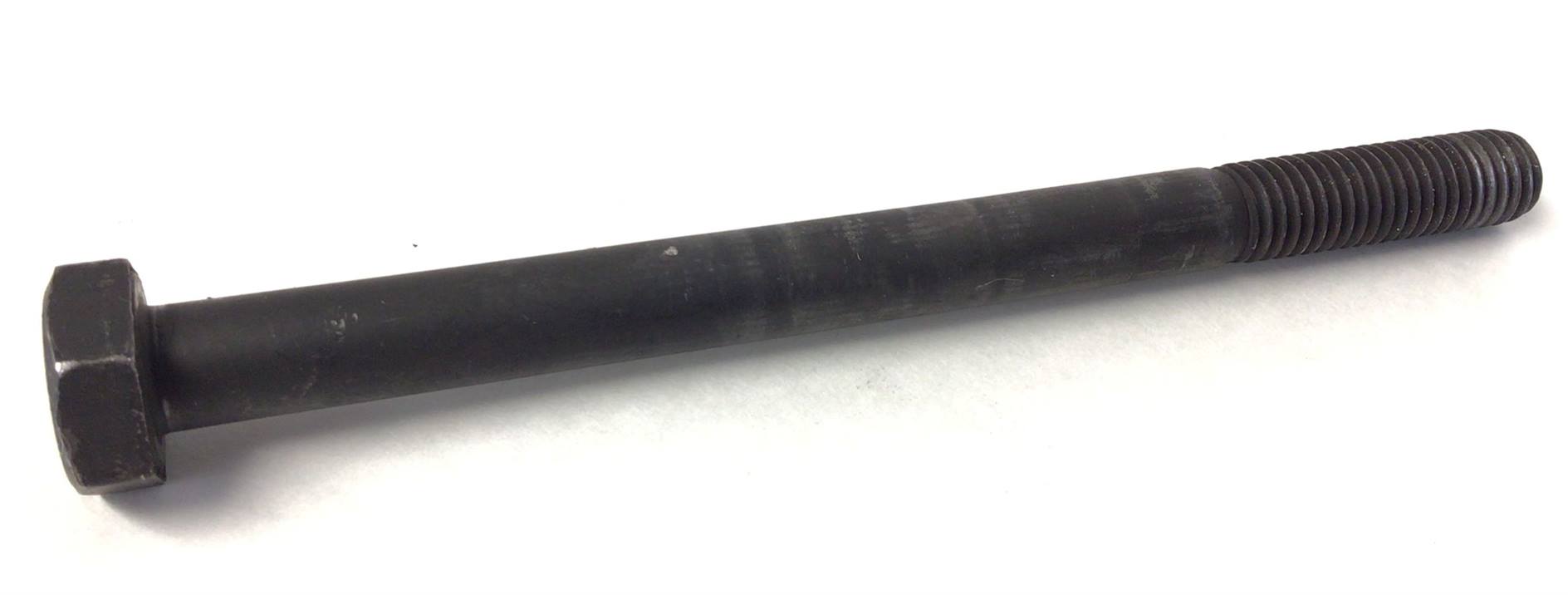

1019330	m1015130	112	1	Part 112 Incline Motor Bolt M10-1.5 X130MM	No	Model Compatibility List	$6.99 / Each	2

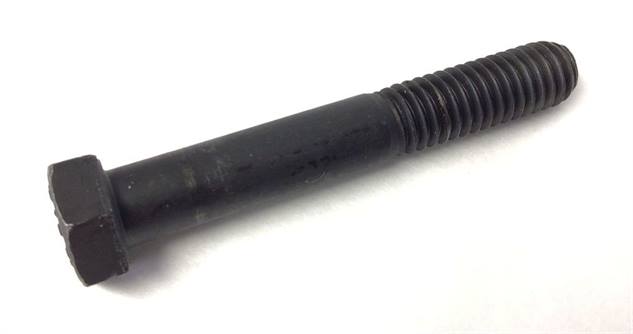

1019357	m101564	112b	1	Incline Hex Head Screw M10-1.5 X 64MM	No	Model Compatibility List	$5.99 / Each	2

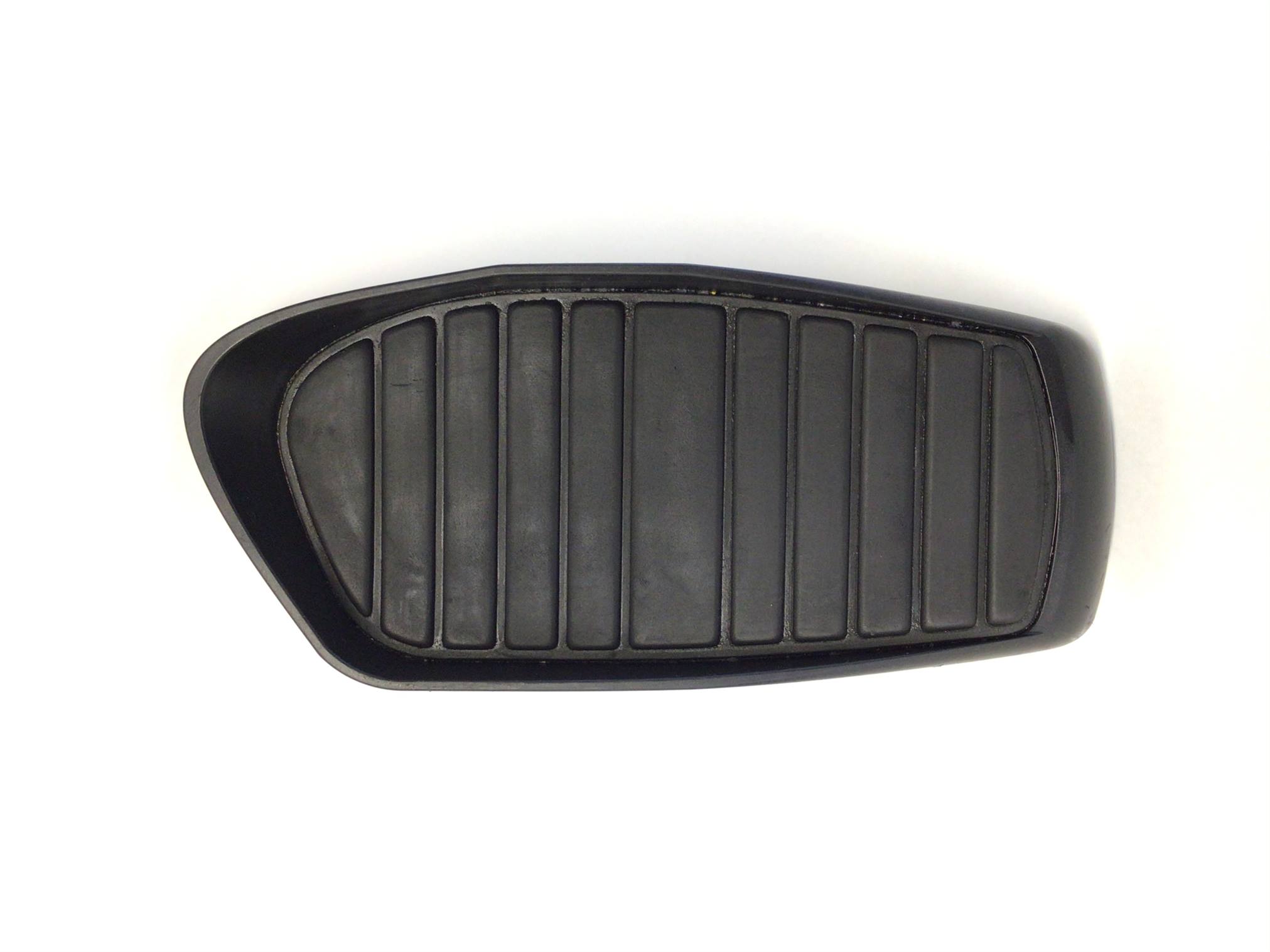

1019331	RP060082B-A1	63	1	Left Pedal - Used	Yes	Model Compatibility List	$29.99 / Each Out Of Stock	9
ss500l8	AE25-CMDB	0	6	Spirit Sole Espirit Xterra Upright Bike Elliptical Crosstrainer Main Drive Belt N010002	No	Model Compatibility List	$39.99 / Each	1,23
1024323	EL7-CA	0	1	Crank Arm (Used)	No	Model Compatibility List	$79.00 / Each	1
4000000	K056005			6005_Bearing	No	Model Compatibility List	$21.24 / Each	8
4000001	K056203			6203_Bearing	No	Model Compatibility List	$16.24 / Each	8
4000002	P060090-A1			O330_Drive Pulley (P060090-A1)	Yes	Model Compatibility List	$43.74 / Each	8
4000005	RP050026-03			Slide Wheel Urethane-(O78PU) (Assembly - includes bearings)	No	Model Compatibility List	$43.74 / Each
4000006	J210008-Z1			3/8" 25mm 2T_Flat Washer	No	Model Compatibility List	$2.74 / Each
4000021	F030058			M4 5T_Nyloc Nut	No	Model Compatibility List	$74.99 / Each
1000381	006456 / RBB070056-Z1			Pivot Brass Bushing and Steel Housing Wprks	Yes	Model Compatibility List	$19.99 / Each
1003297	F030053			AC Power Electronic Entry Module	Yes	Model Compatibility List	$29.99 / Each	6
1003026	022170 or F090301			Resistance Gear Motor Blue Brake	Yes	Model Compatibility List	$79.00 / Each
1001371	E060001			Right Angle Power Supply Cord	Yes	Model Compatibility List	$24.99 / Each
spir-RA-PC	E060001			110 Volt power cord (New)	Yes	Model Compatibility List	$34.99 / Each

View Drawing
