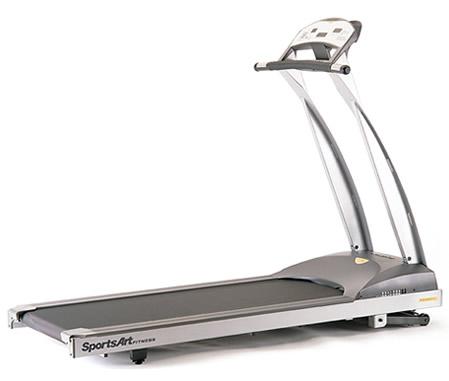

SportsArt - 3106

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

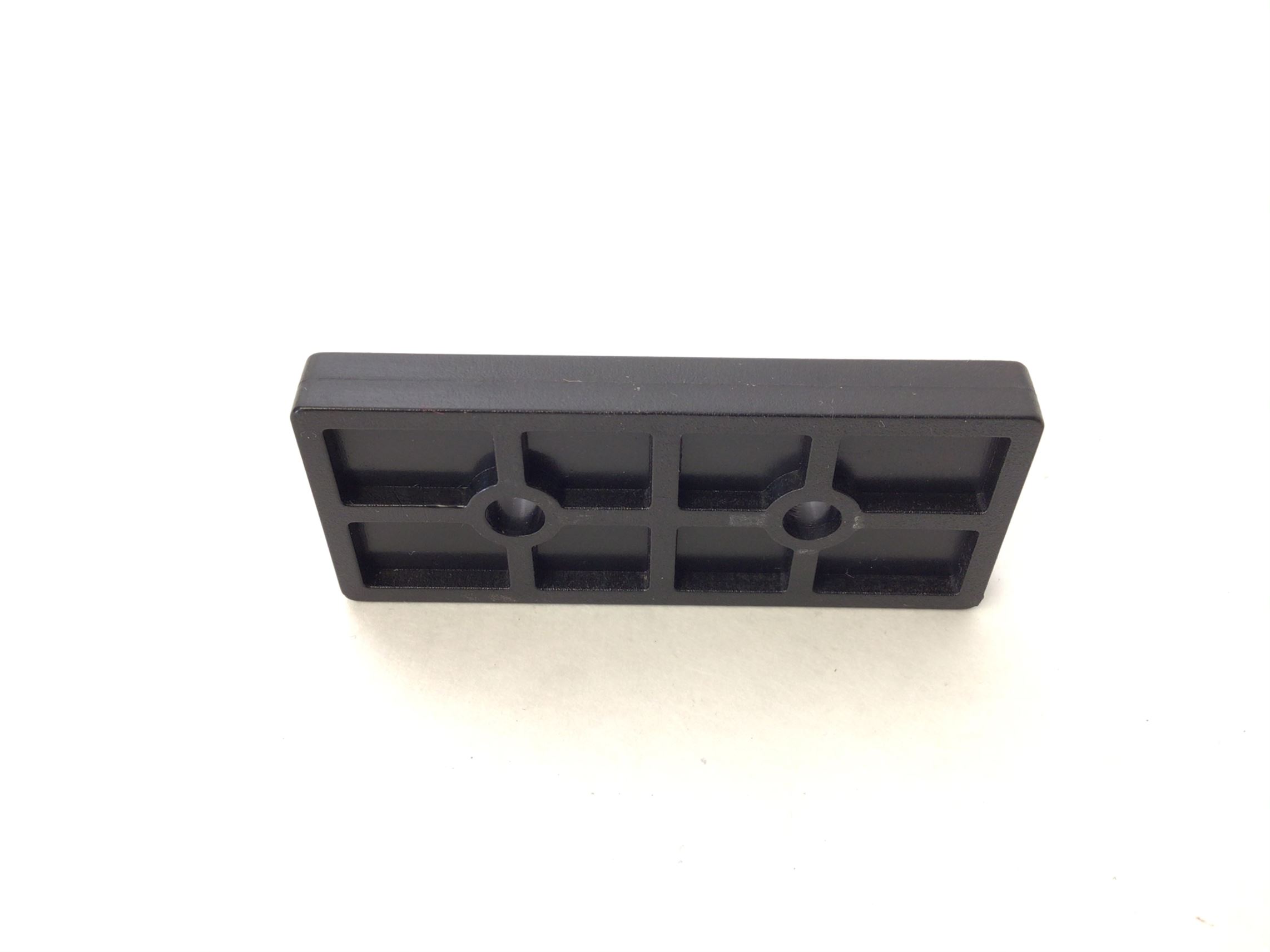

Base Pad Spacer Thin (Used) 1012898 031-951-030 # 2 Base Pad Spacer Thin (Used) Yes Model Compatibility List $9.99 / Each

1

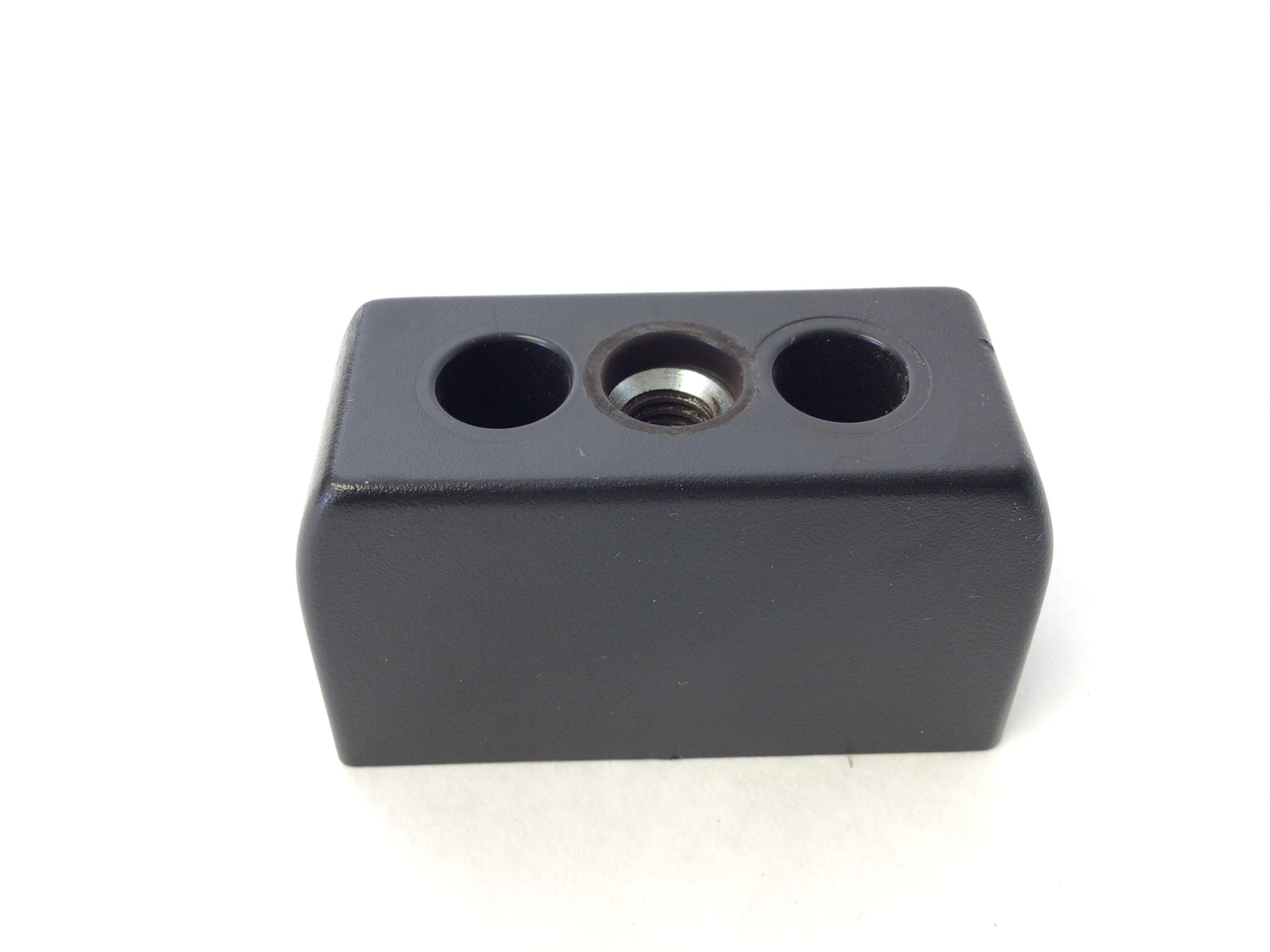

Rubber Base Pad Frame Thick 1012891 031-951-030-T # 1 Rubber Base Pad Frame Thick Yes Model Compatibility List $11.99 / Each

3

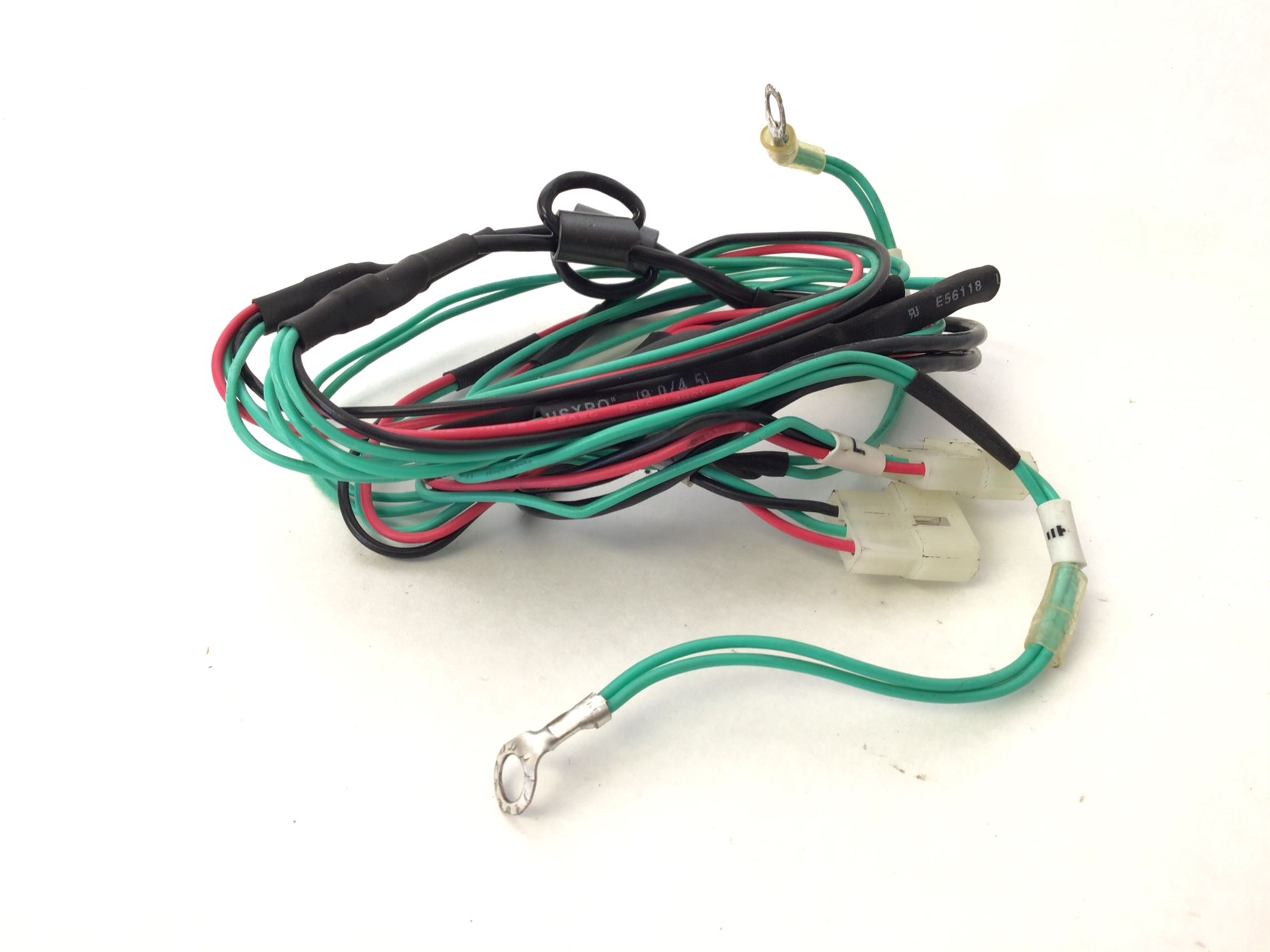

Main Wire Harness (used) 1012894 1210-17 # 1 Main Wire Harness (used) Yes Model Compatibility List $39.99 / Each

4

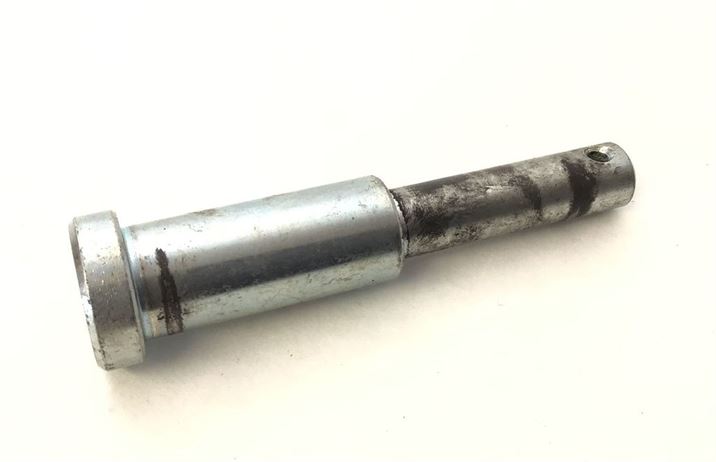

Incline Motor Pin Shoulder Screw 1012897 1210-61 # 1 Incline Motor Pin Shoulder Screw Yes Model Compatibility List $14.99 / Each

2
Adjustable Leveler Level Ensemble 1012894 2100-72A & 1200-15 # 2 Adjustable Leveler Level Ensemble Yes Model Compatibility List $12.99 / Each

3

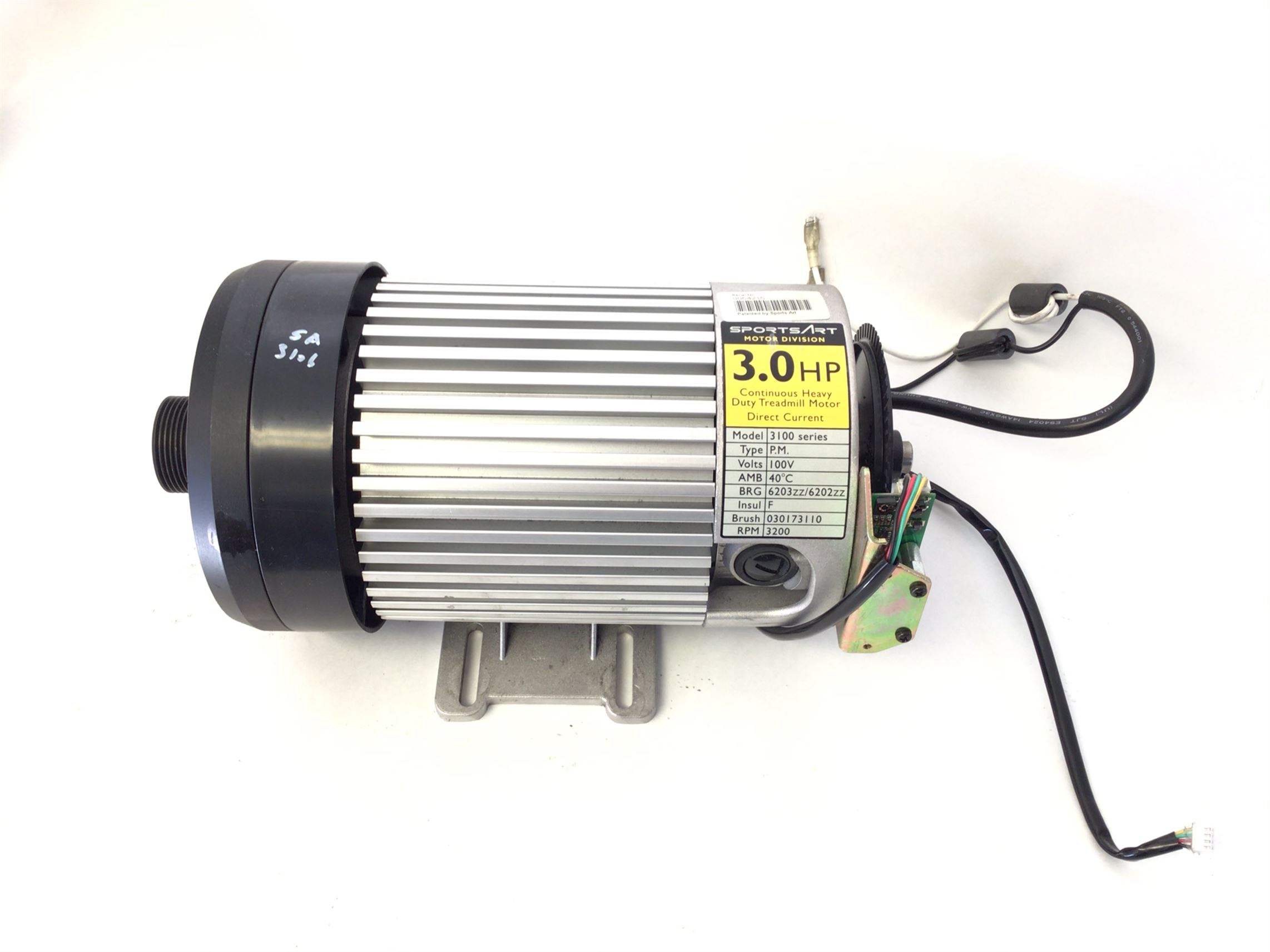

3.0HP Drive Motor HeatSink Body (Used) 1018942 3106-42 # 1 3.0HP Drive Motor HeatSink Body (Used) Yes Model Compatibility List $299.00 / Each
Out Of Stock
1,10

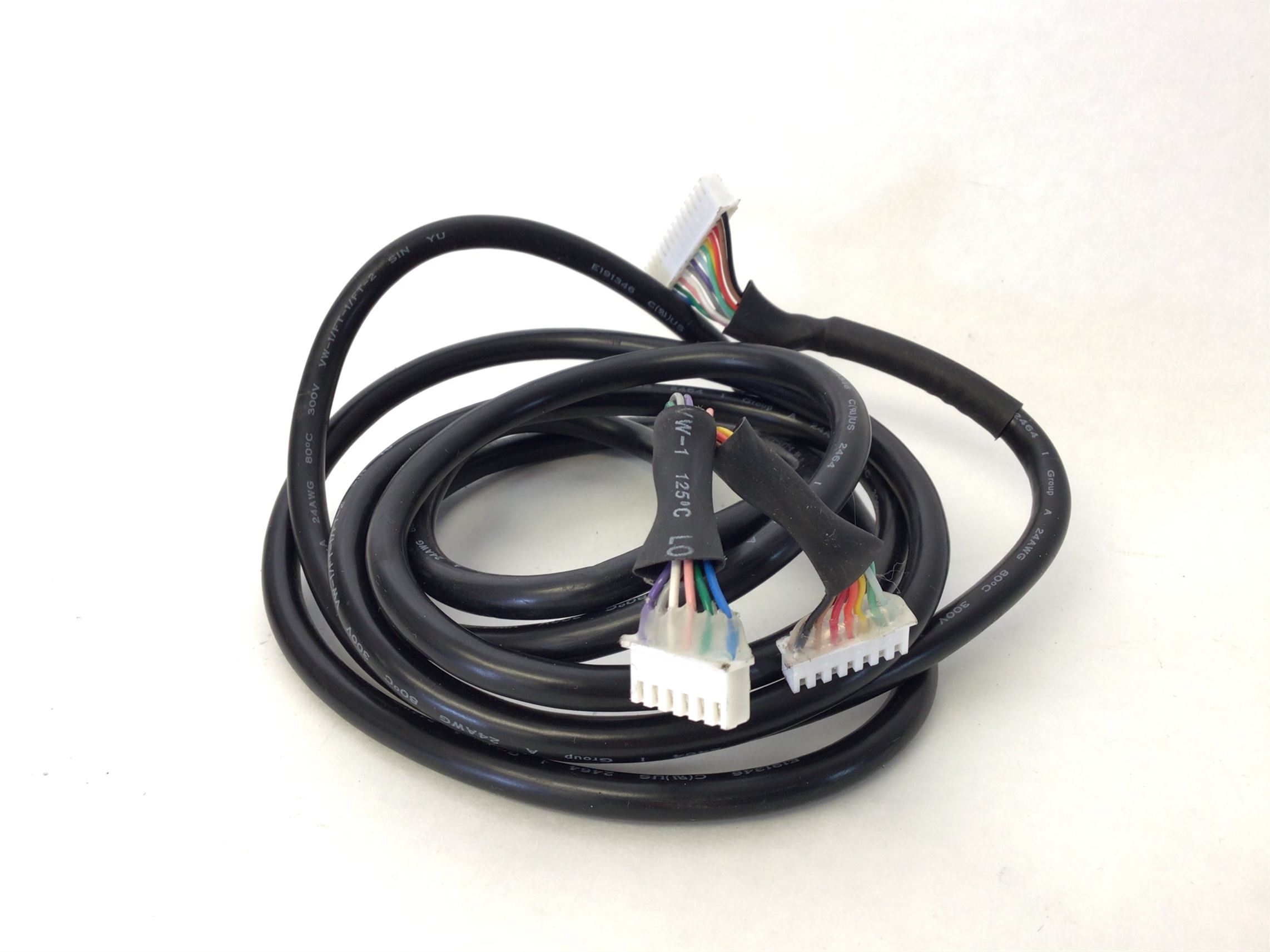

Pulse Wire Harness (Used) Left Right 1012896 3106-60 # 1 Pulse Wire Harness (Used) Left Right Yes Model Compatibility List $19.99 / Each

4

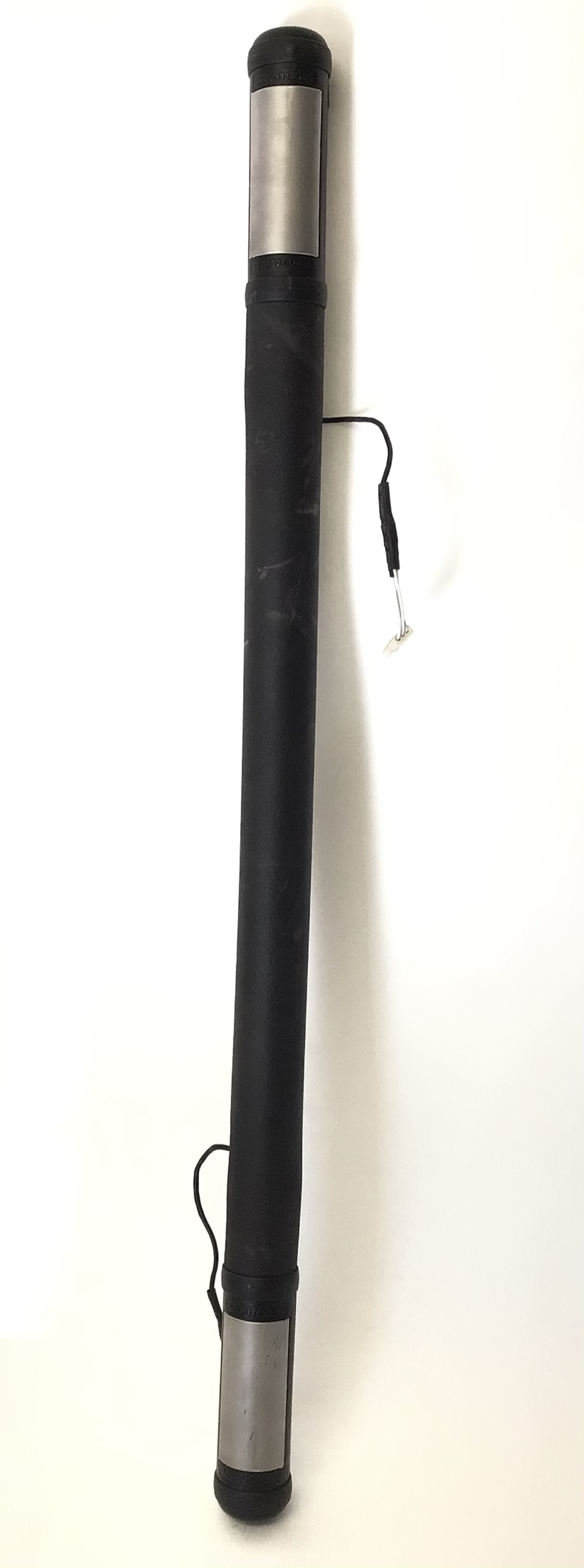

Front  Walking Handle Handlebar - Pulse Sensor Bar (Used) 1018947 3110-86 # 1 Front Walking Handle Handlebar - Pulse Sensor Bar (Used) Yes Model Compatibility List $49.99 / Each

3

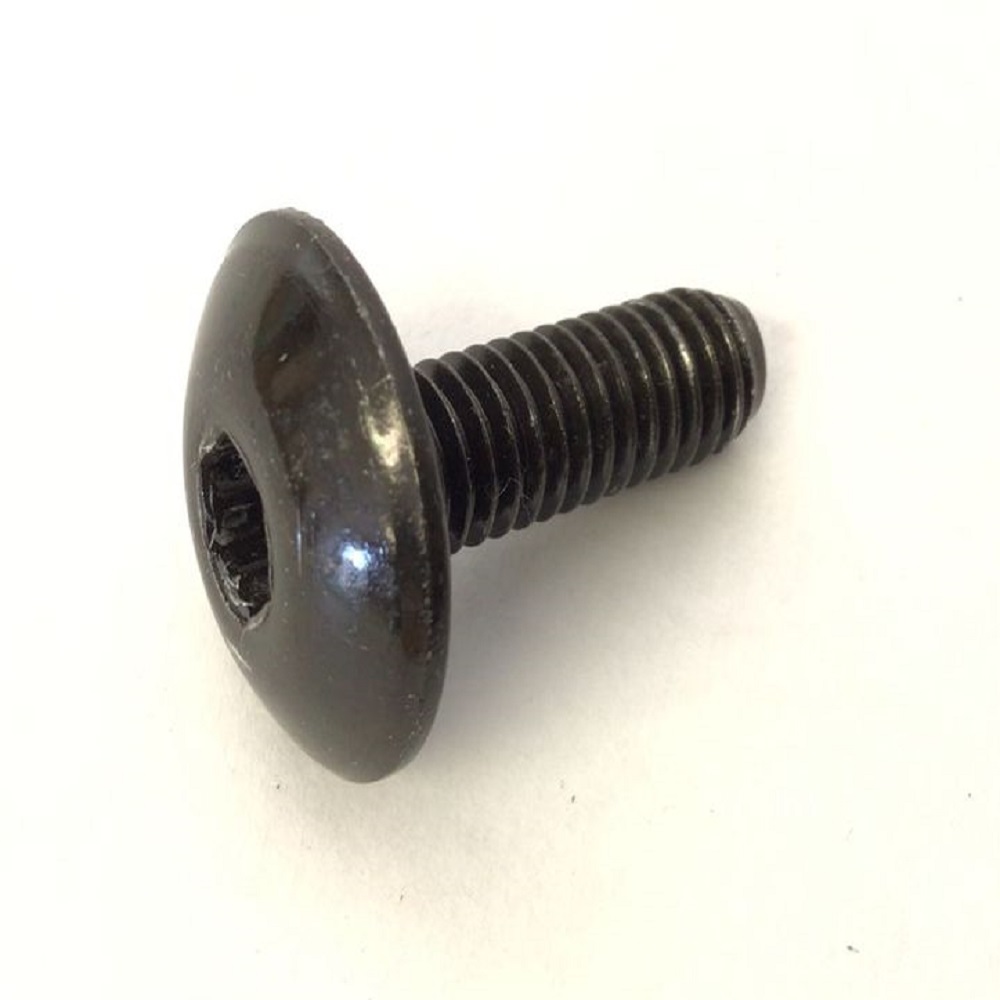

Front Frame Plate Screw Large Button Head 1012895 3106BH # 4 Front Frame Plate Screw Large Button Head Yes Model Compatibility List $7.99 / Each

2

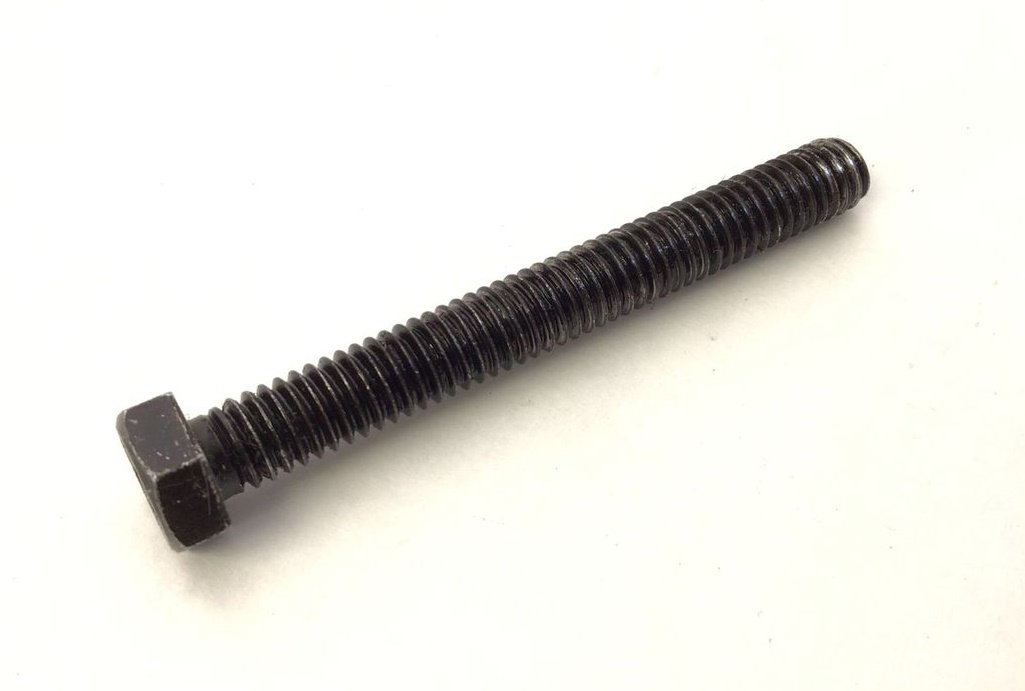

Rear Roller Bolt Hex 1012892 SA-RRB # 2 Rear Roller Bolt Hex Yes Model Compatibility List $7.99 / Each

1
Wedge Lock Washer 1012893 3106-WLW # 6 Wedge Lock Washer Yes Model Compatibility List $5.99 / Each

2
HTR Heart Rate Circuit Board (Used) 1019020 3100-74 # 1 HTR Heart Rate Circuit Board (Used) Yes Model Compatibility List $59.00 / Each

7
Leveler Support (Used) 1019544 1200-14 0 2 Leveler Support (Used) Yes Model Compatibility List $9.99 / Each

9
12A 12 AMP Fuse & Fuse Holder (Used) 1019556 FSHR-01 0 1 12A 12 AMP Fuse & Fuse Holder (Used) Yes Model Compatibility List $9.99 / Each

1
Fuse holder 1A (Used) 1021388 FSHR-01 59 1 Fuse holder 1A (Used) Yes Model Compatibility List $14.99 / Each
1
Leveler Foot Stopper (Used) 1021407 1200-15 29 1 Leveler Foot Stopper (Used) No Model Compatibility List $6.75 / Each

1
REAR ROLLER (Used) 1021450 1200-62 18 1 REAR ROLLER (Used) No Model Compatibility List $138.69 / Each
Out Of Stock
1

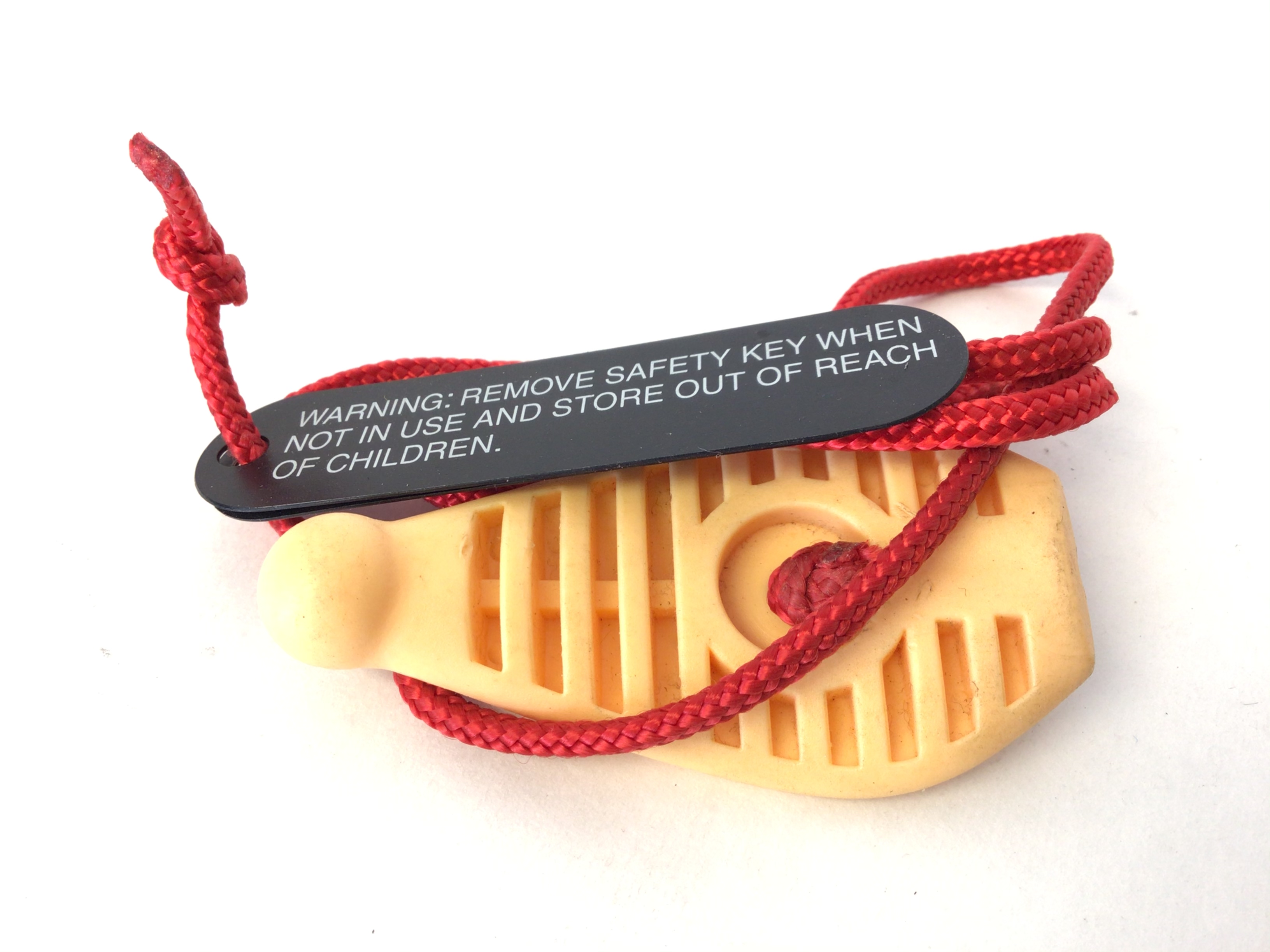

SAFETY KEY (Used) 1021459 1210-04A 6a 1 SAFETY KEY (Used) No Model Compatibility List $18.28 / Each
Out Of Stock
1
SUPPORT PIECE  RIGHT (Used) 1021409 1210-15 12 1 SUPPORT PIECE RIGHT (Used) No Model Compatibility List $10.21 / Each

1
CROSSBAR (Used) 1021424 1210-27 24A 1 CROSSBAR (Used) No Model Compatibility List $17.22 / Each

1
TRANSFORMER (Used) 1021449 1210-52 49 1 TRANSFORMER (Used) No Model Compatibility List $131.51 / Each

1
WIRE SPEED SENSOR TO DRIVE (Used) 1021448 3100-53 45 1 WIRE SPEED SENSOR TO DRIVE (Used) No Model Compatibility List $13.39 / Each

1,4
Clevis Pin (Used) 1021421 3100-59 35 2 Clevis Pin (Used) No Model Compatibility List $5.74 / Each

1
KEYPAD SUPPORT RIGHT (Used) 1021462 3106-09 9 1 KEYPAD SUPPORT RIGHT (Used) No Model Compatibility List $5.58 / Each

1
KEYPAD SUPPORT LEFT (Used) 1021435 3106-10 10 1 KEYPAD SUPPORT LEFT (Used) No Model Compatibility List $15.47 / Each

1
BELT ALINGMENT ASSEMBLY (Used) 1021419 3106-22 22 2 BELT ALINGMENT ASSEMBLY (Used) No Model Compatibility List $49.12 / Each

1
DRIVE BELT (Used) 1021406 3106-41 41 1 DRIVE BELT (Used) No Model Compatibility List $40.53 / Each

1,15

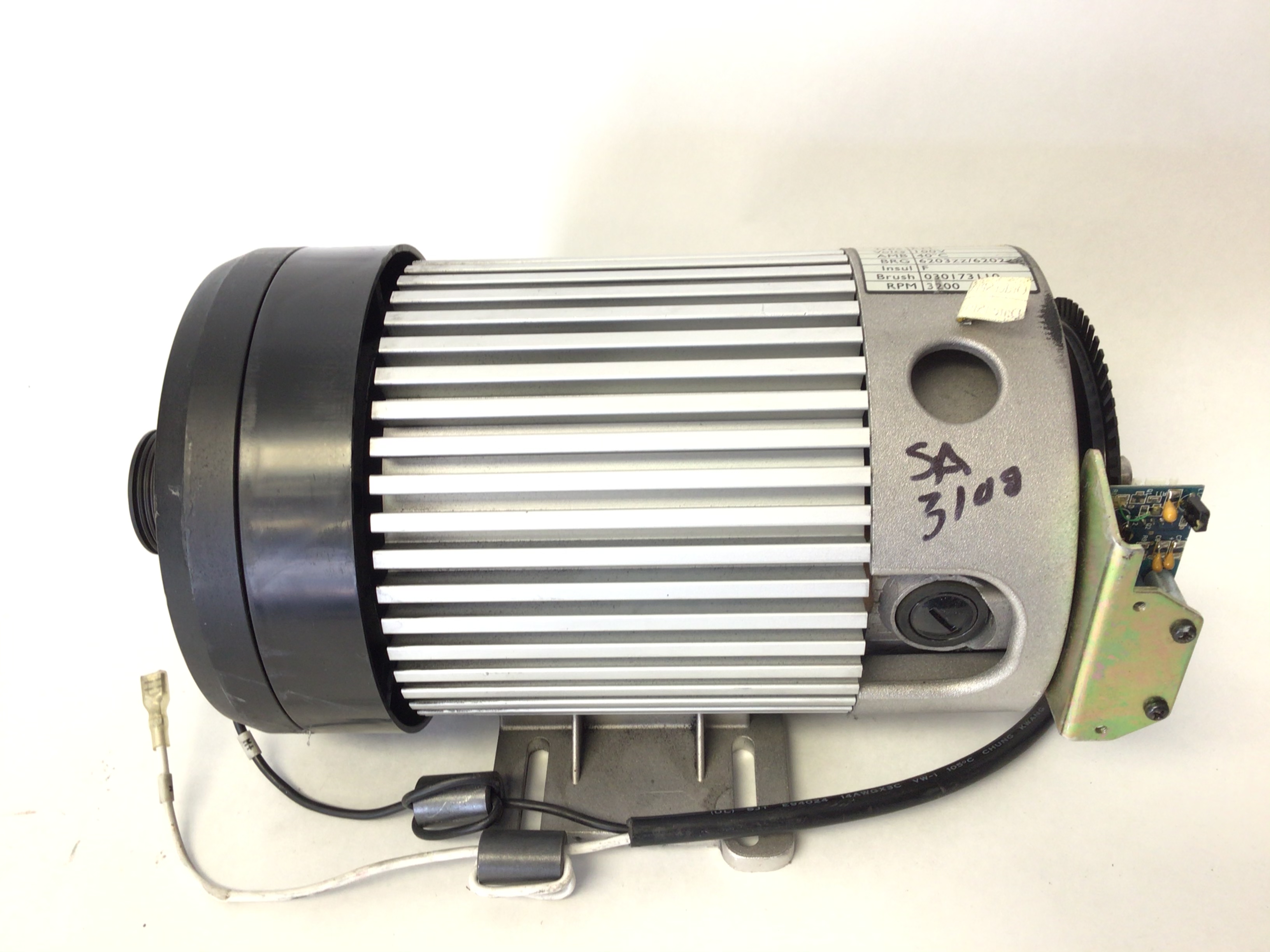

DRIVE MOTOR 90V (Used) 1021425 3106-42 42 1 DRIVE MOTOR 90V (Used) No Model Compatibility List $561.50 / Each

1,10
FUSE HOLDER (Used) 1021460 FSHR-01 56 1 FUSE HOLDER (Used) Yes Model Compatibility List $6.75 / Each
1
FUSE HOLDER (Used) 1021460 FSHR-01 56 1 FUSE HOLDER (Used) Yes Model Compatibility List $6.75 / Each
1
ELEVATION MOTOR (Used) 1021410 1210-42 39 1 ELEVATION MOTOR (Used) No Model Compatibility List $222.82 / Each

1,10
DRIVE BOARD (Used) 1021411 3106-47 47 1 DRIVE BOARD (Used) No Model Compatibility List $476.10 / Each
Out Of Stock
1
ON/OFF SWITCH (Used) 1021422 ONSW-01 57 1 ON/OFF SWITCH (Used) No Model Compatibility List $21.10 / Each
Out Of Stock
1
SportsArt 3106 Treadmill Display Console (Used) 1001538 3106-DC 0 1 SportsArt 3106 Treadmill Display Console (Used) No Model Compatibility List $197.99 / Each
Out Of Stock
1
SportsArt 807P E87 E85 3108 3120 Elliptical Stride Linkage Stopper 1200-15 (Used) 1006816 807P-SLS 0 6 SportsArt 807P E87 E85 3108 3120 Elliptical Stride Linkage Stopper 1200-15 (Used) No Model Compatibility List $12.59 / Each

1

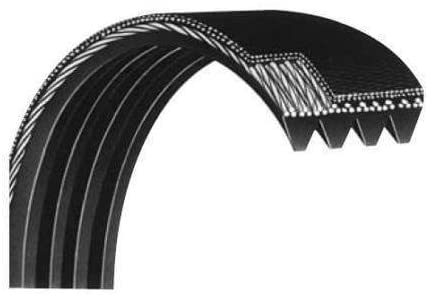

SPORTSART d&d Drive Belt 290J Works 3106 1210S 3108 3110 Commercial Treadmill (Used) 1017430 3106-D&DDB 0 1 SPORTSART d&d Drive Belt 290J Works 3106 1210S 3108 3110 Commercial Treadmill (Used) No Model Compatibility List $17.99 / Each
Out Of Stock
1,23
SportsArt 3106 Treadmill 1096N 1098F 3100HR 3200 E820 E86 Power Switch ONSW-01 (Used) 1003246 3106-PS 0 7 SportsArt 3106 Treadmill 1096N 1098F 3100HR 3200 E820 E86 Power Switch ONSW-01 (Used) No Model Compatibility List $25.99 / Each

1
Sensor RPM (Used) 1026636 3007-28 52A 1 Sensor RPM (Used) No Model Compatibility List $28.48 / Each
Out Of Stock
51
Disk RPM (Used) 1026650 3007-29 56A 1 Disk RPM (Used) No Model Compatibility List $15.41 / Each
Out Of Stock
1
Switch Power 1001620 ONSW-01 0 1 Switch Power No Model Compatibility List $31.99 / Each

1
Belt Drive 1002898 3106-41 0 1 Belt Drive No Model Compatibility List $39.99 / Each

1,15
View Drawing
