Cybex - Tectrix 500R

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
5 515397 CW-50026 57 NLA: WHEEL FRONT MOLDED Yes Model Compatibility List $0.00 / Each
Out Of Stock
8
7 515890 FW-54008 78 NC R&R Flywheel, Machined Yes Model Compatibility List $0.00 / Each
8,4,5,6
Rear Leveller (Used) 1020842 PL-05044 64 2 Rear Leveller (Used) No Model Compatibility List $10.57 / Each

9

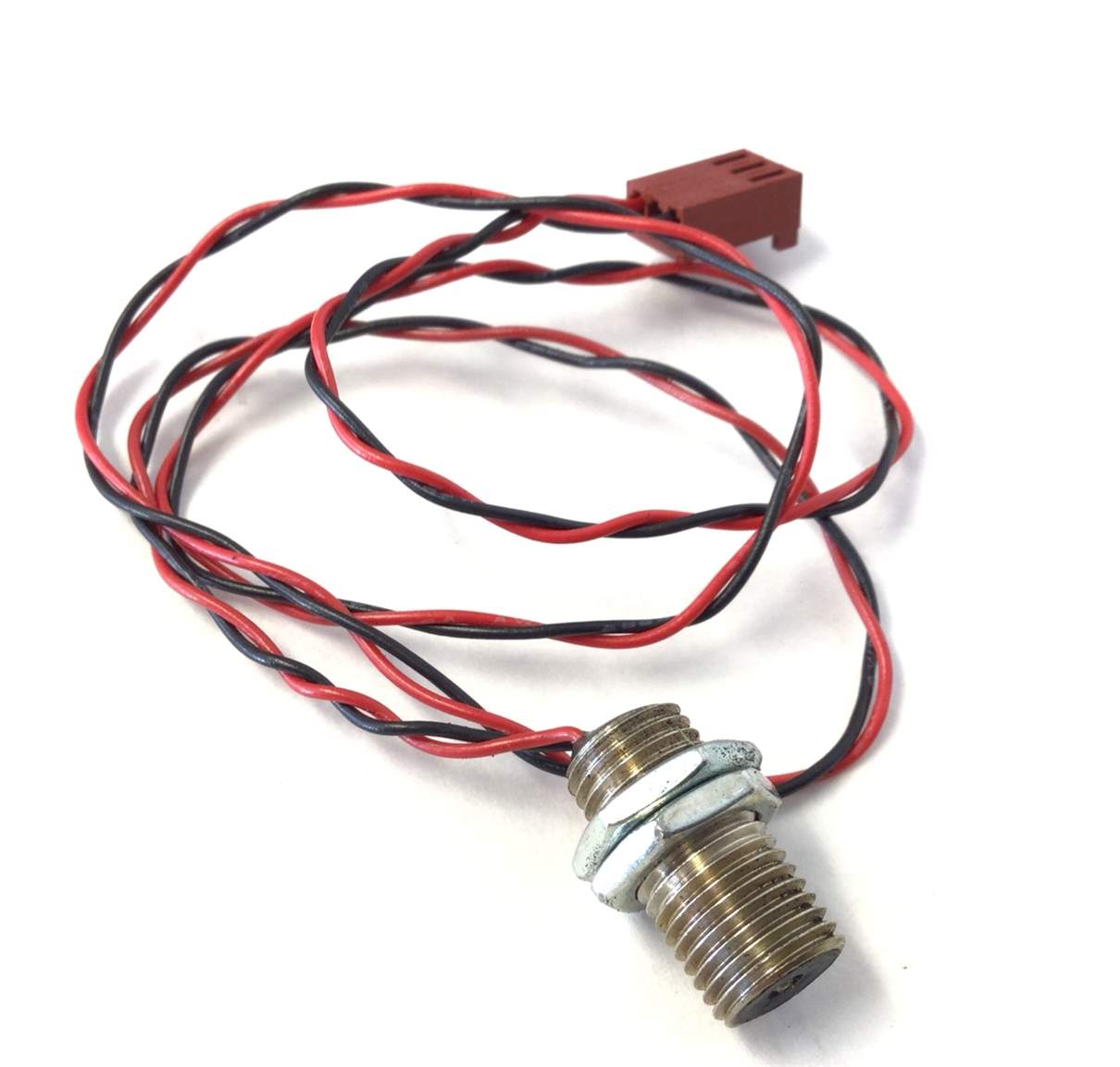

Sensor Speed (Used) 1023909 EC-22001 0 1 Sensor Speed (Used) No Model Compatibility List $44.96 / Each

1
Seat rack adjustment bracket (Used) 1023937 FS-51648 0 1 Seat rack adjustment bracket (Used) No Model Compatibility List $29.99 / Each

1

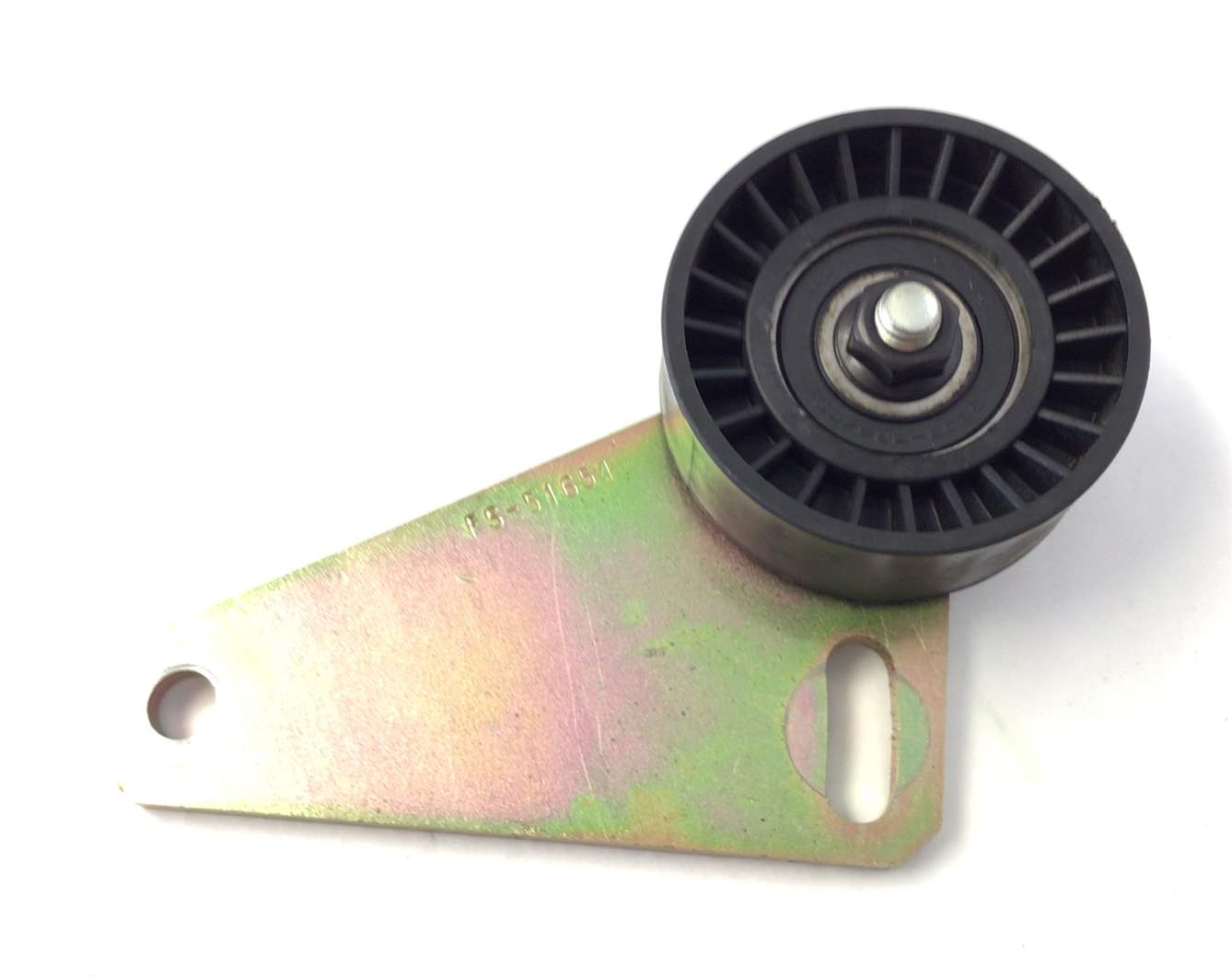

Plate Engine Idler Pulley (Used) 1023908 FS-51654 0 1 Plate Engine Idler Pulley (Used) No Model Compatibility List $35.99 / Each

1
Endcap seat rail (Used) 1023922 PL-50069 0 1 Endcap seat rail (Used) No Model Compatibility List $14.39 / Each

1
5 1034234 CW-50026 24 2 Front Wheel Molded (Used) Yes Model Compatibility List $23.99 / Each
Out Of Stock
8
BEARING, RADIAL BALL, 30 MM, W-SEALS 2rs6006 HB-44062 374 2 BEARING, RADIAL BALL, 30 MM, W-SEALS Yes Model Compatibility List $23.99 / Each

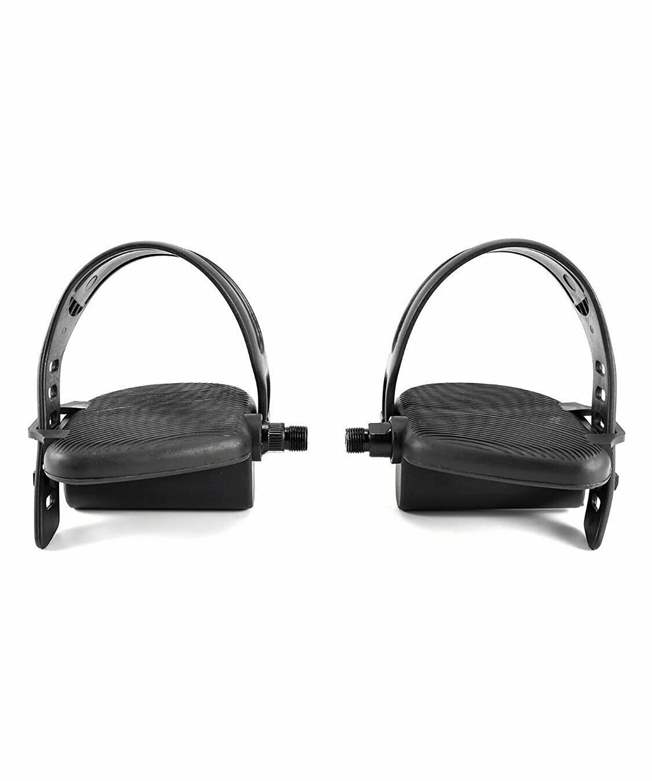

Half Inch Pedal Pair tect-1-2-inch AX-50068 0 1 Half Inch Pedal Pair Yes Model Compatibility List $71.99 / Each

Bracket with out Resistor (Used) 1034490 AX-70418 0 1 Bracket with out Resistor (Used) No Model Compatibility List $11.99 / Each

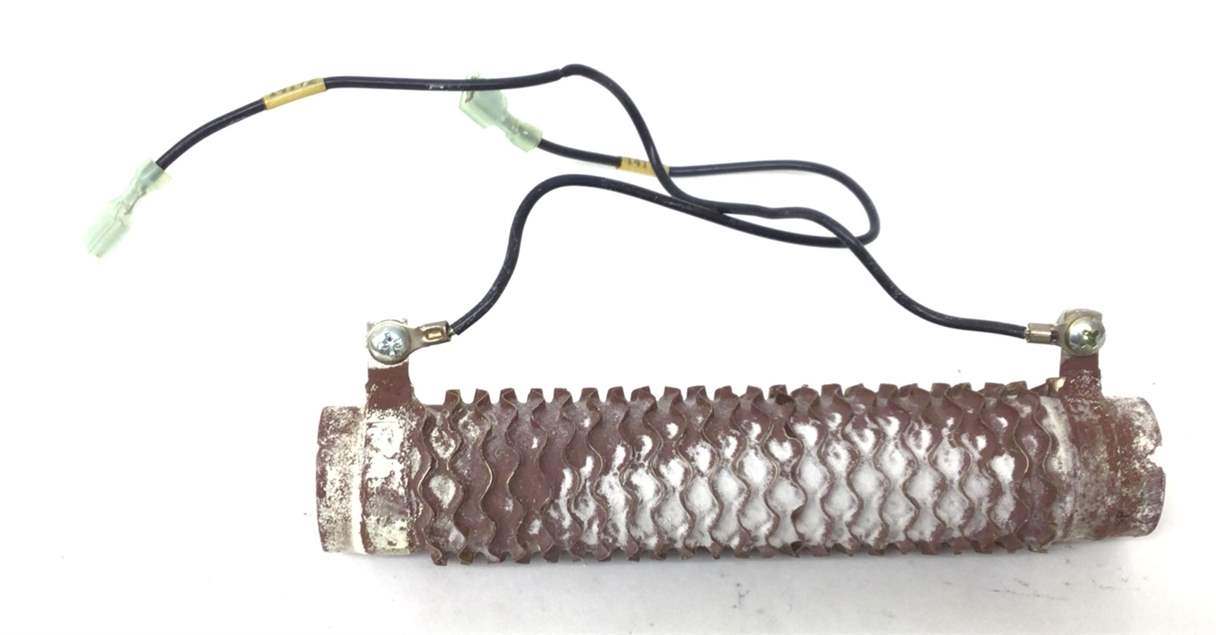

Resistor with Wire Harness (Used) 1034489 AX-70418 0 1 Resistor with Wire Harness (Used) No Model Compatibility List $17.99 / Each

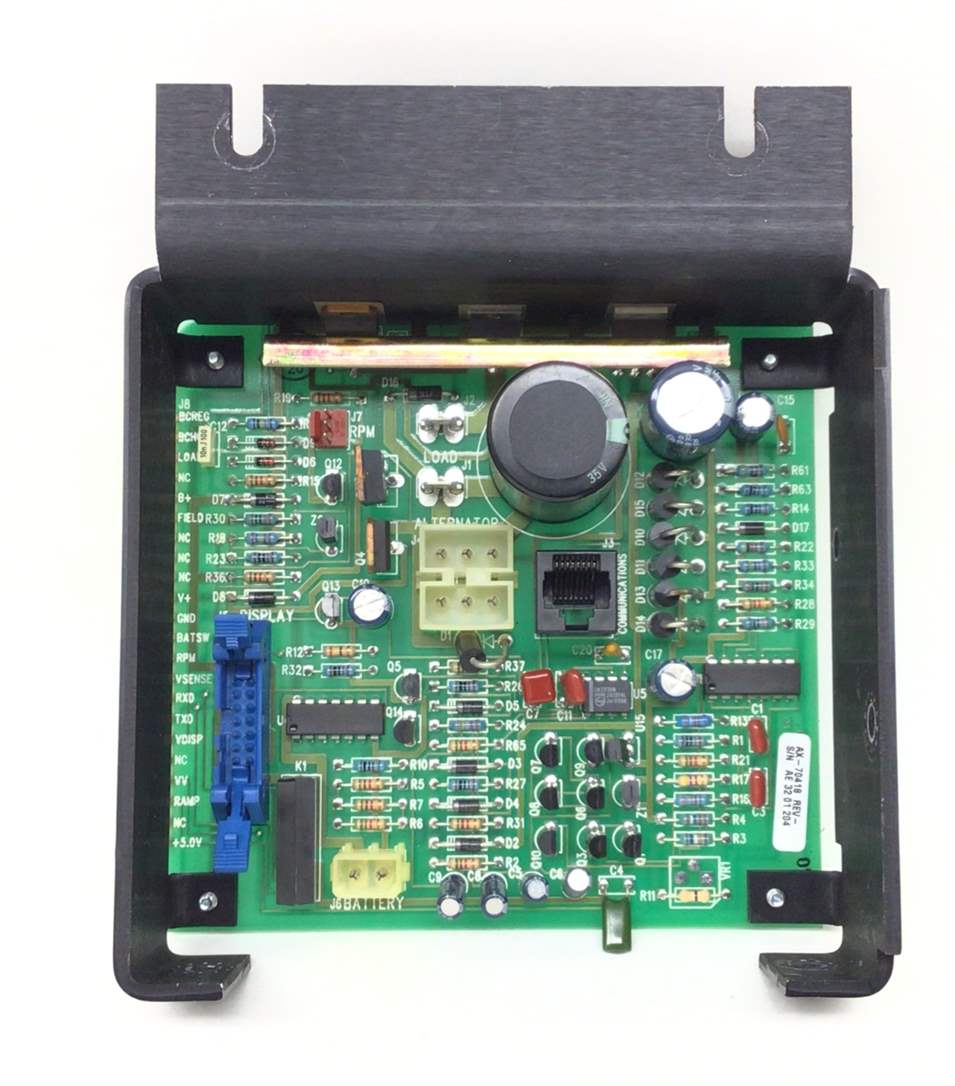

Bike alternator control board (Used) 1034488 AX-70418 0 1 Bike alternator control board (Used) No Model Compatibility List $154.80 / Each

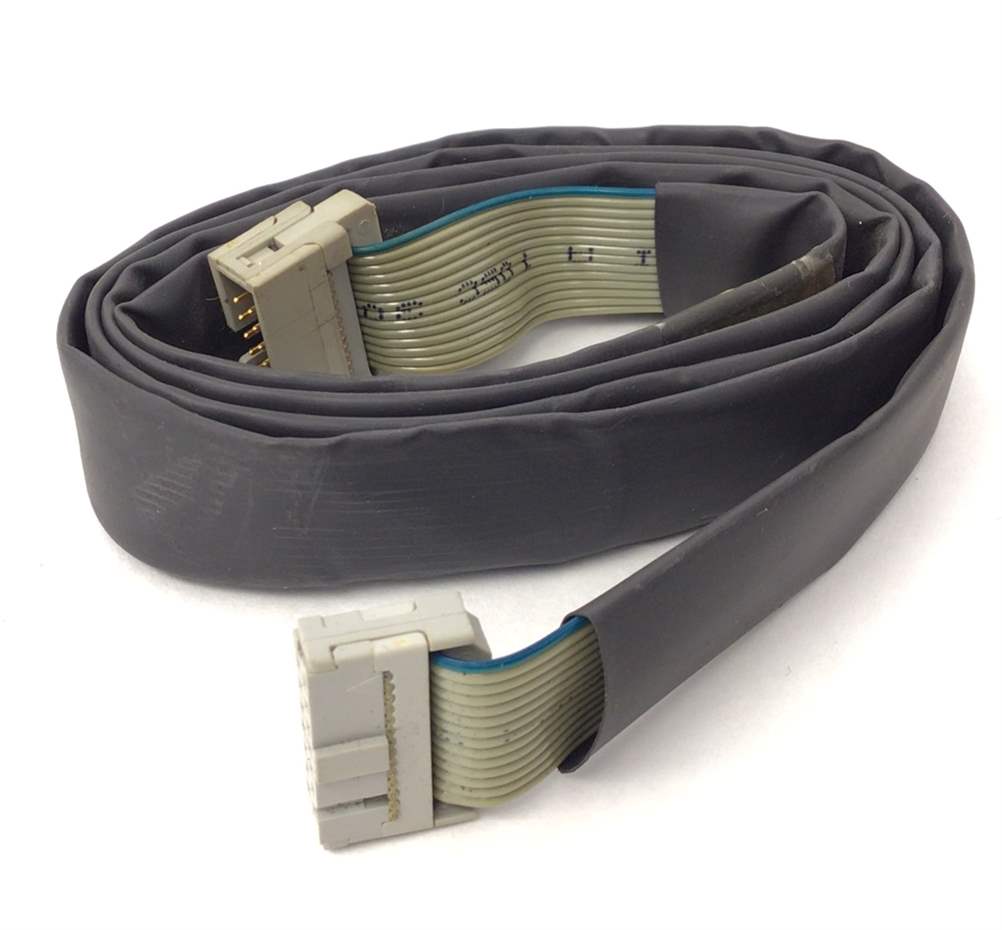

Wire Harness, Display Console Base (Used) 1034584 AW-14154 0 1 Wire Harness, Display Console Base (Used) No Model Compatibility List $21.60 / Each

Wire harness, Battery (Used) 1034570 AW-14173 0 1 Wire harness, Battery (Used) No Model Compatibility List $12.00 / Each
Out Of Stock

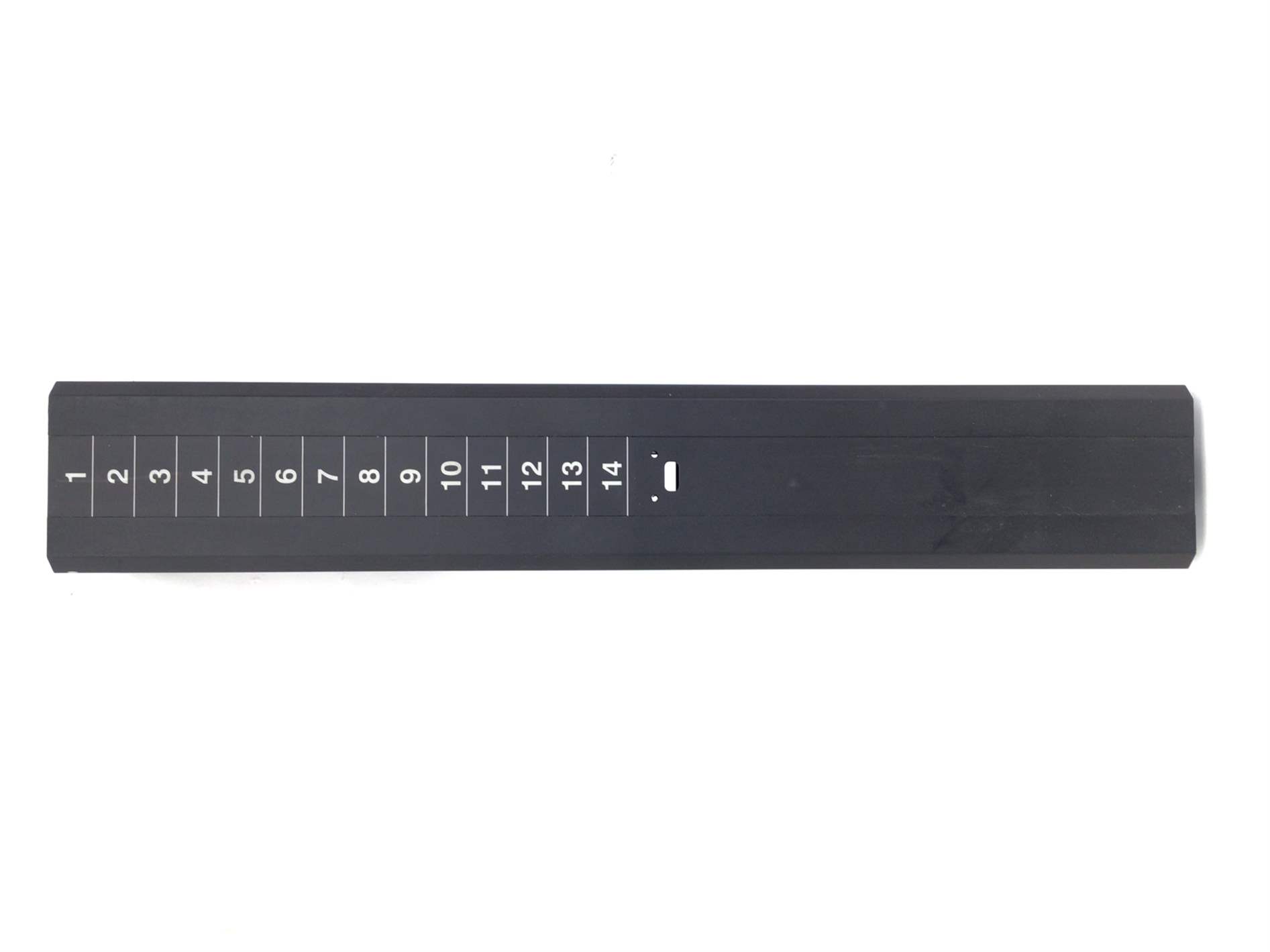

Assy Extrusion Bmr A1 (Used) 1034585 AX-62016 0 1 Assy Extrusion Bmr A1 (Used) No Model Compatibility List $106.80 / Each

5 1034581 CW-50026 0 1 Wheel, Transport (Used) Yes Model Compatibility List $18.00 / Each
Out Of Stock
8

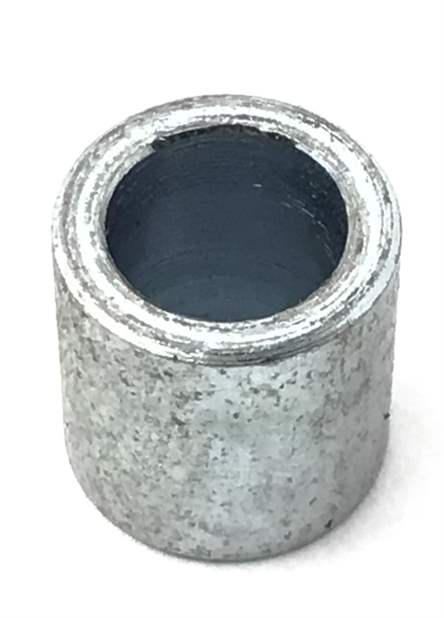

8 1034569 FM-51215 0 1 Spacer, Wheel (Used) No Model Compatibility List $6.00 / Each

2,8,3,4,5,6
Motor Bracket Clamp (Used) 1034568 FS-51653 0 1 Motor Bracket Clamp (Used) No Model Compatibility List $12.00 / Each

2 1034583 HX-05082 0 1 Bumper (Used) No Model Compatibility List $6.00 / Each

12,13,14
Tectrix Self Powered Elliptical Battery 1000183 0819-0012 Tectrix Self Powered Elliptical Battery Yes Model Compatibility List $91.19 / Each

Drive Belt 1003467 BD-44061 Drive Belt Yes Model Compatibility List $46.79 / Each

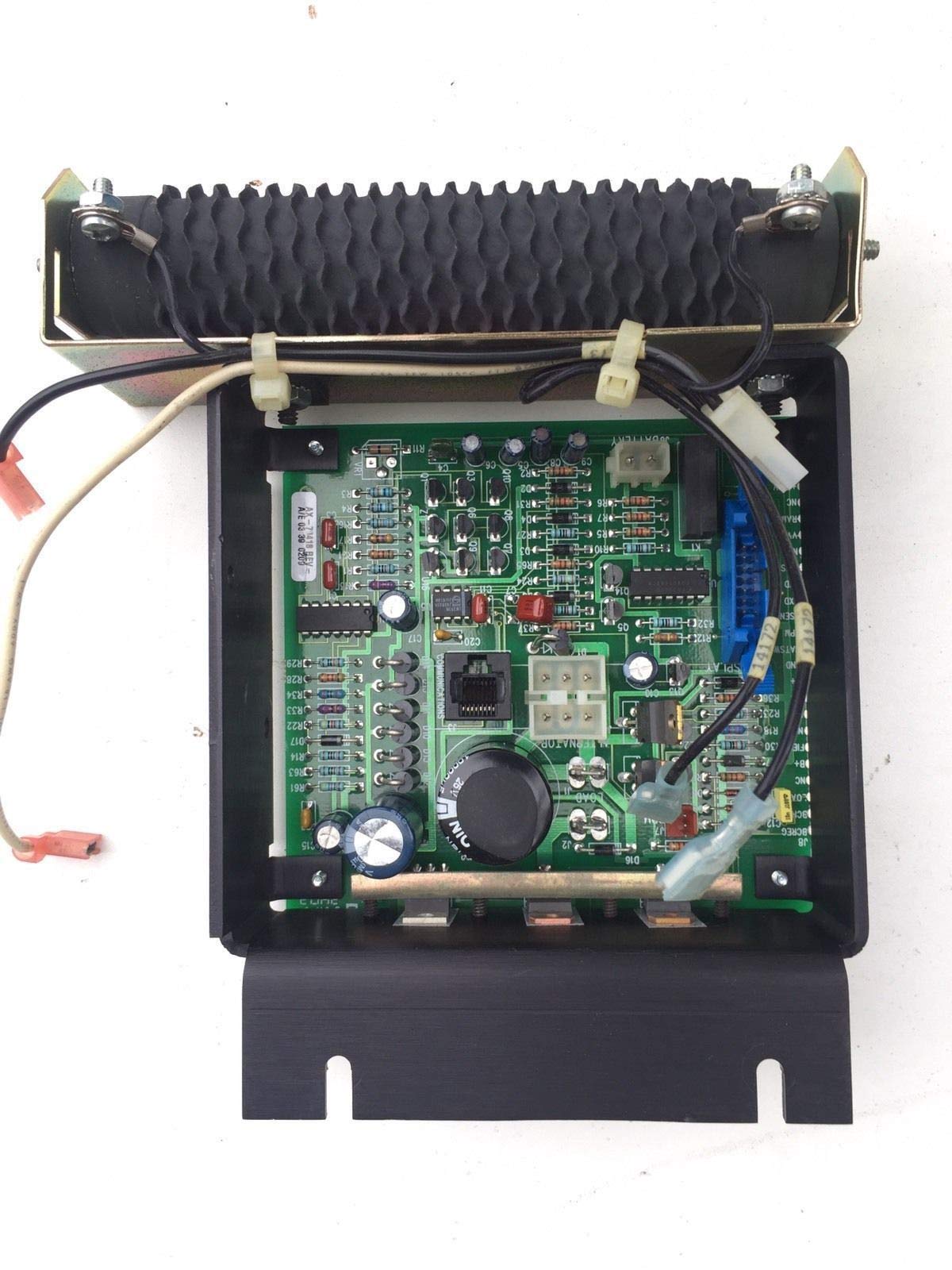

Contol Controller Board 1003591 ax-70418 Contol Controller Board Yes Model Compatibility List $149.00 / Each
Out Of Stock
Sealed Bearing (New) 013971 HB-44062 Sealed Bearing (New) Yes Model Compatibility List $34.99 / Each
1
Black Seat Bottom (Used) 1003821 blck-seat-21 Black Seat Bottom (Used) Yes Model Compatibility List $68.39 / Each

34

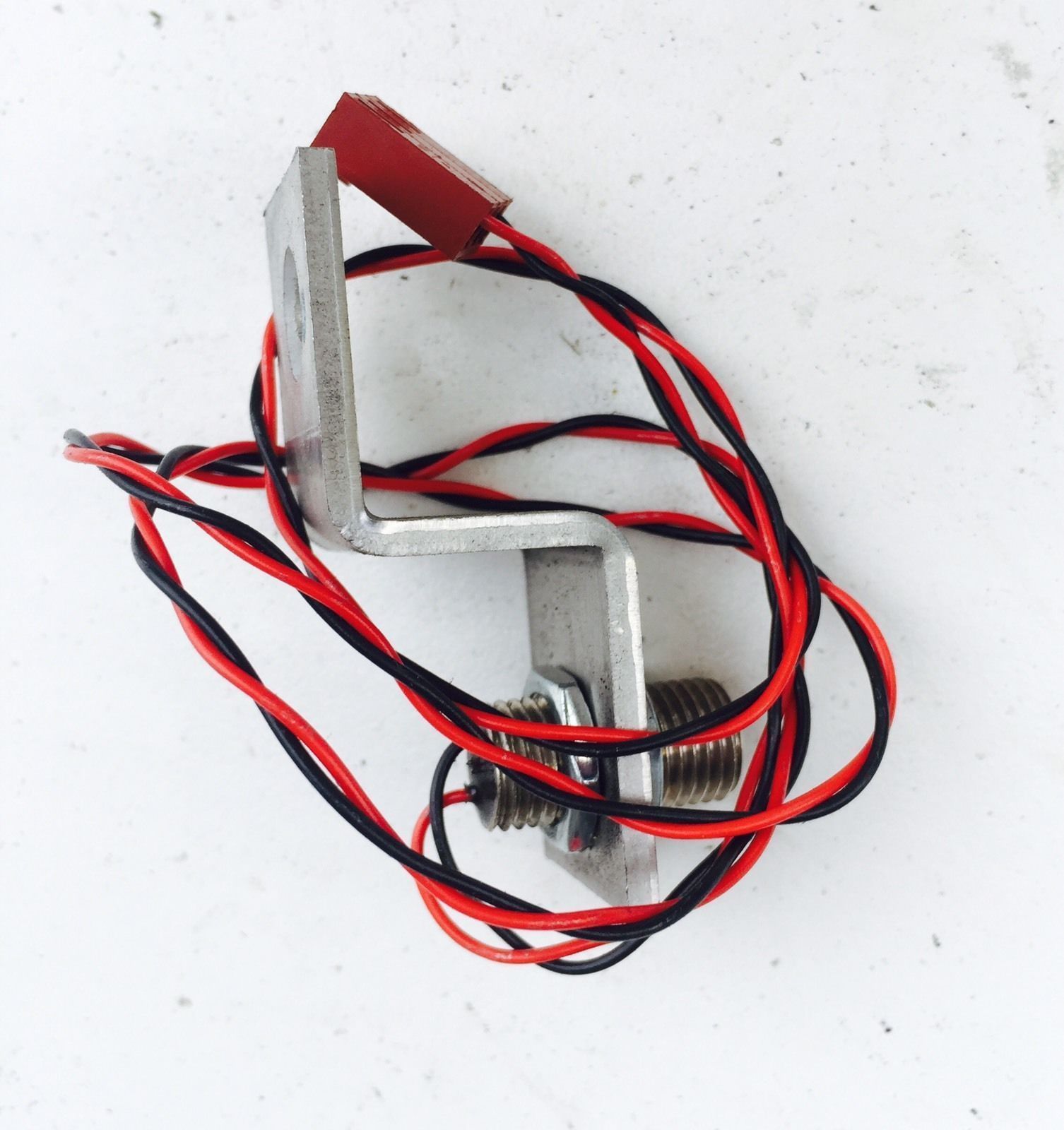

Speed Sensor and Bracket (Used) 1003668 brckt-3668 Speed Sensor and Bracket (Used) Yes Model Compatibility List $17.99 / Each

41,47
Main Drive Belt (New) 520j10 m-drv-blt Main Drive Belt (New) No Model Compatibility List $39.99 / Each

23
Secondary Drive Belt (New) 1003647 secndry-blt-47 Secondary Drive Belt (New) No Model Compatibility List $49.99 / Each

23
Secondary Longer Drive Belt (New) 870j6 longer-blt-j06 Secondary Longer Drive Belt (New) No Model Compatibility List $39.99 / Each

23
Plastic Water Bottle Holder OEM (Used) 1003273 holder-273 Plastic Water Bottle Holder OEM (Used) Yes Model Compatibility List $11.99 / Each

1
Pulley Flywheel (Used) 1015127 pulweel-27 Pulley Flywheel (Used) Yes Model Compatibility List $39.00 / Each

35
Alternator Belt 77 Ct-770j6 44059 Alternator Belt 77" (New) Yes Model Compatibility List $79.99 / Each
23
Adjustment Seat Knob (Used) 1015128 seatknb-28 Adjustment Seat Knob (Used) Yes Model Compatibility List $14.99 / Each

1

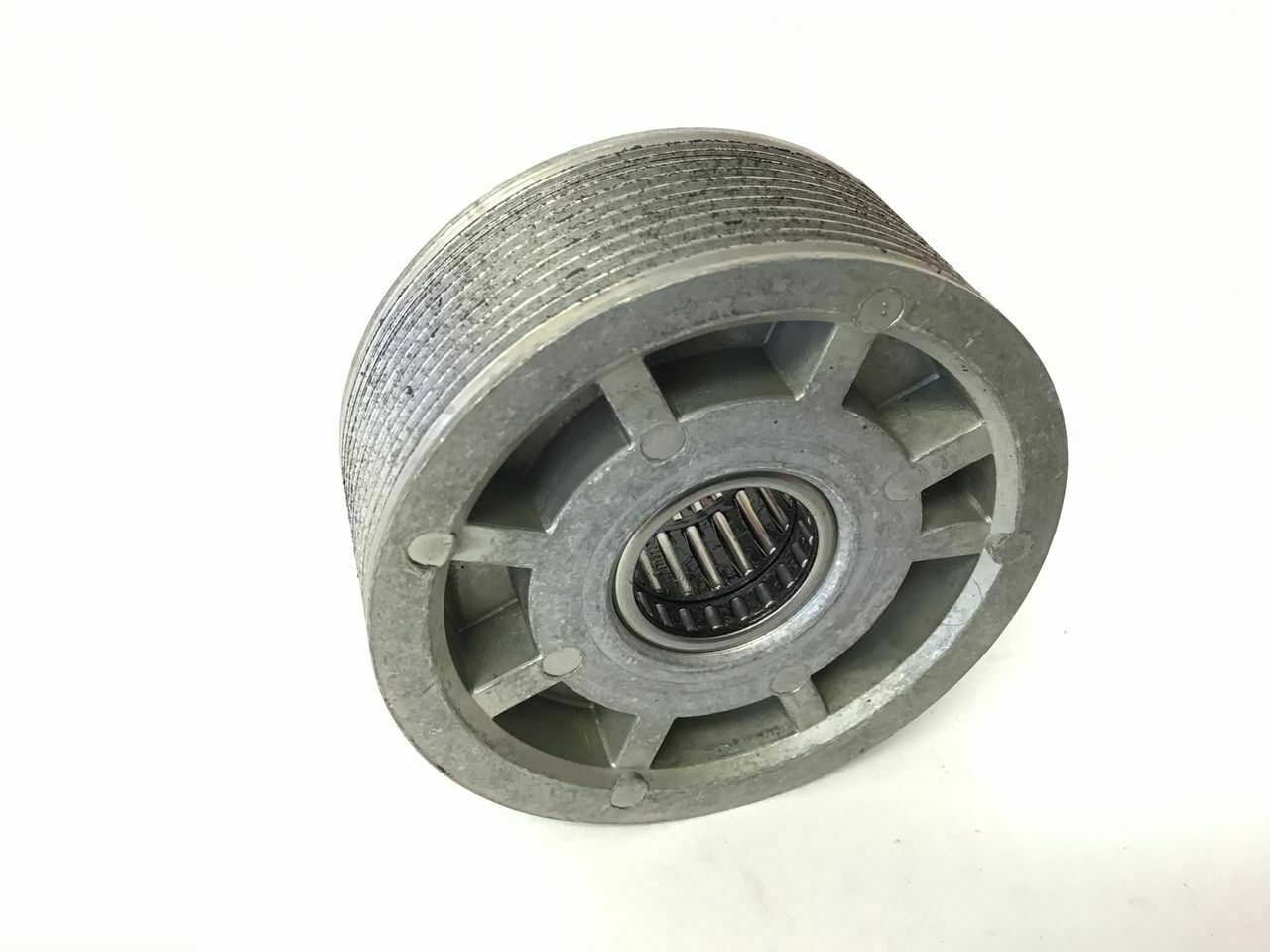

Aluminum Pulley Wheedle Bearings (Used) 1015129 alumi-pul-29 Aluminum Pulley Wheedle Bearings (Used) Yes Model Compatibility List $21.59 / Each

1
Back Seat Pad (Used) 1015116 pad-seat-16 Back Seat Pad (Used) Yes Model Compatibility List $33.59 / Each

34
Console Main Wire Harness (Used) 1015134 cnsl-wir-34 Console Main Wire Harness (Used) Yes Model Compatibility List $17.99 / Each
Out Of Stock
4,51
Display Console Panel (Used) 1015133 discnl-133 Display Console Panel (Used) Yes Model Compatibility List $175.99 / Each

51
Engine Assembly (used) 1015115 eng-asb-15 Engine Assembly (used) Yes Model Compatibility List $66.59 / Each
Out Of Stock
1
Main Wire Harness (Used) 1015123 23-wire Main Wire Harness (Used) Yes Model Compatibility List $21.59 / Each

4
Polar Heart Rate Wire Harness (Used) 1015121 plr-rate-21 Polar Heart Rate Wire Harness (Used) Yes Model Compatibility List $17.99 / Each
Out Of Stock
4
Pulley Drive Belt 77 (New) CB770J6 drvi-blt-j60 Pulley Drive Belt 77 (New) Yes Model Compatibility List $85.99 / Each

23
Rear Seat Cover (Used) 1015120 50069 Rear Seat Cover (Used) Yes Model Compatibility List $17.39 / Each

44
Spindle Pair (New) 013608 spnew-08 Spindle Pair (New) Yes Model Compatibility List $135.99 / Each

1
