AFG - Advanced Fitness Group - 3.3AT - 2014

Repair Parts for AFG - Advanced Fitness Group 3.3AT TM438E

Brand: AFG - Advanced Fitness Group

Category: Folding

Type: Folding Treadmill

Model Name: 3.3AT

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700152 000522-D K50 Leveler Yes Model Compatibility List $11.60 / Each

700291 000877-B M05 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $2.18 / Each

H 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $3.82 / Each

P 700839 002500-B P10 PWR Wire;CTL Board;250 14AWG(250 Negativ No Model Compatibility List $3.82 / Each

700893 002671-A N76 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

701016 003337-00 P04 Circuit Breaker;15A/125V Yes Model Compatibility List $28.73 / Each

4,5,6
P 701031 003378-00 P13 Ferrite Core No Model Compatibility List $13.10 / Each

N 701094 003721-00 N34 Screw;Phillip;BH;Tapped;3x6L;Zn+3(White No Model Compatibility List $2.00 / Each

2
701331 004384-00 P14 Screw;Phillip;BH;M5x0.8Px30L;Ni;Gap; No Model Compatibility List $2.00 / Each

P 701354 004404-00 P22 Screw;Phillip;BH;M4x0.7Px8L;;Zn-BL No Model Compatibility List $2.00 / Each

P 701363 004415-00 P15 Screw;FH;M3X0.5PX10L;;PH;;ZN;; No Model Compatibility List $2.00 / Each

701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

B 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

701561 004592-00 M14 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

701590 004619-AB N41 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

K 701599 004623-00 K21 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

N 701614 004633-00 N38 Screw;Phillip;BH;Tapped;5x10L;;Zn-BL No Model Compatibility List $1.85 / Each

2
B 701713 004730-00 B50 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

K 701735 004759-00 K16 Screw;Hex Socket;BH;M10x1.5Px45L(Tooth15 No Model Compatibility List $2.00 / Each

B 701745 004768-00 B51 Screw;Oval;Hex Socket;BH;M8X1.25PX15L No Model Compatibility List $1.79 / Each

2
701848 004865-00 Q38 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701849 004867-A Z08 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 H05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M17 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

M 701912 004941-00 M18 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

B 701944 004979-00 B39 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.79 / Each

701964 005005-00 Z06 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

H 702015 005049-00 H09 Washer;Flat;8.2x18.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 702118 005145-A B54 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

M 702136 005165-00 M16 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

702145 005177-00 P17 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

702160 005196-00 H17 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702217 005330-00 Q37 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

V 702322 006069-AX V16 Sticker;Warning;; new code disc No Model Compatibility List $0.21 / Each

702325 006078-00 V18 Decal;Grounding;TM08 No Model Compatibility List $1.90 / Each

Q 702502 008196-B Q36 Connecting Plate;Side Cover No Model Compatibility List $1.90 / Each

9,3
703919 019354-A P06 Connecting Cable;Breaker/Switch;Black;120mm No Model Compatibility List $9.57 / Each

703920 019370-A P09 Power Cord;14 Guage/15 Amp Yes Model Compatibility List $57.49 / Each

R 704011 020101-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc No Model Compatibility List $2.00 / Each

Q 704074 020186-00 Q35 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

P 704077 020192-A P16 Screw;Umbrella Cross Tapped;4X10L;Flat No Model Compatibility List $2.00 / Each

N 704081 020201-A N50 SCREW;BH;Diam.3X8L;TC;PH;;BZN;;FLT No Model Compatibility List $2.00 / Each

C 704089 020210-AC C22 Screw;Round;Tapping;3x20L No Model Compatibility List $1.79 / Each

Z 704120 020283-00 Z04 Screw;Hex Socket;BH;M8x1.25Px70L-20L;Partial No Model Compatibility List $2.00 / Each

2
Z 704175 020425-00 Z05 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

M 704203 020478-00 M33 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

704289 022259-A Q31 Screw;TRH;4X6L;SM;PH;;BZN;;FLT No Model Compatibility List $2.00 / Each

2
B 705259 039400-BA B25 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

N 705286 040614-A N81 Ground Wire;250 Yes Model Compatibility List $3.82 / Each

Z 706178 059929-B Z01 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

P 706350 061301-A P02 Power Switch;KCD3 Yes Model Compatibility List $28.73 / Each

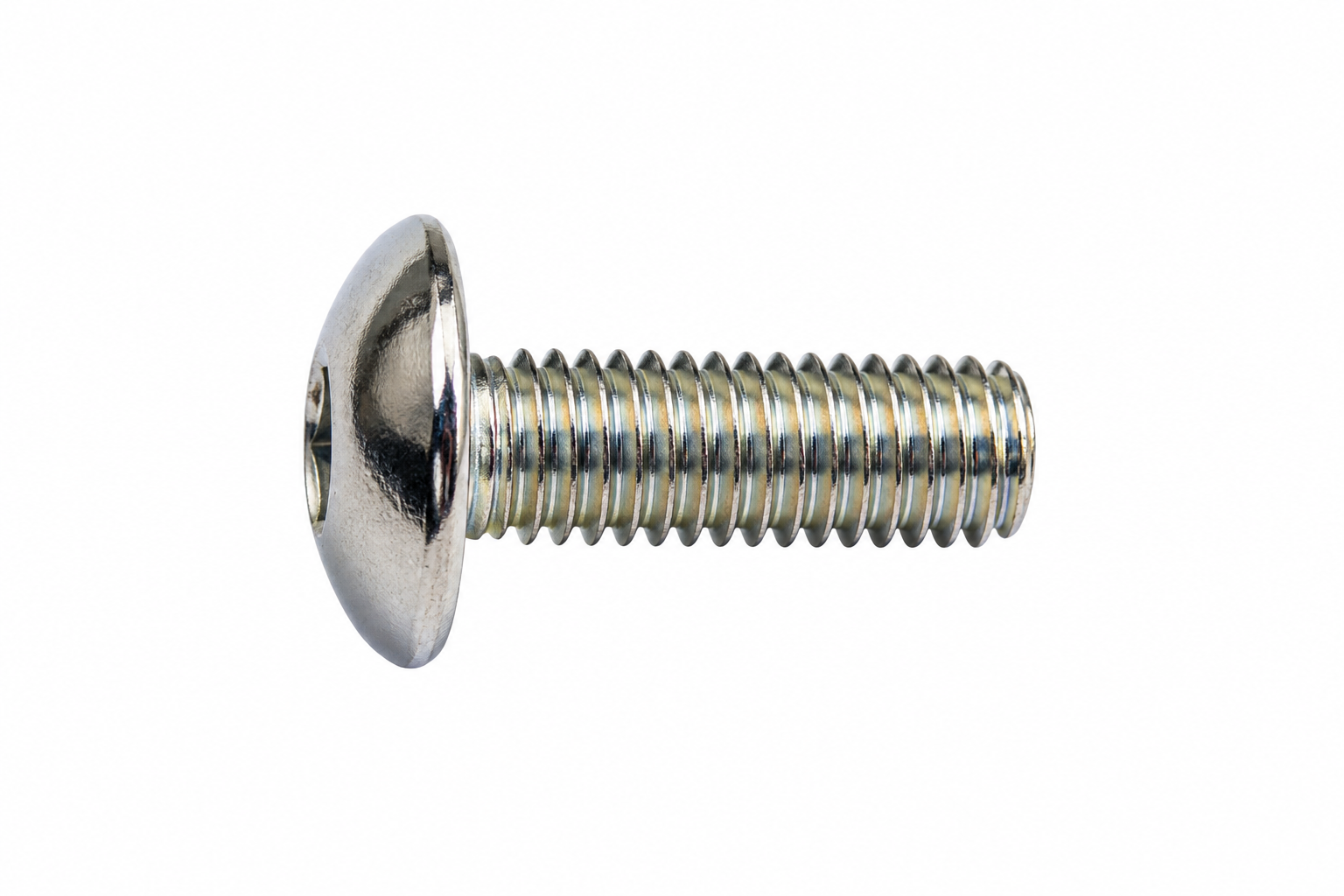

P 707102 1000090322 P23 SCREW BH M5X15 CHM No Model Compatibility List $2.00 / Each

2
H 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $3.82 / Each

707759 1000094875 H20 Spring No Model Compatibility List $4.00 / Each

707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.90 / Each

2,8
H 707990 1000097464 H24 Single Foam;One-Sided;27x20x1.5t;Black No Model Compatibility List $1.90 / Each

N 708240 1000101409 N77 CTL Board;Earphone;SOO0806A No Model Compatibility List $9.57 / Each

1
708243 1000101465 M02 Incline Motor;AC Elevation;110V;80mm;225;JM14 Yes Model Compatibility List $249.13 / Each

28
N 708311 1000101982 N75 Console Cable;650L(CKM254301-8P+SM Yes Model Compatibility List $38.32 / Each

708414 1000102735 N100 CON Wire;hand pulse;250mm(SM-2A+XHS2.5-2 No Model Compatibility List $1.90 / Each

4,5,6,12,13,14
N 708581 1000103653 N72 Speaker;3W8;XHS-2Y;650MM;TM381 No Model Compatibility List $19.19 / Each

N 708728 1000105102 N71 Trumpet;3W8?[;XHS-2Y;300MM No Model Compatibility List $11.49 / Each

N 708733 1000105188 N90 Absorption Plate;;15X15;TM616 No Model Compatibility List $1.90 / Each

N 708859 1000106739 N32 Screw;Phillip;BH;Tapped;4x16L;;Zn-BL No Model Compatibility List $2.00 / Each

709001 1000108149 V14 Warning Sticker;Cover;behind;TM381 No Model Compatibility List $1.85 / Each

9

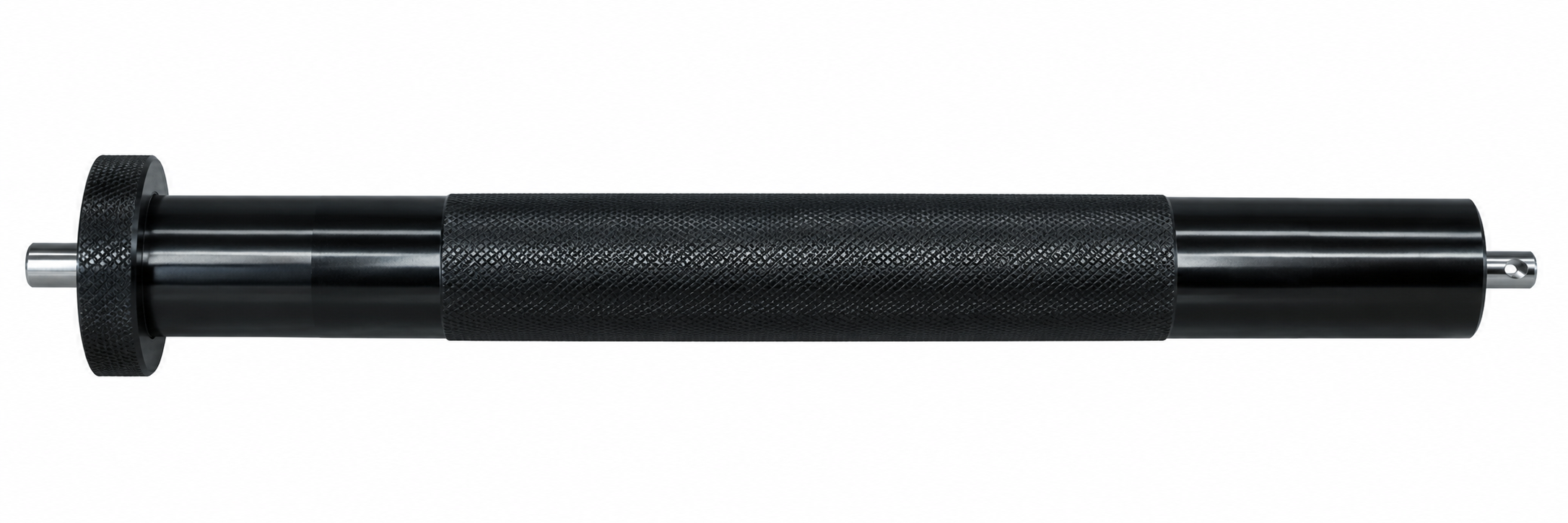

A 709030 1000108436 AR1 Roller Set;Front;Texture;TM115 Yes Model Compatibility List $249.13 / Each

709031 1000108437 AR2 Roller Set;Rear;TM116 Yes Model Compatibility List $191.62 / Each

N 709138 1000110297 N43 Safety Key;assembly;TM637 Yes Model Compatibility List $40.14 / Each

M 709254 1000111476 M03 Motor Control Board;110V Yes Model Compatibility List $648.70 / Each

M 709405 1000114107 M15 Screw;Hex;M10x55L-14L;BED No Model Compatibility List $2.00 / Each

R 709878 1000204234 R04 Screw;Round;M8X1.25PX80L-75L;MT;HS; Yes Model Compatibility List $11.41 / Each

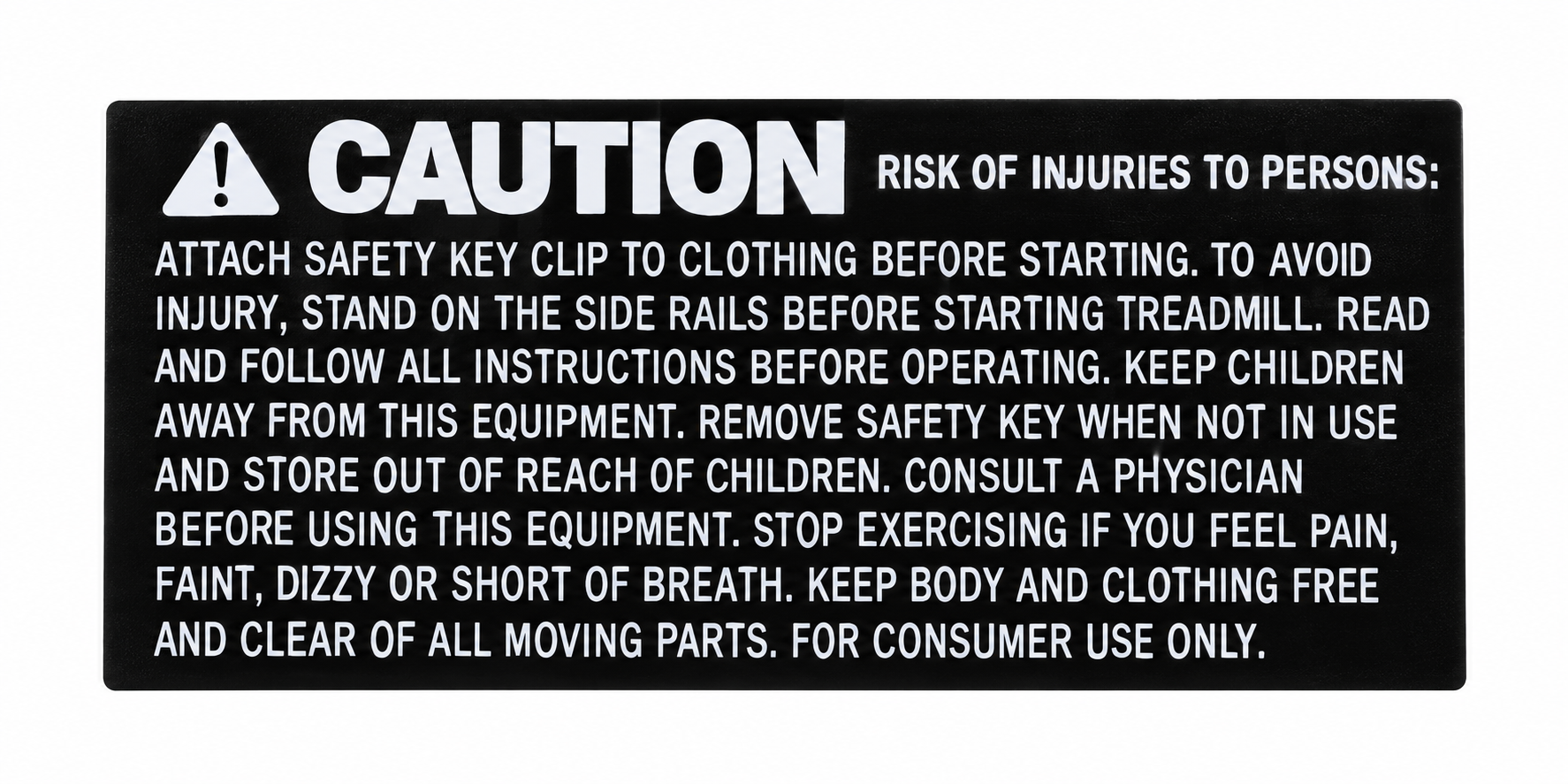

710421 1000210190 V15 Warning Label;OVERLAY;WHITE WORD/BLACK B No Model Compatibility List $1.33 / Each

711070 1000216278 P20 Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $3.82 / Each

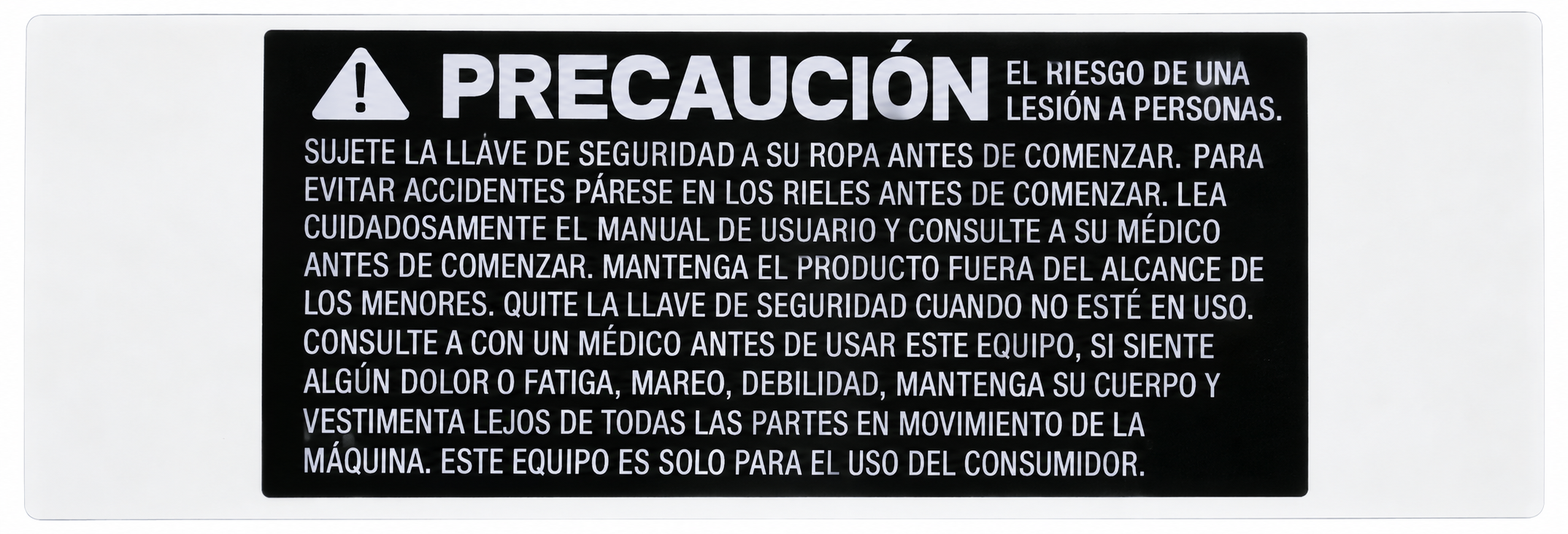

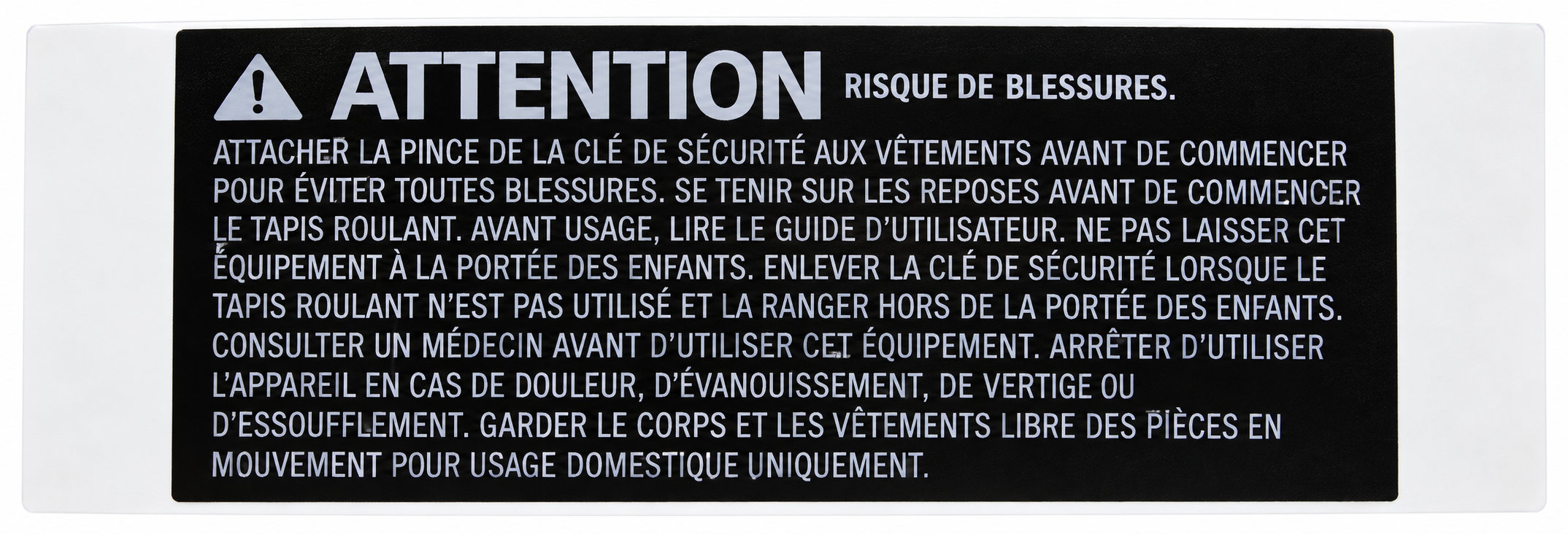

V 711169 1000217183 V11 WARNING LABEL;#;WHITE WORD/BLACK#TM660; No Model Compatibility List $1.40 / Each

V 711170 1000217184 V29 WARNING LABEL;#;WHITE WORD/BLACK#TM660; No Model Compatibility List $1.40 / Each

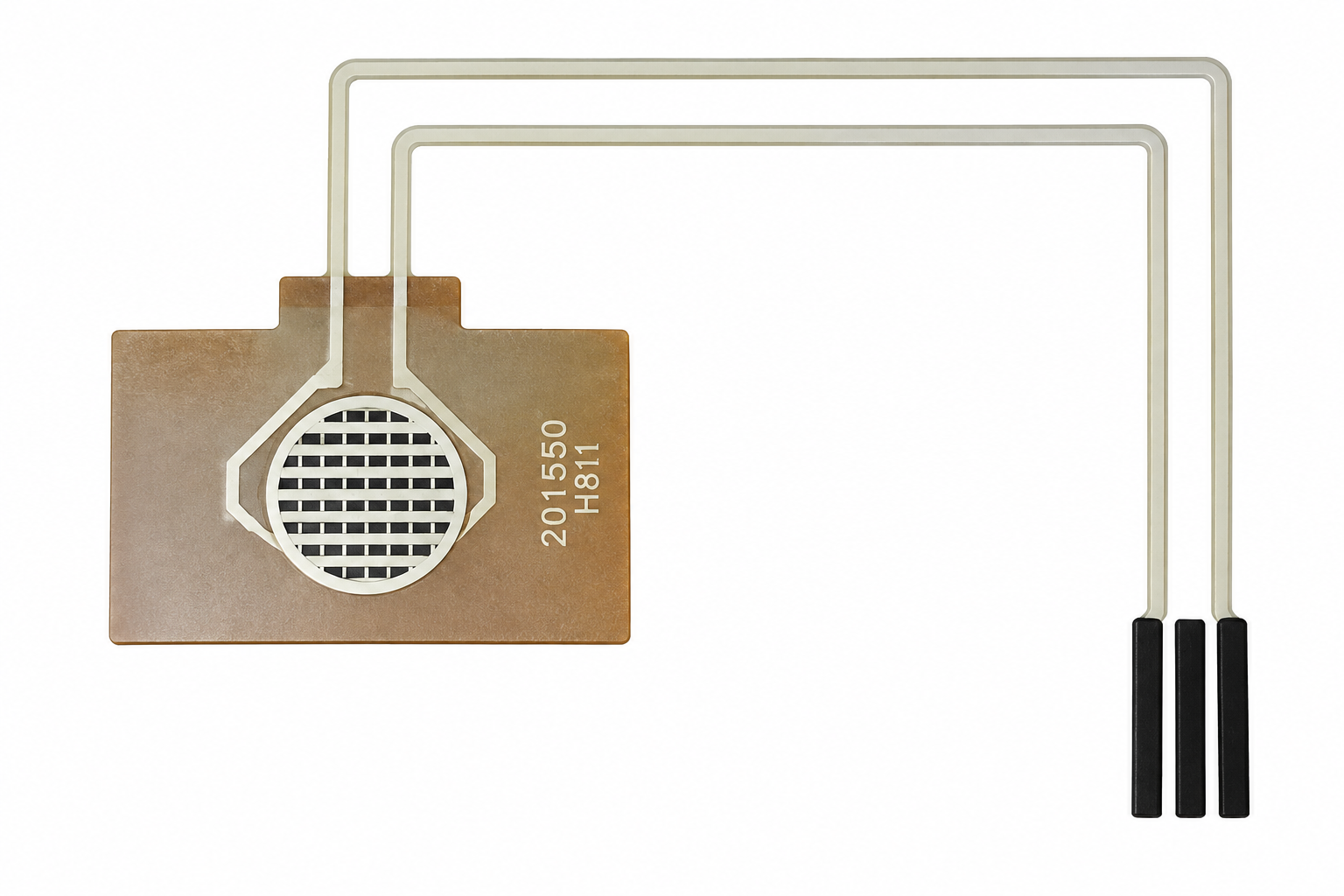

N 711865 1000223385 N61 KEYPAD;MEMBRANE;UP;CONSOLE;LS13.0T-2; No Model Compatibility List $9.57 / Each

7,9,12,13,14

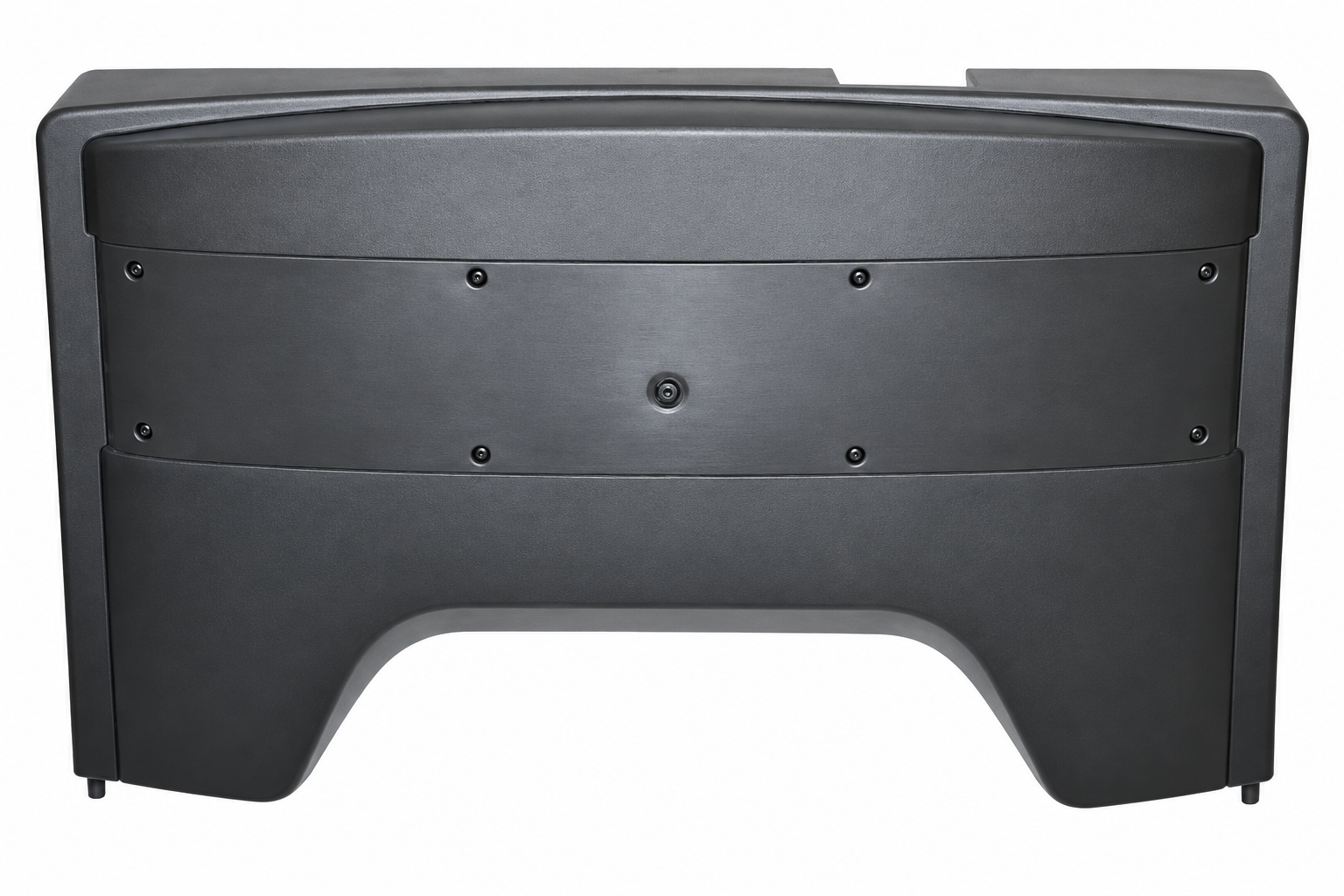

Q 711872 1000223413 Q01 COVER;MOTOR;U;ABS;Q758-3-1;TM439; No Model Compatibility List $63.23 / Each

9,10

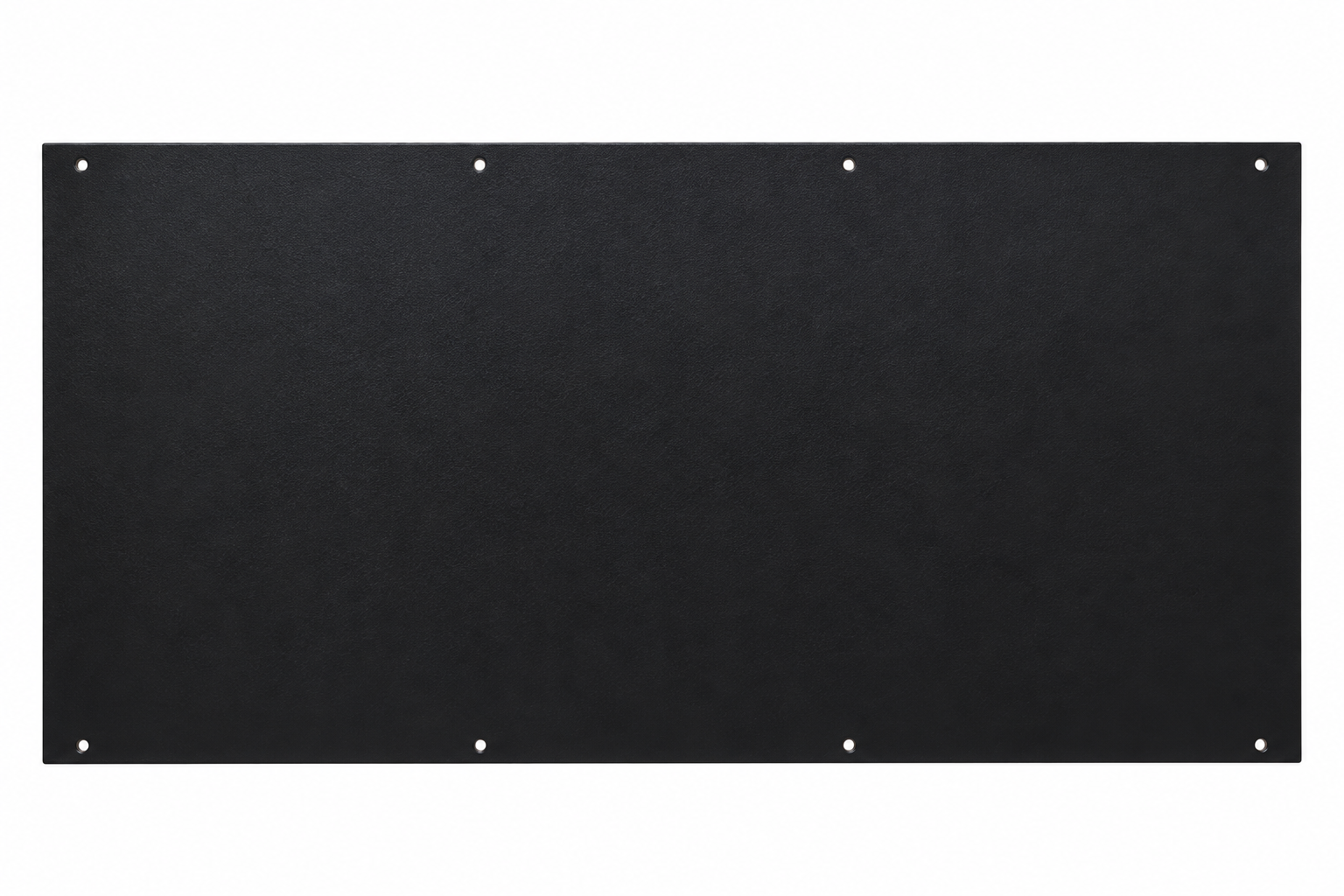

B 711890 1000223521 B27 TM DECK;-;670x1220x20T;-;;TM438 No Model Compatibility List $249.13 / Each

3

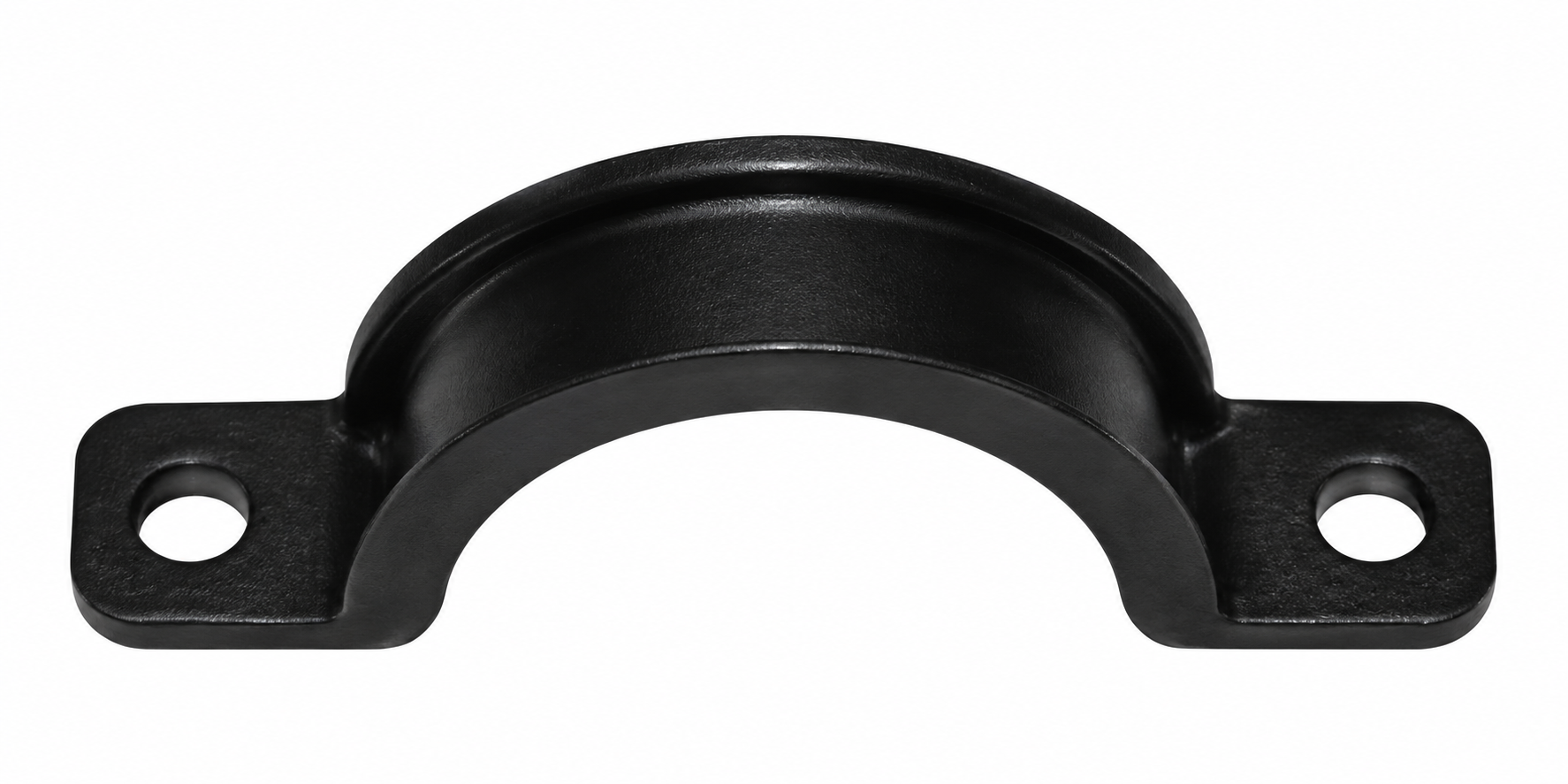

N 711892 1000223528 N30 PRESSER;ABS;TM439 No Model Compatibility List $1.90 / Each

1

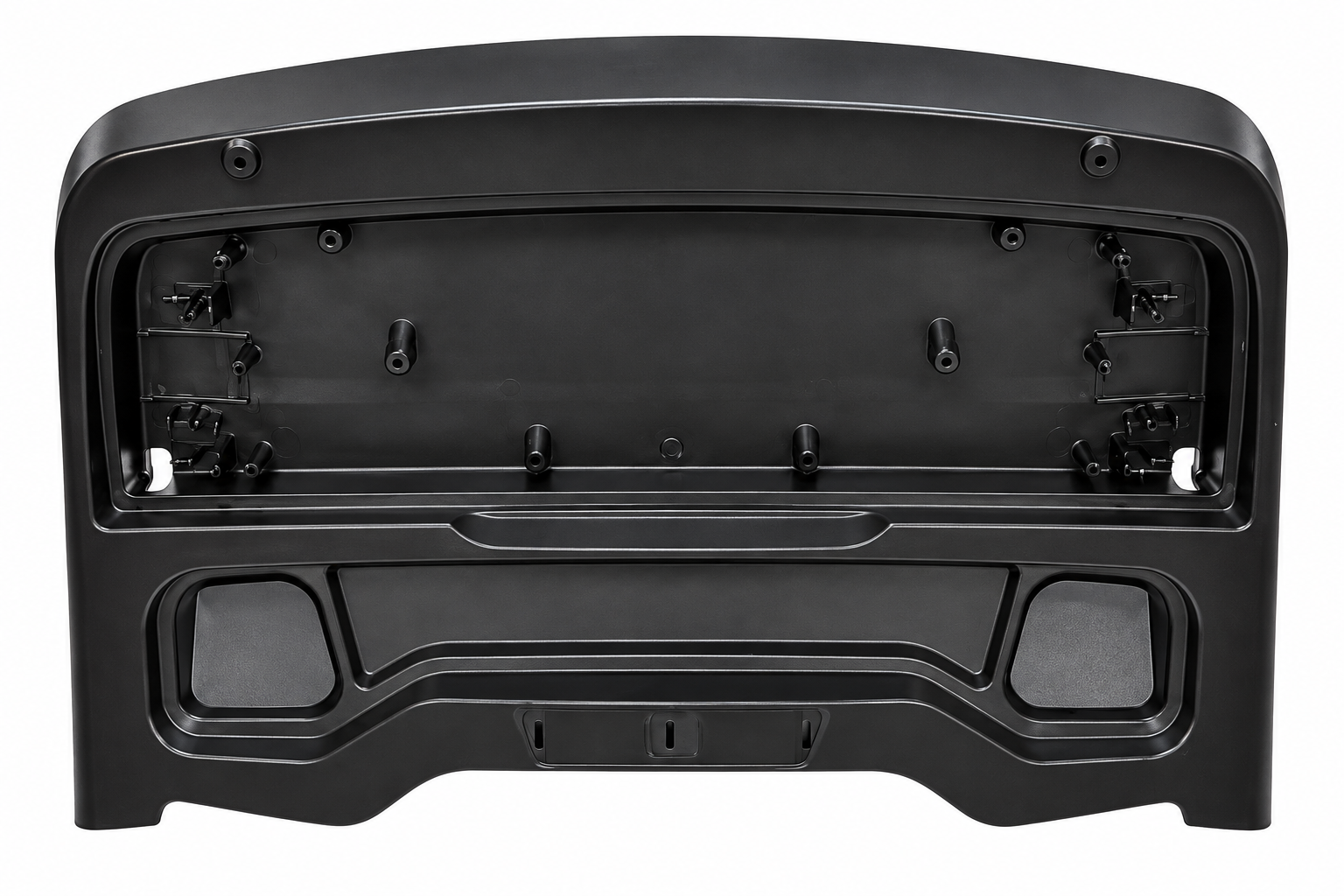

N 711893 1000223533 N01 CONSOLE CRUST;ABS;Pantone Q520-7-3;TM439 No Model Compatibility List $107.30 / Each

7

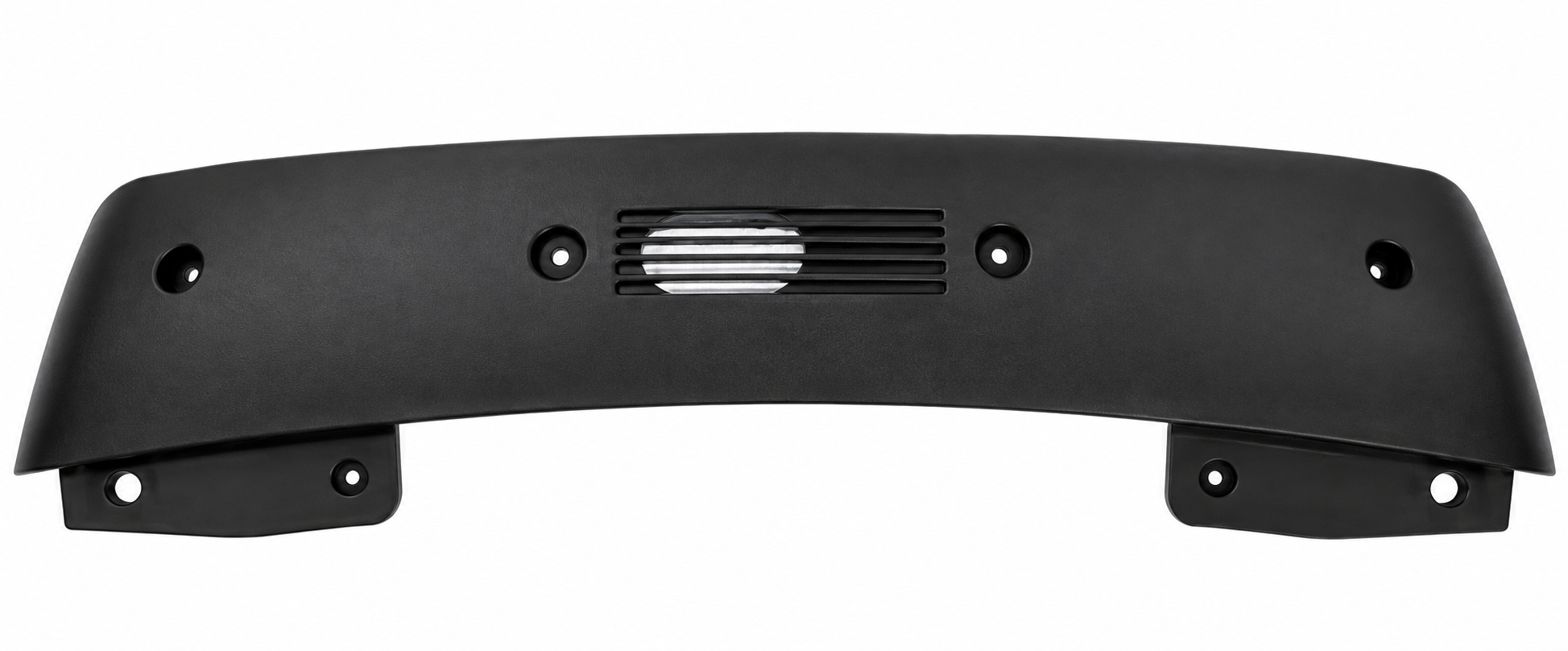

N 711895 1000223535 N02 CONSOLE Board;;ABS;Pantone Q520-7-3;;TM4 No Model Compatibility List $24.91 / Each

7
N 711899 1000223543 N21 Cover;FAN;L;ABS;MM314;TM439-1US; No Model Compatibility List $1.90 / Each

8,9
N 711900 1000223544 N22 Cover;FAN;R;ABS;MM314;TM439-1US; No Model Compatibility List $1.90 / Each

8,9
N 711901 1000223545 N31 PRESSURE PLATE;60Mn,TM439; No Model Compatibility List $1.90 / Each

3

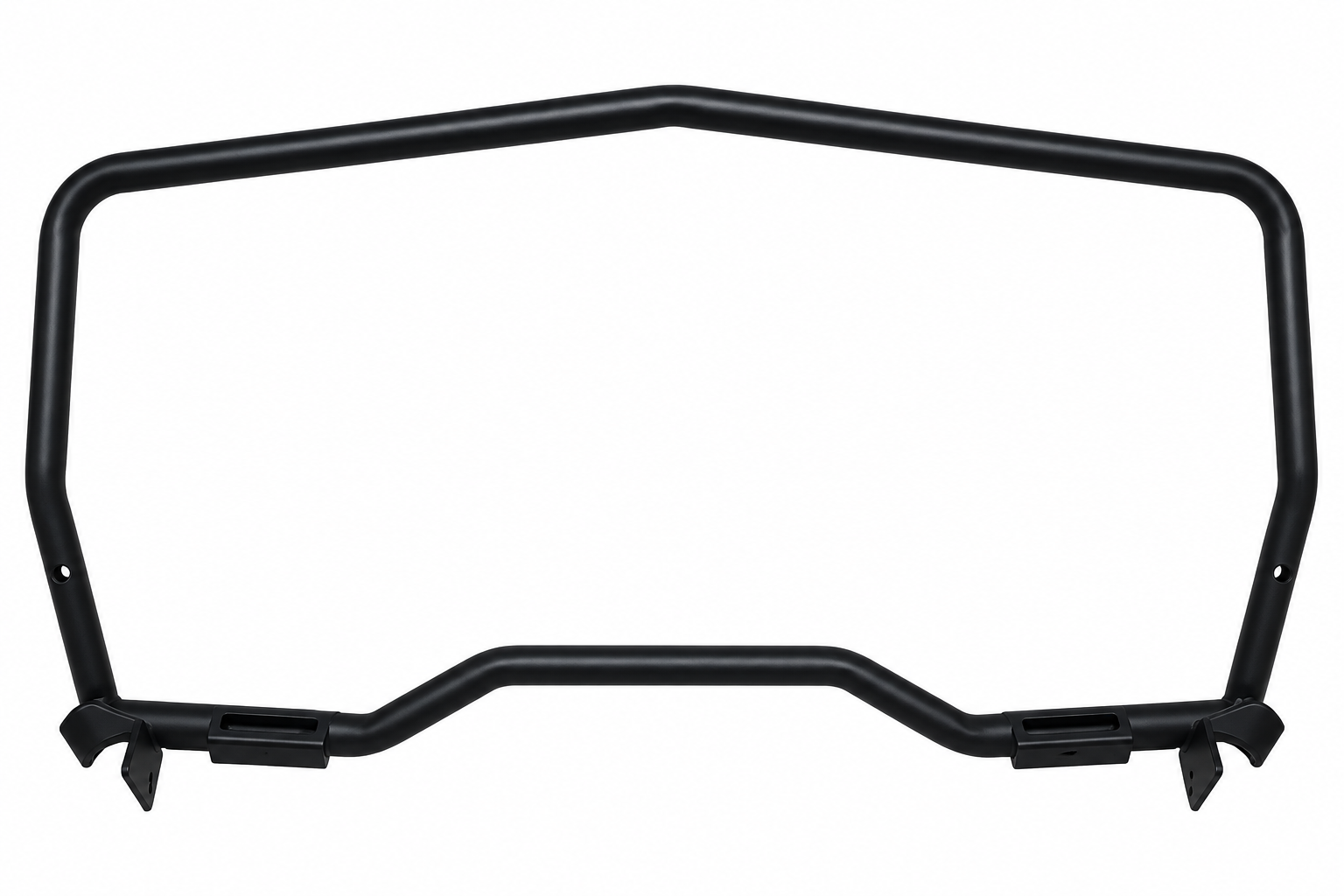

A 711902 1000223546 AN1 CONSOLE BASE FRAME SET;-;-;PAT;DM362 No Model Compatibility List $136.06 / Each

7,3
K 711908 1000223577 K14 CAP;TM439-1US No Model Compatibility List $1.90 / Each

9
N 711927 1000223864 N03 Console Faceplate;;;ABS/PA757;Q520-7-3;; No Model Compatibility List $53.22 / Each

7,3,4,5,6

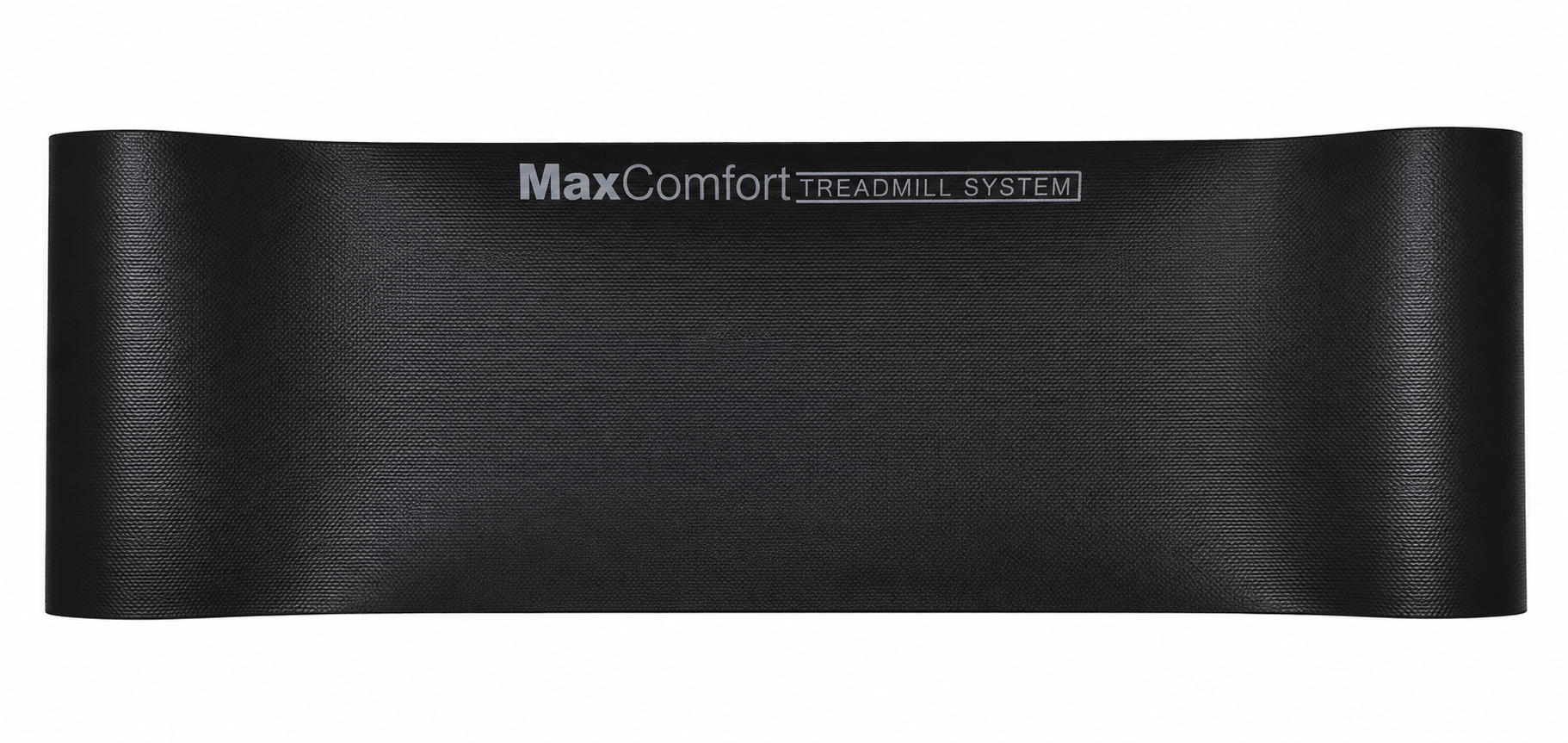

R 711928 1000223865 R02 TM BELT;425C;LIVESRONG;-;-;-;-;-; No Model Compatibility List $383.27 / Each

15

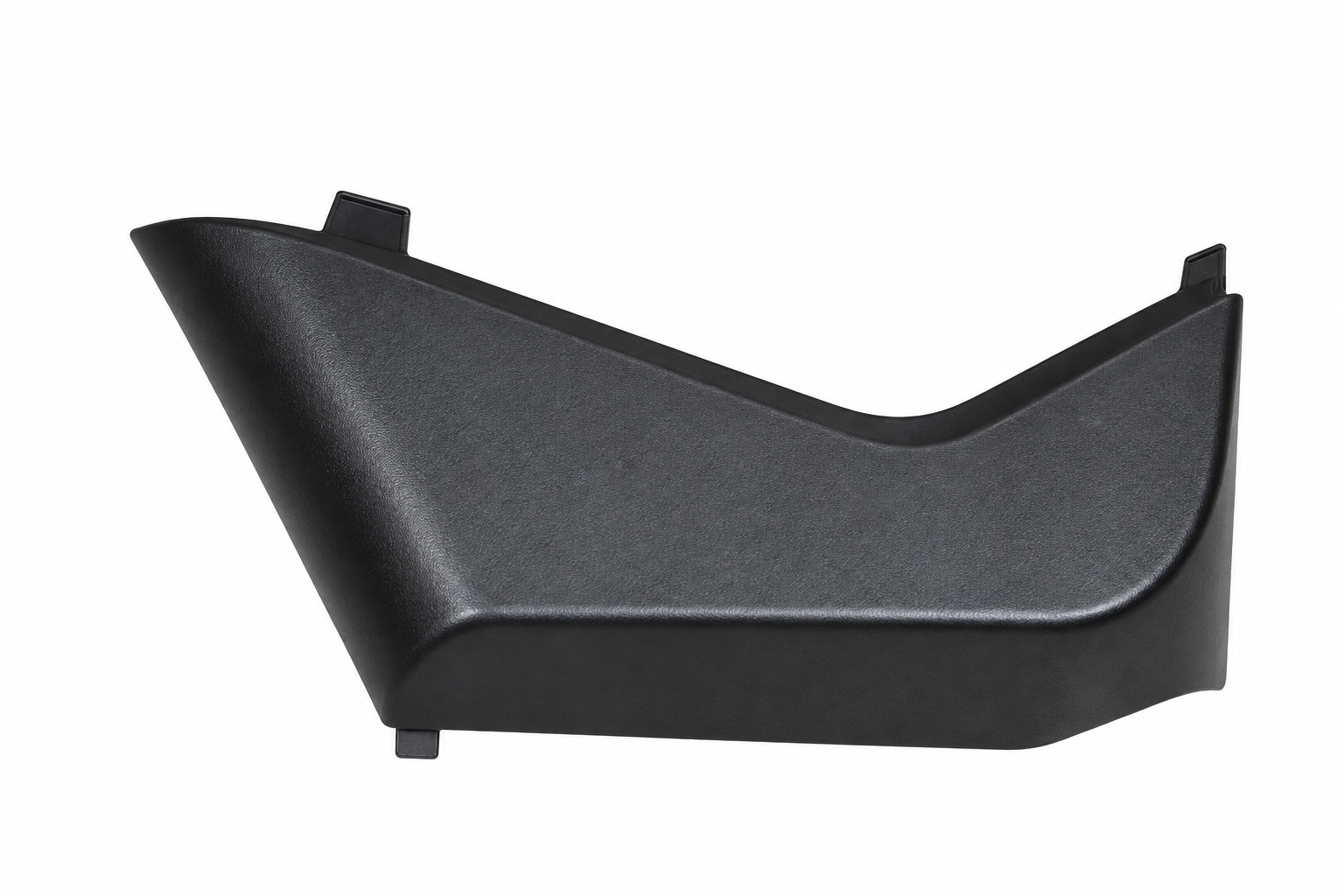

Q 711931 1000223872 Q12 COVER;ARM REST;ABS;Pantone Q758-3-1 No Model Compatibility List $9.57 / Each

9,3

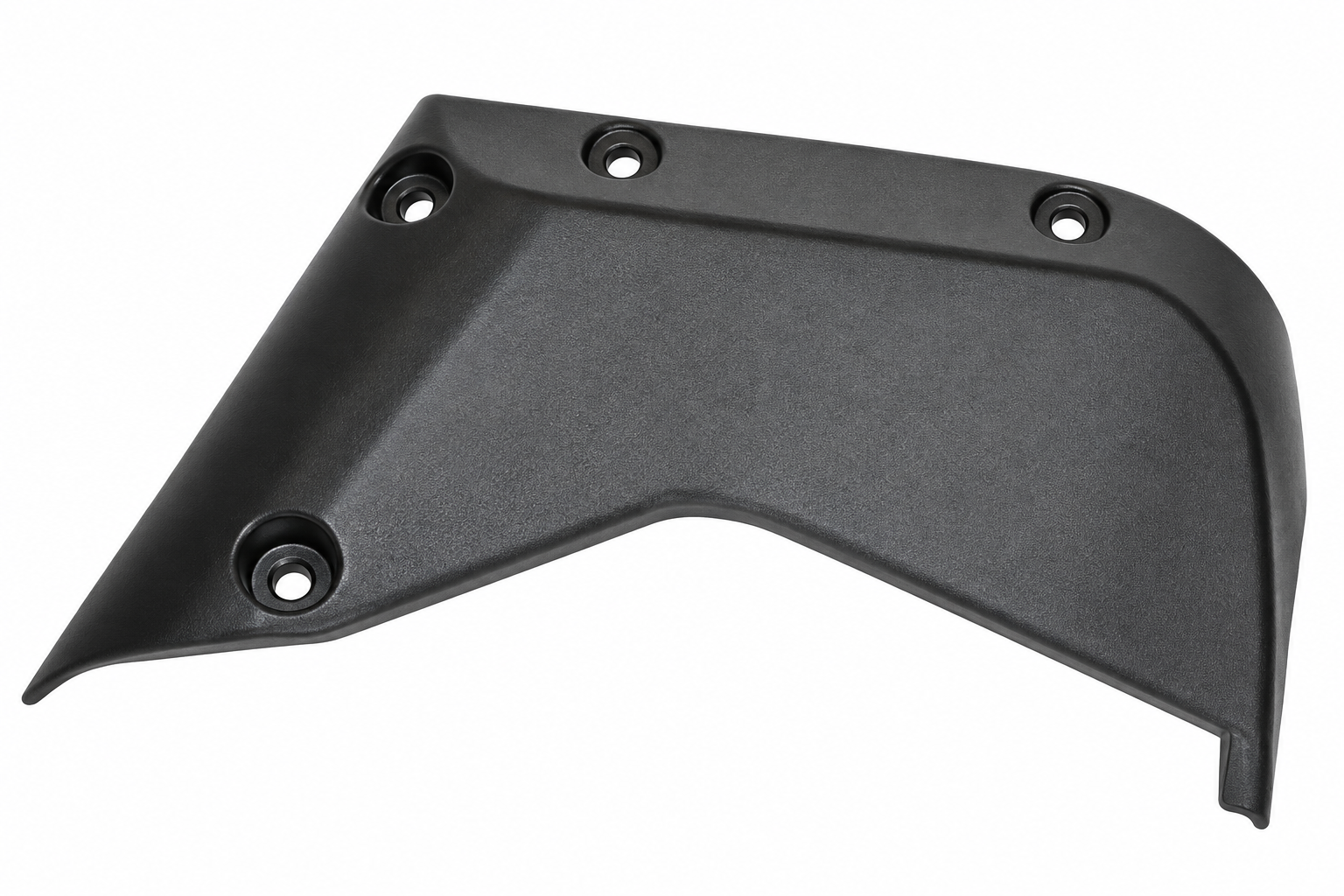

Q 711932 1000223873 Q13 COVER;ARM REST;R2;ABS;Pantone Q758--3-1 No Model Compatibility List $9.57 / Each

9,3

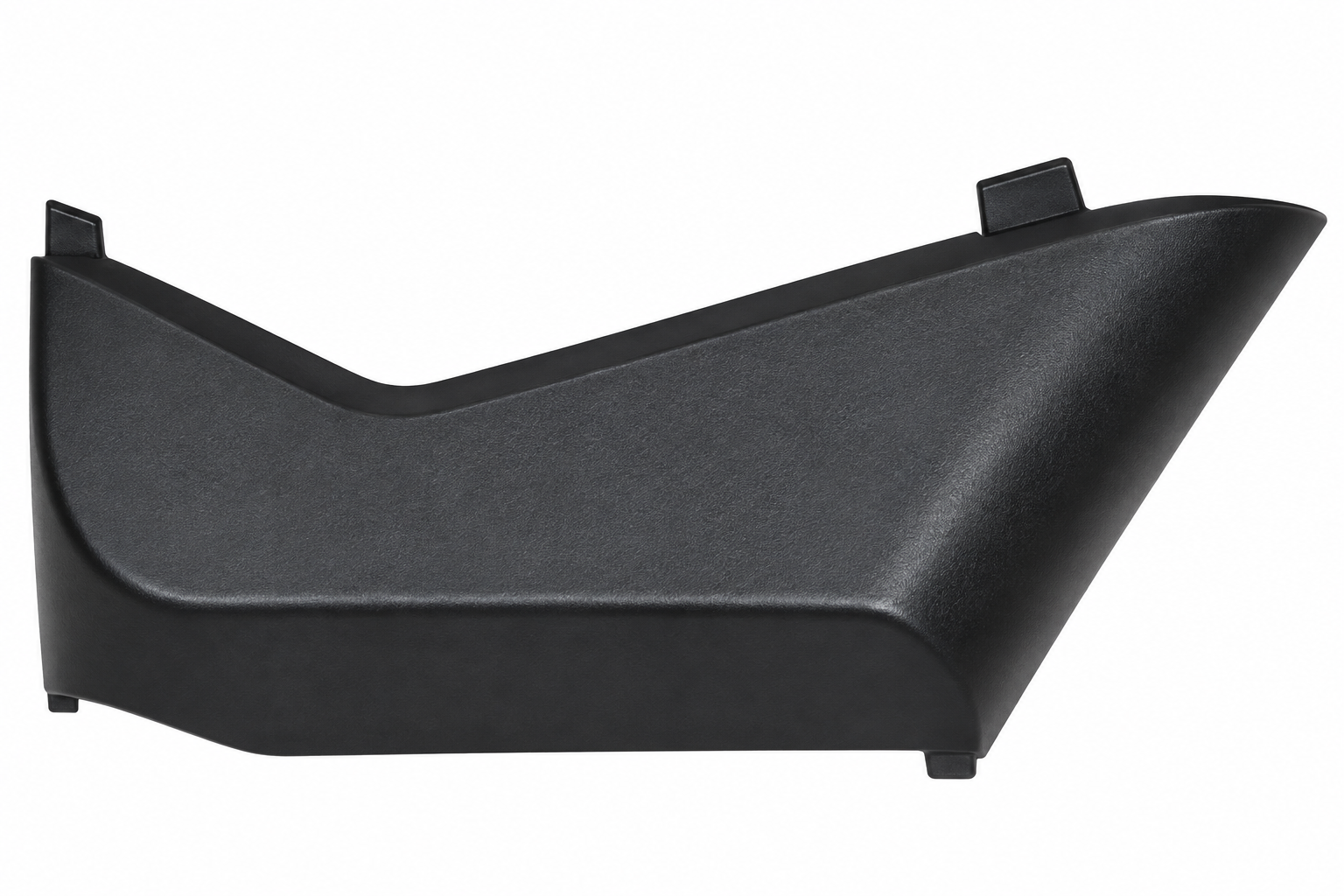

Q 711933 1000223874 Q14 COVER;ARM REST;L1;ABS;Pantone Q758--3-1; No Model Compatibility List $9.57 / Each

9,3

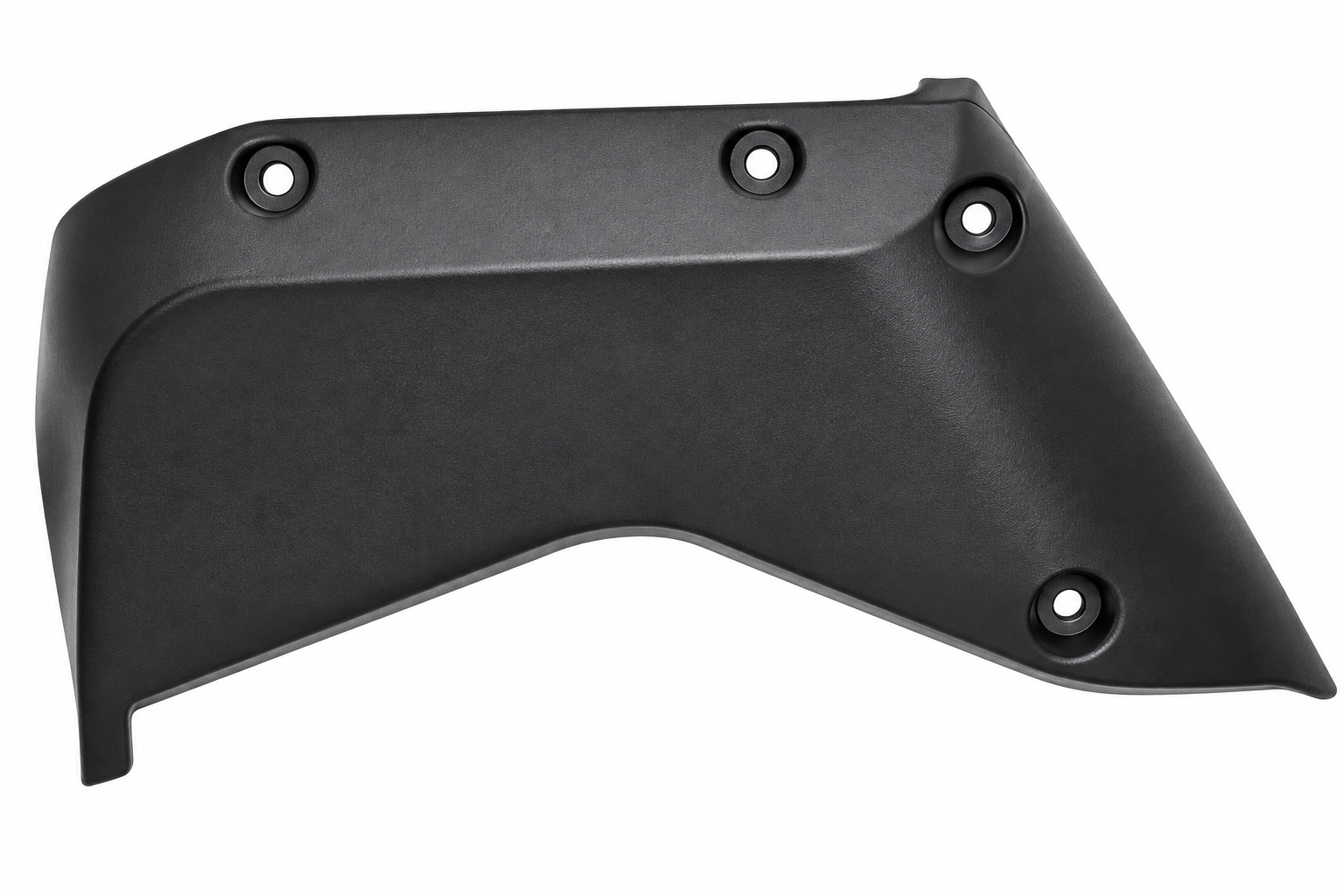

Q 711934 1000223875 Q15 COVER;ARM REST;L2;ABS;Pantone Q758-3-1 No Model Compatibility List $9.57 / Each

9,3

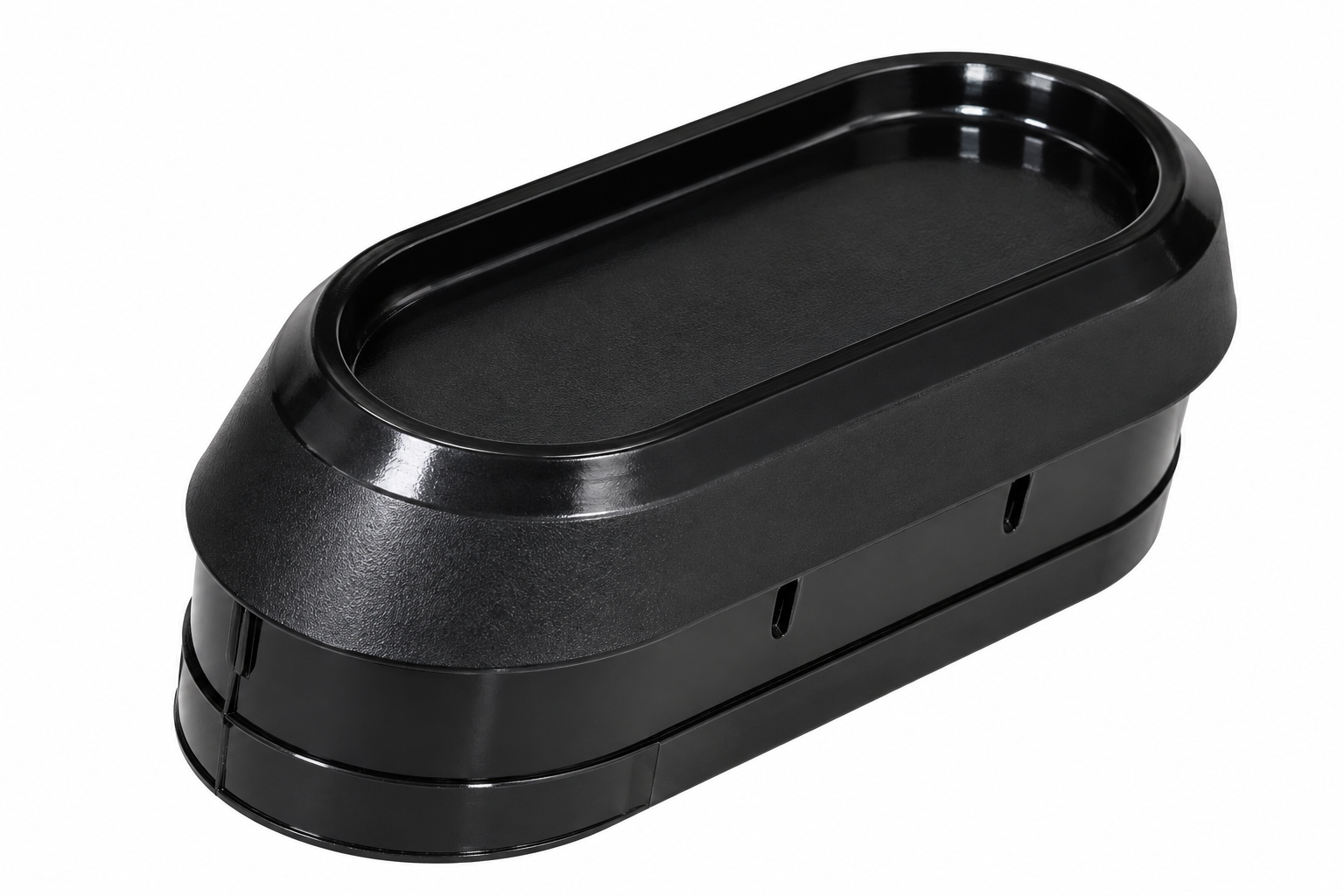

Q 711936 1000223896 Q10 END CAP;;PP;;;;TM439;; No Model Compatibility List $3.82 / Each

9

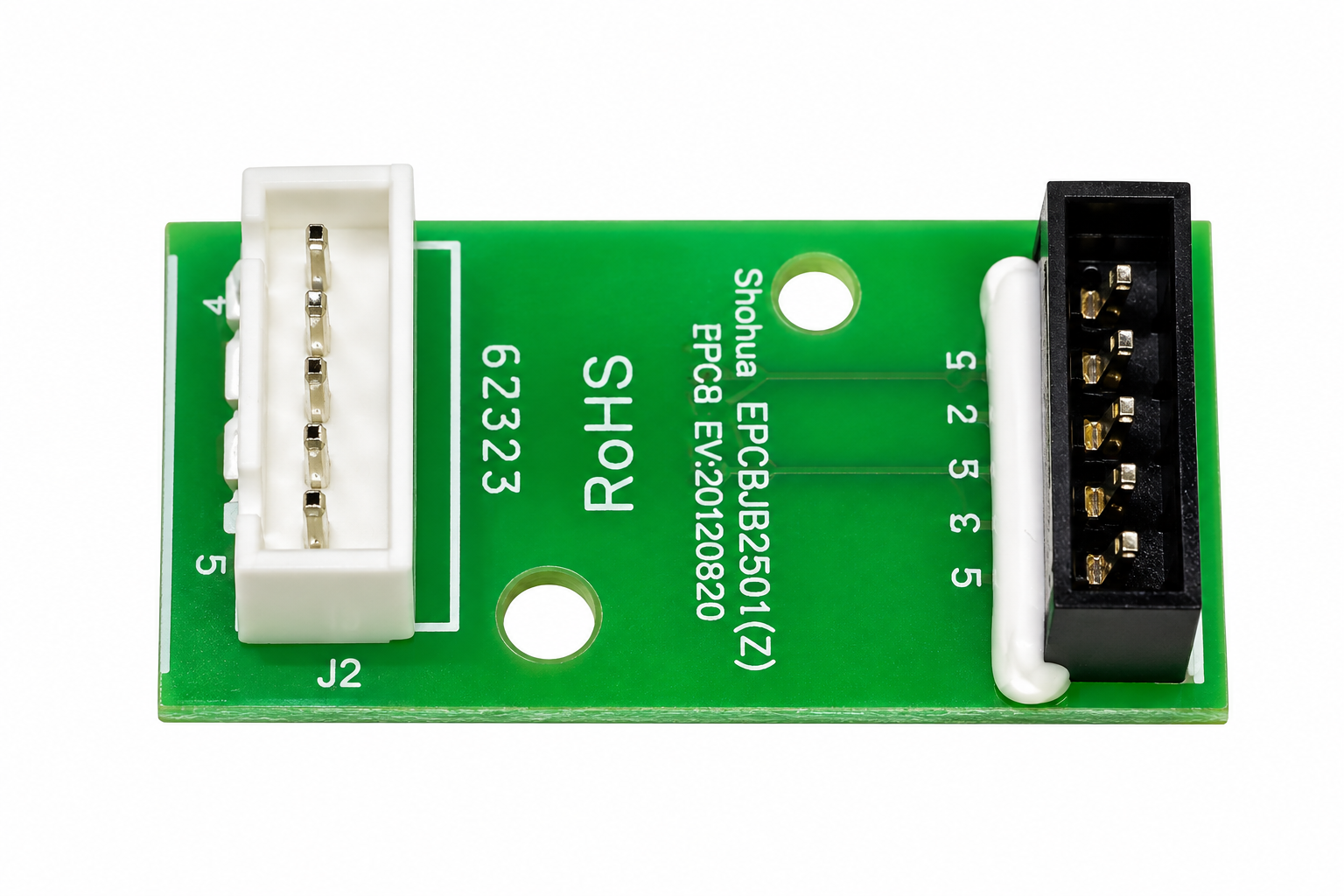

N 711938 1000223942 N73 MO;KEYPAD BOARD;LS13.0T-2;SOO1202;HCPD; Yes Model Compatibility List $14.77 / Each

9,12,13,14

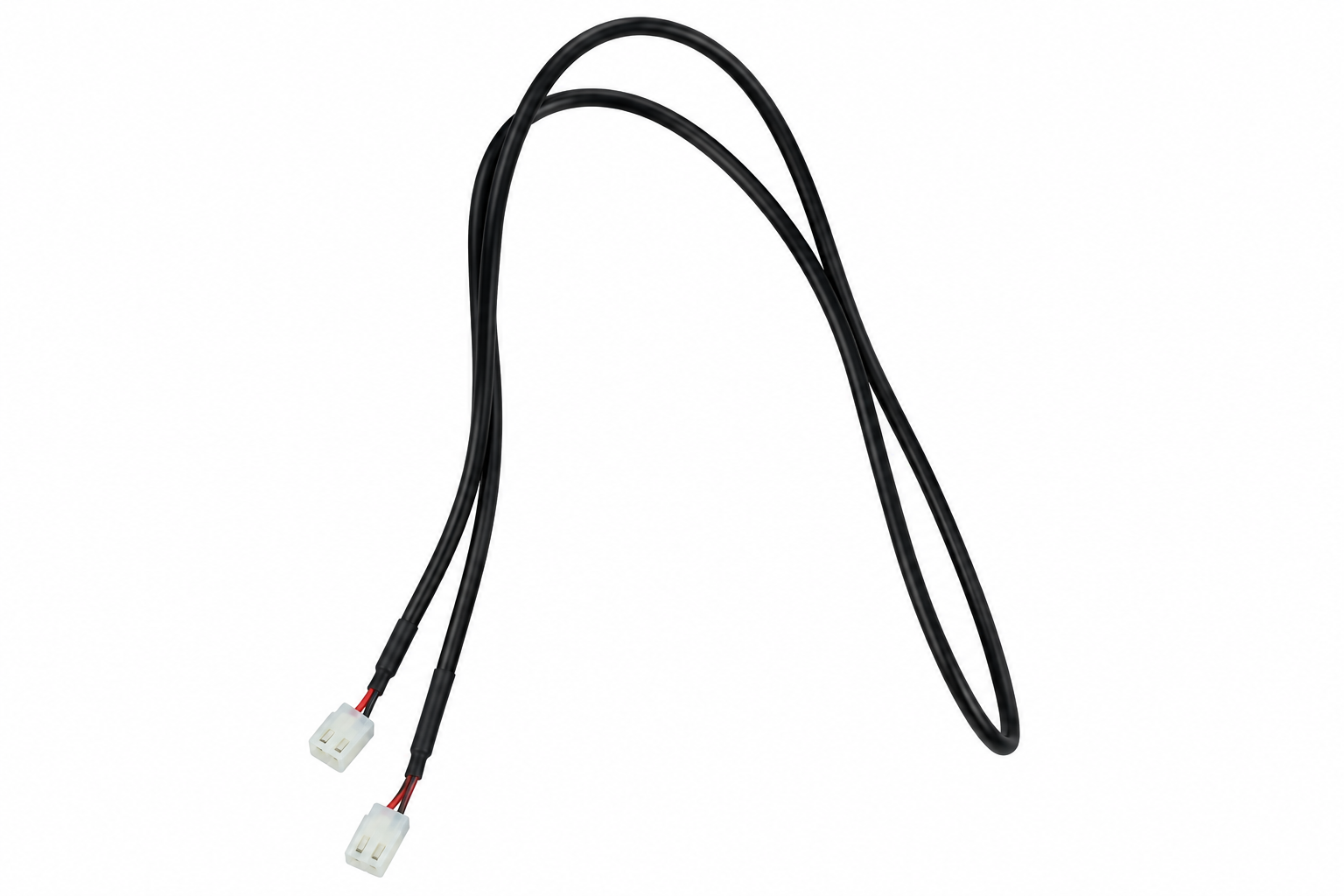

N 712142 1000226874 N68 WIRE;KEY BOARD;;;;900L(XHS_5P2); No Model Compatibility List $3.82 / Each

9,4,5,6

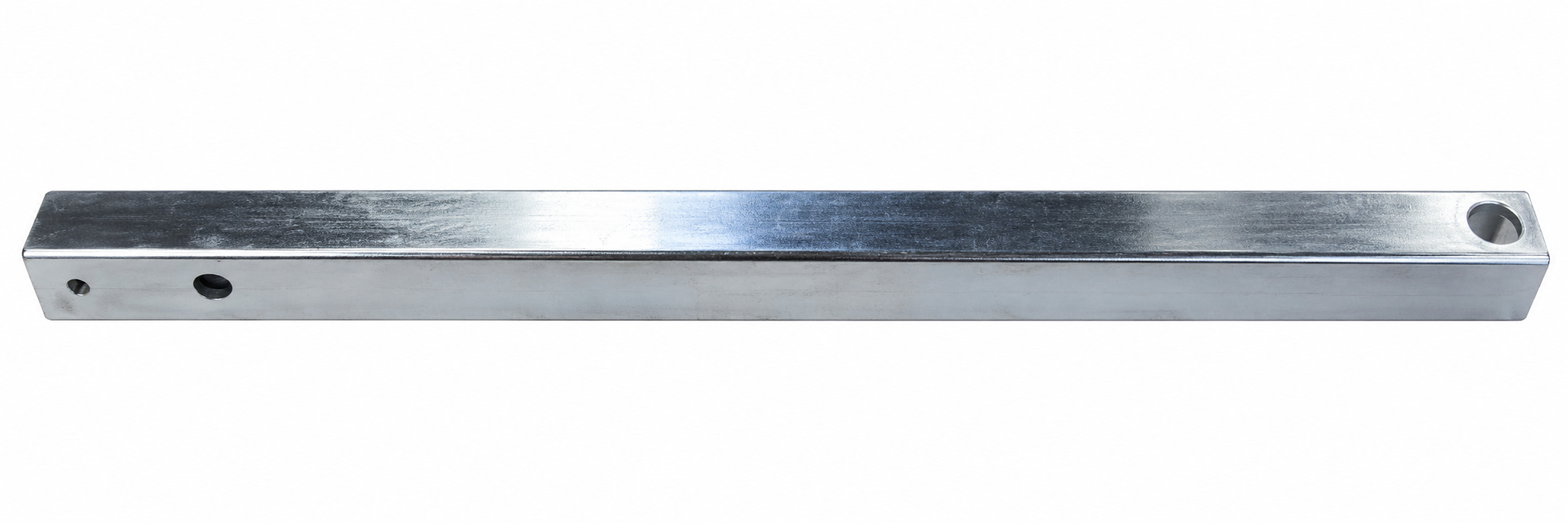

A 712145 1000226898 AH2 TUBE;#19.0x19.0x1.5Tx282L;TM439 No Model Compatibility List $8.87 / Each

3
H 712147 1000226906 H25 END CAP;U;;;;FLEXIBLE TUBE;;; No Model Compatibility List $1.90 / Each

H 712148 1000226907 H26 END CAP;D;;;;FLEXIBLE TUBE;;; No Model Compatibility List $1.90 / Each

712159 1000227065 AH4 LOCK LATCH;WELDING;TM439 No Model Compatibility List $9.57 / Each

N 712195 1000227404 N70 CONTROL BOARD;;3W;HEPD No Model Compatibility List $9.57 / Each

7

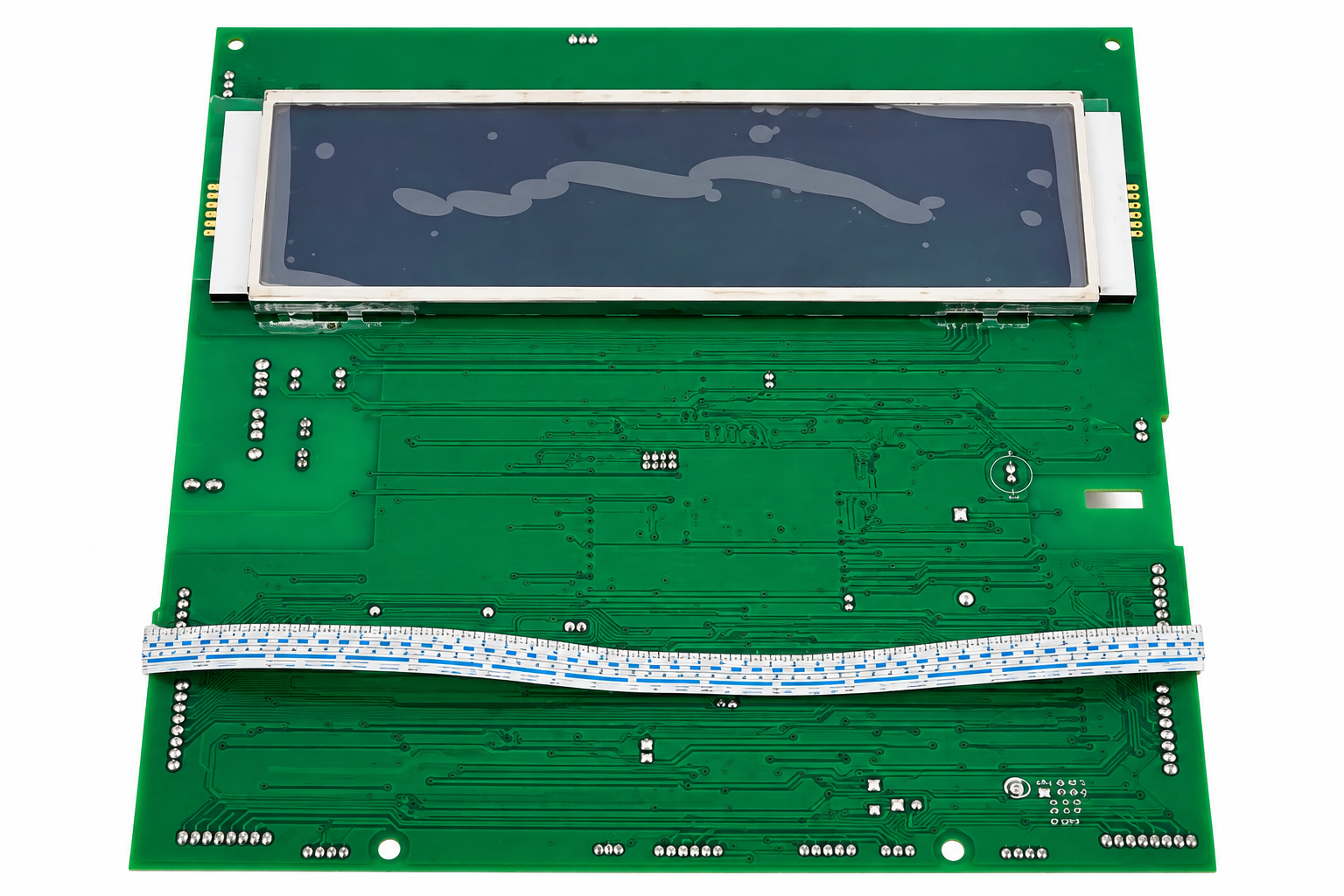

N 712266 1000228009 N69 CONTROL BOARD;USB BOARD;;;HAPA;;; No Model Compatibility List $9.57 / Each

712276 1000228051 B48 CUSHION;;;;BL;;Diam.30X20L;TM439; Yes Model Compatibility List $9.57 / Each

B 712277 1000228052 B49 CUSHION;;;;BU;;Diam.30X20L;TM439; Yes Model Compatibility List $9.57 / Each

R 712278 1000228054 R03 BELT;POLY-V;;8P 470; Yes Model Compatibility List $57.49 / Each

B 712280 1000228077 B47 CUSHION;;;;OR;;Diam.30X20L;TM439; Yes Model Compatibility List $9.57 / Each

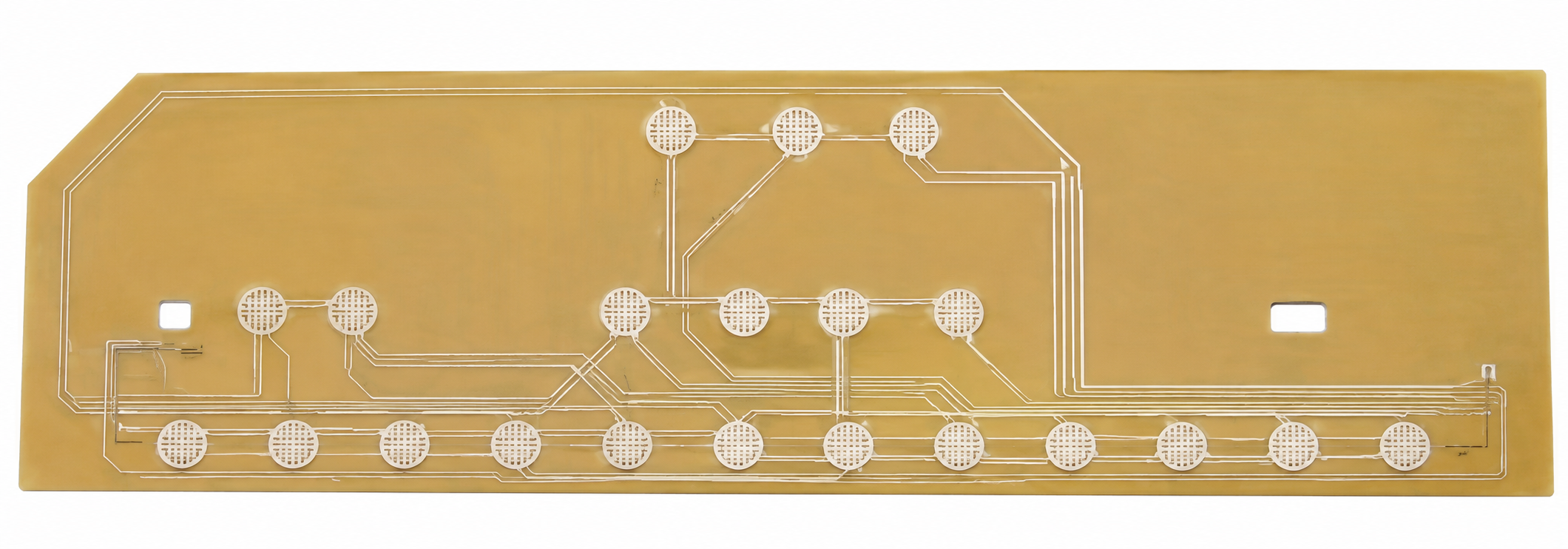

N 712287 1000228134 N62 KEYPAD;MEMBRANE;MID;CONSOLE;LS10.0T-2; No Model Compatibility List $57.49 / Each

7,9,12,13,14

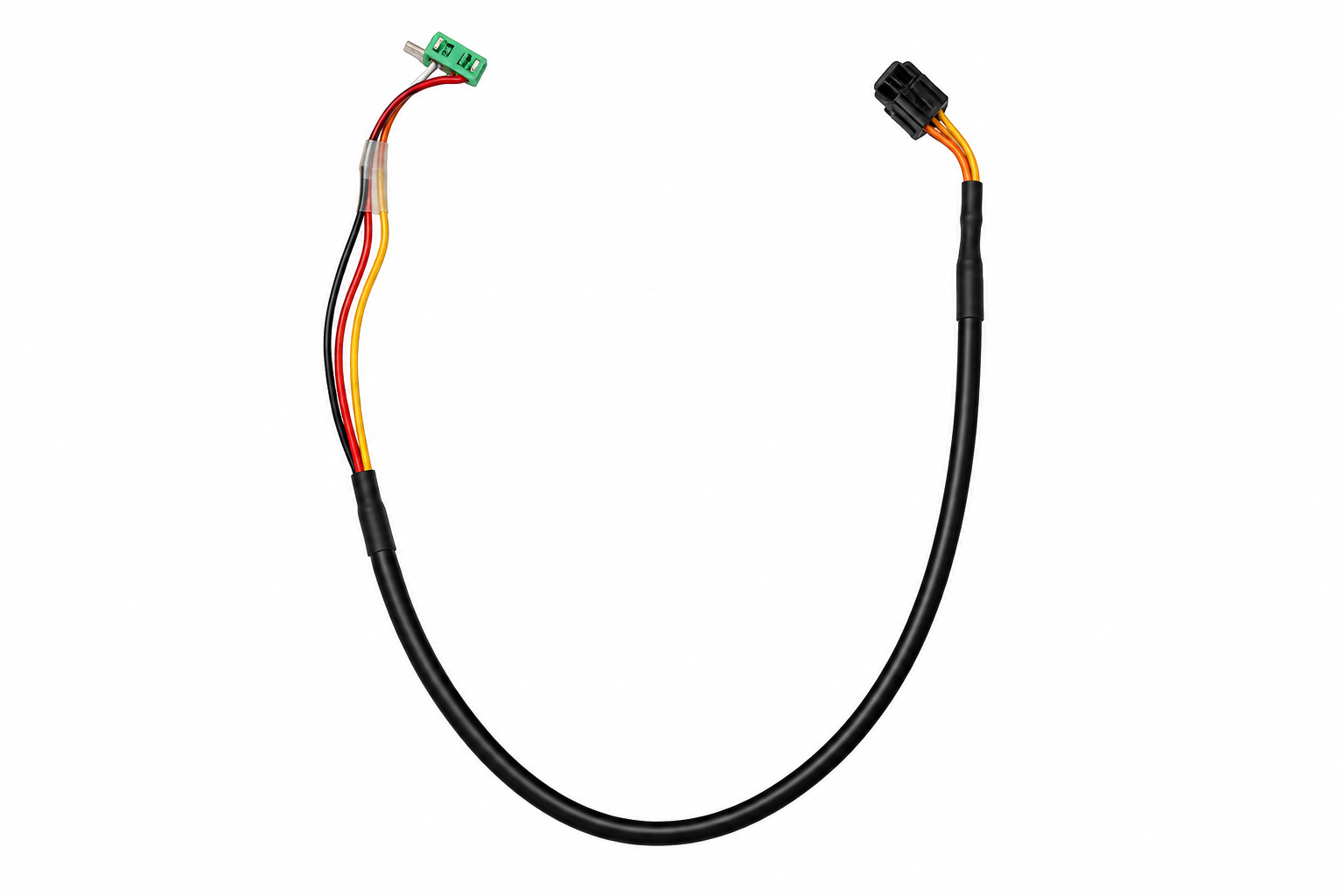

N 712289 1000228136 N74 WIRE;400L(3P-110-HX30002-6P) No Model Compatibility List $9.57 / Each

4,5,6
N 712290 1000228137 N80 WIRE;VF;;;;300L(2.0_3P??2); No Model Compatibility List $3.82 / Each

4,5,6

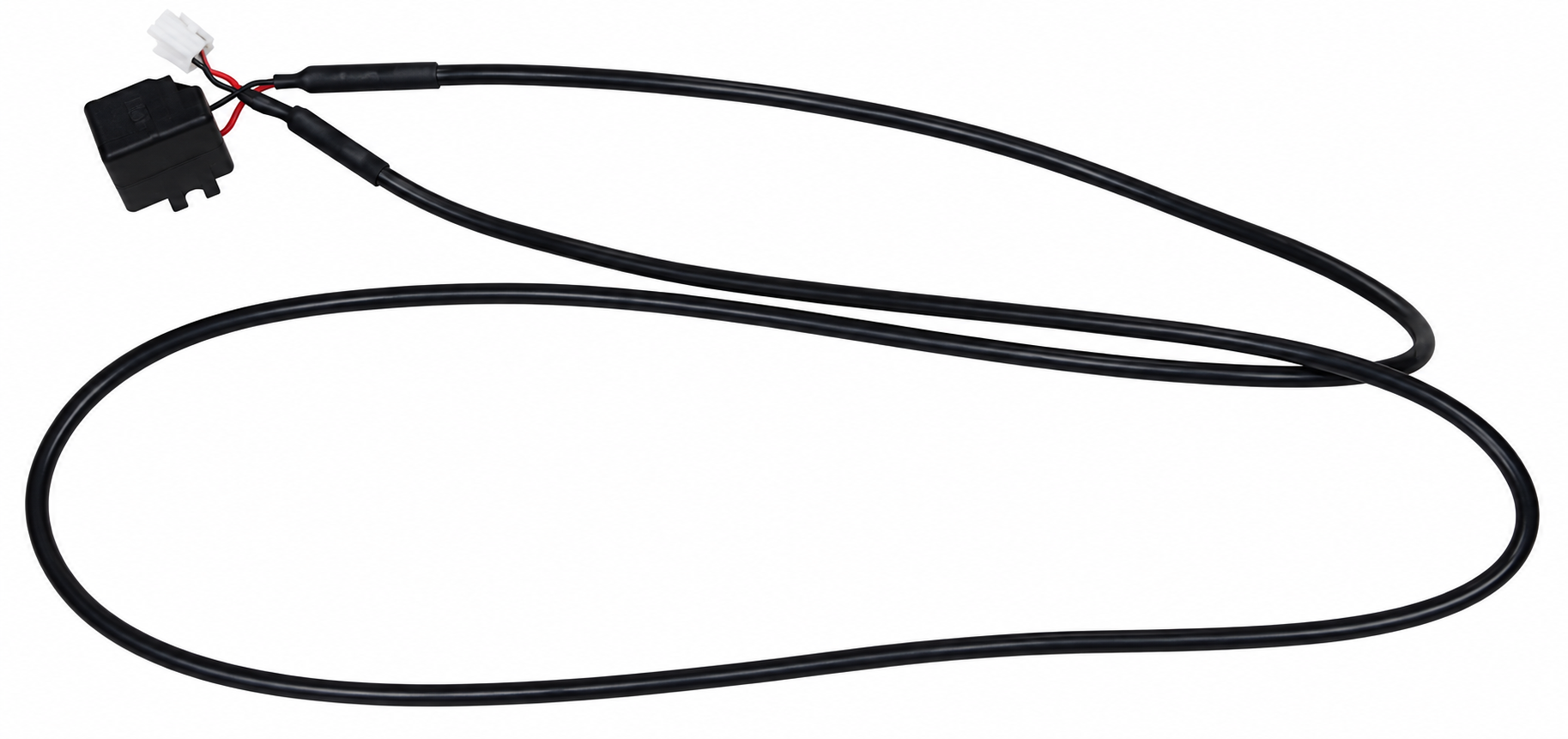

A 712309 1000228346 AN4 SAFETY KEY SET;-;LS13.0T-2;CS; No Model Compatibility List $40.14 / Each

9
N 712366 1000228559 N28 Speaker;Net; No Model Compatibility List $3.82 / Each

1
V 712488 1000229123 V25 LOGO LABEL;AV/TV;-;PU;-;; No Model Compatibility List $1.90 / Each

4,5,6
H 712491 1000229157 H29 SCREW;NLK;M8x1.25P;;BZN;; No Model Compatibility List $2.00 / Each

H 712492 1000229158 H30 SCREW;NLK;M8x1.25P;;BZN; No Model Compatibility List $2.00 / Each

2
Z 712550 1000229460 Z21 PROTECTED PAD;IPOD;BL;170x24xT2.0;LS13.0 No Model Compatibility List $3.82 / Each

12,13,14
N 712558 1000229509 N23 FAN;Painting;MM360 No Model Compatibility List $9.57 / Each

8
H 712701 1000230286 H31 WASHER,PP,BLACK,TM439 No Model Compatibility List $2.00 / Each

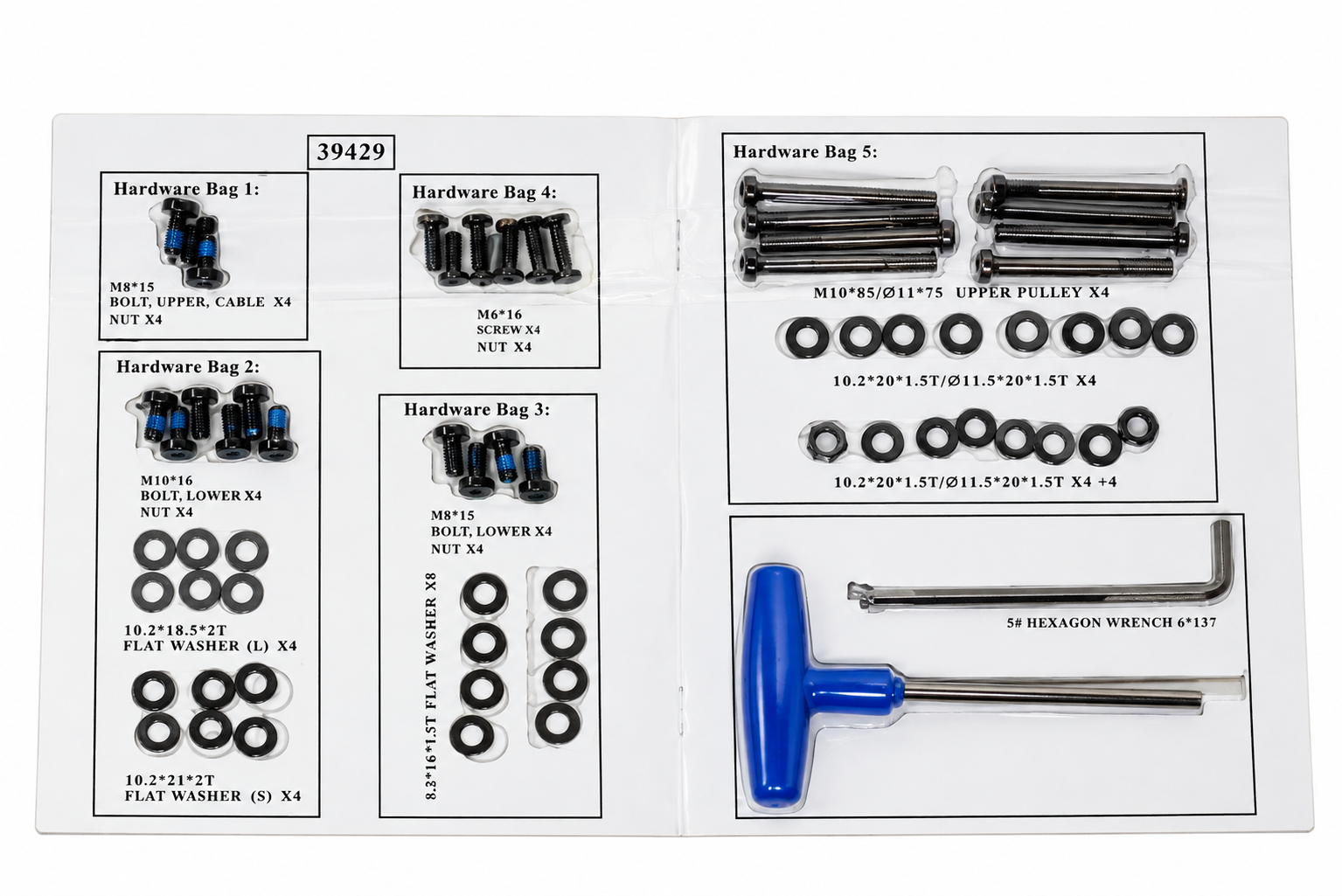

N 712704 1000230289 Not Shown HARDWARES;TM438-1US; No Model Compatibility List $34.11 / Each

1

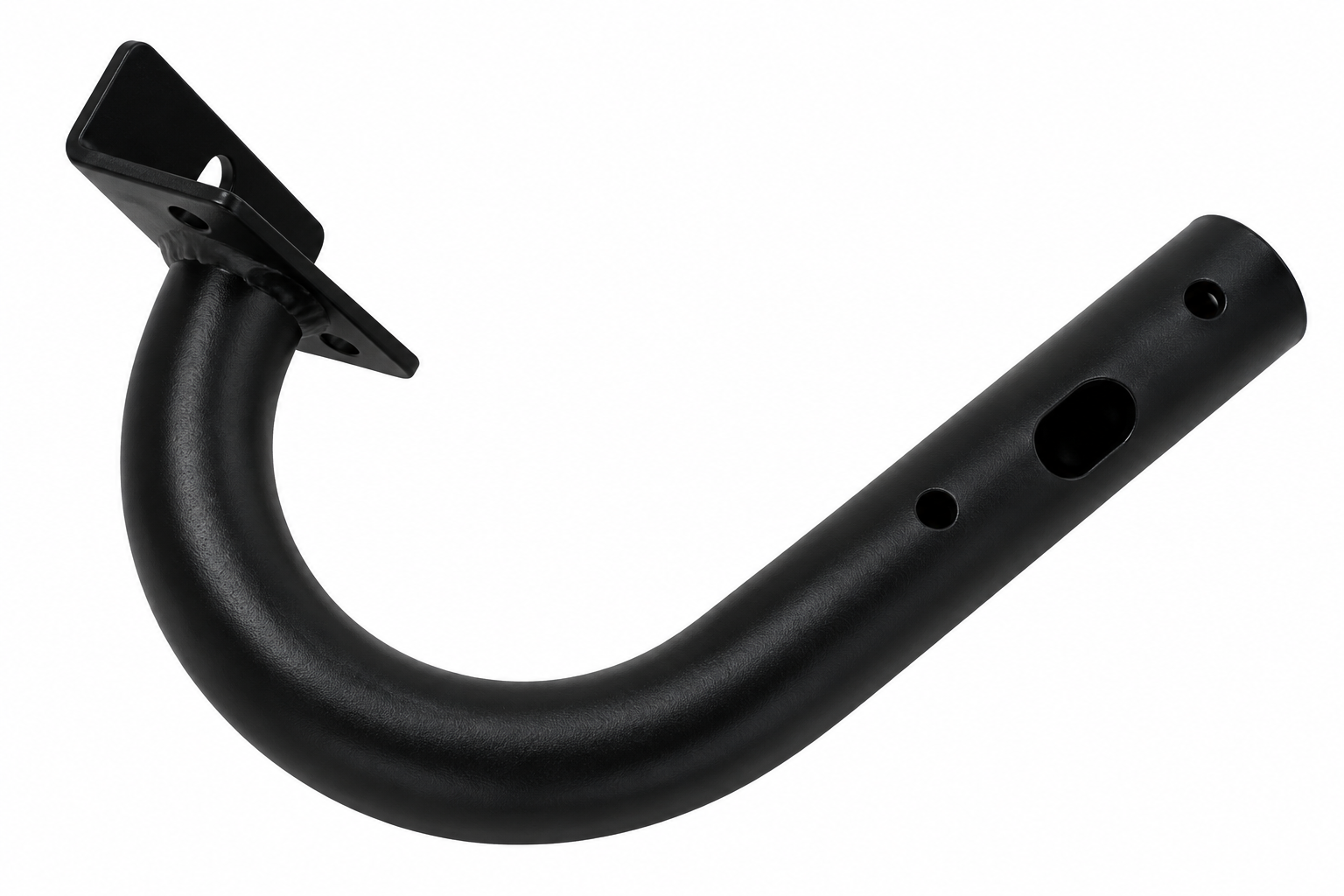

A 712786 1000230645 AN3 HANDLEBAR SET;L;PAINTING;DM362;TM439; No Model Compatibility List $31.93 / Each

11

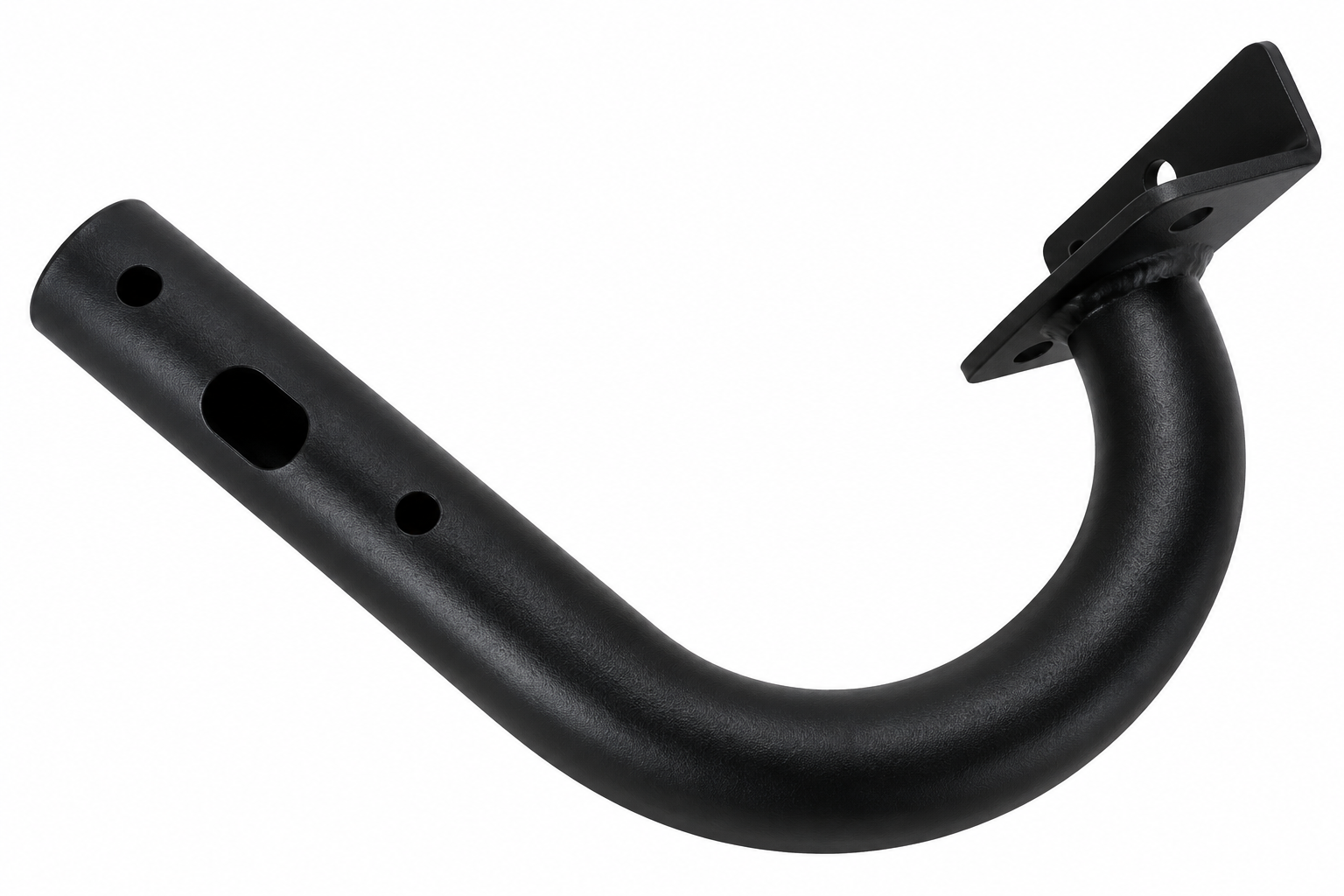

A 712787 1000230646 AN5 HANDLEBAR SET;R;PAINTING;DM362;TM439; No Model Compatibility List $31.93 / Each

11

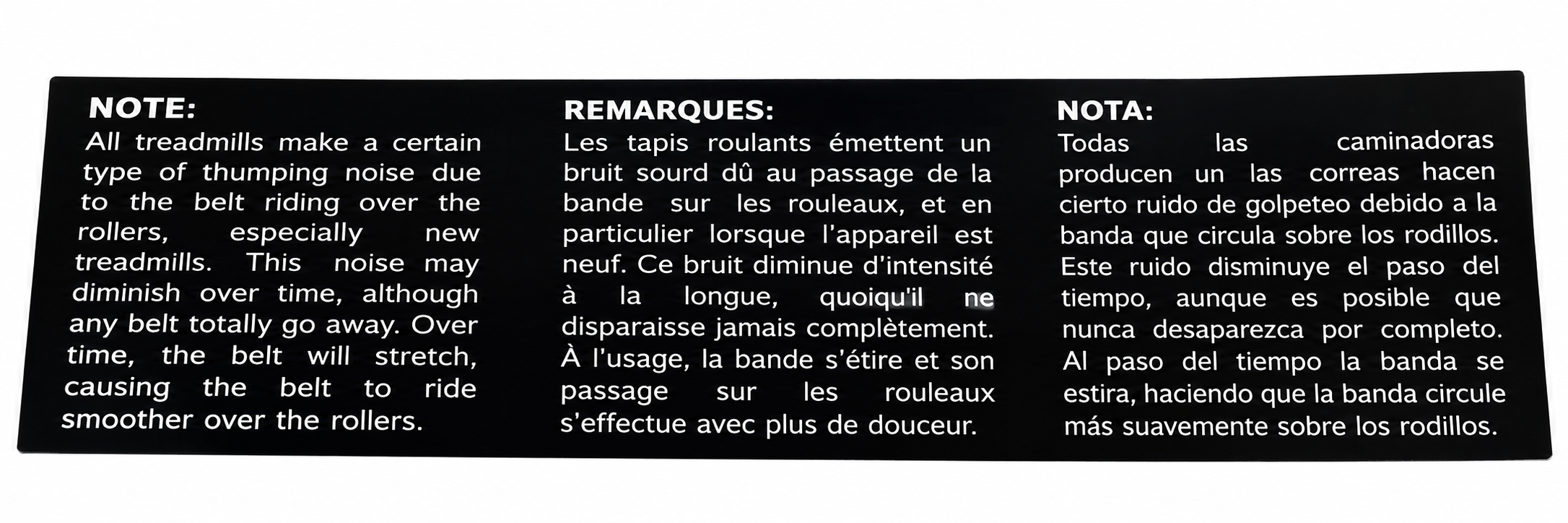

V 712795 1000230692 V21 WARNING LABEL;CONSOLE WINDOW;WHITE WORD/ No Model Compatibility List $2.29 / Each

7
H 712807 1000230888 H22 SCREW;BH;M10X1.5PX75L-15L;-;HS;-;BAN; No Model Compatibility List $4.00 / Each

2
H 712808 1000230889 H27 SCREW;BH;M10X1.5PX80L-15L;-;HS;-;BAN; No Model Compatibility List $4.00 / Each

H 712809 1000230890 H23 STICKER;TM439 No Model Compatibility List $1.90 / Each

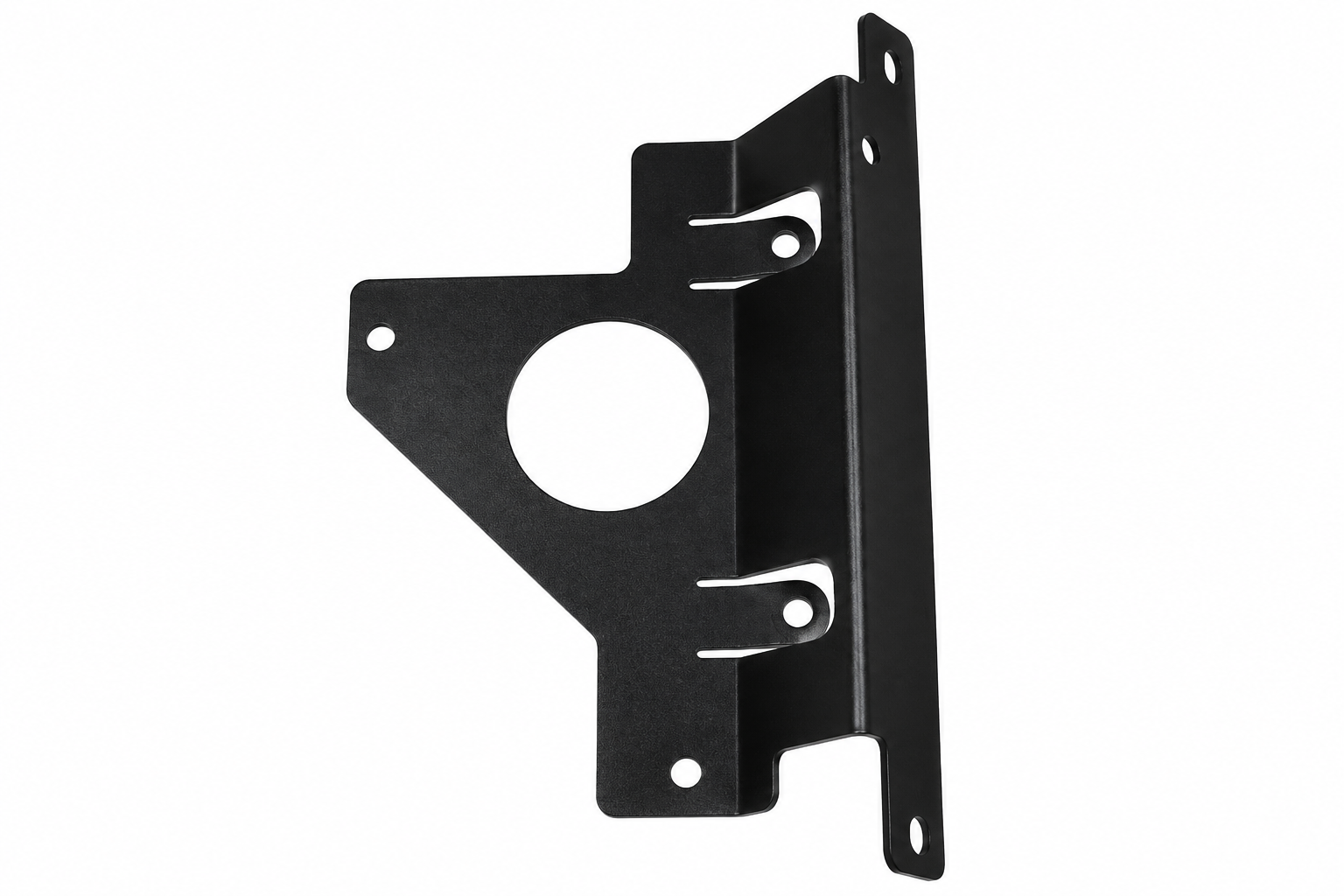

N 712825 1000230978 N20 FIXING PLATE;FAN;;;PAINTING;DM362;BLACK No Model Compatibility List $9.57 / Each

8,3,4,5,6

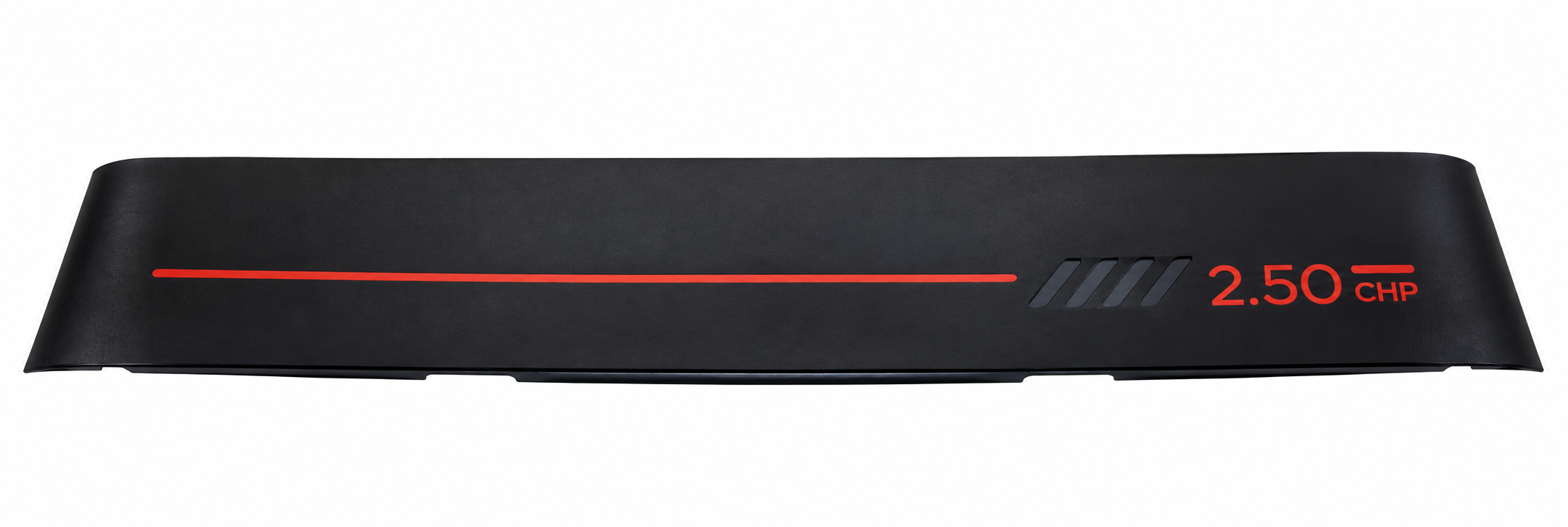

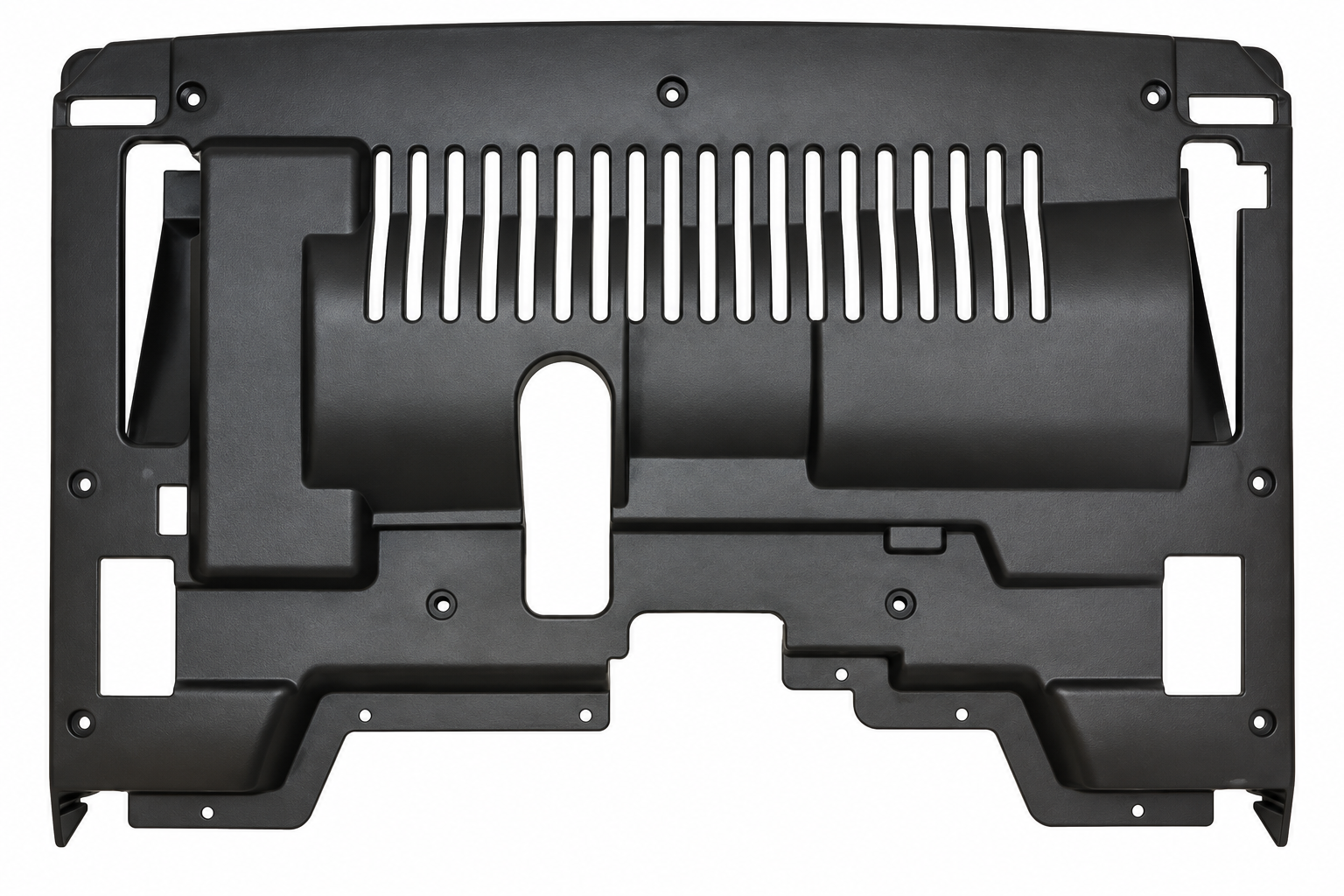

Q 712892 1000231275 Q02 MOTOR COVER;D;PP;Q758-3-1;-;-;TM444; No Model Compatibility List $30.65 / Each

9,10
N 712898 1000231347 Not Shown MANUAL;TM SAFETY DIRECTION;EN/FR/SP;TM63 No Model Compatibility List $9.57 / Each

9

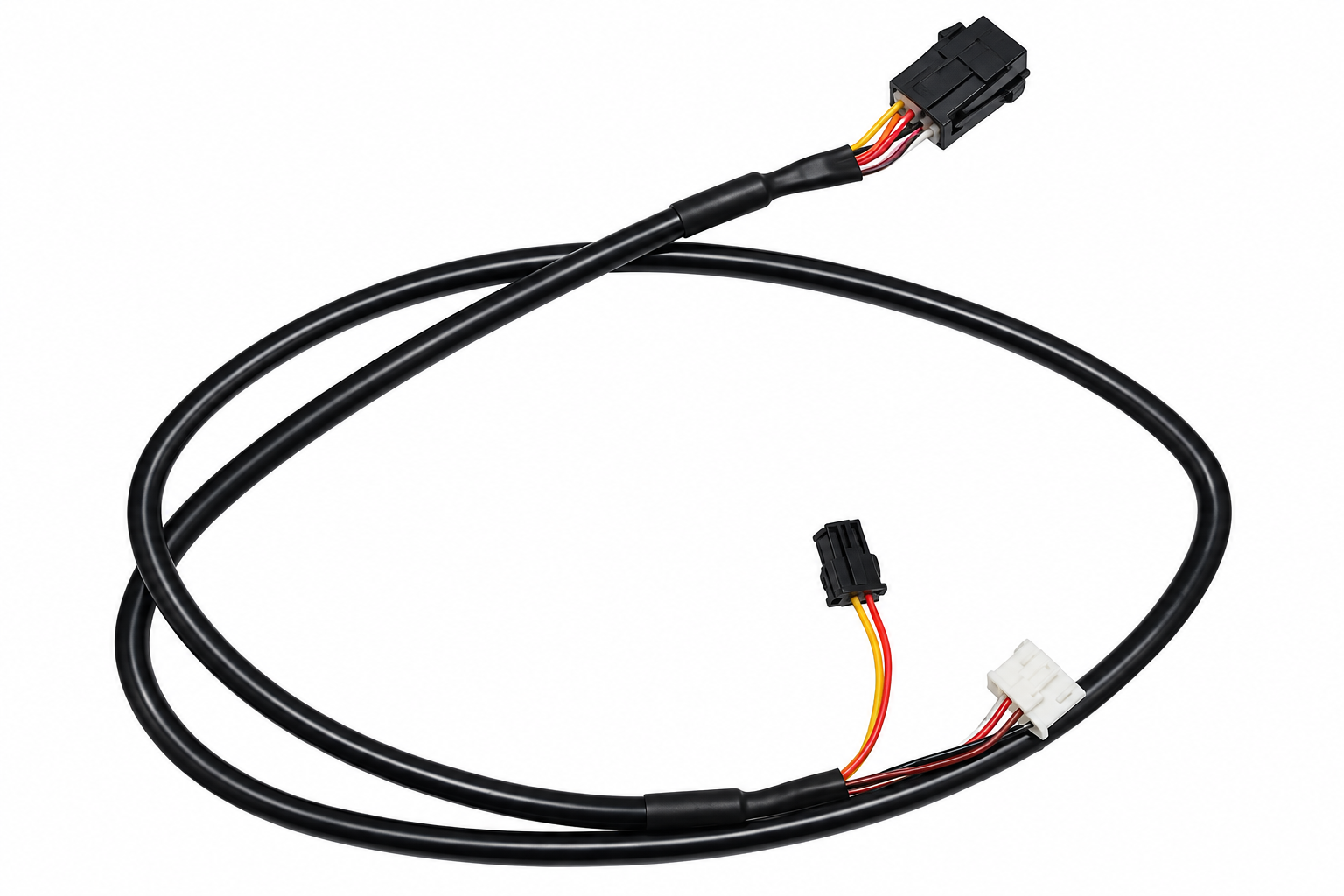

N 712925 1000231500 N88 WIRE;KEY;UP;700L(HX30002-6R-SM-2Y-XHS-4Y No Model Compatibility List $9.57 / Each

9,4,5,6
P 712947 1000231681 P07 WIRE;POWER SOCKET SET;;;;;;;80,200,100,2 Yes Model Compatibility List $25.64 / Each

4,5,6
P 712948 1000231682 P03 WIRE;CONSOLE;1350L(SM-8Ax2) No Model Compatibility List $40.92 / Each

P 712950 1000231686 P01 WIRE;CONSOLE;BLACK;850MM;CKM254301-8P Yes Model Compatibility List $20.44 / Each

H 713032 1000232619 H10 SUPPORT LOCK,INSERT TUBE,BLACK,PP,TM439 No Model Compatibility List $1.90 / Each

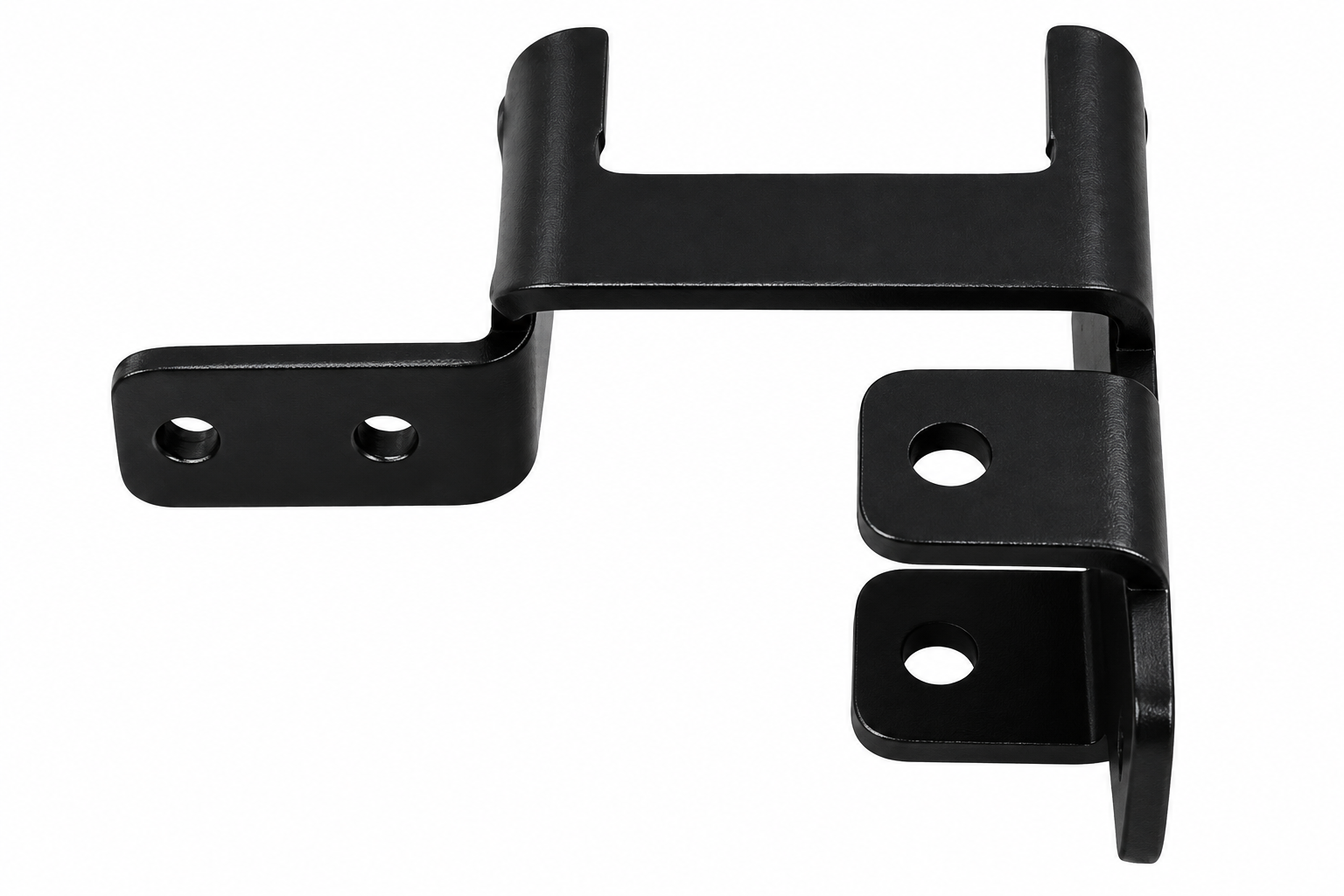

B 713037 1000232699 B15 FIXING PLATE;TRUCKLE;R;PAINTING;DM362;TE No Model Compatibility List $24.83 / Each

3

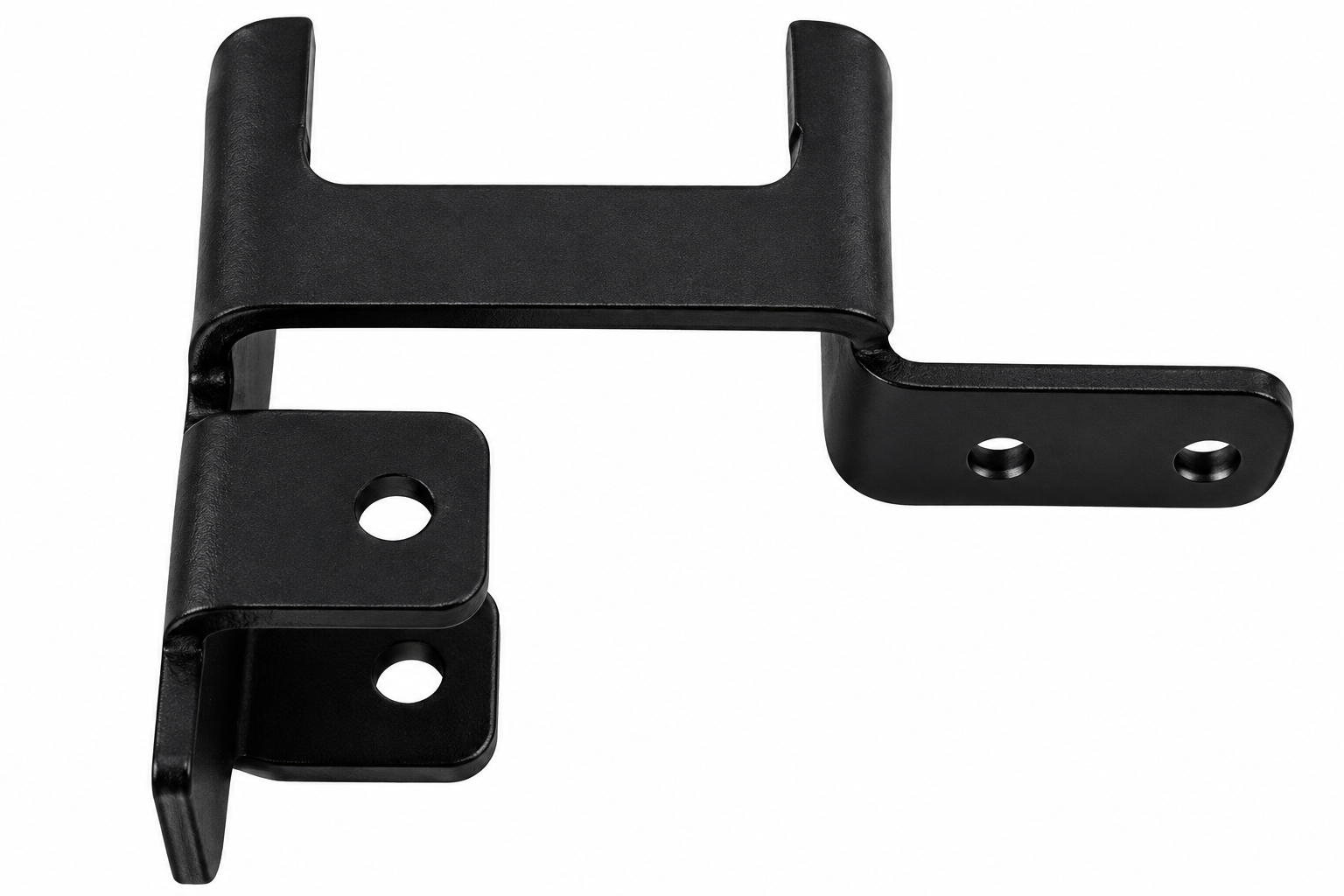

B 713038 1000232700 B16 Fixing Plate;Roller;L;painting;DM362;San No Model Compatibility List $24.83 / Each

8,3

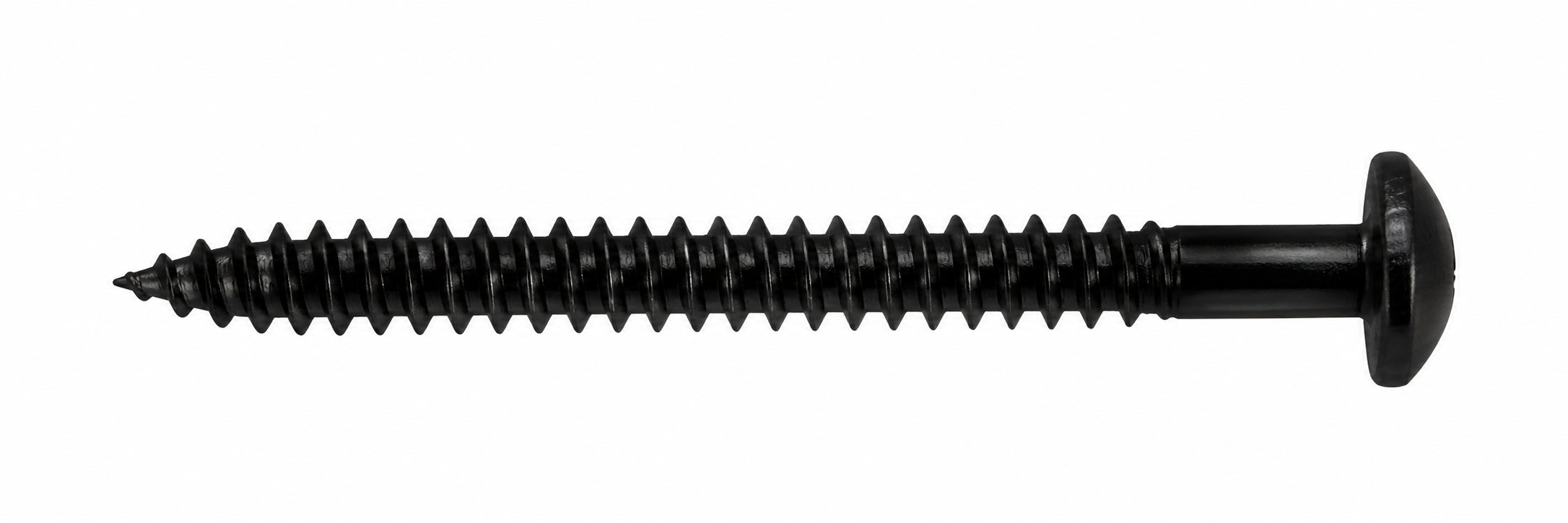

N 713146 1000233252 N35 SCREW;BH;Diam.3X35L;SM;PH;;;BZN; No Model Compatibility List $1.85 / Each

2

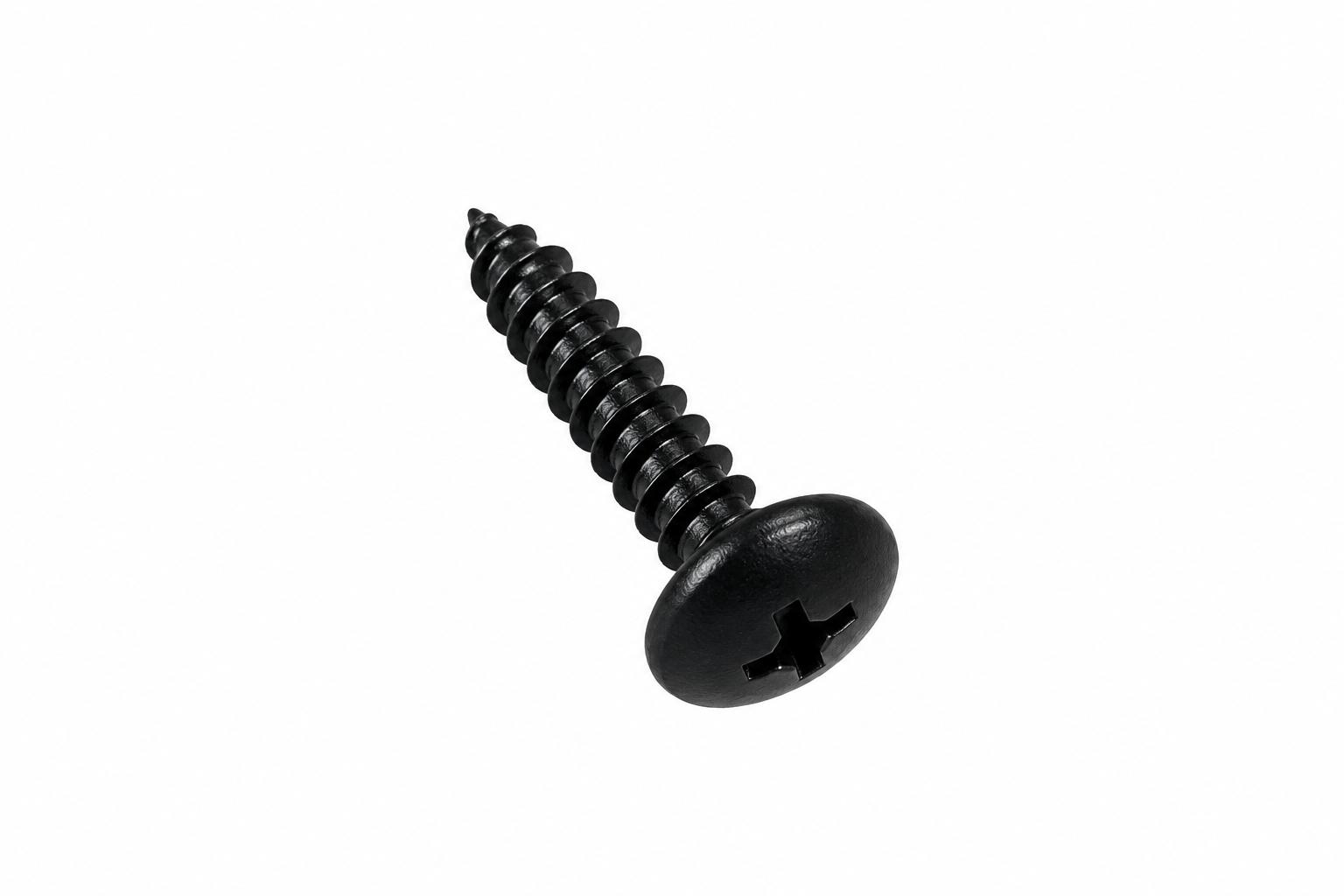

Q 713149 1000233272 Q32 SCREW;RND;Diam.4X20L;SD;PH;CST;BAN; No Model Compatibility List $2.00 / Each

2

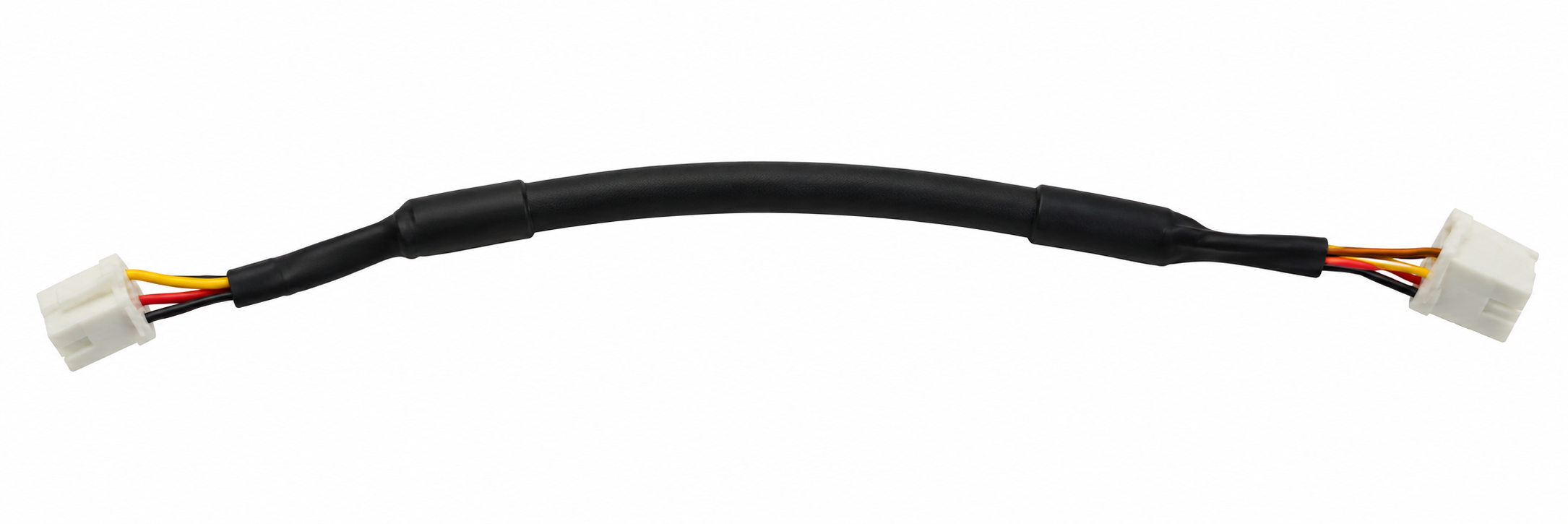

N 713152 1000233280 N78 WIRE;VF;;;;120L(PHS2.0-4P XHS2.5-4P); No Model Compatibility List $7.64 / Each

4,5,6

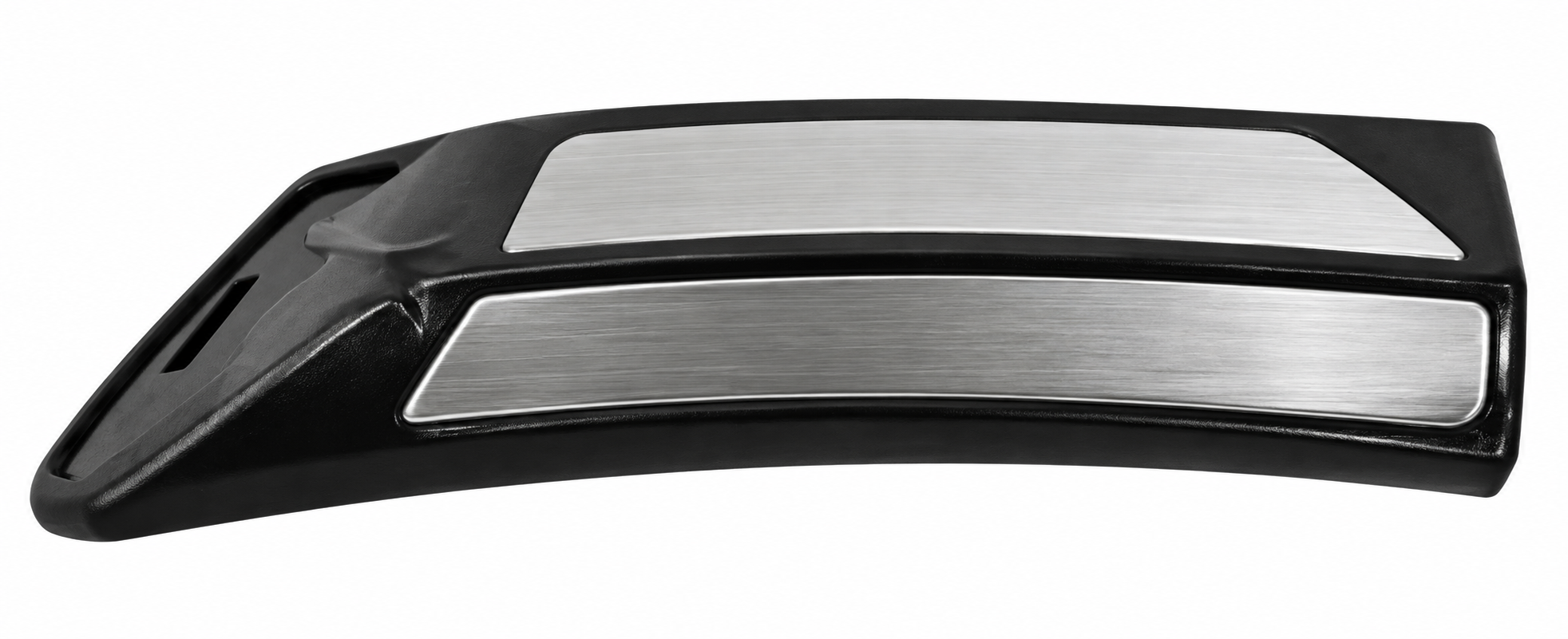

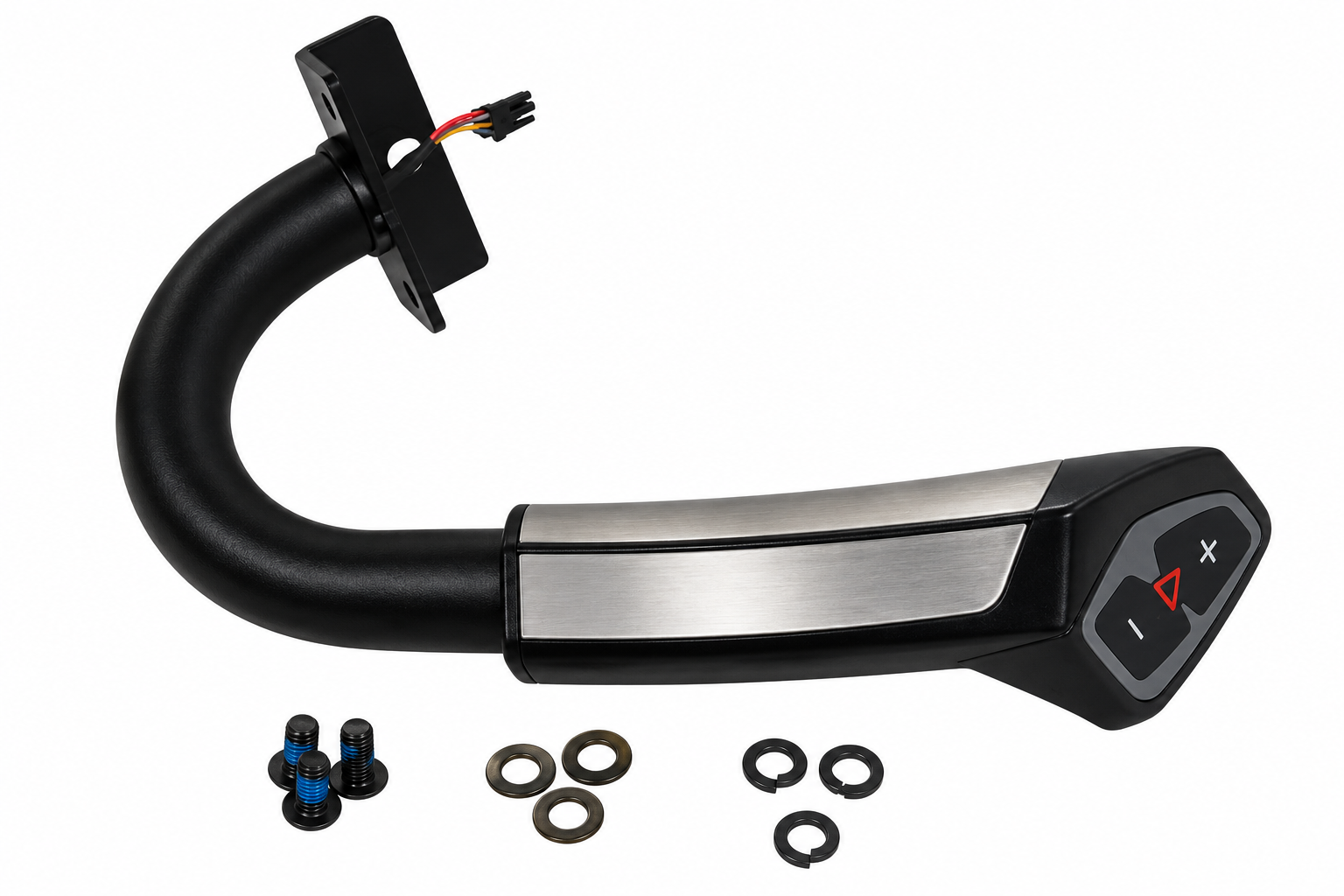

C 713210 1000300259 C15 Handle set;Semi-Assy;left;;;LS10.0T-02;; No Model Compatibility List $17.73 / Each

11
713211 1000300260 C13 Plastic Cover,Left-Rear,ABS/PA757K,Q520- No Model Compatibility List $3.54 / Each

9

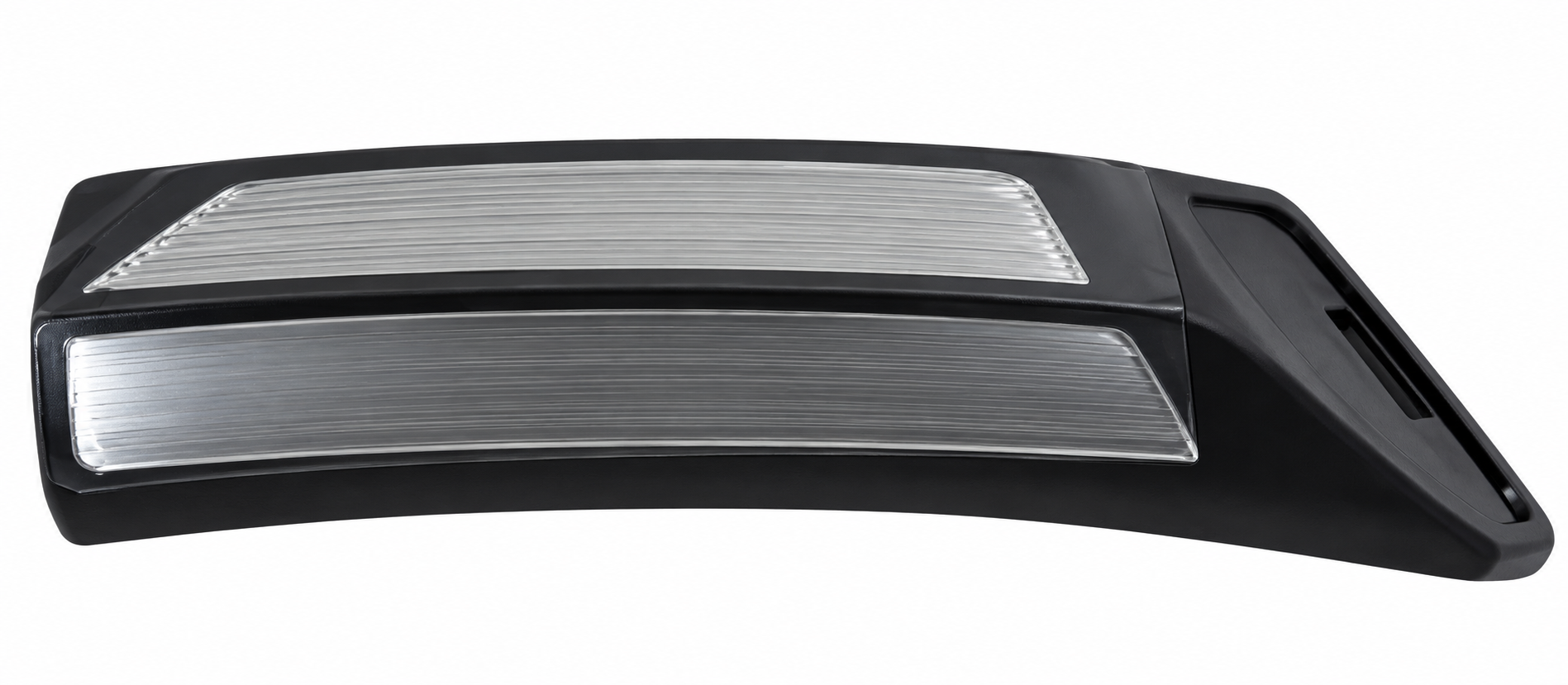

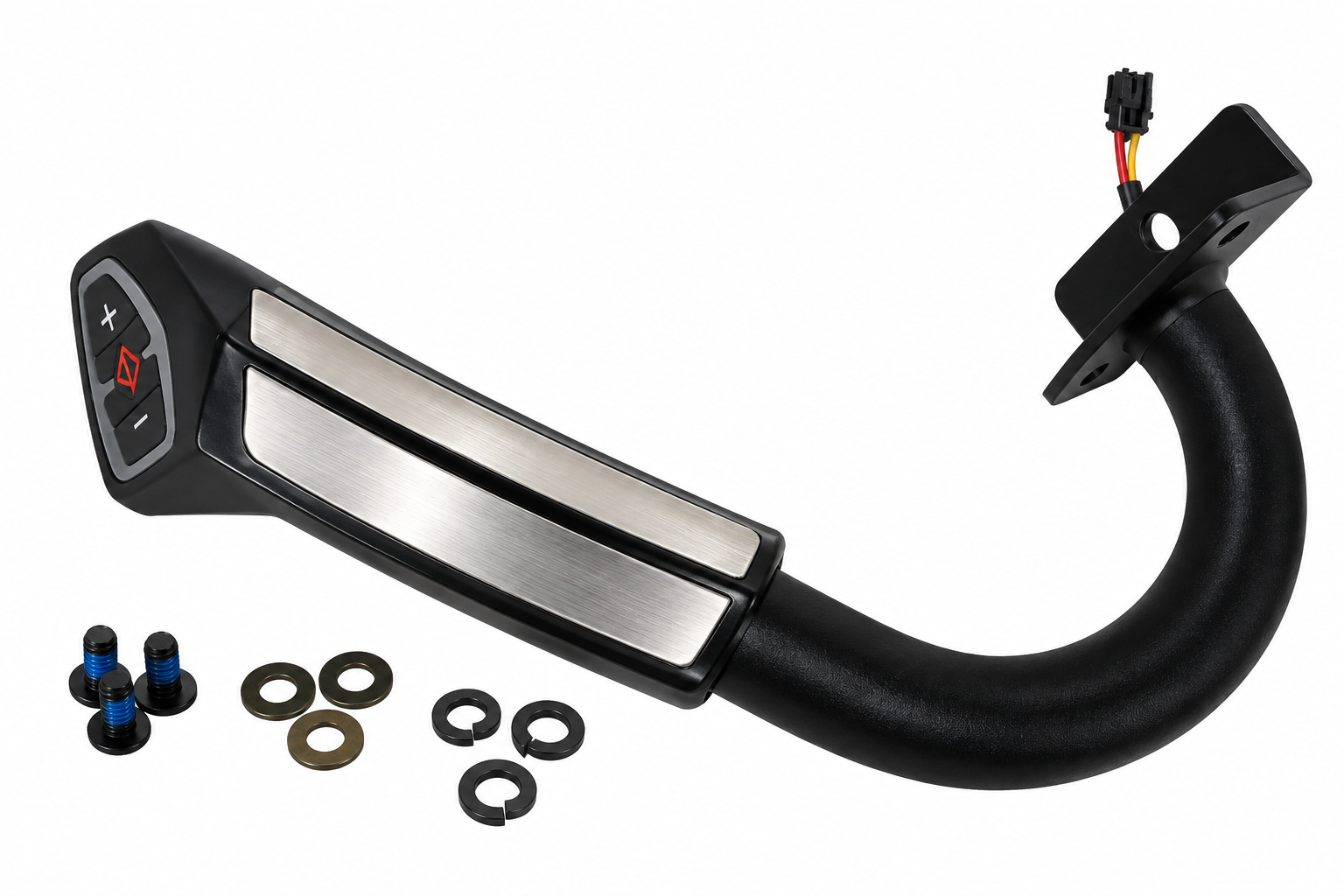

C 713212 1000300261 C19 Handle set;Semi-Assy;right;;English;LS13 No Model Compatibility List $17.73 / Each

11
713213 1000300263 C23 Plastic Cover,Right-Rear,ABS/PA757K,Q520 No Model Compatibility List $3.54 / Each

9
B 713286 1000300664 B41 Air Stick,Slow-Drop,50kg,521.5X212.5,Ste Yes Model Compatibility List $47.48 / Each

1
P 714862 1000318763 P12 BIBO Filter;Power;16A;;BF1101-16A-02;120V/250 Yes Model Compatibility List $55.56 / Each

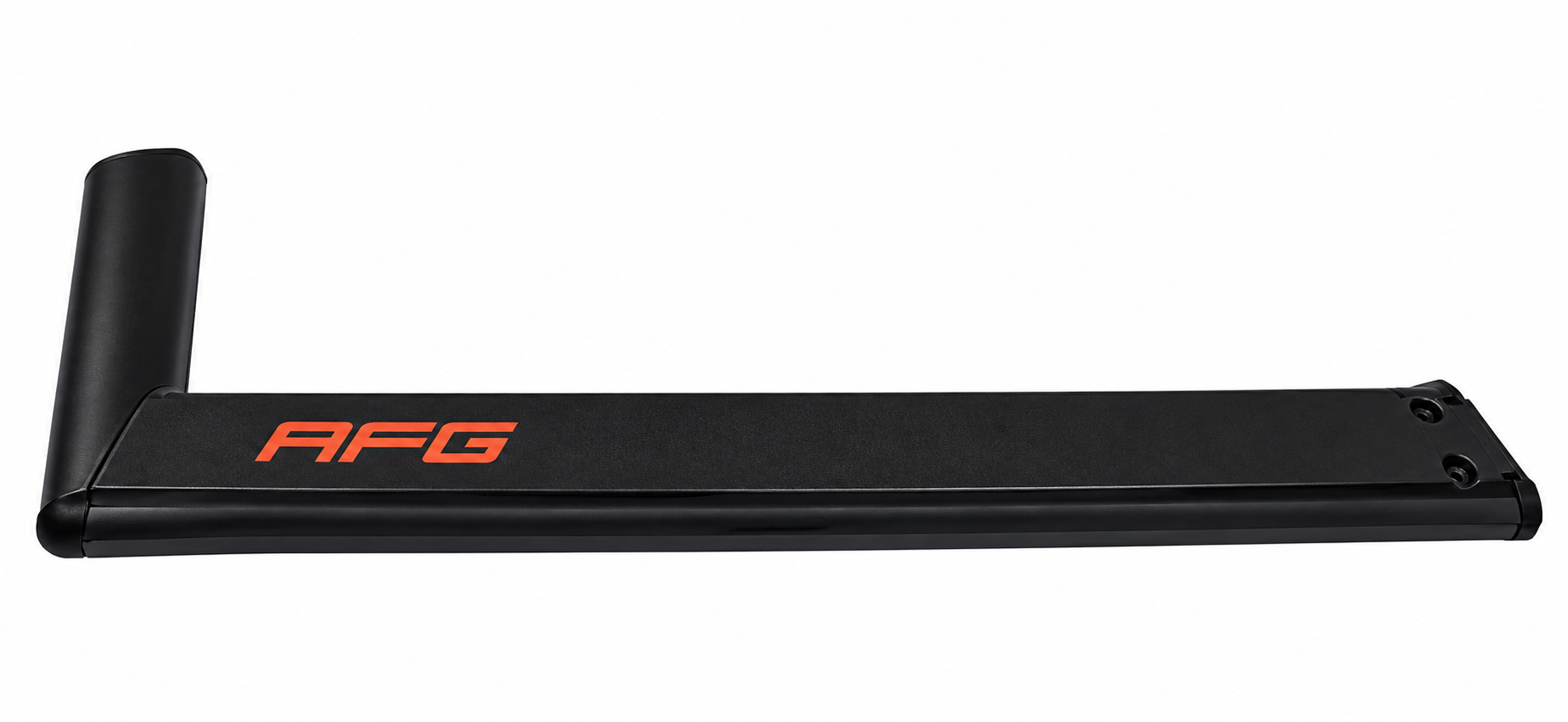

A 717270 1000343686 AC1 Console Mast-Extrawork;;left;Screen prin No Model Compatibility List $230.67 / Each

7

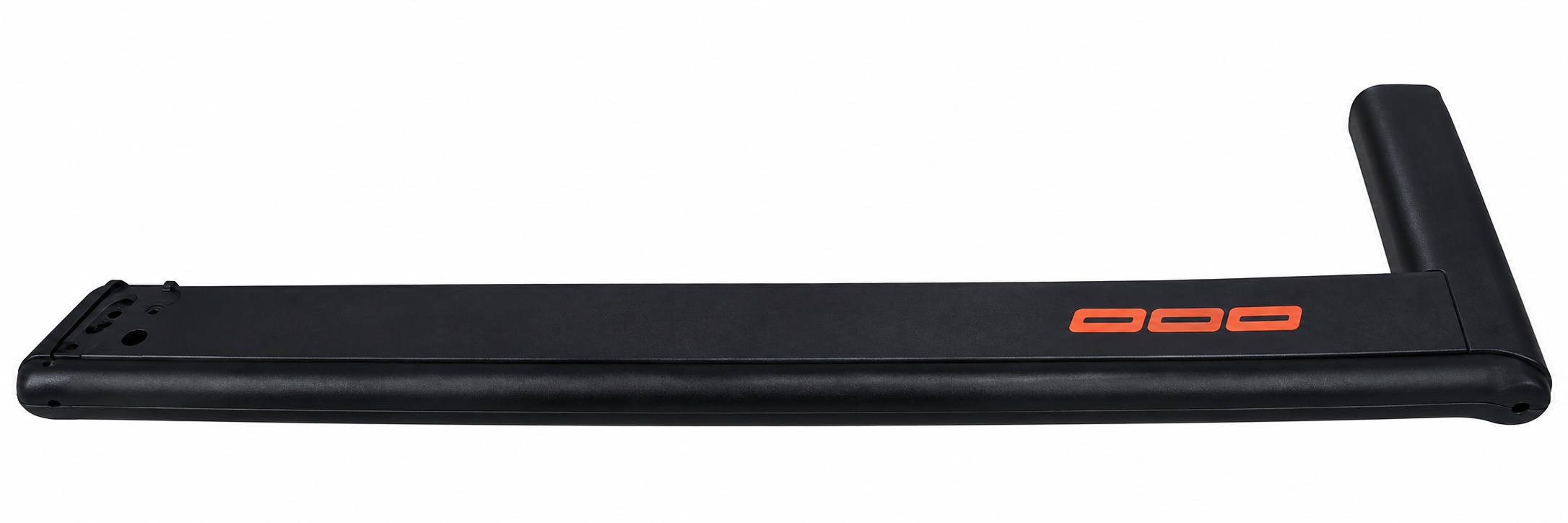

A 717271 1000343688 AC2 Console Mast-Extrawork;;right;Screen pri No Model Compatibility List $230.67 / Each

7
717272 1000343690 AH1 Elevation Supt Rack Set;Frame;D;painting No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,10
717273 1000343692 AK1 Base Frame Set;Base;;painting;DM362;Blac No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6

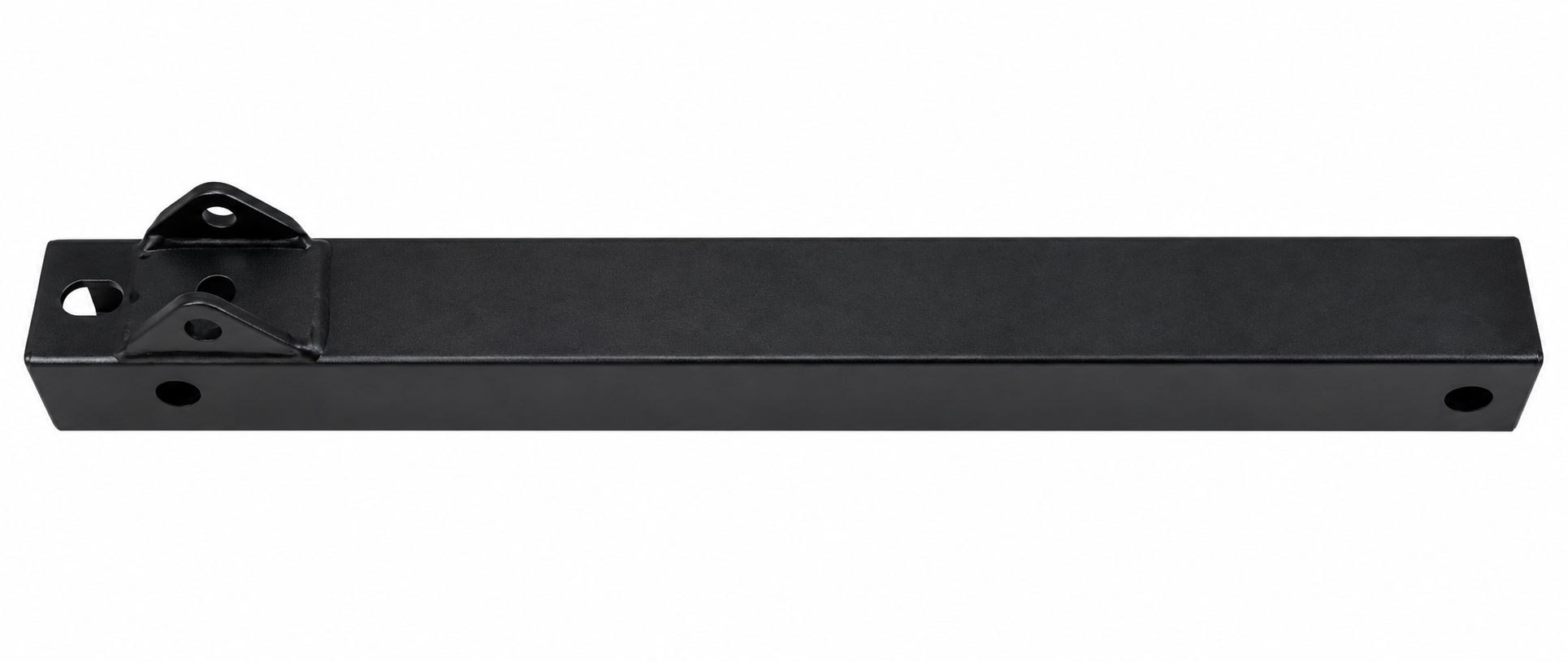

A 717274 1000343694 AH3 Sleeve Tube Set;;;painting;DM362;Black2; No Model Compatibility List $19.50 / Each

3,4,5,6

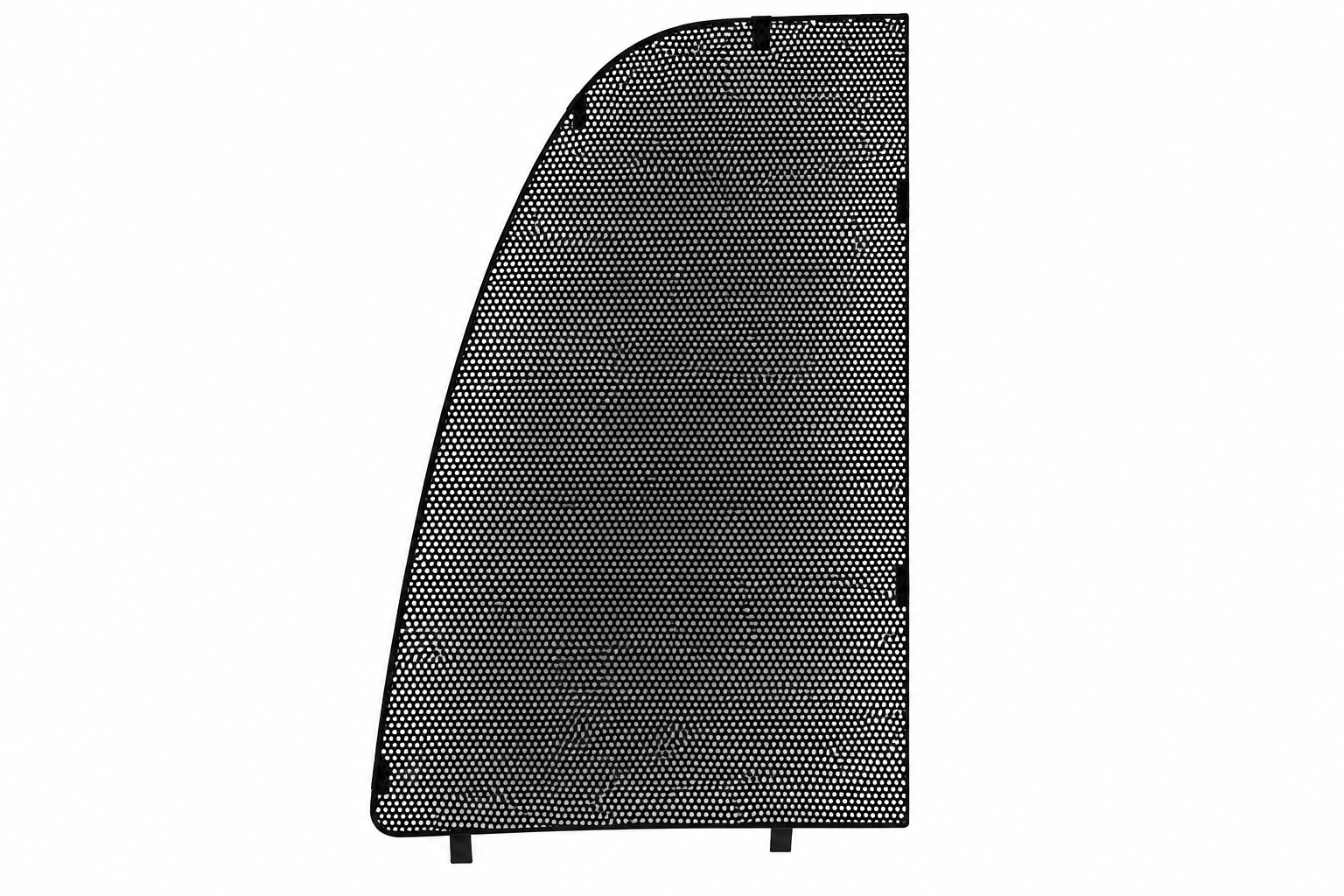

N 717275 1000343701 N07 Net Cover;Speaker;L;;DM362;;TM438E; No Model Compatibility List $14.17 / Each

9

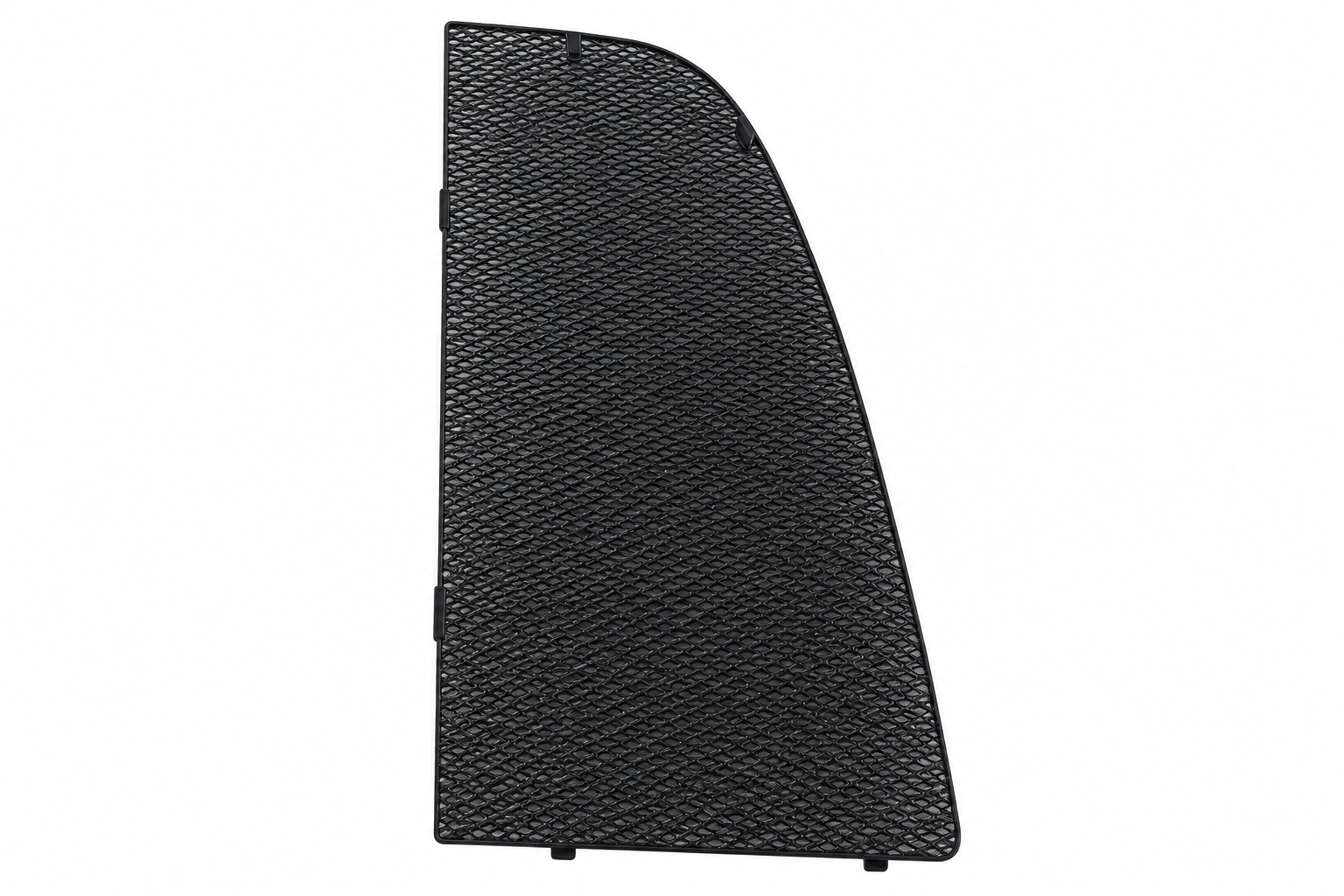

N 717276 1000343702 N08 Net Cover;Speaker;Rt;;DM362;;TM438E; No Model Compatibility List $14.17 / Each

9
N 717277 1000343706 N60 Control Board;Console;;HAPA;V2.002;;3.3A No Model Compatibility List $354.87 / Each

7

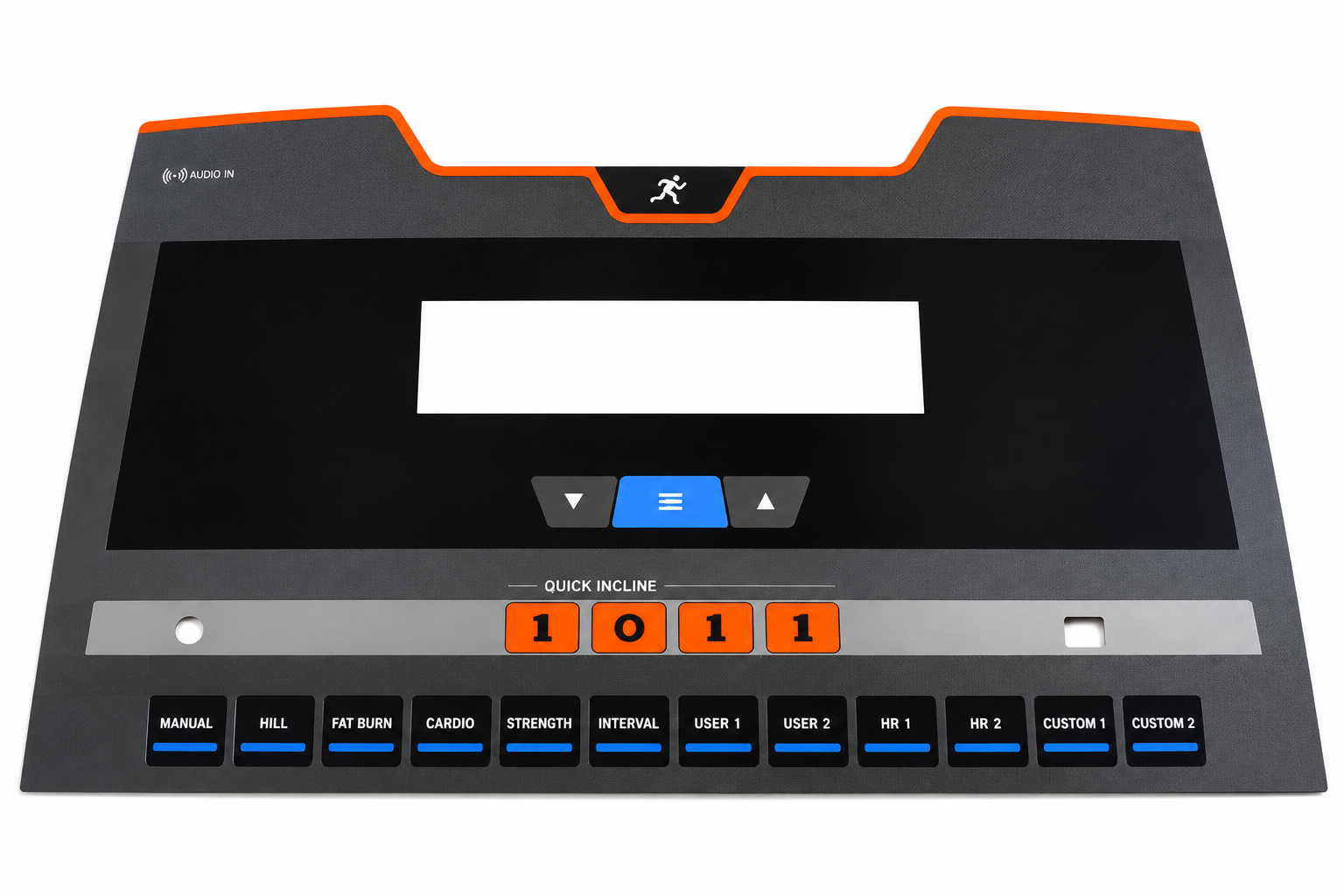

N 717278 1000343708 N63 Manipulate Overlay;;;;middle;TM438E No Model Compatibility List $44.36 / Each

1

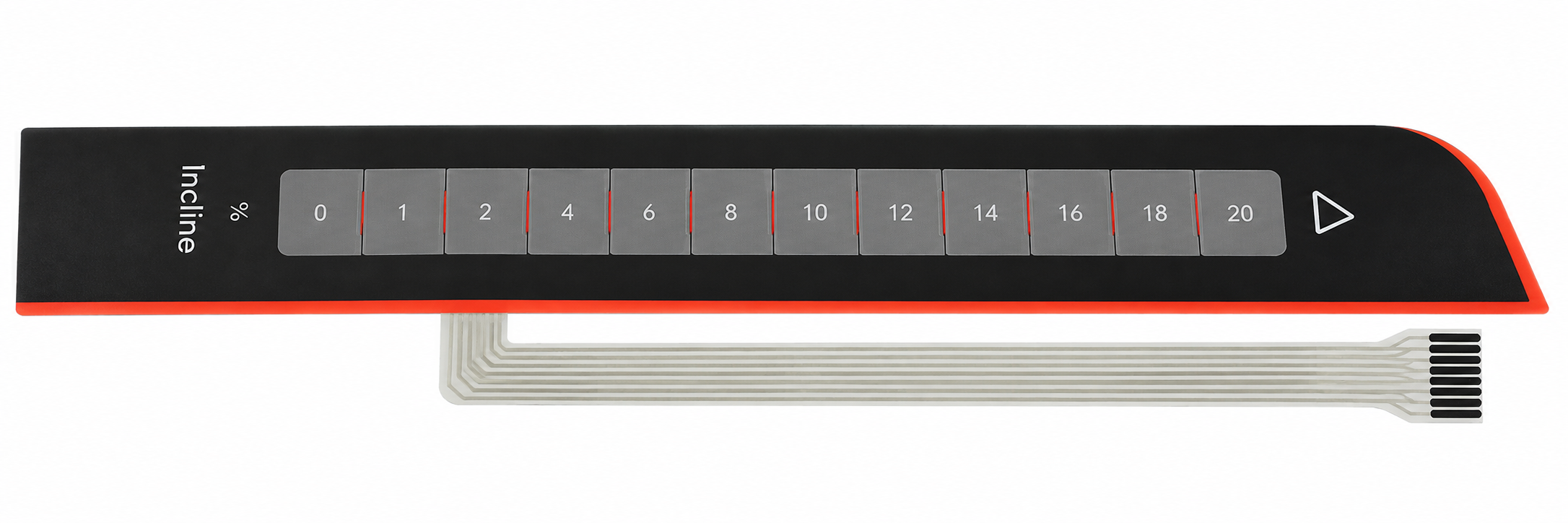

N 717279 1000343709 N64 Manipulate Overlay;;Left;English;Include No Model Compatibility List $35.46 / Each

1

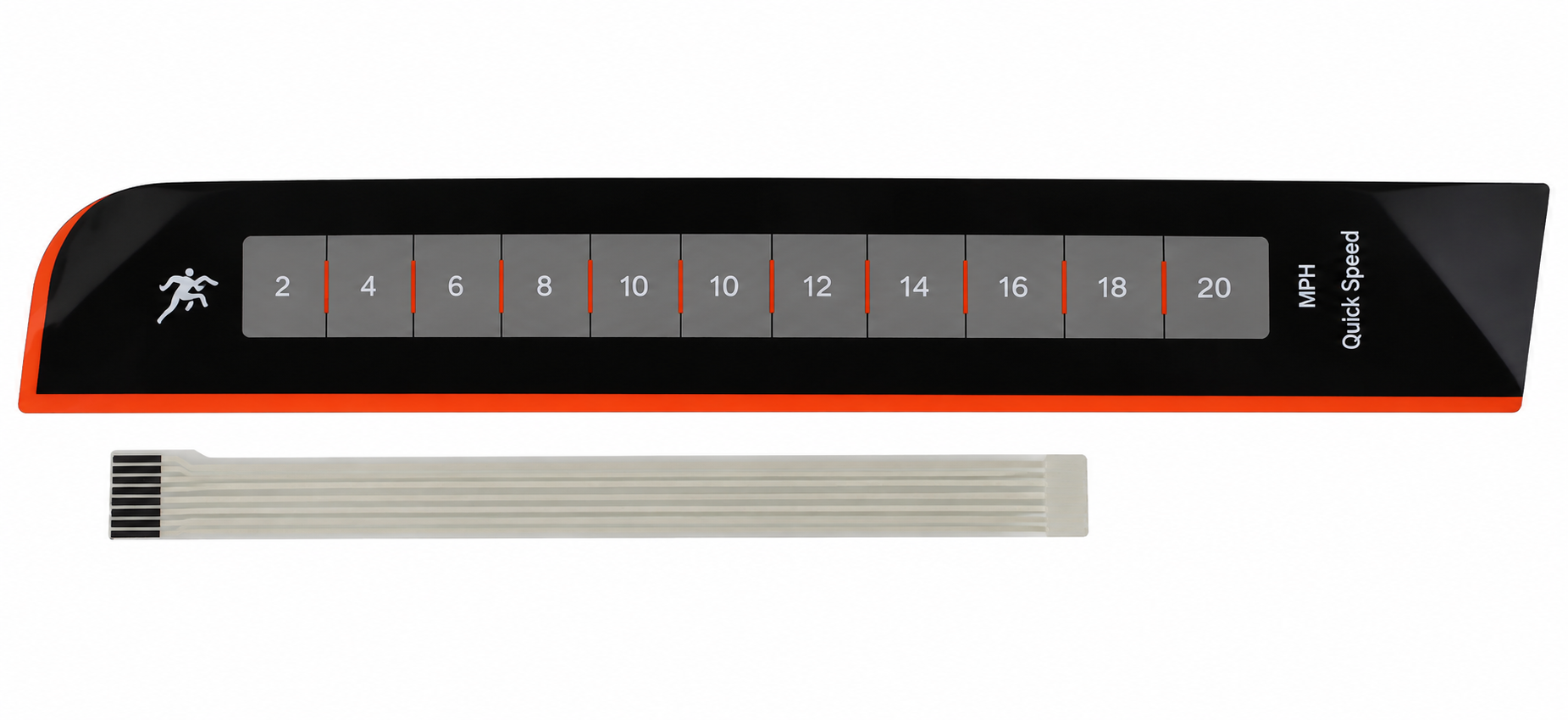

N 717280 1000343712 N65 Manipulate Overlay;;Right;English;Includ No Model Compatibility List $38.32 / Each

1
Q 717281 1000343713 Q06 Motor Cover-Exreawork;upper coverr;;Scre No Model Compatibility List $15.96 / Each

9,10
717282 1000343715 Q03 Side Rail-Extrawork;;left;Screen print;8 No Model Compatibility List $0.00 / Each
Out Of Stock 		9
N 717283 1000343716 N66 Manipulate Overlay;;Down;English;Include No Model Compatibility List $9.57 / Each

1
717284 1000343717 Q04 Side Rail-Extrawork;;right;Screen print; No Model Compatibility List $0.00 / Each
Out Of Stock 		9

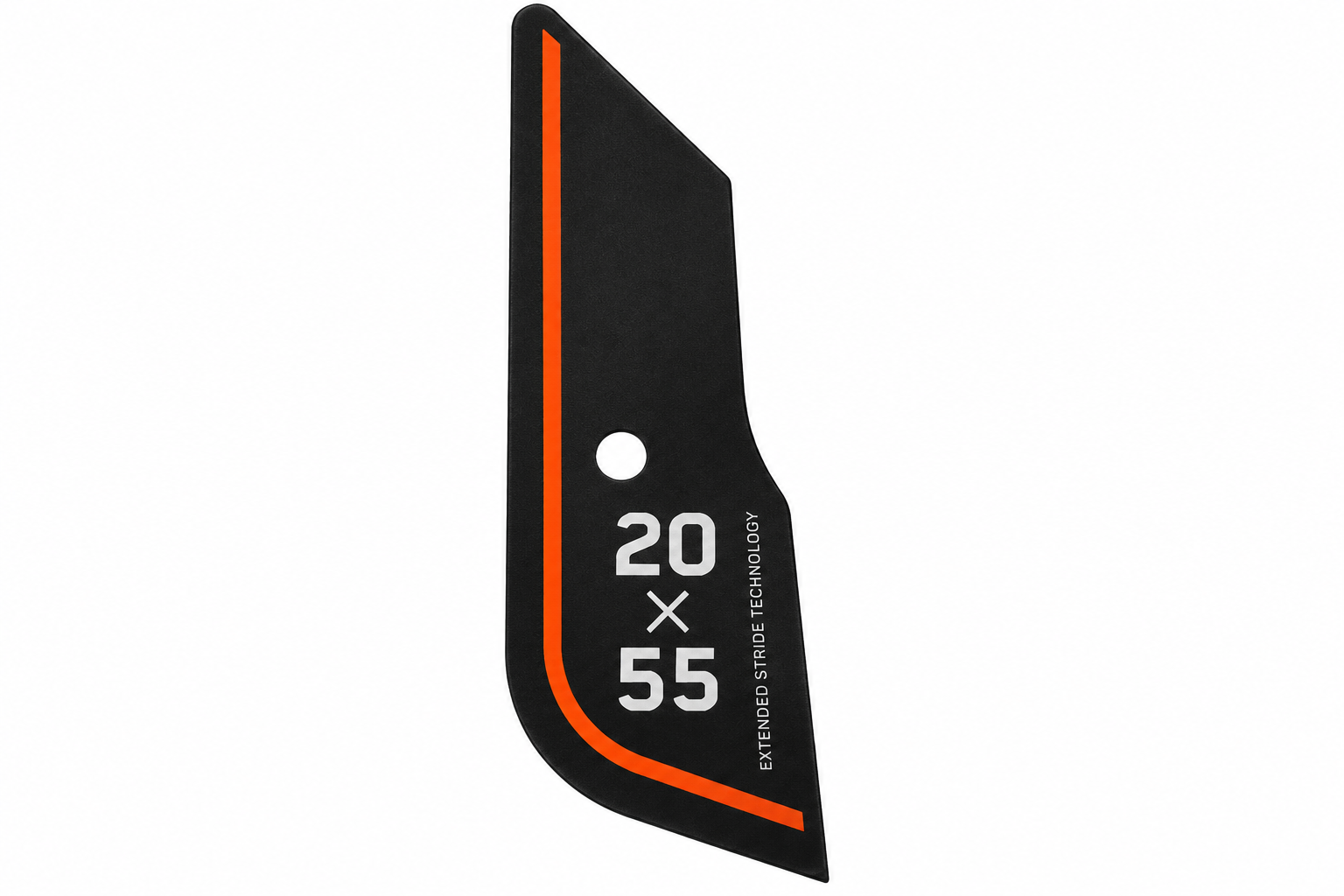

V 717285 1000343722 V04 Direction Label;Accent Piece;;;;Left;;TM No Model Compatibility List $3.54 / Each

4,5,6

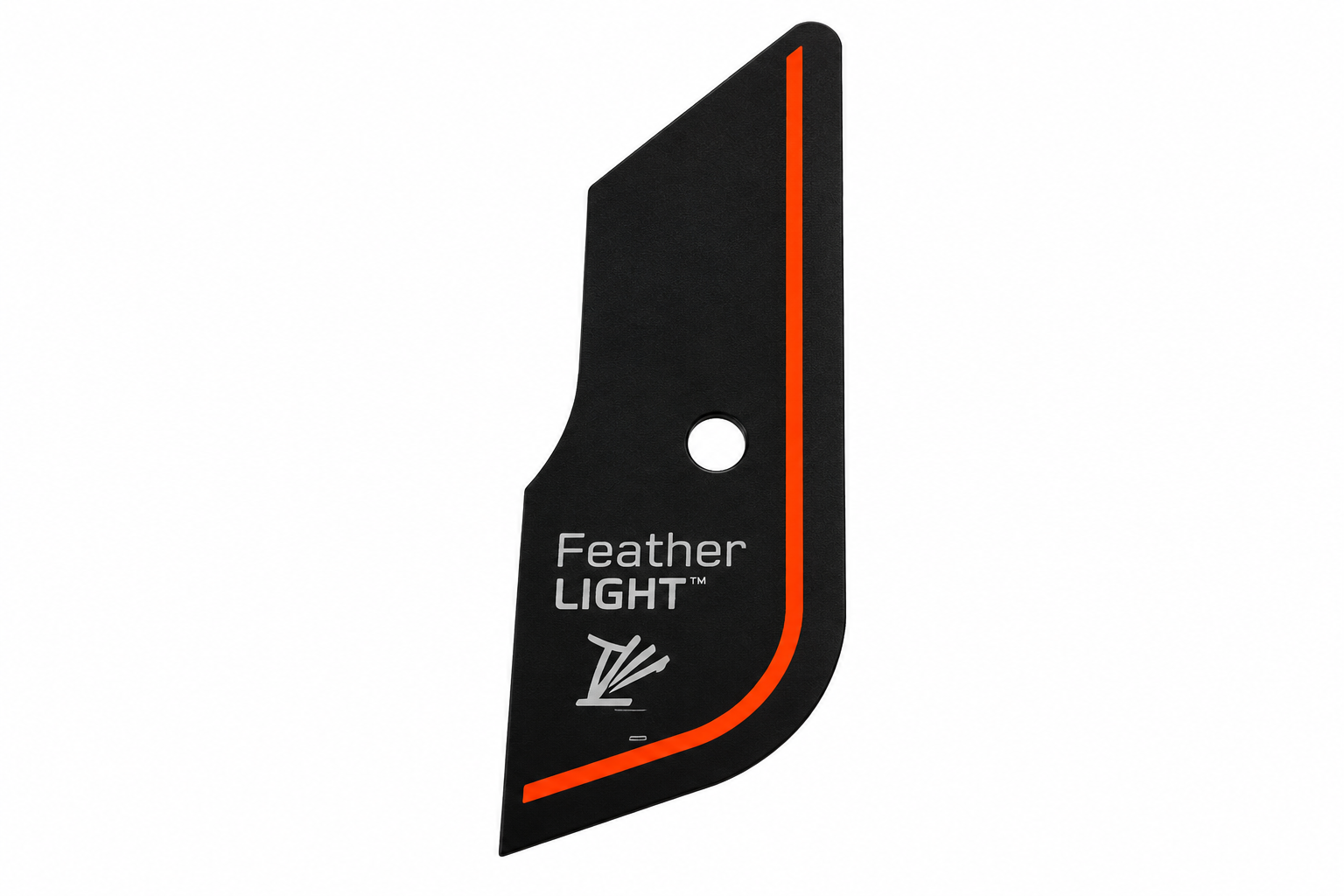

V 717286 1000343723 V05 Direction Label;Accent Piece;TM438E;;;Ri No Model Compatibility List $6.19 / Each

4,5,6
N 717290 1000343729 N84 Manipulate Overlay;Incline Quick Key;Lef No Model Compatibility List $14.17 / Each

9,10
N 717291 1000343730 Not Shown Manual;Assembly/Manipulate;;;E/F/S;TM438 No Model Compatibility List $38.32 / Each

3

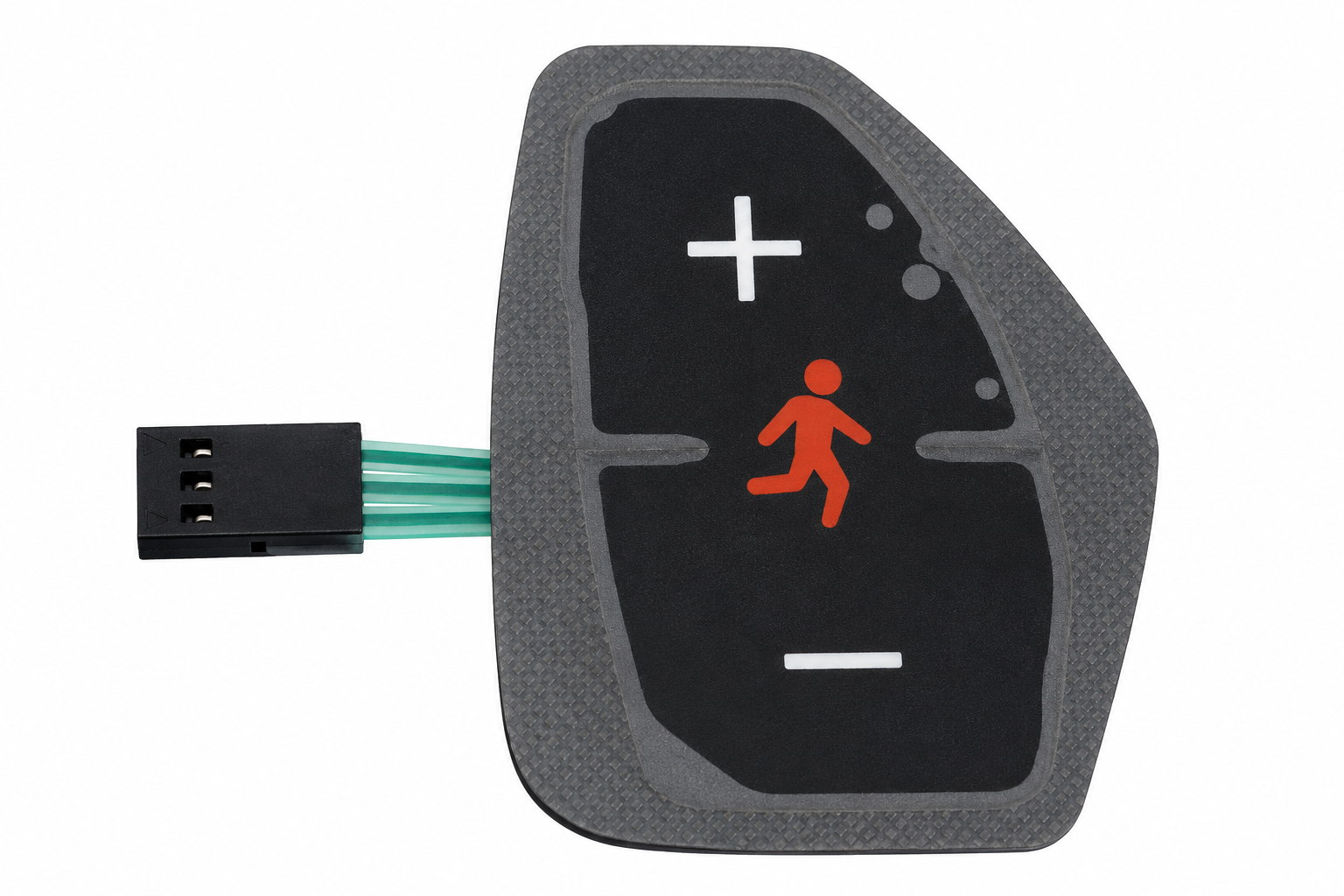

N 717292 1000343733 N85 Manipulate Overlay;Speed Quick Key;Right No Model Compatibility List $14.17 / Each

9

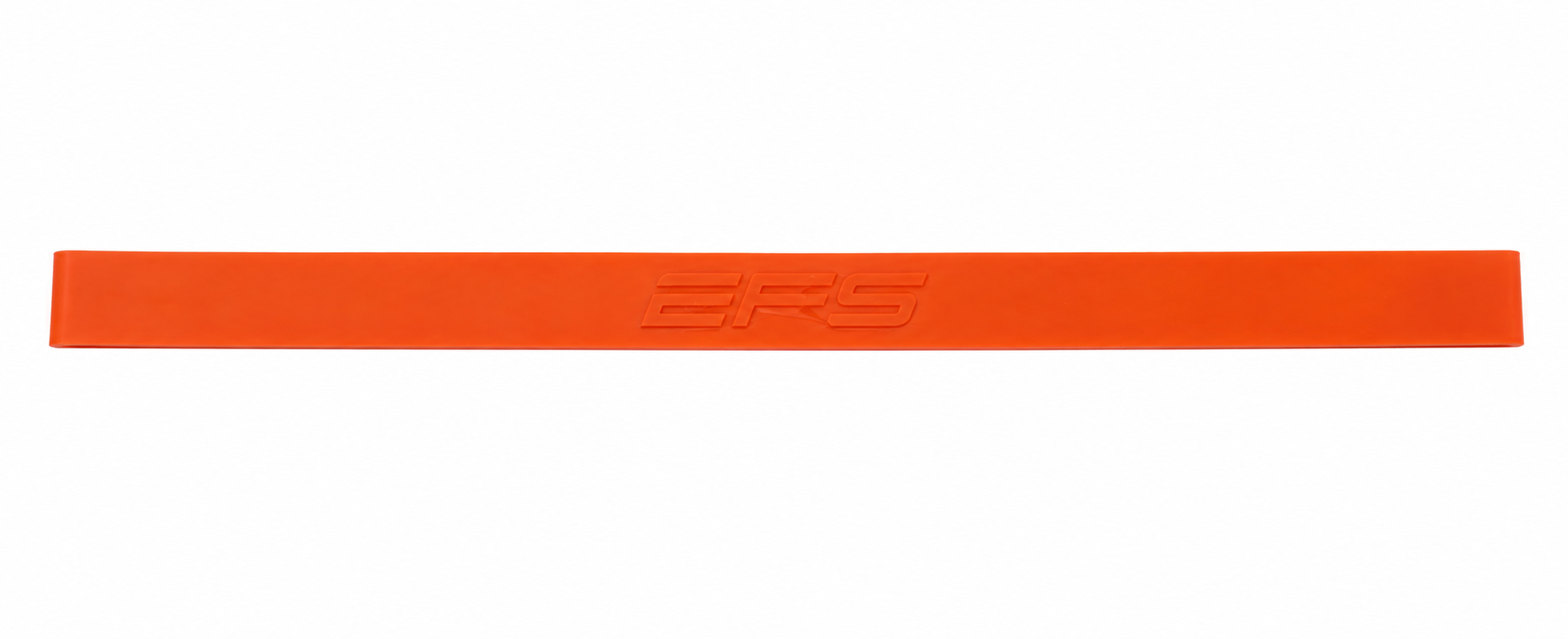

N 717297 1000343752 N09 Decorate Plate;Console Overlay;;Silica;Q No Model Compatibility List $11.49 / Each

7,3
4 717618 1000346317 4 Handle set;Semi-Assy;left;;;S-TM439E;; No Model Compatibility List $61.31 / Each

11
A 717619 1000346318 AC4 Sensor set;Semi-Assy;left;;;S-TM439E;; No Model Compatibility List $15.31 / Each

1
5 717620 1000346319 5 Handle set;Semi-Assy;right;;;S-TM439E;; No Model Compatibility List $61.31 / Each
Out Of Stock 		11
A 717621 1000346320 AC3 Sensor set;Semi-Assy;right;;;S-TM439E;; No Model Compatibility List $15.31 / Each

1
718310 1000350488 1 Connect Tube Set;Semi-Assy;;;;TM438E-1US No Model Compatibility List $70.95 / Each

3

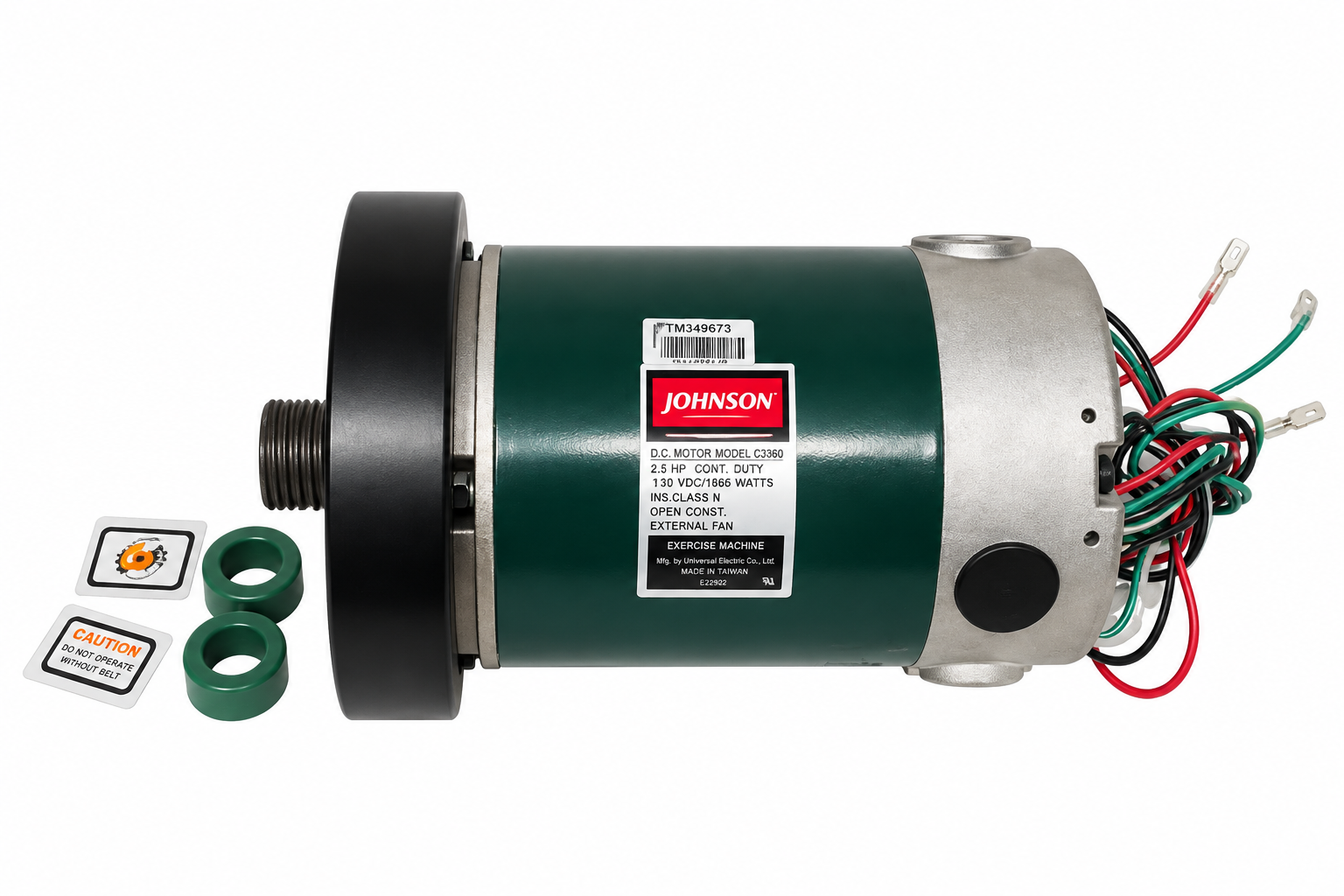

718311 1000350489 3 Motor set;Semi-Assy;;;;TM438E-1US;; No Model Compatibility List $518.13 / Each

10

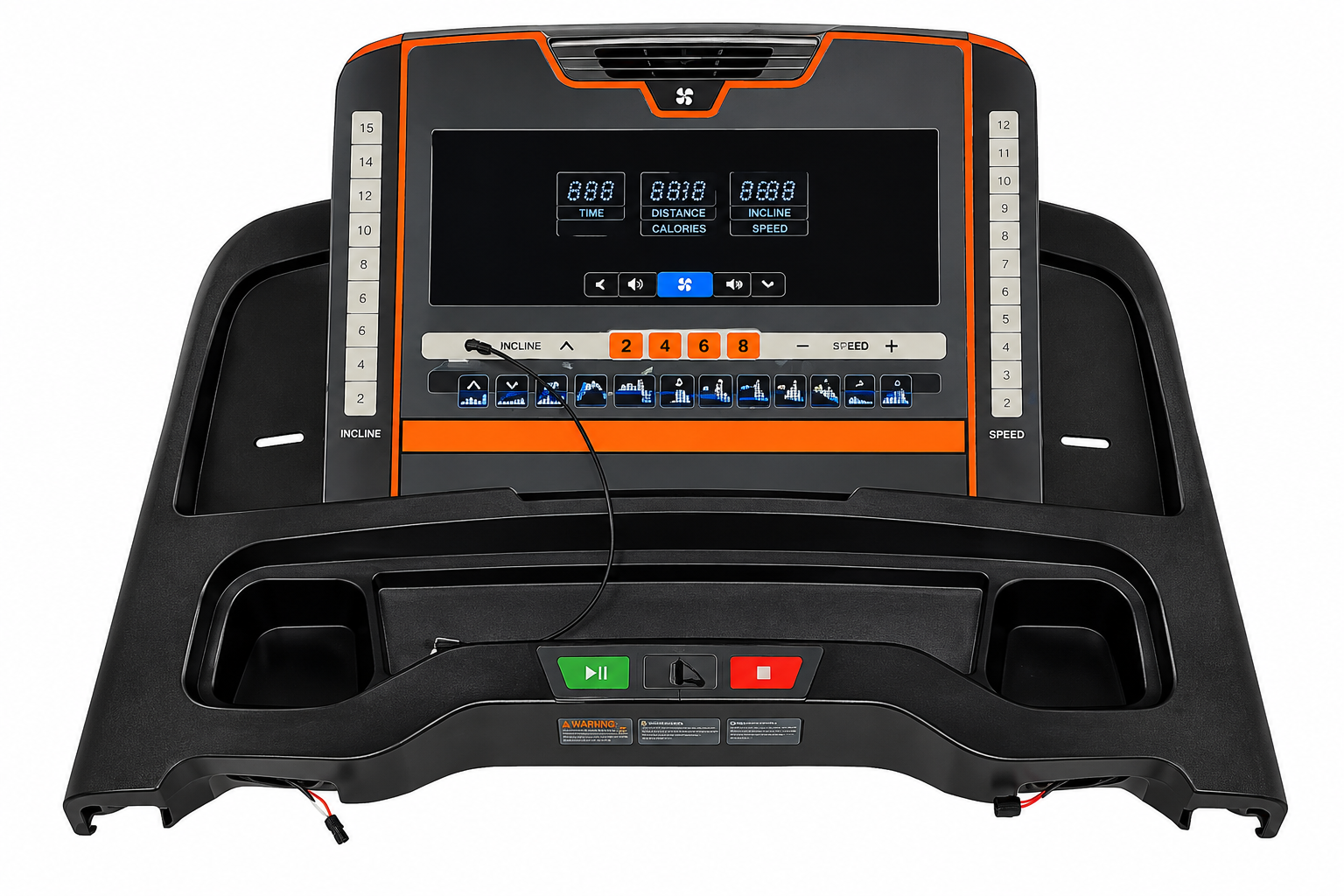

6 718312 1000350490 6 Console set;Semi-Assy;;;;TM438E-1US;; No Model Compatibility List $1105.78 / Each

7

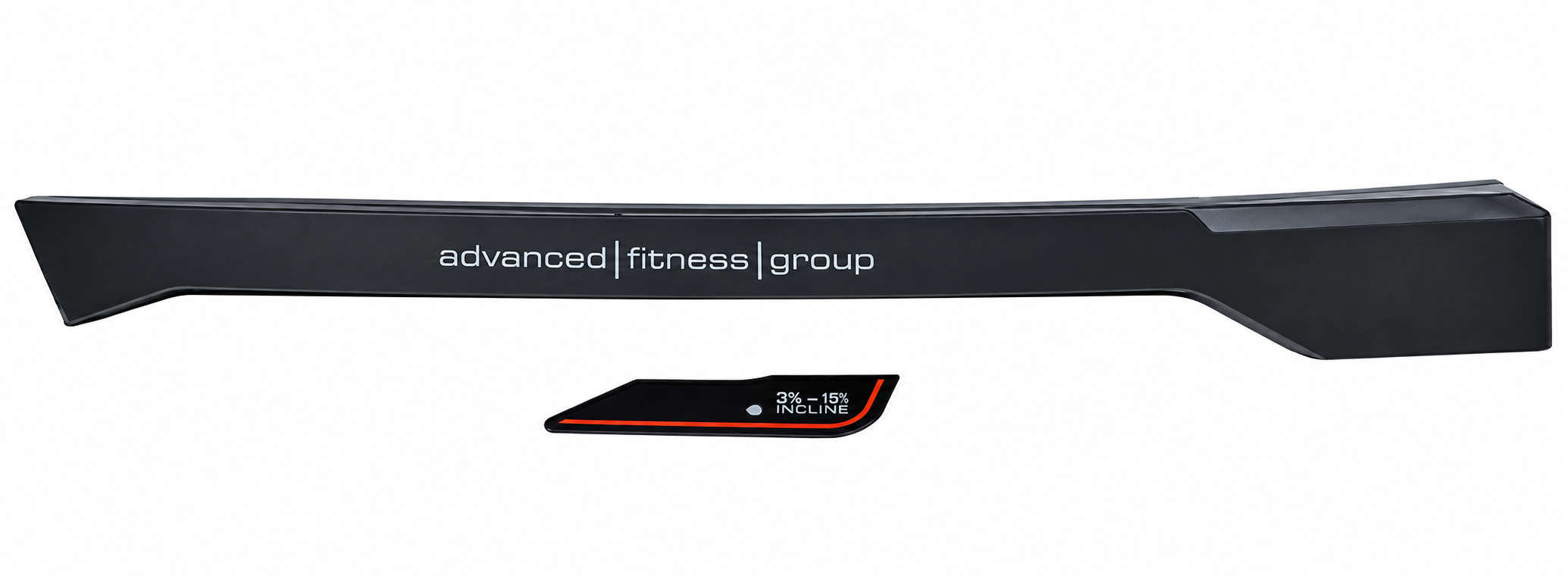

7 718313 1000350491 7 Side Rail Set;Semi-Assy;left;;;TM438E-1U No Model Compatibility List $70.95 / Each

9

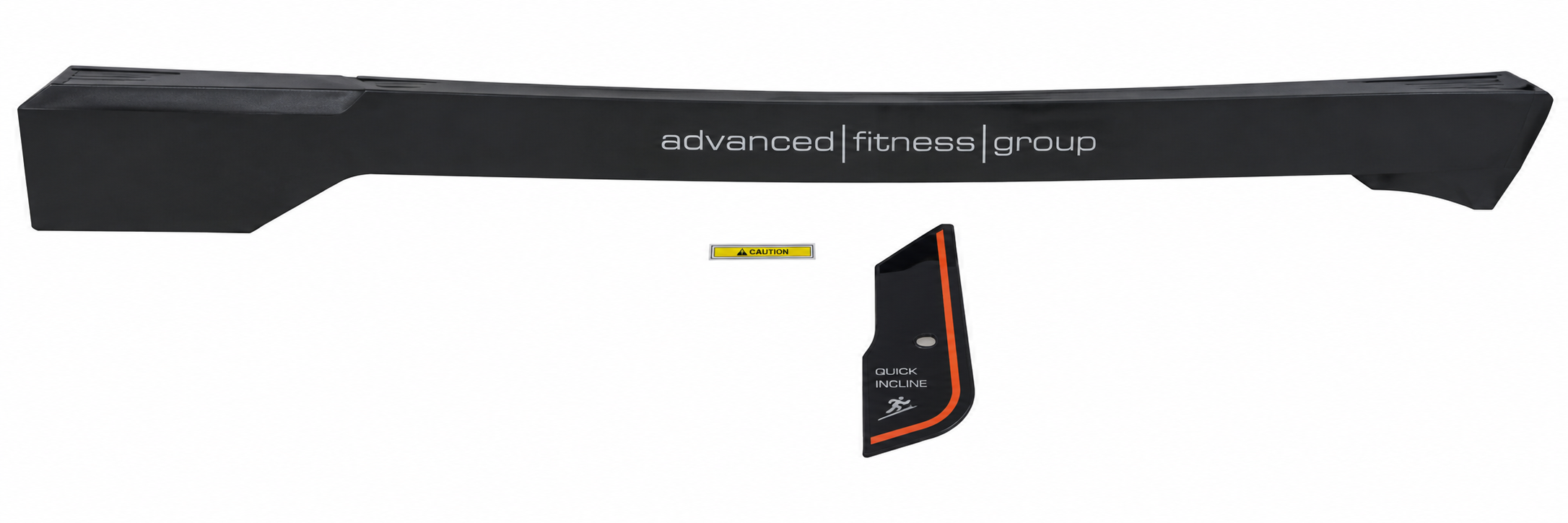

8 718314 1000350492 8 Side Rail Set;Semi-Assy;right;;;TM438E-1 No Model Compatibility List $70.95 / Each

9
P 725084 101680 P05 MCB POWER CABLE(L);14AWG;150;250##BLACK No Model Compatibility List $3.82 / Each

725085 101681 P11 MCB POWER CABLE(R);14AWG150;250##;WHITE No Model Compatibility List $3.82 / Each

725190 102531 N33 Cooling Fan;TM604-N33 Yes Model Compatibility List $26.81 / Each

Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

Transport Wheel 725586 073633 K15 Transport Wheel Yes Model Compatibility List $3.82 / Each

Speed feedback system;Motor controller2. 726233 080869 Not Shown Speed feedback system;Motor controller2. No Model Compatibility List $28.99 / Each

Screw;Phillip;Big Umbrella;Tapped;;4x10 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $2.00 / Each

Speed Sensor 726503 082406 M38 Speed Sensor Yes Model Compatibility List $31.10 / Each

726594 0000083278 Z22 USB Cover;USB-03 No Model Compatibility List $1.90 / Each

728136 093244 N37 Screw;Phillip;BH;Tapped;4x8L;Zn-BL; No Model Compatibility List $2.00 / Each

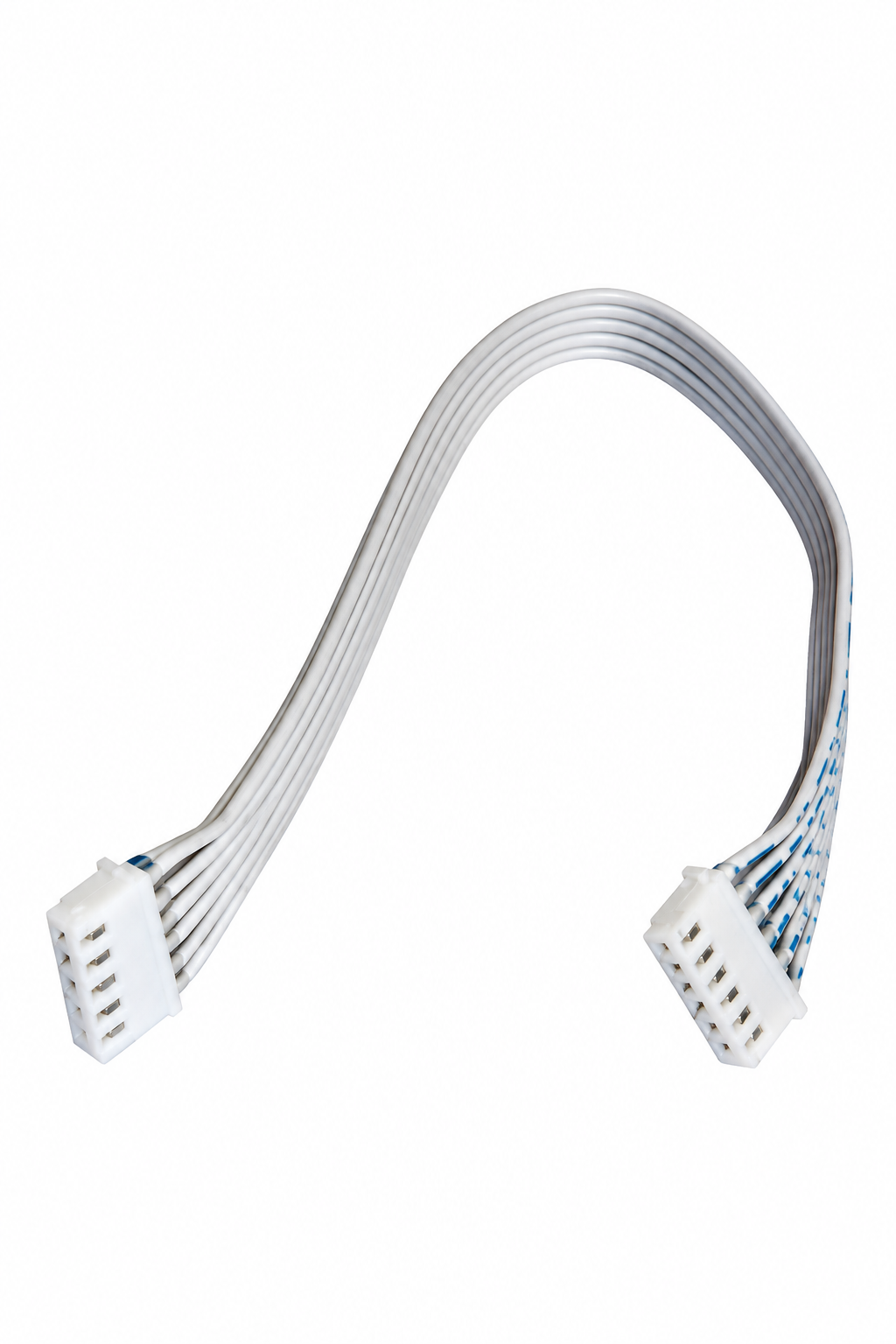

Connect Wire;IPOD-PCB;250(XHS-6Yx2) 728467 094989 N79 Connect Wire;IPOD-PCB;250(XHS-6Yx2) No Model Compatibility List $3.82 / Each

Earphone Jack;ABS;PA757S 728770 097076 N10 Earphone Jack;ABS;PA757S No Model Compatibility List $1.90 / Each

729152 Part of Kit 3 M04 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
N 1003681 1000110297 N43 1 Safety Key Yes Model Compatibility List $18.98 / Each

M 1003695 1000111476 M03 1 Controller Motor Yes Model Compatibility List $499.00 / Each

N 1009209 1000101982 N75 1 Upper Wire Harness Yes Model Compatibility List $49.99 / Each

P 1009211 1000231686 P01 1 Console Wire Harness Yes Model Compatibility List $45.99 / Each

A 1000696 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $59.99 / Each

A 1000697 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $219.99 / Each

K 1003512 000522-D K50 Foot Leveler Yes Model Compatibility List $15.99 / Each

M 1003382 1000111476 M03 Lower Motor Controller Board Yes Model Compatibility List $169.00 / Each
Out Of Stock
N 1003532 1000110297 N43 Magnetic Safety Key Yes Model Compatibility List $31.99 / Each
B 1035628 039400-BA B25 1 Transport Wheel (Used) Yes Model Compatibility List $5.00 / Each

H 1035584 1000226906 H25 1 End Cap (Used) No Model Compatibility List $5.00 / Each

M 1001366 1000101465 M02 Incline Motor Elevation Yes Model Compatibility List $89.00 / Each

28
P 1036808 019354-A P06 Power harness wire Yes Model Compatibility List $5.00 / Each

Side Leveling Foot Leveler 1012357 MB0304044D Side Leveling Foot Leveler Yes Model Compatibility List $15.99 / Each

N 1020025 1000223942 N73 Mo Keypad Board (New) Yes Model Compatibility List $35.99 / Each

9,12,13,14
Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

B 911951 004571-00 B28 Deck screw M8X1.25PX28L (New) No Model Compatibility List $13.99 / Each

H 976932 004926-00 H05 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q37 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
