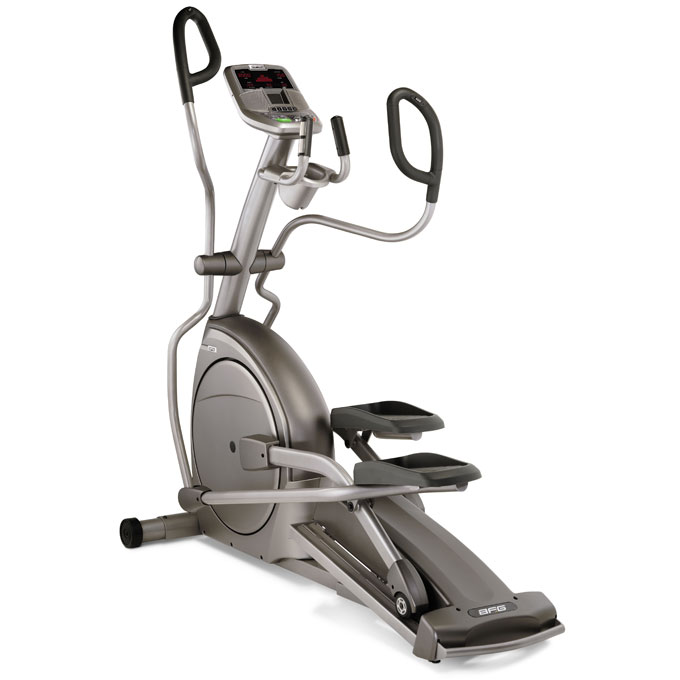

AFG - Advanced Fitness Group - 5.0AE - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L05 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock
8
700132 000485-00 B31 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B37 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
700318 000940-A C10 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

L 700355 001115-F L02 Wheel;Nylon No Model Compatibility List $9.57 / Each

8
Z 700410 001278-B Z19 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
J 700462 001424-BA J07 End Cap;Crank Cover No Model Compatibility List $3.82 / Each

8,9
700570 001679-00 P17 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

700755 002169-A KIT Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
P 700770 002231-B P09 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
N 701008 003307-00 N31 Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

701013 003326-00 P04 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

R 701042 003413-00 R16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
E 701153 004071-00 E09 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

701156 004074-A4 G11 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
R 701160 004078-A2 R10 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

B 701180 004110-00 B36 Bearing;Dry;;PAP 2015;Shun De No Model Compatibility List $9.57 / Each

8
H 701190 004133-00 H16 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
R 701207 004162-00 R11 Drive Belt;Poly-V;400-J8 Yes Model Compatibility List $57.49 / Each

15,10
701291 004357-00 Z22 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

701302 004364-AD Z08 Screw;Phillip;BH;M5x0.8Px12L;Black; No Model Compatibility List $2.00 / Each

2,4,5,6
701305 004366-AB Z21 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
N 701316 004372-00 N15 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

S 701318 004374-00 S03 Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

701338 004387-AC M03 Screw;BH;M5X0.8PX10L;;PH;;BOX;; No Model Compatibility List $2.00 / Each

2
J 701358 004409-00 J06 Screw;Phillip;BH;M5x0.8Px20L No Model Compatibility List $2.00 / Each

701375 004425-B Z06 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

E 701557 004586-AB E16 Screw;Hex Socket;M8X1.25PX15L;Chromed Yes Model Compatibility List $2.00 / Each

701561 004592-00 F25 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

P 701574 004608-00 P06 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701581 004614-AB G27 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
701588 004618-00 E38 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701612 004631-00 Q05 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

701613 004632-00 L09 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

701642 004676-00 R08 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 Z12 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701703 004725-AB Z16 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
Z 701721 004741-00 Z02 Screw;Oval Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
701727 004750-00 Z01 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Z 701796 004811-A Z05 Screw;Umbrella Hex Socket;M8x1.25Px15L No Model Compatibility List $2.00 / Each

2
L 701841 004859-00 L07 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701848 004865-00 P07 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

F 701864 004887-00 F27 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

R 701874 004901-00 R17 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

701897 004926-00 Z18 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R12 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701927 004964-00 R13 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 B25 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701939 004975-00 L06 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

F 701941 004976-00 F29 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
701964 005005-00 Z03 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

Z 701997 005035-00 Z17 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

702018 005053-00 F21 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
Z 702060 005087-00 Z07 Washer;Flat;5.5x24.0x2.0t No Model Compatibility List $2.00 / Each

2
L 702072 005103-Z L08 Washer;Flat;5/16x30.0x1.5T No Model Compatibility List $1.90 / Each

2
702107 005136-A E19 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
E 702154 005190-B E20 Washer;Teflon;10.5x25x1.5T No Model Compatibility List $4.00 / Each

2
702160 005196-00 F22 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

F 702169 005210-A F20 Washer;Teflon;20.3x25x1.0T No Model Compatibility List $2.00 / Each

2
E 702173 005215-AB E35 Washer;Split Teflon;15.9x28.4x1.5T Yes Model Compatibility List $2.00 / Each

2
C 702184 005227-Z C16 Washer;Wavy;26x34x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702193 005239-00 R18 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 Q07 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702241 005366-00 R06 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

702259 005395-00 Z28 Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

702262 005408-A Z27 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

702483 007964-00 Q08 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

Z 702634 009092-B Z20 Sleeve;Pin;Ball Joint Yes Model Compatibility List $7.10 / Each

3,12,13,14
S 702857 012847-00 S02 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
P 703918 019353-A P15 Connecting Cable;Socket/Breaker No Model Compatibility List $1.51 / Each

4,5,6
P 703934 019525-A P08 Speed Sensor Wire No Model Compatibility List $8.87 / Each

4,5,6
Z 703976 020042-00 Z23 Screw;Phillip;BH;M4x0.7Px8L No Model Compatibility List $2.00 / Each

Z 704077 020192-A Z24 Screw;Umbrella Cross Tapped;4X10L;Flat No Model Compatibility List $2.00 / Each

Z 704122 020286-Z Z13 Screw;Hex Socket;BH;M8x1.25Px12L;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
L 704196 020467-A L10 Washer;Flat;16.0x25.0x1.0T No Model Compatibility List $2.00 / Each

2
P 704264 022066-B P01 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
E 705270 039654-00 E13 C-Clip;S-12 No Model Compatibility List $2.00 / Each

2

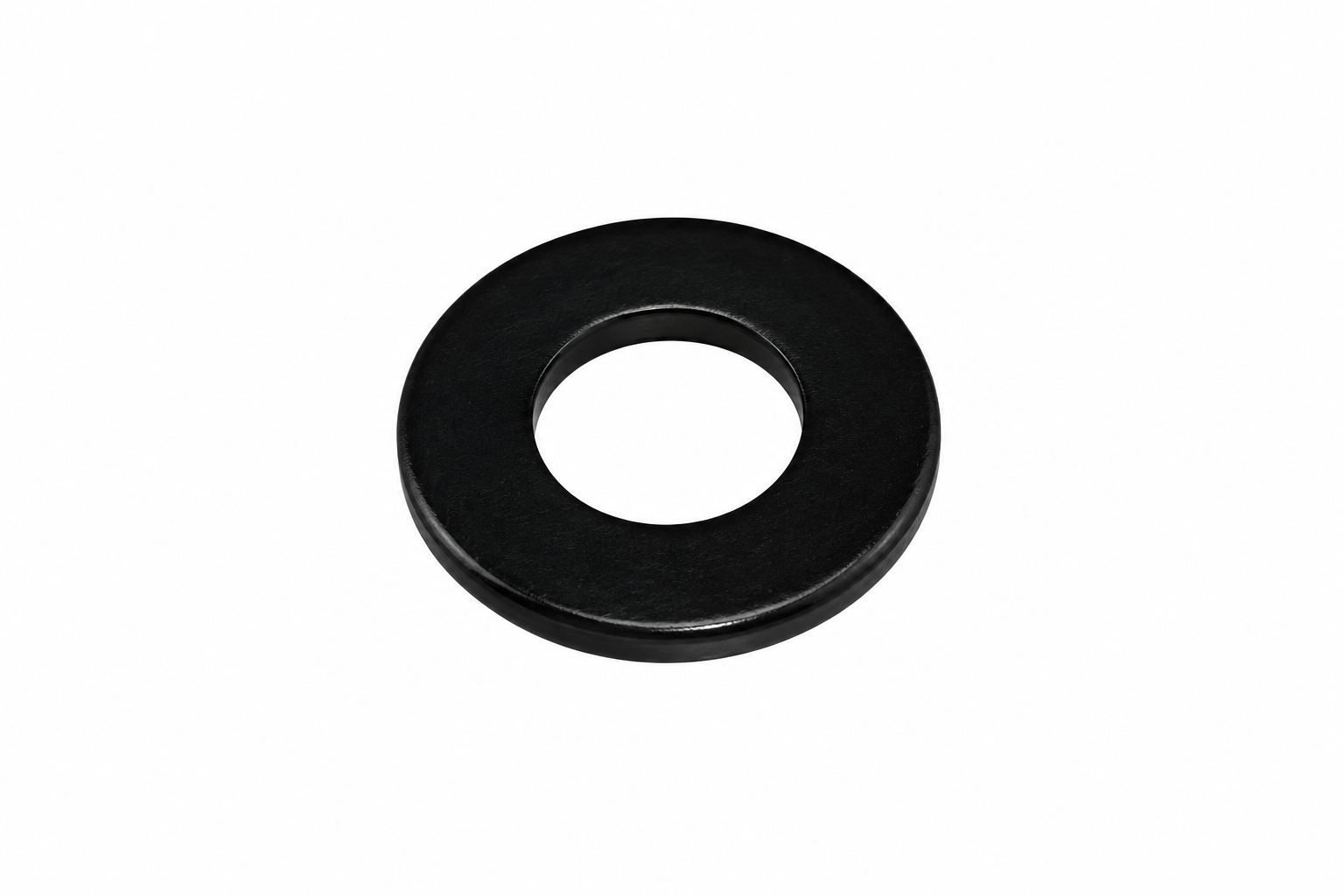

Z 705330 048037-00 Z04 Washer;Flat;8.5x19.0x2.0t ;Black Zinc; No Model Compatibility List $1.85 / Each

2,4,5,6
S 705564 050487-B S01 CABLE ECB 420MM No Model Compatibility List $9.20 / Each

4,5,6

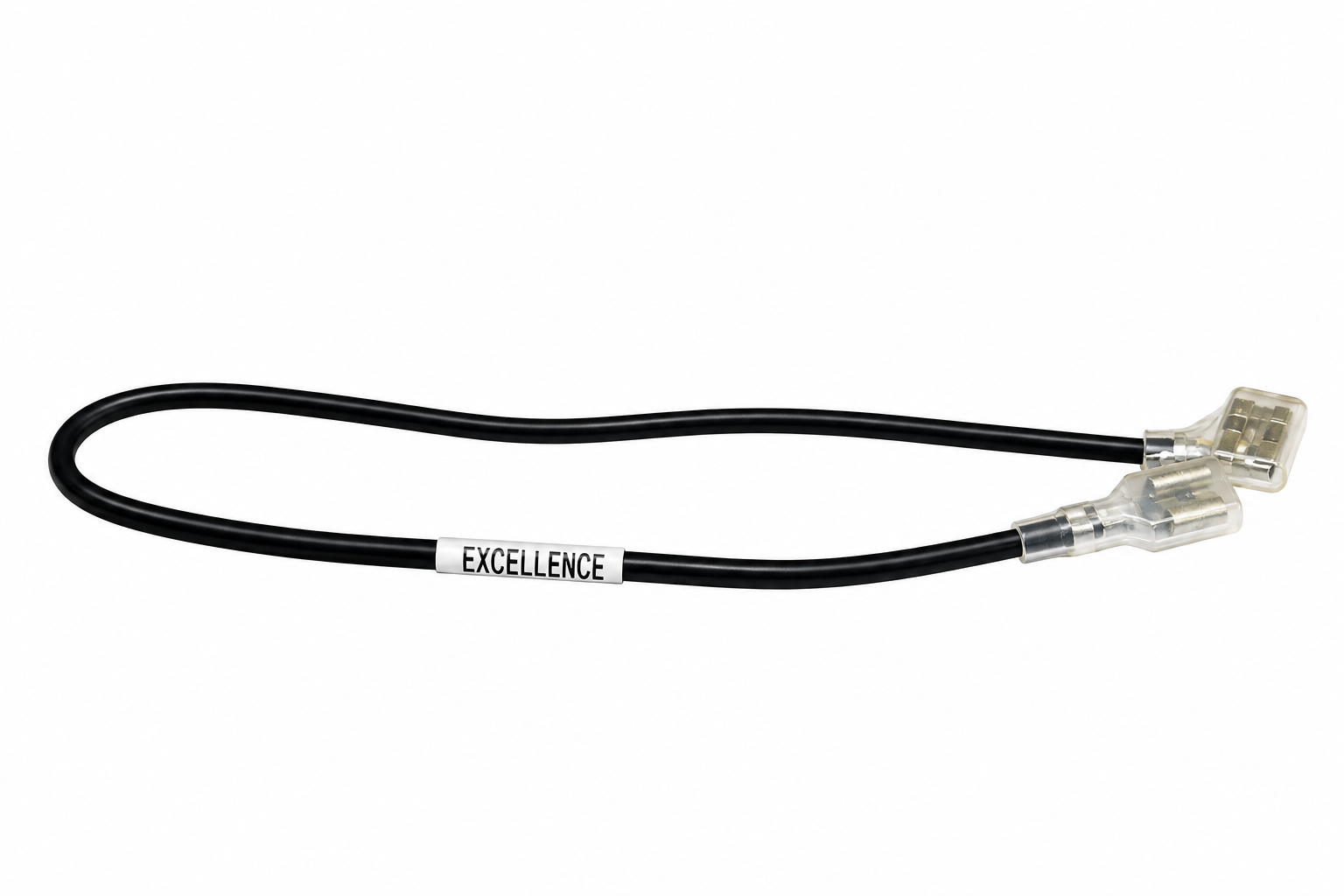

P 706548 063265-A P13 POWER WIRE;Console;250L;16AWG(250 90+25 No Model Compatibility List $3.54 / Each

7,4,5,6
P 706549 063270-A P05 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

P 706550 063271-A P16 Power Socket Set;;(250,250,250);16AWG;90 2 No Model Compatibility List $10.35 / Each

4,5,6

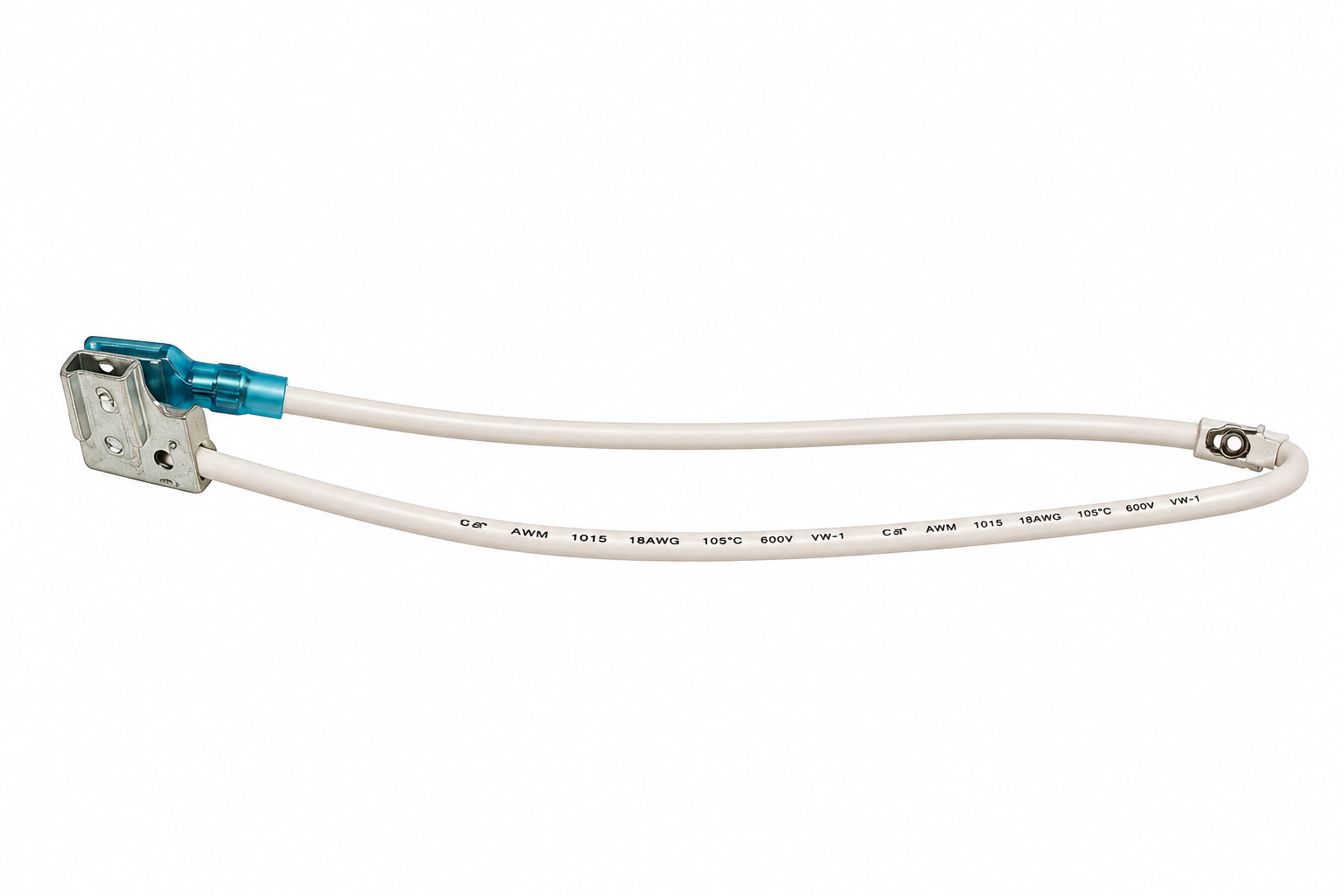

P 706837 066042-A P14 CONTROL BOARD POWER WIRE-WHITE No Model Compatibility List $3.54 / Each

7,4,5,6
Z 706855 066293-A Z14 Washer;Flat;8.5x23.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 706895 066767-C M10 Set Screw;M8x1.25Px8L No Model Compatibility List $2.00 / Each

2
M 707364 1000092326 M09 Bracket No Model Compatibility List $17.58 / Each

2,3,4,5,6

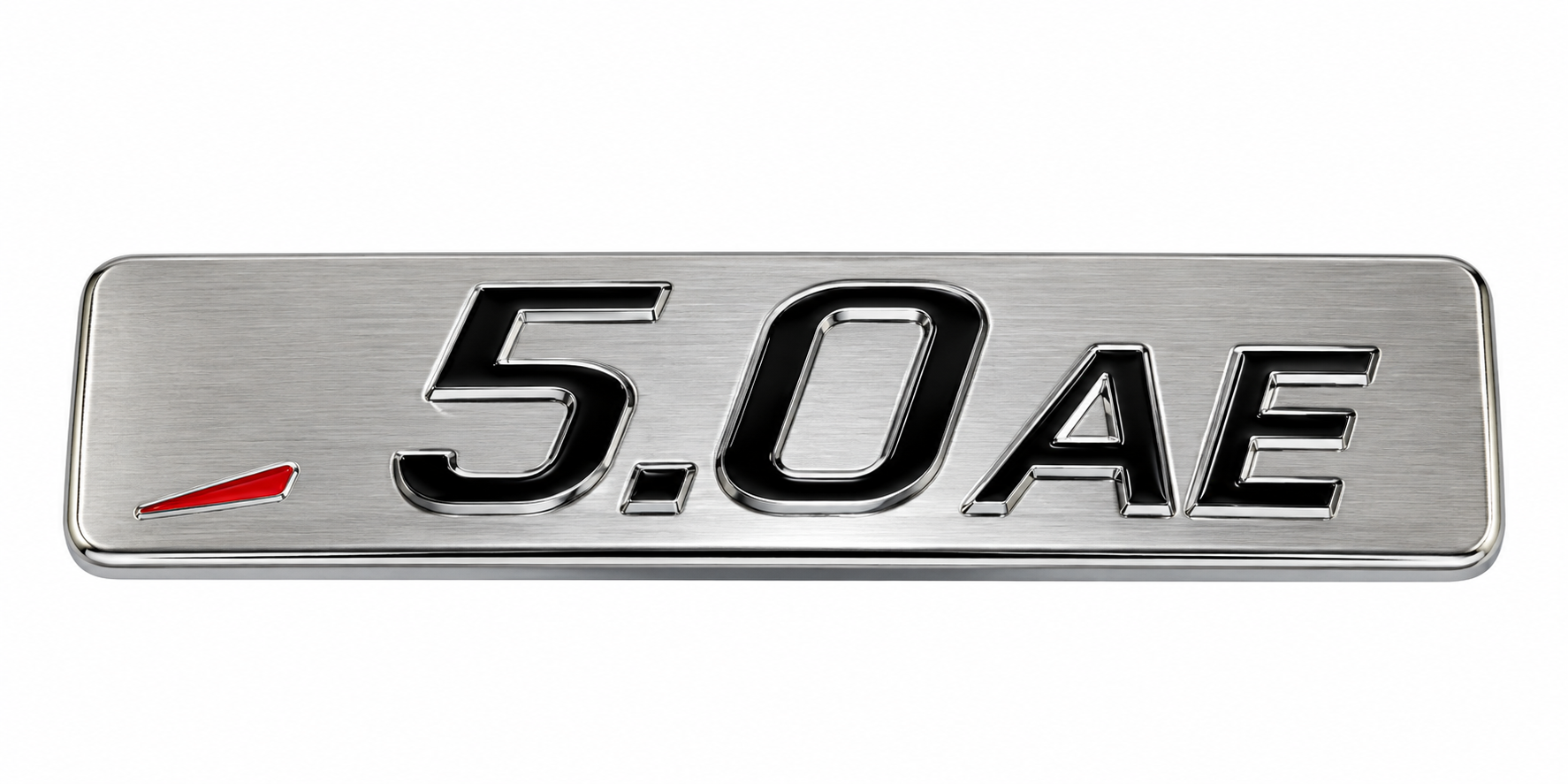

V 707617 1000093736 V02 Sticker;fuselage;EP209 No Model Compatibility List $8.87 / Each

1

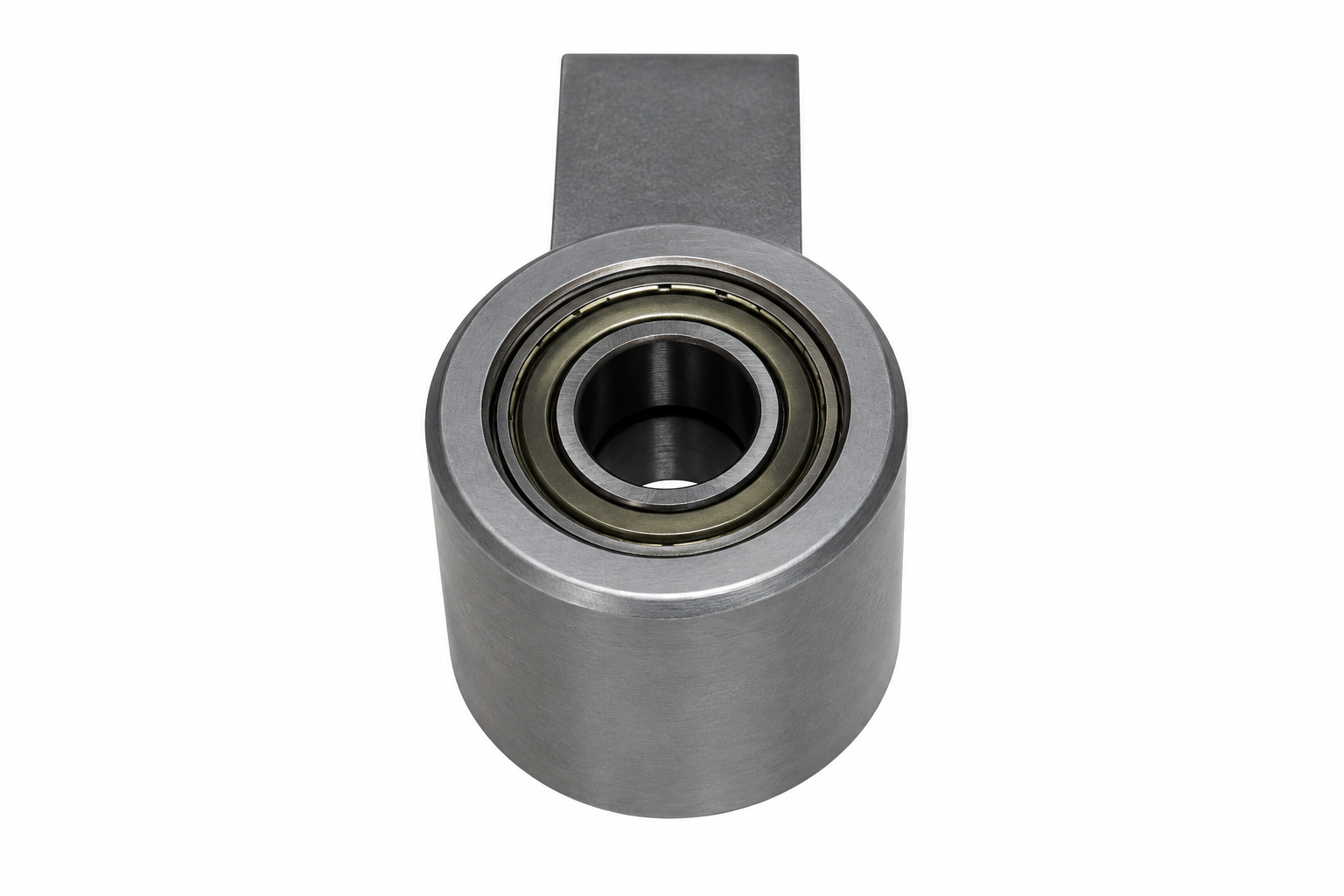

A 707744 1000094811 AE3 PEDAL ARM PIN SLEEVE SET Yes Model Compatibility List $121.06 / Each

8,9,3,12,13,14

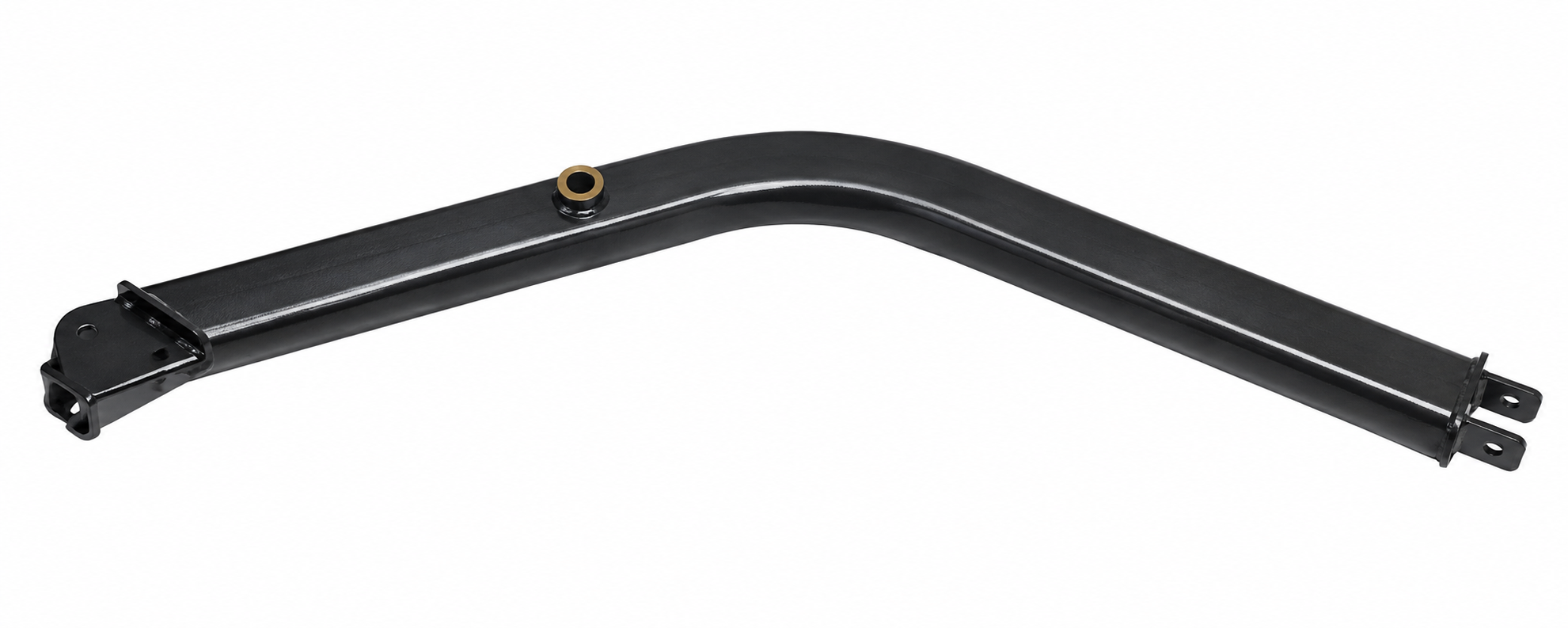

A 707745 1000094812 AE1 PEDAL ARM SET No Model Compatibility List $368.42 / Each

8,9,3

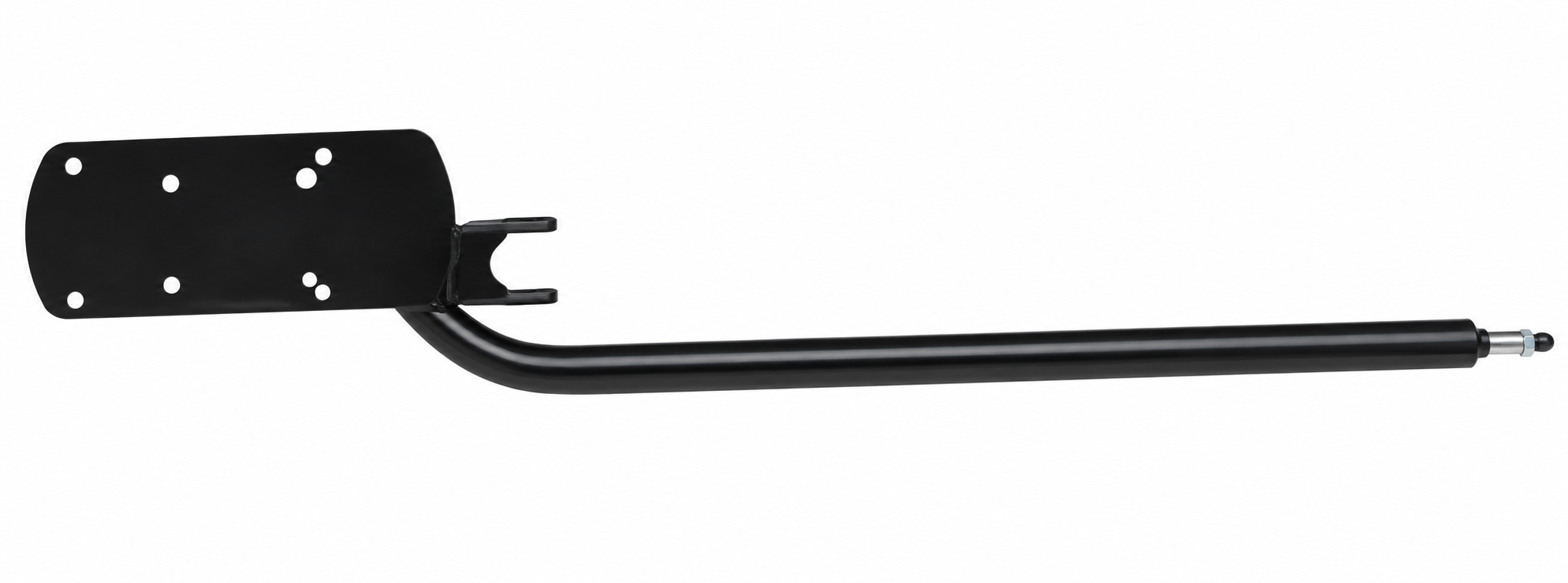

A 707746 1000094813 AH1 Lower Link Arm Right No Model Compatibility List $486.51 / Each

3

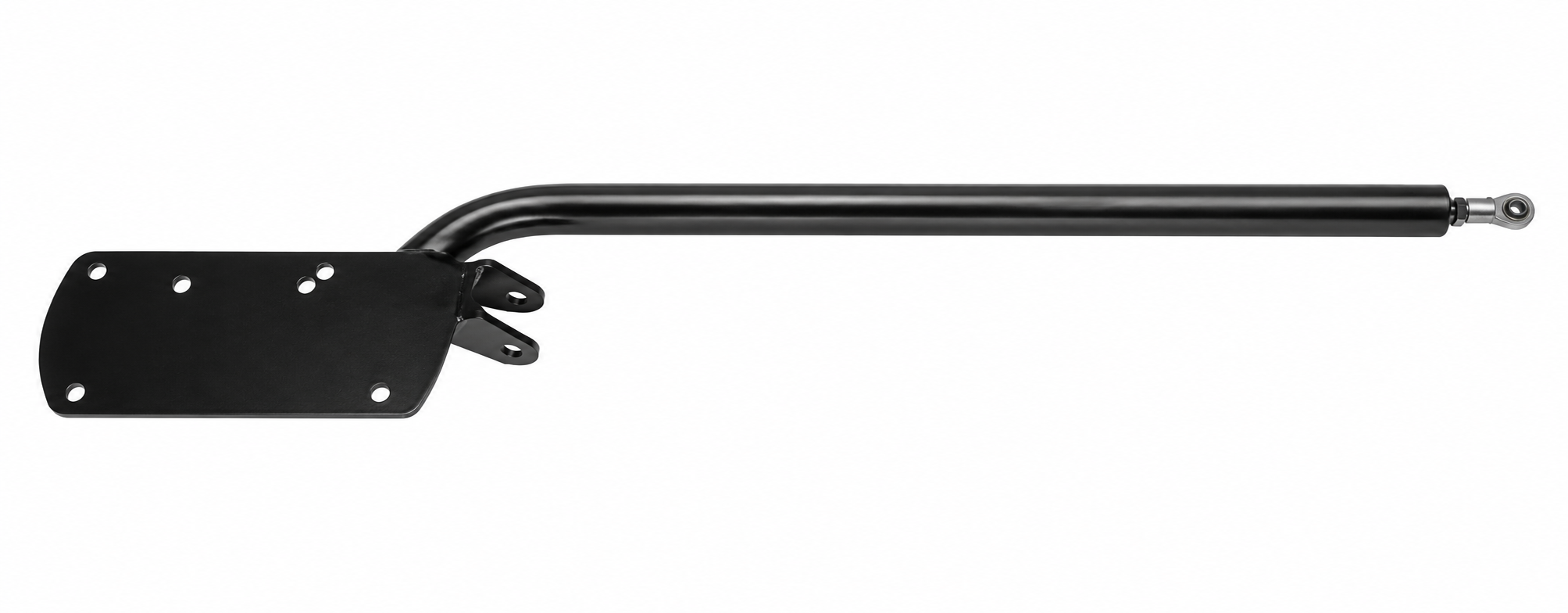

A 707747 1000094814 AH2 Lower Link Arm Left No Model Compatibility List $486.51 / Each

3

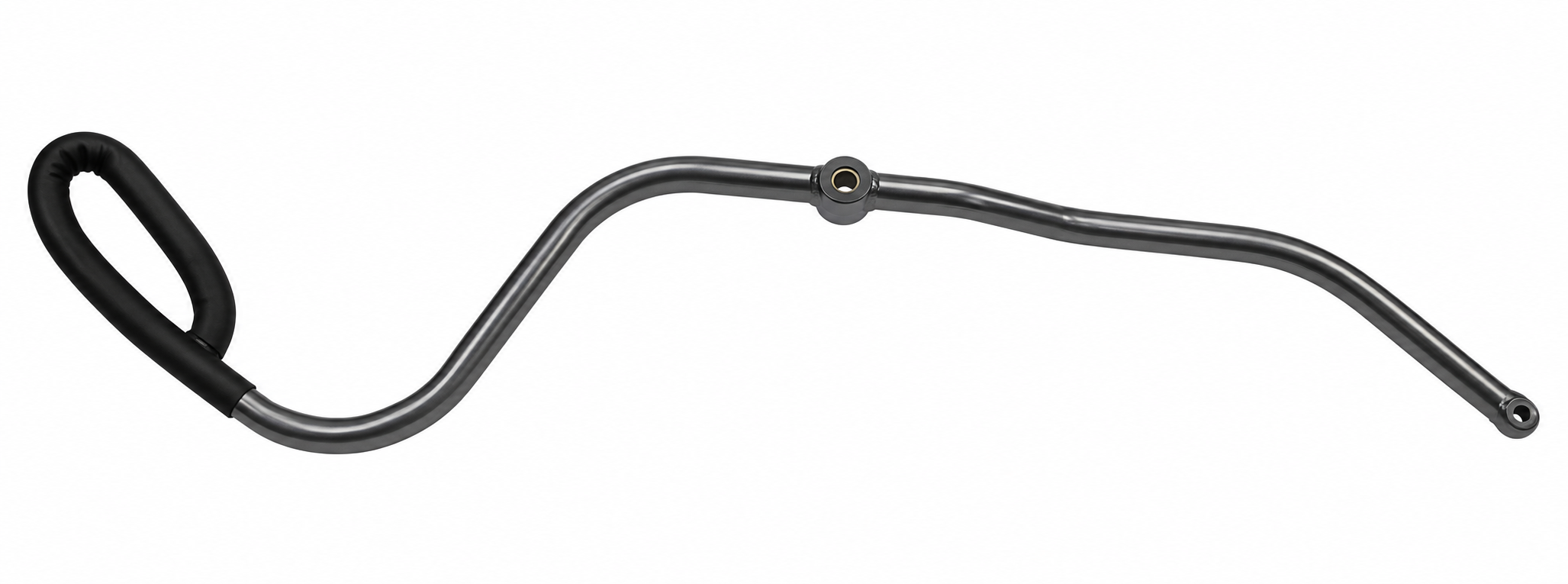

A 707748 1000094815 AG1 RIGHT HANDLE BAR SET No Model Compatibility List $389.90 / Each

11

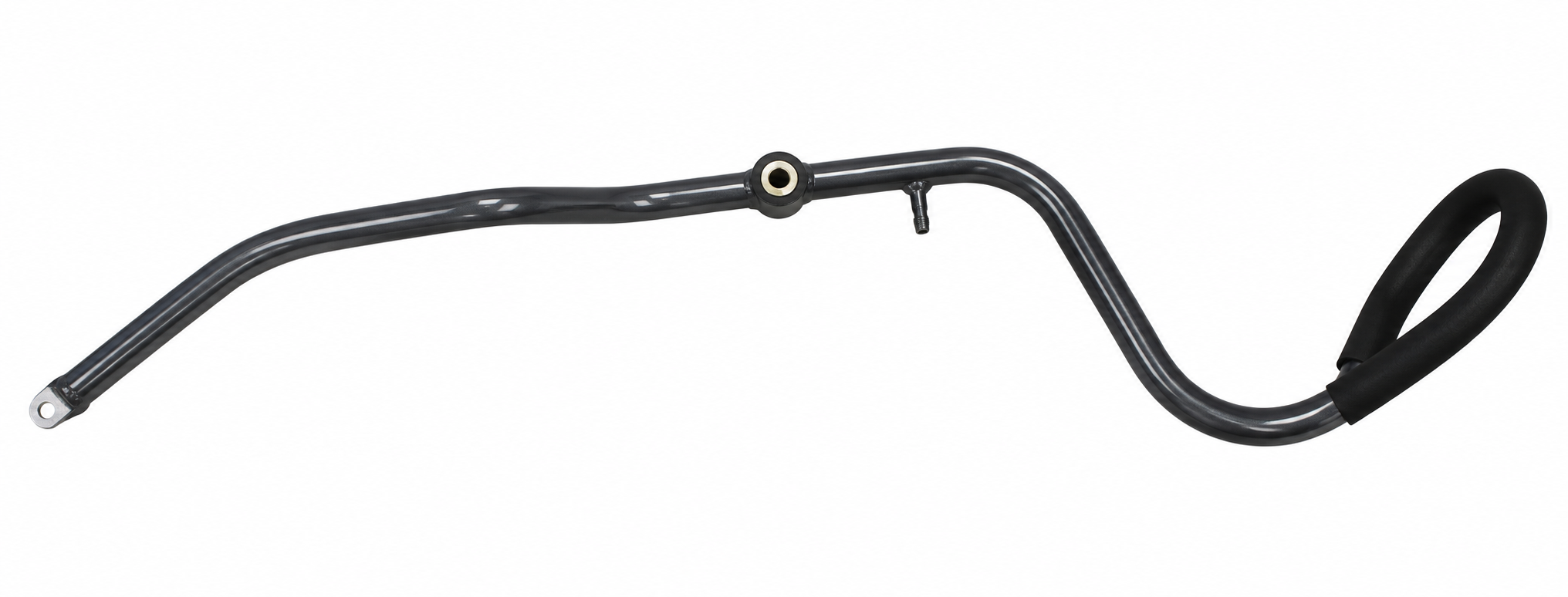

A 707749 1000094816 AG2 LEFT HANDLE BAR SET No Model Compatibility List $389.90 / Each

11

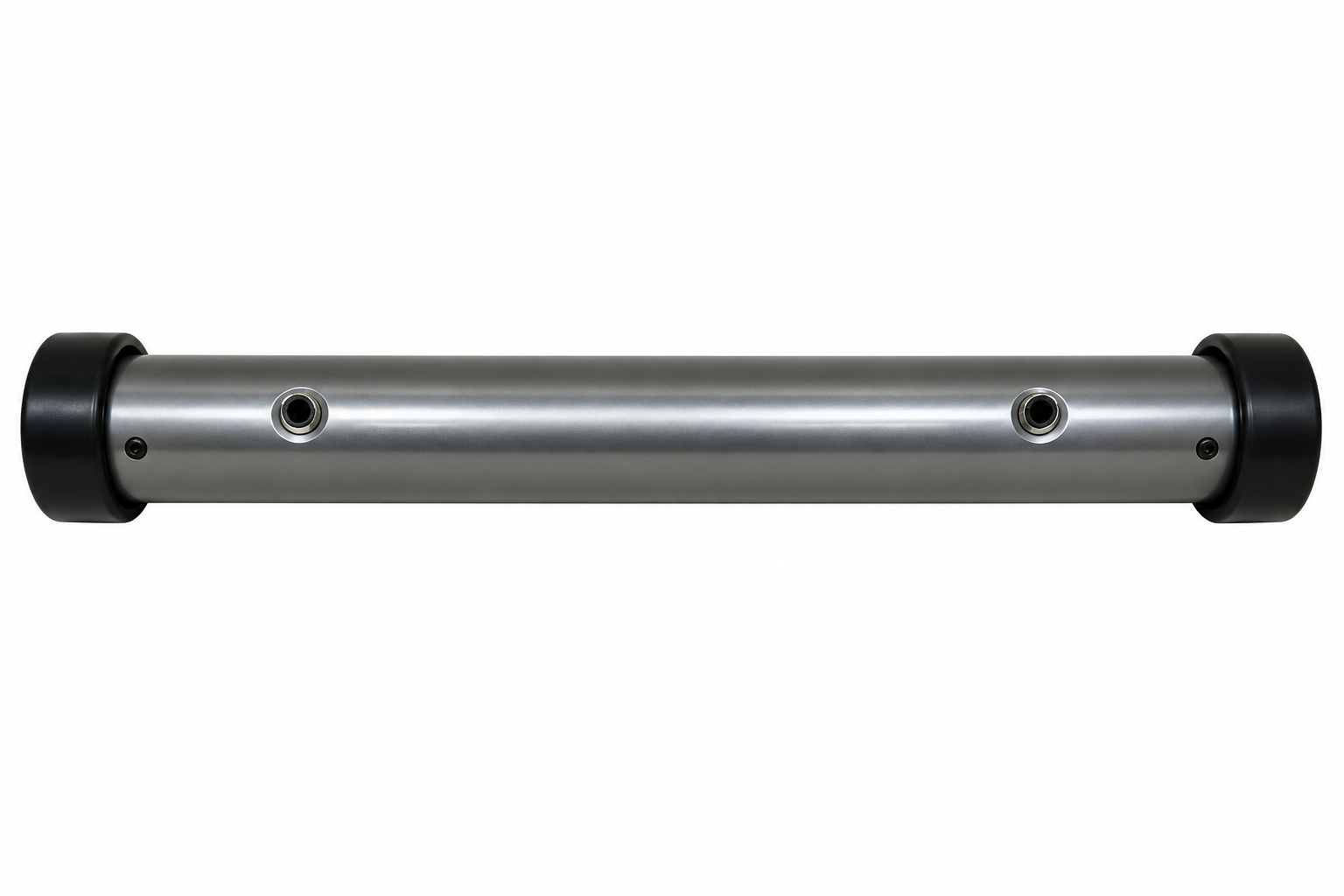

L 707750 1000094817 L01 FRONT STABILIZER SET No Model Compatibility List $211.22 / Each

1

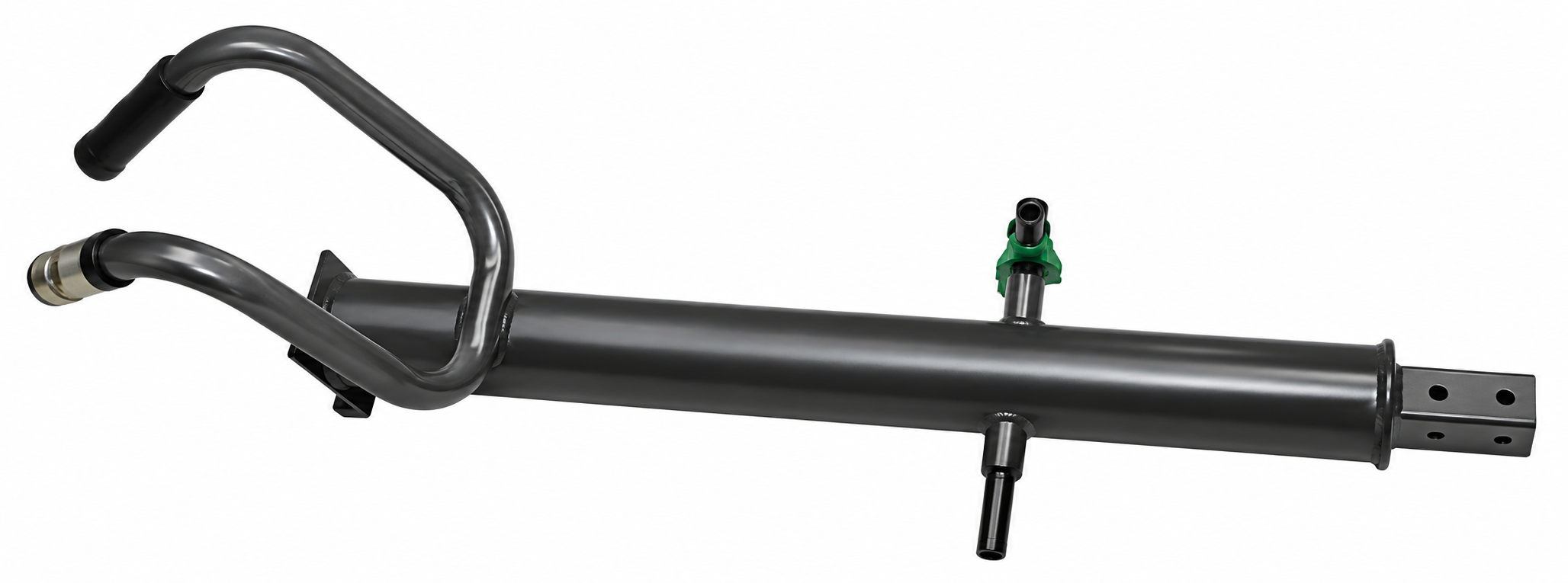

A 707751 1000094818 AC1 CONSOLE MAST SET No Model Compatibility List $622.75 / Each

7
P 707812 1000095751 P02 Pulse Sensor Set Yes Model Compatibility List $38.32 / Each

12,13,14
K 707815 1000095900 KIT Quick Key Connection Wire; Left;850mm;(SM-3A+SM-3Y) No Model Compatibility List $8.87 / Each

9,4,5,6
K 707816 1000095901 KIT Quick Key Connection Wire;Right; 850mm;(SM-3Yx2); No Model Compatibility List $8.87 / Each

9,4,5,6
724949 100078 P21 Switch Set;Semi-Assy;L Yes Model Compatibility List $12.25 / Each

4,5,6

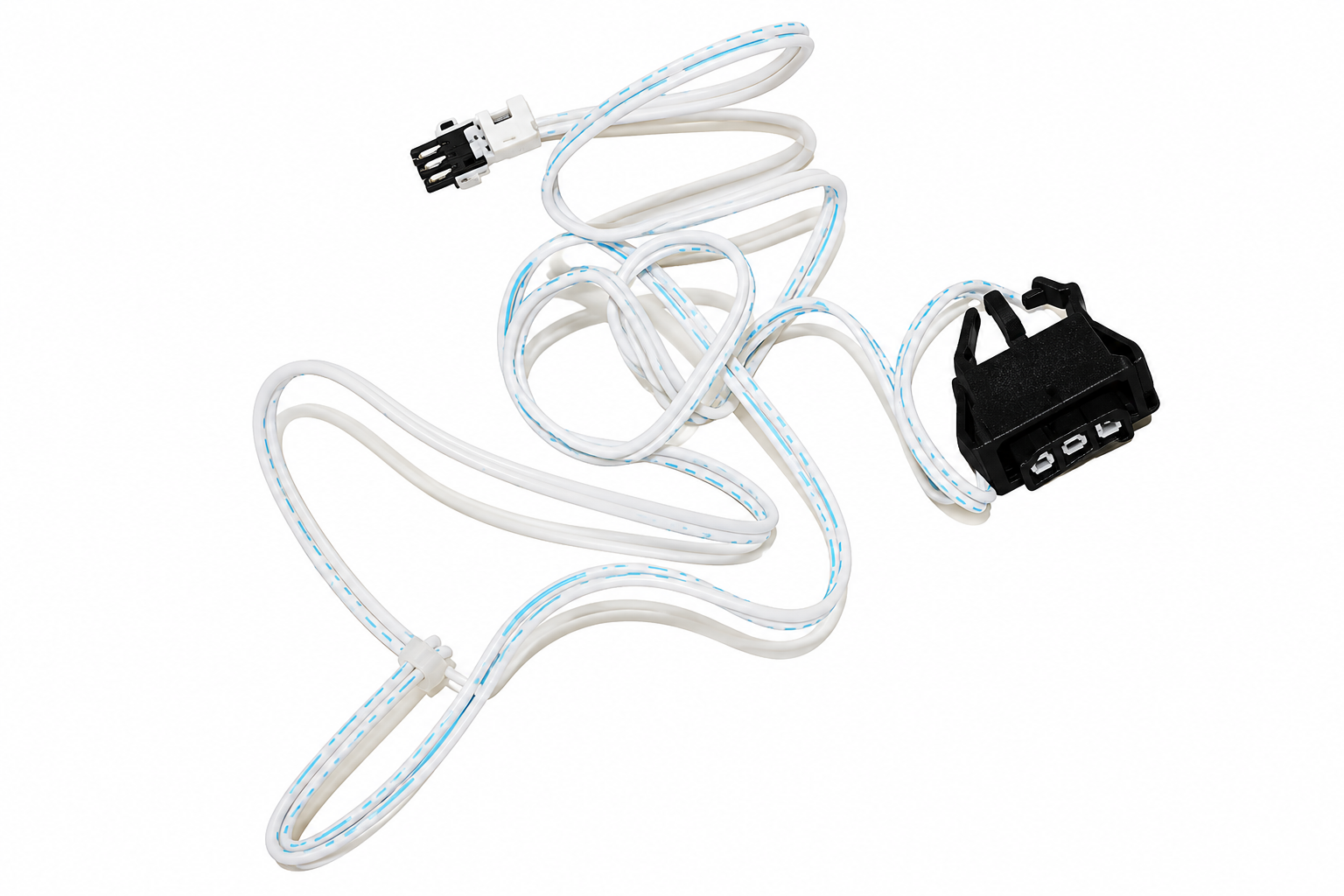

P 724950 100079 P20 Switch Set;Semi-Assy;R No Model Compatibility List $13.21 / Each

4,5,6

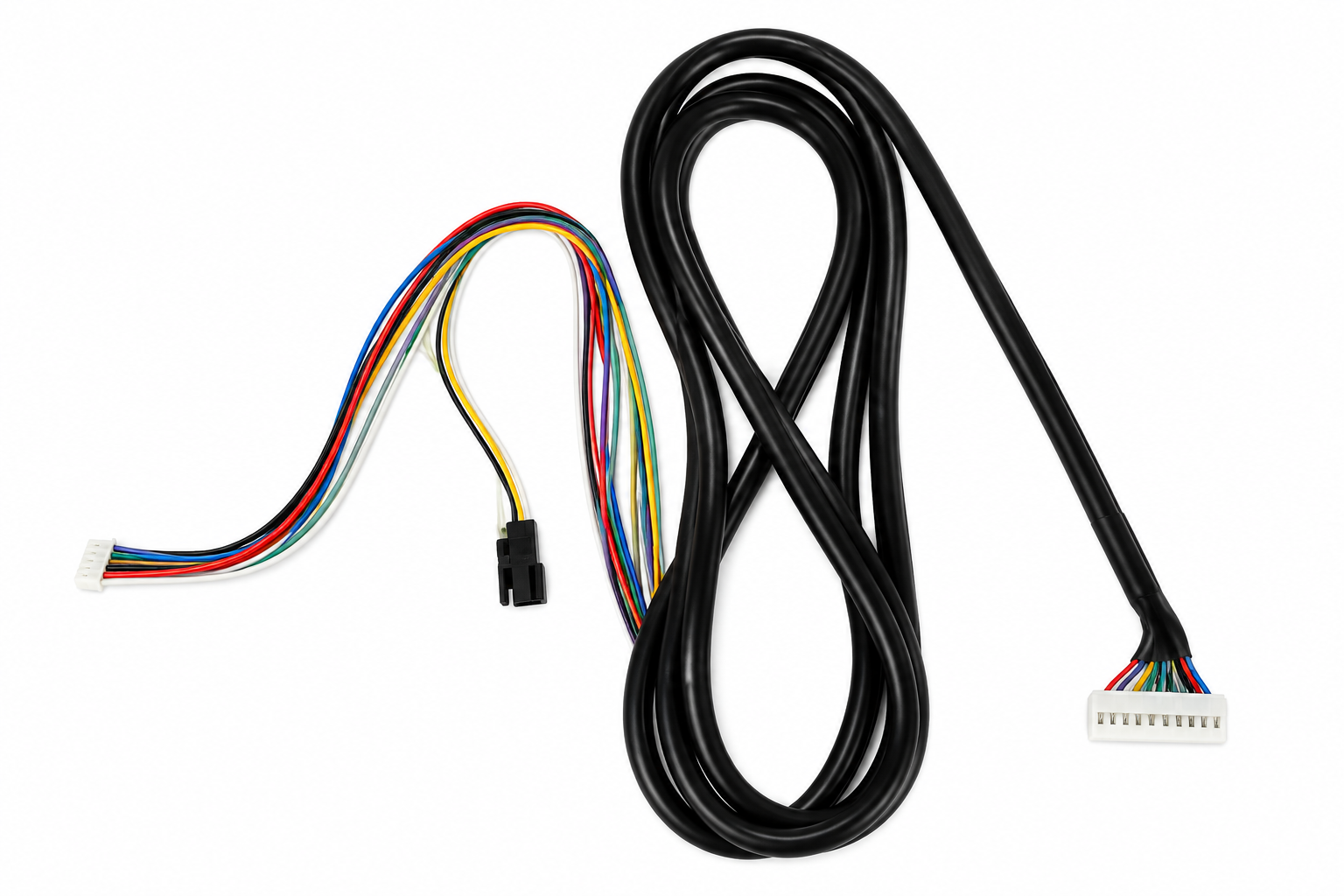

P 724951 100083 P03 Connect Wire;Console;1750(XHS-10Y,360,30 Yes Model Compatibility List $57.49 / Each

7,4,5,6

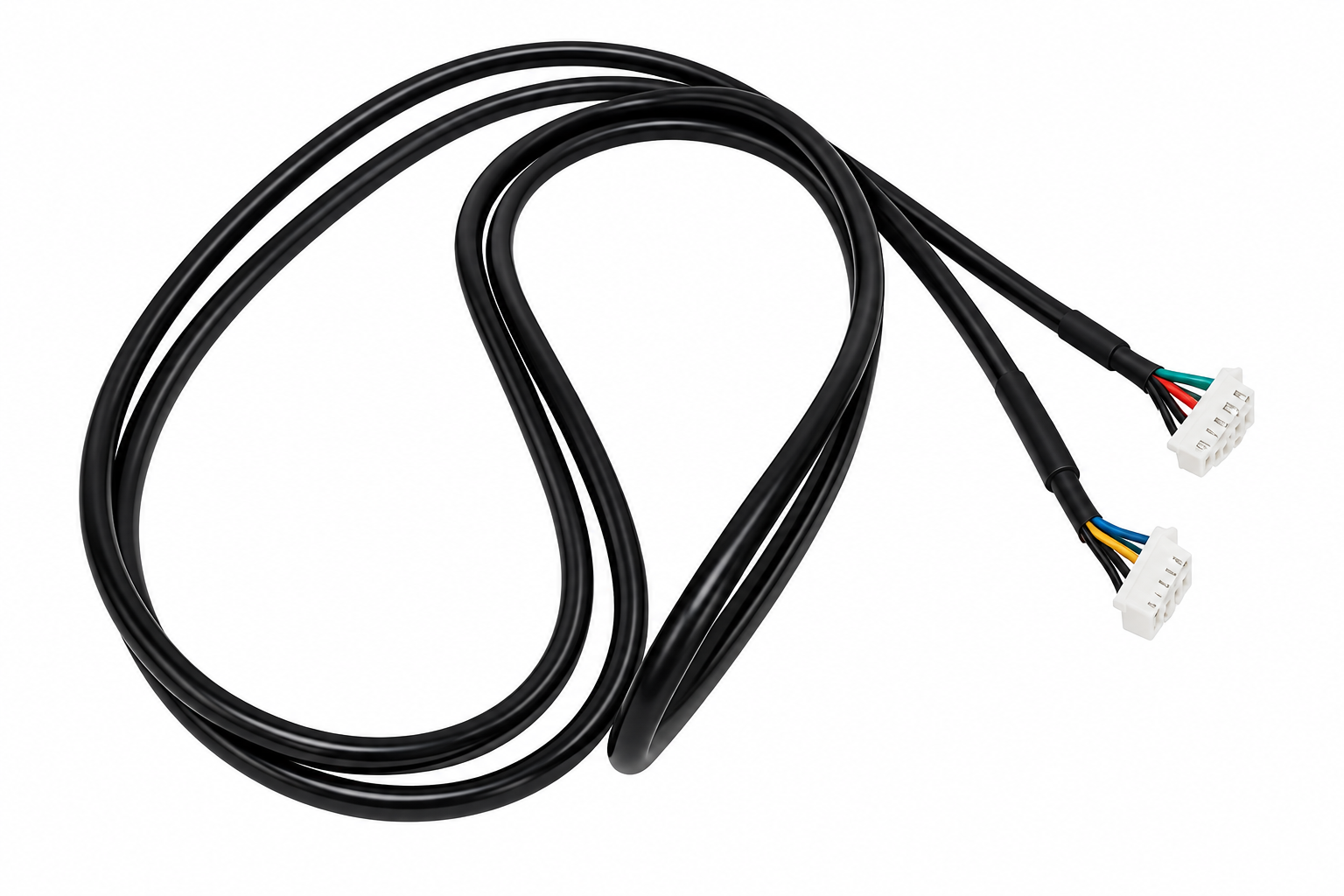

P 724952 100084 P10 Console Wire;7P;1850(XHS-7Y+XHS-7Y) Yes Model Compatibility List $57.49 / Each

7,4,5,6
P 724953 100085 P22 Connect Wire;Left Switch;700mm(XHS-3Y-SM-3Y)W No Model Compatibility List $3.33 / Each

4,5,6
P 724954 100086 P23 Connect Wire;Right Switch;700mmXHS-3Y-SM-3A)R No Model Compatibility List $3.82 / Each

4,5,6

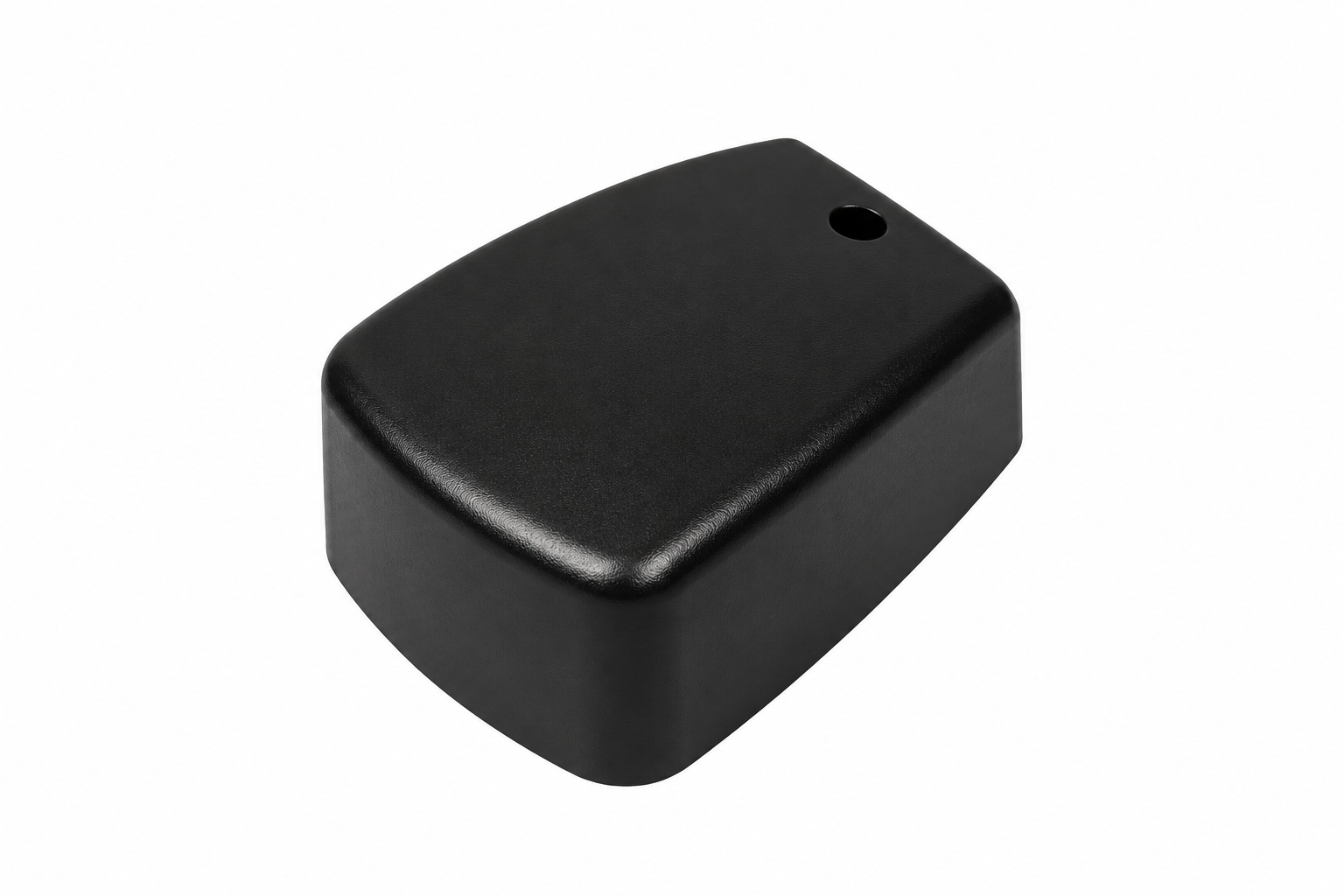

E 725090 101702 E12 Pedal Arm Set Cover;ABS;DM328;EP209 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $17.78 / Each

8,9,3
E 725091 101703 E31 Roller Cover;;R;ABS;Painting;DM328;EP209 Yes Model Compatibility List $8.87 / Each

8,9
E 725092 101704 E32 Roller Cover;;L;ABS;Painting;DM328;EP209 Yes Model Compatibility List $8.87 / Each

8,9

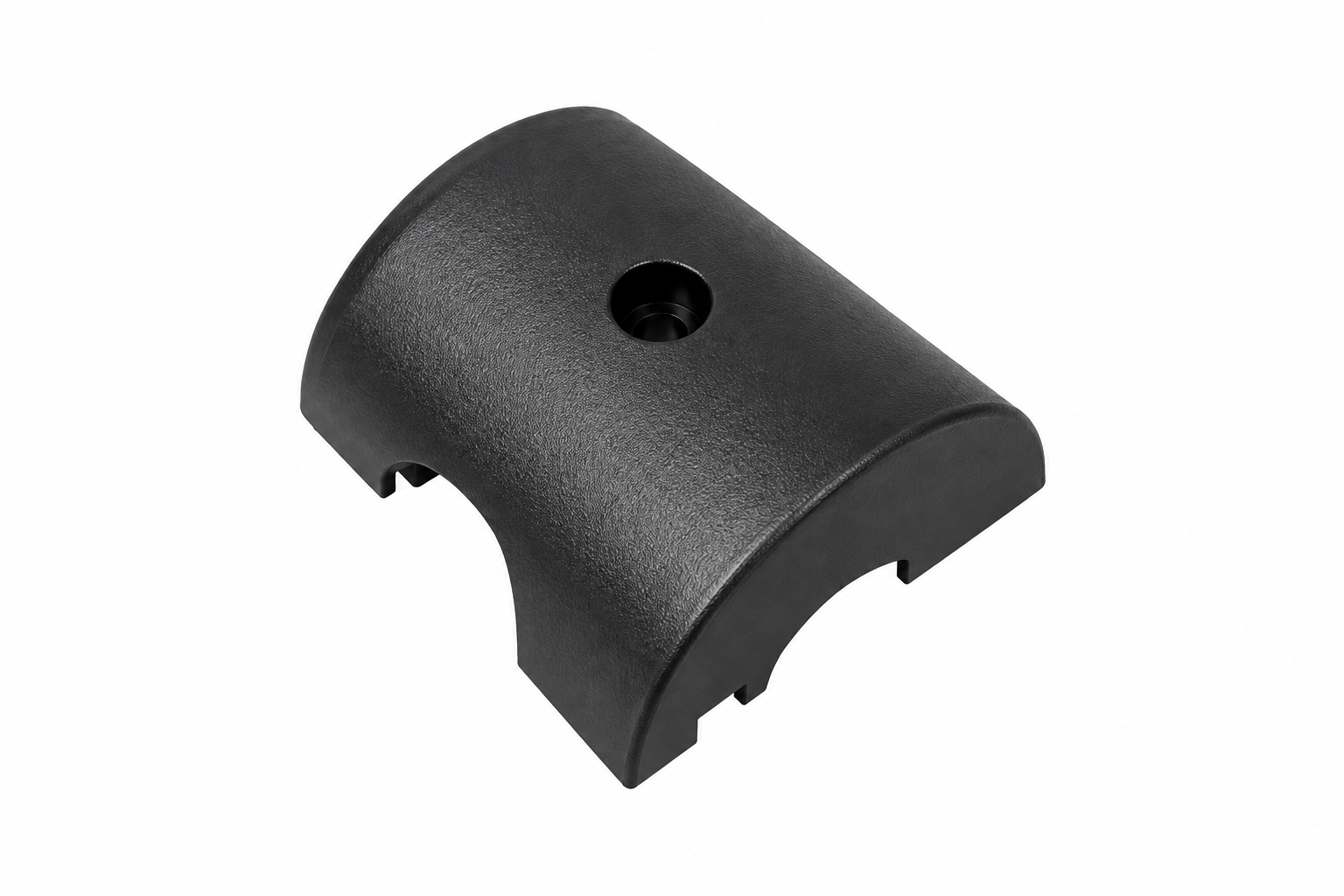

G 725093 101705 G08 Cover;Arm Rest;Front;Painting;DM328; Yes Model Compatibility List $3.54 / Each

9,3

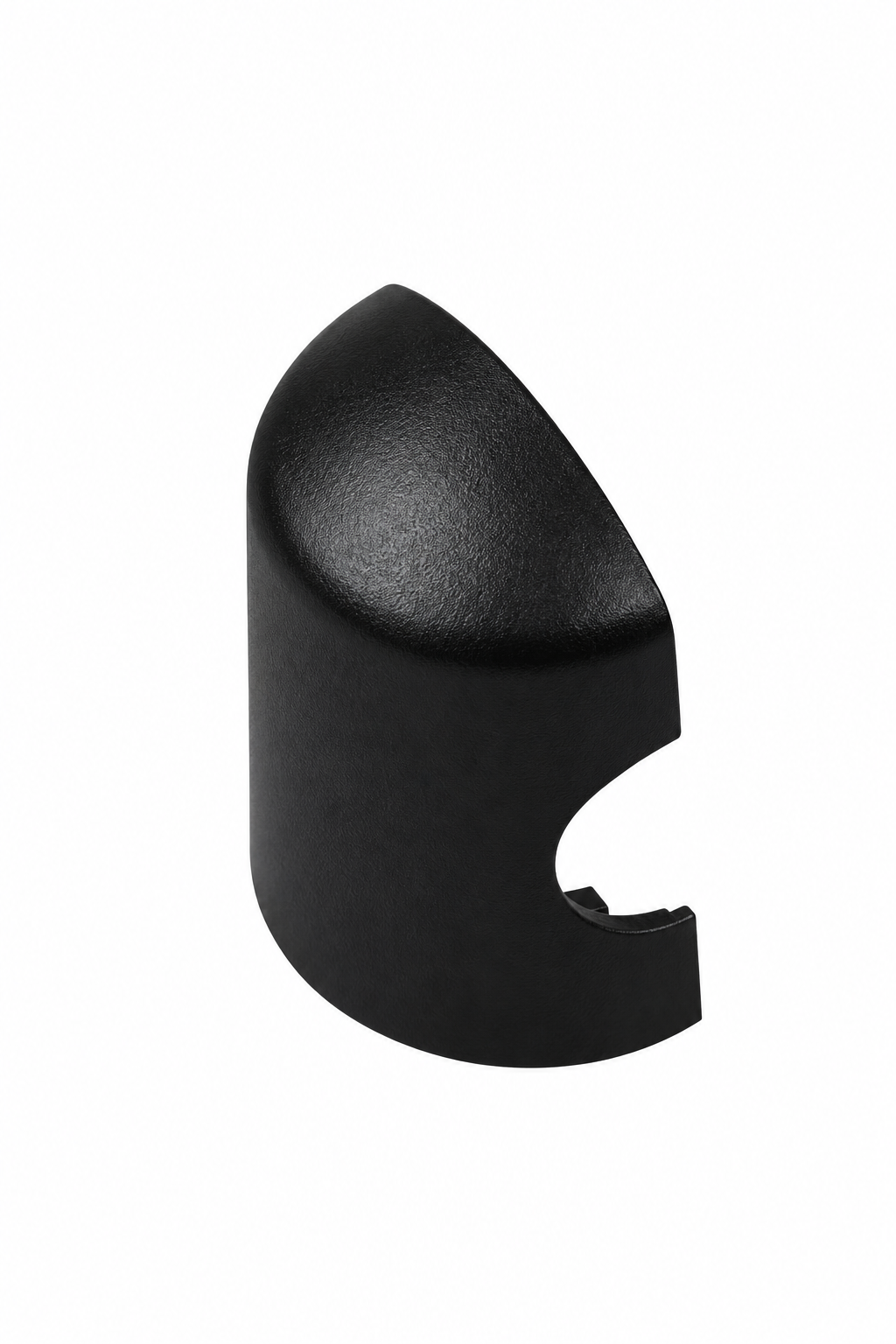

G 725094 101706 G09 Cover;Arm Rest;Rear;Painting;DM328;EP209 Yes Model Compatibility List $3.54 / Each

9,3
G 725095 101707 G25 Cover;Arm Rest Quick Key No Model Compatibility List $3.54 / Each

9,3

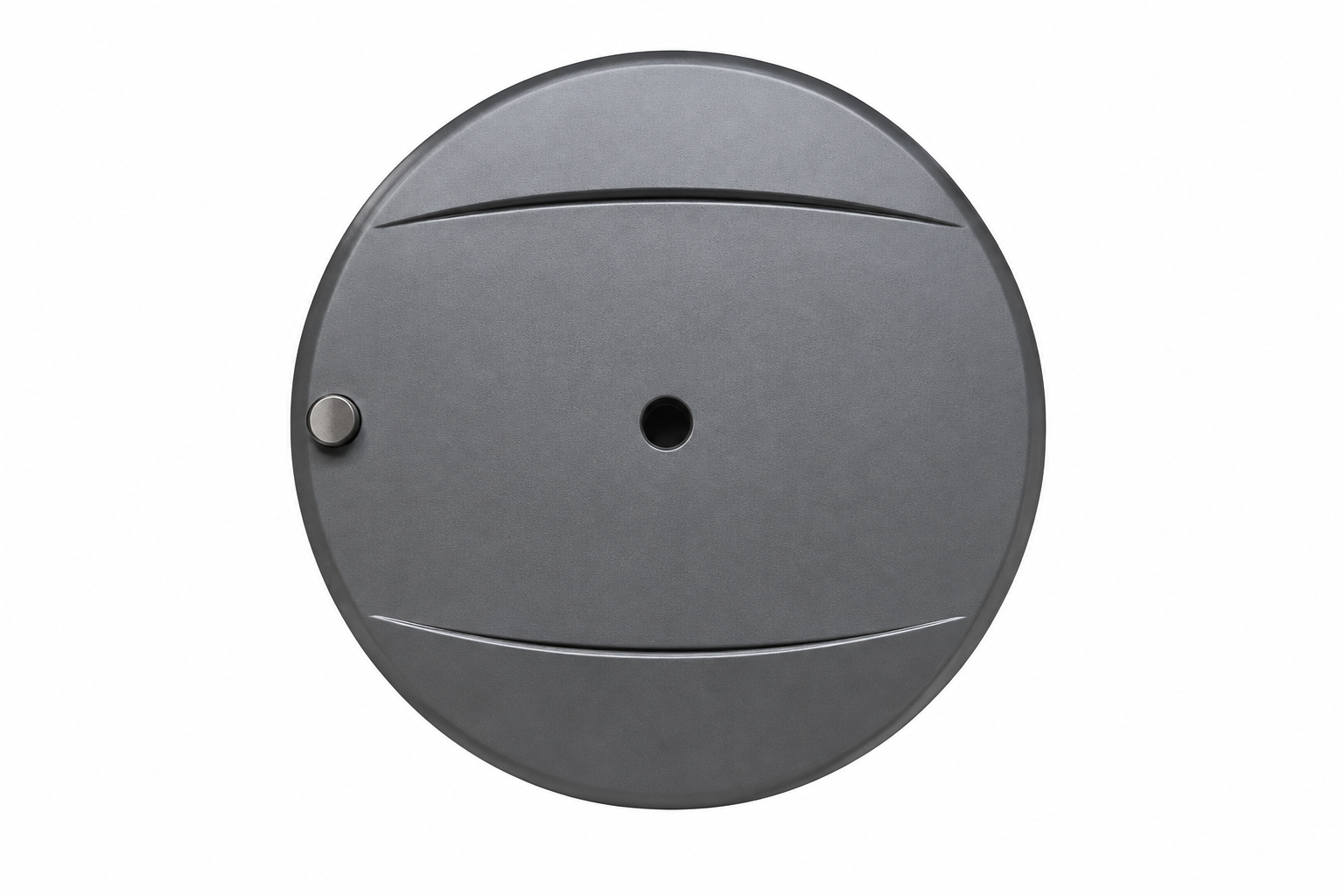

J 725096 101710 J05 DISK;Painting;MM330;EP209 No Model Compatibility List $110.42 / Each

1
725097 101712 Q01 Cover;Frame;L;Painting;DM328;EP209; No Model Compatibility List $97.84 / Each

9,3
725098 101713 Q02 Cover;Frame;R;Painting;DM328;EP209; No Model Compatibility List $94.12 / Each

9,3

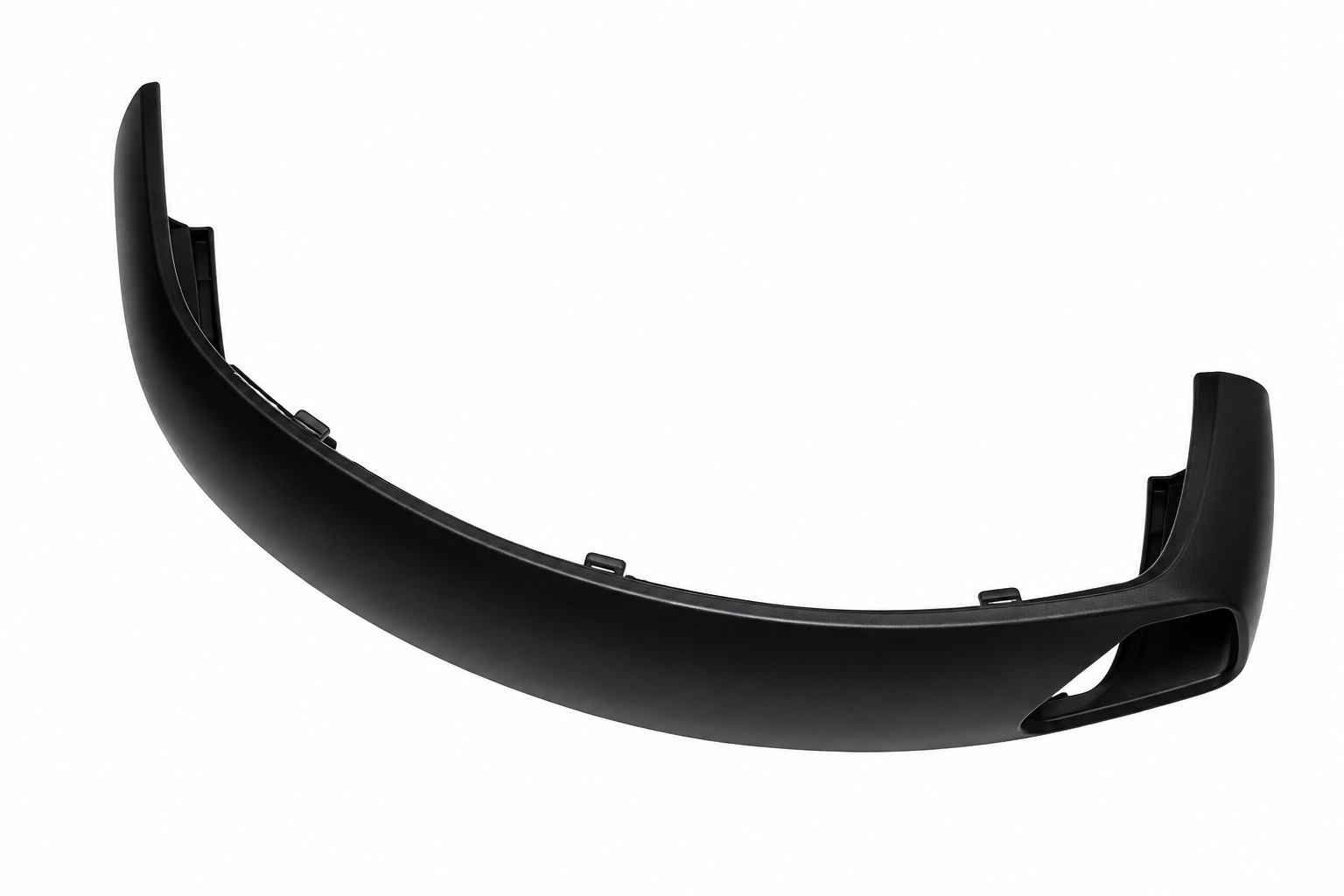

Q 725099 101714 Q03 Cover;Frame;U;Painting;DM328;EP209; No Model Compatibility List $37.80 / Each

9,3

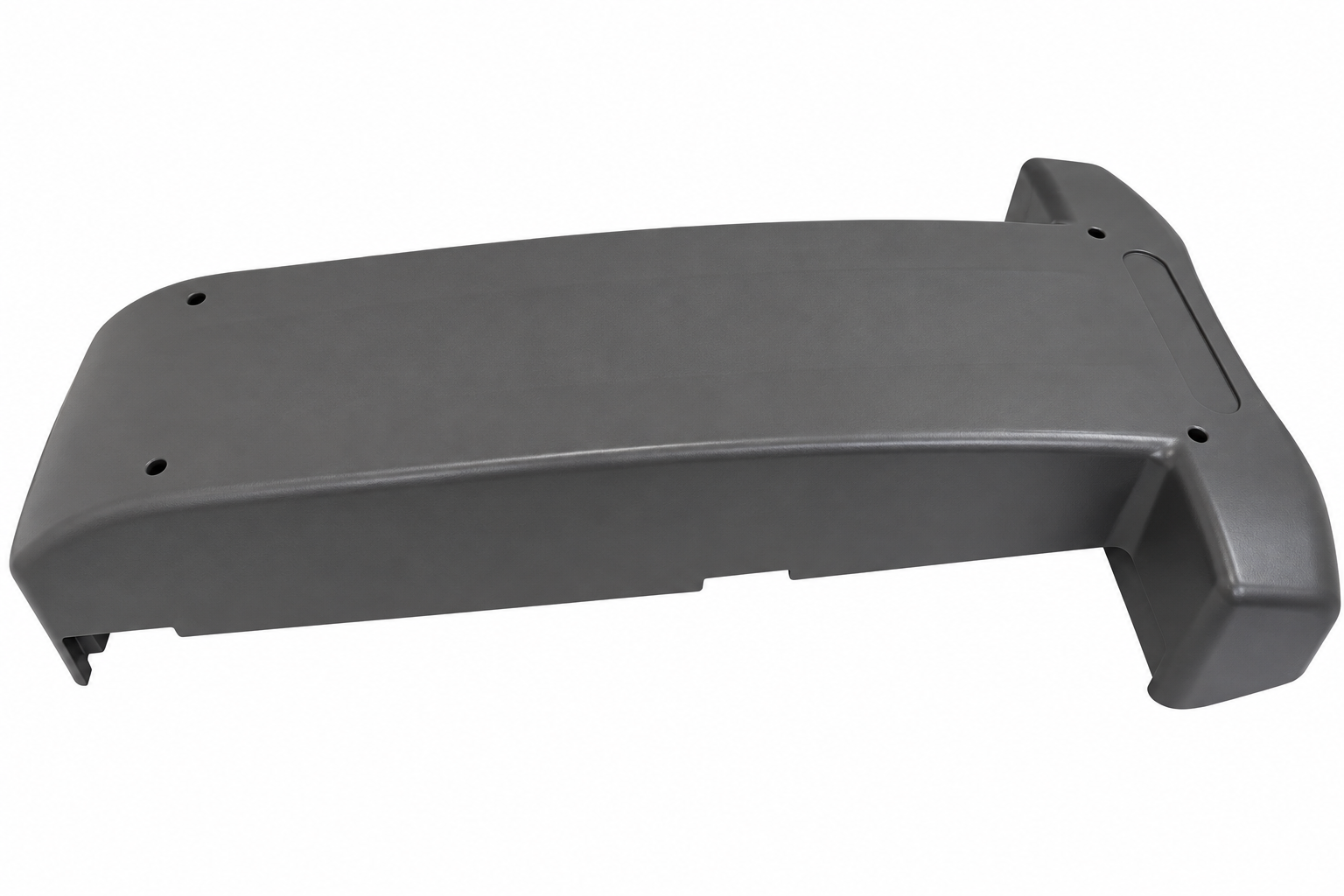

F 725100 101716 F11 Elevation;Cover;Painting;DM328;EP209; No Model Compatibility List $129.48 / Each

9,10
V 725101 101717 V21 Manual;Horizon;No-RoHS;EP209 No Model Compatibility List $11.08 / Each

1

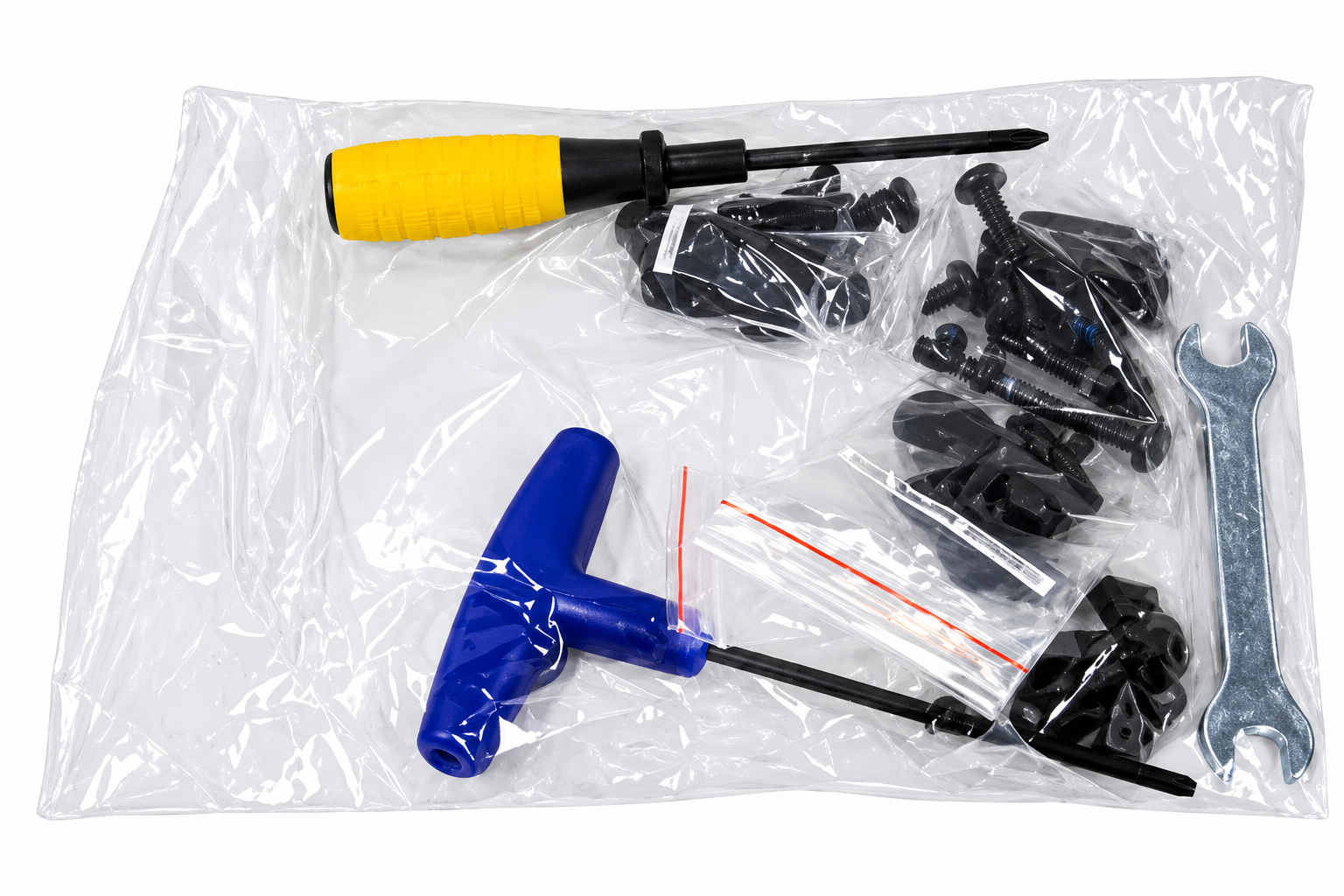

A 725103 101734 AZ1 Hardware Set;;Semi-Assy;EP209 No Model Compatibility List $56.21 / Each

1
725259 103299 E11 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Guide Rail Set 725418 071045 AF1 Guide Rail Set No Model Compatibility List $639.78 / Each

Guide Rail Swivel Axle 725429 071175 F10 Guide Rail Swivel Axle No Model Compatibility List $59.10 / Each

Elevation; Support Axle 725431 071179 F13 Elevation; Support Axle Yes Model Compatibility List $17.47 / Each

Elevation; Roller 725432 071180 F14 Elevation; Roller Yes Model Compatibility List $8.87 / Each

Console Mast Boot 725524 072602 Q04 Console Mast Boot No Model Compatibility List $1.90 / Each

Arm; Incline Motor 725530 072686 F12 Arm; Incline Motor Yes Model Compatibility List $17.03 / Each

LINK ARM SWIVEL AXLE 725747 075731 E21 LINK ARM SWIVEL AXLE Yes Model Compatibility List $37.83 / Each

Nut;Rod End Bearing;M12X1.75PX7H;SS41;BZ 725843 076952 H22 Nut;Rod End Bearing;M12X1.75PX7H;SS41;BZ No Model Compatibility List $2.00 / Each

Screw;Phillip;Umbrella;Tapped;;#p4x20L;BL 725844 076953 Q06 Screw;Phillip;Umbrella;Tapped;;#p4x20L;BL No Model Compatibility List $2.00 / Each

Pedal Axle Set 725937 078450 R01 Pedal Axle Set Yes Model Compatibility List $173.63 / Each

Bearing;Dry;;PAP2029; Center Rail Stablizer 725973 078717 B35 Bearing;Dry;;PAP2029; Center Rail Stablizer Yes Model Compatibility List $9.57 / Each

Bracket;Incline Motor 726092 079912 M07 Bracket;Incline Motor No Model Compatibility List $73.14 / Each

Bolt;Stopper 726103 079954 F30 Bolt;Stopper Yes Model Compatibility List $4.00 / Each

Roller Wheel Set 726244 080903 E08 Roller Wheel Set Yes Model Compatibility List $57.49 / Each

Steel Cable 726248 080975 S01 Steel Cable No Model Compatibility List $11.60 / Each

Support Axle;Side Cover;EP186;-4.0AE 726249 081000 C08 Support Axle;Side Cover;EP186;-4.0AE No Model Compatibility List $3.82 / Each

Cover Sticker;NO-RoHS;EP187-4.0AE 726424 081749 V07 Cover Sticker;NO-RoHS;EP187-4.0AE No Model Compatibility List $3.82 / Each

Water Bottle;AFG Logo 726618 083526 C08 Water Bottle;AFG Logo No Model Compatibility List $9.57 / Each

Inside ECB Controller - Eddy Brake ;10.5KG;EP187-4.0AE 726654 083859 R09 Inside ECB Controller - Eddy Brake ;10.5KG;EP187-4.0AE Yes Model Compatibility List $172.46 / Each

Inside Receiver Set;1200L+E2380142 726762 084651 P11 Inside Receiver Set;1200L+E2380142 Yes Model Compatibility List $93.70 / Each

726885 085779 AM1 Elevator Motor;AC;110V/123mm;JM03;only Yes Model Compatibility List $354.87 / Each

726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

Resistance Motor Set 727946 092140 S02 Resistance Motor Set Yes Model Compatibility List $172.46 / Each

Pedal;PP;Black;EP217 728359 094297 H10 Pedal;PP;Black;EP217 Yes Model Compatibility List $44.28 / Each

Ruber Insert;BL;EP217 728765 096910 H18 Ruber Insert;BL;EP217 Yes Model Compatibility List $38.17 / Each

Console Set for plastic DC motor sets 728767 097021 AN1 Console Set for plastic DC motor sets Yes Model Compatibility List $1.30 / Each

Lower Control Board;Mimic AC;100~240V 728781 097354 AM3 Lower Control Board;Mimic AC;100~240V Yes Model Compatibility List $383.27 / Each

Bottle Holder;ABS;MM330;EP209 728905 098782 C11 Bottle Holder;ABS;MM330;EP209 Yes Model Compatibility List $34.16 / Each

Cover;Right;Up;ABS+PU;BL;EP209 728906 098788 G23 Cover;Right;Up;ABS+PU;BL;EP209 No Model Compatibility List $11.96 / Each

Cover;Left;Up;ABS+PU;BL;EP209 728907 098789 G24 Cover;Left;Up;ABS+PU;BL;EP209 No Model Compatibility List $18.46 / Each

728908 098792 AJ1 Crank Set;Painting;MM330;EP209 No Model Compatibility List $177.42 / Each

729406 ZMS2000092 AN1 Console Set;Steel DC Motor No Model Compatibility List $1.30 / Each

7,4,5,6,10
AFG Advanced Fitness Group Elliptical Wheel Roller 080903 2.0AE 3.0AE (Used) 1003397 2.0AE-WR 0 7 AFG Advanced Fitness Group Elliptical Wheel Roller 080903 2.0AE 3.0AE (Used) No Model Compatibility List $11.40 / Each

1
P 1001381 003326-00 P04 1 Power Switch Yes Model Compatibility List $29.99 / Each

P 1000573 003326-00 P04 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

R 1000633 004162-00 R11 Pulley Drive Belt 8 Rib High Strength Yes Model Compatibility List $44.99 / Each

15,10
S 1003402 012847-00 S02 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each

1
Wheel Roller 1003675 080903 Wheel Roller Yes Model Compatibility List $64.99 / Each

Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

K 1001765 002169-A KIT Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
F 701972 005010-00 F26 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

P 1034434 003326-00 P04 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P04 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

G 936823 004074-A4 G11 Stepper Step Sealed Bearing (New) Yes Model Compatibility List $32.99 / Each

8
Z 976932 004926-00 Z18 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q07 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

S 986204 004374-00 S03 Button Head Phillip Screw (New) No Model Compatibility List $12.99 / Each
Out Of Stock
N 971749 003307-00 N31 Rate Chest Strap (New) No Model Compatibility List $194.99 / Each

P 911958 004608-00 P06 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

View Drawing
