BH Fitness - S3Xi

Repair Parts for BH Fitness S3Xi

Brand: BH Fitness

Category: Residential Ellipticals

Type: Elliptical

Model Name: S3Xi

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

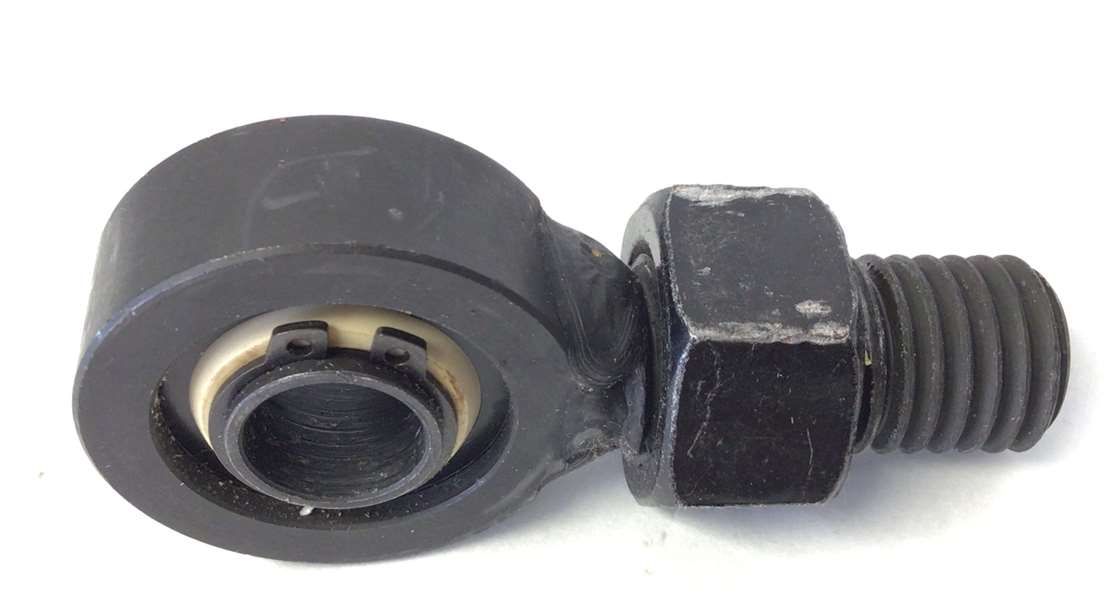

Pedal Arm Spindle leg (Used) 1023087 S3Xi-PASL L1 1 Pedal Arm Spindle leg (Used) No Model Compatibility List $49.00 / Each

1

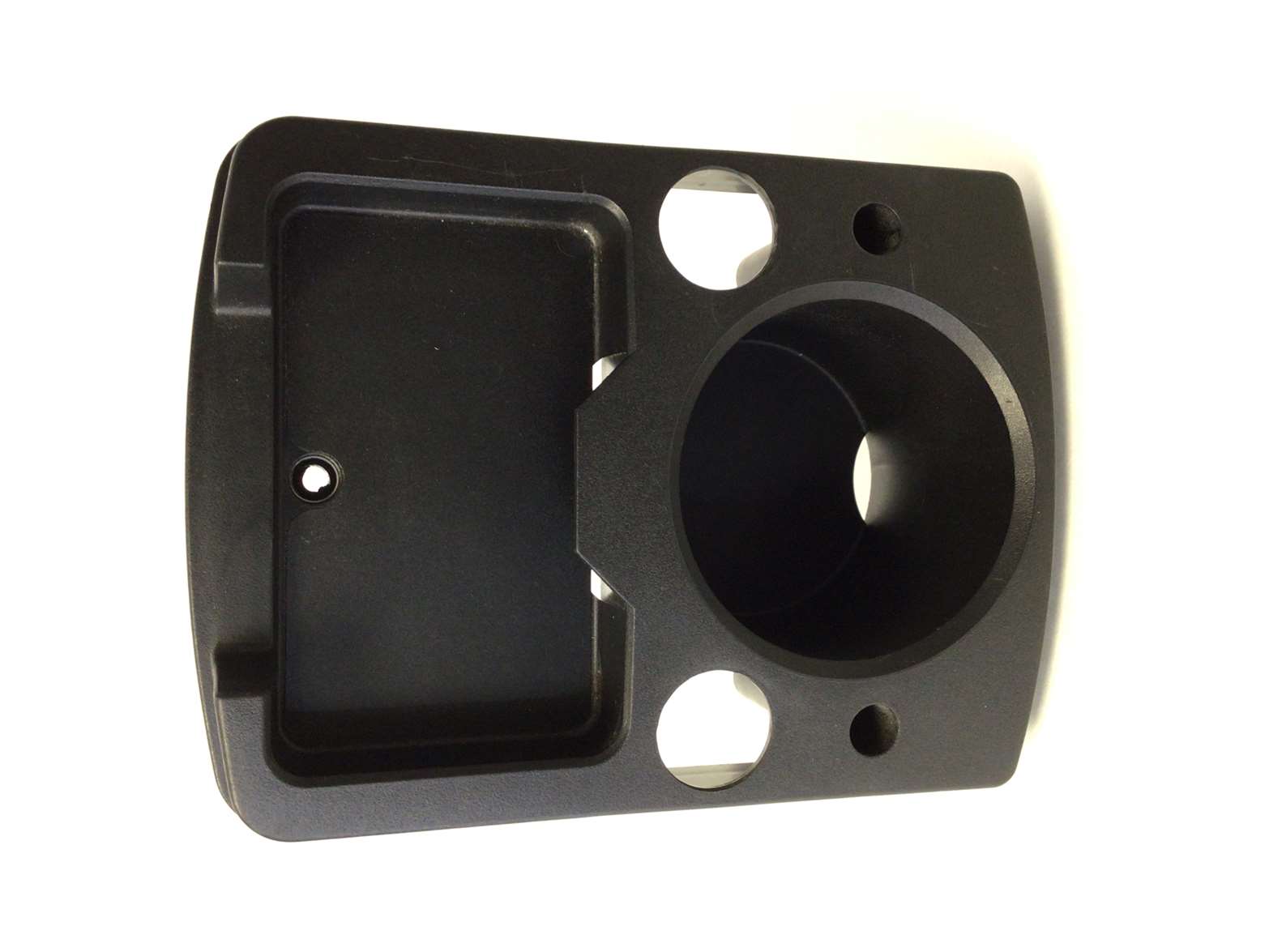

Holder Bottle (Used) 1023090 S3XI-A-4 A-4 1 Holder Bottle (Used) No Model Compatibility List $14.69 / Each

1
Computer wire Lower (Used) 1023074 S3XI-A-47 A-47 1 Computer wire Lower (Used) No Model Compatibility List $15.41 / Each

1

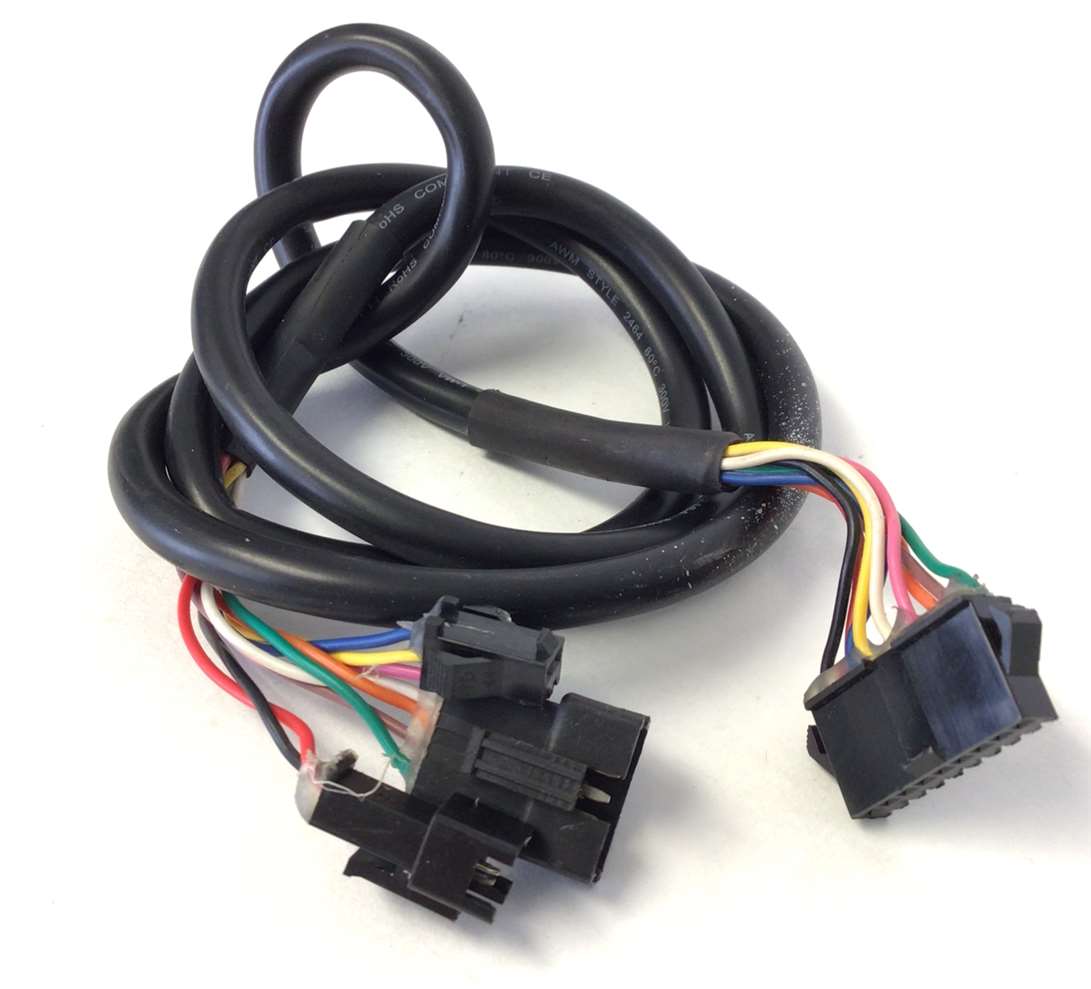

Computer wire Middle (Used) 1023057 S3XI-A-48 A-48 1 Computer wire Middle (Used) No Model Compatibility List $15.12 / Each

1

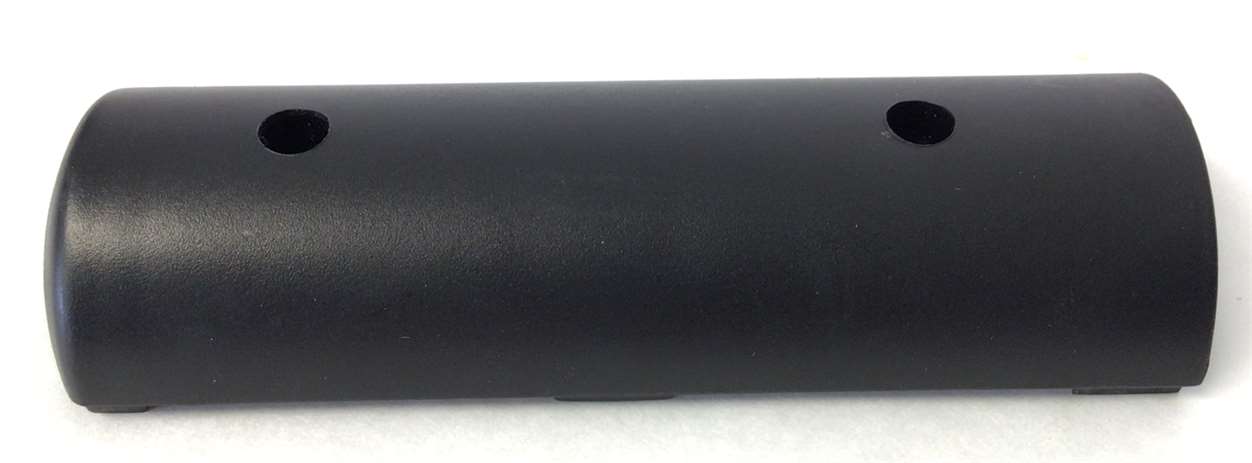

Handle sleeve (Used) 1023075 S3XI-G-1 G-1 1 Handle sleeve (Used) No Model Compatibility List $4.99 / Each

1

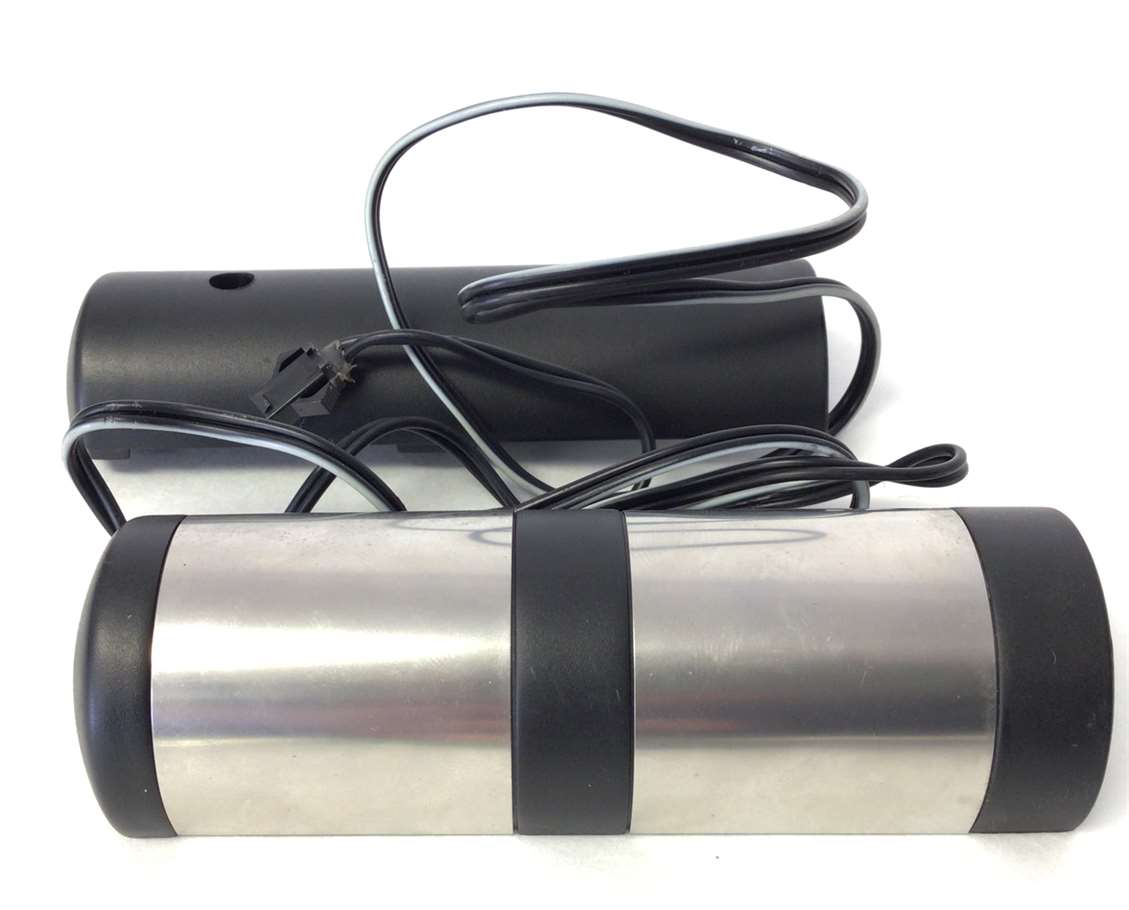

Sensor & wire (Used) 1023089 S3XI-G-3 G-3 1 Sensor & wire (Used) No Model Compatibility List $19.66 / Each

1
Holder Bottle (Used) 1027011 LK500X-A-4 A-4 1 Holder Bottle (Used) No Model Compatibility List $14.99 / Each

1
Arm Crank I (Used) 1026103 LK500X-A-9 A-9 1 Arm Crank I (Used) No Model Compatibility List $40.00 / Each
Out Of Stock 		1
Arm Crank II (Used) 1027040 LK500X-A-10 A-10 1 Arm Crank II (Used) No Model Compatibility List $40.00 / Each
Out Of Stock 		31
Screw M10-1.5-59mm (Used) 1026467 LK500X-A-11 A-11 1 Screw M10-1.5-59mm (Used) No Model Compatibility List $4.99 / Each

1
Square flat washer (Used) 1026242 LK500X-A-12 A-12 1 Square flat washer (Used) No Model Compatibility List $3.99 / Each

1
Screw M8-1.25-19.5mm (Used) 1026236 LK500X-A-14 A-14 1 Screw M8-1.25-19.5mm (Used) No Model Compatibility List $2.99 / Each

1
Disk (Used) 1027024 LK500X-A-15 A-15 1 Disk (Used) No Model Compatibility List $13.99 / Each

1
Washer Flat (Used) 1026206 LK500X-A-16 A-16 1 Washer Flat (Used) No Model Compatibility List $1.99 / Each

1
Retainer Internal (Used) 1026448 LK500X-A-22-3 A-22-3 1 Retainer Internal (Used) No Model Compatibility List $2.99 / Each

1
Screw M6-1.0-20mm (Used) 1026313 LK500X-A-25 A-25 1 Screw M6-1.0-20mm (Used) No Model Compatibility List $2.99 / Each

1
Waved washer (Used) 1026203 LK500X-A-26-4 A-26-4 1 Waved washer (Used) No Model Compatibility List $4.99 / Each

1
Adjustable foot cushion (Used) 1027051 LK500X-A-28 A-28 3 Adjustable foot cushion (Used) No Model Compatibility List $11.99 / Each

1
Cover Connection Front Left (Used) 1027053 LK500X-A-29 A-29 1 Cover Connection Front Left (Used) No Model Compatibility List $16.99 / Each

18
Cover Connection Front Right (Used) 1027026 LK500X-A-31 A-31 1 Cover Connection Front Right (Used) No Model Compatibility List $16.99 / Each

18
Drive Belt BH-570J8 LK500X-A-34 A-34 1 Drive Belt Yes Model Compatibility List $54.99 / Each

23
Pulley Flywheel (Used) 1026251 LK500X-A-35 A-35 1 Pulley Flywheel (Used) No Model Compatibility List $49.00 / Each

1
Wire harness Generator (Used) 1027052 LK500X-A-39 A-39 2 Wire harness Generator (Used) No Model Compatibility List $5.99 / Each

19
Computer post cover (Used) 1027038 LK500X-E E 1 Computer post cover (Used) No Model Compatibility List $16.99 / Each

18
Handlebar Left (Used) 1026449 LK500X-F F 1 Handlebar Left (Used) No Model Compatibility List $29.99 / Each

1
Handlebar Right (Used) 1027039 LK500X-G G 1 Handlebar Right (Used) No Model Compatibility List $29.99 / Each

1
Left swing arm front cover (Used) 1026438 LK500X-H H 1 Left swing arm front cover (Used) No Model Compatibility List $9.99 / Each

18
Left swing arm rear cover (Used) 1027013 LK500X-I I 1 Left swing arm rear cover (Used) No Model Compatibility List $9.99 / Each

18
Right swing arm front cover (Used) 1026179 LK500X-J J 1 Right swing arm front cover (Used) No Model Compatibility List $9.99 / Each

18
Right swing arm rear cover (Used) 1027037 LK500X-K K 1 Right swing arm rear cover (Used) No Model Compatibility List $9.99 / Each

18
Left or Right pedal (Used) 1026263 LK500X-N 0 1 Left or Right pedal (Used) No Model Compatibility List $49.00 / Each

31
Cushion plate (Used) 1026124 LK500X-R R 2 Cushion plate (Used) No Model Compatibility List $29.99 / Each

1
Screw M6-1.0-25.5mm (Used) 1026193 LK500X-V-10 V-10 6 Screw M6-1.0-25.5mm (Used) No Model Compatibility List $2.99 / Each

1
Screw Truss M6-1.0mm (Used) 1026081 LK500X-V-17 V-17 4 Screw Truss M6-1.0mm (Used) No Model Compatibility List $4.99 / Each

1
Bearing Sealed LK500X-6005z LK500X-A-21-2 A-21-2 2 Bearing Sealed No Model Compatibility List $14.99 / Each

1
Bearing 6004Z LK500X-6004z LK500X-A-21-3 A-21-3 1 Bearing 6004Z No Model Compatibility List $14.99 / Each

1
Bearing Sealed LK500X-6003z LK500X-A-22-2 A-22-2 2 Bearing Sealed No Model Compatibility List $14.99 / Each

1
Bearing Sealed 20mm ID (Used) LK500-6904z LK500X-A-26-2 A-26-2 2 Bearing Sealed 20mm ID (Used) Yes Model Compatibility List $14.99 / Each

1
