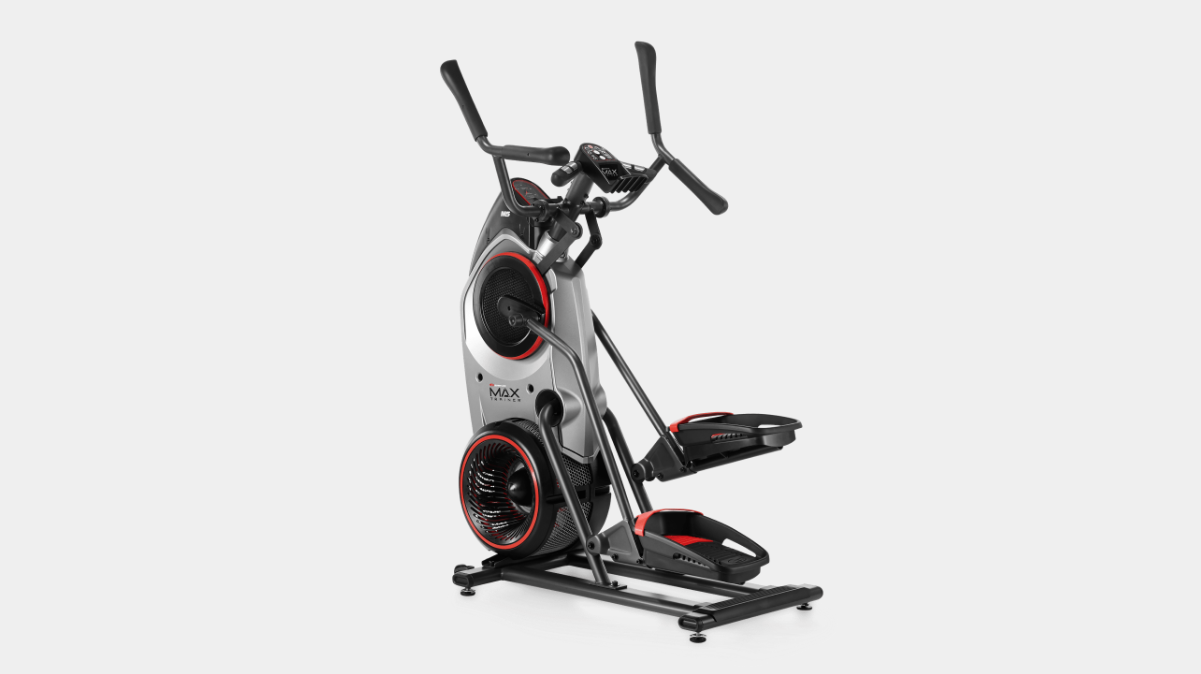

Bowflex - BFX M5 MAX TRAINER

Repair Parts for Bowflex BFX M5 MAX TRAINER 94079

Brand: Bowflex

Category: Traditional

Type: Elliptical

Model Name: BFX M5 MAX TRAINER

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
735887 1000512717 ADPTR, 100-240VAC, 9VDC,1.5Ah,90DEG No Model Compatibility List $30.85 / Each

736074 1000511105 TOOL, CRANK PULLER No Model Compatibility List $32.48 / Each

736241 1000415038 END CAP FRAME, 40MM X 80MM (8000089) No Model Compatibility List $4.85 / Each

736243 1000415040 SERVICE KIT, PEDAL ARM WHEEL, MAX TRAINE No Model Compatibility List $53.60 / Each

736252 1000415053 WAVE WASHER, 19.5MM ID X 38.0MM OD X 0.3 No Model Compatibility List $1.60 / Each

736253 1000415054 CONSOLE MAST SLEEVE (004-3402) No Model Compatibility List $4.85 / Each

736256 1000415055 BELT, SELF TENSIONING, 360J8 (8006063) No Model Compatibility List $56.85 / Each

736257 1000415057 SRV KIT, MAIN DRIVE PULLEY No Model Compatibility List $34.10 / Each

736258 1000415058 SERVICE KIT, EDDY BRAKE DISK, MAX TRAINE No Model Compatibility List $29.23 / Each

736259 1000415059 SERVICE KIT, EDDY BRAKE ASSEMBLY (800455 No Model Compatibility List $37.35 / Each

736260 1000415060 Service Kit, 2015 Upper Belt Tensioner ( No Model Compatibility List $24.35 / Each

736261 1000415062 SERVICE KIT, SPEED SENSOR, MAX TRAINER ( No Model Compatibility List $9.73 / Each

736263 1000415064 SERVICE KIT, NOSECAP, MAX TRAINER (80045 No Model Compatibility List $11.35 / Each

736271 1000415072 NUT-THIN M10 - 1.5 G2 BlkZ (902-4162) No Model Compatibility List $1.60 / Each

736272 1000415074 BELT, 380J10 (8004642) No Model Compatibility List $22.73 / Each

736273 1000415075 SERVICE KIT, MAX PIVOT BUSHING KIT (8004 No Model Compatibility List $4.85 / Each

736275 1000512206 SVC KIT,MAX EDDY BRK/SERVO ADJ CBL No Model Compatibility List $6.48 / Each

736276 1000415108 SPRING, EXTENSION, 33 LGTH No Model Compatibility List $1.60 / Each

736278 1000511317 DECAL, GENERAL WARNING, MAX TRAINER No Model Compatibility List $1.60 / Each

736279 1000512946 SVC KIT, MAX TRNRWAVE WASHER KIT No Model Compatibility List $3.23 / Each

736283 1000415027 PIVOT END CAP (8002576) No Model Compatibility List $1.60 / Each

736286 1000415028 SHROUDING, GROMMET (8003407) No Model Compatibility List $16.23 / Each

736288 1000415061 SERVICE KIT, SHROUD HARDWARE, MAX TRAINE No Model Compatibility List $3.23 / Each

736289 1000512051 SVC KIT,FELT WSHRS,MAX TRNRRLR WHLS No Model Compatibility List $3.23 / Each

736601 1000415039 SERVICE KIT, TRANSPORT WHEEL (8004275) No Model Compatibility List $11.35 / Each

736602 1000415037 SERVICE KIT, LEVELER FOOT (8004277) No Model Compatibility List $4.85 / Each

736614 1000415066 POWER PLUG WITH CONNECTOR (8003600) No Model Compatibility List $6.48 / Each

736754 1000415088 SERVICE KIT, POD ASSEMBLY, M5 (8004600) No Model Compatibility List $71.48 / Each

736755 1000415029 SUB ASSY, UPPER FOOT PEDAL ARM (8002458) No Model Compatibility List $112.10 / Each

736756 1000415097 SERVICE KIT, FOOTPAD, M5 (8004593) No Model Compatibility List $35.73 / Each

736757 1000415031 SERVICE KIT, FOOTBED, MAX TRAINER (80045 No Model Compatibility List $55.23 / Each

736758 1000415098 SHROUDING - REAR CAP (M5) (8003440) No Model Compatibility List $37.35 / Each

736759 1000415033 WELDMENT, RAMP RAIL (8002822) No Model Compatibility List $47.10 / Each

736760 1000415034 SUB ASSY, BASE FRAME, MAX TRAINER No Model Compatibility List $144.60 / Each

736761 1000415089 SUB-ASSY UPPER MAST M5 (8002511) No Model Compatibility List $123.48 / Each

736762 1000511321 DOCUMENT KIT, BFX MAX TRAINER M5 No Model Compatibility List $30.85 / Each

736763 1000512189 ASSY, WIRELESS HR CHEST STRAP, BFX No Model Compatibility List $84.48 / Each

736764 1000415092 SUB ASSY, HANDLEBAR, LH (M5) (8002557) No Model Compatibility List $64.98 / Each

736765 1000511283 HDW CARD BFX MAX TRAINER (M3/M5) No Model Compatibility List $37.35 / Each

736766 1000415093 SUB ASSY, HANDLEBAR, RH (M5) (8002565) No Model Compatibility List $64.98 / Each

736767 1000415100 SERVICE KIT, CUP HOLDER SHROUD, M5 (8004 No Model Compatibility List $30.85 / Each

736768 1000415047 SUB ASSY, HANDLEBAR PIVOT (8002501) No Model Compatibility List $22.73 / Each

736769 1000415048 SERVICE KIT, CRANK ASSEMBLY, RIGHT, MAX No Model Compatibility List $141.35 / Each

736770 1000415049 SERVICE KIT, CRANK ASSEMBLY, LEFT, MAX T No Model Compatibility List $141.35 / Each

736771 1000415051 CABLE ASSY, KEYPAD TO CONSOLE (8003598) No Model Compatibility List $11.35 / Each

736772 1000415052 SERVICE KIT, HR RECEIVER, MAX TRAINER (8 No Model Compatibility List $14.60 / Each

736773 1000415094 SERVICE KIT, HANDLEBAR GRIP, UPPER (8004 No Model Compatibility List $17.85 / Each

736774 1000511440 SRV KIT, UPPER BELT TENSIONER No Model Compatibility List $30.85 / Each

736775 1000415063 SERVICE KIT, FAN, MAX TRAINER (8004554) No Model Compatibility List $53.60 / Each

736776 1000415095 SERVICE KIT, HANDLEBAR GRIP, LOWER LEFT No Model Compatibility List $16.23 / Each

736777 1000415067 SERVICE KIT, CRANK COVER, MAX TRAINER (8 No Model Compatibility List $48.73 / Each

736778 1000415103 ASSEMBLY SHROUD / GRAPHICS (RH) BFX M5 ( No Model Compatibility List $69.85 / Each

736779 1000415104 ASSEMBLY SHROUD / GRAPHICS (LH) BFX M5 ( No Model Compatibility List $69.85 / Each

736780 1000415105 SERVICE KIT, FAN SHROUD, LEFT, M5 (80045 No Model Compatibility List $73.10 / Each

736781 1000415107 MAIN CABLE TO DC, SPEED SENSOR, MOTOR (8 No Model Compatibility List $17.85 / Each

736782 1000415096 SERVICE KIT, HANDLEBAR GRIP, LOWER RIGHT No Model Compatibility List $16.23 / Each

736783 1000512658 SVC KIT, M5 ENGINE No Model Compatibility List $1.00 / Each

View Drawing
