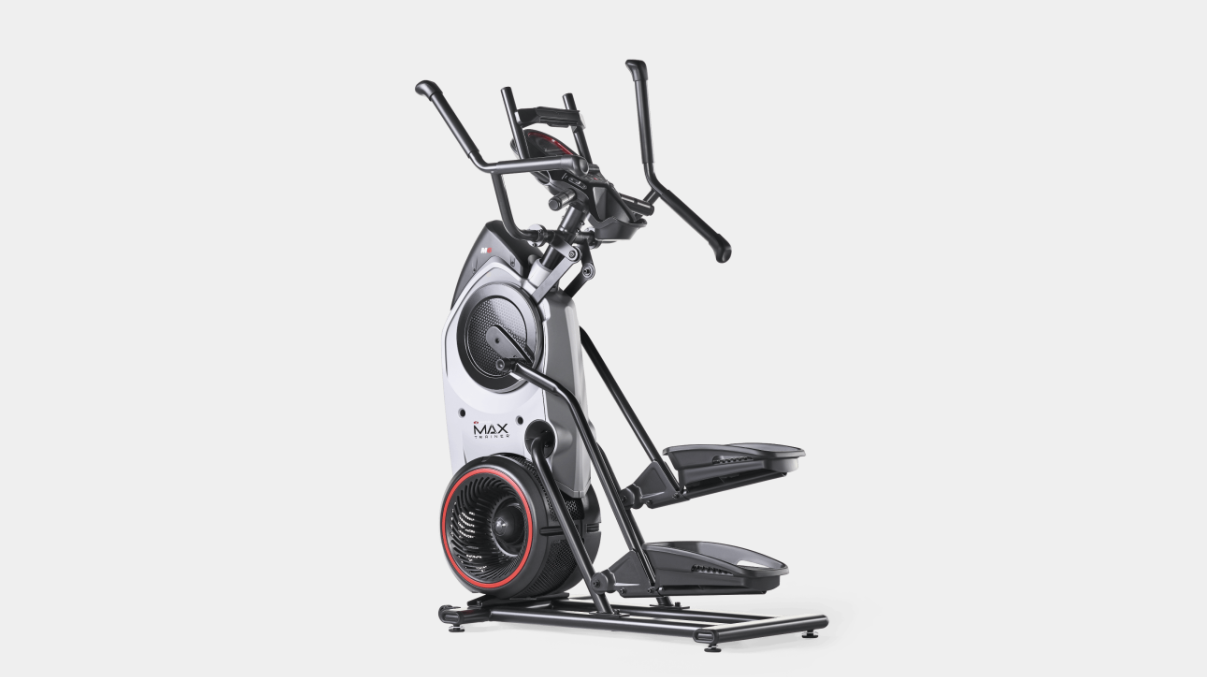

Bowflex - BFX M6 MAX TRAINER, SINGLE BOX

Repair Parts for Bowflex BFX M6 MAX TRAINER, SINGLE BOX 91094

Brand: Bowflex

Category: Traditional

Type: Elliptical

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

91094

Model Name: BFX M6 MAX TRAINER, SINGLE BOX

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

BowFlex-91094.pdf

VIEWS

Catalog #	MPN	Part Description	Available Used	Model Compatibility List	New price
735887	1000512717	ADPTR, 100-240VAC, 9VDC,1.5Ah,90DEG	No	Model Compatibility List	$30.85 / Each Out Of Stock
736074	1000511105	TOOL, CRANK PULLER	No	Model Compatibility List	$32.48 / Each Out Of Stock
736241	1000415038	END CAP FRAME, 40MM X 80MM (8000089)	No	Model Compatibility List	$4.85 / Each Out Of Stock
736243	1000415040	SERVICE KIT, PEDAL ARM WHEEL, MAX TRAINE	No	Model Compatibility List	$53.60 / Each Out Of Stock
736249	1000513004	HDW CARD, BFX MAX TRAINER M6/M8	No	Model Compatibility List	$37.35 / Each Out Of Stock
736250	1000512997	SVC KIT, CRANK ASSEMBLY, RIGHT, M6	No	Model Compatibility List	$133.23 / Each Out Of Stock
736251	1000512998	SVC KIT, CRANK ASSEMBLY, LEFT, M6	No	Model Compatibility List	$133.23 / Each Out Of Stock
736252	1000415053	WAVE WASHER, 19.5MM ID X 38.0MM OD X 0.3	No	Model Compatibility List	$1.60 / Each Out Of Stock
736253	1000415054	CONSOLE MAST SLEEVE (004-3402)	No	Model Compatibility List	$4.85 / Each Out Of Stock
736254	1000512996	SERVICE KIT, HANDLEBAR PIVOT	No	Model Compatibility List	$22.73 / Each Out Of Stock
736256	1000415055	BELT, SELF TENSIONING, 360J8 (8006063)	No	Model Compatibility List	$56.85 / Each Out Of Stock
736257	1000415057	SRV KIT, MAIN DRIVE PULLEY	No	Model Compatibility List	$34.10 / Each Out Of Stock
736258	1000415058	SERVICE KIT, EDDY BRAKE DISK, MAX TRAINE	No	Model Compatibility List	$29.23 / Each Out Of Stock
736259	1000415059	SERVICE KIT, EDDY BRAKE ASSEMBLY (800455	No	Model Compatibility List	$37.35 / Each Out Of Stock
736260	1000415060	Service Kit, 2015 Upper Belt Tensioner (	No	Model Compatibility List	$24.35 / Each Out Of Stock
736261	1000415062	SERVICE KIT, SPEED SENSOR, MAX TRAINER (	No	Model Compatibility List	$9.73 / Each Out Of Stock
736262	1000513001	SERVICE KIT, FAN, MAX TRAINER, BLK	No	Model Compatibility List	$56.85 / Each Out Of Stock
736263	1000415064	SERVICE KIT, NOSECAP, MAX TRAINER (80045	No	Model Compatibility List	$11.35 / Each Out Of Stock
736266	1000513002	SVC KIT, CRANK CVR, MAX TRNR, BLK	No	Model Compatibility List	$51.98 / Each Out Of Stock
736270	1000512999	SERVICE KIT, FAN SHROUD, LEFT	No	Model Compatibility List	$82.85 / Each Out Of Stock
736271	1000415072	NUT-THIN M10 - 1.5 G2 BlkZ (902-4162)	No	Model Compatibility List	$1.60 / Each Out Of Stock
736272	1000415074	BELT, 380J10 (8004642)	No	Model Compatibility List	$22.73 / Each Out Of Stock
736273	1000415075	SERVICE KIT, MAX PIVOT BUSHING KIT (8004	No	Model Compatibility List	$4.85 / Each Out Of Stock
736275	1000512206	SVC KIT,MAX EDDY BRK/SERVO ADJ CBL	No	Model Compatibility List	$6.48 / Each Out Of Stock
736276	1000415108	SPRING, EXTENSION, 33 LGTH	No	Model Compatibility List	$1.60 / Each Out Of Stock
736278	1000511317	DECAL, GENERAL WARNING, MAX TRAINER	No	Model Compatibility List	$1.60 / Each Out Of Stock
736279	1000512946	SVC KIT, MAX TRNRWAVE WASHER KIT	No	Model Compatibility List	$3.23 / Each Out Of Stock
736283	1000415027	PIVOT END CAP (8002576)	No	Model Compatibility List	$1.60 / Each Out Of Stock
736285	1000512963	SUB ASSY, UPPER FOOT PEDAL ARM	No	Model Compatibility List	$123.48 / Each Out Of Stock
736286	1000415028	SHROUDING, GROMMET (8003407)	No	Model Compatibility List	$16.23 / Each Out Of Stock
736288	1000415061	SERVICE KIT, SHROUD HARDWARE, MAX TRAINE	No	Model Compatibility List	$3.23 / Each Out Of Stock
736289	1000512051	SVC KIT,FELT WSHRS,MAX TRNRRLR WHLS	No	Model Compatibility List	$3.23 / Each Out Of Stock
736597	1000512843	SUB ASSY, CONSOLE, M6	No	Model Compatibility List	$597.98 / Each Out Of Stock
736598	1000511765	SHROUDING, REAR CAP (M7)	No	Model Compatibility List	$40.60 / Each Out Of Stock
736599	1000512967	WELDMENT, RAMP RAIL	No	Model Compatibility List	$53.60 / Each Out Of Stock
736600	1000512968	SUB ASSY, BASE FRAME, M6	No	Model Compatibility List	$152.73 / Each Out Of Stock
736601	1000415039	SERVICE KIT, TRANSPORT WHEEL (8004275)	No	Model Compatibility List	$11.35 / Each Out Of Stock
736602	1000415037	SERVICE KIT, LEVELER FOOT (8004277)	No	Model Compatibility List	$4.85 / Each Out Of Stock
736603	1000512850	SUB ASSY, FOOT PAD, M6	No	Model Compatibility List	$53.60 / Each Out Of Stock
736604	1000512962	WELDMENT, LOWER PEDAL ARM	No	Model Compatibility List	$48.73 / Each Out Of Stock
736605	1000512951	ASSY, MEDIA HOLDER, BFX, M6/M8	No	Model Compatibility List	$29.23 / Each Out Of Stock
736606	1000513890	DOC KIT, BFX MAX TRNRM6 SINGLEPACK	No	Model Compatibility List	$66.60 / Each Out Of Stock
736607	1000511756	SUB ASSY, SHROUD, GRAPHICS LH (M7)	No	Model Compatibility List	$79.60 / Each Out Of Stock
736608	1000511755	SUB ASSY, SHROUD, GRAPHICS RH (M7)	No	Model Compatibility List	$79.60 / Each Out Of Stock
736609	1000511315	SUB-ASSY, SHRD, FAN CVR, RT SIDE	No	Model Compatibility List	$63.35 / Each Out Of Stock
736610	1000512844	END CAP, STATIC BARS, M6	No	Model Compatibility List	$1.60 / Each Out Of Stock
736611	1000512845	SUB ASSY, CNSL TOP CAP AND GRFX, M6	No	Model Compatibility List	$34.10 / Each Out Of Stock
736612	1000512965	SUB ASSY, HANDLEBAR, LH	No	Model Compatibility List	$63.35 / Each Out Of Stock
736613	1000512966	SUB ASSY, HANDLEBAR, RH	No	Model Compatibility List	$63.35 / Each Out Of Stock
736614	1000415066	POWER PLUG WITH CONNECTOR (8003600)	No	Model Compatibility List	$6.48 / Each Out Of Stock
736615	1000511987	MAIN CBL TO DC SPD SENSOR, MTR, M7	No	Model Compatibility List	$17.85 / Each Out Of Stock
736616	1000513000	SERVICE KIT, M6 ENGINE	No	Model Compatibility List	$1.00 / Each Out Of Stock
