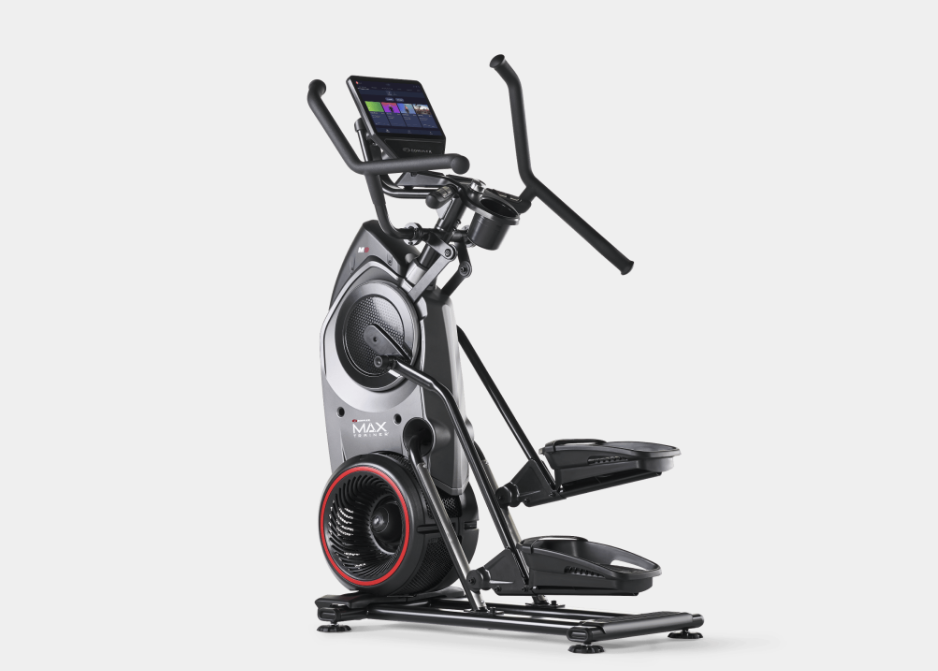

Bowflex - BFX M9 MAX TRAINER, SINGLE BOX (SBC)

Repair Parts for Bowflex BFX M9 MAX TRAINER, SINGLE BOX (SBC) 94204

Brand: Bowflex

Category: Traditional

Type: Elliptical

Model Name: BFX M9 MAX TRAINER, SINGLE BOX (SBC)

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
736041 1000513575 SVC KIT, CNSL MNT HDW, SBC 10 INCH No Model Compatibility List $1.60 / Each

736074 1000511105 TOOL, CRANK PULLER No Model Compatibility List $32.48 / Each

736233 1000513422 CNSL, TOUCH PANEL, M9 No Model Compatibility List $648.38 / Each

736234 1000513650 SUB ASSY, LOWER PEDAL ARM, MAX V3 No Model Compatibility List $50.35 / Each

736235 1000512971 SHROUDING, REAR CAP No Model Compatibility List $42.23 / Each

736236 1000512849 SUB ASSY, RAMP RAIL, M8 No Model Compatibility List $128.35 / Each

736237 1000511279 LOWER BRACKET SHROUD, LEFT, M7 No Model Compatibility List $9.73 / Each

736238 1000511278 LOWER BRACKET SHROUD, RIGHT, M7 No Model Compatibility List $9.73 / Each

736239 1000513649 SUB ASSY, BASE FRAME, MAX V3 No Model Compatibility List $173.85 / Each

736240 1000512964 SUB ASSY, FOOT LEVELER, BFX No Model Compatibility List $9.73 / Each

736241 1000415038 END CAP FRAME, 40MM X 80MM (8000089) No Model Compatibility List $4.85 / Each

736242 1000512019 SERVICE KIT, TRANSPORT WHEEL, M7 No Model Compatibility List $11.35 / Each

736243 1000415040 SERVICE KIT, PEDAL ARM WHEEL, MAX TRAINE No Model Compatibility List $53.60 / Each

736244 1000513433 SUB ASSY, HANDLEBAR, BFX, MAX M9 No Model Compatibility List $194.98 / Each

736245 1000512020 SERVICE KIT, REAR STEP SHROUD, M7 No Model Compatibility List $14.60 / Each

736246 1000513651 DOC KIT, BFX, MAX TRAINER, M9, V3 No Model Compatibility List $230.73 / Each

736247 1000512927 SVC KIT, AC ADAPTER W/CORD, SBC, NA No Model Compatibility List $76.35 / Each

736248 1000513394 SUB ASSY, CNSL TOP CAP AND GRFX, M9 No Model Compatibility List $32.48 / Each

736249 1000513004 HDW CARD, BFX MAX TRAINER M6/M8 No Model Compatibility List $37.35 / Each

736250 1000512997 SVC KIT, CRANK ASSEMBLY, RIGHT, M6 No Model Compatibility List $133.23 / Each

736251 1000512998 SVC KIT, CRANK ASSEMBLY, LEFT, M6 No Model Compatibility List $133.23 / Each

736252 1000415053 WAVE WASHER, 19.5MM ID X 38.0MM OD X 0.3 No Model Compatibility List $1.60 / Each

736253 1000415054 CONSOLE MAST SLEEVE (004-3402) No Model Compatibility List $4.85 / Each

736254 1000512996 SERVICE KIT, HANDLEBAR PIVOT No Model Compatibility List $22.73 / Each

736255 1000512973 SUB ASSY, HANDLEBAR, LH No Model Compatibility List $110.48 / Each

736256 1000415055 BELT, SELF TENSIONING, 360J8 (8006063) No Model Compatibility List $56.85 / Each

736257 1000415057 SRV KIT, MAIN DRIVE PULLEY No Model Compatibility List $34.10 / Each

736258 1000415058 SERVICE KIT, EDDY BRAKE DISK, MAX TRAINE No Model Compatibility List $29.23 / Each

736259 1000415059 SERVICE KIT, EDDY BRAKE ASSEMBLY (800455 No Model Compatibility List $37.35 / Each

736260 1000415060 Service Kit, 2015 Upper Belt Tensioner ( No Model Compatibility List $24.35 / Each

736261 1000415062 SERVICE KIT, SPEED SENSOR, MAX TRAINER ( No Model Compatibility List $9.73 / Each

736262 1000513001 SERVICE KIT, FAN, MAX TRAINER, BLK No Model Compatibility List $56.85 / Each

736263 1000415064 SERVICE KIT, NOSECAP, MAX TRAINER (80045 No Model Compatibility List $11.35 / Each

736264 1000512972 SUB ASSY, HANDLEBAR, DIPPED, RH No Model Compatibility List $110.48 / Each

736265 1000513288 CABLE, HARNESS TO INLET MAX SBC No Model Compatibility List $14.60 / Each

736266 1000513002 SVC KIT, CRANK CVR, MAX TRNR, BLK No Model Compatibility List $51.98 / Each

736267 1000512969 SUB ASSY, SHROUD, GRAPHICS RH No Model Compatibility List $81.23 / Each

736268 1000512970 SUB ASSY, SHROUD, GRAPHICS LH No Model Compatibility List $79.60 / Each

736269 1000513392 SUB-ASSY,SHRD,FAN CVR,RT,12V-5A No Model Compatibility List $63.35 / Each

736270 1000512999 SERVICE KIT, FAN SHROUD, LEFT No Model Compatibility List $82.85 / Each

736271 1000415072 NUT-THIN M10 - 1.5 G2 BlkZ (902-4162) No Model Compatibility List $1.60 / Each

736272 1000415074 BELT, 380J10 (8004642) No Model Compatibility List $22.73 / Each

736273 1000415075 SERVICE KIT, MAX PIVOT BUSHING KIT (8004 No Model Compatibility List $4.85 / Each

736274 1000512860 CNSL, END CAP, MAST, BFX, MAX TOTAL No Model Compatibility List $3.23 / Each

736275 1000512206 SVC KIT,MAX EDDY BRK/SERVO ADJ CBL No Model Compatibility List $6.48 / Each

736276 1000415108 SPRING, EXTENSION, 33 LGTH No Model Compatibility List $1.60 / Each

736277 1000513516 SVC KIT, M9 ENGINE No Model Compatibility List $1.00 / Each

736278 1000511317 DECAL, GENERAL WARNING, MAX TRAINER No Model Compatibility List $1.60 / Each

736279 1000512946 SVC KIT, MAX TRNRWAVE WASHER KIT No Model Compatibility List $3.23 / Each

736280 1000513350 CBL,UART HUB, MID MAST MAX TOTAL No Model Compatibility List $14.60 / Each

736281 1000513396 WIRE ASSY, MAST, HRNS, MAX TRNRSBC No Model Compatibility List $32.48 / Each

736282 1000513432 SUB ASSY,PCBA&MNT,M9 SBC,FRAME MNT No Model Compatibility List $30.85 / Each

736283 1000415027 PIVOT END CAP (8002576) No Model Compatibility List $1.60 / Each

736284 1000513517 SVC KIT, MID MAST CABLES, M9 No Model Compatibility List $47.10 / Each

736285 1000512963 SUB ASSY, UPPER FOOT PEDAL ARM No Model Compatibility List $123.48 / Each

736286 1000415028 SHROUDING, GROMMET (8003407) No Model Compatibility List $16.23 / Each

736287 1000512848 SUB ASSY, FOOT PEDAL, M8 No Model Compatibility List $56.85 / Each

736288 1000415061 SERVICE KIT, SHROUD HARDWARE, MAX TRAINE No Model Compatibility List $3.23 / Each

736289 1000512051 SVC KIT,FELT WSHRS,MAX TRNRRLR WHLS No Model Compatibility List $3.23 / Each

736290 42 ASSY, HEART RATE ARMBAND, BFX No Model Compatibility List $0.00 / Each
Out Of Stock
View Drawing
