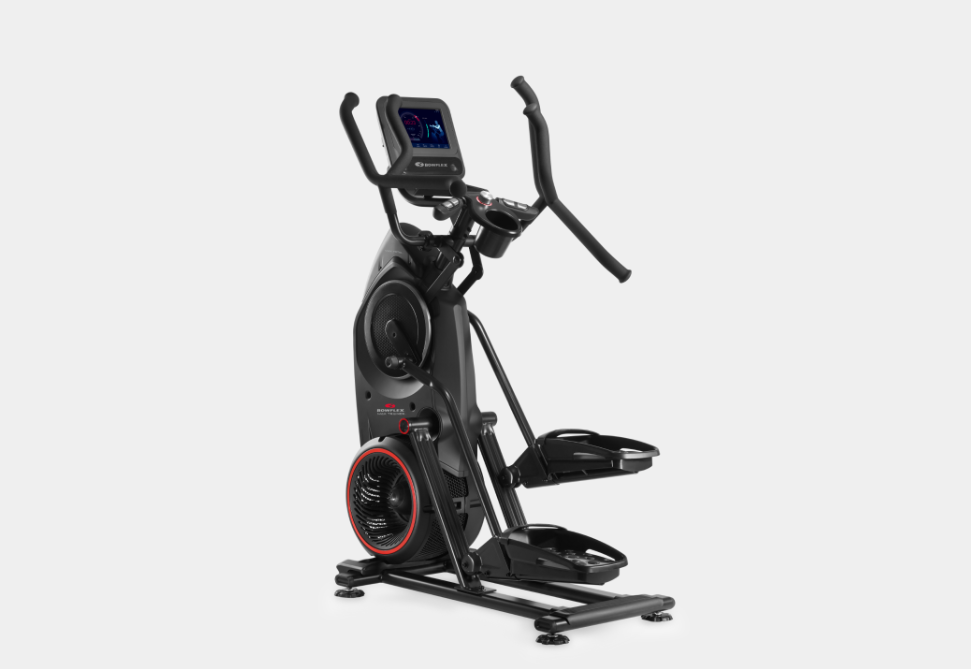

Bowflex - BFX MAX TOTAL

Repair Parts for Bowflex BFX MAX TOTAL 94207

Brand: Bowflex

Category: Traditional

Type: Elliptical

Model Name: BFX MAX TOTAL

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
736047 1000512873 ADPTR 90-240VAC, 12VDC 3A,1.8M CORD No Model Compatibility List $50.35 / Each

736074 1000511105 TOOL, CRANK PULLER No Model Compatibility List $32.48 / Each

736237 1000511279 LOWER BRACKET SHROUD, LEFT, M7 No Model Compatibility List $9.73 / Each

736238 1000511278 LOWER BRACKET SHROUD, RIGHT, M7 No Model Compatibility List $9.73 / Each

736240 1000512964 SUB ASSY, FOOT LEVELER, BFX No Model Compatibility List $9.73 / Each

736241 1000415038 END CAP FRAME, 40MM X 80MM (8000089) No Model Compatibility List $4.85 / Each

736242 1000512019 SERVICE KIT, TRANSPORT WHEEL, M7 No Model Compatibility List $11.35 / Each

736245 1000512020 SERVICE KIT, REAR STEP SHROUD, M7 No Model Compatibility List $14.60 / Each

736251 1000512998 SVC KIT, CRANK ASSEMBLY, LEFT, M6 No Model Compatibility List $133.23 / Each

736252 1000415053 WAVE WASHER, 19.5MM ID X 38.0MM OD X 0.3 No Model Compatibility List $1.60 / Each

736253 1000415054 CONSOLE MAST SLEEVE (004-3402) No Model Compatibility List $4.85 / Each

736254 1000512996 SERVICE KIT, HANDLEBAR PIVOT No Model Compatibility List $22.73 / Each

736256 1000415055 BELT, SELF TENSIONING, 360J8 (8006063) No Model Compatibility List $56.85 / Each

736257 1000415057 SRV KIT, MAIN DRIVE PULLEY No Model Compatibility List $34.10 / Each

736258 1000415058 SERVICE KIT, EDDY BRAKE DISK, MAX TRAINE No Model Compatibility List $29.23 / Each

736259 1000415059 SERVICE KIT, EDDY BRAKE ASSEMBLY (800455 No Model Compatibility List $37.35 / Each

736260 1000415060 Service Kit, 2015 Upper Belt Tensioner ( No Model Compatibility List $24.35 / Each

736261 1000415062 SERVICE KIT, SPEED SENSOR, MAX TRAINER ( No Model Compatibility List $9.73 / Each

736262 1000513001 SERVICE KIT, FAN, MAX TRAINER, BLK No Model Compatibility List $56.85 / Each

736263 1000415064 SERVICE KIT, NOSECAP, MAX TRAINER (80045 No Model Compatibility List $11.35 / Each

736271 1000415072 NUT-THIN M10 - 1.5 G2 BlkZ (902-4162) No Model Compatibility List $1.60 / Each

736272 1000415074 BELT, 380J10 (8004642) No Model Compatibility List $22.73 / Each

736273 1000415075 SERVICE KIT, MAX PIVOT BUSHING KIT (8004 No Model Compatibility List $4.85 / Each

736274 1000512860 CNSL, END CAP, MAST, BFX, MAX TOTAL No Model Compatibility List $3.23 / Each

736275 1000512206 SVC KIT,MAX EDDY BRK/SERVO ADJ CBL No Model Compatibility List $6.48 / Each

736276 1000415108 SPRING, EXTENSION, 33 LGTH No Model Compatibility List $1.60 / Each

736278 1000511317 DECAL, GENERAL WARNING, MAX TRAINER No Model Compatibility List $1.60 / Each

736279 1000512946 SVC KIT, MAX TRNRWAVE WASHER KIT No Model Compatibility List $3.23 / Each

736283 1000415027 PIVOT END CAP (8002576) No Model Compatibility List $1.60 / Each

736286 1000415028 SHROUDING, GROMMET (8003407) No Model Compatibility List $16.23 / Each

736288 1000415061 SERVICE KIT, SHROUD HARDWARE, MAX TRAINE No Model Compatibility List $3.23 / Each

736290 42 ASSY, HEART RATE ARMBAND, BFX No Model Compatibility List $0.00 / Each
Out Of Stock
736604 1000512962 WELDMENT, LOWER PEDAL ARM No Model Compatibility List $48.73 / Each

736625 1000512961 SUB ASSY, BASE FRAME, M8 No Model Compatibility List $229.10 / Each

736785 1000512858 SUB ASSY, RAMP RAIL, BFX, MAX TOTAL No Model Compatibility List $90.98 / Each

736786 1000512977 SHROUDING, REAR CAP No Model Compatibility List $38.98 / Each

736787 1000512853 UPR FT PEDAL ARM,BFX,MAX TTL No Model Compatibility List $129.98 / Each

736788 1000513132 RLR WHLS,2 WHLS/HDW FOR ONE ARM No Model Compatibility List $68.23 / Each

736789 1000511763 SUB ASSY LOWER PEDAL ARM M7 No Model Compatibility List $118.60 / Each

736794 1000512915 HARDWARE CARD, BFX MAX TOTAL No Model Compatibility List $38.98 / Each

736796 1000512016 SERVICE KIT, CRANK COVER, M7 No Model Compatibility List $56.85 / Each

736797 1000513135 SVC KIT, FAN SHROUD, LT, MAX TOTAL No Model Compatibility List $115.35 / Each

736798 1000512974 SUB ASSY, SHRD, MAIN, TOP, LT, GRFX No Model Compatibility List $76.35 / Each

736799 1000512857 SUB ASSY, TOP CAP AND GRFX, MAX TTL No Model Compatibility List $34.10 / Each

736804 1000512975 SUB ASSY, SHRD, MAIN, TOP, RT, GRFX No Model Compatibility List $77.98 / Each

737686 1000513134 ASSY, CONSOLE, BFX, MAX TOTAL No Model Compatibility List $1.00 / Each

737687 1000512859 SUB ASSY, HANDLEBAR, BFX, MAX TOTAL No Model Compatibility List $224.23 / Each

737688 1000513136 SVC KIT, MAX TOTAL ENGINE No Model Compatibility List $1.00 / Each

737689 1000512875 DOCUMENT KIT, BFX MAX TOTAL No Model Compatibility List $222.60 / Each

737690 1000513234 SVC KIT, UPR BODY SENSOR, MAX TOTAL No Model Compatibility List $45.48 / Each

737691 1000513035 PLATE CVR,MAX INTELLIGENCE No Model Compatibility List $11.35 / Each

737692 1000512877 CBL, HRNS TO WALL DC ADPTR, MAX TTL No Model Compatibility List $16.23 / Each

737693 1000512878 SUB-ASSY,SHRD,FAN CVR,RT,MAX TTL No Model Compatibility List $81.23 / Each

737694 1000512876 CABLE, MAST, HARNESS, M10 No Model Compatibility List $30.85 / Each

737695 1000513133 SVC KIT,CRANK ASSY,RT,BFX,MAX TTL No Model Compatibility List $157.60 / Each

737696 1000513008 SUB ASSY,CNSL,BFX,MAXTTL,FRNT BEZEL No Model Compatibility List $1.00 / Each

737697 1000513141 REAR BEZEL W/O TABLET,MAX Total No Model Compatibility List $60.10 / Each

737698 1000513137 SVC KIT, MID MAST CABLES, MAX TOTAL No Model Compatibility List $47.10 / Each

737699 1000512855 SUB ASSY,HANDLEBAR,LH,BFX,MAX TTL No Model Compatibility List $120.23 / Each

737700 1000512856 SUB ASSY,HANDLEBAR,RH,BFX,MAX TTL No Model Compatibility List $120.23 / Each
