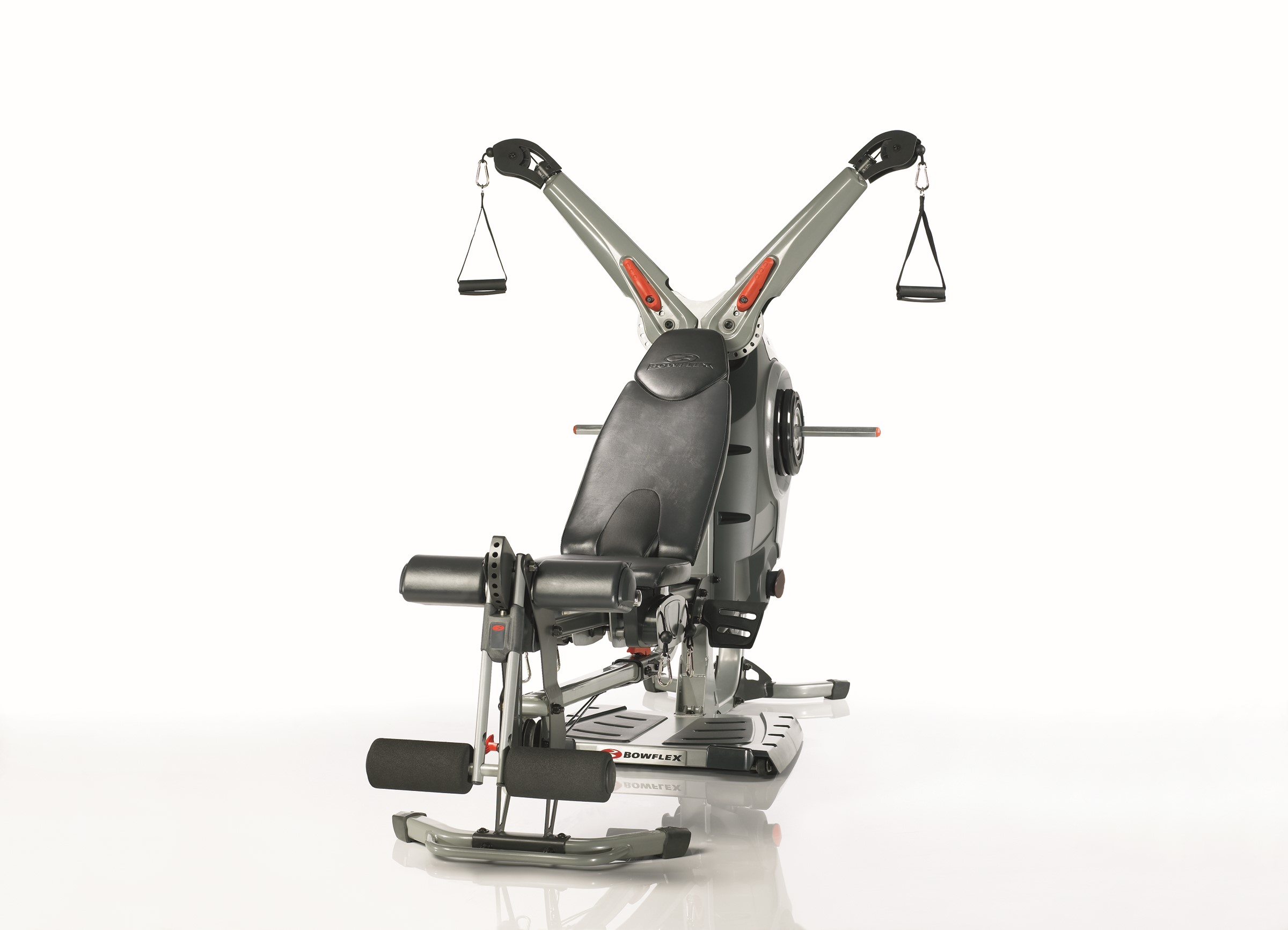

Bowflex - BFX REVOLUTION

Repair Parts for Bowflex BFX REVOLUTION 91181

Brand: Bowflex

Category: Home Gym

Type: Strength Systems

Model Name: BFX REVOLUTION

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
735986 1000511081 ROLLER FOAM L=175MM 7", SINGLE No Model Compatibility List $21.10 / Each

735995 1000511082 SNAP, STEEL Includes 1 No Model Compatibility List $9.73 / Each

735997 1000513938 Revo PVC Foot Cap No Model Compatibility List $16.23 / Each

736084 1000513784 CAP,END 3/4",PP 70-80 SHORE D,BLK No Model Compatibility List $6.48 / Each

736864 1000513808 STRAP, BAR LAT/SQUAT No Model Compatibility List $12.98 / Each

737929 1000513955 Revo 40# Pack Assy No Model Compatibility List $155.98 / Each

737930 1000513935 Revo Seat Back Frame Assy No Model Compatibility List $272.98 / Each

737931 1000513944 Revo Bottom Seat Back No Model Compatibility List $175.48 / Each

737932 1000513943 Revo Top Seat Back No Model Compatibility List $64.98 / Each

737933 1000513933 Revo Leg Press Plate Assy No Model Compatibility List $282.73 / Each

737934 1000513981 SVC KIT, MAIN ROPE, REVO, PAIR No Model Compatibility List $94.23 / Each

737935 1000513930 Revo Low Row Plate Assy No Model Compatibility List $194.98 / Each

737936 1000513936 Revo Little Seat Back Assy No Model Compatibility List $235.60 / Each

737937 1000513934 Revo Seat Roller Assy No Model Compatibility List $440.35 / Each

737938 1000513942 Revo Lower Seat No Model Compatibility List $107.23 / Each

737939 1000510726 Revo 20# Pack Assy No Model Compatibility List $86.10 / Each

737940 1000513976 SVC KIT, LEG PRESS ROPE, REVO, PAIR No Model Compatibility List $53.60 / Each

737941 1000513931 Revo Upper 4-Bar Assy No Model Compatibility List $188.48 / Each

737942 1000513977 Revo Lower Rail & Slider Assy No Model Compatibility List $372.10 / Each

737943 1000513971 Revo Long Pop Pin Handle Kit No Model Compatibility List $12.98 / Each

737944 1000513974 Revo Wrnty Leg Developer Rope No Model Compatibility List $56.85 / Each

737945 1000513927 Revolution Base No Model Compatibility List $425.73 / Each

737946 1000513967 Revo Base Shroud Pack No Model Compatibility List $58.48 / Each

737947 1000513928 Revo Transport Wheel No Model Compatibility List $16.23 / Each

737948 1000513939 Base Skid Pad No Model Compatibility List $11.35 / Each

737949 1000513947 Revo Bicep Curl Pad No Model Compatibility List $112.10 / Each

737950 1000513954 Revo 10# Flex Pack Assy No Model Compatibility List $73.10 / Each

737951 1000513975 Revo Bicep Curl Weldment No Model Compatibility List $76.35 / Each

737952 1000513907 U2 Preacher Curl Bar Assy No Model Compatibility List $55.23 / Each

737953 1000513978 Revo 4 - Bar Leg Assy w Foam No Model Compatibility List $414.35 / Each

737954 1000513951 Revo Leg Curl Ext Pad No Model Compatibility List $58.48 / Each

737955 1000513949 Revo Leg Ext Curl Retainer No Model Compatibility List $16.23 / Each

737956 1000513913 U2 Preacher Curl D-Ring Strap No Model Compatibility List $29.23 / Each

737957 1000513937 Revo Leg Developer Assy No Model Compatibility List $172.23 / Each

737958 1000513953 Revo 5# Flex Pack Assy No Model Compatibility List $73.10 / Each

737959 1000513932 Revo 4-Bar Stabilizer Assy No Model Compatibility List $94.23 / Each

737960 1000513950 Revo Leg Pad Tube No Model Compatibility List $17.85 / Each

737961 1000513986 Revo Handle Kit No Model Compatibility List $37.35 / Each

737962 1000513917 SVC KIT, FOOT HARNESS W/MNL, PAIR No Model Compatibility List $51.98 / Each

737963 1000514062 Revo Main Assy Hrdwr No Model Compatibility List $61.73 / Each

737964 1000514063 Common Hardware Revo No Model Compatibility List $55.23 / Each

737965 1000513979 Revo Manual Kit No Model Compatibility List $110.48 / Each

737966 1000513940 Revo Top Shroud No Model Compatibility List $99.10 / Each

737967 1000513952 ASSY, PRE-STRETCH PACK, SINGLE No Model Compatibility List $77.98 / Each

737968 1000513983 Revo Right Shroud Assy No Model Compatibility List $177.10 / Each

737969 1000513982 Revo Left Shroud Assy No Model Compatibility List $172.23 / Each

737970 1000514038 Adjustment Knob Warranty Kit No Model Compatibility List $16.23 / Each

737971 1000513969 SVC KIT, ENGINE DRIVE ASSY, SINGLE No Model Compatibility List $233.98 / Each

737972 1000513970 Revo Large Pulley Kit No Model Compatibility List $61.73 / Each

737973 1000513926 Pulley, 4 1/2" No Model Compatibility List $27.60 / Each

737974 1000513948 Revo Cam Transport Holder No Model Compatibility List $22.73 / Each

737975 1000513946 Revo Screw Retainer Cam Stop No Model Compatibility List $32.48 / Each

737976 1000513985 REVO SHOCK ARM, SINGLE No Model Compatibility List $58.48 / Each

737977 1000513929 Revo Right Arm Assy No Model Compatibility List $250.23 / Each

737978 1000513973 PRE STRETCH HDW PACK,BOTH SIDES No Model Compatibility List $12.98 / Each

737979 1000510723 Revo Left Arm Assy No Model Compatibility List $253.48 / Each

737980 1000513945 Revo Lock Collar No Model Compatibility List $9.73 / Each

737981 1000510722 Revo V-Pulley Assy No Model Compatibility List $24.35 / Each

737982 1000513972 Revo Shaft Bumper Wrnty Pack No Model Compatibility List $315.23 / Each

737983 1000513968 SVC KIT, SHAFT CAP, REVO, PAIR No Model Compatibility List $9.73 / Each

737984 1000513980 Revo Rear Stabilizer No Model Compatibility List $69.85 / Each

737985 1000513988 Pack Pre-Assembled HRDWR REVO No Model Compatibility List $55.23 / Each

737986 1000514036 Cable Ball End Kit No Model Compatibility List $17.85 / Each

737987 1000511074 Pro 1x14-20Ga Round End Cap No Model Compatibility List $16.23 / Each

737988 1000513987 Revo Decal Kit No Model Compatibility List $43.85 / Each

737989 1000510724 Revo Left Leg Ext Curl End Cap No Model Compatibility List $0.00 / Each
Out Of Stock
737990 1000510725 Revo Rght Leg Ext Curl End Cap No Model Compatibility List $0.00 / Each
Out Of Stock
