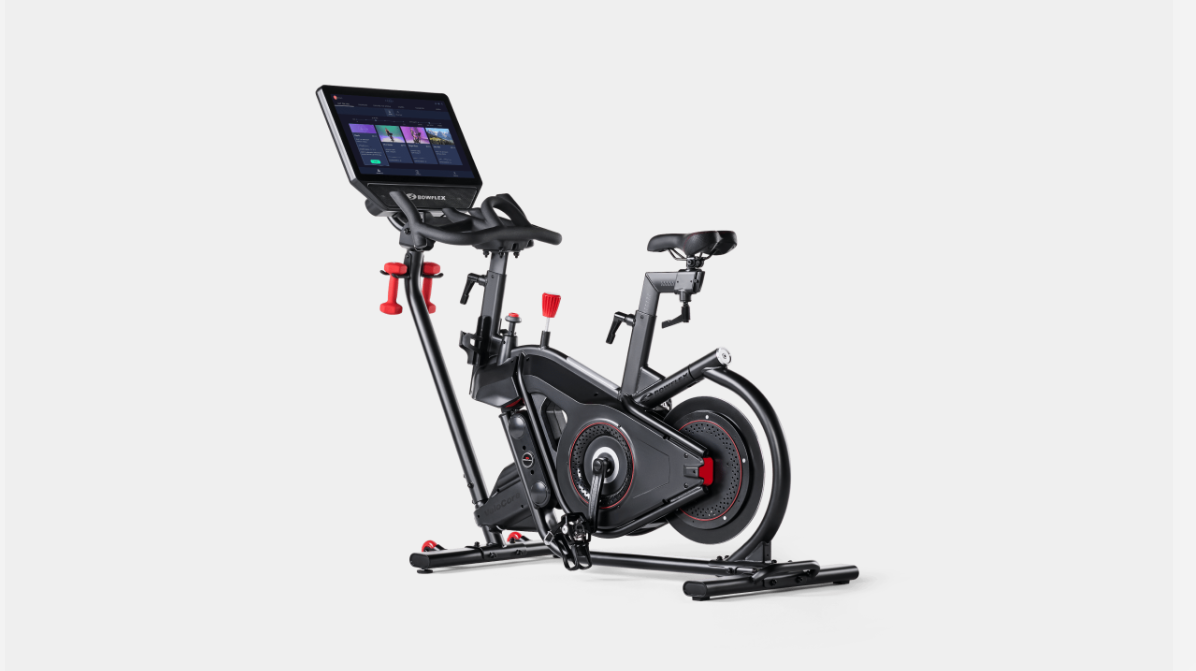

Bowflex - BFX VELOCORE 22 BIKE, SINGLEBOX

Repair Parts for Bowflex BFX VELOCORE 22 BIKE, SINGLEBOX 91167

Brand: Bowflex

Category: Indoor Cycle

Type: Stationary Bikes

Model Name: BFX VELOCORE 22 BIKE, SINGLEBOX

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
735884 1000513093 SINGLE DUMBELL, 3LB No Model Compatibility List $24.35 / Each

735886 1000513096 ASSY, HEARTHR ARMBAND, NO BRANDING No Model Compatibility List $162.48 / Each

735901 1000513178 ROLL PIN,3MM x 14MM,RCKWELL C48-C52 No Model Compatibility List $1.60 / Each

735917 1000511249 UPRIGHT BIKE SEAT ASSEMBLY Seat option No Model Compatibility List $40.60 / Each

735920 1000512919 CRANK PULLER, 25MM No Model Compatibility List $29.23 / Each

736247 1000512927 SVC KIT, AC ADAPTER W/CORD, SBC, NA No Model Compatibility List $76.35 / Each

736274 1000512860 CNSL, END CAP, MAST, BFX, MAX TOTAL No Model Compatibility List $3.23 / Each

736602 1000415037 SERVICE KIT, LEVELER FOOT (8004277) No Model Compatibility List $4.85 / Each

736791 1000513450 SVC KIT, CONSOLE MOUNT HDW No Model Compatibility List $1.60 / Each

736899 1000513891 CNSL, TOUCH PANEL, VC22 No Model Compatibility List $1.00 / Each

736900 1000513444 SVC KIT, DUMBBELL HOLDER, VELOCORE No Model Compatibility List $9.73 / Each

736901 1000513191 WIRE ASSY,10 COND,43020-1401,MAST No Model Compatibility List $32.48 / Each

736902 1000513295 SUB ASSY, CONSOLE MAST No Model Compatibility List $42.23 / Each

736903 1000513196 SUB ASSY, HANDLEBAR STEM No Model Compatibility List $17.85 / Each

736904 1000513094 ASSY,FT PEDAL,W/SPD&TOECLPS,STRP,RT No Model Compatibility List $82.85 / Each

736905 1000513095 ASSY,FT PEDAL,W/SPD&TOECLPS,STRP,LT No Model Compatibility List $82.85 / Each

736906 1000513325 SUB ASSY, SEAT STEM No Model Compatibility List $27.60 / Each

736907 1000512777 ADJUSTER SCREW,HBAR,IC3 (AL902S) No Model Compatibility List $24.35 / Each

736908 1000513449 SVC KIT, SEAT POST END CAP W/HDW No Model Compatibility List $1.60 / Each

736909 1000513443 SVC KIT, BOTTLE HOLDER, VELOCORE No Model Compatibility List $4.85 / Each

736910 1000513192 WIRE ASSY,10 COND,FIXED FRAME HRNS No Model Compatibility List $21.10 / Each

736911 1000513195 SUB ASSY, PIVOT FRAME No Model Compatibility List $1.00 / Each

736912 1000513193 SUB ASSY, REAR STABILIZER No Model Compatibility List $37.35 / Each

736913 1000513640 SVC KIT, STABILIZER PAD WITH HDW No Model Compatibility List $4.85 / Each

736914 1000513306 END CAP, STABILIZER No Model Compatibility List $3.23 / Each

736915 1000513194 SUB ASSY, FRONT STABILIZER No Model Compatibility List $53.60 / Each

736916 1000513641 SVC KIT, TRANSPORT WHEEL WITH HDW No Model Compatibility List $11.35 / Each

736917 1000513307 SHRD,CNSL MAST CVR,BFX TOUCH,21.5" No Model Compatibility List $25.98 / Each

736918 1000513452 SVC KIT, SPD SHOE CLIPS, PAIR No Model Compatibility List $21.10 / Each

736919 1000513198 ASSY, SMALL PARTS AND TOOL BAG No Model Compatibility List $79.60 / Each

736920 1000513199 DOCUMENT KIT, VELOCORE No Model Compatibility List $17.85 / Each

736921 1000513453 SVC KIT, RIGHT CRANK, VELOCORE No Model Compatibility List $25.98 / Each

736922 1000513457 SVC KIT, CENTER DISK W/GRFX, W/HDW No Model Compatibility List $19.48 / Each

736923 1000513455 SVC KIT, MAIN SHROUD, RIGHT, W/HDW No Model Compatibility List $34.10 / Each

736924 1000513458 SVC KIT, REAR COVER, W/HDW No Model Compatibility List $4.85 / Each

736925 1000513459 SVC KIT, FRONT FENDERS, RT, W/HDW No Model Compatibility List $8.10 / Each

736926 1000513447 SVC KIT, RT LWR PIVOT SHROUD W/HDW No Model Compatibility List $9.73 / Each

736927 1000513445 SVC KIT, MOVING BUMPER SHROUD W/HDW No Model Compatibility List $9.73 / Each

736928 1000513642 SERVICE KIT, BUMPER WITH HARDWARE No Model Compatibility List $42.23 / Each

736929 1000513197 SUB ASSY, CRANK PULLEY, VeloCore No Model Compatibility List $86.10 / Each

736930 1000513643 SVC KIT, IDLER PULLEY WITH HARDWARE No Model Compatibility List $30.85 / Each

736931 1000513201 DRIVE BELT, 500J8 POLY V BELT No Model Compatibility List $19.48 / Each

736932 1000513461 SVC KIT, LOCKOUT HANDLE No Model Compatibility List $12.98 / Each

736933 1000513245 SUB ASSY, RESISTANCE KNOB No Model Compatibility List $16.23 / Each

736934 1000513466 SVC KIT, CAM LOCKOUT ASSY No Model Compatibility List $38.98 / Each

736935 1000513467 SVC KIT, SEAT POST PLUG No Model Compatibility List $21.10 / Each

736936 1000513323 BUSHING, SEAT POST VERTICAL No Model Compatibility List $6.48 / Each

736937 1000513547 SVC KIT,CNSL MAST,ADJUSATBL,W/SHRDS No Model Compatibility List $68.23 / Each

736938 1000513437 BUSHING, SEAT POST VERTICAL, CUTOUT No Model Compatibility List $8.10 / Each

736939 1000513541 LOWER MAST INSERT, VELOCORE No Model Compatibility List $1.60 / Each

736940 1000513465 SVC KIT, FLYWHEEL No Model Compatibility List $316.85 / Each

736941 1000513462 SVC KIT, RESISTANCE ADJUSTER No Model Compatibility List $25.98 / Each

736942 1000513265 CBL ASSY W/SPEED SENSOR 324/10-15AT No Model Compatibility List $9.73 / Each

736943 1000513497 SPRING, MAG CARRIAGE RETURN No Model Compatibility List $1.60 / Each

736944 1000513463 SVC KIT, RESISTANCE PCB No Model Compatibility List $14.60 / Each

736945 1000513464 SVC KIT, MAGNET CARRIAGE No Model Compatibility List $87.73 / Each

736946 1000513460 SVC KIT, FRONT FENDERS, LEFT, W/HDW No Model Compatibility List $8.10 / Each

736947 1000513446 SVC KIT, FIXED BUMPER SHROUD W/HDW No Model Compatibility List $9.73 / Each

736948 1000513283 WELDMENT, HANDLEBARS, DIPPED, BLACK No Model Compatibility List $146.23 / Each

736949 1000513204 SUB ASSY,RESISTANCE MAGNET,VeloCore No Model Compatibility List $3.23 / Each

736950 1000513456 SVC KIT, MAIN SHROUD, LEFT, W/HDW No Model Compatibility List $34.10 / Each

736951 1000513448 SVC KIT, LT LWR PIVOT SHROUD W/HDW No Model Compatibility List $9.73 / Each

736952 1000513454 SVC KIT, LEFT CRANK, VELOCORE No Model Compatibility List $25.98 / Each

736953 1000513540 SUB ASSY, TILT SNSR PCB, AXIAL MNT No Model Compatibility List $14.60 / Each

736954 1000513205 RESISTANCE/SPD SENS CBL, VELOCORE No Model Compatibility List $14.60 / Each

736955 1000513670 SERVICE KIT, VELOCORE SHROUD PADS No Model Compatibility List $6.48 / Each

736956 1000513202 SUB ASSY, SEAT POST No Model Compatibility List $51.98 / Each

736957 1000513200 SUB ASSY, SEAT SLIDER, VeloCore No Model Compatibility List $37.35 / Each

736958 1000513451 SVC KIT, STABILIZER AND MAST HDW No Model Compatibility List $14.60 / Each

View Drawing
