Cybex - 16300 - Leg Extension

Repair Parts for Cybex 16300 - Leg Extension 16300-10

Brand: Cybex

Category: Commercial Strength Plate Loaded

Type: Strength Systems

Model Name: 16300 - Leg Extension

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
1 504076 11040-440 23 KNOB No Model Compatibility List $6.79 / Each

1
2 504104 11040-790 75 NLA: DECAL, MADE IN THE USA No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
3 504124 11090-370 36 SHAFT PIVOT No Model Compatibility List $13.56 / Each

8
4 504125 11090-374 37 END CAP No Model Compatibility List $7.24 / Each

9
5 504126 11090-376 38 RING HANDLE GRIP No Model Compatibility List $10.85 / Each

11
6 504136 11100-400 6 DECAL ROTATION No Model Compatibility List $3.60 / Each

7,3
6 504760 16010-311 1 Pad Foot Yes Model Compatibility List $5.12 / Each

9,12,13,14
8 504770 16060-316 16 PLASTIC GUIDE No Model Compatibility List $4.40 / Each

9
9 504776 16210-204 10 P/ WEIGHT BRACKET No Model Compatibility List $138.34 / Each

2,3,4,5,6

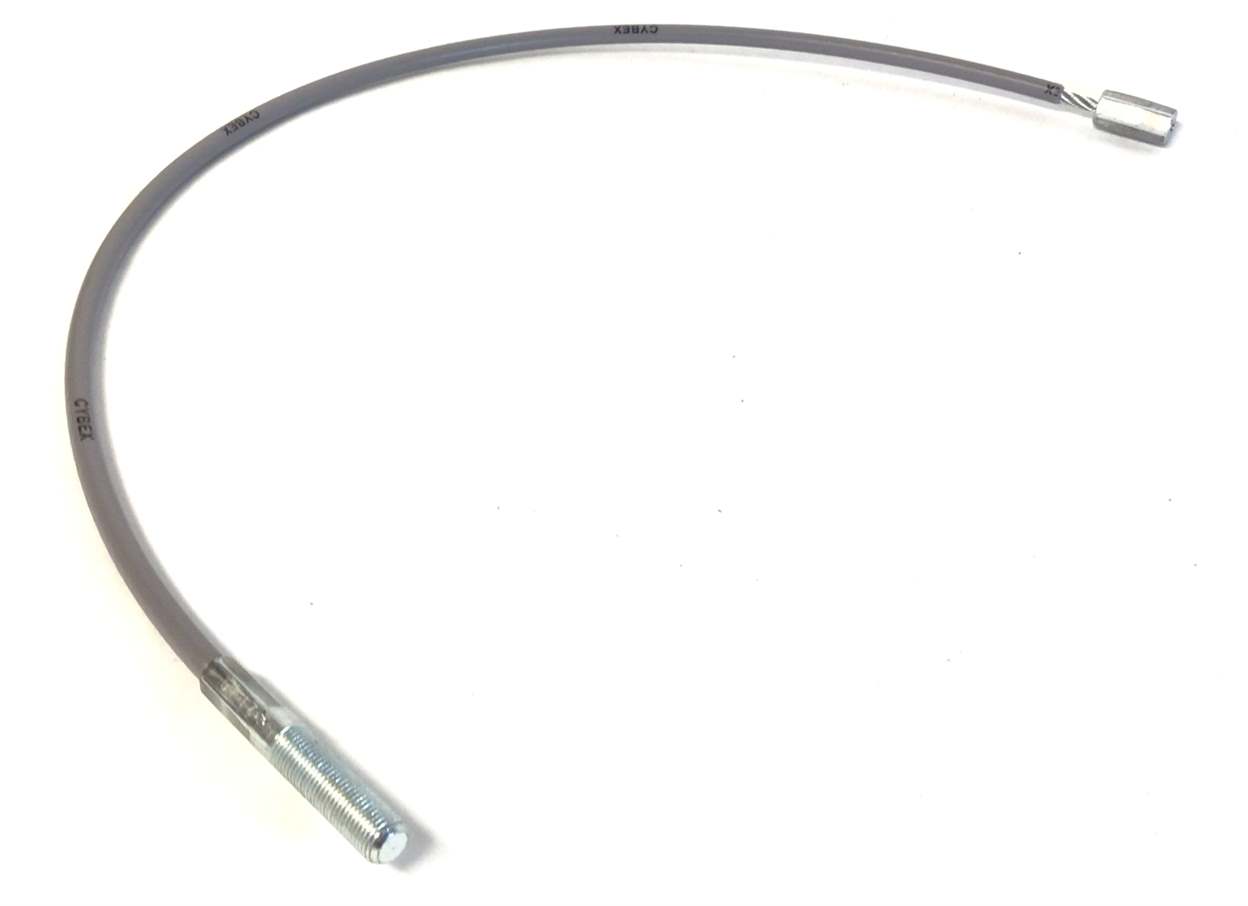

1 504795 16300-002 10 CABLE SUBASSEMBLY No Model Compatibility List $55.31 / Each

4,5,6
1 504796 16300-200 11 W/ FRAME Custom No Model Compatibility List $1113.97 / Each

3
1 504797 16300-201 12 P ADJUSTING TUBE No Model Compatibility List $174.01 / Each

3
1 504798 16300-202 13 W CAM Custom No Model Compatibility List $362.69 / Each

1
1 504799 16300-203 14 W ARM Custom No Model Compatibility List $519.08 / Each

3
1 504800 16300-205 27 W CUSHION BAR Custom No Model Compatibility List $74.66 / Each

3
1 504801 16300-598 16 Placard PL Leg Ext Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
1 506637 3900-447 16 DECAL CYBEX 1.94 HOR BLACK No Model Compatibility List $14.48 / Each

7,3,4,5,6
1 506638 3900-448 16 No Model Compatibility List $14.48 / Each

1
1 506762 4505-329 19 PIN DETENT No Model Compatibility List $21.72 / Each

12,13,14
2 506783 4605-507 67 GRAB GRIP 6.50 No Model Compatibility List $9.06 / Each

11
2 506833 4800-006 47 COVERED CUSHION SA CONTOUR 20 Custom No Model Compatibility List $135.67 / Each

9,3
2 506848 4800-131 48 SEAT PAD Custom No Model Compatibility List $307.60 / Each

12,13,14
6 506849 4800-134 51 WEAR COVER Custom No Model Compatibility List $33.78 / Each

9
2 506858 4800-176 107 CUSHION SA BACK 18 MOLDED Custom No Model Compatibility List $99.50 / Each

3,4,5,6
2 506951 51198 16 WARRANTY BOOKLET No Model Compatibility List $3.60 / Each

1
2 506953 5220-305 25 BUMPER 2.00 X 4.00 No Model Compatibility List $42.14 / Each

1
2 506956 5230-210 27 W HANDLE LH Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		11
2 506957 5230-211 28 W HANDLE RH Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		11
2 508294 750A-403 A32 WASHER SADDLE .390 X .750 X .06 No Model Compatibility List $37.31 / Each

2
3 509921 8500-025 118 DECAL CAUTION Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
3 515165 BS070201 53 COM SPRING .56 ID X .66 OD X 1.50 LG No Model Compatibility List $5.84 / Each

2
3 515344 CM000245 34 DECAL, CAPACITY No Model Compatibility List $3.02 / Each

7,9,3,4,5,6
2 515637 DE000003 24 Decal Warning Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
3 515735 FB030213 55 BRG ROD END FEMALE .375-24 No Model Compatibility List $18.10 / Each

3
3 515736 FB030232 57 BRG RADIAL 17MM ID EXT RACE Yes Model Compatibility List $14.48 / Each

4,5,6
3 515790 FC030006 67 TOLERANCE RING 1.575 ID No Model Compatibility List $6.23 / Each

1
3 516171 HC622815 14 SHCS .250-20 X .750 No Model Compatibility List $0.91 / Each

1
3 516179 HC700416 A67 BHSCS .375-16 X .875 No Model Compatibility List $0.91 / Each

1
3 516183 HC700430 64 BHSCS .375-16 X 2.50 No Model Compatibility List $3.84 / Each

1
3 516328 HF449063 67 INSERT 3-4X1-4-20 CONNECTOR No Model Compatibility List $1.81 / Each

1
4 516357 HM583208 97 SCREW,10-32X.25,TRHD PHIL No Model Compatibility List $0.08 / Each

2
4 516399 HN625200 55 LOCKNUT .250-20 NYLON HVY No Model Compatibility List $0.35 / Each

2
4 516406 HN704901 29 LOCKNUT .375-16 NYLON No Model Compatibility List $0.91 / Each

2
4 516424 HP707017 77 STUD .375-16 X 1.00 No Model Compatibility List $0.91 / Each

1
4 516541 HS347600 72 WASHER SAE .375 No Model Compatibility List $0.08 / Each

2
4 516754 JC620422 78 BHSCS .250-20 X 1.50 No Model Compatibility List $1.64 / Each

1
4 516760 JC700412 79 BHSCS .375-16 X .50 No Model Compatibility List $1.36 / Each

1
4 516761 JC700420 62 BHSCS .375-16 X 1.25 No Model Compatibility List $1.81 / Each

1
4 516762 JC700422 114 BHSCS .375-16 X 1.50 No Model Compatibility List $1.81 / Each

1
4 516764 JC700434 49 BHSCS .375-16 X 3.00 No Model Compatibility List $3.84 / Each

1
5 516765 JC700436 50 BHSCS .375-16 X 3.25 No Model Compatibility List $6.73 / Each

1
5 516770 JC700920 50 FHSCS .375-16 X 1.25 No Model Compatibility List $2.26 / Each

1
5 516801 JN714400 92 JAM NUT .375-24 No Model Compatibility List $0.91 / Each

2
5 516804 JS347400 61 LOCKWASHER INT TOOTH .375 No Model Compatibility List $0.44 / Each

2
5 517947 PN149101 85 CLAMP HOSE SNAP GRIP No Model Compatibility List $3.61 / Each

4,5,6,11
5 517973 PP090217 30 INSERT, PLASTIC 1.25 X 2.25 No Model Compatibility List $6.25 / Each

9
5 517975 PP130003 66 INSERT PLASTIC No Model Compatibility List $2.81 / Each

9
5 517977 PP130006 35 Insert Plastic End No Model Compatibility List $1.81 / Each

9
5 517991 PR060003 56 BUMPER RECESS No Model Compatibility List $2.98 / Each

1
5 517994 PR069400 103 BUMPER RECESS No Model Compatibility List $10.79 / Each

1
6 519427 YA000201 24 ADH THRDLKR REM .02 OZ 242 No Model Compatibility List $7.86 / Each

12,13,14
6 519432 YA000226 113 LOCTITE 680 .5 ML No Model Compatibility List $7.24 / Each

1
6 519437 YG000002 127 NLA: Please use Lithium Grease No Model Compatibility List $0.00 / Each
Out Of Stock 		1
View Drawing
