Cybex - Arc Trainer 360A

Repair Parts for Cybex Arc Trainer 360A 360A-01

Brand: Cybex

Category: Arc Trainer

Type: Elliptical

Model Name: Arc Trainer 360A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
5 514741 AW-14007 B73 POWER CORD,115V,60HZ PWR SUPPLY IEC320 (SJT) Yes Model Compatibility List $53.75 / Each

4,5,6
2 515132 BD-20325 219 BELT,DRIVE,350A 36" No Model Compatibility List $57.38 / Each

10,15
6 516842 KAD-22013 604 BOARD, MOTOR CONTROL No Model Compatibility List $20.00 / Each

7
6 516843 KAD-22026 607 BOARD,CONTROL,360A Yes Model Compatibility List $192.54 / Each

7
3 516844 KAD-22048 301 PCA,DISPLAY,360A Yes Model Compatibility List $660.80 / Each

1
6 516845 KAD-22245 607 ASSY,230V LOWER CONTROLLER W/ No Model Compatibility List $178.74 / Each

7,8
1 516860 KAF-21950 106 FRONT LINKAGE,RIGHT No Model Compatibility List $0.00 / Each
Out Of Stock 		1
1 516861 KAF-21959 108 LINKAGE,BACK RIGHT Yes Model Compatibility List $225.79 / Each
Out Of Stock 		4,5,6
2 516862 KAF-22015 234 BASE, MOTOR No Model Compatibility List $16.39 / Each

3
1 516863 KAF-22039 105 LINKAGE,FRONT,LEFT No Model Compatibility List $193.50 / Each

1
1 516864 KAF-22057 116 BRACKET,CONSOLE SUPPORT No Model Compatibility List $59.03 / Each

7,2,3,4,5,6
1 516865 KAF-22072 107 LINKAGE,BACK,LEFT No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
1 516866 KAF-22088 118 BACK,ADJUST No Model Compatibility List $46.39 / Each

4,5,6
1 516868 KAF-24000 102 NC R&R FLYWHEEL BASE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
1 516869 KAF-24001 112 Bracket, Shuttle, Pivot No Model Compatibility List $178.74 / Each

2,8,3,4,5,6
1 516870 KAF-24002 121 Tube, Support, Chain Cover No Model Compatibility List $72.14 / Each

9,3
2 516871 KAF-24003 232 Plate, Axle Support No Model Compatibility List $3.94 / Each

8,3
3 516872 KAF-24011 323 Bracket, Wheel, Transport Yes Model Compatibility List $8.28 / Each

2,8,3,4,5,6
6 516874 KAW-22383 611 12P POWER WIRE BOTTOM 1500MM,6 No Model Compatibility List $57.38 / Each

4,5,6
6 516875 KAW-22384 610 12P POWER WIRE UPPER 1000MM,61 Yes Model Compatibility List $73.79 / Each

4,5,6
1 516881 KAX-20904 113 LINKAGE,ARM RIGHT & LEFT Yes Model Compatibility List $66.20 / Each

3
K 516884 KAX-22268 K13 ASSY,REAR LINKAGE ARM,RIGHT No Model Compatibility List $464.03 / Each

3
K 516892 KAX-23308 K06 ASSY,FRAME SUPPORT,REAR No Model Compatibility List $447.91 / Each

3
K 516893 KAX-23312 K10 ASSY,FRONT LINKAGE ARM,LEFT Yes Model Compatibility List $567.48 / Each

3
K 516894 KAX-23313 K11 ASSY,FRONT LINKAGE ARM,RIGHT No Model Compatibility List $334.80 / Each

3
2 516910 KCW-24009 221 Wheel, Transport No Model Compatibility List $15.16 / Each
Out Of Stock 		8
7 516911 KDE-22000 701 STICKER,WATER BOTTLE COVER,LEF No Model Compatibility List $2.46 / Each

9
7 516912 KDE-22068 702 STICKER,WATER BOTTLE COVER,RIG No Model Compatibility List $2.46 / Each

9
6 516913 KDE-22104 623 DECAL,RPM TARGET DISK No Model Compatibility List $22.96 / Each

7,3
7 516914 KDE-22310 703 DECAL,CYBEX VORTEX,FLYWHEEL ST No Model Compatibility List $9.30 / Each

7,8,3
6 516917 KEC-22035 624 SENSOR, SPEED Yes Model Compatibility List $37.81 / Each

1
6 516918 KEC-22756 616 KIT,360A SOFTWARE UPDATE,V3.05 No Model Compatibility List $50.83 / Each

1
6 516920 KEF-22041 602 FUSE Yes Model Compatibility List $7.38 / Each

1
2 516921 KFM-20911 223 AXLE,DRIVE LINKAGE No Model Compatibility List $11.47 / Each

8,10
4 516922 KFM-20920 432 AXLE,LINKAGE ARM Yes Model Compatibility List $15.44 / Each

8
4 516923 KFM-21953 463 SPACER,BEARING No Model Compatibility List $14.76 / Each

2,3,4,5,6
A 516924 KFM-21958 A14 TUBE,BEARING SUPPORT No Model Compatibility List $3.12 / Each

3
4 516925 KFM-21965 433 AXLE,BACK LINKAGE Yes Model Compatibility List $26.03 / Each

4,5,6,8
4 516926 KFM-21967 455 SLEEVE Yes Model Compatibility List $11.11 / Each

2,3
4 516927 KFM-21973 464 SPACER,BEARING No Model Compatibility List $14.59 / Each

2,3,4,5,6
4 516928 KFM-21974 465 SPACER No Model Compatibility List $3.12 / Each

2,3,4,5,6
4 516929 KFM-22009 458 SPACER No Model Compatibility List $12.36 / Each

2
4 516930 KFM-22016 404 SHAFT, M10X64 No Model Compatibility List $2.30 / Each

1
4 516931 KFM-22017 406 SHAFT, MOTOR No Model Compatibility List $5.90 / Each

1
4 516932 KFM-22076 405 SHAFT M12 X 22 No Model Compatibility List $3.84 / Each

1
2 516933 KFM-22079 222 CRANK Yes Model Compatibility List $67.55 / Each

8
4 516934 KFM-22080 434 AXLE,FOOT SUPPORT No Model Compatibility List $54.11 / Each

8,9,3
1 516935 KFM-22098 120 FLYWHEEL Yes Model Compatibility List $69.19 / Each

8
2 516936 KFM-22099 220 DISK,ALUMINUM No Model Compatibility List $65.60 / Each

1
4 516937 KFM-22101 431 SHAFT, 10 X 106 No Model Compatibility List $4.92 / Each

1
1 516938 KFM-22110 117 NC R&R Crank Disk Axle No Model Compatibility List $0.00 / Each
Out Of Stock 		8
2 516939 KHB-20905 205 BEARING 2205-2RS Yes Model Compatibility List $32.80 / Each

1
2 516940 KHB-20906 206 BEARING 6001 No Model Compatibility List $8.42 / Each

1
2 516941 KHB-20909 216 BUSHING,FRONT LINK Yes Model Compatibility List $6.40 / Each

8
2 516942 KHB-20910 217 BUSHING,DRIVE LINKAGE No Model Compatibility List $10.24 / Each

8,10
3 516943 KHB-20913 319 BUSHING No Model Compatibility List $1.64 / Each

8
3 516944 KHB-20914 320 BUSHING,BACK LINKAGE Yes Model Compatibility List $1.64 / Each

8,4,5,6
2 516945 KHB-21951 202 BEARING W Tolerance Ring,6804 No Model Compatibility List $25.99 / Each

1
2 516946 KHB-21960 208 BEARING,6205Z No Model Compatibility List $12.82 / Each

8
2 516947 KHB-21961 209 BEARING,BL-6206 No Model Compatibility List $36.72 / Each

1
2 516948 KHB-21970 207 BEARING 6005 No Model Compatibility List $16.62 / Each

1
3 516949 KHB-21972 321 BUSHING,HANDLE BAR BOTTOM No Model Compatibility List $3.12 / Each

8,11
2 516950 KHB-22070 203 BEARING 2202 No Model Compatibility List $29.11 / Each

8
5 516951 KHB-22084 505 BUSHING,CRANK 35 X 35MM Yes Model Compatibility List $18.00 / Each

8
2 516952 KHB-22085 204 BEARING,PEDESTAL No Model Compatibility List $42.64 / Each

1
2 516953 KHB-22100 240 BEARING,6000 No Model Compatibility List $17.45 / Each

1
5 516954 KHN-21955 508 NUT NYLON M10 No Model Compatibility List $0.42 / Each

2
4 516955 KHN-22022 425 NUT, NYLON M6 No Model Compatibility List $0.42 / Each

2
4 516956 KHN-22023 426 NUT, NYLON M8 No Model Compatibility List $0.42 / Each

2
4 516957 KHN-22024 424 NUT M5 No Model Compatibility List $4.60 / Each

2
4 516958 KHN-22077 428 NUT NYLON M12 No Model Compatibility List $0.42 / Each

2
4 516959 KHN-22082 430 NUT 3-4 X 16 No Model Compatibility List $2.70 / Each

2
2 516960 KHP-20912 224 PIN,FRONT LINKAGE Yes Model Compatibility List $9.54 / Each

12,13,14
4 516961 KHS-20917 402 BOLT,HEX,FLAT M8X16 Yes Model Compatibility List $1.06 / Each

2
5 516962 KHS-20918 502 SCREW,BUTTON HEAD CAP M6x16 No Model Compatibility List $1.24 / Each

2,9
5 516963 KHS-20925 501 BOLT,HEX HD M8x16 Yes Model Compatibility List $1.06 / Each

2
5 516964 KHS-21954 504 BOLT, 12 X 70 No Model Compatibility List $4.63 / Each

2
4 516965 KHS-21964 422 SCREW,PHILLIPS M5 X 35 Yes Model Compatibility List $0.74 / Each

2
4 516966 KHS-21984 437 SCREW, PHILLIPS M4X15 No Model Compatibility List $0.43 / Each

2
5 516967 KHS-21985 506 SCREW, ALLEN M6X12 No Model Compatibility List $1.99 / Each

2
4 516968 KHS-21988 435 SCREW,PHILLIPS M4X15 No Model Compatibility List $2.21 / Each

2
5 516969 KHS-21990 517 SCREW,HEX HD CAP M8 X 25 Yes Model Compatibility List $3.84 / Each

2,9
5 516970 KHS-21998 507 SCREW,ALLEN M4 X 19 No Model Compatibility List $0.42 / Each

2
5 516971 KHS-21999 514 SCREW,ALLEN M4 X 15 No Model Compatibility List $1.56 / Each

2
4 516972 KHS-22010 416 SCREW, M10X30 No Model Compatibility List $7.80 / Each

2
4 516973 KHS-22018 407 SCREW, BTN HD M5X10 No Model Compatibility List $0.42 / Each

2
4 516974 KHS-22019 414 SCREW, M6X40 No Model Compatibility List $1.56 / Each

2
4 516975 KHS-22020 415 SCREW, PHILLIPS M3X12 No Model Compatibility List $0.42 / Each

2
4 516976 KHS-22021 421 SCREW, BTN HD M3X6 No Model Compatibility List $0.42 / Each

2
4 516977 KHS-22027 481 SCREW,PHILLIPS M3 X 6 No Model Compatibility List $11.47 / Each

2
4 516978 KHS-22029 410 SCREW,BTN HD M10 X 40 No Model Compatibility List $1.97 / Each

2
4 516979 KHS-22045 408 SCREW,BTN HD M5 X 25 No Model Compatibility List $2.30 / Each

2
4 516980 KHS-22059 409 SCREW,BTN HD,M8 X 16 No Model Compatibility List $1.24 / Each

2
4 516981 KHS-22081 417 SCREW,M10 X 40 No Model Compatibility List $1.97 / Each

2
4 516982 KHS-22087 419 SCREW,M14 X 30 No Model Compatibility List $7.72 / Each

2
4 516983 KHS-22090 403 SCREW,M10 X 45 No Model Compatibility List $5.41 / Each

2
4 516984 KHS-22091 413 SCREW,M4 X 45 No Model Compatibility List $1.97 / Each

2
4 516985 KHS-24006 412 Bolt, 8 x 220mm, Pivot Shaft No Model Compatibility List $15.83 / Each

2,8
4 516986 KHS-24007 453 Screw, 8 x 35mm No Model Compatibility List $2.05 / Each

2

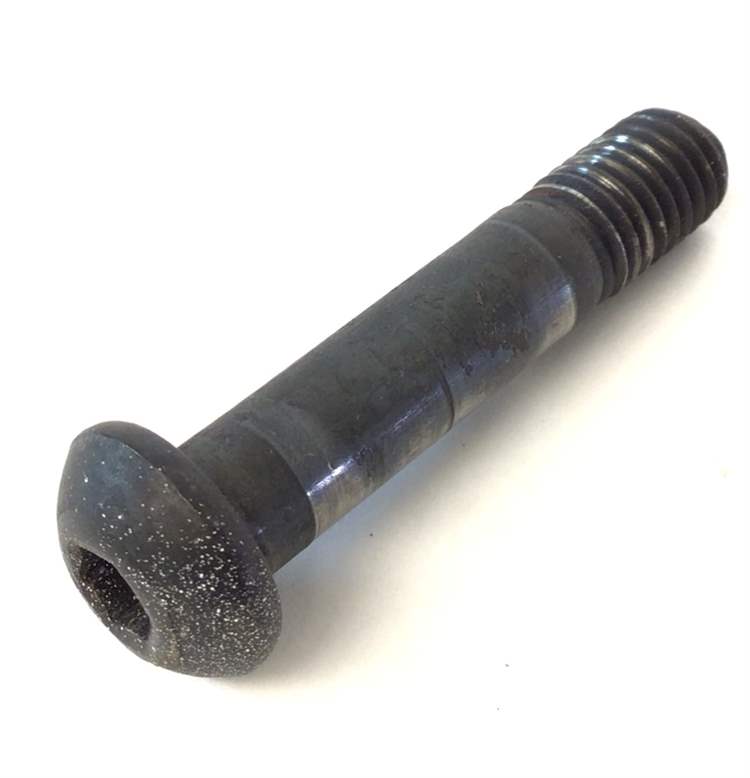

4 516987 KHS-24012 411 M10-1.5 x 50mm shoulder Screw Yes Model Compatibility List $3.28 / Each

2,8
4 516988 KHS-24013 423 Bolt, End Cap No Model Compatibility List $2.05 / Each

2,9
4 516989 KHS-24014 454 Bolt, End CapScrew, Main Cover No Model Compatibility List $1.06 / Each

2,9
4 516990 KHW-20924 451 WASHER 20x6xT 1.5 No Model Compatibility List $0.82 / Each

2
5 516991 KHW-20927 509 WASHER, BO, 16x6x2mm No Model Compatibility List $0.82 / Each

2
5 516992 KHW-20928 510 WASHER, 30x8xT2.0 No Model Compatibility List $1.06 / Each

2
5 516993 KHW-21956 511 WASHER,18 X 12 X T3.5 Yes Model Compatibility List $2.30 / Each

2
5 516994 KHW-21957 512 WASHER,18 X 10 X T3.0 No Model Compatibility List $0.42 / Each

2
4 516995 KHW-21966 447 WASHER, 30X8XT3.0 No Model Compatibility List $1.93 / Each

2
5 516996 KHW-21991 515 WASHER,CURVED 16 X 8 X T2 No Model Compatibility List $0.74 / Each

2
5 516997 KHW-21992 516 WASHER,WAVE No Model Compatibility List $0.74 / Each

2,4,5,6
4 516998 KHW-22011 443 WASHER,16 X 10 X T2.0 No Model Compatibility List $1.56 / Each

2
4 516999 KHW-22037 456 WASHER, M3 No Model Compatibility List $0.42 / Each

2
4 517000 KHW-22078 449 WASHER,18 X 10 X T3.0 No Model Compatibility List $1.56 / Each

2
4 517001 KHW-22083 446 WASHER,32 X 6 X T2.0 No Model Compatibility List $1.56 / Each

2
4 517002 KHW-22086 445 WASHER,22X 14 X T2.0 No Model Compatibility List $0.74 / Each

2
4 517003 KHW-22092 450 WASHER,18X10XT5.1 No Model Compatibility List $3.84 / Each

2
4 517004 KHW-22095 468 WASHER,14 X 8.5 X T1.5 No Model Compatibility List $1.24 / Each

2
4 517005 KHW-22103 442 WASHER,14 X 8 X T2.0 No Model Compatibility List $1.56 / Each

2
4 517006 KHW-22168 448 WASHER,8 X 27 X T2.0 No Model Compatibility List $0.42 / Each

2
2 517007 KHW-24004 237 Washer, Shaft, Pivot No Model Compatibility List $5.66 / Each

2,8
2 517008 KHW-24005 238 Washer, Spacer, Pivot Nut No Model Compatibility List $8.20 / Each

2,8,3,4,5,6
2 517009 KHX-20907 210 RING,TOLERANCE AN28-(ID28xT8) No Model Compatibility List $3.28 / Each

1
2 517010 KHX-20908 214 RING,TOLERANCE AN52-(ID52xT7) No Model Compatibility List $8.20 / Each

1
4 517011 KHX-20921 439 CLIP,R; 1.25" OD No Model Compatibility List $2.05 / Each

2
4 517012 KHX-20922 441 CLIP,R; 2.25" OD No Model Compatibility List $4.10 / Each

2
2 517014 KHX-21952 211 RING,TOLERANCE (ID32XT7) No Model Compatibility List $11.47 / Each

1
2 517015 KHX-21971 213 RING, TOLERANCE (ID47XT12) No Model Compatibility List $17.56 / Each

1
3 517016 KHX-21976 364 GRIP,HANDLEBAR No Model Compatibility List $23.20 / Each

11
3 517017 KHX-21989 324 FOOT PAD INSERT - LEG STAND,REAR SUPPORT No Model Compatibility List $17.99 / Each

3
2 517018 KHX-22003 212 RING, TOLERANCE (ID35XT14) No Model Compatibility List $12.36 / Each

3
2 517019 KHX-22014 228 BUTTON, ADJUST No Model Compatibility List $1.56 / Each

1
2 517020 KHX-22036 236 BASE, SENSOR No Model Compatibility List $2.70 / Each

3
1 517021 KHX-22073 119 BASE,MAGNETIC No Model Compatibility List $30.91 / Each

8,3
2 517022 KHX-22075 218 SPRING No Model Compatibility List $1.93 / Each

2
4 517023 KHX-22102 438 S CLIP No Model Compatibility List $0.42 / Each

2
4 517027 KHX-24008 482 Spacer, 5 x8mm, LCB No Model Compatibility List $2.78 / Each

2,3,4,5,6
6 517030 KMR-22028 606 MOTOR,ELEVATION No Model Compatibility List $358.80 / Each

10
3 517032 KPL-20915 360 END CAP No Model Compatibility List $8.05 / Each

9
3 517033 KPL-20916 361 END CAP Yes Model Compatibility List $4.02 / Each

9
3 517034 KPL-21947 351 COVER,HANDLEBAR FRONT END,UPPE Yes Model Compatibility List $29.10 / Each

9,11
3 517035 KPL-21948 352 COVER,HANDLEBAR FRONT END,BOTT No Model Compatibility List $29.10 / Each

9,11
3 517036 KPL-21962 312 COVER,AXLE,FOOT SUPPORT TUBE No Model Compatibility List $11.47 / Each

8,9,3
3 517037 KPL-21963 317 COVER,REAR AXLE,DRIVE LINKAGE Yes Model Compatibility List $9.60 / Each

8,9,10
3 517038 KPL-21977 365 COVER,HANDLEBAR END Yes Model Compatibility List $3.84 / Each

9,11
517039 KPL-21981 358 FOOT PEDAL BASE, LEFT Yes Model Compatibility List $65.86 / Each
Out Of Stock 		3,8,9
3 517040 KPL-21982 357 TOE-CAP, FOOT PEDAL Yes Model Compatibility List $11.83 / Each

8,9
3 517041 KPL-21983 363 CUSHION, SOFT PEDAL No Model Compatibility List $28.34 / Each

8,9,3
3 517042 KPL-21994 353 COVER,WATER BOTTLE,OUTER,LT Yes Model Compatibility List $0.00 / Each
9
3 517043 KPL-21995 354 COVER,WATER BOTTLE,INNER,LT Yes Model Compatibility List $30.91 / Each

9
2 517044 KPL-21996 230 COVER,INSERT PLASTIC No Model Compatibility List $2.30 / Each

9
3 517045 KPL-21997 362 INSERT,WATER BOTTLE - CUP HOLDER Yes Model Compatibility List $18.19 / Each

1
3 517046 KPL-22005 315 COVER, FRONT LINKAGE AXLE Yes Model Compatibility List $11.99 / Each

8,9
3 517047 KPL-22006 325 COVER, END No Model Compatibility List $3.94 / Each

9
3 517048 KPL-22033 311 COVER,PULLEY Yes Model Compatibility List $33.78 / Each

8,9
3 517049 KPL-22034 310 COVER,REAR,MAIN RIGHT Yes Model Compatibility List $21.31 / Each

9
3 517050 KPL-22038 307 COVER,MAIN RIGHT No Model Compatibility List $98.64 / Each

9
2 517051 KPL-22043 233 FACIA,SWITCH No Model Compatibility List $3.52 / Each

4,5,6
3 517052 KPL-22044 308 BEZEL,SWITCH PLATE Yes Model Compatibility List $18.99 / Each

4,5,6
3 517053 KPL-22046 306 COVER,MAIN,LEFT No Model Compatibility List $98.38 / Each

9
3 517054 KPL-22047 309 COVER,MAIN,LEFT,INCLINE MOTOR Yes Model Compatibility List $21.31 / Each

9,10
3 517055 KPL-22049 302 COVER,FRONT FASCIA No Model Compatibility List $23.20 / Each

9
3 517056 KPL-22050 303 COVER,REAR No Model Compatibility List $46.39 / Each

9
3 517057 KPL-22051 304 CONSOLE TRAY,UPPER No Model Compatibility List $24.60 / Each
Out Of Stock 		7
3 517058 KPL-22052 305 CONSOLE TRAY,BOTTOM No Model Compatibility List $14.76 / Each
Out Of Stock 		7
3 517059 KPL-22062 359 PEDAL, FOOT BASE, RIGHT No Model Compatibility List $75.26 / Each
Out Of Stock 		3,8,9
3 517060 KPL-22065 355 COVER,WATER BOTTLE,OUTER,RT Yes Model Compatibility List $29.03 / Each

9
3 517061 KPL-22066 356 COVER,WATER BOTTLE,INNER,RT Yes Model Compatibility List $30.91 / Each

9
2 517067 KPL-24010 225 End Cap, Frame, Main No Model Compatibility List $4.92 / Each

9,3
K 517084 KSK-22004 K04 LEFT FOOT PEDAL BASE Yes Model Compatibility List $327.95 / Each

3,8,9
6 517085 KSK-22040 601 INLET,POWER Yes Model Compatibility List $23.99 / Each

4,5,6
6 517086 KSK-22042 603 SWITCH,ON-OFF POWER No Model Compatibility List $19.93 / Each

4,5,6
K 517087 KSK-22106 K15 LEFT FOOT PLATE Yes Model Compatibility List $133.27 / Each
Out Of Stock 		9
K 517088 KSK-22127 K15 RIGHT FOOT PLATE No Model Compatibility List $127.90 / Each

9
K 517089 KSK-22128 K05 RIGHT FOOT PEDAL BASE Yes Model Compatibility List $341.39 / Each

3,8,9
K 517090 KSK-22160 K08 HANDLEBAR ASSEMBLY, RIGHT No Model Compatibility List $287.10 / Each

11
K 517091 KSK-22161 K07 HANDLEBAR ASSEMBLY,LEFT No Model Compatibility List $278.75 / Each

11
K 517092 KSK-23309 K07 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
K 517093 KSK-23310 K08 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
6 517095 KSW-22053-1 608 MEMBRANE,360A TOP,GERMAN No Model Compatibility List $24.60 / Each

1
6 517096 KSW-22053-3 608 MEMBRANE,360A TOP,SPANISH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
6 517097 KSW-22053-4 608 MEMBRANE,360A TOP,ENGLISH No Model Compatibility List $24.60 / Each

1
6 517098 KSW-22054-1 609 MEMBRANE,360A BOTTOM,GERMAN No Model Compatibility List $13.12 / Each

1
6 517099 KSW-22054-3 609 MEMBRANE,360A BOTTOM,SPANISH No Model Compatibility List $13.12 / Each

1
6 517100 KSW-22054-4 609 MEMBRANE,360A BOTTOM,ENGLISH No Model Compatibility List $13.51 / Each

1
6 517115 KWR-22109 615 WIRE,3C POWER WIRE,900MM Yes Model Compatibility List $18.26 / Each

4,5,6
6 517251 LT-20894-1 626 MANUAL,360A,GER No Model Compatibility List $12.30 / Each

1
6 517252 LT-20894-3 626 MANUAL,360A,SPA No Model Compatibility List $12.30 / Each

1
6 517253 LT-20894-4 626 MANUAL,360A,ENG No Model Compatibility List $40.99 / Each

1
2 517854 PL-20326 227 DRIVE WHEEL,350A No Model Compatibility List $126.43 / Each

8,10
K 519050 SK-20058 K09 Assy, Handle, Drive Link No Model Compatibility List $82.00 / Each

10,11
K 519051 SK-20061 K14 ASSY,LINKAGE ROD,LEFT Yes Model Compatibility List $178.74 / Each

3
K 519052 SK-20063 K04 Cover,Rear Support Yes Model Compatibility List $19.68 / Each

9,3
K 519053 SK-20065 K02 ASSY,COVERS,REAR SUPPORT,LEFT No Model Compatibility List $82.00 / Each

9,3
K 519054 SK-20067 K17 Assy, Main Drive No Model Compatibility List $1.34 / Each

10
K 519055 SK-20068 K16 Assy, Motor, Resistance No Model Compatibility List $0.00 / Each
Out Of Stock 		10
A 519056 SK-20076 A12 Assy, Switch Plate No Model Compatibility List $19.97 / Each

4,5,6
5 519057 SK-20301 513 NLA: FOOT,LEVELING,350A No Model Compatibility List $0.00 / Each
Out Of Stock 		9
K 519058 SK-20310 K03 ASSY,COVER,REAR SUPPORT,RIGHT No Model Compatibility List $82.00 / Each

9,3
K 519059 SK-20319 K12 ASSY,REAR LINKAGE ARM,LEFT No Model Compatibility List $573.91 / Each

3
K 519060 SK-20330 K18 ASSY,FLYWHEEL SET No Model Compatibility List $286.96 / Each

8
6 519061 SK-20337 621 ASSY,CABLE,CONTACT HR,BASE Yes Model Compatibility List $40.99 / Each

3,4,5,6,12,13,14
K 519062 SK-23311 K09 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Handle Bar Grip Cover (Used) 1032093 360-HBGC 0 2 Handle Bar Grip Cover (Used) No Model Compatibility List $6.00 / Each
Out Of Stock
Linkage (Used) 1032105 KHP-20911 0 1 Linkage (Used) No Model Compatibility List $15.59 / Each

Wire Harness (Used) 1032081 360A-WH 0 1 Wire Harness (Used) No Model Compatibility List $73.79 / Each

Rear Inner Cover (Used) 1028187 KPL-20326 Rear Inner Cover (Used) Yes Model Compatibility List $3.59 / Each
Out Of Stock 		44
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
