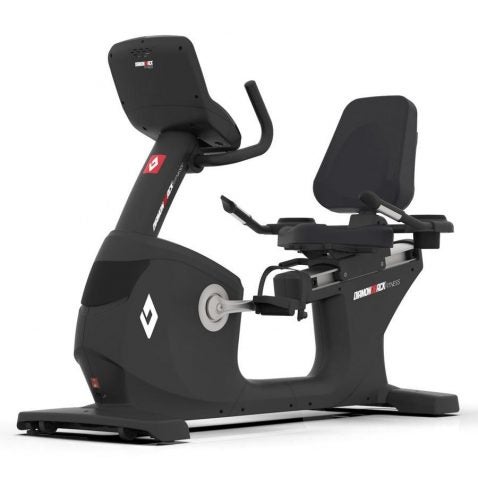

Diamondback - 1260SR

Repair Parts for Diamondback 1260SR

Brand: Diamondback

Category: Residential Recumbent Bikes

Type: Stationary Bikes

Model Name: 1260SR

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
19 Support of Bottle Cup Water Holder Top (Used) 1033708 1260SR-19SOBCWHT 0 1 19 Support of Bottle Cup Water Holder Top (Used) No Model Compatibility List $10.00 / Each

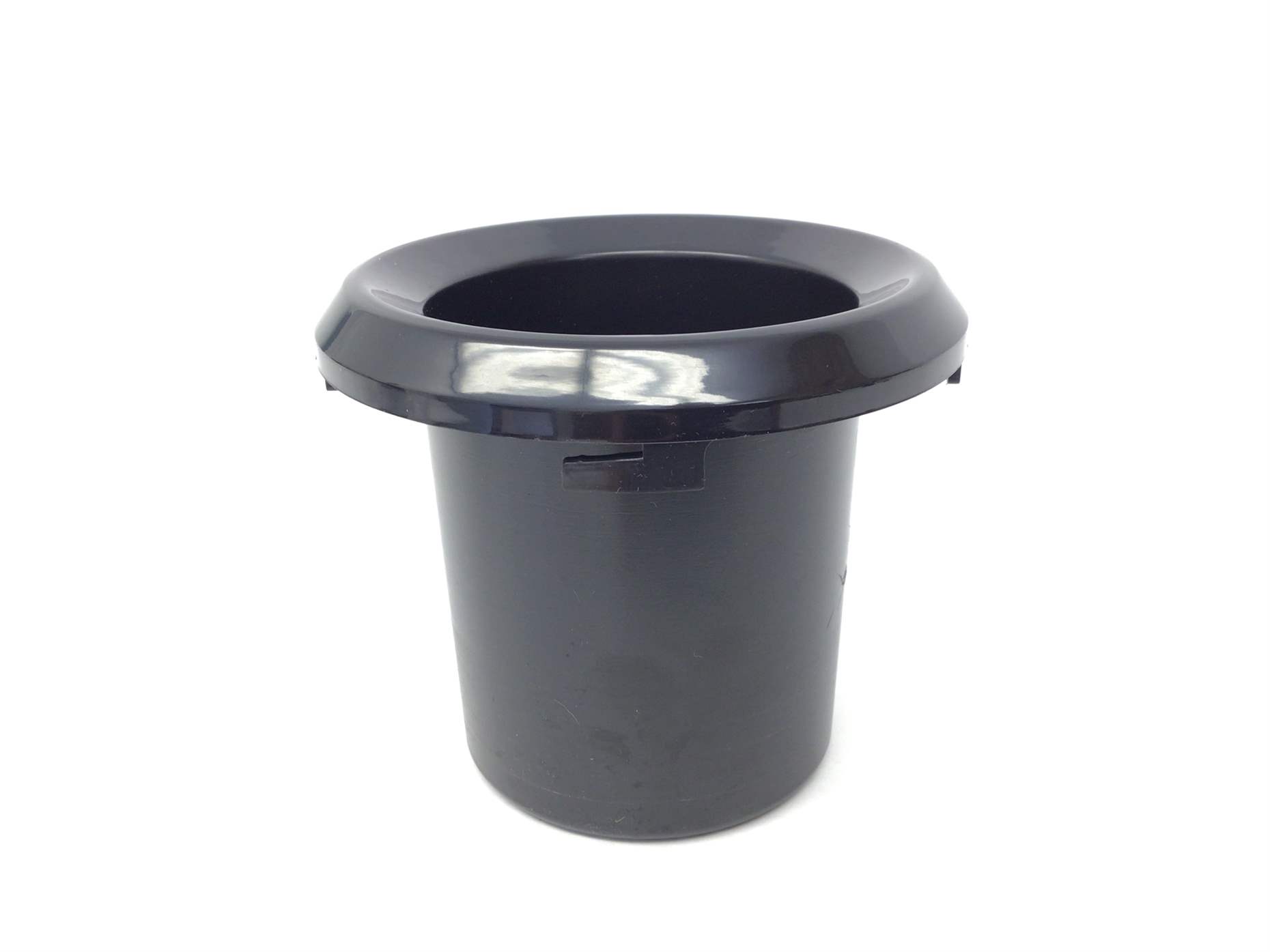

Water Bottle Holder (Used) 1033731 1260SR-WBH 20 1 Water Bottle Holder (Used) No Model Compatibility List $15.00 / Each

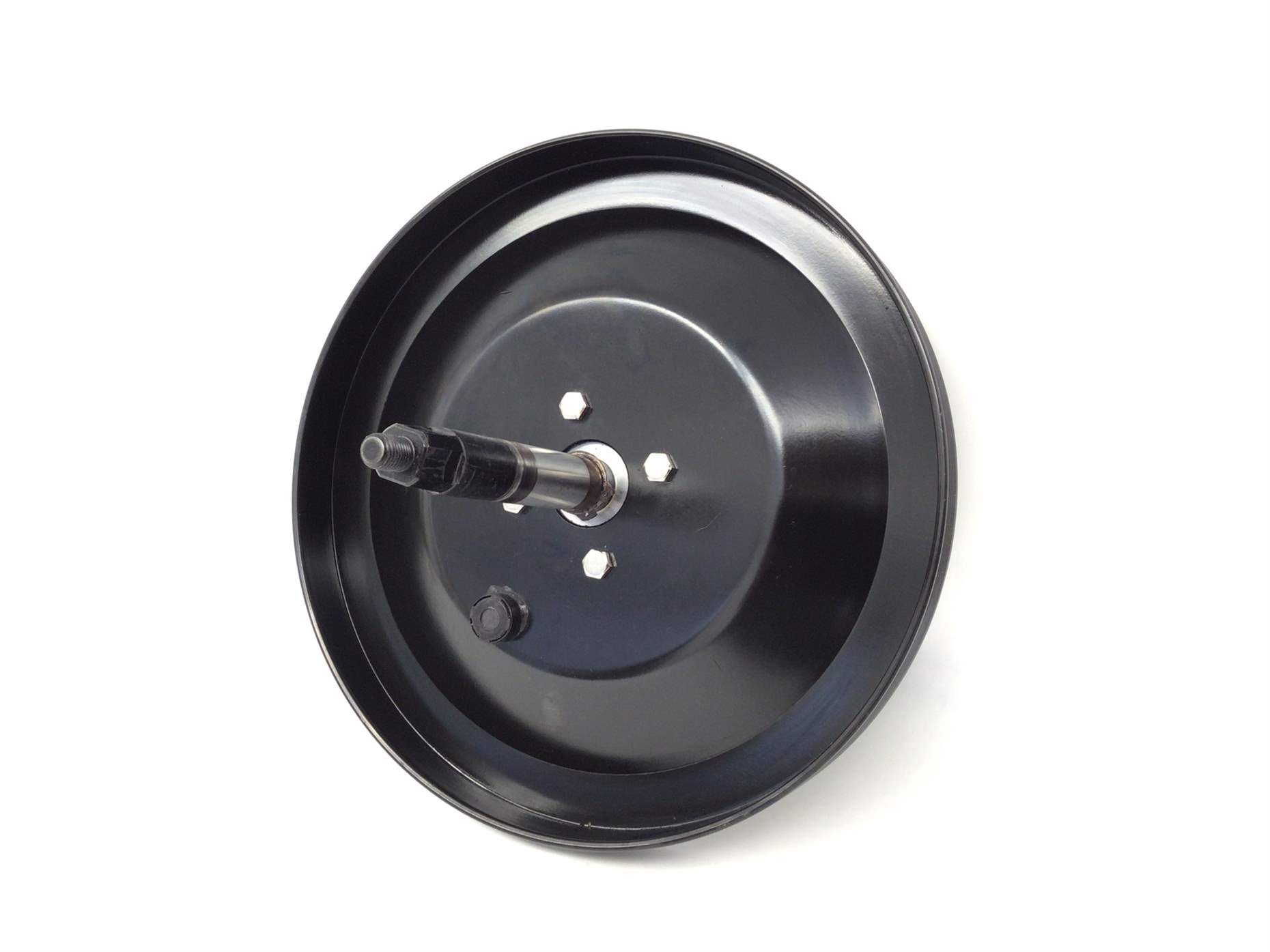

Pulley (Used) 1033745 1260SR-PLLY 27 1 Pulley (Used) No Model Compatibility List $99.00 / Each

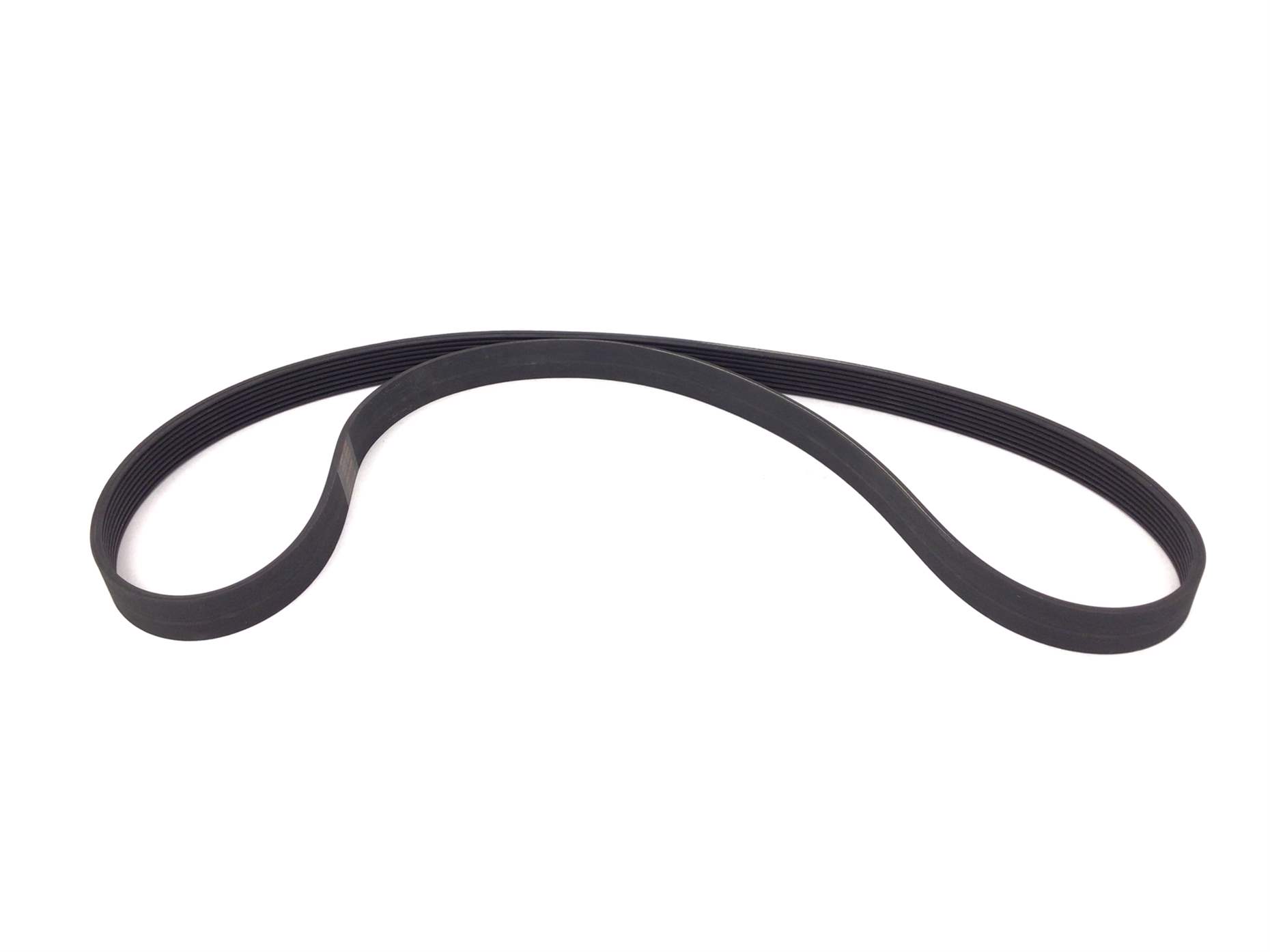

Belt 43 Inch (Used) 1033726 1260SR-B43I 30 1 Belt 43 Inch (Used) No Model Compatibility List $19.99 / Each

Belt 43 Inch db-sr430J8 1260SR-B43I 30 1 Belt 43 Inch No Model Compatibility List $49.99 / Each

Upper Cable Wire Harness (Used) 1033714 1260SR-UCWH 32L 1 Upper Cable Wire Harness (Used) No Model Compatibility List $22.99 / Each

Upper Cable Wire Harness (Used) 1033713 1260SR-UCWHR 32R 1 Upper Cable Wire Harness (Used) No Model Compatibility List $22.99 / Each

Left Pedal Crank (Used) 1033727 1260SR-LPC 48L 1 Left Pedal Crank (Used) No Model Compatibility List $49.00 / Each

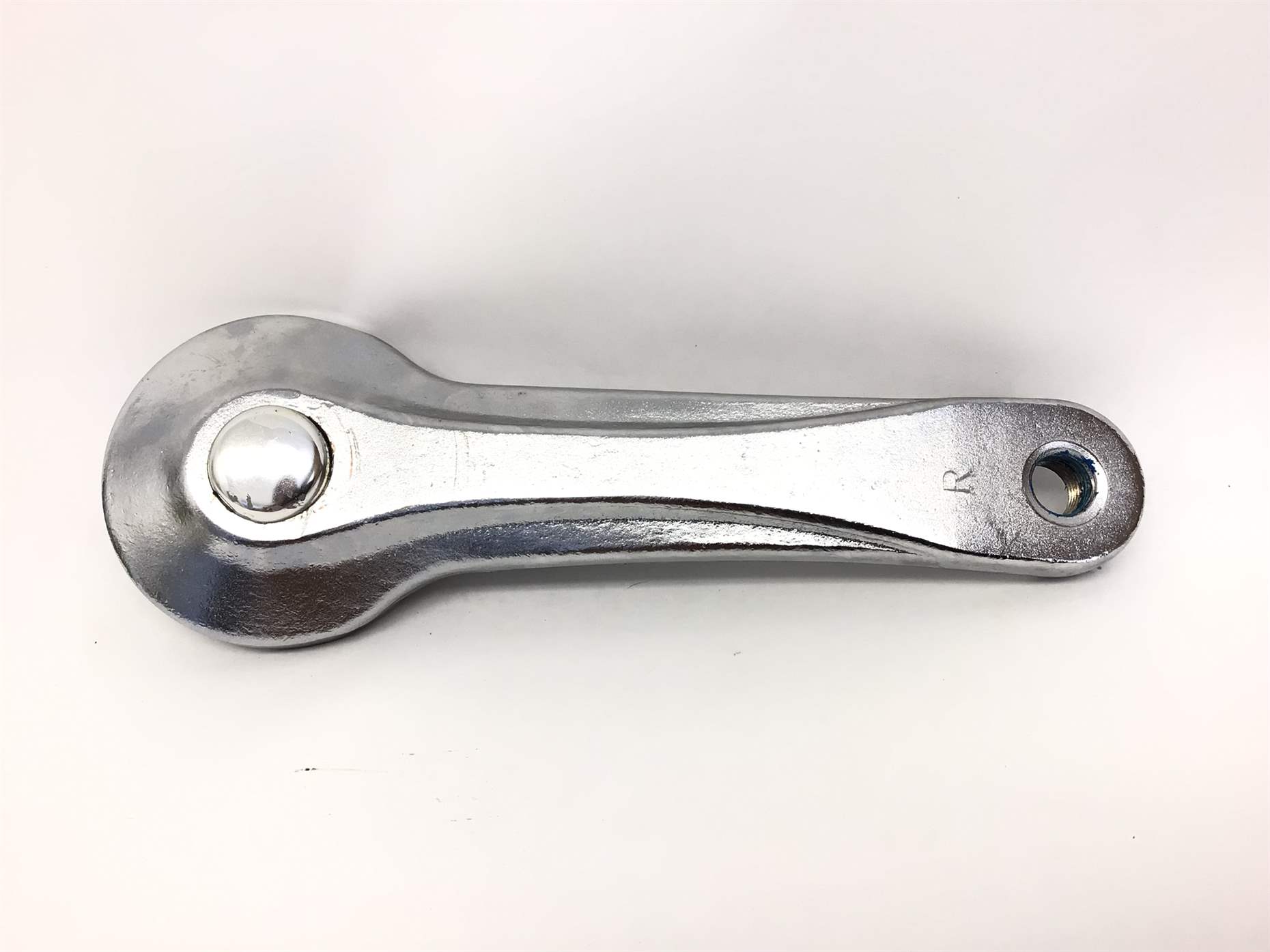

Right Pedal Crank (Used) 1033728 1260SR-RPC 48R 1 Right Pedal Crank (Used) No Model Compatibility List $49.00 / Each

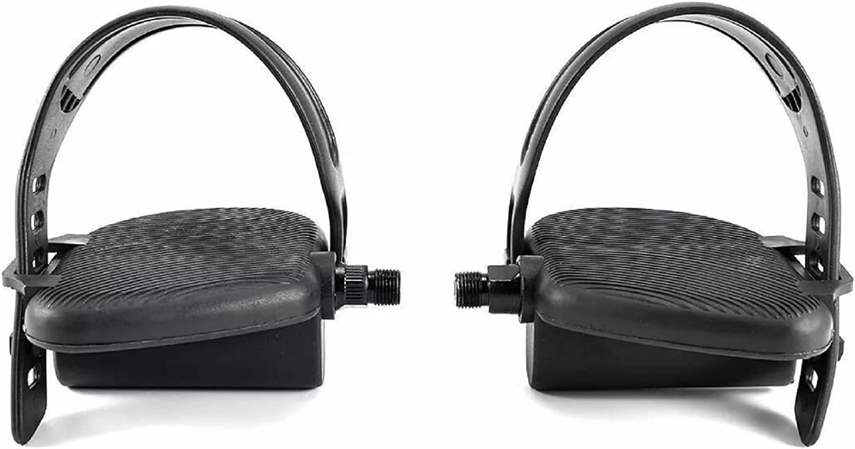

Left & Right Pedal db-916peds 1260SR-LRP 51L & 51R 1 Left & Right Pedal Yes Model Compatibility List $59.99 / Each

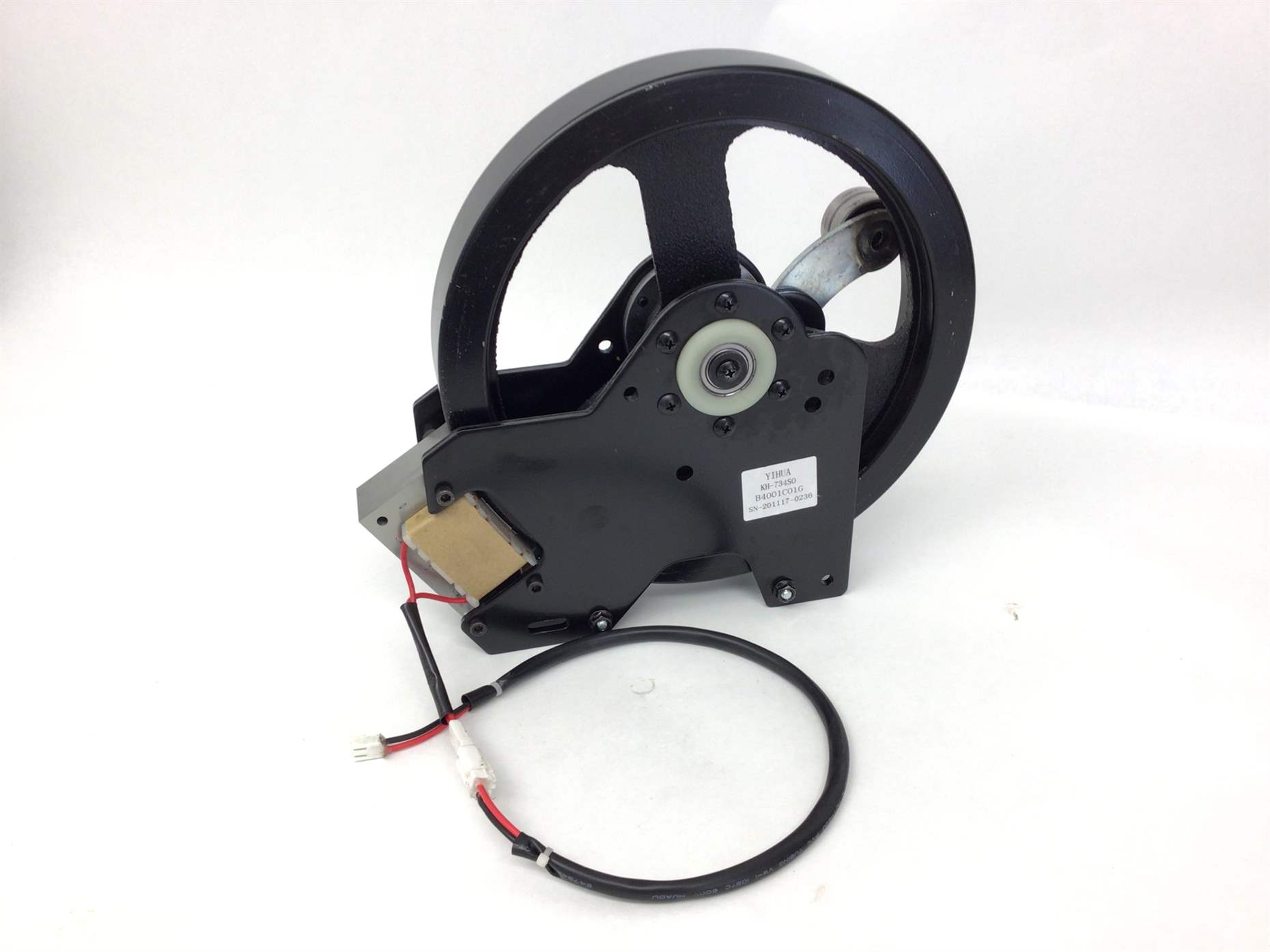

Electric Magnetic System Generator Brake Yihua (Used) 1033744 1260SR-EMSGBY 55 1 Electric Magnetic System Generator Brake Yihua (Used) No Model Compatibility List $199.00 / Each

Cable Wire Harness Base to Console (Used) 1033719 1260SR-CWHBTC 63 1 Cable Wire Harness Base to Console (Used) No Model Compatibility List $25.00 / Each

Middle Cable Wire Harness Base to Console (Used) 1033710 1260SR-MCWHBTC 64 1 Middle Cable Wire Harness Base to Console (Used) No Model Compatibility List $25.00 / Each

Lower Cable White Black Connector (Used) 1033712 1260SR-LCWBC 65 1 Lower Cable White Black Connector (Used) No Model Compatibility List $20.00 / Each

Power Cable 1260sr-pc 1260sr-pc 66 1 Power Cable Yes Model Compatibility List $29.99 / Each

Control Board AE00530 Lower Circuit Board (Used) 1033730 AE00530 68 1 Control Board AE00530 Lower Circuit Board (Used) No Model Compatibility List $200.00 / Each

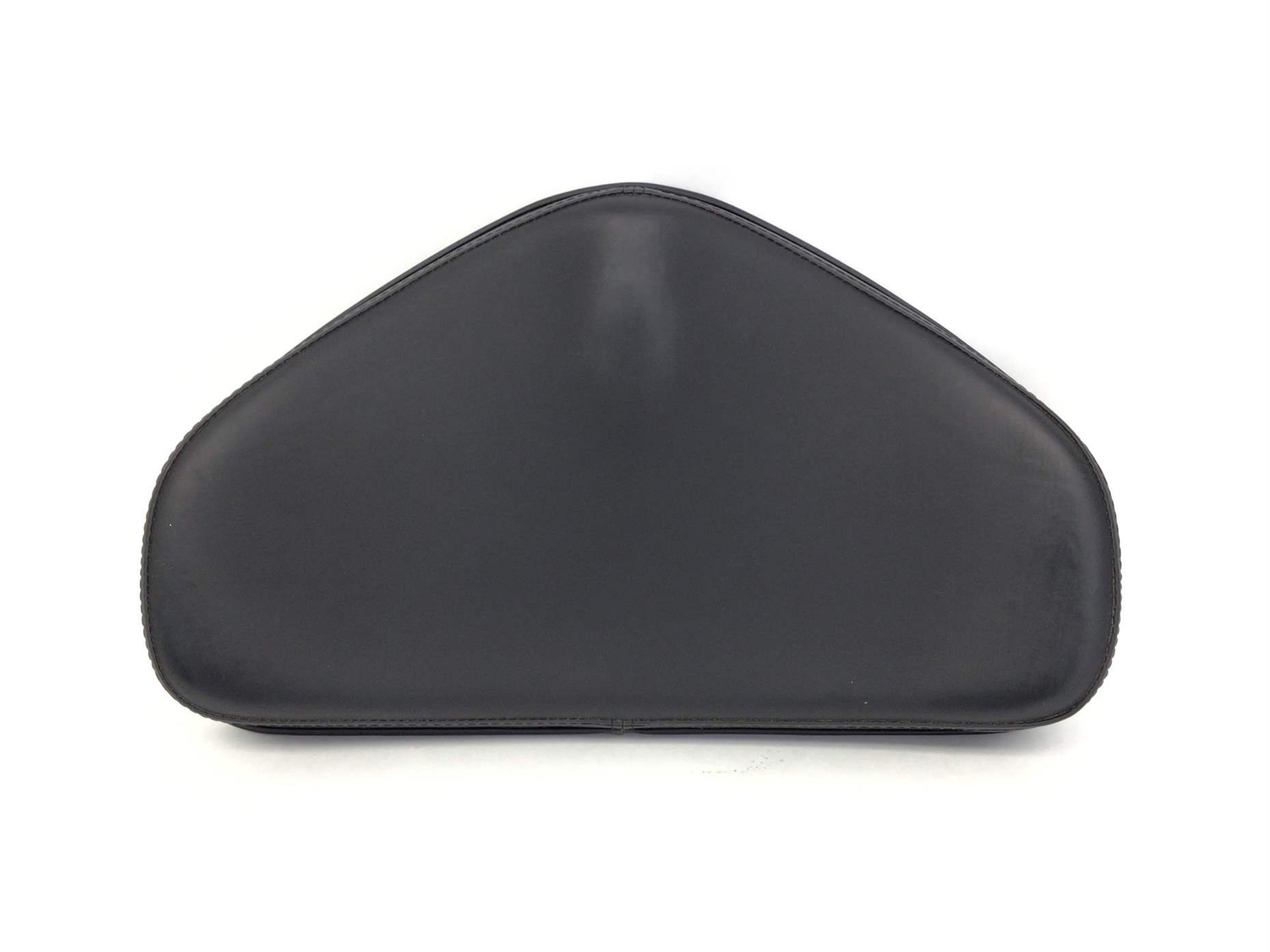

Saddle Seat Bottom (Used) 1033718 1260SR-SSB 69 1 Saddle Seat Bottom (Used) No Model Compatibility List $69.00 / Each

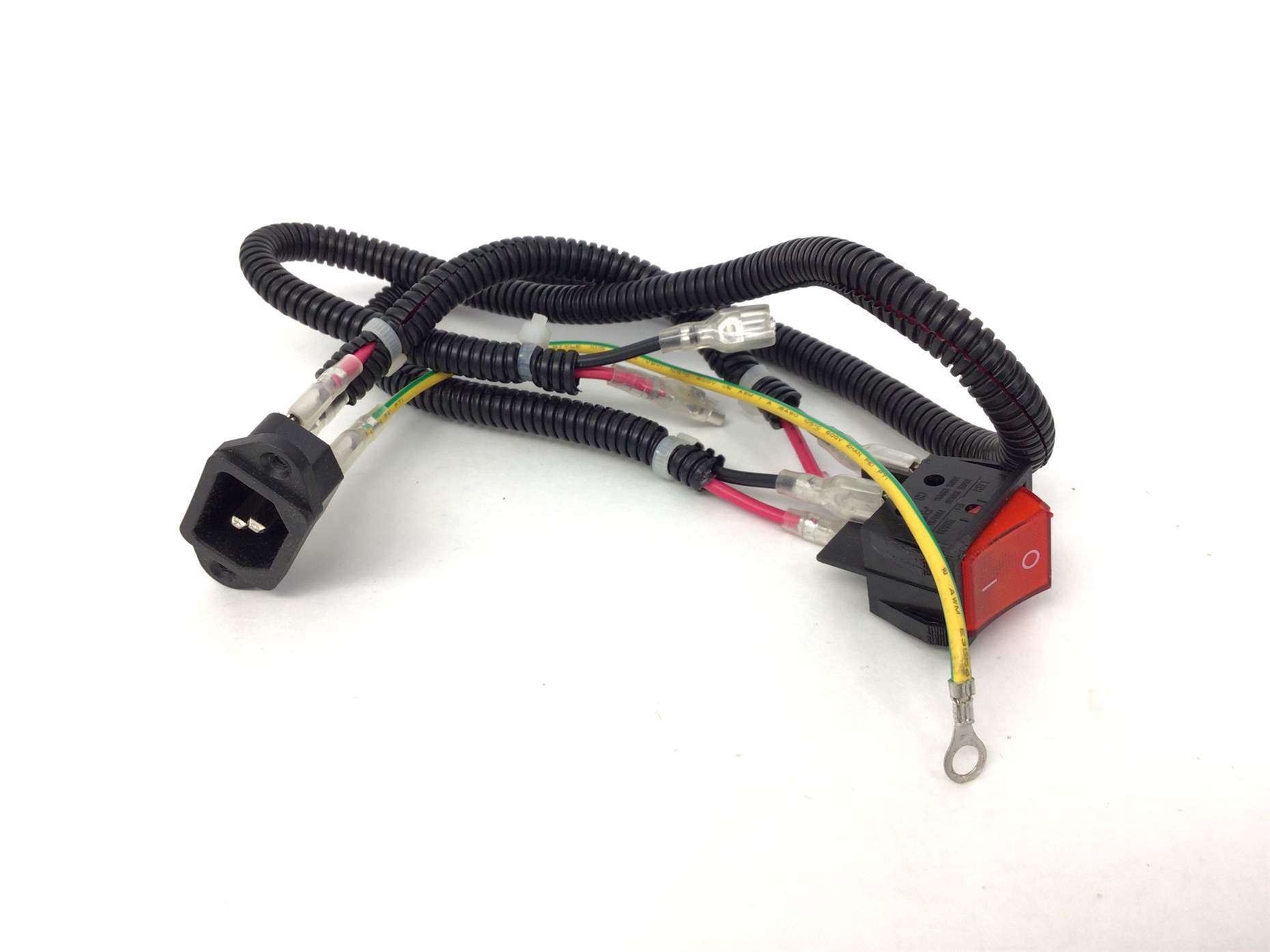

Power Delivery Cable Kit Entry Inlet On Off Power Switch (Used) 1033709 1260SR-PDCKEI 74 1 Power Delivery Cable Kit Entry Inlet On Off Power Switch (Used) No Model Compatibility List $25.00 / Each

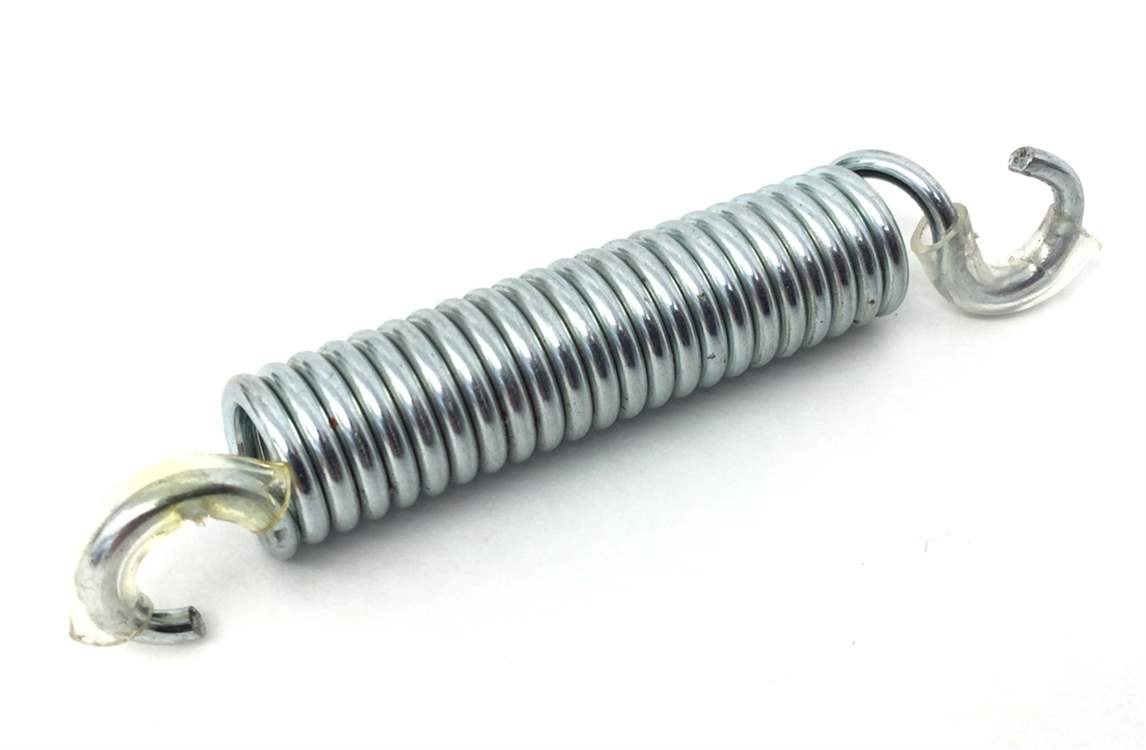

Spring Belt Tension (Used) 1033715 1260SR-SBT 84 1 Spring Belt Tension (Used) No Model Compatibility List $8.00 / Each

Seat Assembly Back Pad with Rear Cover and Mounting Bracket (Used) 1033707 1260SR-SABOWRCAMB 120 1 Seat Assembly Back Pad with Rear Cover and Mounting Bracket (Used) No Model Compatibility List $149.00 / Each

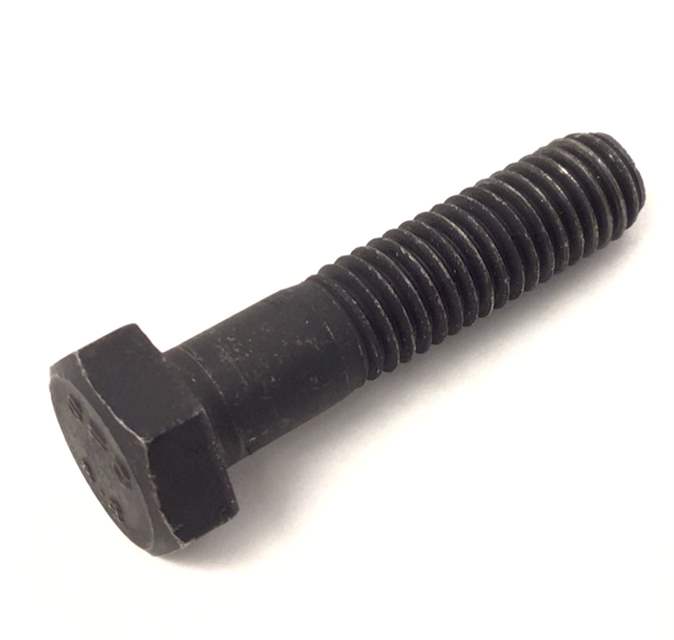

Bolt Hex M8-1.25-35mm (Used) 1033717 1260SR-BHM812535 0 1 Bolt Hex M8-1.25-35mm (Used) No Model Compatibility List $5.00 / Each

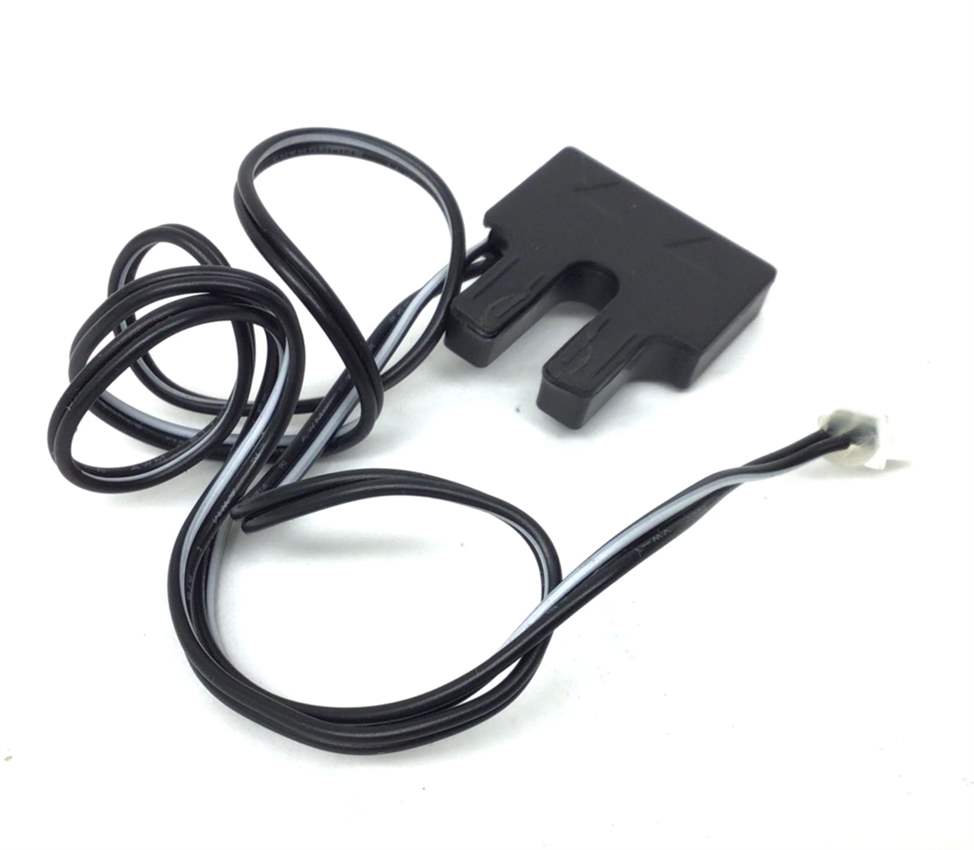

RPM Speed Sensor Reed Switch 2 Terminal Wire (Used) 1033716 1260SR-RPMSSRW2TW 0 1 RPM Speed Sensor Reed Switch 2 Terminal Wire (Used) No Model Compatibility List $14.99 / Each
