Diamondback - 600Es - 2001

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Leveler Foot Bumper (Used) 1009416 DBLFB 0 1 Leveler Foot Bumper (Used) No Model Compatibility List $11.99 / Each

8
Stepper Notched Freewheel Gear C Clip (Used) 1003548 DBSNFGCC 0 1 Stepper Notched Freewheel Gear C Clip (Used) No Model Compatibility List $34.99 / Each

8
Belt Tensioner Pulley (Used) 1010124 DBBTP 0 1 Belt Tensioner Pulley (Used) No Model Compatibility List $19.99 / Each

2,8,15
Step Belt Tensioner Wheel (Used) 1010555 DBSBTW 0 1 Step Belt Tensioner Wheel (Used) No Model Compatibility List $19.99 / Each

8,15
Block Pillow Bearing (Used) 1009410 DBBPB 0 1 Block Pillow Bearing (Used) No Model Compatibility List $39.99 / Each

2
Power Entry Wire Harness (Used) 1018550 22-19-100 0 1 Power Entry Wire Harness (Used) Yes Model Compatibility List $24.99 / Each
Out Of Stock
4,6
Resistance Motor (Used) 1003570 DBRM 0 1 Resistance Motor (Used) No Model Compatibility List $39.99 / Each
Out Of Stock
10
Blue Resistance Gear Motor Brake Tensioner 1003343 DBBRGMBT 0 1 Blue Resistance Gear Motor Brake Tensioner No Model Compatibility List $79.00 / Each

10
Blue Resistance Gear Motor Brake Tensioner (Used) 1017780 DBBRGMBT 0 1 Blue Resistance Gear Motor Brake Tensioner (Used) No Model Compatibility List $39.00 / Each
Out Of Stock
10
Elliptical Generator Magnetic Brake (Used) 1003802 22-18-522 0 1 Elliptical Generator Magnetic Brake (Used) No Model Compatibility List $59.40 / Each
Out Of Stock
8
Front Transport Wheel (Used) 1024969 1100U-FTWHL 0 2 Front Transport Wheel (Used) Yes Model Compatibility List $13.99 / Each
Out Of Stock
45

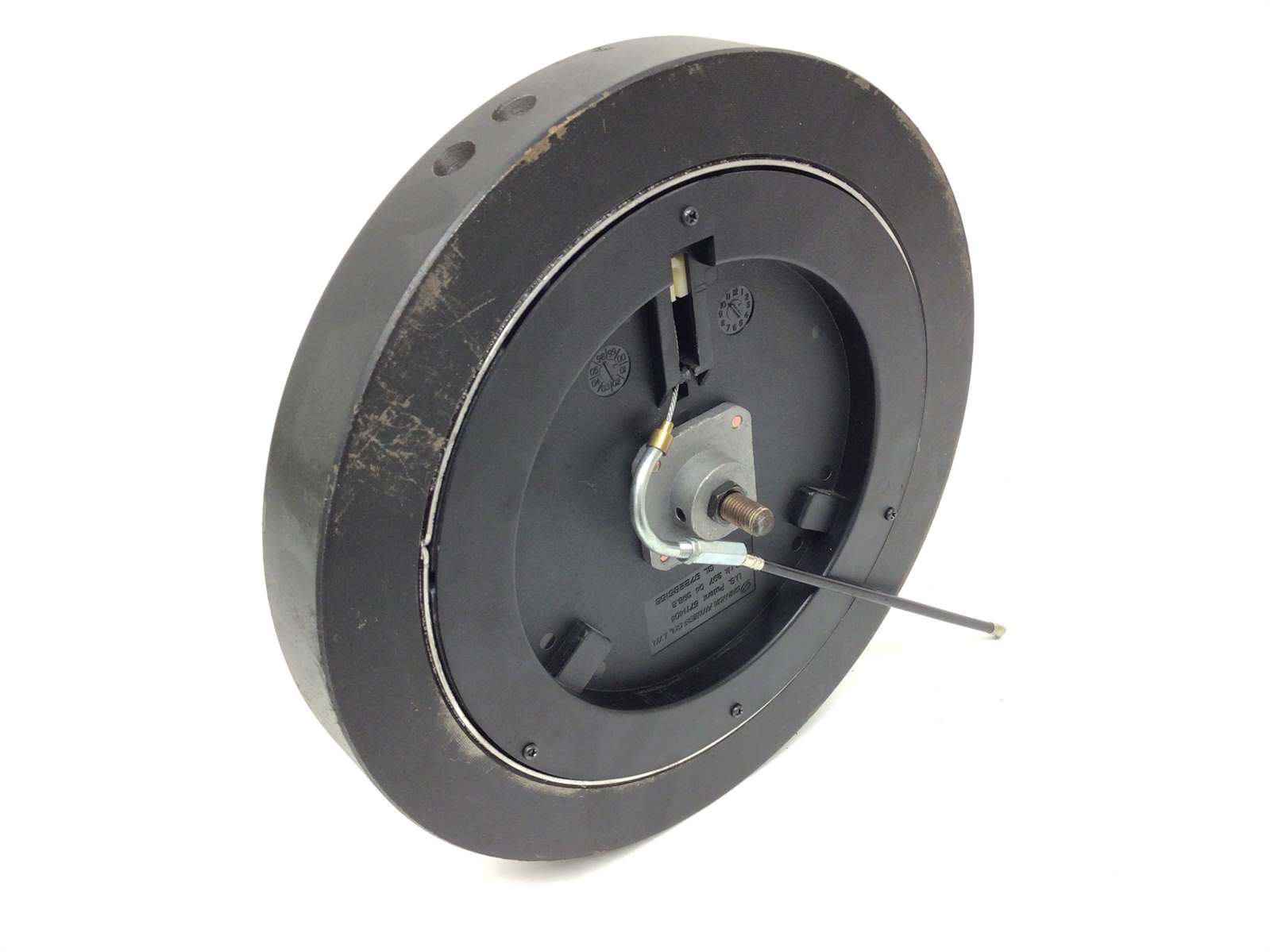

Resistance Magnetic Eddy Brake Flywheel (Used) 1035032 22-19-001 0 1 Resistance Magnetic Eddy Brake Flywheel (Used) No Model Compatibility List $99.00 / Each

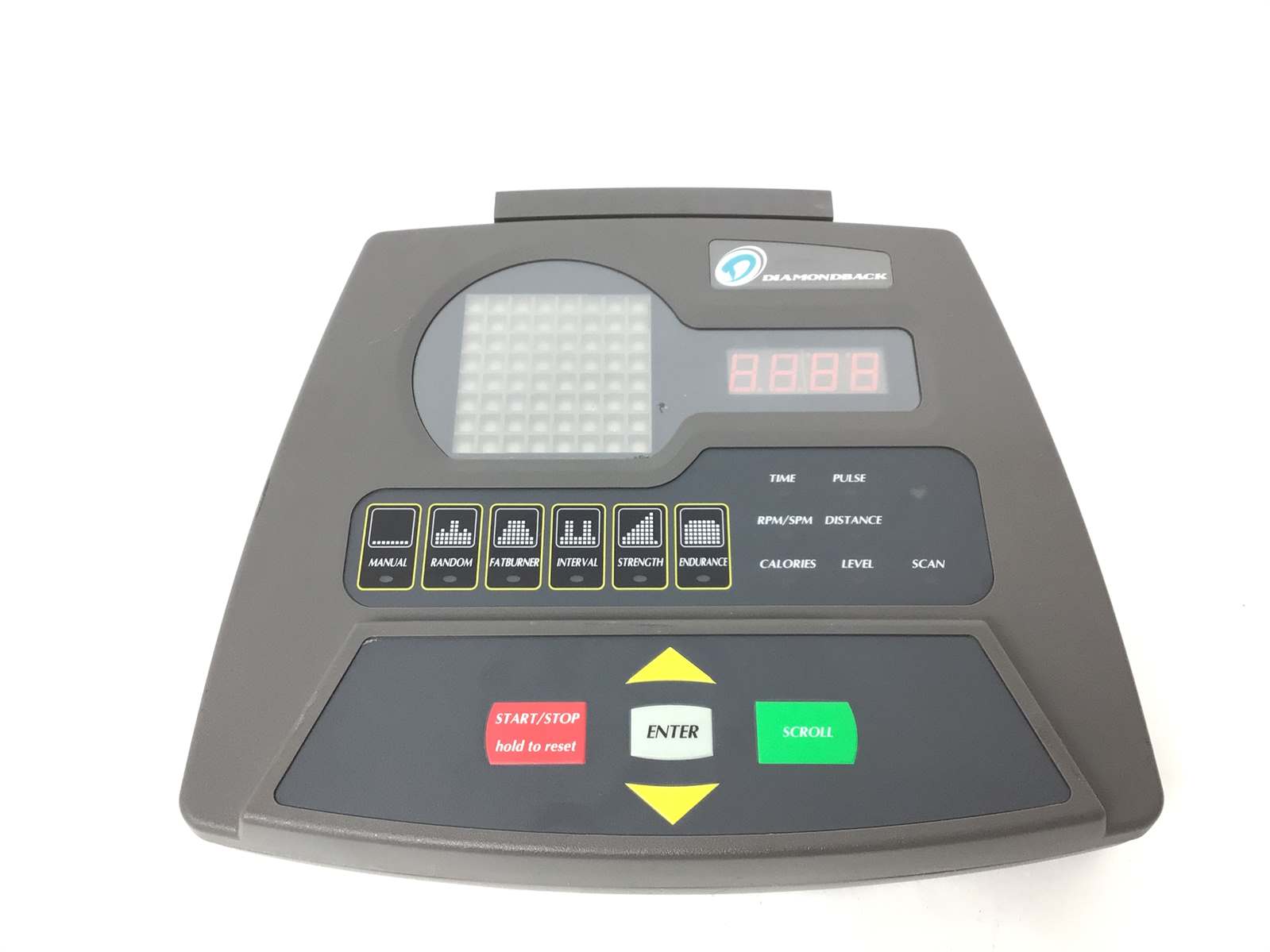

Display Console Assembly (Used) 1035014 22-19-026 0 1 Display Console Assembly (Used) No Model Compatibility List $139.00 / Each

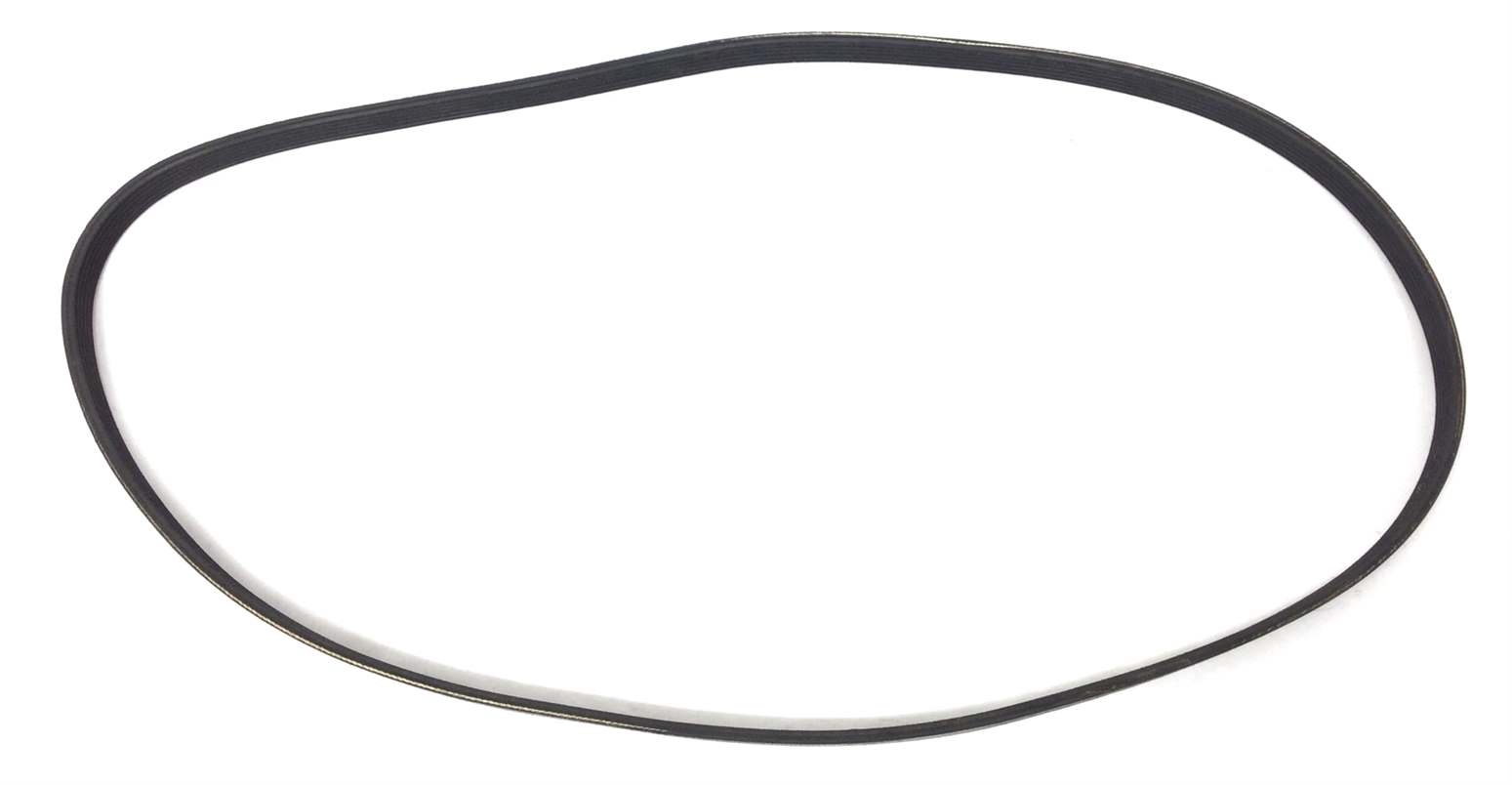

Poly V Drive Belt 41 Inch db410r6 22-19-061 0 1 Poly V Drive Belt 41 Inch Yes Model Compatibility List $29.99 / Each

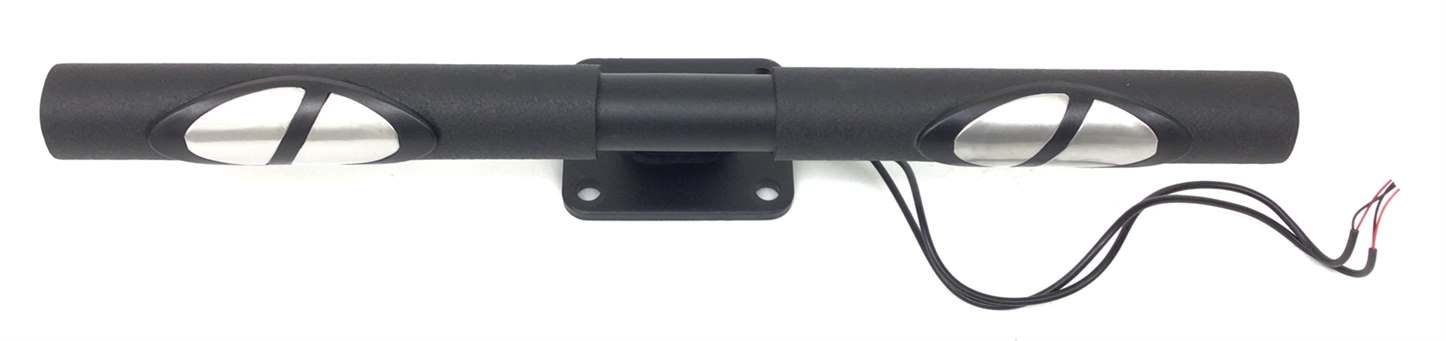

Handle Bar W Pulse Heart Rate (Used) 1035020 22-19-086 0 1 Handle Bar W Pulse Heart Rate (Used) No Model Compatibility List $59.00 / Each

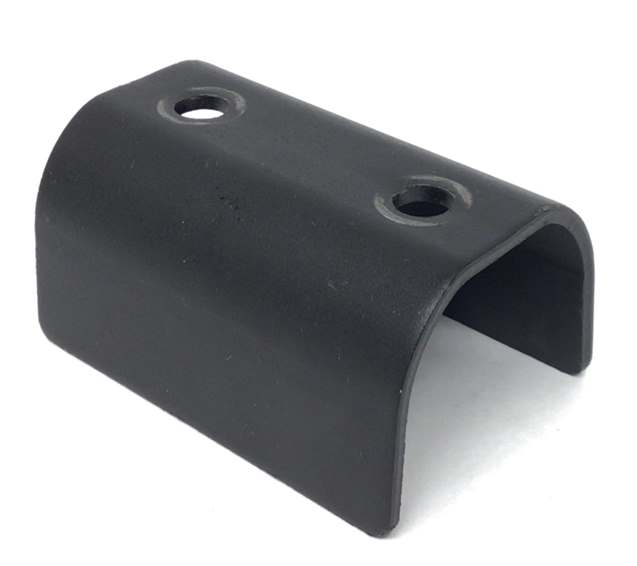

Handrail Clamp (Used) 1035037 22-19-148 0 1 Handrail Clamp (Used) No Model Compatibility List $8.99 / Each

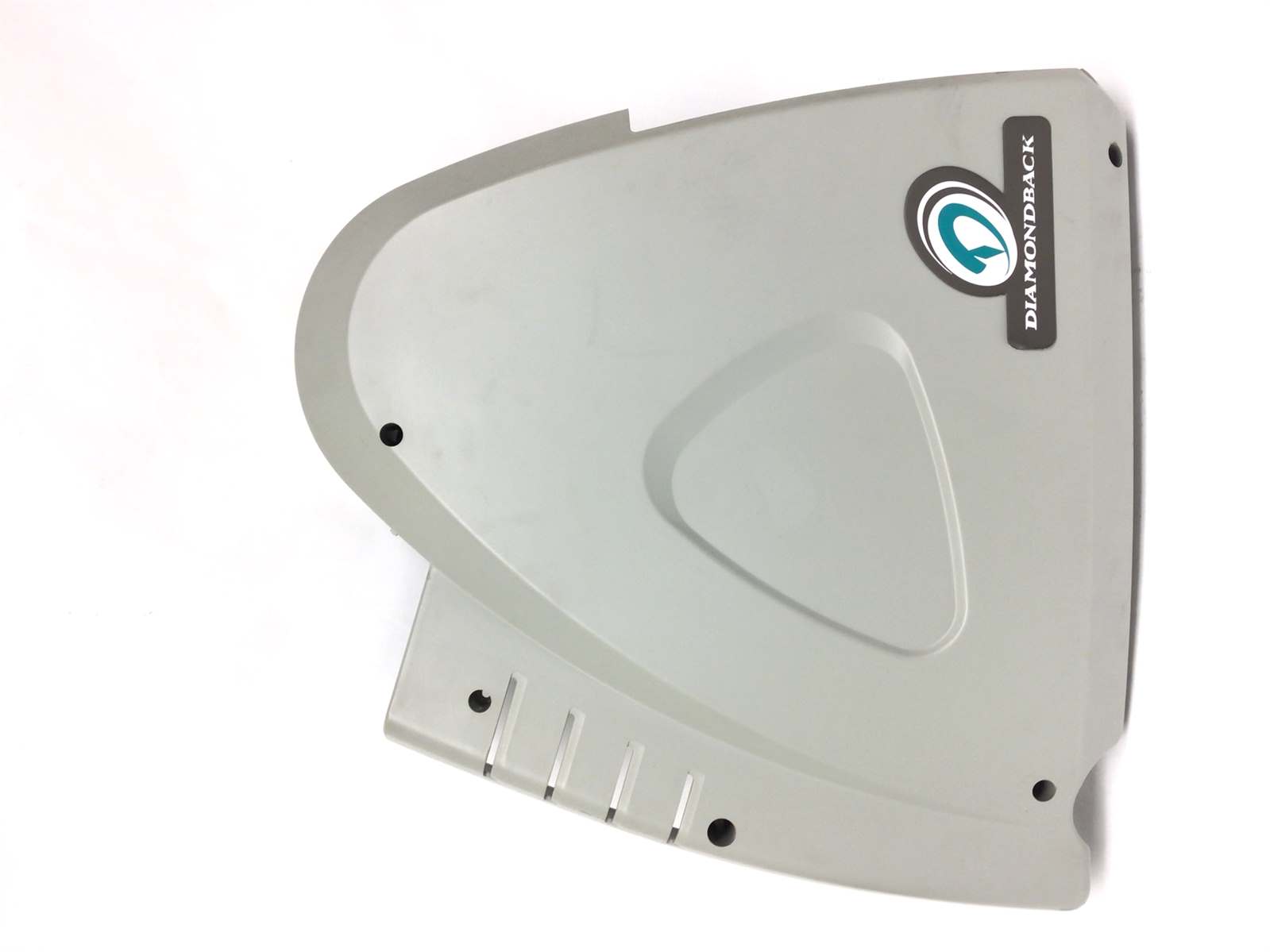

Left Hand Side Cover (Used) 1035022 22-19-196 0 1 Left Hand Side Cover (Used) No Model Compatibility List $49.00 / Each

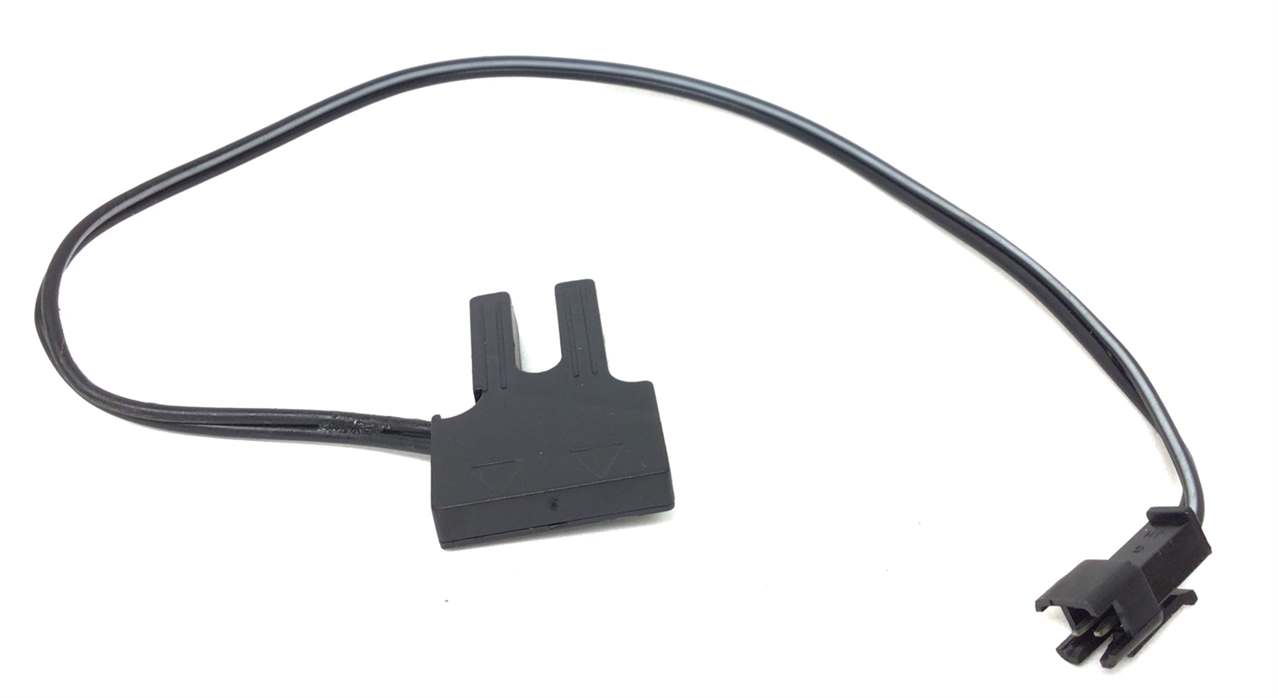

RPM Speed Sensor Reed Switch 2 Terminal Wire (Used) 1035034 22-19-200 0 1 RPM Speed Sensor Reed Switch 2 Terminal Wire (Used) No Model Compatibility List $15.99 / Each

Left Pedal Arm (Used) 1035183 22-19-202 0 1 Left Pedal Arm (Used) No Model Compatibility List $50.00 / Each

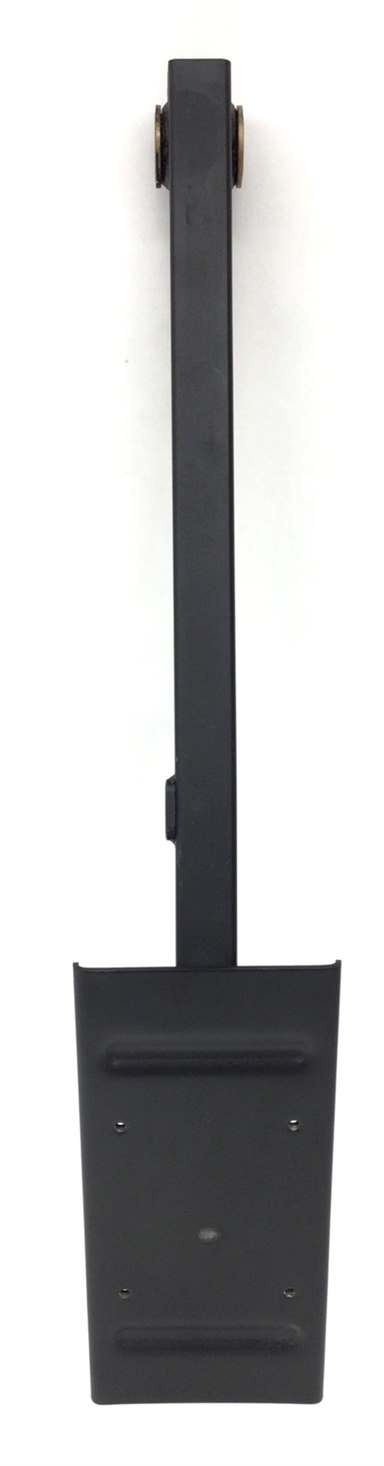

Right Foot Pedal Arm With Pedal Plate (Used) 1035031 22-19-203 0 1 Right Foot Pedal Arm With Pedal Plate (Used) No Model Compatibility List $50.00 / Each

Right Side Cover (Used) 1035008 22-19-203 0 1 Right Side Cover (Used) No Model Compatibility List $49.00 / Each

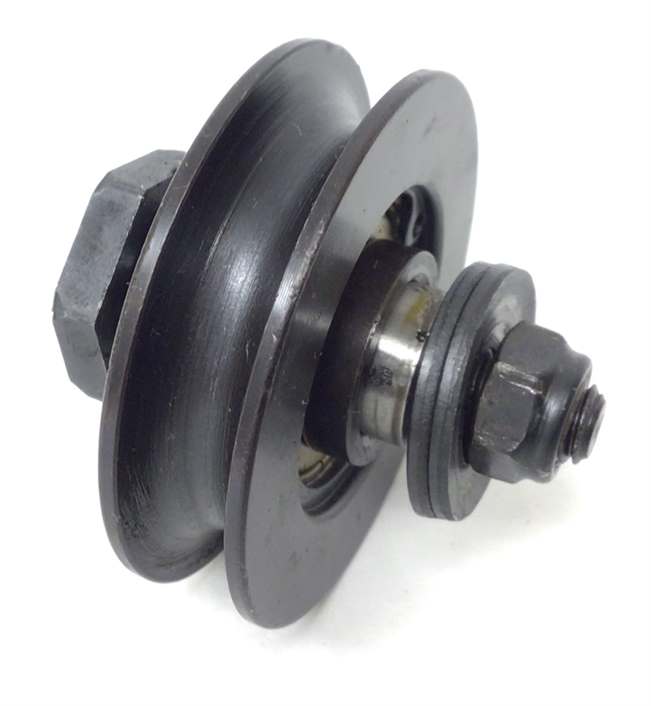

Cable Pulley With Hardware (Used) 1035035 600ES-CPWH 0 1 Cable Pulley With Hardware (Used) No Model Compatibility List $24.99 / Each

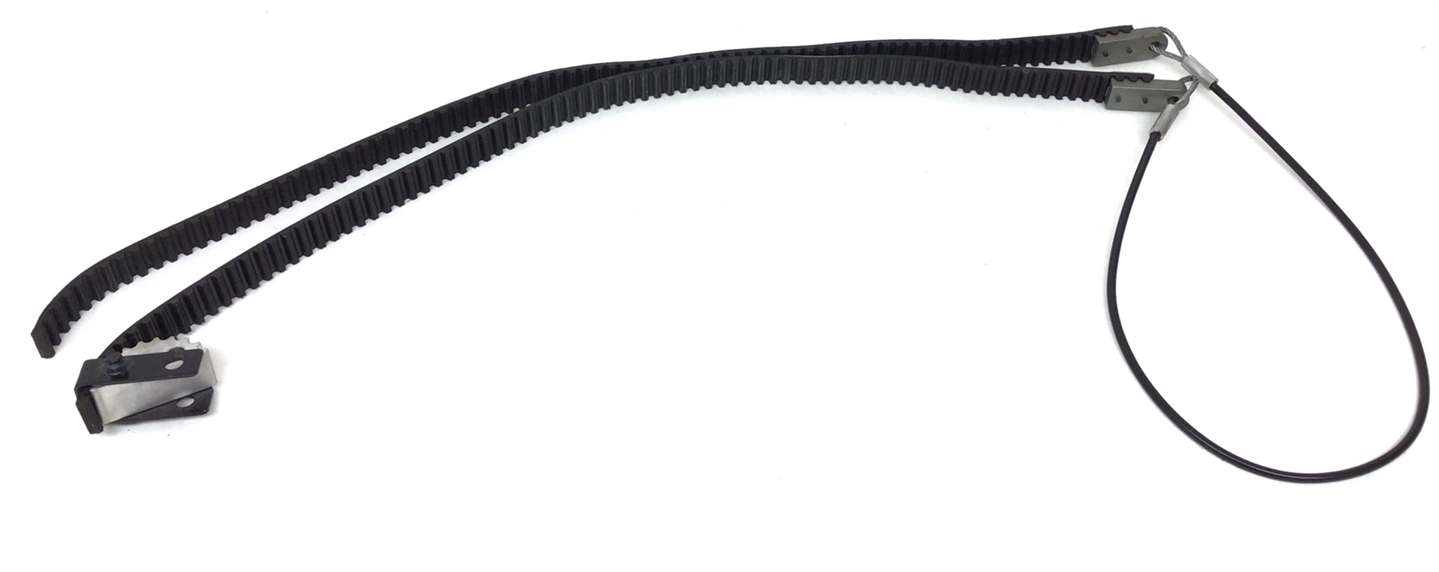

Cogged Notched Stepper Belt Plus Drive Cable (Used) 1035040 600ES-CNSBPDC 0 1 Cogged Notched Stepper Belt Plus Drive Cable (Used) No Model Compatibility List $119.00 / Each

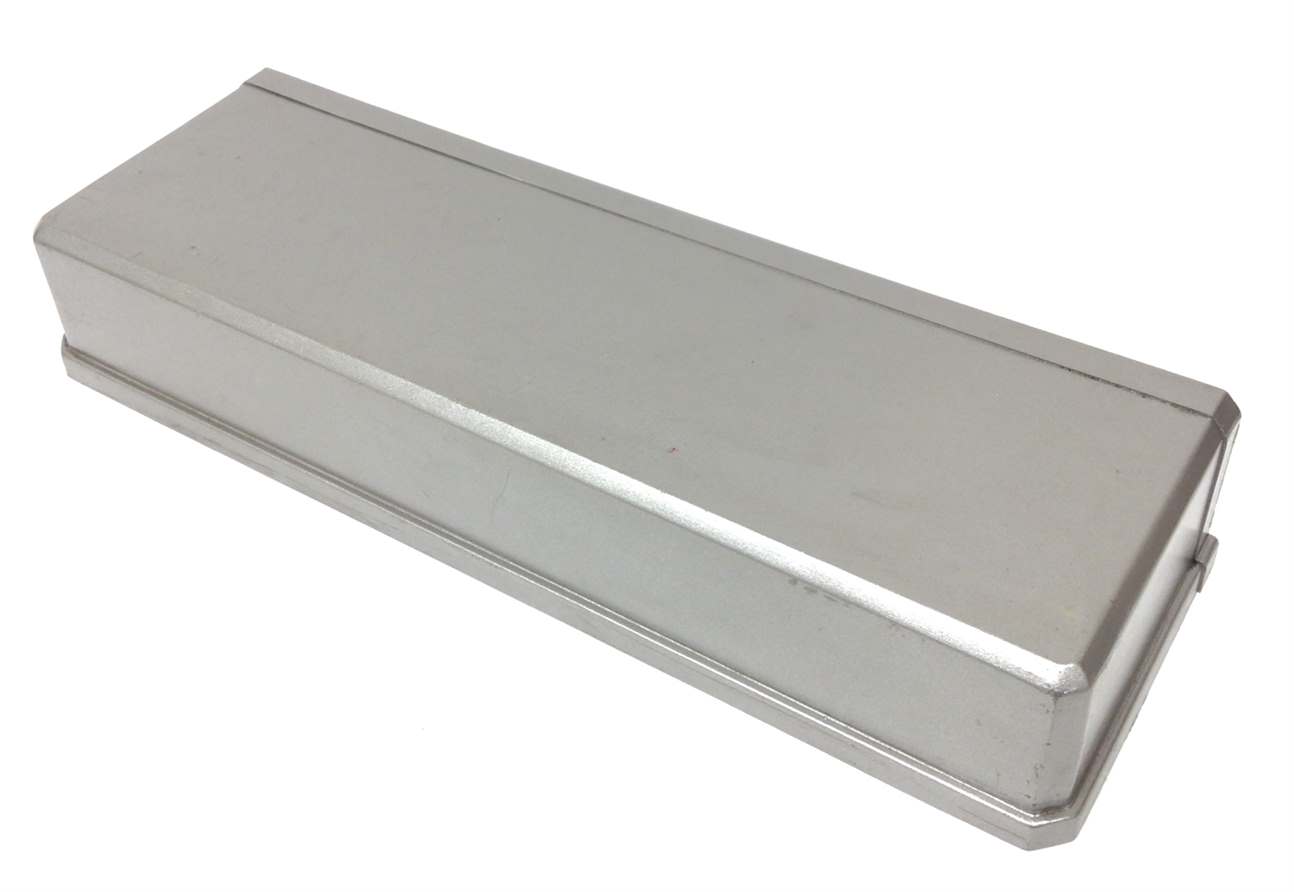

Cover Trim (Used) 1035010 600ES-CTRM 0 1 Cover Trim (Used) No Model Compatibility List $9.99 / Each

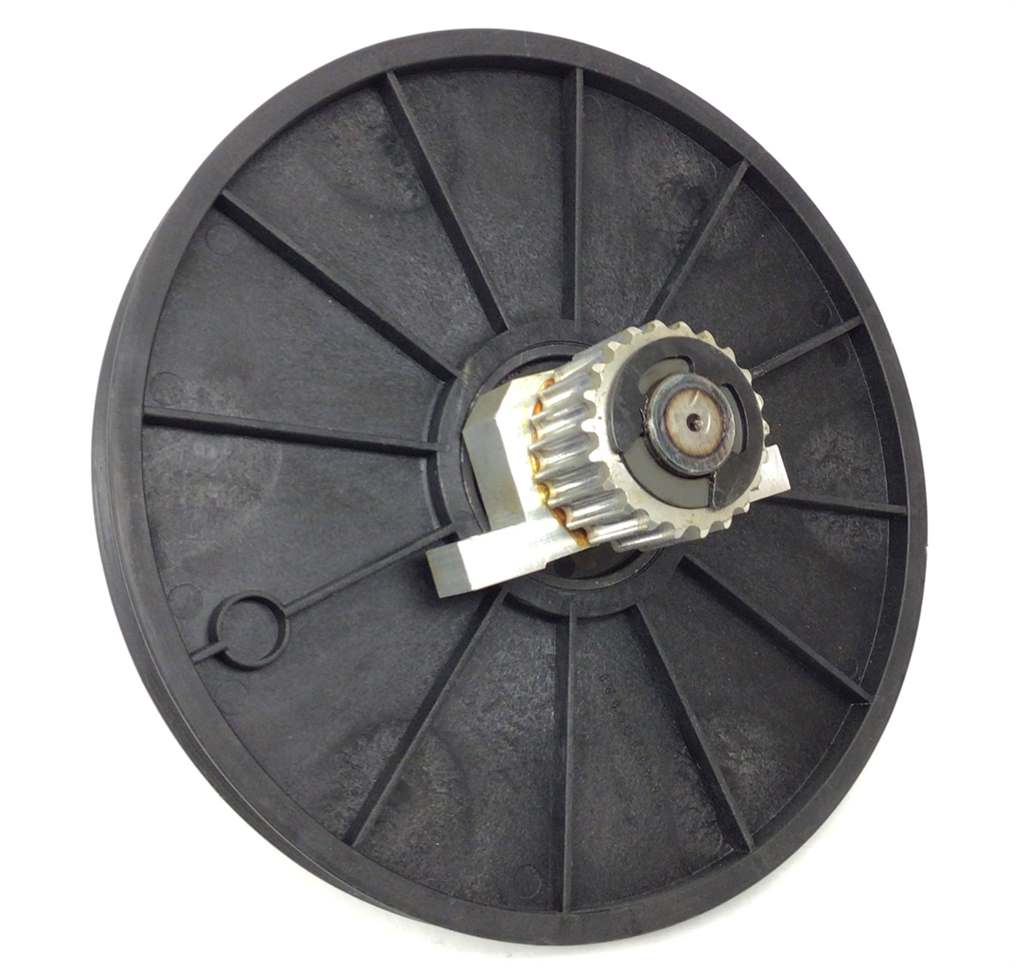

Drive Pulley Axle Assembly With Notched Freewheel (Used) 1035021 600ES-DPAAWNFW 0 1 Drive Pulley Axle Assembly With Notched Freewheel (Used) No Model Compatibility List $119.00 / Each

Interconnect Wire Harness (Used) 1035033 600ES-ICWH 0 1 Interconnect Wire Harness (Used) No Model Compatibility List $21.99 / Each

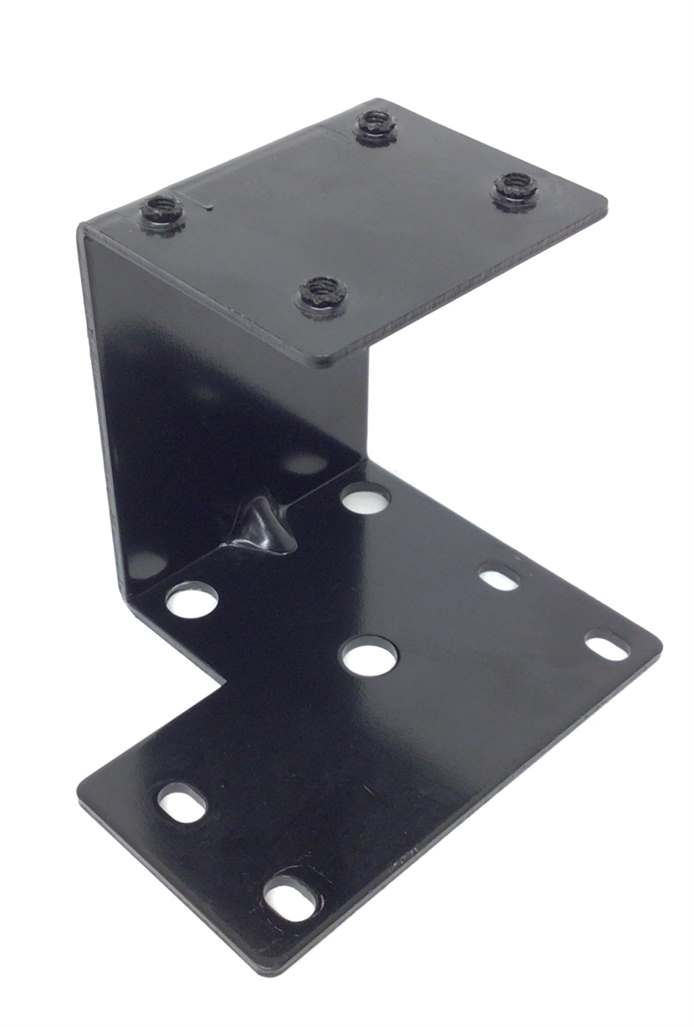

Mounting Bracket Weldment (Used) 1035023 600ES-MBW 0 1 Mounting Bracket Weldment (Used) No Model Compatibility List $14.99 / Each

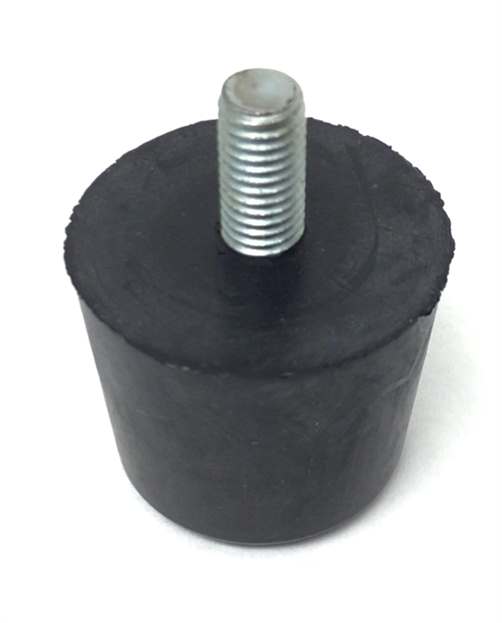

Pedal Arm Adjustable Stop Rubber (Used) 1035038 600ES-PAASR 0 1 Pedal Arm Adjustable Stop Rubber (Used) No Model Compatibility List $14.99 / Each

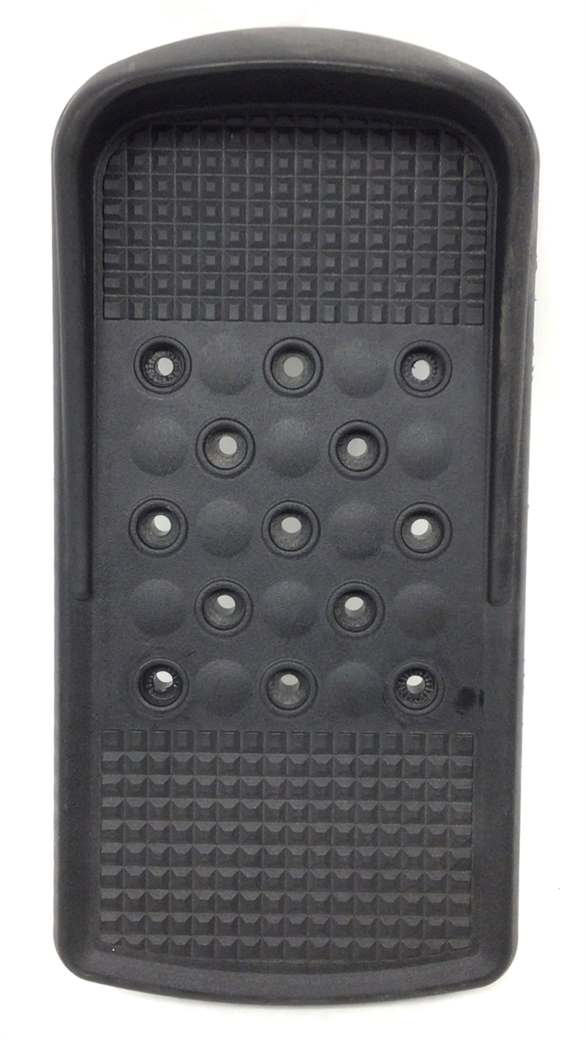

Pedal Stairarm Left Or Right (Used) 1035027 600ES-PSLOR 0 1 Pedal Stairarm Left Or Right (Used) No Model Compatibility List $49.99 / Each

Pulley Idler with Mounting Bracket (Used) 1035007 600ES-PIWMB 0 1 Pulley Idler with Mounting Bracket (Used) No Model Compatibility List $5.00 / Each

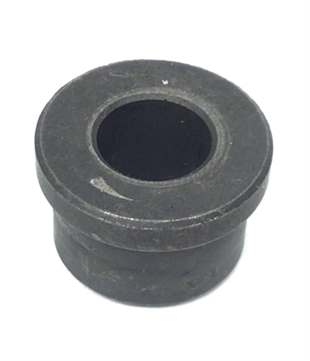

Small Adjustment Bushing (Used) 1035009 600ES-SAB 0 1 Small Adjustment Bushing (Used) No Model Compatibility List $5.00 / Each

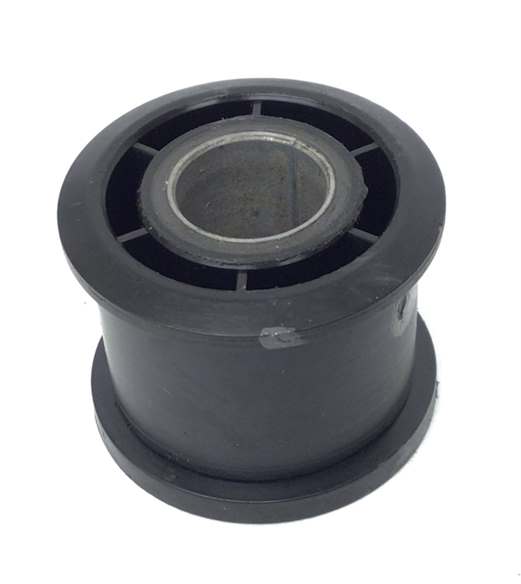

Tension Idler Pulley Roller Wheel (Used) 1035025 600ES-TIPRW 0 1 Tension Idler Pulley Roller Wheel (Used) No Model Compatibility List $12.99 / Each

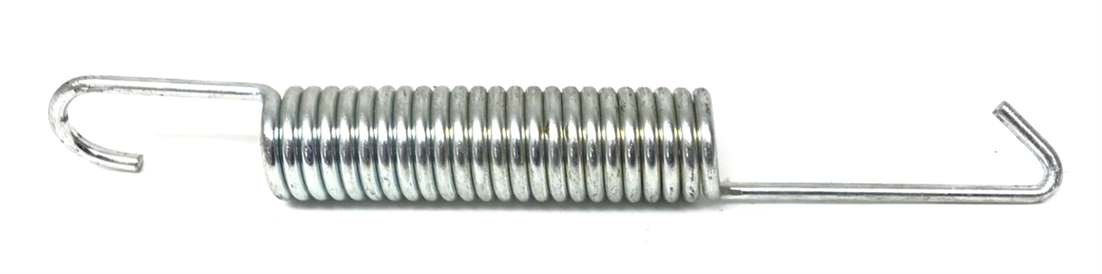

Tension Spring (Used) 1035036 600ES-TS 0 1 Tension Spring (Used) No Model Compatibility List $6.99 / Each

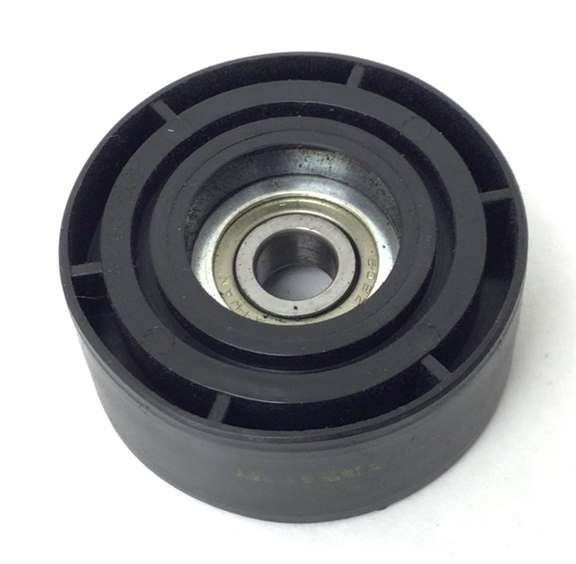

Tensioner Pulley (Used) 1035011 600ES-TP 0 1 Tensioner Pulley (Used) No Model Compatibility List $14.99 / Each

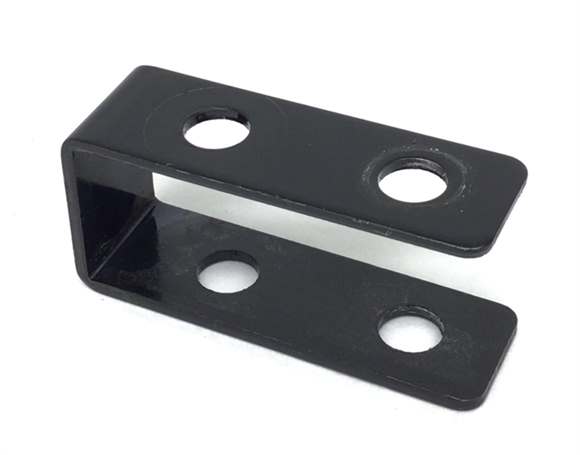

U Selector Bracket (Used) 1035012 600ES-USB 0 1 U Selector Bracket (Used) No Model Compatibility List $9.99 / Each

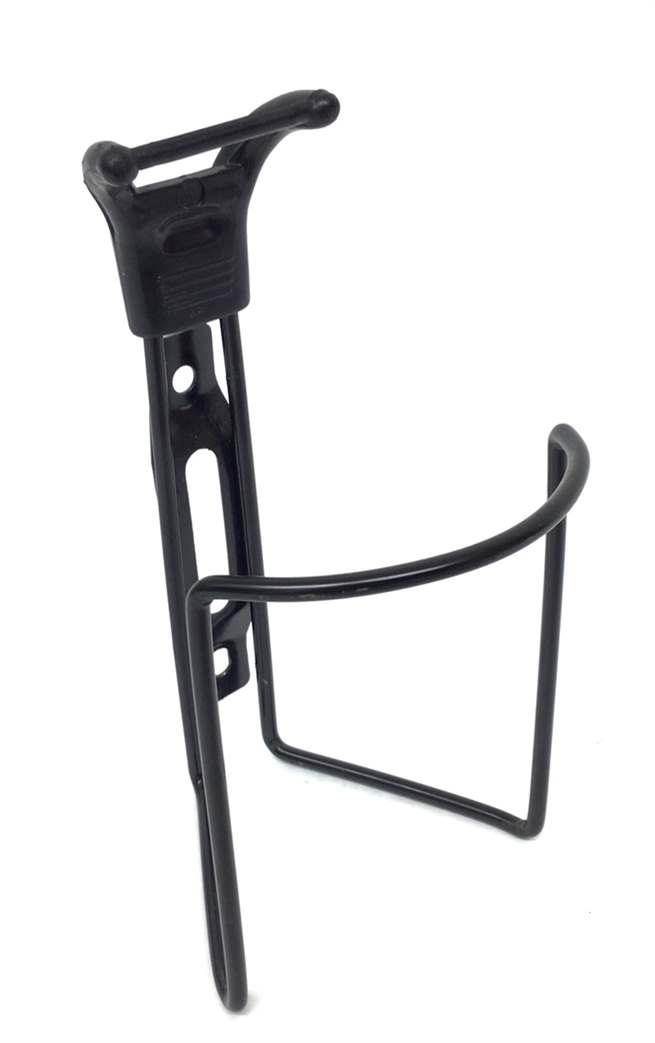

Water Bottle Holder Metal (Used) 1035026 600ES-WBHM 0 1 Water Bottle Holder Metal (Used) No Model Compatibility List $14.99 / Each

Heart Rate Pulse Grip Sensor (Used) 1010047 Sensor-047 Heart Rate Pulse Grip Sensor (Used) Yes Model Compatibility List $18.99 / Each
Out Of Stock
View Drawing
