EPIC - EVOLUTION

Repair Parts for EPIC EVOLUTION EBRTL395140

Brand: EPIC

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: EVOLUTION

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
5/16 100139 100427 20 5/16" NUT Yes Model Compatibility List $0.46 / Each

2,40
5/16 100126 101630 6 5/16" STAR WASHER No Model Compatibility List $0.16 / Each

2
4 100115 109407 # 4" BLK WIRE F/F, POWER Yes Model Compatibility List $2.93 / Each

1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
RELEASABLE WIRE TIE 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,4,2
3/8 100031 119425 16A 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
3/8 100136 012149 16B 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

100114 124783 # 4" WHT WIRE F/F, POWER No Model Compatibility List $2.21 / Each

4,5,6
4 100112 126146 # 4" BLU WIRE F/F, DR MOTOR Yes Model Compatibility List $2.43 / Each

4,5,6
3/16-7/32 100190 128457 # 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
WIRE TIE 100073 132315 45 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
100184 013282 # #10 HANDLEBAR SCREW No Model Compatibility List $0.21 / Each

#8 X 3/4 100149 013300 32 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

#8 X 3/4 100124 013322 4A #8 X 3/4" SCREW No Model Compatibility List $1.25 / Each

0
#8 HOOD CLIP 100032 133333 13 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

2,9,1,46
5/16" X 1 1/2" SCREW 100138 013500 19 5/16" X 1 1/2" SCREW No Model Compatibility List $3.92 / Each

5/16 100125 013556 5 5/16" X 3/4" SCREW No Model Compatibility List $1.14 / Each

M4.2 X 13MM SCREW 100005 013576 4B M4.2 X 13MM SCREW Yes Model Compatibility List $1.25 / Each

#8 X 3/4 100132 013607 14A #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

#8 X 1/2 100137 136728 18 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
WHEEL 100151 139090 34 WHEEL Yes Model Compatibility List $2.11 / Each

8,45
#10 STAR WASHER 100142 014088 23 #10 STAR WASHER No Model Compatibility List $0.07 / Each

#8 STAR WASHER 100141 014157 22 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

100189 141995 # 8" BLK WIRE M/F, DR MTR Yes Model Compatibility List $3.31 / Each

4,5,6
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
8 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

3/8 100123 163045 3 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $0.50 / Each

2
100188 163254 # 10" RED WIRE M/F, DR MTR Yes Model Compatibility List $3.59 / Each

4,5,6
#10 X 3/4 100128 167049 8 #10 X 3/4" SCREW No Model Compatibility List $0.32 / Each

2
3/8 100135 174320 15B 3/8"-16X1 1/2" HEX BOLT Yes Model Compatibility List $2.29 / Each

2,41
3/8 100134 179767 15A 3/8"X1 3/4" BOLT INC TOP Yes Model Compatibility List $43.87 / Each

2
POWER SWITCH 100201 186726 55 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
#8 X 1/2 100120 186819 1A #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
100129 195683 9 3/8" X 2 1/2" BOLT Yes Model Compatibility List $12.19 / Each

2
BELT GUIDE 100147 198639 30 BELT GUIDE Yes Model Compatibility List $4.44 / Each

15,40
KEY/CLIP 100072 208603 62 KEY/CLIP Yes Model Compatibility List $17.99 / Each

1
INCLINE MOTOR WIRE HRNS 12 100163 211260 49C INCLINE MOTOR WIRE HRNS 12 No Model Compatibility List $9.27 / Each

4,5,6,10,12,13,14
FOOT RAIL FLAT WASHER 100024 213894 10 FOOT RAIL FLAT WASHER No Model Compatibility List $0.46 / Each

2,9,46
6 100212 214773 # 6" GRN WIRE F/R, PWR GRND Yes Model Compatibility List $2.27 / Each

4,5,6
ACCESS DOOR 100167 215158 56 ACCESS DOOR No Model Compatibility List $1.18 / Each

4,5,6
Ground Wire 4 Inch 100187 215822 # Ground Wire 4 Inch Yes Model Compatibility List $2.09 / Each

4,5,6,7
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
1 TUBE LUBE KIT 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $8.84 / Each

23
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
UPRIGHT GROMMET 100182 227199 73 UPRIGHT GROMMET Yes Model Compatibility List $1.55 / Each

2,3,1
100175 239057 65 ROUND HANDRAIL CAP No Model Compatibility List $0.69 / Each

9,3
100185 240351 # ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
RECEPTACLE 100070 242387 53 RECEPTACLE Yes Model Compatibility List $11.36 / Each

4,5,6,1
IDLER ROLLER 100052 248571 42 IDLER ROLLER Yes Model Compatibility List $159.69 / Each

26
100178 252433 69 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3,1
DRIVE MOTOR BELT 100158 260687 44 DRIVE MOTOR BELT Yes Model Compatibility List $60.18 / Each

23
100183 262087 74 PORTUGUESE CAUTION DECAL No Model Compatibility List $9.32 / Each

7,3
100077 262088 47 PORTUGUESE WARNING DECAL No Model Compatibility List $8.36 / Each

7,3
100213 263228 # 8" GRN WIRE F/R, CNTRLR Yes Model Compatibility List $3.60 / Each

7,4,5,6
1/4 100143 265234 25 1/4" X 1 1/4" SCREW No Model Compatibility List $1.24 / Each

2
100117 268476 # DECAL, GROUNG WARNING No Model Compatibility List $0.91 / Each

7,3,1
WALKING BELT 100155 270359 40 WALKING BELT Part #40 Yes Model Compatibility List $121.52 / Each

15

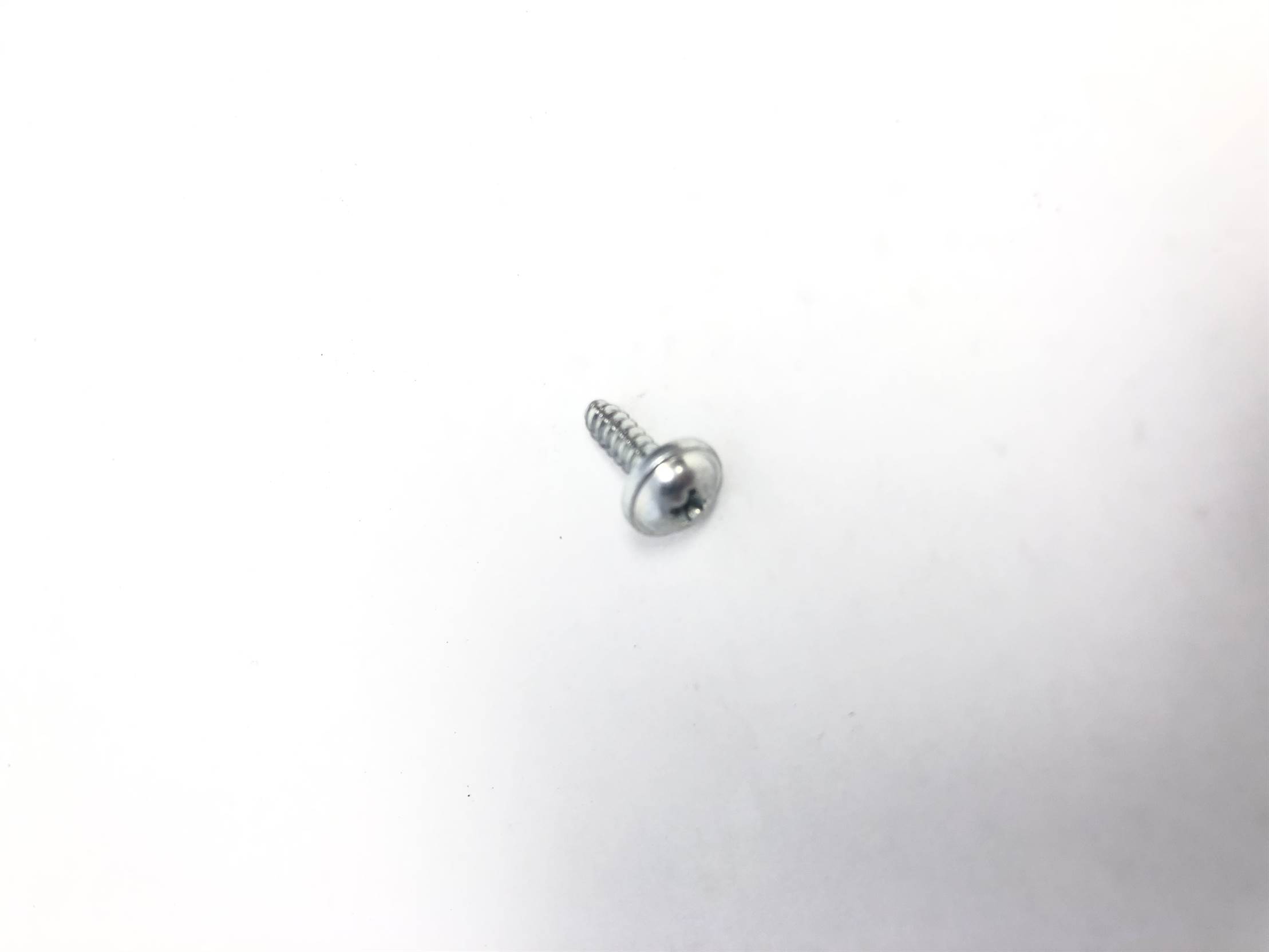

M4 X 8MM PULSE GND SCREW 100121 276105 1B M4 X 8MM PULSE GND SCREW Part #80 on drawing No Model Compatibility List $1.79 / Each

2,12,13,14
3/8 100122 278652 2 3/8" X 3 1/4" SCREW Part #2 On Drawing No Model Compatibility List $14.24 / Each

2
INCLINE FRAME WASHER 100144 283997 26 INCLINE FRAME WASHER No Model Compatibility List $1.23 / Each

2,3,10
INCLINE MOTOR SENSOR KIT 100162 286707 49B INCLINE MOTOR SENSOR KIT No Model Compatibility List $50.13 / Each

47
#8X5/8 100133 291486 14B #8X5/8" DECKRAIL SCREW No Model Compatibility List $0.28 / Each

2,3,9
1/4 100014 295756 17 1/4" MOTOR SCREW No Model Compatibility List $0.99 / Each

1
3/8 100131 301976 12 3/8" X 1" BOLT No Model Compatibility List $1.72 / Each

2
100037 305284 29 LATCH WARNING DECAL No Model Compatibility List $1.50 / Each

7,3,1,40
100179 306715 70 BASE CAP No Model Compatibility List $1.11 / Each

9,3,46
THIN BASE PAD,1/4 100181 307031 72 THIN BASE PAD,1/4" THK No Model Compatibility List $1.43 / Each

3,12,13,14,46
THICK BASE PAD 100180 307032 71 THICK BASE PAD Yes Model Compatibility List $2.76 / Each

3,12,13,14,46,40
100170 315023 59 LEFT HANDRAIL No Model Compatibility List $32.28 / Each

9,3
LEFT REAR FOOT 100157 315053 43 LEFT REAR FOOT Yes Model Compatibility List $22.36 / Each

9
RIGHT REAR FOOT 100159 315054 46 RIGHT REAR FOOT Yes Model Compatibility List $22.36 / Each
9
100174 315058 64 RIGHT HANDRAIL No Model Compatibility List $32.28 / Each

9,3
100171 315063 60 HANDRAIL CAP No Model Compatibility List $2.96 / Each

9,3
100172 315065 61 CONSOLE CROSSBAR Yes Model Compatibility List $61.27 / Each

7
LIFT FRAME BUSHING 100164 315067 50 LIFT FRAME BUSHING No Model Compatibility List $11.24 / Each

3,8,10,40
100140 315068 21 LIFT FRAME PIN No Model Compatibility List $6.00 / Each

3,10,12,13,14,2
100196 315093 # HARDWARE KIT, NOTE: No Model Compatibility List $27.83 / Each

1
100169 315124 58 CONSOLE BASE Yes Model Compatibility List $96.98 / Each

7,3
INCLINE MOTOR - AC Lift Motor 100209 315689 49A INCLINE MOTOR - AC Lift Motor Yes Model Compatibility List $131.26 / Each

1
UPRIGHT WIRE 100173 315691 63 UPRIGHT WIRE Yes Model Compatibility List $51.76 / Each

3,4,5,6
DRIVE ROLLER/PULLEY 100148 315693 31 DRIVE ROLLER/PULLEY Yes Model Compatibility List $153.66 / Each

8,10
5/16 100127 315783 7 5/16"-18 X 3" BUTTON HEAD SCREW Yes Model Compatibility List $3.44 / Each

2
100165 317486 51 LIFT FRAME No Model Compatibility List $100.10 / Each

3,10
100150 318091 33 RIGHT UPRIGHT No Model Compatibility List $109.31 / Each

3
100176 318092 66 LEFT UPRIGHT No Model Compatibility List $124.07 / Each

3
M6 X 55MM SCREW 100130 319894 11 M6 X 55MM SCREW Yes Model Compatibility List $4.80 / Each

2
100166 325681 52 BELLY PAN No Model Compatibility List $91.64 / Each

1
100192 342523 # TECH SHEET No Model Compatibility List $0.00 / Each
Out Of Stock 		1

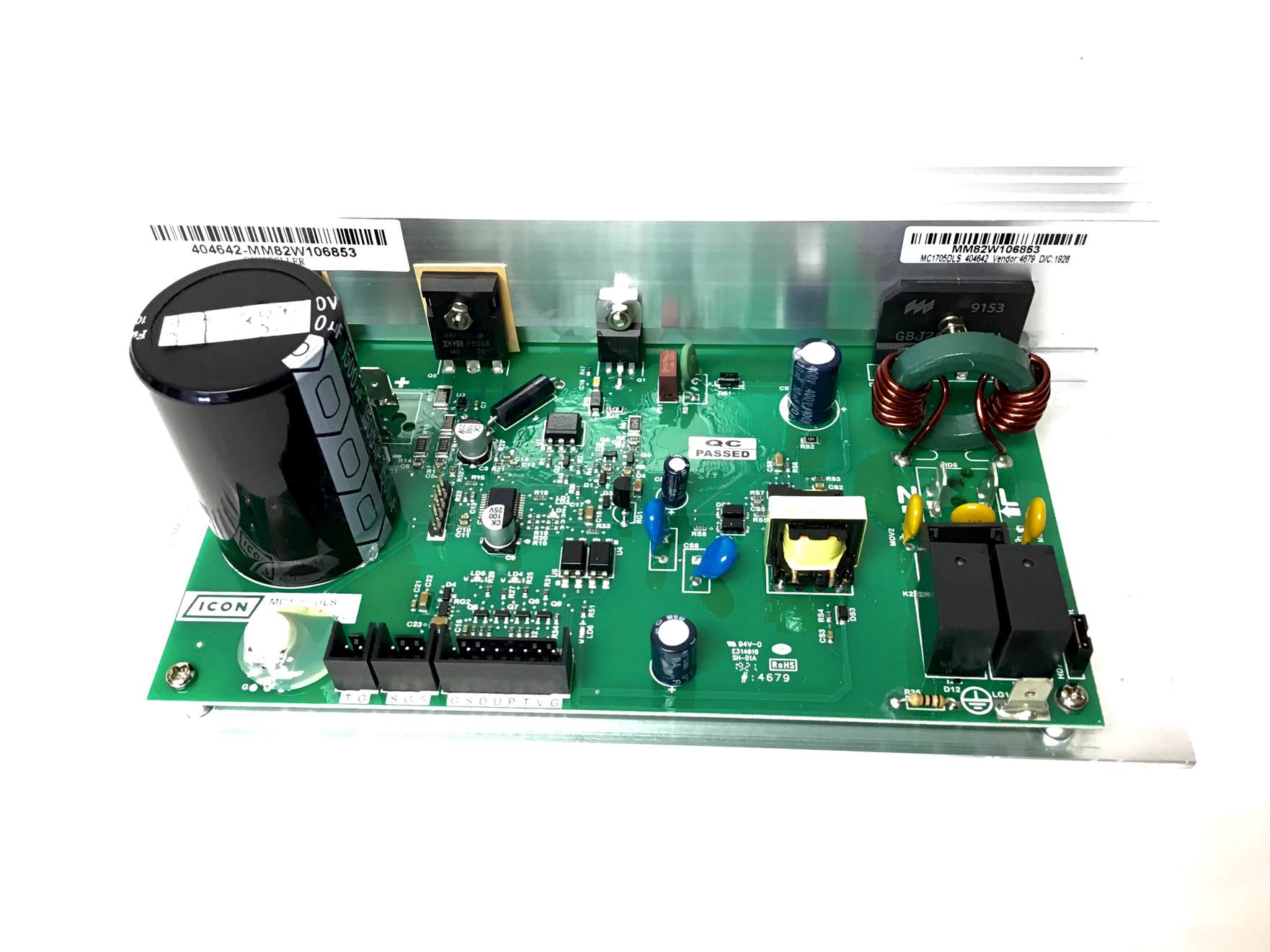

CONTROLLER 100208 405827 36 CONTROLLER No Model Compatibility List $186.09 / Each

7,8
DRIVE MOTOR 100104 405707 35 DRIVE MOTOR Yes Model Compatibility List $350.98 / Each

10
100211 349816 67B LATCH PLATE No Model Compatibility List $10.64 / Each

1,40
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
LATCH PIN ASSEMBLY 100198 358339 67A LATCH PIN ASSEMBLY Yes Model Compatibility List $46.42 / Each

12,13,14
100216 358506 # LITPAC, NOTE: No Model Compatibility List $91.27 / Each

4,5,6
100214 358507 # USER-S MANUAL, ENGLISH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
100215 358508 # USER-S MANUAL, PTRGS No Model Compatibility List $0.00 / Each
Out Of Stock 		1
100145 358511 27 LEFT FOOT RAIL No Model Compatibility List $50.46 / Each

9
100156 358512 41 RIGHT FOOT RAIL No Model Compatibility List $50.46 / Each

9
100146 358513 28 PLATFORM CUSHION No Model Compatibility List $0.00 / Each
Out Of Stock 		3
100160 358514 48 MOTOR HOOD No Model Compatibility List $50.46 / Each

9
100154 358515 39 WALKING PLATFORM No Model Compatibility List $0.00 / Each
Out Of Stock 		15
100177 358516 68 BASE No Model Compatibility List $144.42 / Each

3
100210 358517 57 CONSOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		7
100202 359938 54 POWER CORD No Model Compatibility List $80.41 / Each

4,5,6
100153 365327 37 CONTROLLER PLATE No Model Compatibility List $18.74 / Each

7,8
1 5/32 100191 045023 # 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
Black Wire Harness 2F 4 013318 109407 0 1 Black Wire Harness 2F 4" Yes Model Compatibility List $15.99 / Each

1
Bolt 3/8-16-1.50 Inches (Used) 1026116 174320 3 1 Bolt 3/8-16-1.50 Inches (Used) Yes Model Compatibility List $2.29 / Each

2,41
Incline Lift Elevation Motor 1000508 315689 0 1 Incline Lift Elevation Motor Yes Model Compatibility List $125.99 / Each

1
Walking Running Belt Treadbelt 18" W x 104" 1000514 270359 0 1 Walking Running Belt Treadbelt 18" W x 104" Yes Model Compatibility List $110.00 / Each

15
Incline Motor Sensor Kit 1003656 286707 # 1 Incline Motor Sensor Kit No Model Compatibility List $50.13 / Each

47
Wire Harness 1004195 211260 TS06 1 Wire Harness No Model Compatibility List $9.27 / Each

4,5,6,10,12,13,14
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Belt Guide 1008212 198639 53 1 Belt Guide Yes Model Compatibility List $4.44 / Each

15,40
Screw 1008631 291486 18A 1 Screw No Model Compatibility List $0.28 / Each

2,3,9
Transport Wheel 1009938 139090 61 1 Transport Wheel Yes Model Compatibility List $2.11 / Each

8,45
Front Platform Bolt 1010869 013500 0 1 Front Platform Bolt No Model Compatibility List $13.99 / Each

Idler Pulley Nut 1010877 100427 12 1 Idler Pulley Nut Yes Model Compatibility List $0.46 / Each

2,40
5/16 1010889 101630 0 1 5/16" Star Lock Washer No Model Compatibility List $11.99 / Each

2
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
Incline Motor Wire Harness 1010893 211260 TS06 1 Incline Motor Wire Harness No Model Compatibility List $9.27 / Each

4,5,6,10,12,13,14
Right Rear Foot 1010906 315054 0 1 Right Rear Foot Yes Model Compatibility List $29.99 / Each

9
Lift Frame Bushing 1010909 315067 62 1 Lift Frame Bushing No Model Compatibility List $11.24 / Each

3,8,10,40
Flat Washer 7/32 1010911 213894 129 1 Flat Washer 7/32" No Model Compatibility List $0.46 / Each

2,9,46
Thick Base Foot 1010914 307032 100 1 Thick Base Foot Yes Model Compatibility List $2.76 / Each

3,12,13,14,46,40
Thick Base Pad 1/4 1010915 307031 117B 1 Thick Base Pad 1/4" No Model Compatibility List $1.43 / Each
Out Of Stock 		3,12,13,14,46
Screw M4.2 X 8MM 1010917 276105 0 1 Screw M4.2 X 8MM No Model Compatibility List $19.99 / Each

2,12,13,14
Screw 3/8 1010918 278652 0 1 Screw 3/8" X 3 1/4" No Model Compatibility List $25.99 / Each

2
Star Lock Washer 3/8 1010919 163045 8 1 Star Lock Washer 3/8" Yes Model Compatibility List $0.50 / Each

2
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
Folding Spring Latch Pin 1004179 358339 Folding Spring Latch Pin Yes Model Compatibility List $49.99 / Each
12,13,14
Motor Controller Board 1000860 342567 Motor Controller Board No Model Compatibility List $159.99 / Each
Out Of Stock
Flexonic Motor Drive Belt 1002930 260687 Flexonic Motor Drive Belt Yes Model Compatibility List $16.99 / Each
23
Motor Drive Belt 1002931 311589 or 284712 Motor Drive Belt Yes Model Compatibility List $58.99 / Each

Front Drive Pulley Roller 1001977 315693 Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8,10
Motor Drive Belt 1001383 260687 Motor Drive Belt Yes Model Compatibility List $21.99 / Each

23
Idler Rear Roller 1003171 248571 Idler Rear Roller Yes Model Compatibility List $99.99 / Each

26
DC Drive Motor 1003597 DC Drive Motor DC Drive Motor Yes Model Compatibility List $299.00 / Each

Motor Drive Belt 1002562 260687 or 255589 Motor Drive Belt No Model Compatibility List $14.00 / Each
Out Of Stock
CONTROLLER PLATE 1037621 315047 CONTROLLER PLATE Yes Model Compatibility List $8.00 / Each

7,8,48,1,40
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
