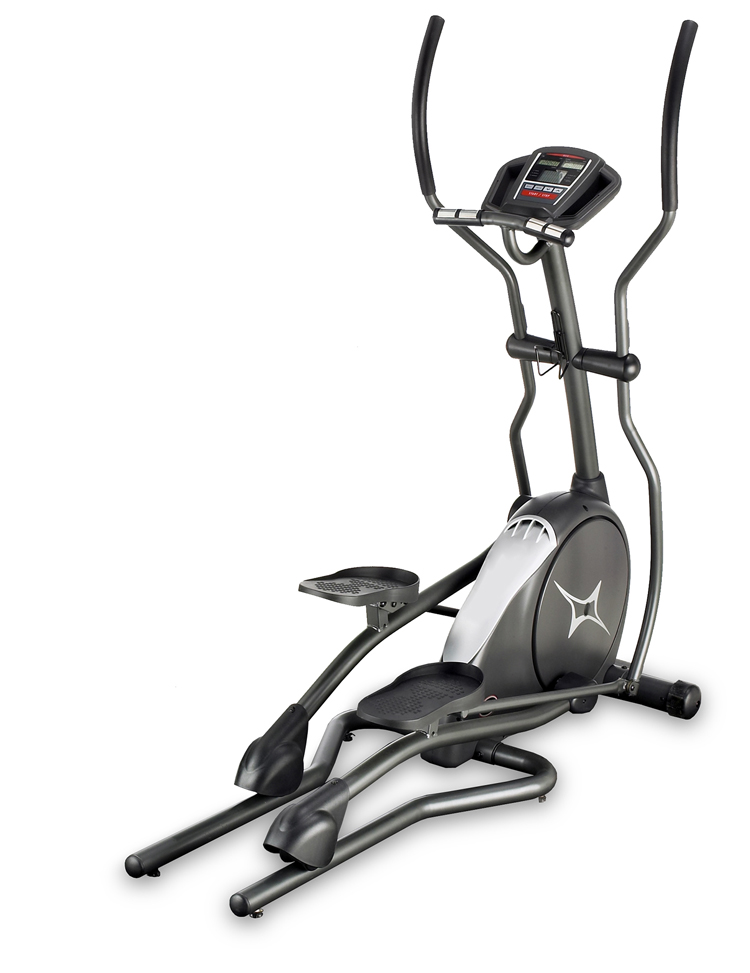

Fitnessgear - 821E - 2008 - 2009

Repair Parts for Fitnessgear 821E EP175

Brand: Fitnessgear

Category: Traditional

Type: Elliptical

Model Name: 821E

Version: 2008 - 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - X01 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
L 700009 000014-00 L05 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
Q 700033 000130-F Q01 Side Cover;Right Yes Model Compatibility List $49.71 / Each

9
Q 700051 000203-C Q15 Boot;Console Mast No Model Compatibility List $3.54 / Each

7
700132 000485-00 F09 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F08 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700191 000609-A G21 Foam Grip;Handlebar;31.8x28x3.0tx500L No Model Compatibility List $9.57 / Each

4
C 700257 000798-A C12 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
700318 000940-A C06 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

G 700364 001136-CC G45 Cover;Handlebar;Rear No Model Compatibility List $3.54 / Each

9,11
G 700365 001137-CC G46 Cover;Handlebar;Front No Model Compatibility List $3.54 / Each

9,11
E 700367 001138-BC E56 Cover;Pedal Arm;Right No Model Compatibility List $8.87 / Each

8,9,3
E 700369 001139-BC E57 Cover;Pedal Arm;Left No Model Compatibility List $8.87 / Each

8,9,3
Q 700376 001161-C Q19 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
E 700386 001188-BC E62 Cover;Roller Wheel No Model Compatibility List $11.70 / Each

8,9
G 700408 001271-BC G44 Sleeve;BL;EP28;EP28-Q05B No Model Compatibility List $1.85 / Each

3
L 700432 001360-00 L02 Sleeve;Mobile Wheel Yes Model Compatibility List $3.82 / Each

8,3
Q 700455 001412-A Q17 End Cap;Crank Cover No Model Compatibility List $1.77 / Each
Out Of Stock 		8,9
P 700770 002231-B P04 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R18 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701050 003478-A2 P05 Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

6
E 701089 003709-00 E54 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
701121 003905-D R02 Eight Grooves Pulley;260;Nylon+30%Fiber; (Order Set) No Model Compatibility List $0.00 / Each
Out Of Stock 		8
R 701159 004077-A2 R08 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

701221 004189-A R10 Drive Belt;Poly-V;410-J8 Yes Model Compatibility List $57.49 / Each

15,10
L 701270 004331-AB L08 Screw,oval head; M6x1.0Px25L No Model Compatibility List $2.00 / Each

2
S 701294 004359-00 S03 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

701308 004369-00 C09 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

E 701332 004385-00 E60 Screw;BH;M5X0.8PX12L;;PH;;BAN;; Yes Model Compatibility List $1.79 / Each

701343 004389-00 N08 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
N 701351 004400-00 N12 Screw;Phillip;BH;M5x0.8Px6L;Black;;Zn-BL No Model Compatibility List $1.79 / Each

2,4,5,6
N 701573 004607-00 N11 Screw;Phillip;BH;Tapped;2x6L;Zn+3(White No Model Compatibility List $1.85 / Each

2
P 701574 004608-00 P06 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701586 004617-00 Q30 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701588 004618-00 E64 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701612 004631-00 Z09 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

Z 701633 004654-00 Z12 SCREW;RND;Diam.4X15L;SM;PH;;BZN;;POT No Model Compatibility List $3.69 / Each

2
R 701650 004691-A R13 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 Z10 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

H 701713 004730-00 H10 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

701731 004757-00 Z04 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

701737 004762-00 Z22 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.00 / Each

2
Z 701743 004767-00 Z01 Screw;Hex Socket;BH;M8x1.25Px70L(Tooth12) No Model Compatibility List $1.79 / Each

2
701781 004796-00 Z15 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
G 701830 004849-00 G30 Set Screw;M8x1.25Px10L No Model Compatibility List $2.00 / Each

2
701848 004865-00 P07 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701869 004891-00 R16 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

701893 004925-00 E22 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 H08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R15 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

Z 701906 004932-Z Z02 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
Z 701912 004941-00 Z07 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701927 004964-00 R11 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

C 701937 004973-00 C08 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
G 701988 005026-00 G20 Washer;Flat;25.5x35.0x1.0T No Model Compatibility List $2.00 / Each

2
702018 005053-00 G22 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
E 702020 005055-00 E67 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
702029 005061-00 R17 Washer;Flat;10.5x18x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702040 005070-00 L10 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Q 702063 005091-00 Q43 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

702076 005109-00 E69 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
G 702078 005110-00 G12 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
E 702141 005171-A E63 Washer;Arc;4.2x15x1.0T No Model Compatibility List $1.85 / Each

2
702161 005198-00 H07 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
G 702163 005200-A G23 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

Z 702166 005206-BB Z06 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
702180 005222-00 E13 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
G 702184 005227-Z G19 Washer;Wavy;26x34x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702186 005229-00 Z08 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

702193 005239-00 R51 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 Q26 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

E 702237 005362-00 E68 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

R 702240 005365-00 R34 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702241 005366-00 G15 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

Z 702253 005382-00 Z17 Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

702254 005386-00 Z19 Wrench;Open;17mm No Model Compatibility List $4.00 / Each

2
702263 005411-Z Z18 Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

Z 702264 005412-00 Z16 Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

702291 005492-C Q41 Spring;;;;;;EP28 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
702343 006292-BX V17 Guid Rai;Lable No Model Compatibility List $0.00 / Each
Out Of Stock 		1
702483 007964-00 Q25 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

G 702571 008692-D G09 Inner Bushing;Lower Link Arm No Model Compatibility List $1.90 / Each

8,3
R 702601 008914-B R12 Nut;Fixing;S46C;AN04 M20x1.0Px6t;BED; No Model Compatibility List $4.00 / Each

S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
702909 013200-Z R02 Pedal Axle Set No Model Compatibility List $157.64 / Each

8,9
E 703582 015589-AA E42 Connecting Plate;Footpad;Platinum Yes Model Compatibility List $9.57 / Each

9,3,12,13,14
P 703917 019344-A P03 Console Cable;1500(220 400 150) No Model Compatibility List $57.49 / Each

7,4,5,6
P 704264 022066-B P01 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
705700 055204-A L06 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

R 705921 056539-AX R03 Drive Axle Set No Model Compatibility List $172.46 / Each

Q 705927 056550-00 Q44 Screw;Umbrella Cross;;M4x0.7Px20L;;;Elec No Model Compatibility List $1.66 / Each

2
705984 058009-A AZ2 Semi-Assy;Screw Kit;1;;;EP162;EP162-AZ2; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
705985 058010-A AZ3 Semi-Assy;Screw Kit;2;;;EP162;EP162-AZ3; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
705986 058011-A AZ4 Semi-Assy;Screw Kit;3;;;EP162;EP162-AZ4; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
705987 058012-A AZ5 Semi-Assy;Screw Kit;4;;;EP162;EP162-AZ5; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
705988 058013-A AZ6 Semi-Assy;Screw Kit;N;;;EP162;EP162-AZ6; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
705989 058015-A AZ8 Semi-Assy;Screw Kit;N;;;EP162;EP162-AZ8; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
P 706730 065071-A P08 Pulse Grip No Model Compatibility List $35.46 / Each

12,13,14,11
A 707190 1000091143 AJ1 Crank Set; No Model Compatibility List $191.62 / Each

8
A 707199 1000091165 AE3 Pivot Tube Set; No Model Compatibility List $57.49 / Each

8,3
709055 1000108777 G50 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

E 725255 103295 E32 Bushing;Pedal Arm Axle;31.8x3.0tx329mm No Model Compatibility List $20.12 / Each

8,9,3
725259 103299 H09 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Console Set; D/C, NO REPL Part will show as orderable until stock is depleted 725506 072194 AN1 Console Set; D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $383.27 / Each

Owners Manual 725509 072269 V31 Owners Manual No Model Compatibility List $8.87 / Each

Decal; Side Cover 725510 072274 V06 Decal; Side Cover No Model Compatibility List $3.54 / Each

Accent Piece-821E 725741 075510 Q16 Accent Piece-821E No Model Compatibility List $61.33 / Each

Cover,Crank-821E - D/C, NO REPL: Part will show as orderable until stock is depleted 725876 077618 Q03 Cover,Crank-821E - D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $104.05 / Each

Hardware Pack 725904 078124 AZ1 Hardware Pack No Model Compatibility List $61.93 / Each

Hand Arm Set 725923 078399 AG5 Hand Arm Set No Model Compatibility List $44.75 / Each

Link Arm,Lower,Left-821E 725963 078678 AH2 Link Arm,Lower,Left-821E No Model Compatibility List $168.12 / Each

Link Arm,Lower,Right-821E 725964 078679 AH1 Link Arm,Lower,Right-821E No Model Compatibility List $168.12 / Each

725965 078680 AE1 Pedal Arm-821E No Model Compatibility List $240.92 / Each

Guide Rail,Left-821E 725966 078681 F02 Guide Rail,Left-821E No Model Compatibility List $132.13 / Each

Guide Rail,Right-821E 725967 078682 F01 Guide Rail,Right-821E No Model Compatibility List $142.71 / Each

Roller Wheel-821E 725968 078683 E03 Roller Wheel-821E No Model Compatibility List $57.49 / Each

Handlebar,Upper,Left-821E 725969 078684 AG2 Handlebar,Upper,Left-821E No Model Compatibility List $82.21 / Each

Handlebar,Upper,Right-821E 725972 078714 AG1 Handlebar,Upper,Right-821E No Model Compatibility List $82.21 / Each

Steel Rope;400L+66L 726621 083556 M06 Steel Rope;400L+66L Yes Model Compatibility List $14.74 / Each

Foot Pedal - Used 1006234 008202-C Foot Pedal - Used No Model Compatibility List $25.99 / Each
Out Of Stock 		9
P 1004184 003478-A2 P05 AC Adapter Power Supply Cord Yes Model Compatibility List $38.99 / Each
Out Of Stock 		6
S 1003402 012847-00 S01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
Round Internal Endcap 1012460 intr-rnd-60 Round Internal Endcap Yes Model Compatibility List $5.99 / Each

Screw w/Arc & Spring Washer 1009021 004738-00 Screw w/Arc & Spring Washer Yes Model Compatibility List $17.99 / Each

H 976932 004926-00 H08 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q26 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

P 911958 004608-00 P06 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

Open Key Wrench 13x15 (New) 972262 005382-00  Open Key Wrench 13x15 (New) Yes Model Compatibility List $17.99 / Each
