Freespirit - SPIRIT 110

Repair Parts for Freespirit SPIRIT 110 831.305090

Brand: Freespirit

Category: Residential Ellipticals

Type: Elliptical

Model Name: SPIRIT 110

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
ADJUSTMENT BRACKET 116059 100128 81 ADJUSTMENT BRACKET No Model Compatibility List $2.29 / Each

2,3,4,5,6
116429 104536 75 TENSION BOLT No Model Compatibility List $4.17 / Each

2
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
ROLLER MAGNET 100081 113842 43 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
DRIVE BELT 101018 119199 56 DRIVE BELT Yes Model Compatibility List $68.07 / Each

23
M6 NUT 100663 012111 60 M6 NUT Yes Model Compatibility List $3.31 / Each

M6 LOCKNUT 101429 012142 59 M6 LOCKNUT No Model Compatibility List $1.98 / Each

120029 121501 51 M6 X 16MM BUTTON SCREW No Model Compatibility List $2.00 / Each

2
M10 SPLIT WASHER 101359 121519 70 M10 SPLIT WASHER No Model Compatibility List $4.44 / Each

2
116957 127551 49 M6 X 23MM BOLT No Model Compatibility List $0.69 / Each

2
RSW CLAMP 100079 131090 69 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
119875 013424 73 M5 X 12MM SCREW No Model Compatibility List $3.77 / Each

M4 X 5MM SCREW 117099 013497 64 M4 X 5MM SCREW No Model Compatibility List $2.57 / Each

M5 X 16MM BOLT 102106 013550 62 M5 X 16MM BOLT No Model Compatibility List $1.60 / Each

BEARING 100657 139703 40 BEARING Yes Model Compatibility List $24.46 / Each

1
101783 139975 78 REED SWITCH BRACKET No Model Compatibility List $3.80 / Each

2,3,4,5,6
M6 WASHER 101370 014003 93 M6 WASHER No Model Compatibility List $1.55 / Each

102104 014122 90 M5 WASHER No Model Compatibility List $0.08 / Each

M8 SPLIT WASHER 100665 014174 100 M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

LARGE SNAP RING 100654 143742 21 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

1
M4 X 16MM SCREW 100668 144985 66 M4 X 16MM SCREW No Model Compatibility List $0.22 / Each

2
M10 LOCKNUT 100540 148710 29 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
M5 NYLON LOCKNUT 100690 150327 61 M5 NYLON LOCKNUT No Model Compatibility List $1.17 / Each

2
M8 X 40MM BUTTON SCREW 102047 153770 50 M8 X 40MM BUTTON SCREW Yes Model Compatibility List $10.57 / Each

2
M4 X 52MM SCREW 101799 154848 67 M4 X 52MM SCREW No Model Compatibility List $1.23 / Each

2
JACK 100386 158332 # JACK Yes Model Compatibility List $7.66 / Each

1
100706 165288 # IFIT SPLITTER No Model Compatibility List $11.26 / Each

1
120302 175577 30 UPRIGHT BUSHING No Model Compatibility List $17.67 / Each

8,3
115027 175592 28 FRONT PEDAL ARM BUSHING No Model Compatibility List $37.39 / Each

8,9,3
FRAME SPACER 120315 175903 83 FRAME SPACER No Model Compatibility List $3.67 / Each
Out Of Stock 		2,3,4,5,6
120365 175915 85 RESISTANCE CABLE No Model Compatibility List $7.19 / Each
Out Of Stock 		4,5,6,10
FLYWHEEL BEARING 101781 177035 42 FLYWHEEL BEARING No Model Compatibility List $63.94 / Each

8
106036 178529 102 M8 X 19MM BUTTON SCREW No Model Compatibility List $2.38 / Each
Out Of Stock 		2
M10 X 112MM CARRIAGE BOLT 119993 180005 34 M10 X 112MM CARRIAGE BOLT No Model Compatibility List $10.60 / Each

1
M10 X 88MM BUTTON BOLT 106031 180009 63 M10 X 88MM BUTTON BOLT No Model Compatibility List $12.44 / Each

1
102046 181791 27 BOLT SET No Model Compatibility List $20.39 / Each

2
FLYWHEEL AXLE 120305 183659 44 FLYWHEEL AXLE No Model Compatibility List $14.69 / Each

8
120309 183878 52 "C" MAGNET BRACKET Yes Model Compatibility List $23.67 / Each

2,3,4,5,6,8
REED SWITCH WIRE 100080 185207 77 REED SWITCH WIRE Yes Model Compatibility List $13.34 / Each

47
M8 X 25MM PATCH SCREW 102049 186409 22 M8 X 25MM PATCH SCREW No Model Compatibility List $2.32 / Each

2
UPPER BODY ENDCAP 101655 189558 71 UPPER BODY ENDCAP Yes Model Compatibility List $5.11 / Each

4,5,6,9
WATER BOTTLE HOLDER 101258 191629 105 WATER BOTTLE HOLDER Yes Model Compatibility List $21.45 / Each

1
100796 193109 104 M8 SMALL WASHER No Model Compatibility List $2.78 / Each

2
RESISTANCE MOTOR 100647 193223 55 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
M4 X 19MM SCREW 100588 194878 74 M4 X 19MM SCREW Yes Model Compatibility List $2.16 / Each

2
M6 X 72MM BUTTON SCREW 120303 197038 33 M6 X 72MM BUTTON SCREW No Model Compatibility List $2.32 / Each

2
115303 197610 11 FOAM GRIP No Model Compatibility List $55.41 / Each

11
LOWER WIRE HARNESS 30 120316 197779 87 LOWER WIRE HARNESS 30" Yes Model Compatibility List $65.86 / Each

4,5,6
UPRIGHT WIRE 45 115526 197781 86 UPRIGHT WIRE 45" Yes Model Compatibility List $48.75 / Each

3,4,5,6
120306 198000 53 M8.5MM SMALL WASHER No Model Compatibility List $0.52 / Each

2
120979 203521 # INTERACTIVE MEDIA CD No Model Compatibility List $46.05 / Each

4,5,6
WAVE WASHER 101362 204489 95 WAVE WASHER No Model Compatibility List $2.99 / Each

2,4,5,6
101802 208818 101 M8 X 42MM BUTTON BOLT No Model Compatibility List $4.80 / Each

2
M8-1.25 X 25MM BUTTON SCREW 100678 208855 82 M8-1.25 X 25MM BUTTON SCREW No Model Compatibility List $4.29 / Each

2
100696 209251 84 M4 X 12MM SCREW No Model Compatibility List $0.25 / Each

2
120296 212305 12 RIGHT PEDAL No Model Compatibility List $62.06 / Each

8,9
115266 212821 97 PIVOT AXLE No Model Compatibility List $55.66 / Each

8
M3 X 12MM SCREW 112958 220047 96 M3 X 12MM SCREW No Model Compatibility List $2.13 / Each

2
120357 221950 31 LEFT FRONT ENDCAP No Model Compatibility List $7.00 / Each

9,4,5,6
120290 222327 4 REAR STABILIZER No Model Compatibility List $59.84 / Each

1
120289 222328 3 FRONT STABILIZER No Model Compatibility List $100.74 / Each

1
120358 222329 32 WHEEL No Model Compatibility List $5.35 / Each

8
120363 222330 68 RIGHT FRONT ENDCAP No Model Compatibility List $7.00 / Each

9,4,5,6

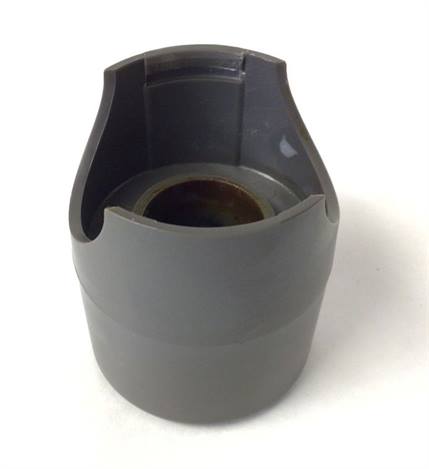

HANDLEBAR SPACER 115251 222332 25 HANDLEBAR SPACER Yes Model Compatibility List $8.92 / Each

9,11
115250 222334 23 HANDLEBAR CAP No Model Compatibility List $5.81 / Each

9,11
120352 222336 7 RIGHT SIDE SHIELD No Model Compatibility List $121.51 / Each

3
120351 222337 6 LEFT SIDE SHIELD No Model Compatibility List $162.72 / Each

3
115238 222338 8 RIGHT PEDAL DISC No Model Compatibility List $146.03 / Each
Out Of Stock 		8,9
120354 222340 13 LEFT PEDAL No Model Compatibility List $55.20 / Each
Out Of Stock 		8,9
115247 222345 18 PEDAL ARM BUSHING No Model Compatibility List $54.00 / Each
Out Of Stock 		8,9,3
115267 222347 92 PEDAL ARM SLEEVE No Model Compatibility List $13.02 / Each

8,9,3
161434 222348 14 LEFT PEDAL ARM No Model Compatibility List $120.75 / Each

8,9,3
161436 222349 103 RIGHT PEDAL ARM No Model Compatibility List $129.51 / Each

8,9,3
120361 222498 57 HUB No Model Compatibility List $117.13 / Each
Out Of Stock 		1
120355 222500 17 ADJUSTMENT PIN No Model Compatibility List $50.41 / Each
Out Of Stock 		12,13,14
120368 222624 # DECAL, LEFT PEDAL STRIDE No Model Compatibility List $4.63 / Each

7,8,9,3
120369 222625 # DECAL, RIGHT PEDAL STRIDE No Model Compatibility List $4.63 / Each

7,8,9,3
M8 X 50MM BUTTON SCREW 100675 222790 89 M8 X 50MM BUTTON SCREW No Model Compatibility List $1.54 / Each

2
M8-1.25 X 65MM BUTTON SCREW 100674 223125 99 M8-1.25 X 65MM BUTTON SCREW Yes Model Compatibility List $5.58 / Each

2
120299 223330 16 PEDAL BRACKET No Model Compatibility List $16.98 / Each

2,8,9,3,4,5,6
151978 223527 91 13MM SPACER No Model Compatibility List $3.53 / Each

2,3,4,5,6
ADJUSTMENT SPRING 3.94X.86 115248 223621 19 ADJUSTMENT SPRING 3.94X.86" Yes Model Compatibility List $14.96 / Each

2
101326 223895 37 PULLEY No Model Compatibility List $104.53 / Each
Out Of Stock 		8
120362 228496 58 HUB SPACER No Model Compatibility List $3.81 / Each

2,3,4,5,6
176355 228556 # USER-S MANUAL - ENGLISH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
176356 228557 # USER-S MANUAL - FRENCH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
LARGE SNAP RING 100795 229541 94 LARGE SNAP RING No Model Compatibility List $3.16 / Each

2
176354 230552 48 HUB COVER No Model Compatibility List $10.33 / Each

9
120295 231154 9 LEFT HANDLEBAR No Model Compatibility List $83.02 / Each

11
120364 231156 79 HANDLEBAR LEG No Model Compatibility List $74.11 / Each

11
161433 231157 2 UPRIGHT No Model Compatibility List $134.41 / Each

3
SPRING 120312 234898 76 SPRING Yes Model Compatibility List $12.03 / Each

2
120356 238882 20 ADJUSTMENT BRACKET No Model Compatibility List $108.00 / Each
Out Of Stock 		2,3,4,5,6
161435 244887 36 LEFT CRANK ARM No Model Compatibility List $110.84 / Each

8,3
115789 249159 # TRANSFORMER No Model Compatibility List $21.95 / Each

1
FLANGE SCREW 100677 249938 47 FLANGE SCREW No Model Compatibility List $47.34 / Each

2
LIFT BUSHING 101392 256295 24 LIFT BUSHING No Model Compatibility List $4.64 / Each

8,10
100823 258868 # DECAL, GENERAL WARNING No Model Compatibility List $0.24 / Each

7,3
100824 258873 # DECAL, GENERAL WRNG, FR No Model Compatibility List $2.21 / Each

7,3
104569 259817 65 M6 X 20MM SCREW No Model Compatibility List $1.44 / Each

2
5MM ALLEN WRENCH 100604 045008 # 5MM ALLEN WRENCH Yes Model Compatibility List $3.85 / Each

6MM ALLEN WRENCH 100541 045021 # 6MM ALLEN WRENCH Yes Model Compatibility List $5.28 / Each

M6 Split Washer Lock 1019810 012142 79 4 M6 Split Washer Lock No Model Compatibility List $1.79 / Each

Magnet Brake Assembly (Used) 1022575 197875 54 1 Magnet Brake Assembly (Used) No Model Compatibility List $130.54 / Each

1
Bolt M10 X 88MM 000019 180009 80 1 Bolt M10 X 88MM No Model Compatibility List $23.99 / Each

1
RCA Plug Adapter 013380 158332 0 1 RCA Plug Adapter Yes Model Compatibility List $13.99 / Each

1
Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Elliptical Reed Switch RPM Speed Sensor 1000577 185207 Elliptical Reed Switch RPM Speed Sensor Yes Model Compatibility List $12.99 / Each
47
Reed Switch RPM Speed Sensor 1000578 185207 Reed Switch RPM Speed Sensor Yes Model Compatibility List $21.99 / Each

47
Pulley Drive Belt 1003082 119199 Pulley Drive Belt Yes Model Compatibility List $29.99 / Each

23
Speed RPM Sensor Reed Switch 1002533 185207 Speed RPM Sensor Reed Switch Yes Model Compatibility List $14.99 / Each

47
Large Bearing (New) 1003396 139703 Large Bearing (New) Yes Model Compatibility List $29.99 / Each

1
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
M8 Small Washer (New) 013727 193109 M8 Small Washer (New) Yes Model Compatibility List $12.99 / Each

2
