Good Family - FAMILY N1100

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

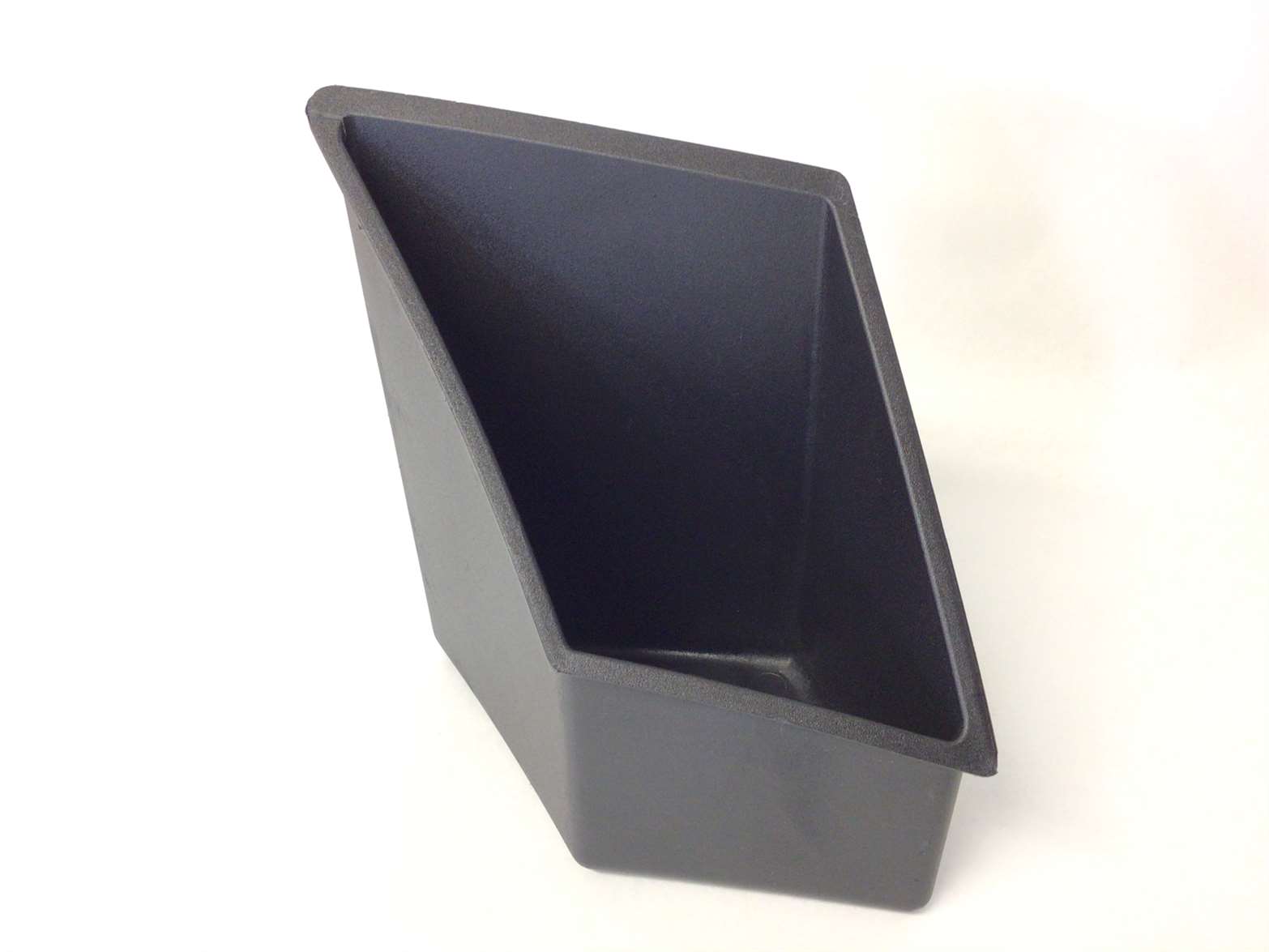

RIGHT TRAY (Used) 1021193 192734 111 1 RIGHT TRAY (Used) No Model Compatibility List $19.86 / Each
Out Of Stock
9

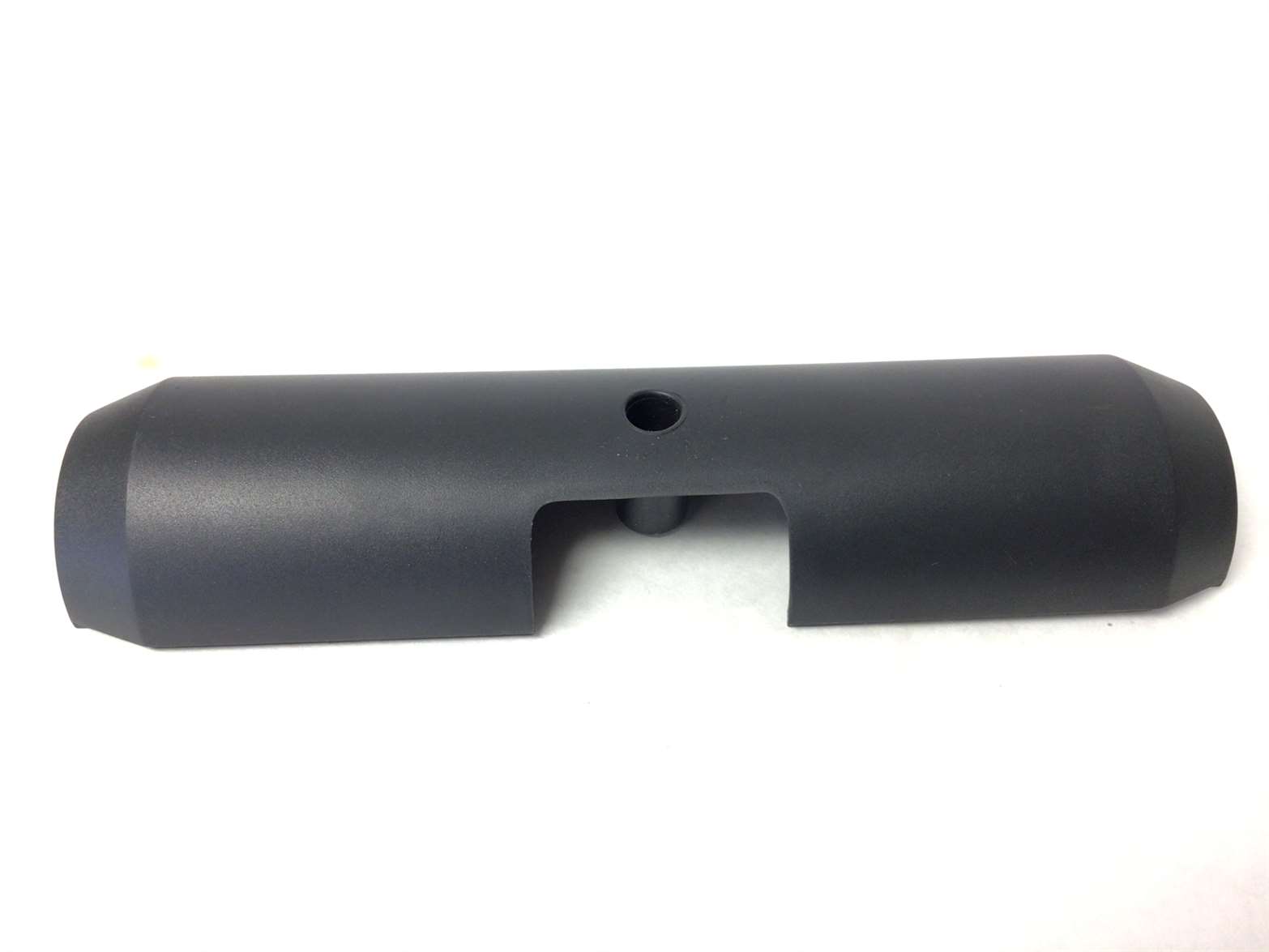

Cover Cage Handlebar - Bottom (Used) 1021166 224555 0 1 Cover Cage Handlebar - Bottom (Used) No Model Compatibility List $4.99 / Each

9

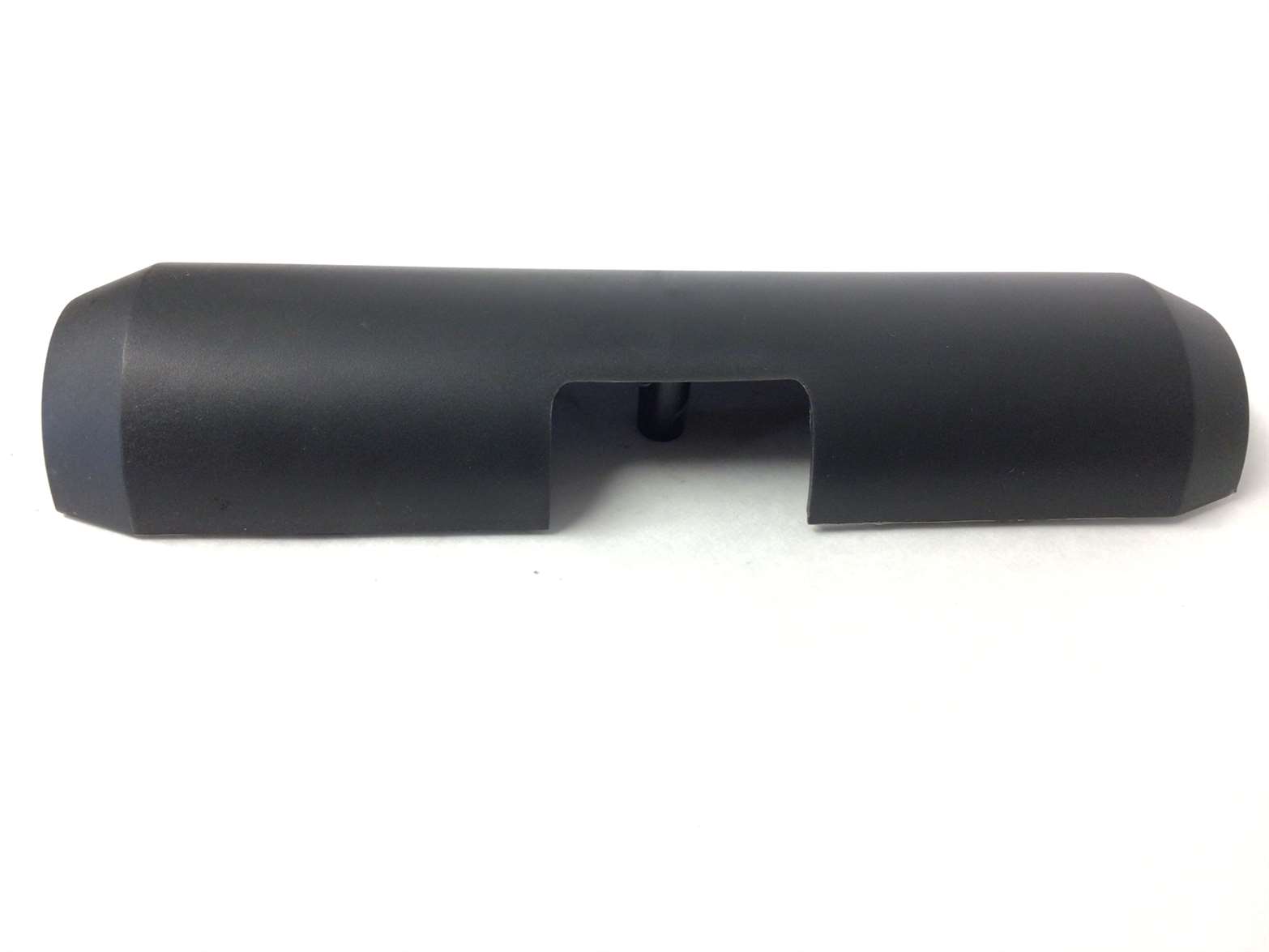

Cover Cage Handlebar - Top (Used) 1021153 224556 0 1 Cover Cage Handlebar - Top (Used) No Model Compatibility List $4.99 / Each

9

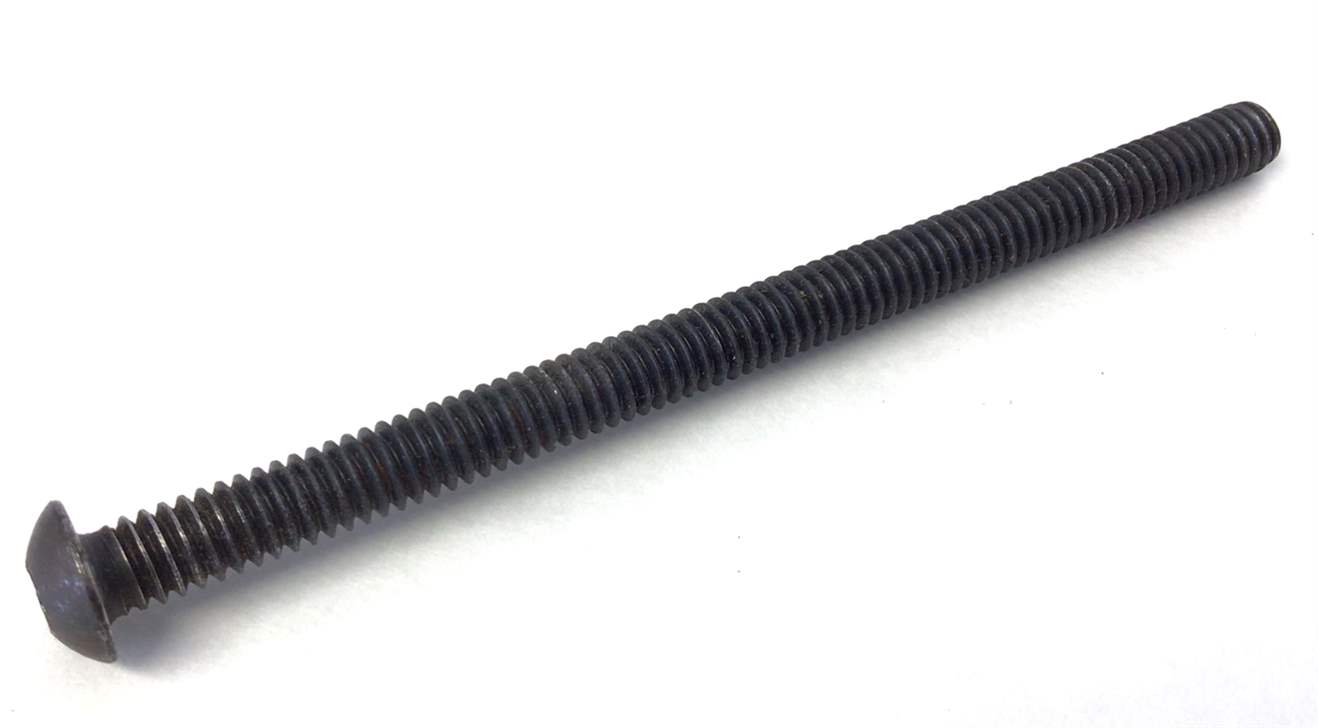

Screw 1/4-20X4 1023210 142685 0 1 Screw 1/4-20X4" (Used) No Model Compatibility List $3.30 / Each

1
Upright Wire Harness 013025 198043 0 1 Upright Wire Harness Yes Model Compatibility List $108.99 / Each

1
Black End Cap for Tubing 013349 117544 0 1 Black End Cap for Tubing Yes Model Compatibility List $11.99 / Each

1
Reed Switch Clip 013373 148202 0 1 Reed Switch Clip No Model Compatibility List $6.99 / Each

1
Idler Arm Spring (Used) 013743 158731 0 1 Idler Arm Spring (Used) No Model Compatibility List $22.09 / Each

1
OEM Walking Running Belt Treadbelt 1000187 224176 0 1 OEM Walking Running Belt Treadbelt Yes Model Compatibility List $116.80 / Each

1
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Roller Front 1008204 200966 0 1 Roller Front Yes Model Compatibility List $142.99 / Each

8
Belt Guide 1008212 198639 53 1 Belt Guide Yes Model Compatibility List $4.44 / Each

15,40
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
RPM Incline Speed Sensor Switch 1010322 102955 0 1 RPM Incline Speed Sensor Switch No Model Compatibility List $12.33 / Each

47
Front Platform Bolt 1010869 013500 0 1 Front Platform Bolt No Model Compatibility List $13.99 / Each

Star Washer 1010876 014064 0 1 Star Washer No Model Compatibility List $11.99 / Each

Idler Pulley Nut 1010877 100427 12 1 Idler Pulley Nut Yes Model Compatibility List $0.46 / Each

2,40
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
RPM Speed Sensor Reed Switch 40 1010920 160068 0 1 RPM Speed Sensor Reed Switch 40" No Model Compatibility List $23.99 / Each

4,5,6
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Screw #8 X 5/8 1011503 013129 0 1 Screw #8 X 5/8" Yes Model Compatibility List $13.99 / Each

Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
M4 Locknut 1011776 012152 0 1 M4 Locknut Yes Model Compatibility List $11.99 / Each

Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
Isolator Big Button Hex Screw 5/16 1019312 142622 Isolator Big Button Hex Screw 5/16"-18x2.25 Yes Model Compatibility List $11.99 / Each

2,3,9
View Drawing
