HEALTH RIDER - A60

Repair Parts for HEALTH RIDER A60 HRTL17980

Brand: HEALTH RIDER

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: A60

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
5/16 100139 100427 60 5/16" NUT Yes Model Compatibility List $0.46 / Each

2,40
SNAP RING 100630 100488 80 SNAP RING No Model Compatibility List $2.71 / Each

2
118535 101707 53 4" CABLE TIE No Model Compatibility List $0.64 / Each

9,3
8 118360 102246 # 8" WHITE WIRE, 2F Yes Model Compatibility List $5.99 / Each

4,5,6
5/16 101664 102372 . 5/16" WASHER No Model Compatibility List $0.21 / Each

9
14 101456 103823 # 14" WHITE WIRE, M/F Yes Model Compatibility List $4.22 / Each

4,5,6
104208 105477 17 MOTOR NUT No Model Compatibility List $0.31 / Each

2
121857 107013 18 MOTOR PIVOT BOLT No Model Compatibility List $2.77 / Each

2,8
HOOD SCREW 121749 109250 106 HOOD SCREW No Model Compatibility List $1.54 / Each
Out Of Stock 		2,9
CIRCUIT BREAKER 103130 109382 36 CIRCUIT BREAKER Yes Model Compatibility List $11.52 / Each

1
4 100115 109407 # 4" BLK WIRE F/F, POWER Yes Model Compatibility List $2.93 / Each

1
8 100300 112083 # 8" BLUE WIRE, 2F Yes Model Compatibility List $3.26 / Each

1
ROLLER MAGNET 100081 113842 70 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
INCLINE MTR SPACER 102521 114078 116 INCLINE MTR SPACER Yes Model Compatibility List $1.84 / Each

2,3,4,5,6,10,1
113328 114953 # 14" BLUE WIRE F/F No Model Compatibility List $4.17 / Each

4,5,6
RELEASABLE WIRE TIE 100064 116926 49 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,4,2
WHEEL BOLT 118348 117806 59 WHEEL BOLT Yes Model Compatibility List $5.86 / Each
2,8
102820 118204 # 8" BLUE WIRE,M/F No Model Compatibility List $3.30 / Each

4,5,6
KEY/CLIP 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

1
CONSOLE GROUND SCREW 103901 120630 50 CONSOLE GROUND SCREW No Model Compatibility List $1.19 / Each

1
SEAT RAIL FLANGE NUT 104004 120867 16 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

1
3/8 100136 012149 22 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

SPRING NUT 100424 121576 32 SPRING NUT Yes Model Compatibility List $0.34 / Each

2
MOTOR WASHER 113293 122812 13 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
3/8 106105 123494 105 3/8" X 3 1/2" BUTTON HEAD SCREW BOLT Yes Model Compatibility List $9.33 / Each

1
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
#8 X 1 102882 125803 # #8 X 1" SCREW No Model Compatibility List $2.54 / Each

2
LARGE STANDOFF 101014 125819 43 LARGE STANDOFF Yes Model Compatibility List $2.35 / Each

2,1
RUBBER BUMPER 106102 126650 104 RUBBER BUMPER Yes Model Compatibility List $3.01 / Each

1
118978 127948 74 UPRIGHT BOLT No Model Compatibility List $1.10 / Each

2,3
3/16-7/32 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
102917 129101 113 #4 X 1/4" SCREW No Model Compatibility List $0.16 / Each

2
102322 130285 . LIFT FRAME WASHER No Model Compatibility List $0.14 / Each

2,3,10
RSW CLAMP 100079 131090 23 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
116234 013141 111 M5 X 16MM SCREW No Model Compatibility List $0.13 / Each

M4 X 13MM SCREW 101030 013162 19 M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

1/4" X 1 1/2" SCREW 102449 013235 3 1/4" X 1 1/2" SCREW Yes Model Compatibility List $1.10 / Each

#8 X 3/4 100149 013300 47 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

107103 013303 11 5/16 X 1" SCREW,BKT/CNSL No Model Compatibility List $0.35 / Each

#8 HOOD CLIP 100032 133333 25 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

2,9,1,46
REAR ROLLER ADJ SCREW 121869 013342 63 REAR ROLLER ADJ SCREW No Model Compatibility List $3.52 / Each

1/2 100258 013423 54 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

118522 013430 100 CONSOLE SCREW No Model Compatibility List $3.00 / Each

BELLY PAN SCREW 118349 134594 5 BELLY PAN SCREW No Model Compatibility List $1.38 / Each

2
3/8 100017 013544 46 3/8" BOLT No Model Compatibility List $2.87 / Each

IDLER ARM BOLT 100450 013547 12 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

#8 X 3/4 100132 013607 98 #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

REAR ROLLER STAR WASHER 100359 136121 124 REAR ROLLER STAR WASHER No Model Compatibility List $2.33 / Each

1
#8 X 1/2 100137 136728 24 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
LOWER INCLINE MOTOR BOLT 103926 138989 28 LOWER INCLINE MOTOR BOLT No Model Compatibility List $2.29 / Each

1
1/4 100042 014063 33 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

100478 014105 75 IDLER PULLEY WASHER No Model Compatibility List $0.21 / Each

3/8 102446 014117 14 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

121861 141544 34 FRONT ROLLER ADJ BOLT No Model Compatibility List $0.85 / Each

2,8
100084 142711 # 4" GRN WIRE, F/R, CNTRLR No Model Compatibility List $1.91 / Each

7,4,5,6
117651 144780 88 SENSOR CVR/REAR FOOT BOLT No Model Compatibility List $0.25 / Each

2,9
24 121757 148328 30 24 Yes Model Compatibility List $13.50 / Each
Out Of Stock 		4,5,6,10
100496 148580 # INCLN MTR SNSR WIRE CLIP No Model Compatibility List $1.85 / Each

2,4,5,6
103196 149692 117 8" WIRE HRNS, BLK/YLLW No Model Compatibility List $8.49 / Each

4,5,6,12,13,14
103197 149693 # 8" WIRE HRNS, BLK/WHT No Model Compatibility List $6.91 / Each

4,5,6,12,13,14
121871 151037 # TECH SHEET No Model Compatibility List $0.41 / Each

1
121872 151039 . USER-S MANUAL No Model Compatibility List $7.90 / Each

1
LATCH KNOB 118517 152364 76 LATCH KNOB Yes Model Compatibility List $13.84 / Each
1
8 117654 153458 84 8" GREEN WIRE, 2RING Yes Model Compatibility List $2.27 / Each

4,5,6
LATCH KNOB SLEEVE 118518 153501 77 LATCH KNOB SLEEVE Yes Model Compatibility List $9.35 / Each

3
LATCH SPRING 118519 155603 78 LATCH SPRING No Model Compatibility List $4.40 / Each

1
118529 156005 56 ISOLATOR No Model Compatibility List $25.16 / Each

3
121870 157897 # FIXKIT, DECK LUBE No Model Compatibility List $14.93 / Each

15,3,15,1
ADHESIVE CLIP 118356 016028 102 ADHESIVE CLIP No Model Compatibility List $2.23 / Each

8 100063 016057 52 8" CABLE TIE No Model Compatibility List $1.30 / Each

MOTOR BELT 102891 189462 7 MOTOR BELT Yes Model Compatibility List $24.04 / Each

15
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
100178 252433 109 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3,1
100280 256836 110 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1

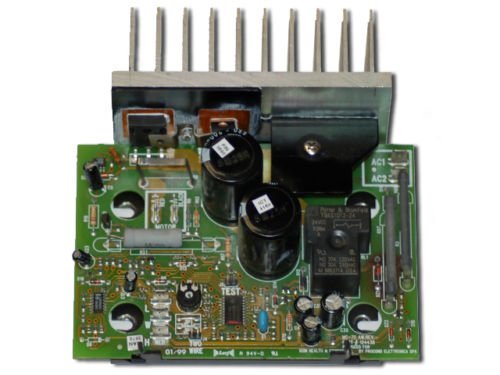

MC70 Control Board - Refurbished Only 1001382-R 141877 MC70 Control Board - Refurbished Only Yes Model Compatibility List $163.90 / Each
Out Of Stock 		7

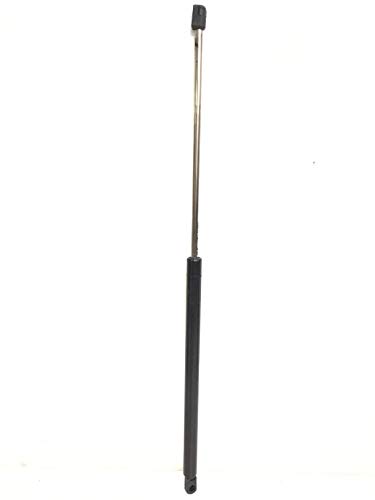

27 1007379 163859 1 27" Shock Assembly Yes Model Compatibility List $49.49 / Each

3
Transport Wheel (Used) 1015714 146665 # 2 Transport Wheel (Used) Yes Model Compatibility List $10.99 / Each

8
Endcap, Left (Used) 1015712 154805 # 1 Endcap, Left (Used) Yes Model Compatibility List $21.99 / Each

9
Endcap, Right (Used) 1015710 154806 # 1 Endcap, Right (Used) Yes Model Compatibility List $21.99 / Each

9
Book Rack Console (Used) 1023501 142583 50 1 Book Rack Console (Used) No Model Compatibility List $5.51 / Each

1
Rear Roller Adjustment Bolt 013269 013342 0 1 Rear Roller Adjustment Bolt No Model Compatibility List $12.99 / Each

Bolt 3/8 013272 013547 0 1 Bolt 3/8" X 1" No Model Compatibility List $12.99 / Each

Jumper Wire Harness 2F 8 013320 112083 TA23 1 Jumper Wire Harness 2F 8" Yes Model Compatibility List $3.26 / Each

1
Cable Tie Screw 013350 120630 0 1 Cable Tie Screw No Model Compatibility List $11.99 / Each

1
Wheel Bolt 013352 123494 0 1 Wheel Bolt Yes Model Compatibility List $29.89 / Each

1
Step Round Bumper Endcap 013354 126650 0 1 Step Round Bumper Endcap Yes Model Compatibility List $15.59 / Each

1
Lock Spring 013378 155603 0 1 Lock Spring No Model Compatibility List $23.99 / Each

1
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Speed Sensor Reed Switch 2 Terminal Wire (Used) 1005353 123380 0 1 Speed Sensor Reed Switch 2 Terminal Wire (Used) No Model Compatibility List $17.99 / Each

19
Retainer Snap Ring 1006261 100488 0 1 Retainer Snap Ring No Model Compatibility List $11.99 / Each

2
Power Entry On Off Switch 1007949 144244 0 1 Power Entry On Off Switch Yes Model Compatibility List $17.99 / Each

6
Plastic Incline Motor Spacer 1008206 114078 73 1 Plastic Incline Motor Spacer Yes Model Compatibility List $1.84 / Each

2,3,4,5,6,10,1
Plastic Standoff Fastener 1008813 125819 19 1 Plastic Standoff Fastener Yes Model Compatibility List $2.35 / Each

2,1
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
Idler Pulley Nut 1010877 100427 12 1 Idler Pulley Nut Yes Model Compatibility List $0.46 / Each

2,40
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Clamp Screw 1011778 013162 0 1 Clamp Screw Yes Model Compatibility List $11.99 / Each

Screw M6 X 38mm 1011788 013235 0 1 Screw M6 X 38mm Yes Model Compatibility List $11.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Power Entry Circuit Breaker 1000167 109382 Power Entry Circuit Breaker Yes Model Compatibility List $2.66 / Each

1
Power Entry On Off Switch 1000189 144244 Power Entry On Off Switch Yes Model Compatibility List $3.99 / Each

6
Speed RPM Rectangular Sensor Reed Switch Works 1000803 148328 Speed RPM Rectangular Sensor Reed Switch Works Yes Model Compatibility List $14.99 / Each

4,5,6,10
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $36.95 / Each

6
15 Amp Circuit Breaker 1002255 109382 15 Amp Circuit Breaker Yes Model Compatibility List $5.99 / Each

1
Motor Drive Belt 1002250 189462 or 106939 Motor Drive Belt No Model Compatibility List $39.99 / Each

Allen Tool Clamp (New) 1013015 016028 Allen Tool Clamp (New) No Model Compatibility List $12.99 / Each

Round Bumper Step (New) 1013016 126650 Round Bumper Step (New) Yes Model Compatibility List $12.99 / Each

1
Adjustment knob (New) 013377 152364 Adjustment knob (New) Yes Model Compatibility List $23.99 / Each
1
