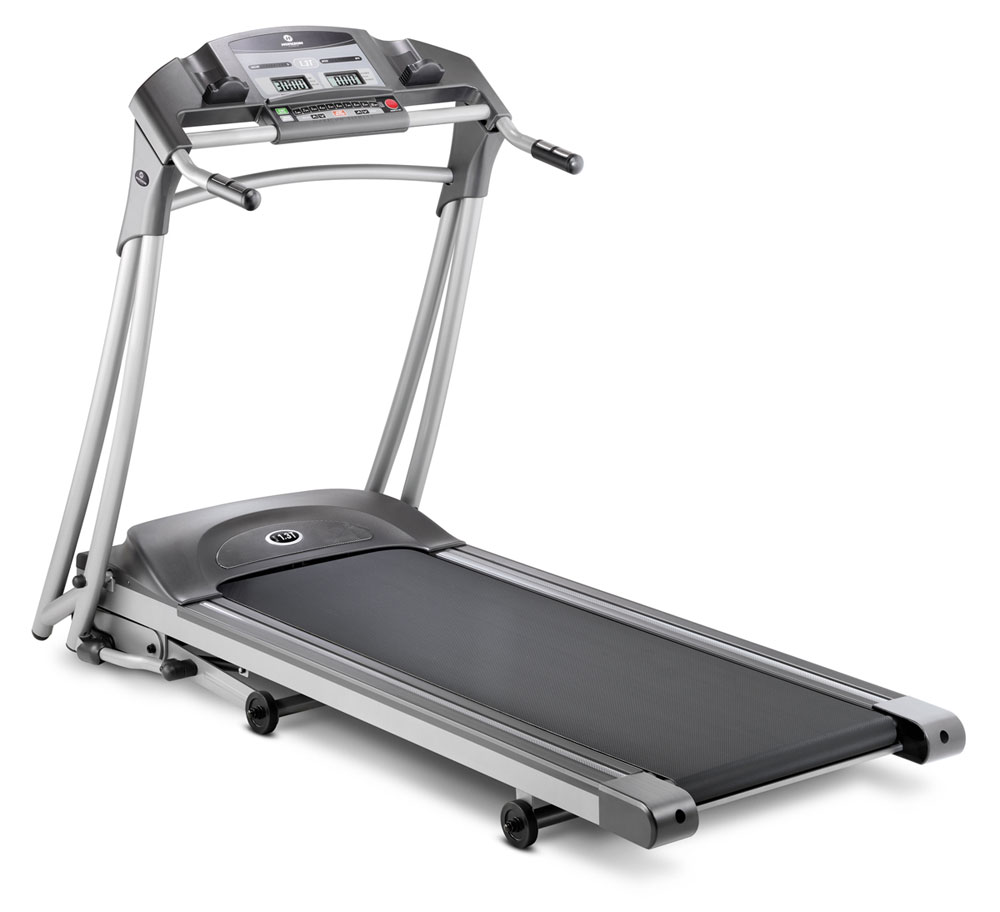

Horizon Fitness - 1.3T - 2007

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700014 000021-B L05 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

Q 700096 000350-DA Q01 Motor Cover;Upper D/C, NO REPL: Part will show as orderable until stock is depleted Yes Model Compatibility List $76.70 / Each

9,10
Q 700103 000387-EB Q06 End Cap;Side Rail;Left Yes Model Compatibility List $17.24 / Each

9
Q 700104 000388-DB Q07 End Cap;Side Rail;Right Yes Model Compatibility List $13.34 / Each

9
K 700263 000815-A KIT Water Bottle No Model Compatibility List $3.82 / Each

1
700269 000825-AA B55 Deck Extension No Model Compatibility List $1.90 / Each

3
700318 000940-A N29 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

C 700416 001294-B C27 End Cap;Support Tube Base;AF002(1/2) 19 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $2.00 / Each

9,3
N 700433 001363-B N09 Stopper;Water Bottle Holder - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $3.64 / Each
Out Of Stock
1
N 700484 001478-BB N08 Cover;Console Back Yes Model Compatibility List $16.93 / Each

7,9,4,5,6
C 700518 001522-B C28 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

Q 700555 001599-CB Q24 Safety Sleeve No Model Compatibility List $1.77 / Each

9,3
700700 001952-00 N10 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 700702 001956-C N11 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
P 700716 002020-C P06 Console Cable;2600(2.50-12P) x2 Yes Model Compatibility List $38.32 / Each

7,4,5,6
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P16 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
700847 002508-A P09 Power Wire;Control Board;550;16AWG;Black No Model Compatibility List $1.90 / Each

7,4,5,6
700848 002509-A P10 Power Wire;Control Board;550;16AWG;White Yes Model Compatibility List $1.90 / Each

7,4,5,6
N 700980 003137-A N04 Membrane Key;17KEY Yes Model Compatibility List $19.14 / Each

9
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

P 701021 003347-00 P04 Circuit Breaker;Current;ZE-700 20A/250V; Yes Model Compatibility List $28.73 / Each

701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
C 701185 004123-A C11 Bearing;Dry;Sleeve;Support Tube; LFB 1625 No Model Compatibility List $3.82 / Each

8,3
R 701238 004249-DB R02 Running Belt;495x2785x1.6t;Black Yes Model Compatibility List $260.99 / Each

1
B 701250 004294-FA B31 Running Deck;608x1220Lx18t No Model Compatibility List $249.13 / Each

3
701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

B 701326 004379-00 B35 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

M 701434 004481-Z M46 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

R 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $9.80 / Each

R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

H 701529 004561-00 H32 Screw;Plain Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701530 004562-00 B37 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
701540 004568-Z B36 Screw;Hex Socket;Sink;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

M 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
701577 004612-00 N12 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701579 004613-00 B54 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

701586 004617-00 M24 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701590 004619-AB N19 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N13 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

N 701710 004728-00 N58 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
701716 004735-00 H44 Screw;Oval Hex Socket;M8x1.25Px45L-15L No Model Compatibility List $2.00 / Each

2
C 701718 004739-00 C26 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
701742 004764-00 H42 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere No Model Compatibility List $2.00 / Each

701847 004864-00 Q21 Screw;4x12L No Model Compatibility List $2.00 / Each

L 701851 004870-00 L11 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

701862 004884-00 M47 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 N56 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

B 701912 004941-00 B42 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

C 701916 004945-00 C23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

M 702005 005043-00 M09 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

702007 005044-00 R10 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

C 702021 005056-00 C24 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
702030 005062-00 H47 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

B 702192 005238-00 B29 Washer;Lock;8.2x16x1.25T No Model Compatibility List $1.66 / Each

B 702197 005249-A B57 Elastomer;Front;Blue(80) Yes Model Compatibility List $15.31 / Each

1
B 702198 005250-A B58 Elastomer;Middle;Red(55) Yes Model Compatibility List $15.31 / Each

1
702217 005330-00 N16 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

H 702235 005360-00 H24 C-Clip;External;S-14 No Model Compatibility List $3.82 / Each

2
H 702283 005475-D H30 Spring;Foot Lock Latch;SUS304 No Model Compatibility List $4.00 / Each

2,9,3
702447 007387-E B08 Fixing Plate;Motor Control Board No Model Compatibility List $14.04 / Each

7,3,10
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

B 702455 007526-D B34 Belt Guide No Model Compatibility List $9.57 / Each

15
H 702460 007584-D H33 Elevation Frame;Left Yes Model Compatibility List $15.37 / Each

3,10
H 702461 007585-D H34 Elevation Frame;Right Yes Model Compatibility List $8.87 / Each

3,10
702483 007964-00 N14 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
H 702550 008599-F H39 Sleeve;Connecting Rod;SS41;12x8x29.6L No Model Compatibility List $3.54 / Each

3
B 702552 008609-00 B41 Bolt;Air Shock;M8X1.25P S45C No Model Compatibility List $10.01 / Each

2
A 703470 014827-AB AC01 Console Mast Set;Left No Model Compatibility List $378.82 / Each

7
A 703484 014943-AB AH3 Linkage Arm;Console Mast;Lower Yes Model Compatibility List $116.38 / Each

3,7
H 703499 015036-AB H31 Foot Lock Latch No Model Compatibility List $28.76 / Each

9,3
703502 015046-AC P21 Fix Plate;Power Socket Yes Model Compatibility List $12.48 / Each

3,4,5,6
703771 016172-Z M01 Drive Motor Set;Digital-1.75HP Yes Model Compatibility List $450.00 / Each

10
A 703785 016488-Z AN2 Safety Key Set Yes Model Compatibility List $40.14 / Each

9
P 703979 020048-00 P13 Screw;FH;M3X0.5PX10L;CT;PH;;;; No Model Compatibility List $2.00 / Each

2
704336 023017-00 M02 Elevation Motor;110V/58mm Yes Model Compatibility List $249.13 / Each

10
Q 704930 026348-ZL Q17 Q18 Left Side Cover;Support Tube Yes Model Compatibility List $24.49 / Each

9,3
Q 704931 026348-ZR Q19 Q20 Right Side Cover;Support Tube Yes Model Compatibility List $24.49 / Each

9,3
705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

48
K 705042 032690-A KIT Hardware Pack; No Model Compatibility List $23.76 / Each

4,5,6
705181 039042-A N26 Pulse Sensor Set Yes Model Compatibility List $18.28 / Each

12,13,14
N 705285 040613-B N38 Ground Wire;250 No Model Compatibility List $1.90 / Each

4,5,6
V 705502 049524-AX V01 Decal, Motor Cover; No Model Compatibility List $1.77 / Each

7,9,3,10
N 705685 055145-BA N03 FRONT LOWER COVER ABS; No Model Compatibility List $3.54 / Each

9
V 705702 055250-AX V03 Decal;Rear Console Cover No Model Compatibility List $3.54 / Each

7,9,3
V 705708 055275-AX V30 Decal, Console, Instructions; No Model Compatibility List $1.77 / Each

7,3
V 705709 055276-AX V06 Decal, Console, HR Chart; No Model Compatibility List $1.77 / Each

7,3,12,13,14
V 705710 055277-AX V08 Decal, Console, Programs; No Model Compatibility List $1.77 / Each

7,3
V 705711 055278-AX V13 Decal, Console, Warning; No Model Compatibility List $1.77 / Each

7,3
705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
K 706218 060295-CA KIT Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
K 706807 065755-AX KIT Owner-s Manual; No Model Compatibility List $8.87 / Each

1
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

709034 1000108449 AR2 Roller Set;Rear;TM59 Yes Model Compatibility List $191.62 / Each

1
709102 1000109577 R03 Drive Belt;Poly-V;170-J8 Yes Model Compatibility List $60.22 / Each

15,10
Shock Cylinder (Used Only 1014561 009555-A B28 1 Shock Cylinder (Used Only Yes Model Compatibility List $37.70 / Each

3
Frame Plug Cap (Used) 1016694 000779-C # 2 Frame Plug Cap (Used) Yes Model Compatibility List $12.99 / Each

9
P 1020937 002124-B P08 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

R 004249-DB 004249-DB R02 1 Walking Running Belt OEM Yes Model Compatibility List $245.70 / Each

1
DC Drive Motor Johnson 016172-Z JM05-017 0 1 DC Drive Motor Johnson No Model Compatibility List $388.70 / Each

1
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

Belt Drive 1002356 1000109551 0 1 Belt Drive Yes Model Compatibility List $31.99 / Each

Front Drive Pulley Roller 1000018 016110-Z Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8
DC Drive Motor With Bracket 1000574 016172-Z 1000093557 DC Drive Motor With Bracket Yes Model Compatibility List $149.99 / Each
Out Of Stock
M 1000201 032671-HF M03 Motor Control Board Controller Yes Model Compatibility List $169.00 / Each
Out Of Stock
48
P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

A 1002096 1000108449 AR2 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock
1
P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $19.99 / Each

9,4,5,6
A 1001050 1000108449 AR2 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock
1
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

DC Drive Motor 1001114 016172-Z DC Drive Motor No Model Compatibility List $460.00 / Each
Out Of Stock
P 1003694 003347-00 P04 Power Entry Circuit Breaker Yes Model Compatibility List $9.99 / Each

M 1001549 023017-00 M02 Incline Motor Yes Model Compatibility List $249.00 / Each

10
M 1001550 023017-00 M02 Incline Motor Yes Model Compatibility List $69.99 / Each
Out Of Stock
10
P 1001765 002169-A P16 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Power Entry Assembly Switch Filter Inlet 1008480 stwch-ent-480 Power Entry Assembly Switch Filter Inlet Yes Model Compatibility List $24.99 / Each

jht170L8r 1000109551 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

R 1020604 004483-00 R08 Front Roller Screw M8-1.25"x25mm No Model Compatibility List $11.99 / Each

P 1009784 003347-00 P04 Circuit Breaker QMB-152-11C3N-3BA (New) Yes Model Compatibility List $28.99 / Each

R hori170J8 1000109577 R03 Drive Motor Belt (New) Yes Model Compatibility List $66.99 / Each

15,10
M A1-0NN9-NPTB 032671-HF M03 Lower Control Board Motor Controller LPCA Digital Drive 1.75 2.0 HP (New) Yes Model Compatibility List $259.99 / Each
Out Of Stock
48
P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

N 911968 004620-00 N13 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

N 976932 004926-00 N56 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

N 957398 005330-00 N16 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Red Middle Elastomer (Used) 1038162 005250-a Red Middle Elastomer (Used) Yes Model Compatibility List $7.50 / Each

1
R 1037590 004249-DB R02 OEM Walking Runing Belt Treadbelt 1.5mm-19.5-110 Inch (Used) Yes Model Compatibility List $89.00 / Each

1
