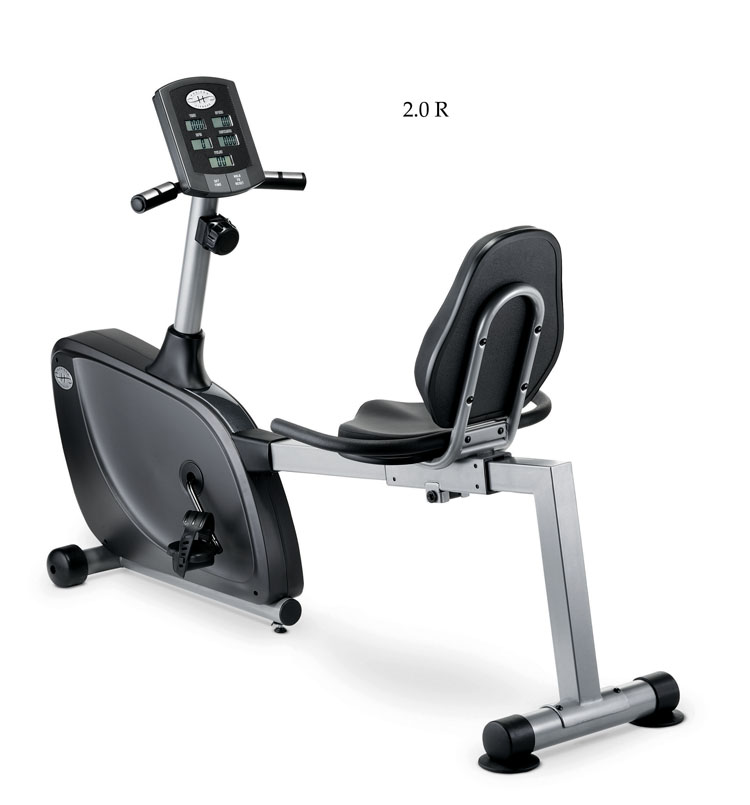

Horizon Fitness - 2.0R - 2004

Repair Parts for Horizon Fitness 2.0R RB64

Brand: Horizon Fitness

Category: Recumbent

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

RB64

Model Name: 2.0R

Version: 2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

15817.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700002	-	N/A	Screw Set;Two;CB133;US	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
700009	000014-00	L01	Transport Wheel	Yes	Model Compatibility List	$9.57 / Each	8
700132	000485-00	B31	Leveler;Rubber;W3/8-16UNC	Yes	Model Compatibility List	$9.09 / Each	3
700135	000491-B	B32	Wing Nut;Leveler;W3/8-16UNC;BED BL SPC	No	Model Compatibility List	$2.47 / Each	2,3
700263	000815-A	N/A	Water Bottle	No	Model Compatibility List	$3.82 / Each	1
700299	000893-B	C14	End Cap;Handlebar	No	Model Compatibility List	$1.90 / Each	9,11
700537	001558-00	Q05	Crank Cover	No	Model Compatibility List	$1.90 / Each	8,9
700771	002235-B	P01	Speed Sensor Wire;800mm	No	Model Compatibility List	$8.87 / Each	4,5,6
701042	003413-00	T06	Magnet;Crank Wheel;15x7t	No	Model Compatibility List	$4.00 / Each	8
701112	003879-00	T05	Ball Bearing Set;Crank Wheel	No	Model Compatibility List	$25.00 / Each	8
701154	004072-A2	R08	Ball Bearing;Flywheel;6002ZZ	No	Model Compatibility List	$11.60 / Each	8
701170	004090-00	R07	Bearing;One-way; HFL2026	No	Model Compatibility List	$27.82 / Each	8
701227	004201-00	R02	Drive Belt;Poly-V;430-J5	No	Model Compatibility List	$57.49 / Each	15,10
701300	004364-00	S11	Screw;Oval Head;M5x0.8Px12L	No	Model Compatibility List	$2.00 / Each
701308	004369-00	N03	Screw;Phillip;BH;M5x0.8Px15L;BED;	No	Model Compatibility List	$2.00 / Each
701586	004617-00	Q06	Screw;Console Case;Oval Tapping;4x15L	No	Model Compatibility List	$2.00 / Each
701588	004618-00	Q07	Screw;Oval Tapping;4x20L	No	Model Compatibility List	$2.00 / Each	2,12,13,14
701591	004620-00	L05	Screw;Self Tapping;4x12L	No	Model Compatibility List	$2.00 / Each
701699	004724-00	G05	Bolt;M8x1.25Px15L	Yes	Model Compatibility List	$2.00 / Each
701710	004728-00	D22	Screw;Oval Hex Socket;M8x1.25Px40L	No	Model Compatibility List	$2.00 / Each	2
701781	004796-00	F04	Bol;M8x1.25Px20L	Yes	Model Compatibility List	$2.00 / Each	1
701904	004931-00	S12	Nut;Locking;Nylon;1/4"--20UNC	No	Model Compatibility List	$1.59 / Each
701934	004972-00	B29	Insert Nut;Brass;ALS7-616-150(0.02-0.15)	No	Model Compatibility List	$1.90 / Each
701939	004975-00	F06	Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8)	No	Model Compatibility List	$1.90 / Each
701987	005025-00	T04	Washer;Flat;25.5x38.0x1.5t;Black Zinc	No	Model Compatibility List	$2.00 / Each
702000	005040-00	F07	Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla	No	Model Compatibility List	$1.85 / Each	2
702025	005058-00	D18	Washer;Flat;12x26x2.0T	No	Model Compatibility List	$2.00 / Each
702040	005070-00	S18	Washer;Flat;6.5x14x1.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each	2,4,5,6
702135	005163-00	D23	Washer;Arc;8.4x17x1.0T	No	Model Compatibility List	$2.57 / Each	2
702234	005359-00	D19	C-Clip;External;S-12	No	Model Compatibility List	$2.00 / Each
702236	005361-00	R13	C-Clip;External;S-15	No	Model Compatibility List	$2.00 / Each	2
702240	005365-00	Q09	C-Clip;External;S-20	No	Model Compatibility List	$1.79 / Each
702260	005400-Z	N/A	Wrench;Multi-Hole;13,14,15mm - D/C, NO REPL Part will show as orderable until stock is depleted	No	Model Compatibility List	$4.00 / Each	2
702264	005412-00	N/A	Wrench;L-Type;5mm;With Screwdriver	No	Model Compatibility List	$2.00 / Each
702483	007964-00	Q08	Connecting Plate;Side Cover	Yes	Model Compatibility List	$1.90 / Each	9,3
702747	009486-00	D16	Bushing;Seat Slide Bar	No	Model Compatibility List	$1.90 / Each	8,12,13,14
702748	009491-E	D17	Cam	No	Model Compatibility List	$9.75 / Each	1
702931	013387-Z	AU1	Tension Wheel Set	No	Model Compatibility List	$44.72 / Each	8
703447	014708-A	T02 T03 T04 T08	Pedal Set;With Strap	No	Model Compatibility List	$31.85 / Each	8,9
703757	016008-Z	T03	Pedal Axle	No	Model Compatibility List	$37.83 / Each	8,9
703762	016053-Z	AG1	Handle Bar Set;	No	Model Compatibility List	$90.40 / Each	11
703763	016055-Z	N01	Console Set;	No	Model Compatibility List	$354.87 / Each	7
706895	066767-C	D20	Set Screw;M8x1.25Px8L	No	Model Compatibility List	$2.00 / Each	2
725538	072810	T02	Pedal and Strap Set	No	Model Compatibility List	$57.49 / Each
911968	004620-00	L05	Self Tapping Screw 4X12L (New)	No	Model Compatibility List	$12.99 / Each
