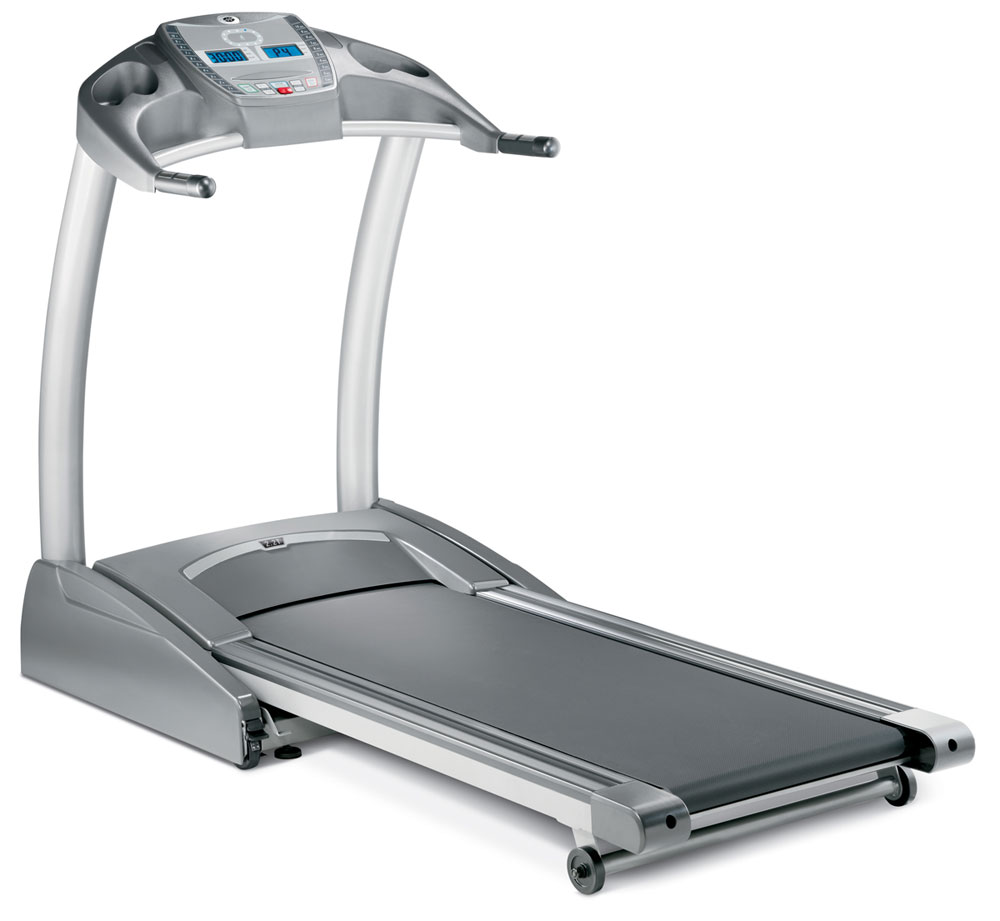

Horizon Fitness - 2.2T - 2006

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
H 700007 000010-CA H21 Incline Wheel D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $9.57 / Each

8,10
L 700008 000011-EA L01 Transport Wheel;Base Frame Yes Model Compatibility List $12.17 / Each

3,8
700014 000021-B L05 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

Q 700103 000387-EB Q06 End Cap;Side Rail;Left Yes Model Compatibility List $17.24 / Each

9
Q 700104 000388-DB Q07 End Cap;Side Rail;Right Yes Model Compatibility List $13.34 / Each

9
700211 000682-A M21 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
K 700263 000815-A KIT Water Bottle No Model Compatibility List $3.82 / Each

1
700269 000825-AA B55 Deck Extension No Model Compatibility List $1.90 / Each

3
N 700287 000871-A N46 Oval Cap;Console No Model Compatibility List $1.90 / Each

7,9
700288 000874-A2 H37 Rubber Stopper;AC003->TS;TM16 Yes Model Compatibility List $6.99 / Each

1
N 700340 001046-DA N08 Console Shell Yes Model Compatibility List $80.26 / Each

7
N 700341 001047-DA N09 Console Cover;Bottom Yes Model Compatibility List $14.72 / Each

7,9
Q 700535 001554-AA Q26 End cap;Handlebar; ABS(75140 HUE) Yes Model Compatibility List $7.72 / Each

9,11
700700 001952-00 N22 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 700702 001956-C N23 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
700740 002103-A P06 Console Cable;Mast;1200 (JST-12P+JST-12P) Yes Model Compatibility List $38.32 / Each

7,4,5,6
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P16 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700764 002212-A P20 Ground Wire; 650 (5.2 0TYPE END+8.30.3 0 TYPE END) No Model Compatibility List $1.90 / Each

700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 700821 002424-A P07 Console Cable;Mast;1800(2.5-12P+JST-12P) Yes Model Compatibility List $27.74 / Each

4,5,6,7
700847 002508-A P09 Power Wire;Control Board;550;16AWG;Black No Model Compatibility List $1.90 / Each

7,4,5,6
700848 002509-A P10 Power Wire;Control Board;550;16AWG;White Yes Model Compatibility List $1.90 / Each

7,4,5,6
N 700971 003045-BX N61 Overlay; No Model Compatibility List $19.14 / Each

1
N 700983 003154-B N02 Membrane Key;Speed/Elevation No Model Compatibility List $38.32 / Each

9,10
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
N 701047 003432-B N32 Pulse Sensor Set;Single;750 Yes Model Compatibility List $21.27 / Each

12,13,14
N 701078 003586-A N18 EL Paper-Oval Track; 150mmX60mmX0.6mm No Model Compatibility List $25.45 / Each

15,3,4,5,6
H 701098 003814-B H22 Incline Wheel B No Model Compatibility List $9.57 / Each
Out Of Stock
8,10
R 701238 004249-DB R02 Running Belt;495x2785x1.6t;Black Yes Model Compatibility List $260.99 / Each

1
B 701250 004294-FA B31 Running Deck;608x1220Lx18t No Model Compatibility List $249.13 / Each

3
701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

B 701326 004379-00 B35 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

K 701384 004439-A K23 Screw;Phillip;Sink;M4x0.7Px40L No Model Compatibility List $2.00 / Each

M 701434 004481-Z M46 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

R 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $9.80 / Each

R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

701530 004562-00 B38 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
701540 004568-Z B36 Screw;Hex Socket;Sink;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
L 701556 004584-A L03 Screw;Hex Socket;Sink;M8x1.25Px45L Yes Model Compatibility List $2.00 / Each

2
701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

M 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
701577 004612-00 P15 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701590 004619-AB N19 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N16 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

M 701598 004622-00 M24 Screw;Phillip;BH;Tapped;4x8L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

701613 004632-00 Z11 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

701699 004724-00 K10 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701781 004796-00 Z08 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
701847 004864-00 Q19 Screw;4x12L No Model Compatibility List $2.00 / Each

701848 004865-00 Q23 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701849 004867-A Q17 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
Q 701851 004870-00 Q11 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

701862 004884-00 M47 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 R05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

B 701912 004941-00 B42 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

L 701918 004949-00 L09 Nut;Mobile Wheel;Nylon;3/8--16UNC;BED; No Model Compatibility List $2.00 / Each

2,8
K 701941 004976-00 K27 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
L 701960 005003-00 L23 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

702030 005062-00 H32 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702092 005125-00 L18 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702160 005196-00 L20 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702180 005222-00 H40 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
B 702192 005238-00 B29 Washer;Lock;8.2x16x1.25T No Model Compatibility List $1.66 / Each

B 702197 005249-A B32 Elastomer;Front;Blue(80) Yes Model Compatibility List $15.31 / Each

1
B 702198 005250-A B33 Elastomer;Middle;Red(55) Yes Model Compatibility List $15.31 / Each

1
702217 005330-00 Q13 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

H 702235 005360-00 H35 C-Clip;External;S-14 No Model Compatibility List $3.82 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

V 702326 006087-AX V03 Decal;Console Logo No Model Compatibility List $1.77 / Each

7,3
V 702335 006250-BX V08 Decal, Motor Cover - Carbon Fiber; No Model Compatibility List $16.30 / Each

7,9,3,10
V 702351 006366-A V09 Decal, Motor Cover Logo; No Model Compatibility List $3.54 / Each

7,9,3,10
702447 007387-E B08 Fixing Plate;Motor Control Board No Model Compatibility List $14.04 / Each

7,3,10
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

B 702455 007526-D B34 Belt Guide No Model Compatibility List $9.57 / Each

15
B 702553 008610-B B41 Bolt;Air Shock;M10X1.5P S45C No Model Compatibility List $2.00 / Each

2
Z 702557 008626-B Z09 Bolt;Top of Mast;M8x1.25Px55L No Model Compatibility List $2.00 / Each

2
H 702559 008629-A H30 Bolt;Elevation Motor Frame;M8x1.25Px29L-10L No Model Compatibility List $4.00 / Each

2,3,10
H 702560 008632-B H20 Bolt; M10X1.5P No Model Compatibility List $4.00 / Each

2
L 702561 008641-C L14 Bolt;M5x1.25Px12L-6L No Model Compatibility List $2.00 / Each

2
M 702854 012804-00 M02 Elevation Motor;110V No Model Compatibility List $249.13 / Each

1
A 703471 014829-AA AC1 Console Mast Set;Left/Right No Model Compatibility List $153.22 / Each

7
A 703487 014953-AA AH4 Elevation Frame Set No Model Compatibility List $281.48 / Each

3,10
703502 015046-AC P21 Fix Plate;Power Socket Yes Model Compatibility List $12.48 / Each

3,4,5,6
Q 703791 016553-Z Q02 Side Rail Set Yes Model Compatibility List $86.45 / Each

9
703800 016990-A AK2 Wheel Lock - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $23.24 / Each
8
H 703947 019852-C H25 Bushing;Nylon No Model Compatibility List $3.82 / Each

8
P 703979 020048-00 P13 Screw;FH;M3X0.5PX10L;CT;PH;;;; No Model Compatibility List $2.00 / Each

2
K 704087 020210-00 KIT Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
Q 704158 020364-00 Q36 Screw;Oval;Phillips;M4x12L No Model Compatibility List $1.79 / Each

2
L 704162 020368-Z L10 Nut;HexM10X1.5PX6T No Model Compatibility List $2.00 / Each

2
H 704208 020480-Z H36 Washer;Flat;15.2x28x3.0T No Model Compatibility List $1.85 / Each

2
H 704215 020487-ZA H34 Washer;Flat;10.5x18x2.5T No Model Compatibility List $2.00 / Each

A 704667 024717-AA AH1 Fold Frame; No Model Compatibility List $159.38 / Each

3
B 704929 026323-Z B28 Air Shock; Yes Model Compatibility List $65.55 / Each

1
705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

48
705141 038132-BBX N37 Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
A 705566 051345-A AN3 Safety Key Set Yes Model Compatibility List $37.91 / Each

1
705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
K 706218 060295-CA KIT Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
Q 706594 063708-AA Q01 Motor Cover Only; Yes Model Compatibility List $100.62 / Each

9,10
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

709034 1000108449 AR2 Roller Set;Rear;TM59 Yes Model Compatibility List $191.62 / Each

1
R 709101 1000109551 R03 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $60.22 / Each

709278 1000111822 M01 Motor set;Semi-Assy;;BLACK C;2.25HP/90V; Yes Model Compatibility List $648.70 / Each
4,5,6,10
Console Cable; Upper; 400 (2.5-12P+JST-12P) 725953 078545 P05 Console Cable; Upper; 400 (2.5-12P+JST-12P) Yes Model Compatibility List $32.63 / Each

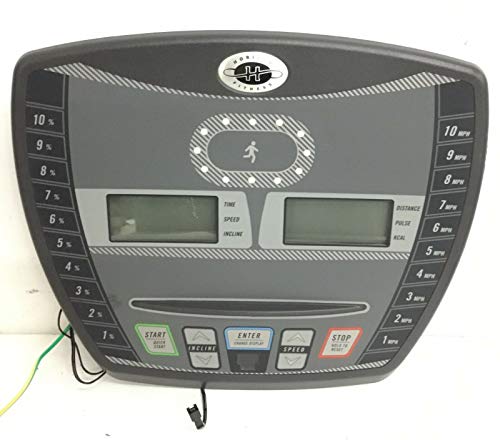

Display Console - Used Only 1006441 Suh-t073 Display Console - Used Only No Model Compatibility List $232.70 / Each

7
Front Drive Roller - Used 1014565 016110-Z # 1 Front Drive Roller - Used Yes Model Compatibility List $115.70 / Each

8
Magnetic Safety Key (Used) 1017639 013871-A # 1 Magnetic Safety Key (Used) Yes Model Compatibility List $38.99 / Each

1
P 1020937 002124-B P08 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

R 004249-DB 004249-DB R02 1 Walking Running Belt OEM Yes Model Compatibility List $245.70 / Each

1
M 012804-00 012804-00 M02 1 Smooth AFG Treadmill Incline Elevation Motor No Model Compatibility List $246.99 / Each

1
End Cap 700287 000920-00 0 1 End Cap Yes Model Compatibility List $2.98 / Each

1
Magnetic Safety Key Lanyard (Used) 013699 013871-A 0 1 Magnetic Safety Key Lanyard (Used) No Model Compatibility List $35.09 / Each
Out Of Stock
1
DC Drive Motor Johnson 1000111822 JM05-015 0 1 DC Drive Motor Johnson Yes Model Compatibility List $674.57 / Each

1
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

R 1002356 1000109551 R03 1 Belt Drive Yes Model Compatibility List $31.99 / Each

Front Drive Pulley Roller 1000018 016110-Z Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8
M 1000188 1000111822 M01 DC Drive Motor Yes Model Compatibility List $189.00 / Each
4,5,6,10
M 1000201 032671-HF M03 Motor Control Board Controller Yes Model Compatibility List $169.00 / Each
48
P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

A 1002096 1000108449 AR2 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock
1
P 1002652 003346-00 P04 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $5.99 / Each

9,4,5,6
A 1001050 1000108449 AR2 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock
1
M 1002678 1000111822 M01 2.0HP DC Drive Motor Yes Model Compatibility List $125.99 / Each
4,5,6,10
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

P 1001765 002169-A P16 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Power Entry Assembly Switch Filter Inlet 1008480 stwch-ent-480 Power Entry Assembly Switch Filter Inlet Yes Model Compatibility List $24.99 / Each

DC Drive Motor (New) 1000608 1000106039 DC Drive Motor (New) Yes Model Compatibility List $289.00 / Each
Out Of Stock
jht170L8r 1000109551 R03 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

R 1020604 004483-00 R08 Front Roller Screw M8-1.25"x25mm No Model Compatibility List $11.99 / Each

DC Drive Motor TO-RME3-JC6E JM05-015 T101 DC Drive Motor Yes Model Compatibility List $134.10 / Each
Out Of Stock
P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P04 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

N 911968 004620-00 N16 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

R 976932 004926-00 R05 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q13 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Red Middle Elastomer (Used) 1038162 005250-a Red Middle Elastomer (Used) Yes Model Compatibility List $7.50 / Each

1
Foot Lock Latch (Used) 1038163 015044-AA Foot Lock Latch (Used) Yes Model Compatibility List $15.00 / Each

R 1037590 004249-DB R02 OEM Walking Runing Belt Treadbelt 1.5mm-19.5-110 Inch (Used) Yes Model Compatibility List $89.00 / Each

1
Front Drive Roller (New) 013864 016110-Z Front Drive Roller (New) Yes Model Compatibility List $230.99 / Each

8
View Drawing
