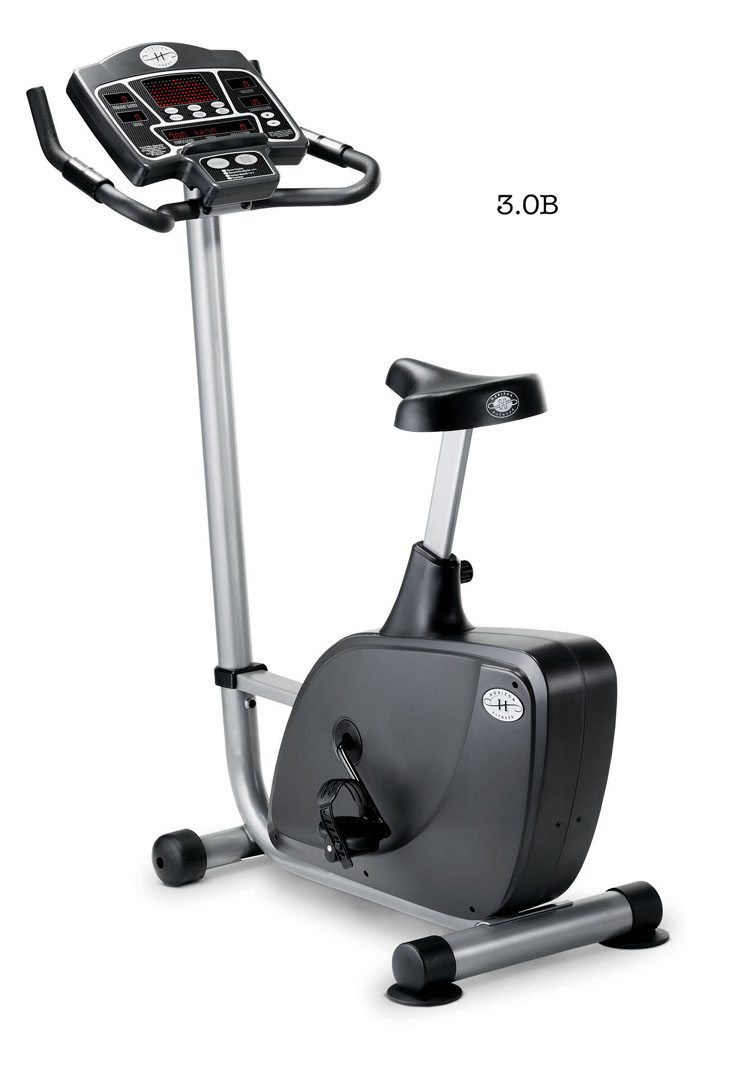

Horizon Fitness - 3.0B - 2004

Repair Parts for Horizon Fitness 3.0B CB44

Brand: Horizon Fitness

Category: Upright

Type: Stationary Bikes

Model Name: 3.0B

Version: 2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700009 000014-00 L02 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
N 700263 000815-A N/A Water Bottle No Model Compatibility List $3.82 / Each

1
G 700299 000893-B G03 End Cap;Handlebar No Model Compatibility List $1.90 / Each

9,11
Q 700537 001558-00 Q06 Crank Cover No Model Compatibility List $1.90 / Each

8,9
D 700597 001722-AA D03 Seat Bottom; LOGO LS-B36 No Model Compatibility List $29.56 / Each

12,13,14
P 700723 002029-E P02 Console Cable; 1520mm(80,80,80) No Model Compatibility List $53.22 / Each

7,4,5,6
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
P 700901 002703-A P05 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
N 701008 003307-00 N/A Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

T 701042 003413-00 T06 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
R 701112 003879-00 R10 Ball Bearing Set;Crank Wheel No Model Compatibility List $25.00 / Each

8
701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
701170 004090-00 R07 Bearing;One-way; HFL2026 No Model Compatibility List $27.82 / Each

8
R 701228 004202-00 R03 Drive Belt;Poly-V;460-J5 No Model Compatibility List $50.67 / Each

15
701308 004369-00 N02 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

N 701326 004379-00 N51 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

701586 004617-00 Q07 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701588 004618-00 Q08 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701591 004620-00 L05 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701699 004724-00 C04 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701716 004735-00 G04 Screw;Oval Hex Socket;M8x1.25Px45L-15L No Model Compatibility List $2.00 / Each

2
701781 004796-00 J03 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
701858 004880-00 P08 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701893 004925-00 N/A Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 D05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

S 701904 004931-00 S12 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701939 004975-00 J04 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 D04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701987 005025-00 T04 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

702040 005070-00 S18 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702135 005163-00 G05 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702236 005361-00 R13 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
B 702240 005365-00 B20 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702260 005400-Z N/A Wrench;Multi-Hole;13,14,15mm - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $4.00 / Each

2
N 702264 005412-00 N/A Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

702483 007964-00 B19 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
A 702789 009759-AD AN1 Console Set; No Model Compatibility List $709.77 / Each

7
A 702869 012962-Z AS2 DC Motor Set w/Zero Switch Cable; No Model Compatibility List $172.46 / Each

4,5,6,10
A 702931 013387-Z AU1 Tension Wheel Set No Model Compatibility List $44.72 / Each

8
T 703447 014708-A T02,T03,T04,T08 Pedal Set;With Strap No Model Compatibility List $31.85 / Each

8,9
T 703757 016008-Z T03 Pedal Axle No Model Compatibility List $37.83 / Each

8,9
Pedal and Strap Set 725538 072810 T02 Pedal and Strap Set No Model Compatibility List $57.49 / Each

L 911968 004620-00 L05 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

D 976932 004926-00 D05 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

N 971749 003307-00 N/A Rate Chest Strap (New) No Model Compatibility List $194.99 / Each

View Drawing
