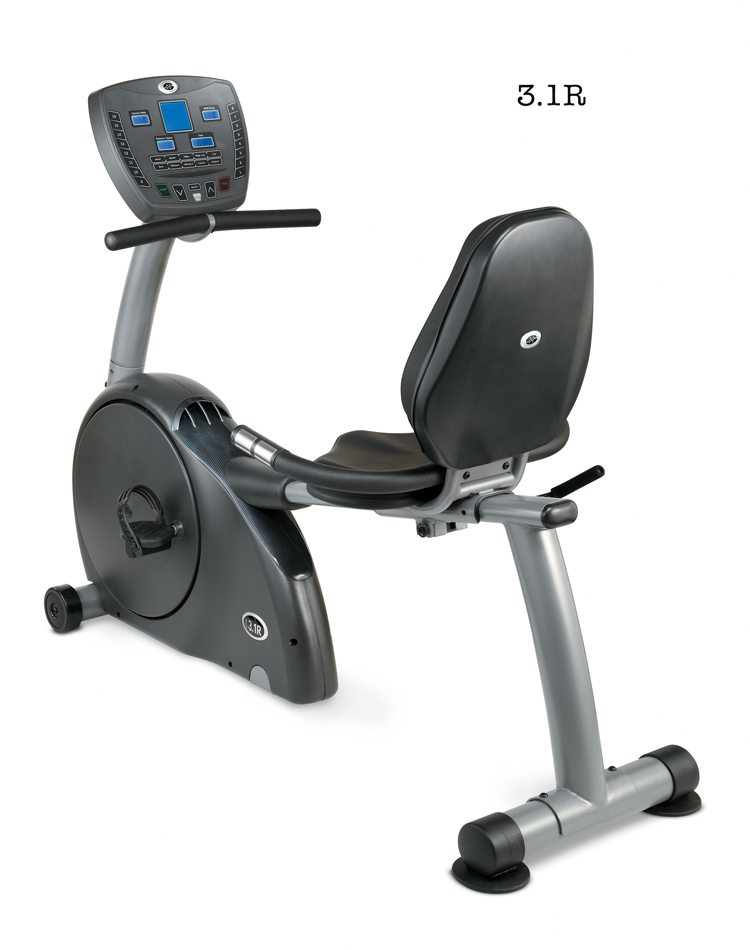

Horizon Fitness - 3.1R - 2005

Repair Parts for Horizon Fitness 3.1R RB101

Brand: Horizon Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: 3.1R

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
703744 015969-Z AC1 Console Mast Set; No Model Compatibility List $146.07 / Each

7
A 701049 003443-C AH1 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
A 703559 015383-AA AT1 Crank;Right No Model Compatibility List $52.05 / Each

8
700132 000485-00 B22 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B23 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
701934 004972-00 B24 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701699 004724-00 C03 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

C 700257 000798-A C04 C11 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
C 700263 000815-A C05 C10 Water Bottle No Model Compatibility List $3.82 / Each

1

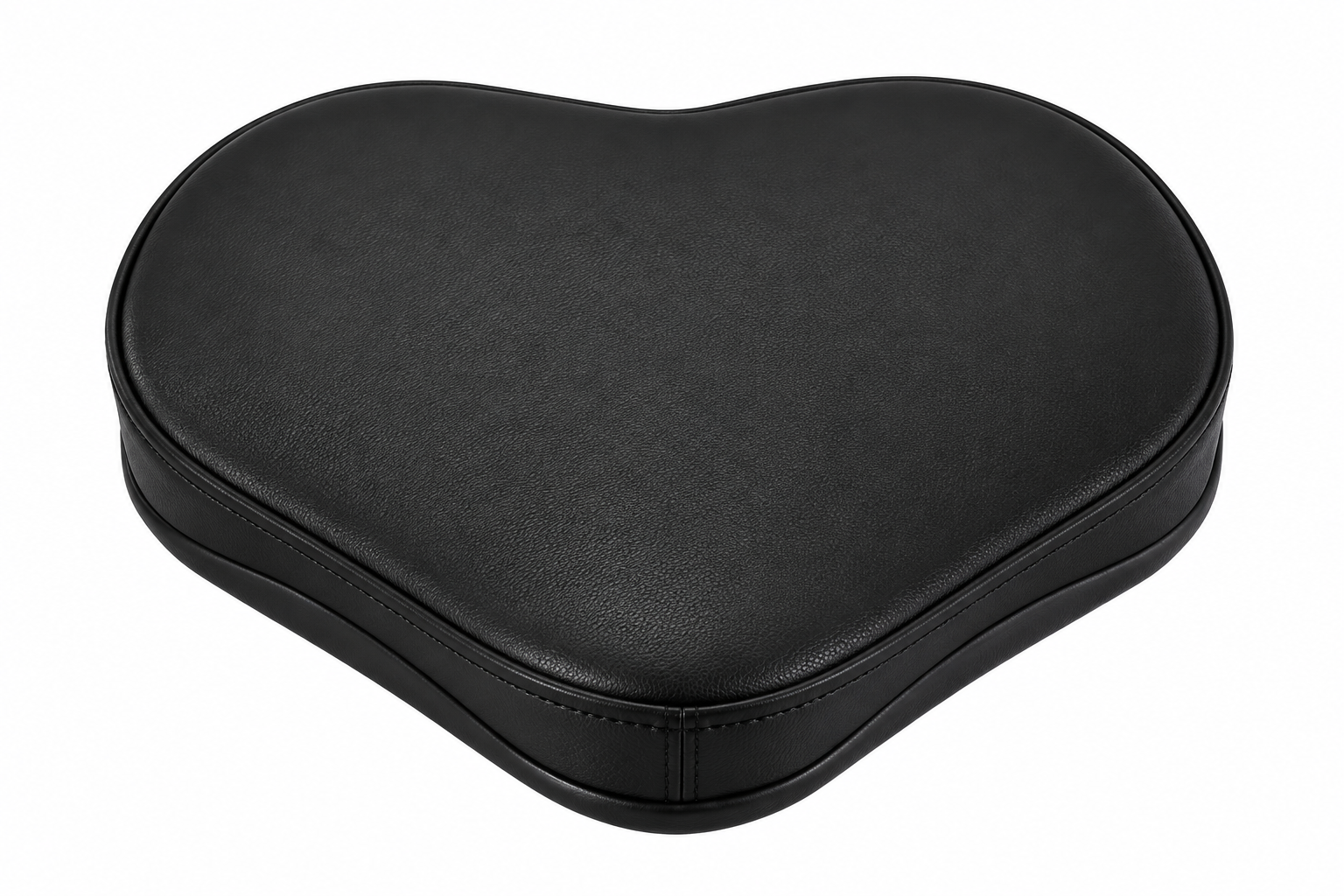

D 700598 001727-AA D08 Seat Cushion; No Model Compatibility List $55.77 / Each

3,12,13,14
D 702747 009486-00 D16 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
D 702748 009491-E D17 Cam No Model Compatibility List $9.75 / Each

1
702025 005058-00 D18 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

D 702234 005359-00 D19 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

D 701710 004728-00 D22 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
702135 005163-00 D23 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
701781 004796-00 F05 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
701939 004975-00 F07 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

F 700252 000782-B F11 Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
G 700304 000920-00 G09 End Cap;Handlebar Yes Model Compatibility List $4.50 / Each

1
L 700353 001114-00 L01 Sleeve;Wheel Axle No Model Compatibility List $3.82 / Each

8,3
L 700011 000015-B L02 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
701308 004369-00 N24 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

P 700724 002032-E P02 Console Cable - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $57.49 / Each

7,4,5,6
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
P 701053 003503-A2 P05 Power Adapter;2M 120V/60HZ 9.0V/1A No Model Compatibility List $76.65 / Each

4,5,6
P 700901 002703-A P06 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
Q 700033 000130-F Q02 Side Cover;Right Yes Model Compatibility List $49.71 / Each

9
701591 004620-00 Q06 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

Q 911968 004620-00 Q06 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

Q 701851 004870-00 Q07 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

Q 700376 001161-C Q09 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
Q 700455 001412-A Q11 End Cap;Crank Cover No Model Compatibility List $1.77 / Each
Out Of Stock 		8,9
Q 701294 004359-00 Q13 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

702063 005091-00 Q14 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

701586 004617-00 Q15 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

702483 007964-00 Q16 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 701229 004203-A R03 Drive Belt;Poly-V;410-J5 Yes Model Compatibility List $57.49 / Each

15,10
701170 004090-00 R07 Bearing;One-way; HFL2026 No Model Compatibility List $27.82 / Each

8
701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
S 701904 004931-00 S11 Nut;Locking;Nylon;1/4"--20UNC Yes Model Compatibility List $1.59 / Each

701300 004364-00 S13 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701390 004447-AB S16 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

S 702869 012962-Z S17 DC Motor Set w/Zero Switch Cable; No Model Compatibility List $172.46 / Each

4,5,6,10
702040 005070-00 S20 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
701893 004925-00 S28 Nut;Nylon;M6x1.0P;Zinc Yes Model Compatibility List $2.00 / Each

702066 005094-00 S54 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

701577 004612-00 S55 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

Pedal and Strap Set 725538 072810 T02 Pedal and Strap Set No Model Compatibility List $57.49 / Each

T 703447 014708-A T02 T03 T07 T08 Pedal Set;With Strap No Model Compatibility List $31.85 / Each

8,9
T 701042 003413-00 T06 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701927 004964-00 T09 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701159 004077-A2 T12 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

702240 005365-00 T13 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702193 005239-00 T19 T25 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

701848 004865-00 T20 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

U 702849 012674-00 U01 Tension Wheel Set; No Model Compatibility List $77.32 / Each

8
U 701158 004075-A3 U03 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
U 702227 005352-00 U04 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

U 702276 005439-00 U05 Spring;Tension Assembly;16x2x74L Yes Model Compatibility List $4.00 / Each

2,3
U 701358 004409-00 U07 Screw;Phillip;BH;M5x0.8Px20L No Model Compatibility List $2.00 / Each

U 701270 004331-AB U09 Screw,oval head; M6x1.0Px25L No Model Compatibility List $2.00 / Each

2
701861 004883-00 U11 Nut;Hex;M6x1.0P No Model Compatibility List $2.00 / Each
