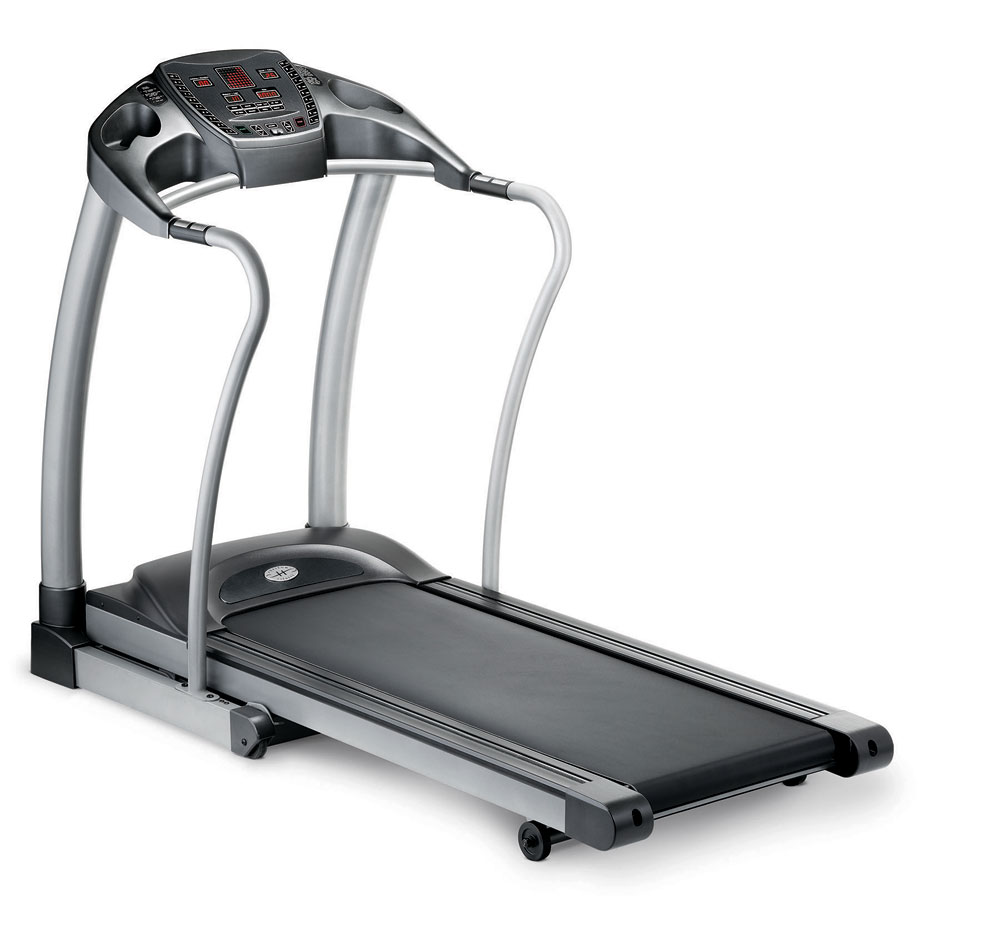

Horizon Fitness - 4.0T - 2004

Repair Parts for Horizon Fitness 4.0T TM104

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: 4.0T

Version: 2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
6 1004969 322035 # 6" LIFT MTR WIRE HRNS Yes Model Compatibility List $21.99 / Each

4,5,6,10,12,13,14
700014 000021-B L05 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

L 700017 000031-C L01 Mobile Wheel No Model Compatibility List $3.82 / Each

8
Q 700100 000381-AA Q05 Bottom Cover;Main Frame No Model Compatibility List $31.20 / Each

9,3
Q 700102 000386-DB Q07 End Cap;Side Rail;Right Yes Model Compatibility List $19.84 / Each

9
700132 000485-00 K09 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
K 700135 000491-B K11 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
700211 000682-A M21 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
K 700263 000815-A KIT Water Bottle No Model Compatibility List $3.82 / Each

1
N 700287 000871-A N46 Oval Cap;Console No Model Compatibility List $1.90 / Each

7,9
N 700340 001046-DA N08 Console Shell Yes Model Compatibility List $80.26 / Each

7
N 700341 001047-DA N09 Console Cover;Bottom Yes Model Compatibility List $14.72 / Each

7,9
700542 001572-AA Q21 Cover;Support Tube Base;Right Yes Model Compatibility List $10.35 / Each

9,3
700700 001952-00 N22 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 700702 001956-C N23 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
700740 002103-A N/A Console Cable;Mast;1200 (JST-12P+JST-12P) Yes Model Compatibility List $38.32 / Each

7,4,5,6
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 700821 002424-A P06 Console Cable;Mast;1800(2.5-12P+JST-12P) Yes Model Compatibility List $27.74 / Each

4,5,6,7
700847 002508-A Not Shown Power Wire;Control Board;550;16AWG;Black No Model Compatibility List $1.90 / Each

7,4,5,6
700848 002509-A Not Shown Power Wire;Control Board;550;16AWG;White Yes Model Compatibility List $1.90 / Each

7,4,5,6
N 700946 002918-B N01 Overlay No Model Compatibility List $38.32 / Each

1
N 700983 003154-B N02 Membrane Key;Speed/Elevation No Model Compatibility List $38.32 / Each

9,10
N 700984 003155-B N03 Membrane Key;Programs No Model Compatibility List $9.57 / Each

9
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
N 701047 003432-B N32 Pulse Sensor Set;Single;750 Yes Model Compatibility List $21.27 / Each

12,13,14
701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 B35 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
R 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $9.80 / Each

701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

701570 004603-ZA M14 Screw;Hex;W3/8x60L;Tooth18L Yes Model Compatibility List $4.00 / Each

2
701577 004612-00 P15 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701586 004617-00 N/A Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701588 004618-00 N/A Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701591 004620-00 Q12 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701613 004632-00 Z69 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

L 701713 004730-00 L03 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

701781 004796-00 Z08 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
701848 004865-00 Q23 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 M08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

L 701918 004949-00 L09 Nut;Mobile Wheel;Nylon;3/8--16UNC;BED; No Model Compatibility List $2.00 / Each

2,8
701934 004972-00 K10 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

B 701938 004974-00 B63 Insert Nut;Brass;ALS7-610-4.2(0.5-4.2) No Model Compatibility List $1.90 / Each

2
L 701960 005003-00 L23 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

702030 005062-00 B46 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702160 005196-00 L20 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

B 702197 005249-A B57 Elastomer;Front;Blue(80) Yes Model Compatibility List $15.31 / Each

1
B 702198 005250-A B58 Elastomer;Middle;Red(55) Yes Model Compatibility List $15.31 / Each

1
Q 702240 005365-00 Q13 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

702275 005438-00 L15 Spring;Foot Lock Latch;16x2.0x50Lx12N Yes Model Compatibility List $2.00 / Each

2,9,3
U 702280 005448-A U11 Spring;Tension Assembly;2.0x16.0x70Lx23 No Model Compatibility List $4.00 / Each

2,3
V 702326 006087-AX V03 Decal;Console Logo No Model Compatibility List $1.77 / Each

7,3
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702456 007528-BX B34 Belt Guide Yes Model Compatibility List $5.98 / Each

15
702483 007964-00 N42 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
702556 008625-C B44 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

Z 702557 008626-B Z09 Bolt;Top of Mast;M8x1.25Px55L No Model Compatibility List $2.00 / Each

2
L 702561 008641-C L14 Bolt;M5x1.25Px12L-6L No Model Compatibility List $2.00 / Each

2
B 702760 009557-A B28 Air Shock;110Kg Yes Model Compatibility List $37.83 / Each

1
M 702850 012797-00 M02 Elevation Motor - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $249.13 / Each
10
M 703352 013674-DG M03 Motor Control Board;Everything Yes Model Compatibility List $584.82 / Each

7,10
A 703396 014118-DA AR1 Roller Set;Front;;Texture;;;;;TM75D No Model Compatibility List $191.62 / Each

8
703441 014682-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

26
A 703471 014829-AA AC1 Console Mast Set;Left/Right No Model Compatibility List $153.22 / Each

7
M 703493 015011-AC M05 Motor Bracket No Model Compatibility List $14.90 / Each

2,3,4,5,6,10
P 703501 015045-AC P21 Fix Plate;Power Socket No Model Compatibility List $9.88 / Each

3,4,5,6
B 703715 015867-CA B31 Running Deck;608x1205Lx25T No Model Compatibility List $191.62 / Each

3
703768 016134-Z1US M01 Drive Motor Set Yes Model Compatibility List $574.91 / Each

10
Q 703791 016553-Z Q02 Side Rail Set Yes Model Compatibility List $86.45 / Each

9
A 703797 016606-ZD AU1 Tension Wheel Set Yes Model Compatibility List $27.82 / Each

8
K 704087 020210-00 KIT Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
705141 038132-BBX N37 Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
A 705566 051345-A AN3 Safety Key Set Yes Model Compatibility List $37.91 / Each

1
705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
R 706141 059540-A R02 Running Belt;495x2820x2.2T Yes Model Compatibility List $287.46 / Each

15
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

709100 1000109550 R03 Drive Belt;Poly-V;190-J8 Yes Model Compatibility List $60.22 / Each

23
Console Cable; Upper; 400 (2.5-12P+JST-12P) 725953 078545 P05 Console Cable; Upper; 400 (2.5-12P+JST-12P) Yes Model Compatibility List $32.63 / Each

Left Rail End Cap - Used 1008103 000385-EB Left Rail End Cap - Used No Model Compatibility List $19.50 / Each

9
Motor Hood Cover - Used 1008109 000338-BB Motor Hood Cover - Used No Model Compatibility List $89.70 / Each

9
Bumper Base Frame (used) 1016693 000875-00 # 2 Bumper Base Frame (used) Yes Model Compatibility List $12.99 / Each

3,9
Magnetic Safety Key (Used) 1017639 013871-A # 1 Magnetic Safety Key (Used) Yes Model Compatibility List $38.99 / Each

1
P 1020937 002124-B P08 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

Johnson Horizon AFG Vision Fitness Treadmill Silicon Lubricant Lube 1000092805 1006790 13.0AT-SLL 0 12 Johnson Horizon AFG Vision Fitness Treadmill Silicon Lubricant Lube 1000092805 No Model Compatibility List $32.49 / Each

1
AFG Horizon Tempo Vision Fitness Treadmill Leveling Foot Leveler 000485-00 1.5 1003847 14.0AE-LFL1.5 0 51 AFG Horizon Tempo Vision Fitness Treadmill Leveling Foot Leveler 000485-00 1.5" (Used) No Model Compatibility List $8.44 / Each

1
Cover Bottom Motor (Used) 1024720 000339-GB Q04 1 Cover Bottom Motor (Used) No Model Compatibility List $38.99 / Each

1
End Cap 700287 000920-00 0 1 End Cap Yes Model Compatibility List $2.98 / Each

1
Cover Mast Base Left (Used) 1024730 001571-AA Q20 1 Cover Mast Base Left (Used) Yes Model Compatibility List $19.49 / Each

1
Folding Latch Hook (Used) 1024732 015030-AC L12 1 Folding Latch Hook (Used) No Model Compatibility List $19.49 / Each
Out Of Stock 		1
Roller Front (Used) 1024743 016601-Z11 0 1 Roller Front (Used) No Model Compatibility List $150.14 / Each

1
Display Console Set and Circuit Board-Overlay (Used) 1024746 002917-B 0 1 Display Console Set and Circuit Board-Overlay (Used) No Model Compatibility List $245.70 / Each
Out Of Stock 		1
Magnetic Safety Key Lanyard (Used) 013699 013871-A 0 1 Magnetic Safety Key Lanyard (Used) No Model Compatibility List $35.09 / Each
Out Of Stock 		1
A 014682-B 014682-B AR2 1 Rear Idler Roller Yes Model Compatibility List $194.99 / Each

26
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

Mobile Wheel Cap-L (Used) 1030601 000177-BB Q14 1 Mobile Wheel Cap-L (Used) No Model Compatibility List $3.86 / Each

Mobile Wheel Cap-R (Used) 1030600 000179-BB Q22 1 Mobile Wheel Cap-R (Used) No Model Compatibility List $3.86 / Each

Front Drive Pulley Roller 1000018 016110-Z Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8
A 1000418 051345-A AN3 Magnetic Safety Key Yes Model Compatibility List $24.99 / Each

1
P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

P 1002652 003346-00 P04 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $5.99 / Each

9,4,5,6
Rear Idler Roller 1001050 1000108449 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock 		1
R 1002833 1000109550 R03 Motor Drive Belt Yes Model Compatibility List $9.99 / Each

23
M 1002266 013674-DG M03 Lower Motor Controller Board + Choke Yes Model Compatibility List $179.00 / Each
7,10
R 1002332 1000109550 R03 Flexonic Pulley Drive Belt Yes Model Compatibility List $34.99 / Each

23
A 1001527 014682-B AR2 Rear Idler Roller Yes Model Compatibility List $60.99 / Each

26
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

A 1003106 014682-B AR2 Rear Idler Roller Yes Model Compatibility List $79.99 / Each

26
M 1001314 013674-DG M03 Lower Control Board Motor Controller + Choke Yes Model Compatibility List $604.99 / Each

7,10
P 1001765 002169-A P07 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Power Entry Assembly Switch Filter Inlet 1008480 stwch-ent-480 Power Entry Assembly Switch Filter Inlet Yes Model Compatibility List $24.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

Screw w/Arc & Spring Washer 1009021 004738-00 Screw w/Arc & Spring Washer Yes Model Compatibility List $17.99 / Each

P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P04 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Q 911968 004620-00 Q12 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M08 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Umbrella Cross Tapped Screw 4x12L (New) 986316 004616-00 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
Red Middle Elastomer (Used) 1038162 005250-a Red Middle Elastomer (Used) Yes Model Compatibility List $7.50 / Each

1
Rower Self Tapping Screw (New) 957090 004621-00 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
