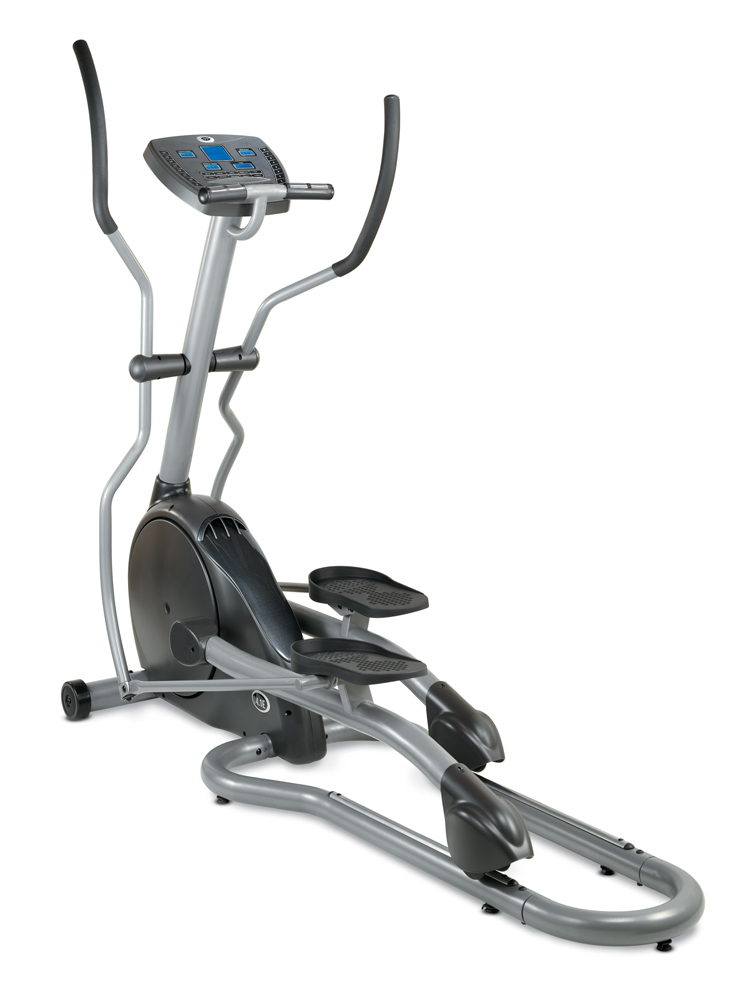

Horizon Fitness - 4.1E - 2005

Repair Parts for Horizon Fitness 4.1E EP104

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: 4.1E

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L04 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
700132 000485-00 F12 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F11 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700191 000609-A G28 Foam Grip;Handlebar;31.8x28x3.0tx500L No Model Compatibility List $9.57 / Each

4
C 700257 000798-A C11 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
C 700263 000815-A C12 Water Bottle No Model Compatibility List $3.82 / Each

1
C 700304 000920-00 C09 End Cap;Handlebar Yes Model Compatibility List $4.50 / Each

1
L 700353 001114-00 L03 Sleeve;Wheel Axle No Model Compatibility List $3.82 / Each

8,3
E 700371 001146-BA E25 Cover-Front of Pedal Arm; ABS No Model Compatibility List $3.82 / Each

8,9,3
Q 700376 001161-C Q07 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
Q 700455 001412-A Q17 End Cap;Crank Cover No Model Compatibility List $1.77 / Each
Out Of Stock 		8,9
H 700483 001476-AB H15 Rubber Pad-Foot Pad; AR01-085 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $12.87 / Each

9,3,12,13,14
Q 700532 001544-BB Q03 Crank Cover;Round Disk No Model Compatibility List $29.67 / Each

8,9
P 700722 002028-D P08 Console Cable Yes Model Compatibility List $57.49 / Each

7,4,5,6
P 700770 002231-B P06 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
P 700901 002703-A P07 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
K 701008 003307-00 KIT Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

R 701042 003413-00 R37 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701049 003443-C P05 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
P 701053 003503-A2 P07 Power Adapter;2M 120V/60HZ 9.0V/1A No Model Compatibility List $76.65 / Each

4,5,6
701154 004072-A2 R09 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
R 701165 004081-A2 R08 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

701221 004189-A R10 Drive Belt;Poly-V;410-J8 Yes Model Compatibility List $57.49 / Each

15,10
Q 701294 004359-00 Q42 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

701300 004364-00 N02 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 C08 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

P 701318 004374-00 P04 Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

701390 004447-AB S12 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

701577 004612-00 S55 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701586 004617-00 Q30 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701591 004620-00 S20 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701600 004624-00 Z08 Screw;Umbrella Cross Tapped;4x20L;Gap; No Model Compatibility List $2.00 / Each

Z 701633 004654-00 Z13 SCREW;RND;Diam.4X15L;SM;PH;;BZN;;POT No Model Compatibility List $3.69 / Each

2
Q 701635 004660-A Q44 Screw;Oval Tapping;5x15L No Model Compatibility List $2.00 / Each

701642 004676-00 S05 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701690 004719-00 E35 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
701699 004724-00 Z15 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

H 701713 004730-00 H10 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

E 701714 004731-00 E14 SCREW;BH;M8X1.25PX95L;;HS;;;; No Model Compatibility List $3.33 / Each

2
701731 004757-00 Z04 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

701737 004762-00 Z01 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.00 / Each

2
Z 701768 004789-Z Z09 Screw;Hex Socket;M10x1.5Px75L No Model Compatibility List $10.01 / Each

2
701781 004796-00 Z16 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Z 701830 004849-00 Z12 Set Screw;M8x1.25Px10L No Model Compatibility List $2.00 / Each

2
701848 004865-00 J07 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701858 004880-00 P51 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701869 004891-00 R16 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

R 701870 004892-00 R18 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
701893 004925-00 S16 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 H08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

S 701904 004931-00 S18 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

Z 701906 004932-Z Z02 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
Z 701912 004941-00 Z26 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

Z 701921 004953-00 Z11 Nut;Nylon;M10X1.5P No Model Compatibility List $3.69 / Each

2
701927 004964-00 R11 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 F10 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701939 004975-00 L06 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

G 701988 005026-00 G20 Washer;Flat;25.5x35.0x1.0T No Model Compatibility List $2.00 / Each

2
E 701996 005034-00 E34 Washer;Flat;8.2x26.5x1.6T No Model Compatibility List $2.00 / Each

2
702018 005053-00 G29 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
H 702051 005079-00 H17 Washer;Flat;5.2X12X1.0T;Black Zinc No Model Compatibility List $2.00 / Each

702063 005091-00 Q43 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

702066 005094-00 S54 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

L 702072 005103-Z L09 Washer;Flat;5/16x30.0x1.5T No Model Compatibility List $1.90 / Each

2
702076 005109-00 E69 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
G 702078 005110-00 G12 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
702135 005163-00 Z03 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
E 702141 005171-A E19 Washer;Arc;4.2x15x1.0T No Model Compatibility List $1.85 / Each

2
Z 702142 005173-A Z10 WASHER;ARC;Diam.10.5XDiam.20.0X2.0T;;; No Model Compatibility List $1.01 / Each

2
702161 005198-00 H11 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
G 702163 005200-A G30 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

Z 702166 005206-BB Z25 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
702180 005222-00 E30 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
G 702184 005227-Z G19 Washer;Wavy;26x34x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702186 005229-00 Z14 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

702193 005239-00 R51 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 Q26 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702240 005365-00 R34 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702241 005366-00 G25 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

702483 007964-00 Q25 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702511 008393-00 P03 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

G 702571 008692-D G09 Inner Bushing;Lower Link Arm No Model Compatibility List $1.90 / Each

8,3
F 702753 009525-B F06 Aluminum Rail; AL - D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $18.64 / Each

9
A 702877 013081-Z AE3 Pivot Tube Set - Bushings; D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $57.49 / Each

8,3
A 702878 013086-ZR AH2 Lower Link Arm Set-R; No Model Compatibility List $142.87 / Each
Out Of Stock 		3
R 702908 013196-Z R06 Drive Axle Set;Flywheel Yes Model Compatibility List $228.83 / Each

8,10
R 702910 013208-Z R01 R02 Pedal Axle Set No Model Compatibility List $136.03 / Each

8,9
E 702911 013209-Z E13 Roller Wheel Set Yes Model Compatibility List $57.49 / Each

8
A 703573 015527-AA AJ1 Crank only-L/R; CARBON-GRAY COLOR No Model Compatibility List $57.49 / Each

8
H 703582 015589-AA H18 Connecting Plate;Footpad;Platinum Yes Model Compatibility List $9.57 / Each

9,3,12,13,14
A 703599 015621-AB AG5 Swivel Bracket;Lower Handle Bar No Model Compatibility List $33.70 / Each

2,3,4,5,6,11
A 707189 1000091137 AJ2 Small Crank Extension-Pivot Tube; No Model Compatibility List $57.49 / Each

8,3
E 725255 103295 E12 Bushing;Pedal Arm Axle;31.8x3.0tx329mm No Model Compatibility List $20.12 / Each

8,9,3
G 725256 103296 G22 Bushing No Model Compatibility List $9.57 / Each

8
725259 103299 H09 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Foot Pedal - Used 1006234 008202-C Foot Pedal - Used No Model Compatibility List $15.59 / Each
Out Of Stock 		9
Resistance Motor, Servo, Assembly - Used 1019633 013148-Z S25 1 Resistance Motor, Servo, Assembly - Used Yes Model Compatibility List $103.99 / Each

10
Z 701972 005010-00 Z22 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

S 911968 004620-00 S20 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

H 976932 004926-00 H08 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q26 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

P 986204 004374-00 P04 Button Head Phillip Screw (New) No Model Compatibility List $12.99 / Each
Out Of Stock
K 971749 003307-00 KIT Rate Chest Strap (New) No Model Compatibility List $194.99 / Each

View Drawing
