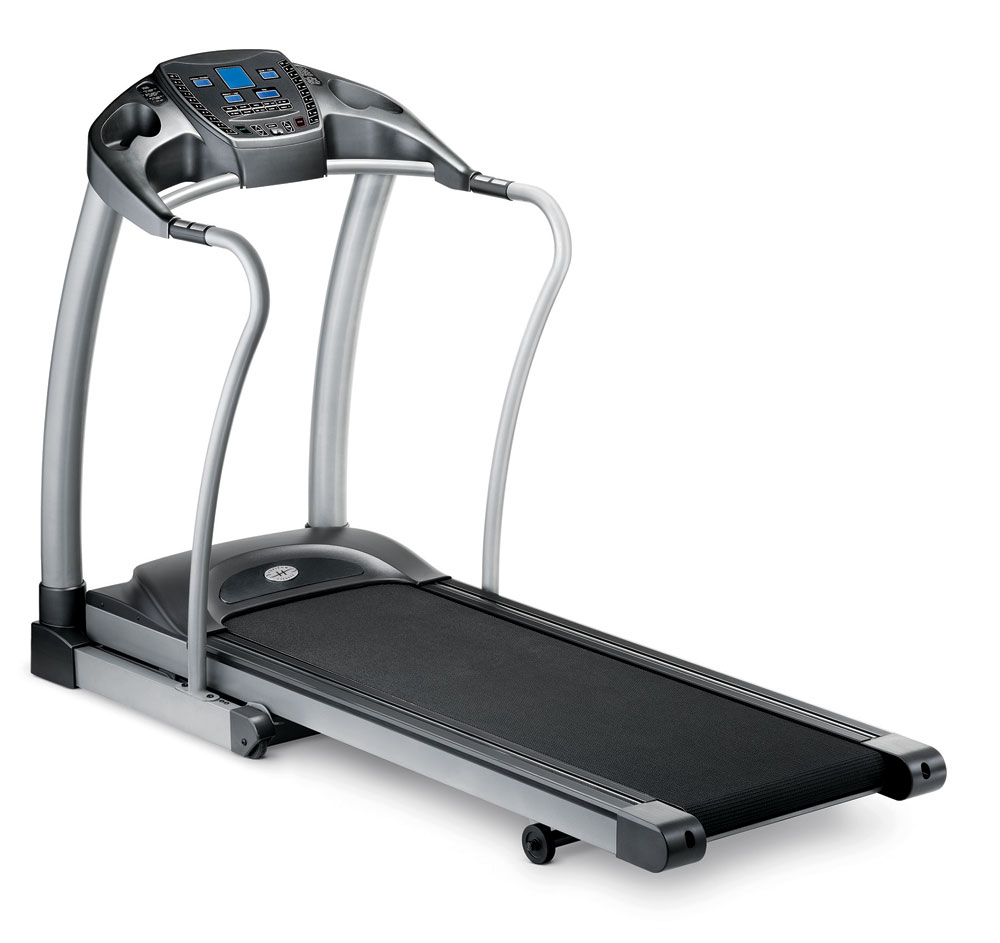

Horizon Fitness - 4.1T - 2005

Repair Parts for Horizon Fitness 4.1T TM136

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: 4.1T

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
6 1004969 322035 # 6" LIFT MTR WIRE HRNS Yes Model Compatibility List $21.99 / Each

4,5,6,10,12,13,14
700014 000021-B L05 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

L 700017 000031-C L01 Mobile Wheel No Model Compatibility List $3.82 / Each

8
Q 700100 000381-AA Q05 Bottom Cover;Main Frame No Model Compatibility List $31.20 / Each

9,3
Q 700102 000386-DB Q07 End Cap;Side Rail;Right Yes Model Compatibility List $19.84 / Each

9
700132 000485-00 K09 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
K 700135 000491-B K11 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
700211 000682-A M21 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
700239 000760-E B29 Elastomer;White Yes Model Compatibility List $17.34 / Each

1
B 700241 000762-G B33 Elastomer;Blue Yes Model Compatibility List $15.31 / Each

1
K 700263 000815-A KIT Water Bottle No Model Compatibility List $3.82 / Each

1

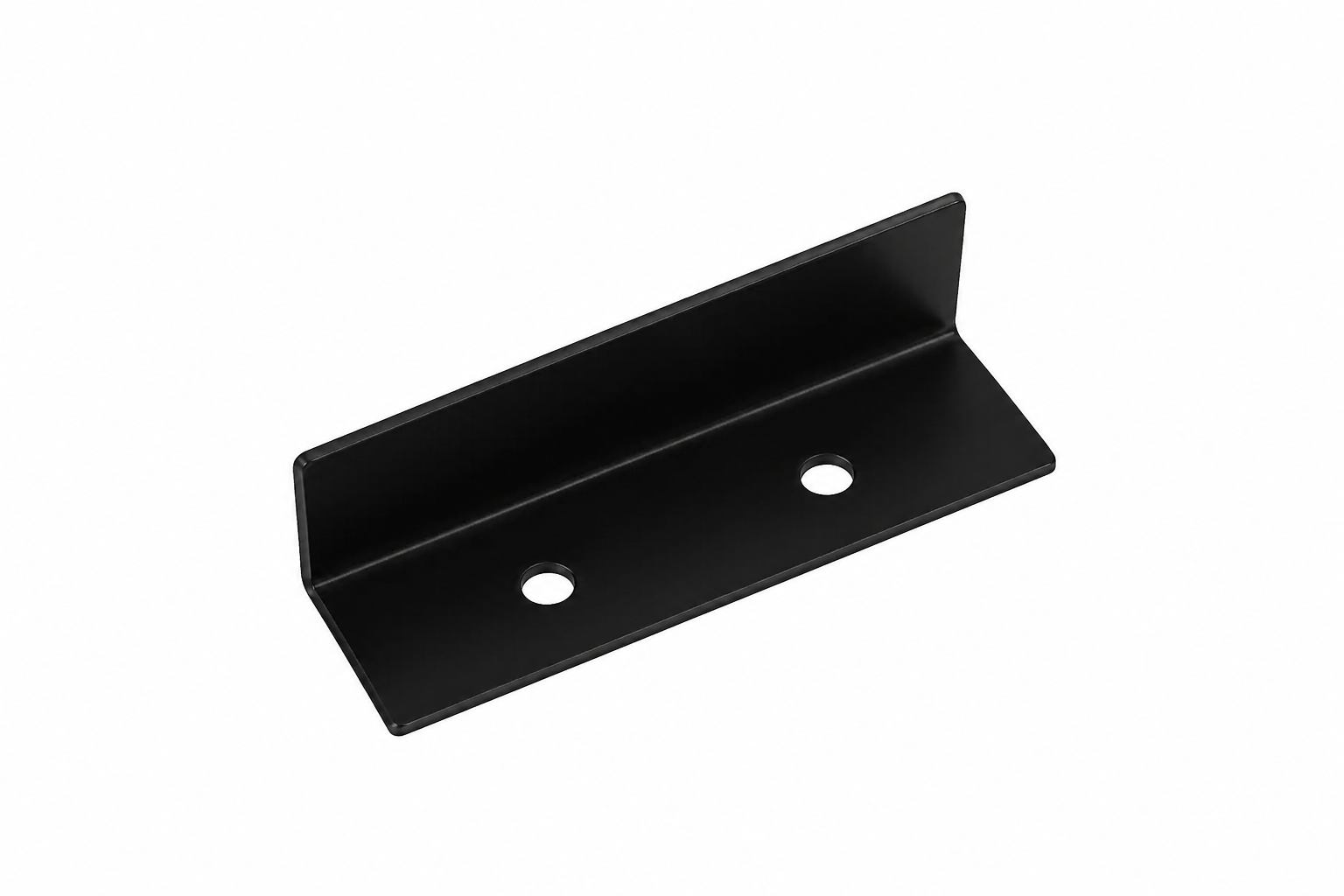

700269 000825-AA B56 Deck Extension No Model Compatibility List $1.90 / Each

3
N 700287 000871-A N46 Oval Cap;Console No Model Compatibility List $1.90 / Each

7,9
Q 700304 000920-00 Q24 End Cap;Handlebar Yes Model Compatibility List $4.50 / Each

1
N 700340 001046-DA N08 Console Shell Yes Model Compatibility List $80.26 / Each

7
N 700341 001047-DA N09 Console Cover;Bottom Yes Model Compatibility List $14.72 / Each

7,9
N 700345 001058-BA N07 Faceplate only; EP104 No Model Compatibility List $9.57 / Each

3,4,5,6
700402 001251-F Q10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

700542 001572-AA Q21 Cover;Support Tube Base;Right Yes Model Compatibility List $10.35 / Each

9,3
700700 001952-00 N22 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 700702 001956-C N23 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
700740 002103-A P06 Console Cable;Mast;1200 (JST-12P+JST-12P) Yes Model Compatibility List $38.32 / Each

7,4,5,6
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

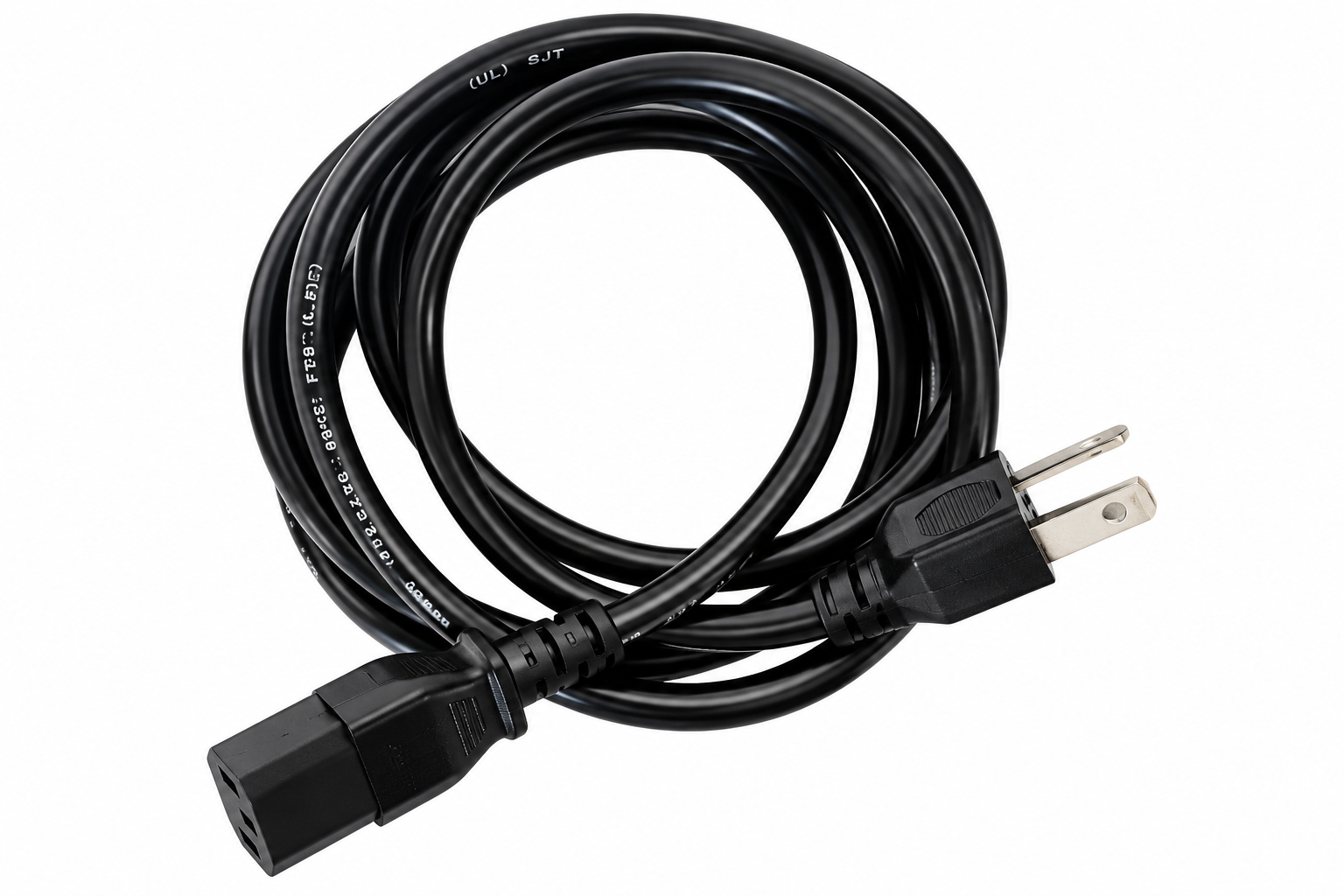

700755 002169-A KIT Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 700821 002424-A P07 Console Cable;Mast;1800(2.5-12P+JST-12P) Yes Model Compatibility List $27.74 / Each

4,5,6,7

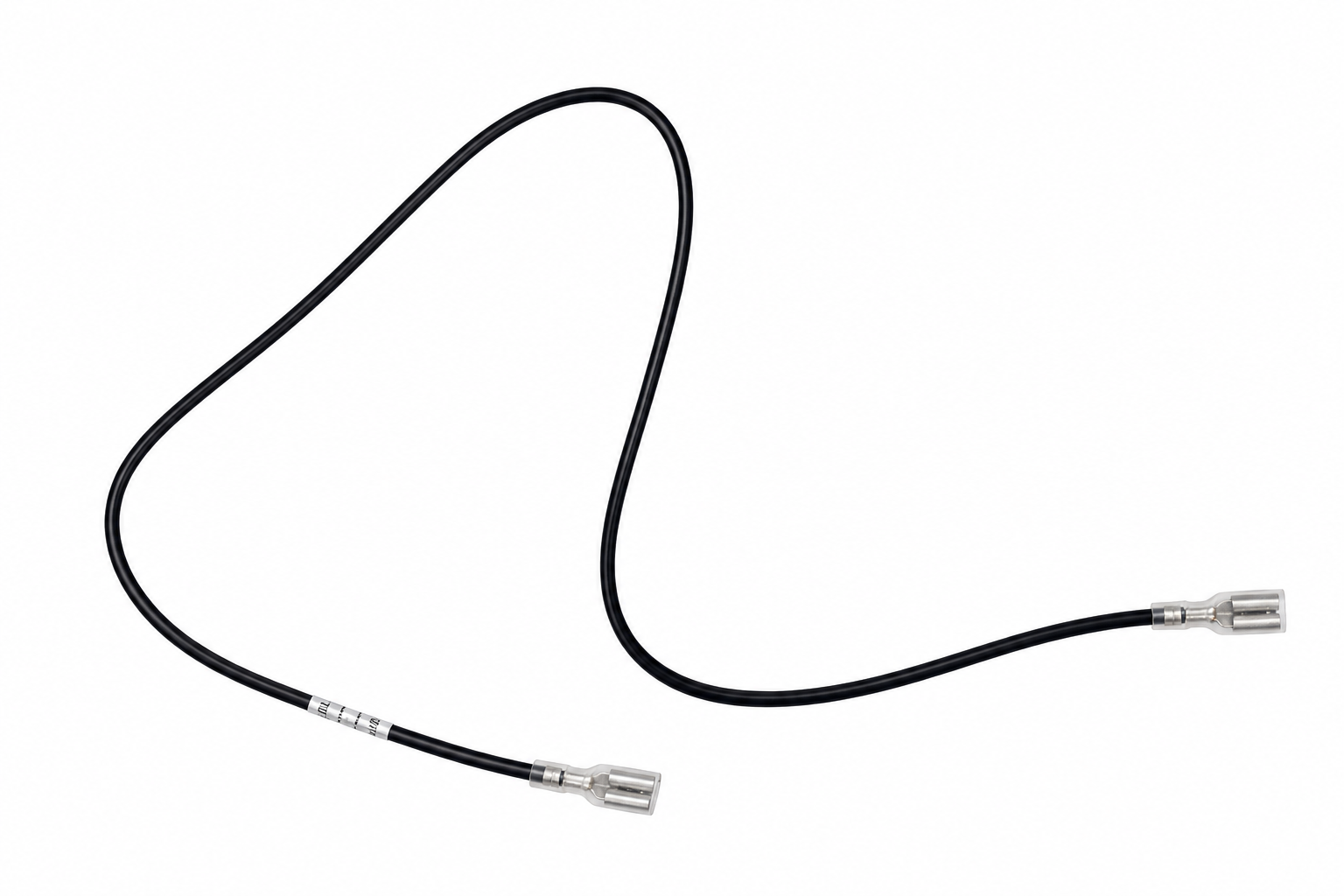

700847 002508-A P09 Power Wire;Control Board;550;16AWG;Black No Model Compatibility List $1.90 / Each

7,4,5,6

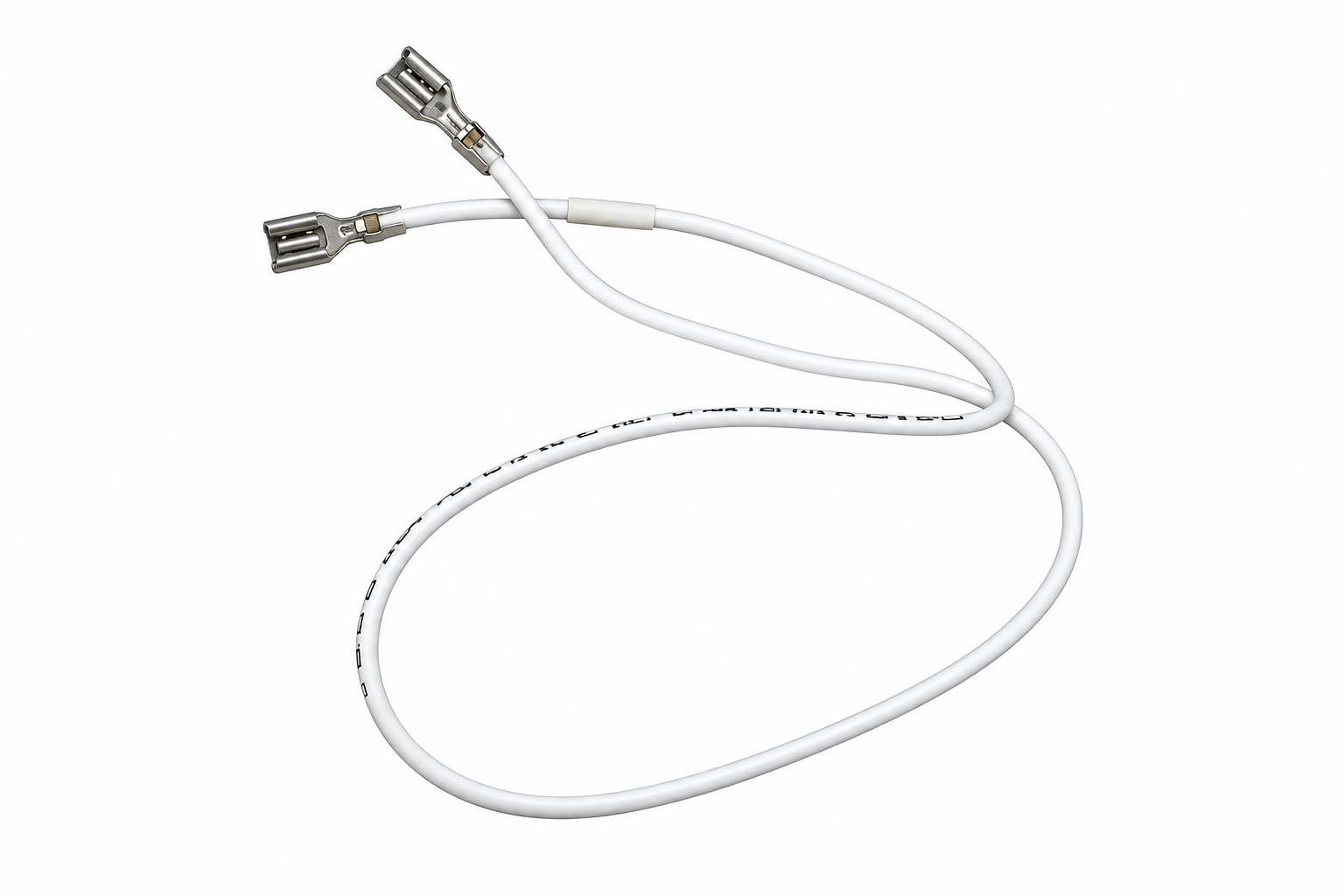

700848 002509-A P10 Power Wire;Control Board;550;16AWG;White Yes Model Compatibility List $1.90 / Each

7,4,5,6

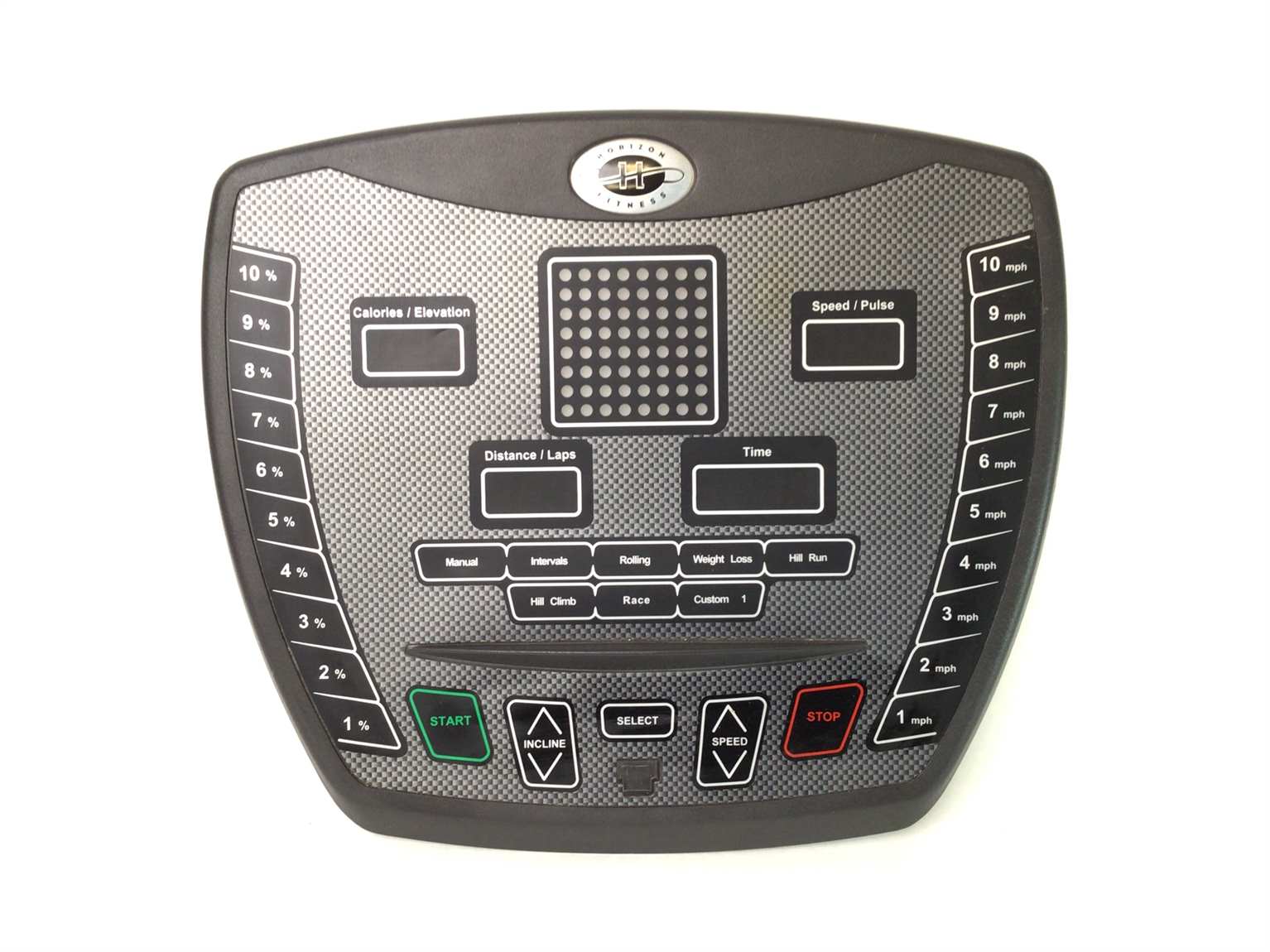

N 700961 002991-A N01 Overlay-Console Face; TM104 No Model Compatibility List $19.14 / Each

7,4,5,6
N 700984 003155-B N03 Membrane Key;Programs No Model Compatibility List $9.57 / Each

9
N 700994 003186-B N02 Membrane Key-Speed/Elevation; TM136 No Model Compatibility List $38.32 / Each

9,10
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

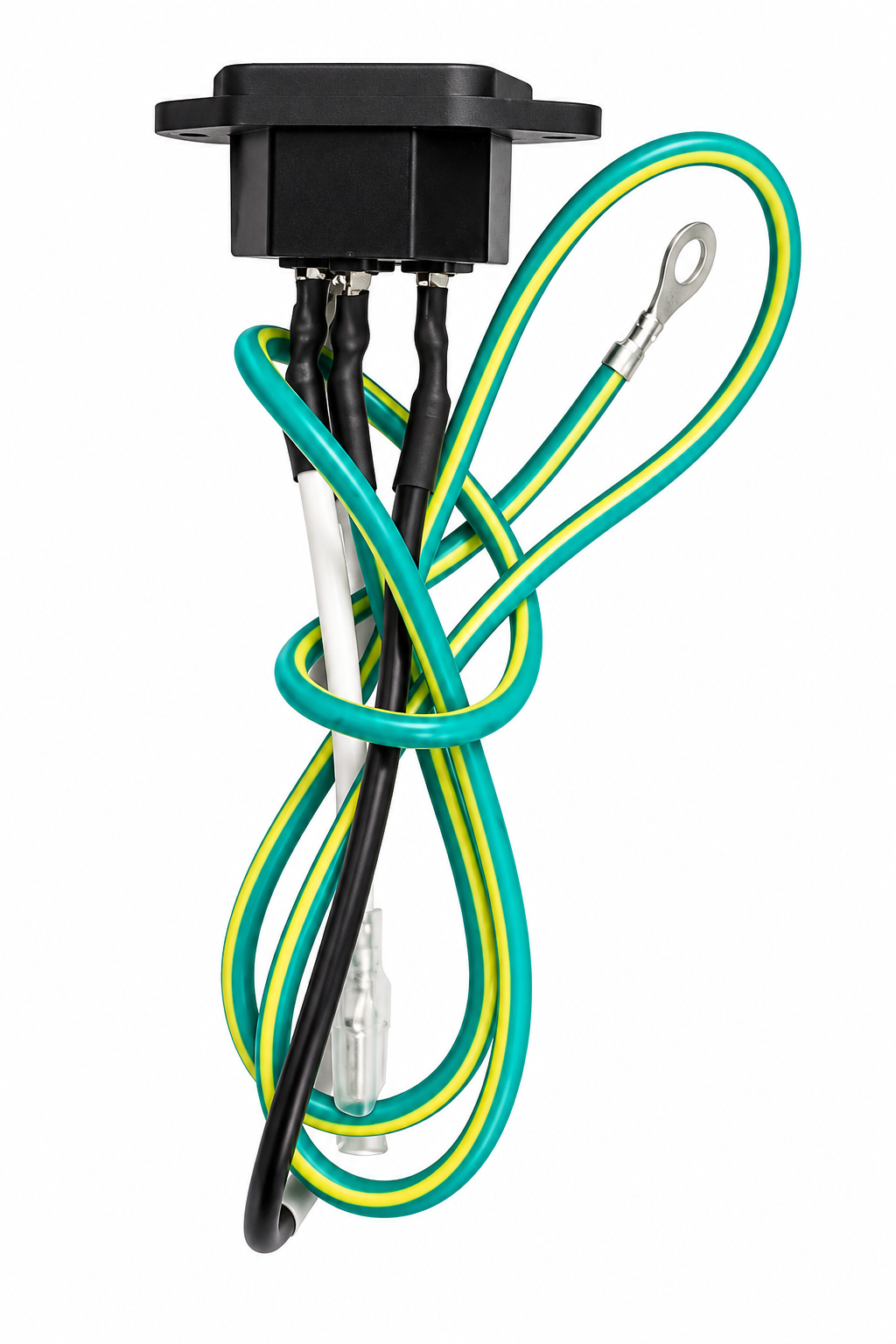

701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
N 701047 003432-B N26 Pulse Sensor Set;Single;750 Yes Model Compatibility List $21.27 / Each

12,13,14
701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $57.49 / Each

23
R 701245 004265-BB R02 Running Belt;495x2820x3.1t Yes Model Compatibility List $479.10 / Each

15
701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 B35 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
U 701418 004468-00 U16 Screw;Hex Socket;Round;M6x1.0Px25L;;Zn-B No Model Compatibility List $1.79 / Each

701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

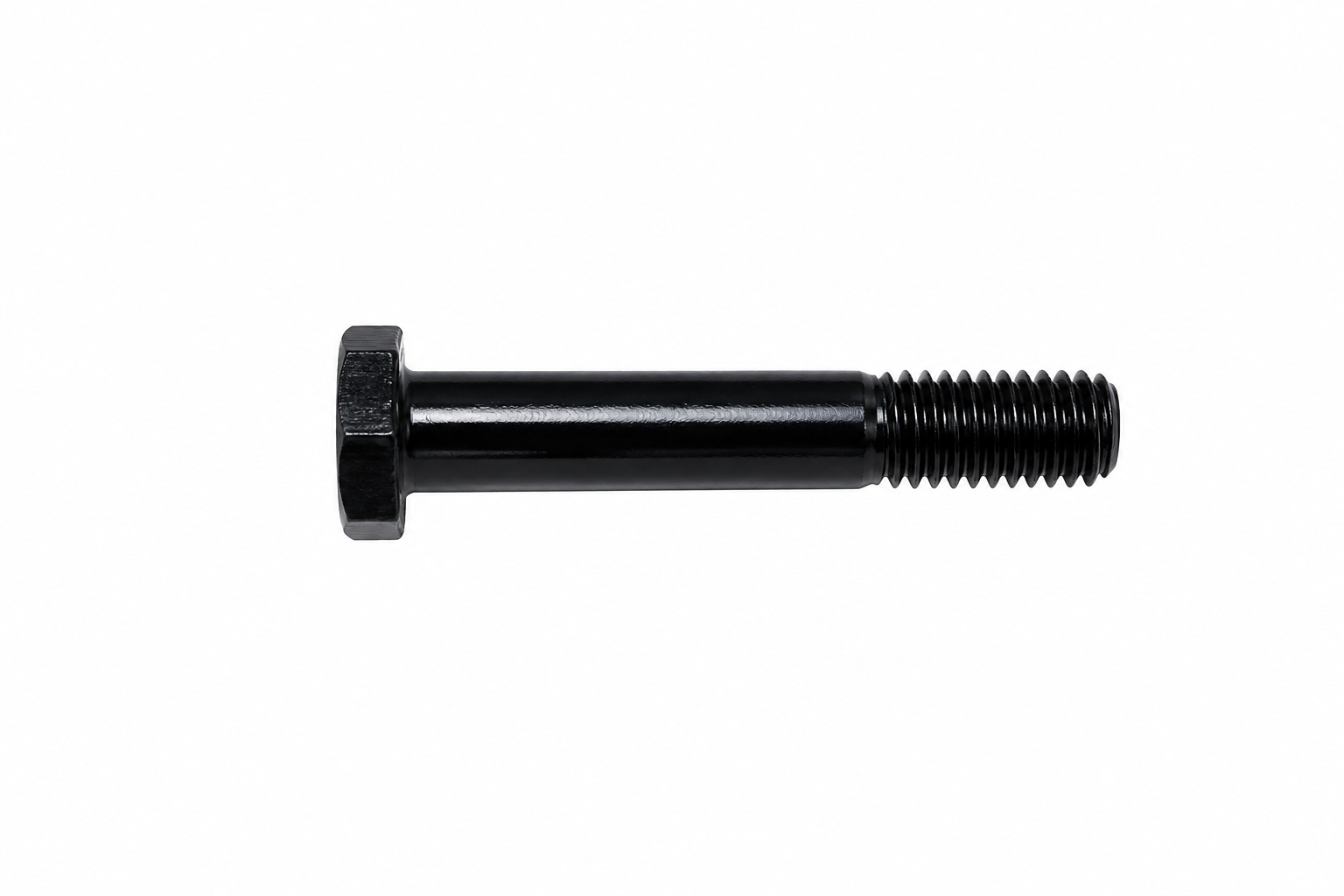

701570 004603-ZA M14 Screw;Hex;W3/8x60L;Tooth18L Yes Model Compatibility List $4.00 / Each

2
701577 004612-00 P15 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701586 004617-00 Q23 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701590 004619-AB N19 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 Z11 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

M 701598 004622-00 M24 Screw;Phillip;BH;Tapped;4x8L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

701613 004632-00 Q17 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

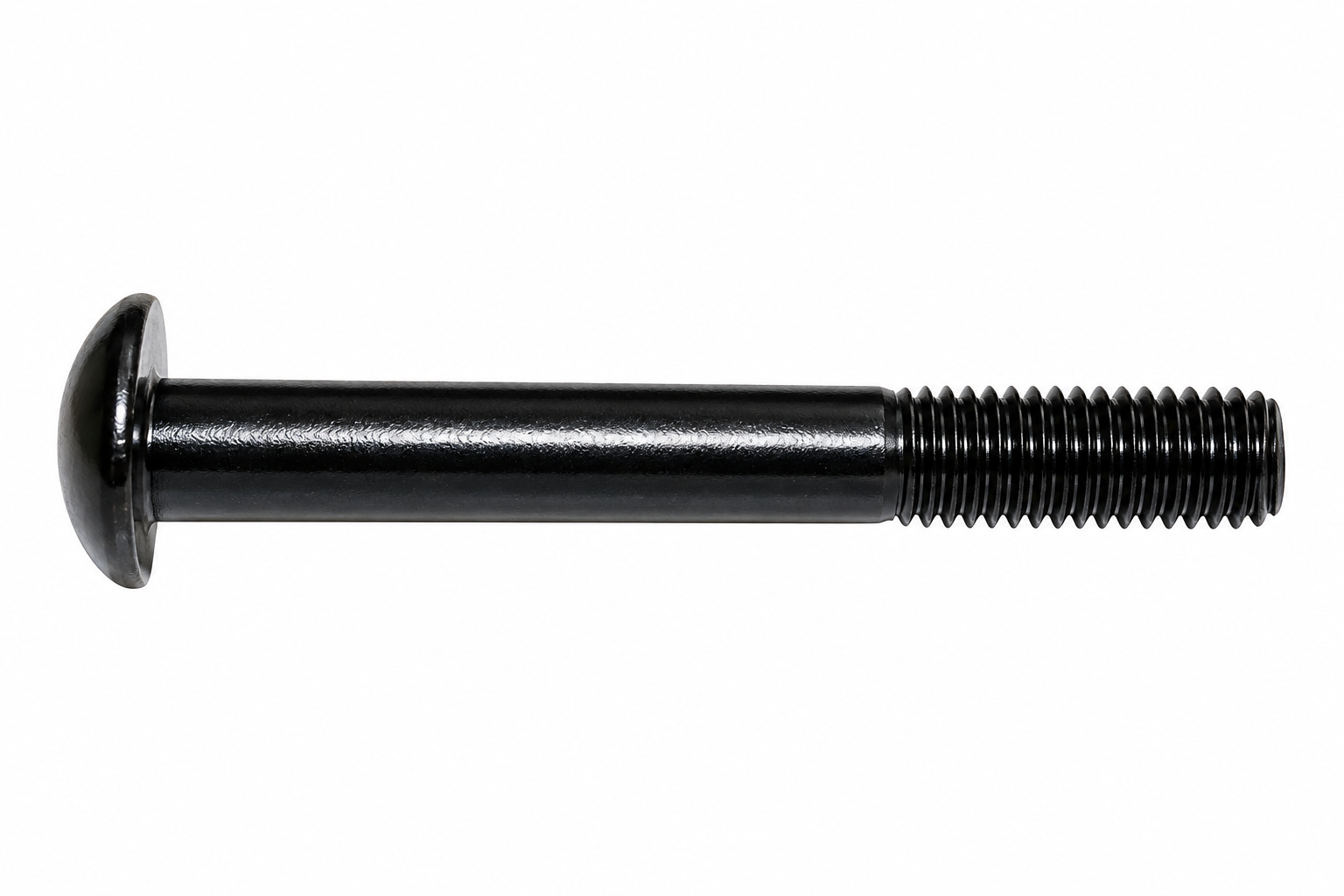

L 701721 004741-00 L03 Screw;Oval Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
701781 004796-00 Z08 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
701848 004865-00 Q19 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

Q 701851 004870-00 Q11 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701893 004925-00 B48 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 R05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

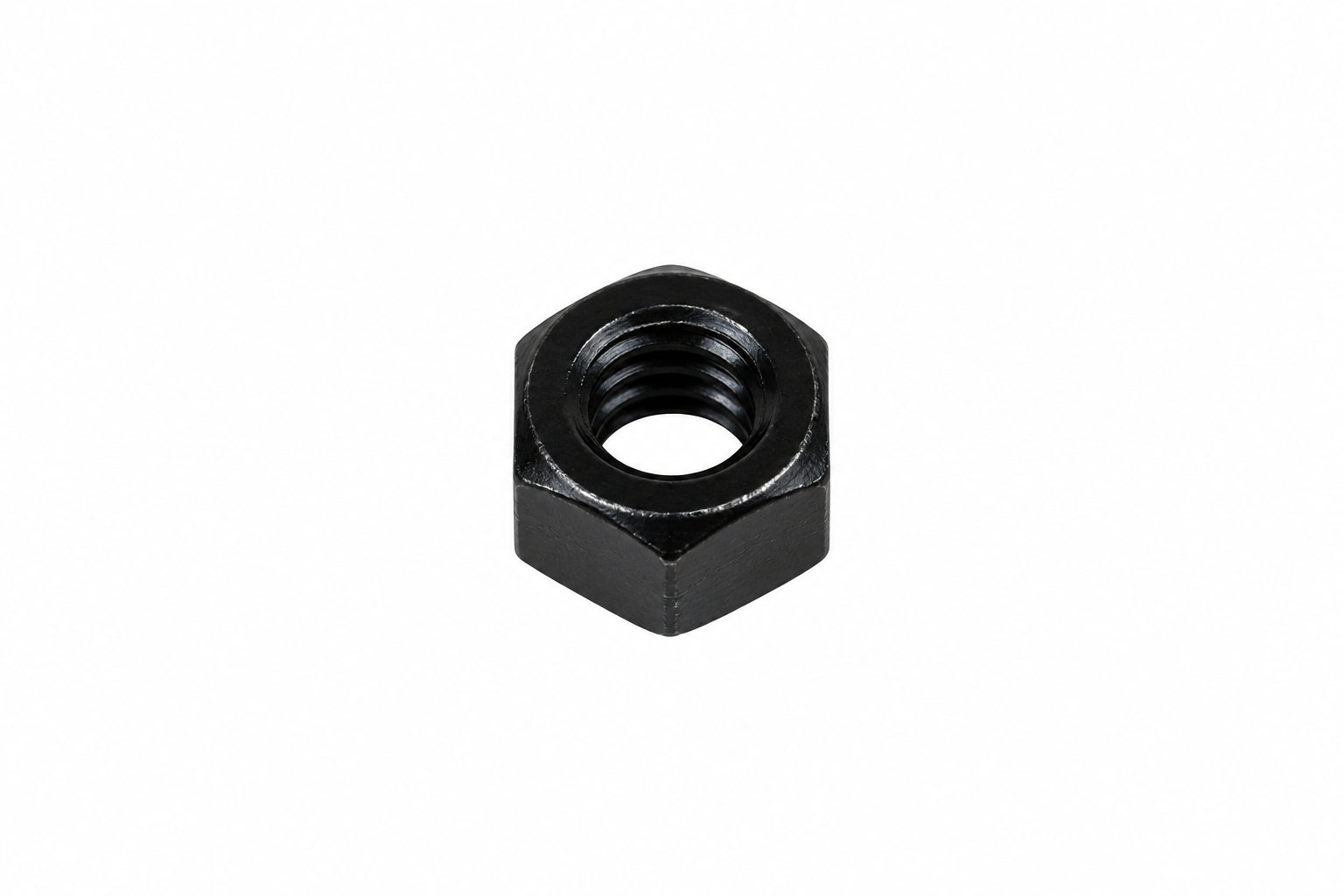

L 701918 004949-00 L09 Nut;Mobile Wheel;Nylon;3/8--16UNC;BED; No Model Compatibility List $2.00 / Each

2,8
B 701938 004974-00 B63 Insert Nut;Brass;ALS7-610-4.2(0.5-4.2) No Model Compatibility List $1.90 / Each

2
L 701960 005003-00 L23 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

U 701983 005019-00 U14 Washer;Lock;SW6 6.1X10.0X1.2T No Model Compatibility List $2.00 / Each

2
702007 005044-00 R07 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

702030 005062-00 B46 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702074 005106-00 R06 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

B 702091 005122-Z B45 Washer;Flat;6.5x19x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702160 005196-00 L13 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702217 005330-00 Q13 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

K 702258 005394-00 KIT Wrench;T-Type;8mm No Model Compatibility List $10.01 / Each

702275 005438-00 L15 Spring;Foot Lock Latch;16x2.0x50Lx12N Yes Model Compatibility List $2.00 / Each

2,9,3
U 702280 005448-A U13 Spring;Tension Assembly;2.0x16.0x70Lx23 No Model Compatibility List $4.00 / Each

2,3
V 702326 006087-AX V03 Decal;Console Logo No Model Compatibility List $1.77 / Each

7,3
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702456 007528-BX B34 Belt Guide Yes Model Compatibility List $5.98 / Each

15
U 702518 008424-BX U01 Fixing Plate;Tension Assembly No Model Compatibility List $3.82 / Each

3
B 702552 008609-00 B41 Bolt;Air Shock;M8X1.25P S45C No Model Compatibility List $10.01 / Each

2
702556 008625-C B44 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

Z 702557 008626-B Z09 Bolt;Top of Mast;M8x1.25Px55L No Model Compatibility List $2.00 / Each

2
L 702561 008641-C L14 Bolt;M5x1.25Px12L-6L No Model Compatibility List $2.00 / Each

2
B 702760 009557-A B28 Air Shock;110Kg Yes Model Compatibility List $37.83 / Each

1
702855 012805-00 M02 Elevation Motor;110V Yes Model Compatibility List $249.13 / Each

10
M 703352 013674-DG M03 Motor Control Board;Everything Yes Model Compatibility List $584.82 / Each

7,10
703441 014682-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

26
A 703471 014829-AA AC1 Console Mast Set;Left/Right No Model Compatibility List $153.22 / Each

7
M 703493 015011-AC M05 Motor Bracket No Model Compatibility List $14.90 / Each

2,3,4,5,6,10
703502 015046-AC P21 Fix Plate;Power Socket Yes Model Compatibility List $12.48 / Each

3,4,5,6
B 703715 015867-CA B31 Running Deck;608x1205Lx25T No Model Compatibility List $191.62 / Each

3
Q 703791 016553-Z Q02 Side Rail Set Yes Model Compatibility List $86.45 / Each

9
A 703797 016606-ZD AU2 Tension Wheel Set Yes Model Compatibility List $27.82 / Each

8
K 704087 020210-00 KIT Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
M 704233 020700-00 M04 Pin;Thread;Cross;M4x12L; D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.77 / Each

7,12,13,14
M 704928 026309-Z M01 Drive Motor Set-2.5HP; No Model Compatibility List $574.91 / Each

10
705141 038132-BBX N27 N37 N39 Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
N 705566 051345-A N30 Safety Key Set Yes Model Compatibility List $37.91 / Each

1
705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

A 709035 1000108456 AR1 Roller Set;Front;Texture;TM136 Yes Model Compatibility List $191.62 / Each

8
Console Cable; Upper; 400 (2.5-12P+JST-12P) 725953 078545 P05 Console Cable; Upper; 400 (2.5-12P+JST-12P) Yes Model Compatibility List $32.63 / Each

Left Rail End Cap - Used 1008103 000385-EB Left Rail End Cap - Used No Model Compatibility List $19.50 / Each

9
Motor Hood Cover - Used 1008109 000338-BB Motor Hood Cover - Used No Model Compatibility List $89.70 / Each

9
Bumper Base Frame (used) 1016693 000875-00 # 2 Bumper Base Frame (used) Yes Model Compatibility List $12.99 / Each

3,9
Magnetic Safety Key (Used) 1017639 013871-A # 1 Magnetic Safety Key (Used) Yes Model Compatibility List $38.99 / Each

1
P 1020937 002124-B P08 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

Red Deck Cushion Isolator (Used) 1021191 000760-E-Red B30 2 Red Deck Cushion Isolator (Used) Yes Model Compatibility List $12.99 / Each

3
Polar Heart Rate HR Receiver Works with Xystos Aerobic AT1 Treadmill 1021068 AT1-HRR 0 1 Polar Heart Rate HR Receiver Works with Xystos Aerobic AT1 Treadmill Yes Model Compatibility List $19.99 / Each
Out Of Stock 		4

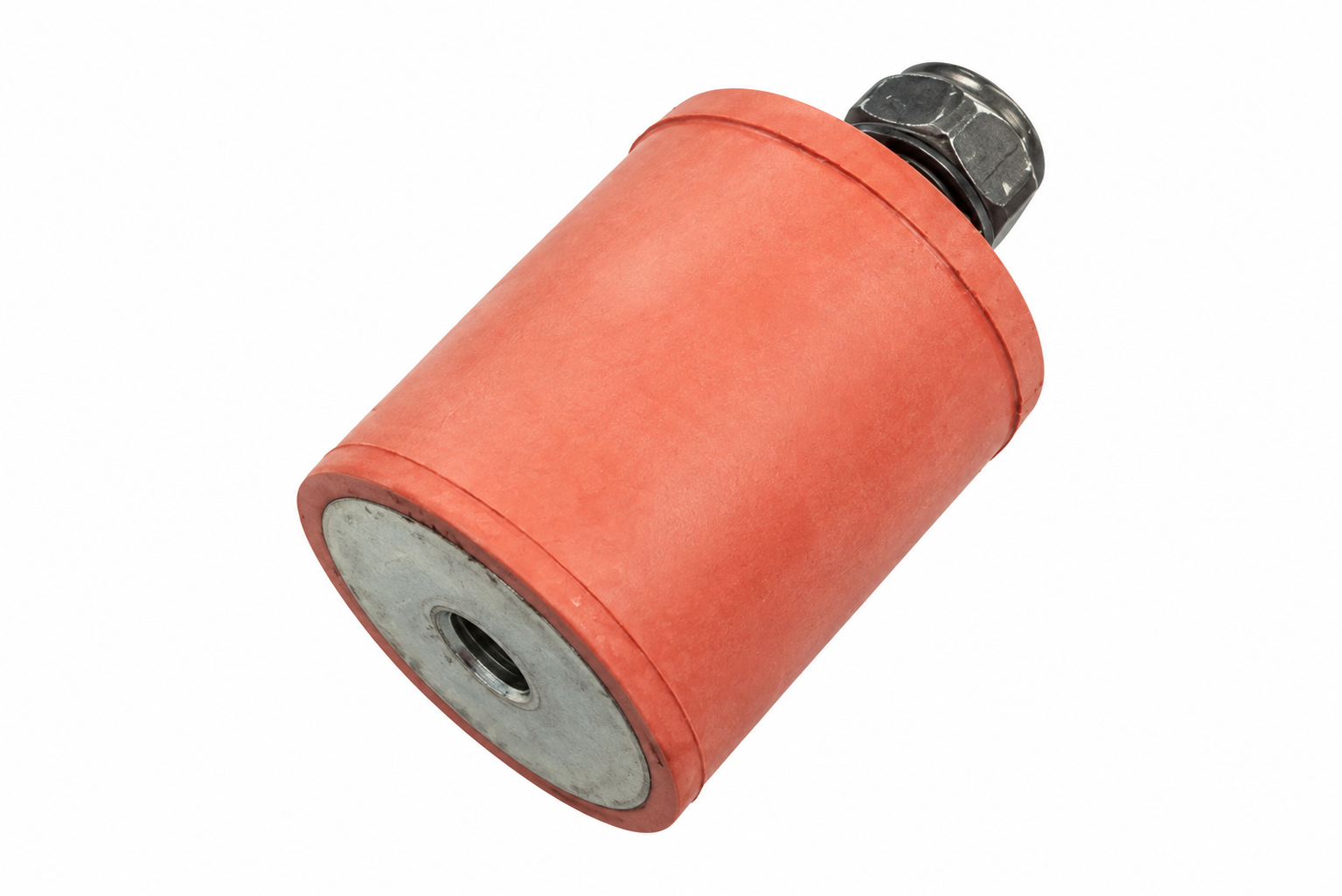

AFG Horizon Vision Fitness Treadmill Middle Shock Spring 1000093397 (Used) 1007192 13.0AT-MSS 0 1 AFG Horizon Vision Fitness Treadmill Middle Shock Spring 1000093397 (Used) No Model Compatibility List $22.09 / Each

1
AFG Vision Horizon Fitness Treadmill Socket Cap Screw M10-1.5-9mm 004496-00 (Used) 1020916 2.0AT-SCSM10.1X5.9mm 0 1 AFG Vision Horizon Fitness Treadmill Socket Cap Screw M10-1.5-9mm 004496-00 (Used) No Model Compatibility List $19.49 / Each

1

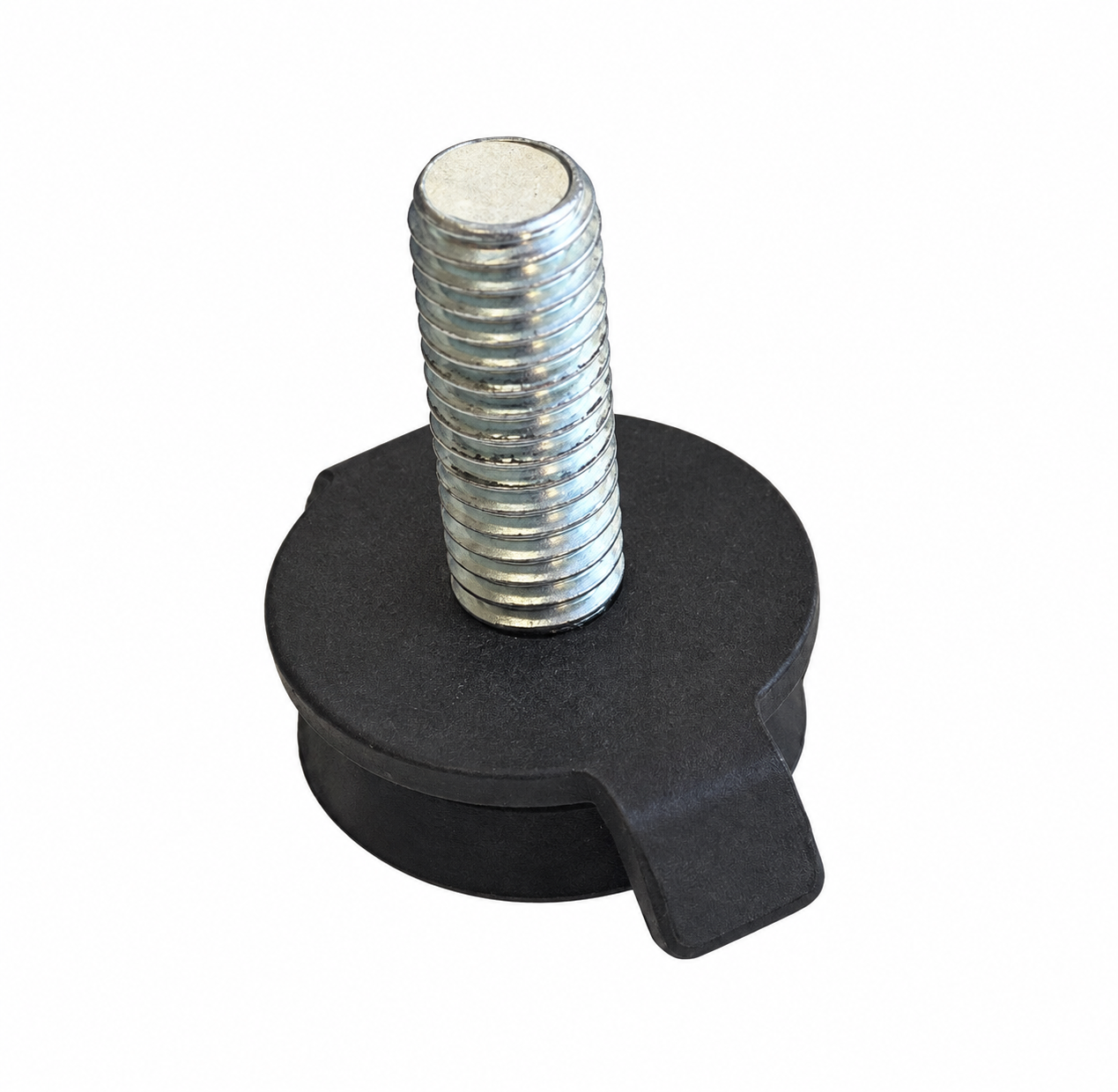

AFG Horizon Tempo Vision Fitness Treadmill Leveling Foot Leveler 000485-00 1.5 1003847 14.0AE-LFL1.5 0 51 AFG Horizon Tempo Vision Fitness Treadmill Leveling Foot Leveler 000485-00 1.5" (Used) No Model Compatibility List $8.44 / Each

1
Cover Bottom Motor (Used) 1024720 000339-GB Q04 1 Cover Bottom Motor (Used) No Model Compatibility List $38.99 / Each

1
Q 700287 000920-00 Q24 1 End Cap Yes Model Compatibility List $2.98 / Each

1
Cover Mast Base Left (Used) 1024730 001571-AA Q20 1 Cover Mast Base Left (Used) Yes Model Compatibility List $19.49 / Each

1
Folding Latch Hook (Used) 1024732 015030-AC L12 1 Folding Latch Hook (Used) No Model Compatibility List $19.49 / Each
Out Of Stock 		1
Magnetic Safety Key Lanyard (Used) 013699 013871-A 0 1 Magnetic Safety Key Lanyard (Used) No Model Compatibility List $35.09 / Each
Out Of Stock 		1
A 014682-B 014682-B AR2 1 Rear Idler Roller Yes Model Compatibility List $194.99 / Each

26
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) 1029470 0000085207 P06 1 TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) Yes Model Compatibility List $10.00 / Each

Mobile Wheel Cap-L (Used) 1030601 000177-BB Q14 1 Mobile Wheel Cap-L (Used) No Model Compatibility List $3.86 / Each

Mobile Wheel Cap-R (Used) 1030600 000179-BB Q22 1 Mobile Wheel Cap-R (Used) No Model Compatibility List $3.86 / Each

Front Drive Pulley Roller 1000018 016110-Z Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8
Power Entry Plate Switch Breaker Inlet 1000019 1000211092 Power Entry Plate Switch Breaker Inlet Yes Model Compatibility List $34.99 / Each
P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

P 1002652 003346-00 P04 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $19.99 / Each

9,4,5,6
Rear Idler Roller 1001050 1000108449 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock 		1
M 1002266 013674-DG M03 Lower Motor Controller Board + Choke Yes Model Compatibility List $179.00 / Each
Out Of Stock 		7,10
A 1001527 014682-B AR2 Rear Idler Roller Yes Model Compatibility List $60.99 / Each

26
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

A 1001529 1000108456 AR1 Front Drive Roller Yes Model Compatibility List $95.99 / Each

8
A 1003106 014682-B AR2 Rear Idler Roller Yes Model Compatibility List $79.99 / Each

26
M 1001314 013674-DG M03 Lower Control Board Motor Controller + Choke Yes Model Compatibility List $604.99 / Each

7,10
M 1001526 012805-00 M02 Incline Elevation Motor Yes Model Compatibility List $69.99 / Each
Out Of Stock 		10
K 1001765 002169-A KIT Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Power Entry Assembly Switch Filter Inlet 1008480 stwch-ent-480 Power Entry Assembly Switch Filter Inlet Yes Model Compatibility List $24.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

R 1020604 004483-00 R08 Front Roller Screw M8-1.25"x25mm No Model Compatibility List $11.99 / Each

Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $5.99 / Each

P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P04 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Z 911968 004620-00 Z11 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

R 976932 004926-00 R05 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q13 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Rower Self Tapping Screw (New) 957090 004621-00 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
