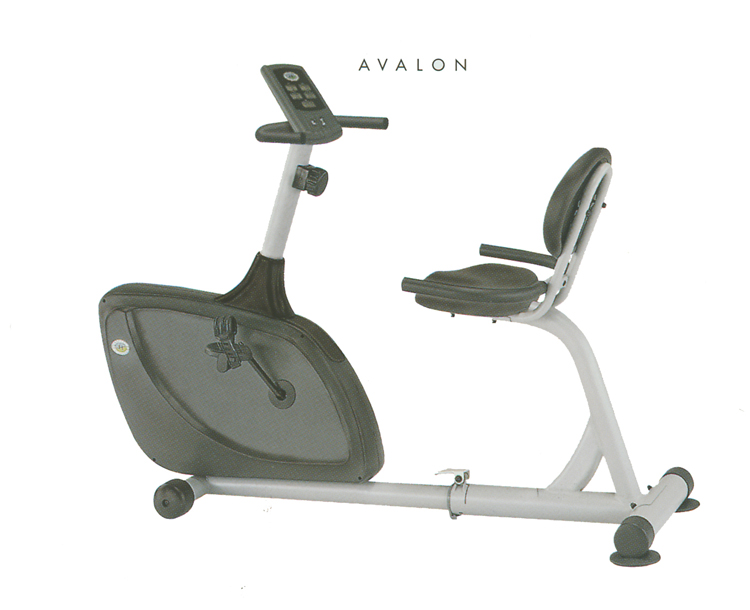

Horizon Fitness - Avalon - 2001

Repair Parts for Horizon Fitness Avalon RB36

Brand: Horizon Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: Avalon

Version: 2001

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700009 000014-00 L01 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
n 700257 000798-A n/a Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
G 700299 000893-B G04 End Cap;Handlebar No Model Compatibility List $1.90 / Each

9,11
C 700304 000920-00 C13 End Cap;Handlebar Yes Model Compatibility List $4.50 / Each

1
Q 700537 001558-00 Q05 Crank Cover No Model Compatibility List $1.90 / Each

8,9
P 700771 002235-B P01 Speed Sensor Wire;800mm No Model Compatibility List $8.87 / Each

4,5,6
R 701042 003413-00 R04 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
R 701112 003879-00 R10 Ball Bearing Set;Crank Wheel No Model Compatibility List $25.00 / Each

8
701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
U 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

701170 004090-00 R07 Bearing;One-way; HFL2026 No Model Compatibility List $27.82 / Each

8
R 701227 004201-00 R03 Drive Belt;Poly-V;430-J5 No Model Compatibility List $57.49 / Each

15,10
701300 004364-00 U07 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701588 004618-00 Q07 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701699 004724-00 G05 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

D 701710 004728-00 D05 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
701897 004926-00 C09 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

S 701904 004931-00 S12 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

702040 005070-00 L04 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702076 005109-00 C10 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
702135 005163-00 D06 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702236 005361-00 R13 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
B 702240 005365-00 B20 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702241 005366-00 U04 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

702483 007964-00 S03 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
A 702931 013387-Z AU1 Tension Wheel Set No Model Compatibility List $44.72 / Each

8
T 703447 014708-A T03 Pedal Set;With Strap No Model Compatibility List $31.85 / Each

8,9
R 703757 016008-Z R02 Pedal Axle No Model Compatibility List $37.83 / Each

8,9
705700 055204-A Q06 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

T 729399 ZMS2000077 T02 Pedal;Without Strap;Right No Model Compatibility List $26.60 / Each

8,9
C 976932 004926-00 C09 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

View Drawing
