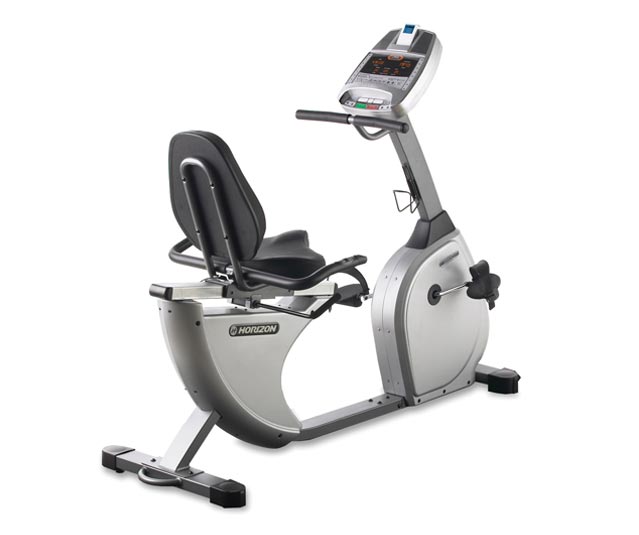

Horizon Fitness - B600 - 2008

Repair Parts for Horizon Fitness B600 RB122B

Brand: Horizon Fitness

Category: Upright

Type: Stationary Bikes

Model Name: B600

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - AE1 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
700132 000485-00 L06 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
L 700135 000491-B L07 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3

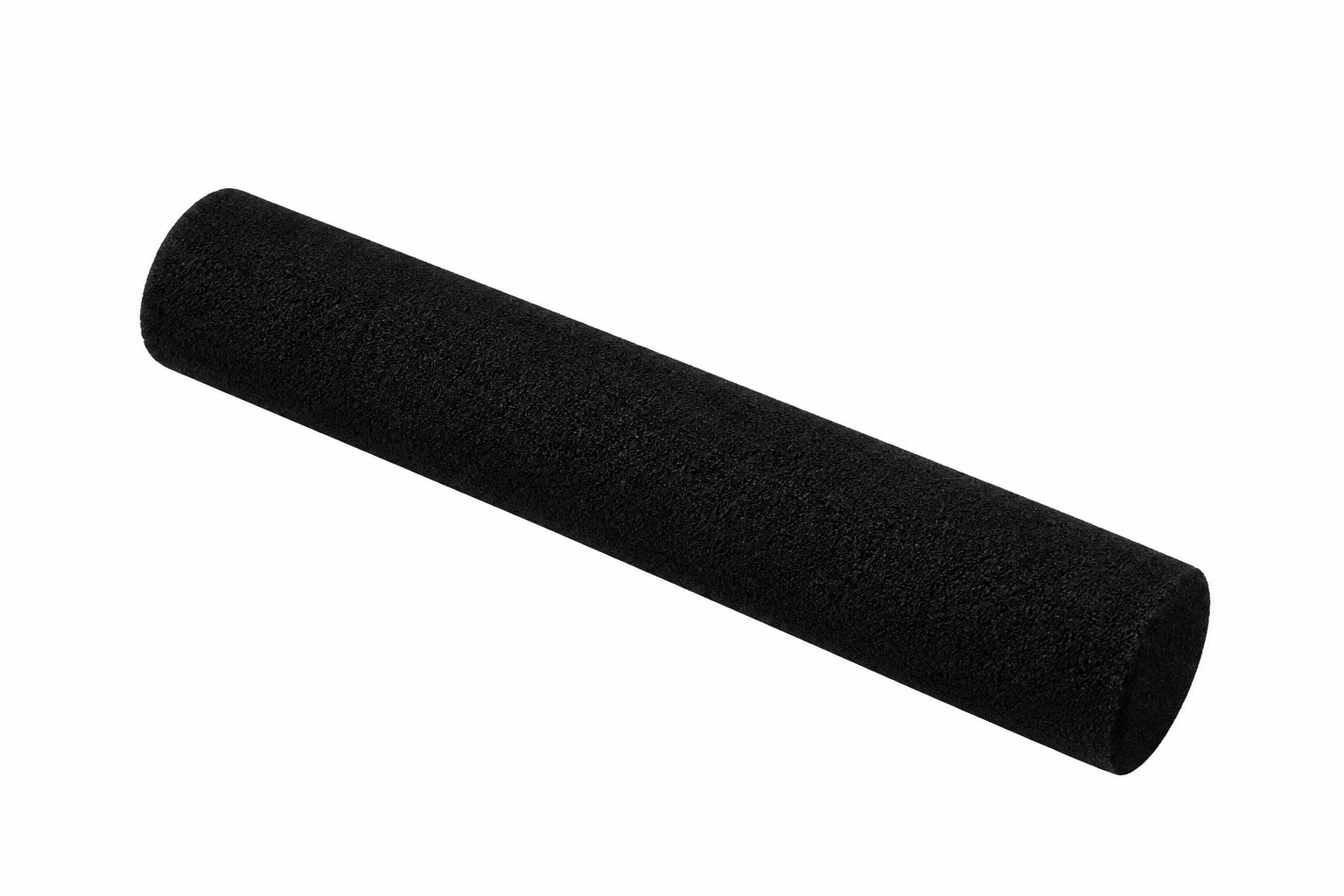

D 700221 000719-00 D20 Foam;Handlebar;20.5x5tx130L;RB07 No Model Compatibility List $3.82 / Each

11
F 700252 000782-B F04 Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
C 700257 000798-A C11 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
D 700273 000840-H D22 SLEEVE SEAT No Model Compatibility List $3.82 / Each

3,12,13,14
C 700300 000894-00 C06 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
D 700301 000901-00 D21 End Cap;Handlebar;20mm No Model Compatibility List $3.82 / Each

9,11
F 700392 001201-A F03 End Cap;Seat Rail No Model Compatibility List $3.82 / Each

9,12,13,14
D 700466 001437-00 D10 Clamp Block Nylon No Model Compatibility List $3.82 / Each

4,5,6
D 700481 001469-00 D11 Plate Protection Sliding No Model Compatibility List $1.90 / Each

3
Q 700537 001558-00 Q06 Crank Cover No Model Compatibility List $1.90 / Each

8,9
700767 002226-A Z10 Tie Wire;100M/Roll No Model Compatibility List $0.00 / Each
Out Of Stock 		2,4,5,6
P 700778 002262-C P06 Speed Sensor Wire;450(OKI Magnet Reed Tube9216 Yes Model Compatibility List $14.77 / Each

3,4,5,6,8
T 701042 003413-00 T10 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8

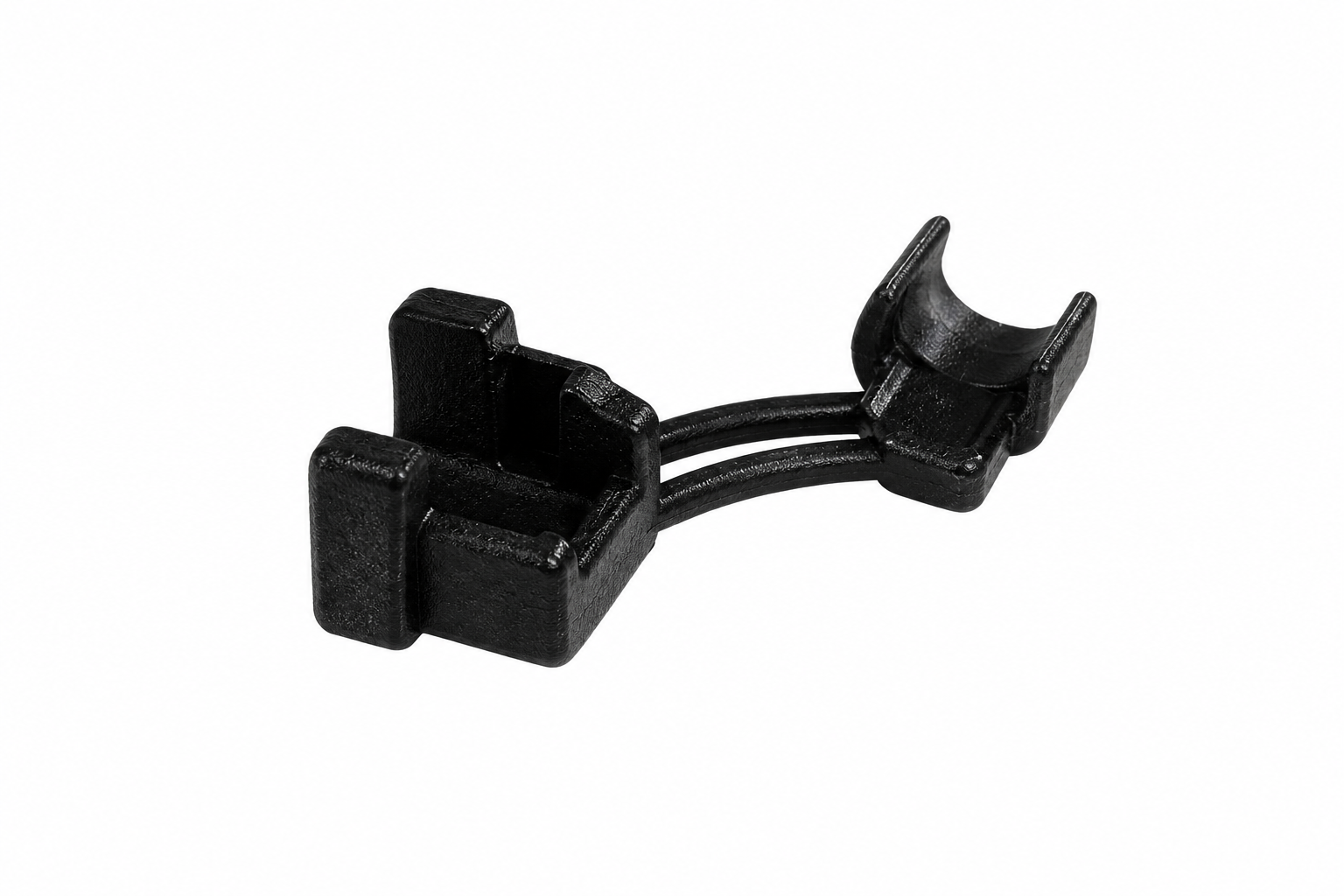

P 701088 003706-00 P09 Grommet;Heart Rate Wires No Model Compatibility List $1.90 / Each

2,4,5,6,12,13,14
T 701112 003879-00 T11 Ball Bearing Set;Crank Wheel No Model Compatibility List $25.00 / Each

8
T 701118 003899-C T04 PULLEY;POLY-V;;;NYLON+G FIBER;J5Diam.260 No Model Compatibility List $38.32 / Each

8
701133 003982-C U03 Idler;NYLON+30%Fiber;JW02(Order AU1) No Model Compatibility List $0.00 / Each
Out Of Stock 		8
U 701158 004075-A3 U04 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
R 701230 004204-A R02 Drive Belt;Poly-V;420-J5 No Model Compatibility List $57.49 / Each

15,10
Z 701268 004329-00 Z15 Screw;Phillip;Round;M5x0.8Px10L; No Model Compatibility List $2.00 / Each

2
S 701294 004359-00 S03 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

701300 004364-00 Z12 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 Z05 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

701393 004448-Z U13 Screw;Round;Hex Socket;M5x0.8Px10L No Model Compatibility List $1.79 / Each

2
701577 004612-00 N38 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701579 004613-00 P10 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

701588 004618-00 Q10 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701605 004627-00 P08 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

701613 004632-00 Q09 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

701699 004724-00 G05 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

Z 701830 004849-00 Z04 Set Screw;M8x1.25Px10L No Model Compatibility List $2.00 / Each

2
Z 701841 004859-00 Z01 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701869 004891-00 R03 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

701934 004972-00 L05 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701939 004975-00 L04 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 Z03 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

Z 701997 005035-00 Z02 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

D 702021 005056-00 D15 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
U 702189 005232-A U11 Washer;Wavy;12.7x18x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702217 005330-00 Q07 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

U 702227 005352-00 U06 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

D 702234 005359-00 D16 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

702236 005361-00 U05 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
Z 702253 005382-00 Z14 Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

702259 005395-00 Z08 Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

702262 005408-A Z07 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

702263 005411-Z Z06 Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

Z 702264 005412-00 Z13 Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

U 702274 005437-00 U08 Spring;Tension Assembly;16x2x65Lx25N Yes Model Compatibility List $2.00 / Each

2,3
702301 005814-00 Z09 Cable Tie;Nylon;White;150L;;;;;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		2,4,5,6
702483 007964-00 Q08 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
U 702516 008418-00 U12 Bracket;Spring Adjustment No Model Compatibility List $1.90 / Each

2,3,4,5,6
D 702747 009486-00 D08 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
D 702748 009491-E D09 Cam No Model Compatibility List $9.75 / Each

1
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
U 703969 020024-00 U10 Screw;Phillip;BH;M6x1.0Px12L;BED;Adhere; No Model Compatibility List $2.00 / Each

F 703976 020042-00 F05 Screw;Phillip;BH;M4x0.7Px8L No Model Compatibility List $2.00 / Each

704079 020196-A N39 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

P 704091 020214-A P20 Screw;Phillip;Round;3x18L No Model Compatibility List $1.85 / Each

2
U 704180 020438-00 U09 Washer;Flat;6.2x19x2.0T No Model Compatibility List $1.79 / Each

2
Z 704214 020486-A Z18 Washer;Arc;6.2X18.0X1.5T No Model Compatibility List $2.00 / Each

2
D 704293 022297-00 D07 Pressing Shaft No Model Compatibility List $8.87 / Each

3
P 705307 040690-A P02 Pulse Sensor Set;Single Yes Model Compatibility List $38.32 / Each

12,13,14
Z 705697 055201-A Z17 Screw;Hex Socket;BH;M6x1.0Px35L(Tooth23L No Model Compatibility List $2.00 / Each

2
S 706116 059105-A S02 Tension Cable No Model Compatibility List $9.41 / Each

4,5,6
P 706120 059153-B P05 Bracket;Speed Sensor No Model Compatibility List $1.77 / Each

2,3,4,5,6
706631 063958-AX V29 Sticker ;Warning :**DISCON. NOT STOCKIN No Model Compatibility List $0.52 / Each

1
D 706895 066767-C D17 Set Screw;M8x1.25Px8L No Model Compatibility List $2.00 / Each

2
A 709303 1000112913 AC1 Console MastweldingSet;Painting;KD-A73;R No Model Compatibility List $129.25 / Each

7
Flywheel Set 725537 072809 R01 Flywheel Set No Model Compatibility List $191.62 / Each

Pedal and Strap Set 725538 072810 T02 Pedal and Strap Set No Model Compatibility List $57.49 / Each

Seat Pad 725549 072987 D12 Seat Pad No Model Compatibility List $96.93 / Each

Guide Rail Set 725550 072990 AF1 Guide Rail Set No Model Compatibility List $89.34 / Each

End Cap; Rear Stabilizer 725551 073008 L03 End Cap; Rear Stabilizer No Model Compatibility List $9.57 / Each

Boot; Console Mast 725552 073016 Q03 Boot; Console Mast No Model Compatibility List $13.91 / Each

725553 073045 AZ2 Hardware;2;RB121 No Model Compatibility List $0.00 / Each
Out Of Stock
Wheel; Front Stabilizer; Left 725581 073569 AL3 Wheel; Front Stabilizer; Left No Model Compatibility List $9.65 / Each
Out Of Stock
Wheel; Front Stabilizer; Right 725582 073570 AL4 Wheel; Front Stabilizer; Right No Model Compatibility List $9.65 / Each
Out Of Stock
725681 074739 AZ1 Hardware;1;RB121 No Model Compatibility List $0.00 / Each
Out Of Stock
725682 074740 AZ3 Hardware;4;RB121 No Model Compatibility List $0.00 / Each
Out Of Stock
Connect Wire;Pulse;Inside;43025-4+43020- 725692 074851 P12 Connect Wire;Pulse;Inside;43025-4+43020- No Model Compatibility List $9.57 / Each

Connect Wire;AL Rail;;43025-4*2+43020-4* 725694 074855 P13 Connect Wire;AL Rail;;43025-4*2+43020-4* No Model Compatibility List $39.83 / Each

Sensor Wire;Pulse;;;43020-4+110*4;600L 725695 074856 P14 Sensor Wire;Pulse;;;43020-4+110*4;600L No Model Compatibility List $9.57 / Each

Connect Wire;Quickly Key;;;630;43025-4+2 725696 074858 P16 Connect Wire;Quickly Key;;;630;43025-4+2 No Model Compatibility List $9.57 / Each

Console Cable; 1200L 725697 074859 P01 Console Cable; 1200L No Model Compatibility List $57.49 / Each

Quick Key Set 725698 074860 P04 Quick Key Set No Model Compatibility List $27.59 / Each

Ipod Plug; Console - D/C, NO REPL Part will show as orderable until stock is depleted 725721 075170 KIT Ipod Plug; Console - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $3.82 / Each

Decal;Rear Side Cover 725846 076966 V06 Decal;Rear Side Cover No Model Compatibility List $3.82 / Each

Foam;Handlebar;Arm Rest Set;25Dx5Tx500L; 725847 077010 G03 Foam;Handlebar;Arm Rest Set;25Dx5Tx500L; No Model Compatibility List $13.91 / Each

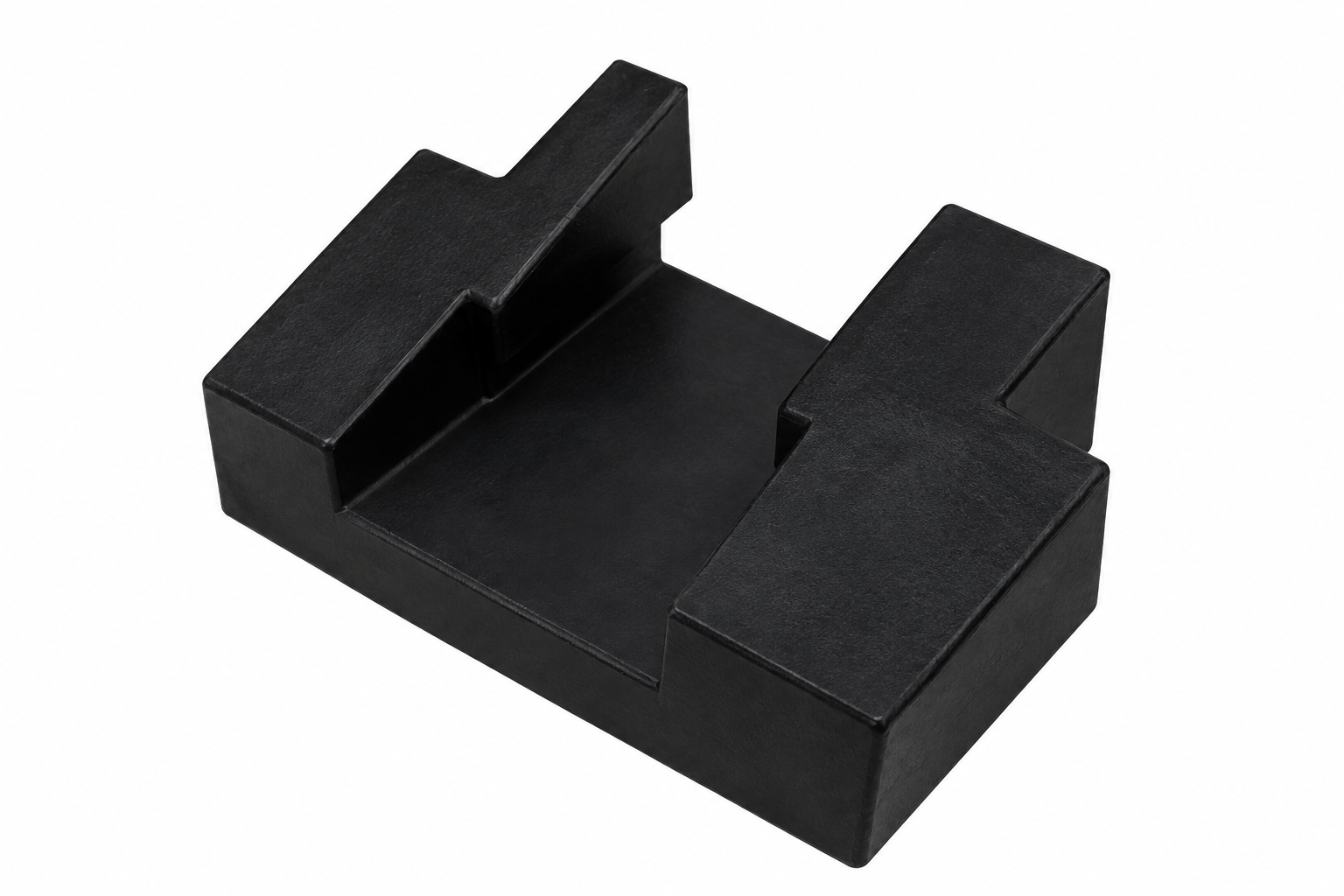

MP3 Player Holder;Console;IPOD Nano 725982 078922 KIT MP3 Player Holder;Console;IPOD Nano No Model Compatibility List $11.08 / Each

MP3 Player Holder;Console;Other MP3 725983 078923 KIT MP3 Player Holder;Console;Other MP3 No Model Compatibility List $8.94 / Each

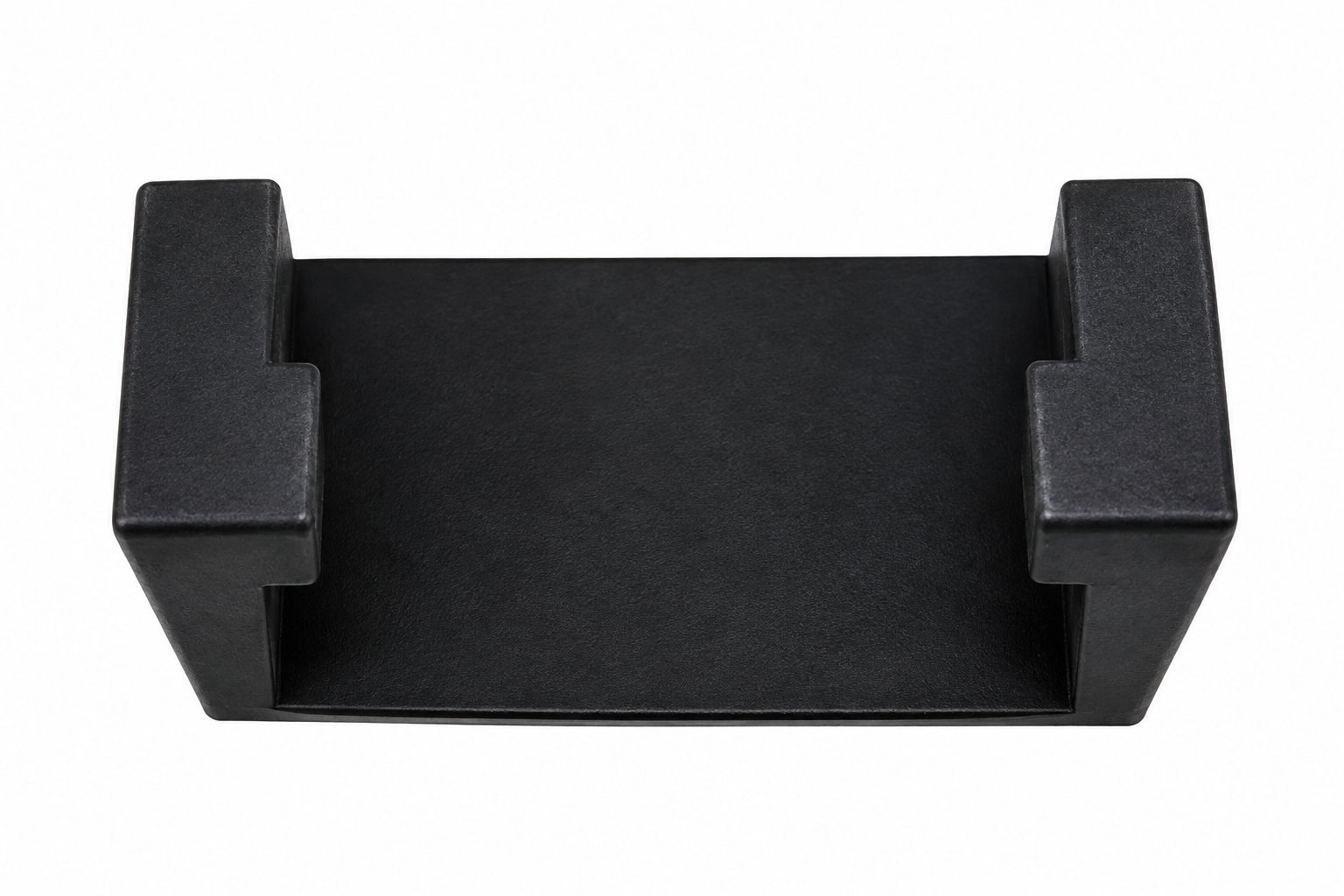

MP3 Player Holder;Console;Mini 725984 078924 KIT MP3 Player Holder;Console;Mini No Model Compatibility List $8.87 / Each

BackPad;SH0004;RB121C 726079 079849 D13 BackPad;SH0004;RB121C No Model Compatibility List $81.69 / Each

Foam;Arm Rest;Console Mast;25Dx5Tx197L;B 726086 079878 C05 Foam;Arm Rest;Console Mast;25Dx5Tx197L;B No Model Compatibility List $9.65 / Each

Console Set;;RB122B 726202 080699 AN1 Console Set;;RB122B No Model Compatibility List $887.22 / Each

Cover ;R;Painting;LM572;RB122B 726205 080702 Q01 Cover ;R;Painting;LM572;RB122B No Model Compatibility List $64.19 / Each

Cover ;Left;Rear;Painting;LM572;RB122B 726206 080705 Q05 Cover ;Left;Rear;Painting;LM572;RB122B No Model Compatibility List $64.19 / Each

726208 080708 X01 CartonSet;RB122B No Model Compatibility List $60.74 / Each

Decal, Front Side Cover-B600 726209 080709 V05 Decal, Front Side Cover-B600 No Model Compatibility List $3.54 / Each

726492 082338 T01 Crank Arm No Model Compatibility List $27.59 / Each

Hardware Set;RB122B 726609 083461 AZ1 Hardware Set;RB122B No Model Compatibility List $52.29 / Each

726611 083464 AZ4 Hardware6;RB123B No Model Compatibility List $0.00 / Each
Out Of Stock
726612 083465 - Semi-Assy;Screw Kit;Black;;RB122B-AZ3A; No Model Compatibility List $0.00 / Each
Out Of Stock
Tension Wheel Set 726640 083776 AU1 Tension Wheel Set No Model Compatibility List $21.97 / Each

Rear Stabilizer Set (Includes L04 & L05) 726645 083789 AL1 Rear Stabilizer Set (Includes L04 & L05) No Model Compatibility List $84.53 / Each

Handlebar Set 726646 083790 AG1 Handlebar Set No Model Compatibility List $171.73 / Each

726647 083791 AD1 SEAT PAD SLIPPING SEAT WELDING SET No Model Compatibility List $211.12 / Each

Pressing Shaft Set 726792 084845 D07 Pressing Shaft Set No Model Compatibility List $13.57 / Each

Adapter;100-240V/50HZ 12V/2A 727278 088261 P05 Adapter;100-240V/50HZ 12V/2A Yes Model Compatibility List $80.29 / Each

S 012847-00 012847-00 S01 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
S 1003402 012847-00 S01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
1
Q 957398 005330-00 Q07 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Open Key Wrench 13x15 (New) 972262 005382-00  Open Key Wrench 13x15 (New) Yes Model Compatibility List $17.99 / Each
