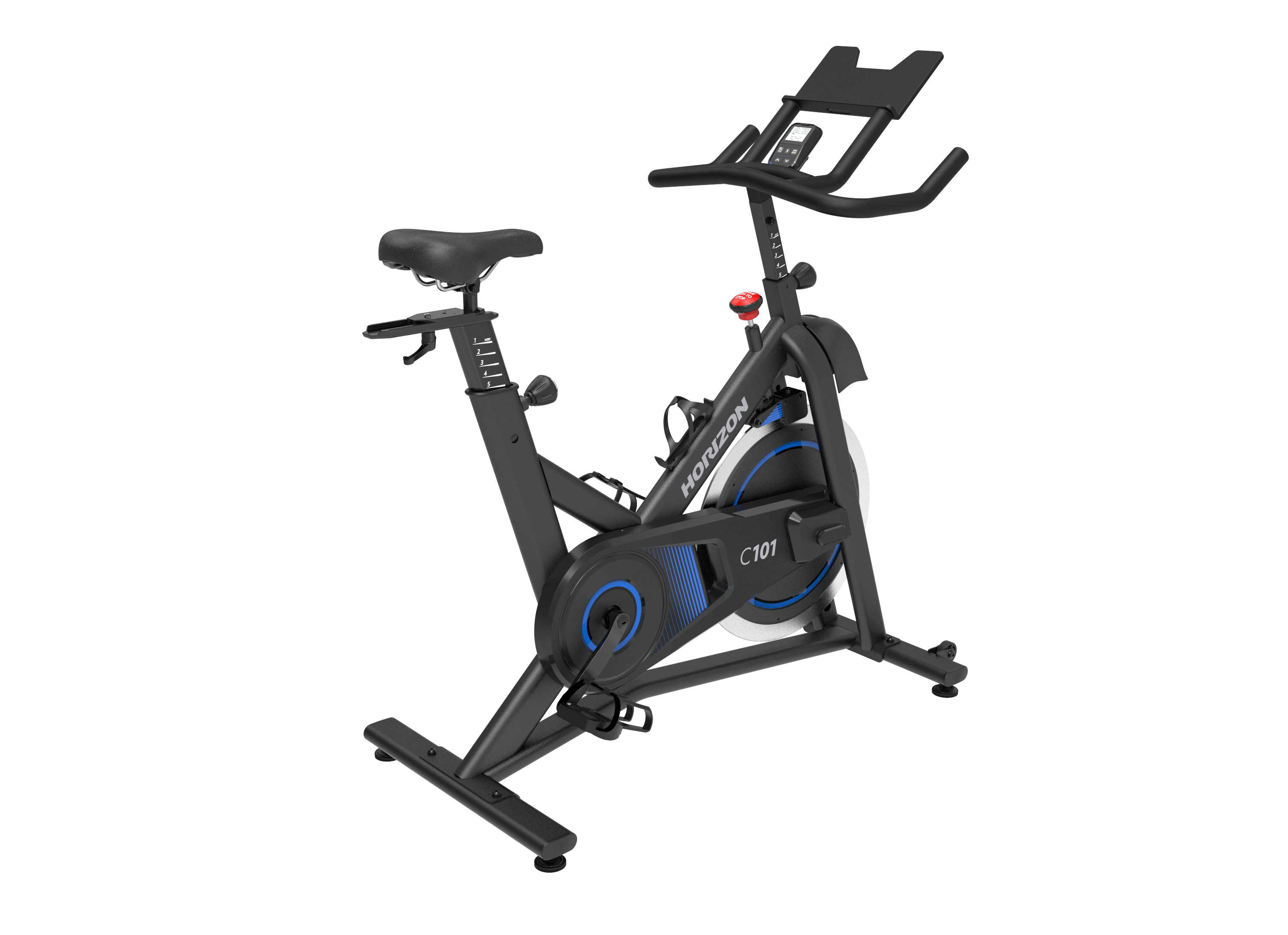

Repair Parts for Horizon Fitness C101 - FC51 - 2021 FC51
Brand: Horizon Fitness
Category: Indoor Cycle
Type: Stationary Bikes
Model Name: C101 - FC51 - 2021
Serial Number Prefix: FC51
Version: 2021-2025
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
![]() |
700023 | 000038-C | L02 | Wheel;Base Frame Stabilizer | Yes | Model Compatibility List | $3.82 / Each |
||
700152 | 000522-D | L12 | Leveler | Yes | Model Compatibility List | $11.60 / Each |
|||
701297 | 004362-00 | H06 | Screw;BH;M4X0.7PX10L;;PH;;BZN;; | No | Model Compatibility List | $1.79 / Each |
|||
![]() |
701408 | 004462-00 | H07 | Screw;Round;Hex Socket;M6x1.0Px15L;Chromed | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701547 | 004574-AD | 52 | Screw;FH;M8x1.25Px15L;MT;HS;SST;CHM;F-T | No | Model Compatibility List | $1.66 / Each |
||
701579 | 004613-00 | N84 | Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B | No | Model Compatibility List | $2.00 / Each |
|||
701585 | 004616-00 | L10 | Screw;Umbrella Cross Tapped;4x12L | No | Model Compatibility List | $2.00 / Each |
|||
701692 | 004720-00 | Z04 | Screw;BH;M8X1.25PX20L;;HS;;BZN;; | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701702 | 004725-00 | Z13 | SCREW;BH;M8X1.25PX45L;;HS;;BZN;; | No | Model Compatibility List | $2.57 / Each |
||
![]() |
701893 | 004925-00 | B57 | Nut;Nylon;M6x1.0P;Zinc | No | Model Compatibility List | $2.00 / Each |
||
701897 | 004926-00 | D34 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
|||
701900 | 004928-00 | H15 | Nut;Nylon;M12x1.75P | No | Model Compatibility List | $4.00 / Each |
|||
![]() |
701904 | 004931-00 | S06 | Nut;Locking;Nylon;1/4"--20UNC | No | Model Compatibility List | $1.59 / Each |
||
![]() |
701912 | 004941-00 | L08 | Nut;Nylon;M10x1.5P | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701927 | 004964-00 | R13 | Nut;Hex;Flange;M10x1.25P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
702013 | 005048-00 | B45 | Washer;Flat;8.2x15.0x1.2T | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702299 | 005811-00 | N58 | Cable Tie;Nylon;Black;160L | No | Model Compatibility List | $1.51 / Each |
||
![]() |
704137 | 020304-AC | F16 | Screw;Hex Socket;M10X1.5PX35L;Cr Plate | No | Model Compatibility List | $2.00 / Each |
||
![]() |
704150 | 020340-00 | B29 | SCREW;BH;M5X0.8PX15L;;PH;;BZN;; | No | Model Compatibility List | $3.64 / Each |
||
![]() |
704174 | 020423-A | Z16 | Washer;Lock;M10.2X19X2T | No | Model Compatibility List | $2.00 / Each |
||
706700 | 064674-A | U12 | Washer;Flat;6.2x13.0x1.0t;Black Zinc; | No | Model Compatibility List | $1.85 / Each |
|||
![]() |
708563 | 1000103438 | C15 | Screw;Cross;BH;Tapped;4x10L;A Class;ke | No | Model Compatibility List | $0.57 / Each |
||
709904 | 1000204290 | R07 | SCREW;EB;1/4"-20UNCX55L;12;-;-;-;BZN; | Yes | Model Compatibility List | $7.79 / Each |
|||
![]() |
710763 | 1000213379 | S09 | Resistance Motor | Yes | Model Compatibility List | $180.67 / Each |
||
![]() |
712293 | 1000228194 | R06 | Eensor Magent;Diam.15x7T;1900GAUSS | No | Model Compatibility List | $12.04 / Each |
||
712874 | 1000231159 | P12 | ADAPTER;US;100-240V/50-60HZ;12V/2A;2.0M; | Yes | Model Compatibility List | $80.29 / Each |
|||
![]() |
1028444 | 1000101530 | M40 | Motor Resistance (Used) | No | Model Compatibility List | $89.00 / Each Out Of Stock |
||
![]() |
1003512 | 000522-D | Foot Leveler | Yes | Model Compatibility List | $15.99 / Each |
|||
![]() |
730459 | 1000341681 | B47 | Pop pin set;Seat Pad; | No | Model Compatibility List | $9.08 / Each |
||
![]() |
731665 | 020304-AD | K11 | Screw;Umbrella Hex Scoket;M10x1.5Px35L | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
732461 | 0000083680 | M12 | Washer;Spring Lock;8.0x13.0x1.5T;-;Bla | No | Model Compatibility List | $1.28 / Each |
||
![]() |
734391 | 1000422170 | R27 | Powerful Magent;;25.0X9.0T;;FC203; | No | Model Compatibility List | $19.36 / Each |
||
![]() |
734435 | 1000466317 | AD2 | seat transports base set;;;painting;;Bla | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734438 | 1000472244 | AJ1 | Stabilizer Set;Semi-Assy;front;;;;FC50;s | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734439 | 1000466325 | AR1 | Driver Set-Extrawork;;;cutting;;FC50-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734441 | 1000096015 | B10 | Inner C type Clamp;8;GM40 | No | Model Compatibility List | $0.62 / Each |
||
![]() |
734442 | 1000466257 | B21 | PLASTIC LINER;Consoel Mast;up;PA66;Q520- | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734443 | 1000469829 | B23 | Fix Base;Steel Cable;;painting;;;FC50-1U | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734444 | 1000466857 | B25 | PLASTIC LINER;;;PA66;Q520-7-3;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734445 | 1000469304 | B27 | Fixing Plate;;;painting;;Black Matte;FC5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734446 | 1000466855 | B35 | Pop pin set;;;;FC50-1US;FC50-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734447 | 1000468141 | B36 | Spacing Ring;;;20#;;FC50;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734448 | 1000466969 | B37 | Spring;??;Diam.20xDiam.1.5x61L;;FC50-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734449 | 1000469842 | B38 | Screw;Special-Button Head;M6x1.0Px48L-8L | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734450 | 1000466856 | B39 | Spring;??;Diam.15xDiam.1.5x81.5L;;FC50-1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734452 | 1000466322 | D08 | PLASTIC LINER;;;PA66;Q520-7-3;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734454 | 1000469828 | D10 | Knob;Adjustable Spring;M10x1.5;;;City to | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734456 | 1000472245 | J01 | Stabilizer Set;Semi-Assy;back;;;;FC50;se | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734457 | 1000466307 | J07 | Cap;;;ABS/PA757;Q520-7-3;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734462 | 1000466298 | P01 | Console Wire;;;;;24AWG;750;UL2464Catapul | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734463 | 1000466119 | P02 | Speed Sensor Wire;;;;;24AWG;600;UL2468;C | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734464 | 1000466448 | P04 | DC Power Wire;;;;;24AWG;700L;UL2468 2C;D | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734465 | 1000466375 | Q01 | Side Cover;;front;ABS/PA757;Q520-7-3;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734467 | 1000466377 | Q03 | Side Cover;;down;ABS/PA757;Q520-7-3;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734469 | 1000466235 | Q05 | PLASTIC LINER;Seat Tube Sleeve;up;PA66;Q | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734470 | 1000468733 | Q06 | Motor Cover;ECB;;ABS PA757S;Q520-7-3;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734471 | 1000466337 | R04 | Pulley;POLY-V;;;Diam.230; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734472 | 1000472246 | R05 | ROUND DISK;Semi-Assy;;;;;FC50;services | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734474 | 1000466338 | R07 | Axle,Transimission;Fly Wheel;;42CrMo;;FC | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734475 | 1000472271 | R08 | Limit Set;;L;painting;DM362;;FC50-1US; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734476 | 1000472272 | R09 | Limit Set;;R;painting;DM362;;FC50-1US; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734478 | 1000466340 | R13 | Spacing Ring;;;20#;;FC50;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734480 | 1000470340 | R17 | Space Ring;;;painting;;Black Matte;FC50; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734482 | 1000468777 | R30 | Nut;Thin Hex;M20x1.0Px10H;;; galvanize | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734483 | 1000466330 | R31 | Belt;POLY-V;;1400-5PK;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734484 | 1000472270 | R51 | Limit Set;;M;painting;DM362;;FC50-1US; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734485 | 1000469841 | S01 | Steel Rope;;;;L1 L2=60;;FC50-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734486 | 1000466334 | T01 | Crank;;L=170mm;Left;;;FC50 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734487 | 1000466335 | T02 | Crank;;L=170mm;Right;;;FC50 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734492 | 1000469840 | T03 | Cap;Crank Cover;;ABS;;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734499 | 1000469629 | Not Shown | wristband;;Heart Rate Arm Strap;;BLE ANT | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
734500 | 004869-00 | D13 | Screw;Phillip;Sink;Tapped;4x10L | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735550 | 1000472180 | 1 | Console set;Semi-Assy;;;Services;;FC51; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735551 | 1000466859 | AD1 | Seat Tube Set-Exreawork;;;Screen print;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735552 | 1000466511 | AG2 | Handlebar-Extrawork;Handlebar;;Dipping p | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735553 | 1000466357 | AR3 | Brake Location Set;;;;;;FC50; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735554 | 1000466860 | C01 | Console Mast-Extrawork;;;Screen print;;F | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735555 | 1000466319 | D09 | Seat Pad;;PU;Black;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735556 | 1000468616 | N61 | (Up)Control panel;;;HAPB;;;C101;Programa | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735557 | 1000466849 | N62 | Manipulate Overlay;;UP;;;FC51-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735558 | 1000466296 | N63 | Overlay;;;C101;;5 Keys;Overlay with Keyp | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735559 | 1000469028 | Q02 | Side Cover-Exreawork;;;Screen print;;FC5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735560 | 1000466515 | Q04 | Kettle Rack;;up;ABS/PA757;;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735561 | 1000469519 | R06 | DISK;Fly Wheel;;painting;Cool Gray 1C;;F | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735562 | 1000471855 | R10 | Pedal;;L;FC51;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735563 | 1000471854 | R15 | Pedal;;R;FC51;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735564 | 1000472307 | AB1 | Frame Set;Semi-Assy;;;;;FC51; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735565 | 1000466513 | N01 | Console Uipper Cover;;up;ABS/PA757;Q520- | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735566 | 1000466514 | N02 | Console Down Cover;;down;ABS/PA757;Q520- | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735567 | 1000466934 | V01 | POP Sticker;Brake Plate;30.4x87.1;Blue P | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735568 | 1000466938 | V02 | POP Sticker;Brake Plate;30.4x87.1;Blue P | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735569 | 1000466941 | V03 | POP Sticker;Side Cover;173.25x65.95;Blue | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735570 | 1000466947 | V04 | POP Sticker;Side Cover;91.9x31.6;;PET;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735571 | 1000466953 | V05 | POP Sticker;Wheel;f269.9xf253.9;Blue P30 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
735572 | 1000467189 | V07 | POP Sticker;Side Cover;f129xf99;Blue P30 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
![]() |
976932 | 004926-00 | Nylon Lock Nut M8x1.25P (New) | No | Model Compatibility List | $12.99 / Each |
|||
![]() |
986316 | 004616-00 | Umbrella Cross Tapped Screw 4x12L (New) | No | Model Compatibility List | $12.00 / Each Out Of Stock |
|||
|
