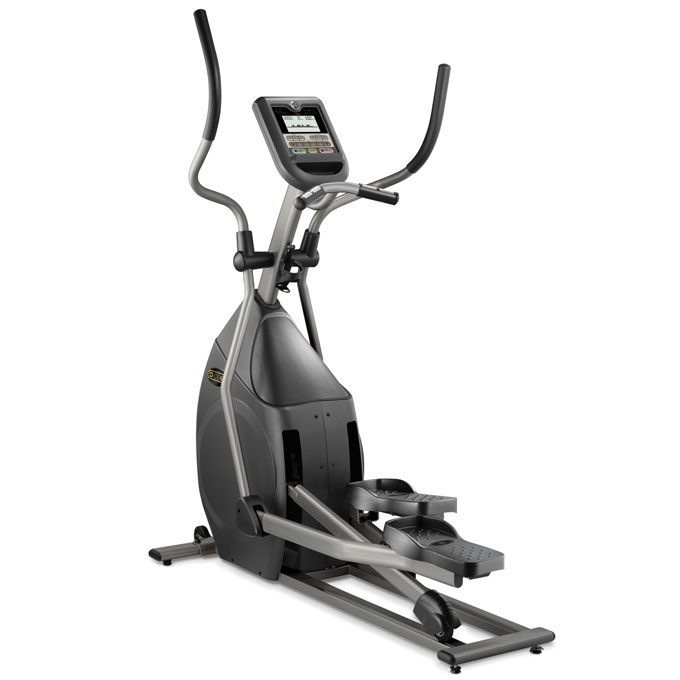

Horizon Fitness - CE4.1 - 2010

Repair Parts for Horizon Fitness CE4.1 EP533

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: CE4.1

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700014 000021-B L04 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

G 700065 000241-EA G20 Cover;Handlebar;Front Left or Rear Right Yes Model Compatibility List $8.40 / Each

9,11
G 700066 000242-DA G21 Cover;Handlebar;Front Right or Rear Left Yes Model Compatibility List $8.40 / Each

9,11
G 700067 000247-BA G10 Cover;Lower Handlebar;Left No Model Compatibility List $3.82 / Each

9,11
G 700068 000248-BA G11 Cover;Lower Handlebar;Right No Model Compatibility List $3.82 / Each

9,11
Q 700127 000476-BA Q13 Cover;Roller Wheel Yes Model Compatibility List $9.57 / Each

8,9
700132 000485-00 L07 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
L 700135 000491-B L06 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700202 000631-AA G14 Foam Grip;Handlebar;31.8X3.0TX329.5L No Model Compatibility List $3.82 / Each

11
C 700255 000787-00 C17 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700318 000940-A C15 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

L 700359 001129-B L03 End Cap;Front Stabilizer No Model Compatibility List $1.90 / Each

700570 001679-00 Q10 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

P 700734 002074-B P03 Console Cable;1330(180,150,120);EP109 Yes Model Compatibility List $57.49 / Each

7,4,5,6
P 700770 002231-B P06 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
E 701089 003709-00 E21 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
R 701128 003949-EX R05 Drive Axle Set;6.5Kg No Model Compatibility List $172.46 / Each

8,10
Q 701143 004029-B Q08 Foot Pad Yes Model Compatibility List $40.25 / Each

9,3,12,13,14
E 701153 004071-00 E09 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

701215 004177-A R15 Drive Belt;Poly-V;390-J8 Yes Model Compatibility List $57.49 / Each

701265 004326-00 N05 Screw;Phillip;Round;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
701288 004356-00 Q14 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

Z 701294 004359-00 Z10 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

701300 004364-00 Q09 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 C13 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

Z 701557 004586-AB Z08 Screw;Hex Socket;M8X1.25PX15L;Chromed Yes Model Compatibility List $2.00 / Each

P 701574 004608-00 P07 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701578 004612-AB N10 Screw;Phillip;Round;M3x0.5Px8L;Zn+3 No Model Compatibility List $2.00 / Each

701586 004617-00 Q07 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701597 004621-00 S03 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701613 004632-00 Q15 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

R 701650 004691-A R09 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 C12 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701716 004735-00 E25 Screw;Oval Hex Socket;M8x1.25Px45L-15L No Model Compatibility List $2.00 / Each

2
L 701732 004758-00 L10 Screw;Hex Socket;BH;M10x1.5Px50L(Tooth20) No Model Compatibility List $2.00 / Each

2
701748 004771-00 Z06 Screw;Oval;Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
Z 701779 004795-00 Z01 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
G 701796 004811-A G17 Screw;Umbrella Hex Socket;M8x1.25Px15L No Model Compatibility List $2.00 / Each

2
G 701827 004847-AB G15 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
B 701864 004887-00 B21 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

701897 004926-00 Z11 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R11 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701909 004935-00 E10 Nut;Nylon;M6X1.0P No Model Compatibility List $2.00 / Each

L 701913 004942-00 L08 Nut;Nylon;M10x1.5P;Black Zinc No Model Compatibility List $2.00 / Each

701927 004964-00 R13 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 L11 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

L 701941 004976-00 L09 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
701952 004988-00 R06 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
Z 701982 005017-AC Z02 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
C 701991 005029-00 C09 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702018 005053-00 G18 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
J 702020 005055-00 J04 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
R 702021 005056-00 R17 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
E 702046 005075-00 E13 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702074 005106-00 Z03 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

Z 702078 005110-00 Z30 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
702092 005125-00 L05 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

702107 005136-A E26 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
G 702163 005200-A G19 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

Z 702173 005215-AB Z05 Washer;Split Teflon;15.9x28.4x1.5T Yes Model Compatibility List $2.00 / Each

2
702178 005220-00 C10 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702180 005222-00 J03 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702193 005239-00 R14 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 B23 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702240 005365-00 R07 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

G 702298 005505-00 G13 Screw;M4x7Px20L No Model Compatibility List $1.90 / Each

2
Q 702299 005811-00 Q11 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

702483 007964-00 B24 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R10 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

R 702601 008914-B R04 Nut;Fixing;S46C;AN04 M20x1.0Px6t;BED; No Model Compatibility List $4.00 / Each

702625 009053-D Z07 Inner Bushing;Pedal Arm No Model Compatibility List $3.82 / Each

8,9,3
P 702778 009659-B P01 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
1 702897 013123-Z 10 Drive Axle Set;SA;;S-EP505;;; No Model Compatibility List $100.05 / Each

8,10
1 702898 013124-Z 12 Roller Wheel Set Yes Model Compatibility List $60.22 / Each

1
N 704085 020207-00 N07 Screw;Round;PH;Tapped; 4X10L No Model Compatibility List $1.66 / Each

2
Q 704298 022352-B Q06 Grommet;Console Mast Boot No Model Compatibility List $1.90 / Each

7,2
A 704966 026806-B AJ1 crank set;-;-;welding;EP109 Yes Model Compatibility List $57.49 / Each

8
N 705176 039032-A N03 Ground Wire;Heart Rate Board;200 No Model Compatibility List $1.90 / Each

4,5,6,12,13,14
N 705707 055269-AX N08 Decal;Faceplate No Model Compatibility List $3.82 / Each

4 705737 055960-ZL 4 Upper Handlebar Set;Left No Model Compatibility List $85.77 / Each

11
3 705738 055960-ZR 3 Upper Handlebar Set;Right No Model Compatibility List $85.77 / Each

11
A 705739 055962-ZL AG4 Lower Handlebar Set;Left No Model Compatibility List $148.54 / Each

11
705740 055962-ZR AG3 Lower Handlebar Set;Right No Model Compatibility List $148.54 / Each

11
A 705745 055976-Z AL1 Front Stabilizer Set No Model Compatibility List $99.92 / Each

1
S 705770 056124-A S02 Tension Cable No Model Compatibility List $11.73 / Each

706222 060314-00 N09 Screw;BH;M5X0.8PX5L;;PH;;BZN;; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
706605 063764-AA N04 Cap;CONSOLE;EP147 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,9
B 706691 064534-A B25 Foam;One-Sided;30x20x10t No Model Compatibility List $1.77 / Each

1
A 707290 1000091730 AG5 Swivel Bracket;Lower Handlebar No Model Compatibility List $56.86 / Each

2,3,4,5,6,11
1 707363 1000092323 13 Crank Pin Sleeve Set No Model Compatibility List $57.49 / Each

8,3,12,13,14
A 707365 1000092327 AH2 Lower Link Arm Set;Left No Model Compatibility List $287.48 / Each

3
A 707366 1000092328 AH1 Lower Link Arm Set;Right No Model Compatibility List $287.48 / Each

3
P 707734 1000094716 P05 Power Adapter;100-240V 12V/1A;2M No Model Compatibility List $76.65 / Each

4,5,6
V 708738 1000105220 V03 Model Decal;EP533 No Model Compatibility List $3.54 / Each

7,3
1 708739 1000105223 11 Console Set;-;S-EP533;-; No Model Compatibility List $383.27 / Each

7
N 708740 1000105227 Not Shown Manual;Manipulate;EN;EP533 No Model Compatibility List $8.87 / Each

1
N 708741 1000105228 Not Shown Manual;Manipulate;French;EP533 No Model Compatibility List $8.87 / Each

1
708878 1000106918 R12 Bearing;Ball;6204ZZ;20X47X14T;;SL;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
710597 1000211169 G12 Bushing;-;34.0X26.0X28H;CU60%;Fe40% No Model Compatibility List $0.00 / Each
Out Of Stock 		8
710598 1000211173 E14 Bushing;-;34.0X26.0X20H;CU60%;Fe40% No Model Compatibility List $0.00 / Each
Out Of Stock 		8
A 713112 1000233136 AE1 PEDAL ARM SET;SA;;EP571-1US;;; No Model Compatibility List $249.13 / Each

8,9,3
Z 724982 100596 Z15 Washer;Teflon;Open-Type;20.2x30.0x1.0t No Model Compatibility List $2.00 / Each

2
Q 725066 101510 Q01 Cover;Left;ABS;75140;EP505 No Model Compatibility List $114.06 / Each

9
Q 725067 101511 Q02 Cover;Right;ABS;75140;EP505 No Model Compatibility List $114.06 / Each

9
Q 725068 101512 Q03 Up Cover;Front;ABS;Black;EP505 No Model Compatibility List $37.60 / Each

9,4,5,6
Q 725069 101514 Q05 Console Mast;Cover;PVC;Black;EP505 No Model Compatibility List $3.82 / Each

7,9,4,5,6
N 725075 101531 Not Shown Hardware Pack No Model Compatibility List $101.19 / Each

4,5,6
725259 103299 H12 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Sticker; Pedal 725474 071801 V11 Sticker; Pedal No Model Compatibility List $1.90 / Each

725818 076784 N01 Cover;Console;ABS;UP;75140;EP179 No Model Compatibility List $0.00 / Each
Out Of Stock
725819 076785 N02 Cover;Console;ABS;DOWN;75140;EP179 No Model Compatibility List $0.00 / Each
Out Of Stock
Console Mast Set 725940 078494 AC1 Console Mast Set No Model Compatibility List $334.15 / Each

Pulse Wire;Hand Grip;;;E500;EP193 726252 081021 P02 Pulse Wire;Hand Grip;;;E500;EP193 No Model Compatibility List $38.32 / Each

SwivelAxle;Zn Plate; EP503 728891 098335 Z09 SwivelAxle;Zn Plate; EP503 No Model Compatibility List $17.81 / Each

728984 Order AC1 1 Console Mast Set;-;S-EP533;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		7
728985 Order AE1 2 Pedal Arm Set;SA;;S-EP505;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
728986 Order AG3 5 Lower Handlebar Set;Right ;SA;RD;S-EP505;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
728987 Order AG4 6 Lower Handlebar Set;Left ;SA;LD;S-EP505;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
728988 Order AH1 7 Link Arm Set;Right;S-EP533;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
728989 Order AH2 8 Link Arm Set;Left;S-EP533;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
728990 Order AL1 9 Stabilizer Set;SA;;S-EP505;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729054 Order Q01 14 Side Cover Set;Left;S-EP533;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
729056 Order Q02 15 Side Cover Set;Right;S-EP533;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
729058 Order Q03 16 Middle Cover Set;U;S-EP533;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
729120 Part of Kit 10 R02 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729124 Part of Kit 12 E08 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729125 Part of Kit 13 E15 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729152 Part of Kit 3 AG1 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729165 Part of Kit 4 AG2 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
S 012847-00 012847-00 S01 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
R 1000628 004177-A R15 Poly V Drive Belt 8 Ribs Yes Model Compatibility List $39.99 / Each

S 1003402 012847-00 S01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
Z 976932 004926-00 Z11 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

B 957398 005330-00 B23 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

L 917260 004942-00 L08 Black Nylon Nut (New) No Model Compatibility List $12.99 / Each

P 911958 004608-00 P07 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

S 957090 004621-00 S03 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
