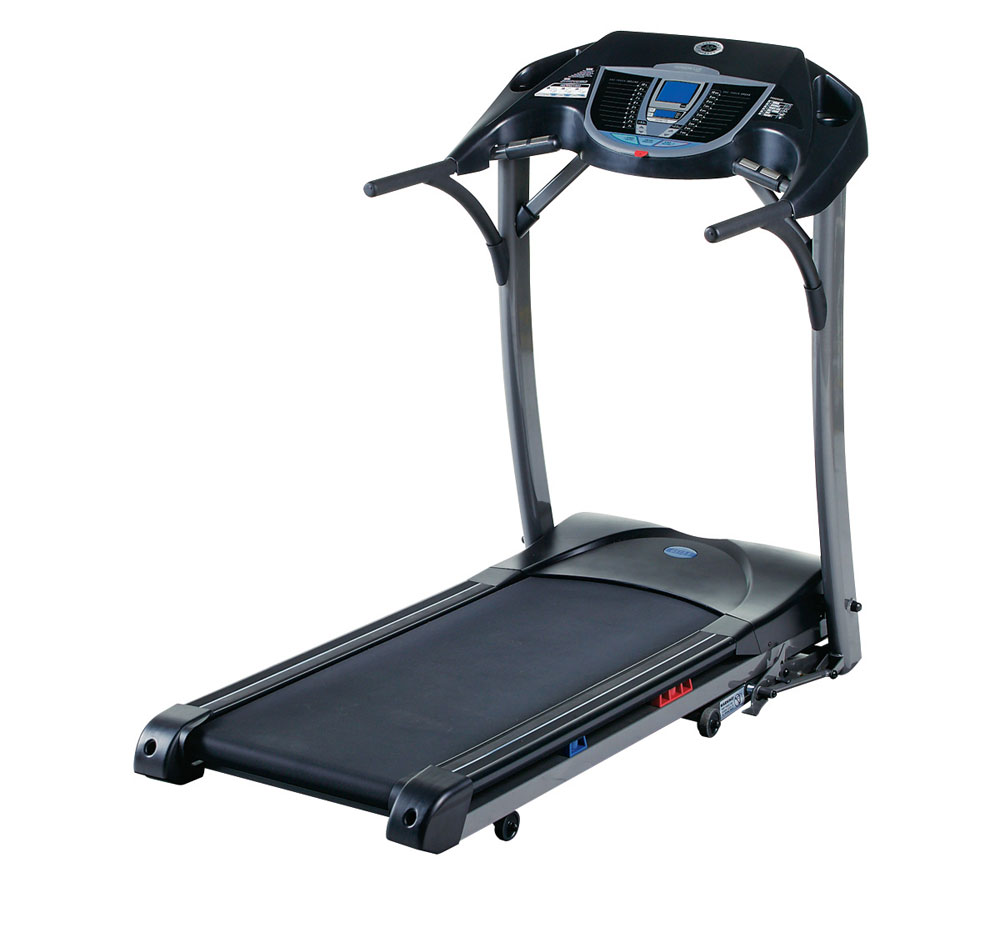

Horizon Fitness - CST3.5X - 2007

Repair Parts for Horizon Fitness CST3.5X TM203

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: CST3.5X

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700021 000037-CA L06 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
Q 700120 000445-BA Q21 Cover;Strengthen Tube Yes Model Compatibility List $3.54 / Each

9,3
B 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

700318 000940-A N30 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

C 700416 001294-B C24 End Cap;Support Tube Base;AF002(1/2) 19 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $2.00 / Each

9,3
H 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
700570 001679-00 KIT Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

N 700704 001963-A N13 Console Safety Key Reed Switch;250L(2.5-2P) E192542 Yes Model Compatibility List $14.22 / Each

4,5,6
P 700741 002108-C P30 Console Cable;Mast;1500L(5557 SERIES+2.5-12P) Yes Model Compatibility List $40.92 / Each

4,5,6,7
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 700850 002513-B P09 Power Cable;Control Board;1000L;16AWG;Black No Model Compatibility List $0.03 / Each

7,4,5,6
P 700851 002514-B P10 Power Cable;Control Board;1000L;16AWG;White No Model Compatibility List $1.90 / Each

7,4,5,6
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
N 701047 003432-B N26 Pulse Sensor Set;Single;750 Yes Model Compatibility List $21.27 / Each

12,13,14
B 701256 004316-00 B27 Running Deck No Model Compatibility List $249.13 / Each

3
701288 004356-00 Z06 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

R 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 701476 004523-00 M46 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
H 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
M 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M10 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701581 004614-AB B61 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
B 701583 004615-00 B39 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

701588 004618-00 B42 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701590 004619-AB N19 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N12 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

N 701615 004635-A N59 Screw;Oval Tapping;3x7L No Model Compatibility List $2.00 / Each

Z 701678 004713-00 Z08 Screw;M6x1.0Px10L No Model Compatibility List $2.00 / Each

2
701699 004724-00 Z12 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

701849 004867-A Q31 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701866 004889-00 B43 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701867 004889-Z P19 Nut, hex head; M5x0.8P No Model Compatibility List $0.00 / Each
Out Of Stock 		2
R 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $2.00 / Each

2
701897 004926-00 M08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

L 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

C 701916 004945-00 C23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701970 005009-AB H23 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

H 701997 005035-00 H20 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

C 702021 005056-00 C25 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

H 702114 005141-A H25 Washer;Flat;12.5x19x1.5T No Model Compatibility List $1.85 / Each

2
702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702135 005163-00 Z01 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
Z 702138 005169-00 Z14 Washer;Arc;8.4x20.0x1.5T No Model Compatibility List $2.00 / Each

2
702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

C 702169 005210-A C26 Washer;Teflon;20.3x25x1.0T No Model Compatibility List $2.00 / Each

2
H 702171 005212-A H24 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
H 702189 005232-A H22 Washer;Wavy;12.7x18x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

702263 005411-Z KIT Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

H 702283 005475-D H30 Spring;Foot Lock Latch;SUS304 No Model Compatibility List $4.00 / Each

2,9,3
V 702336 006251-BX V02 Decal;Motor Cover No Model Compatibility List $3.82 / Each

7,9,3,10
V 702361 006500-AX V22 Decal;Programs No Model Compatibility List $1.77 / Each

7,3
V 702363 006503-AX V23 Decal;Instructions No Model Compatibility List $1.77 / Each

7,3
702446 007384-E B25 Fixing Plate;Motor Control Board No Model Compatibility List $9.59 / Each

7,3,10
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

H 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $4.00 / Each

2,3
B 702761 009561-AX B56 Air Shock;100KG(125L) Yes Model Compatibility List $35.98 / Each

1
Z 702798 010680-00 Z03 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $2.00 / Each

2,3
K 703391 014103-A KIT Hardware Pack No Model Compatibility List $26.03 / Each

4,5,6
703439 014670-E AR1 Front Roller Set No Model Compatibility List $126.26 / Each

8
M 703497 015016-AA M05 Motor Bracket No Model Compatibility List $14.90 / Each

2,3,4,5,6,10
C 703520 015126-AA C28 Strengthen Tube;Right; CHARCOAL METALLIC GP2041 Yes Model Compatibility List $36.53 / Each

3
C 703526 015138-A C27 Strengthen Tube;Left;CHARCOAL METALLI CGP2041 Yes Model Compatibility List $36.53 / Each

3
703770 016167-Z N33 Safety Key Set Yes Model Compatibility List $40.14 / Each

1
704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed Yes Model Compatibility List $4.00 / Each

7,2,8,12,13,14
Q 704074 020186-00 Q32 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

N 704082 020203-A N58 Screw;Phillip;BH;Tapped;4x40L; No Model Compatibility List $4.00 / Each

2
704975 027946-EA N02 Faceplate Only; No Model Compatibility List $28.76 / Each

3,4,5,6
K 705013 029150-AA KIT Tape;Foam;Double Sided;50.0X200.0X2.0T No Model Compatibility List $1.77 / Each

1
705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

48
705141 038132-BBX N65 Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
M 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

28
N 705296 040661-A N62 Membrane Keys; 32KEYS+20LAMPS No Model Compatibility List $57.49 / Each

9,4,5,6
N 705441 049185-BX N61 Overlay; No Model Compatibility List $38.32 / Each

1
V 705508 049575-AX V07 Decal, Console, POP No Model Compatibility List $3.54 / Each

7,3,12,13,14
K 705512 049680-AX KIT Owner-s Manual; No Model Compatibility List $9.57 / Each

1
705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
Q 706180 059933-Z Q03 Side Rail Set-w/decal - L/R; No Model Compatibility List $31.95 / Each

7,9,3
M 706218 060295-CA M48 Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
K 706551 063276-A KIT Water Bottle No Model Compatibility List $11.73 / Each

1
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

R 708121 1000099932 R02 Running Belt; 505x2800x1.6t BLACK Yes Model Compatibility List $249.13 / Each

15,4,5,6
709031 1000108437 AR2 Roller Set;Rear;TM116 Yes Model Compatibility List $191.62 / Each

709102 1000109577 R03 Drive Belt;Poly-V;170-J8 Yes Model Compatibility List $60.22 / Each

15,10
709278 1000111822 M01 Motor set;Semi-Assy;;BLACK C;2.25HP/90V; Yes Model Compatibility List $648.70 / Each
4,5,6,10
Console Cable; Upper; 450L(2.5-12P+5557 SERIES) 725951 078539 KIT Console Cable; Upper; 450L(2.5-12P+5557 SERIES) Yes Model Compatibility List $28.73 / Each

Console Electronics - Used Only 1001098 040485-ACX Console Electronics - Used Only Used Only - MFR Discontinued. No Model Compatibility List $245.70 / Each
Out Of Stock 		7
Large Red Cushion (Used) 1016105 001302-CA # 2 Large Red Cushion (Used) Yes Model Compatibility List $20.79 / Each

3
Small Blue Cushion (Used) 1016099 001301-CA # 2 Small Blue Cushion (Used) Yes Model Compatibility List $16.89 / Each

3
End Cap, Foot Rail Right (Used Only) 1017915 001357-EC Q08 1 End Cap, Foot Rail Right (Used Only) Yes Model Compatibility List $19.49 / Each

9
P 1020937 002124-B P08 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

1000201-R 1.0AT-MCBC 0 1 Hydra Fitness Exchange Motor Control Board Controller JC01-002 032671-HF Works W Horizon AFG Smooth Treadmill (Used) No Model Compatibility List $197.73 / Each
Out Of Stock 		1
Johnson Horizon AFG Vision Fitness Treadmill Silicon Lubricant Lube 1000092805 1006790 13.0AT-SLL 0 12 Johnson Horizon AFG Vision Fitness Treadmill Silicon Lubricant Lube 1000092805 No Model Compatibility List $32.49 / Each

1
AFG Horizon Fitness T800 T605 T901 Treadmill Front Foot Cover 001299-B (Used) 1005517 1.0AT-FFC H08 1 AFG Horizon Fitness T800 T605 T901 Treadmill Front Foot Cover 001299-B (Used) No Model Compatibility List $17.54 / Each

1
M 039043-00 039043-00 M02 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

28
DC Drive Motor Johnson 1000111822 JM05-015 0 1 DC Drive Motor Johnson Yes Model Compatibility List $674.57 / Each

1
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

Belt Drive 1002356 1000109551 0 1 Belt Drive Yes Model Compatibility List $31.99 / Each

Roller Rear 1002834 014683-B 0 1 Roller Rear Yes Model Compatibility List $159.99 / Each

26
Treadbelt 1003620 004264-A 0 1 Treadbelt Yes Model Compatibility List $209.00 / Each

15
Control Board Motor Controller 1003624 032669-IF 0 1 Control Board Motor Controller Yes Model Compatibility List $499.00 / Each

48
Cover Motor (Used) 1028815 000362-CB Q01 Cover Motor (Used) No Model Compatibility List $36.99 / Each
Out Of Stock 		18
End Cap-Base Frame (Used) 1028812 000955-EC Q09 End Cap-Base Frame (Used) No Model Compatibility List $5.99 / Each

3

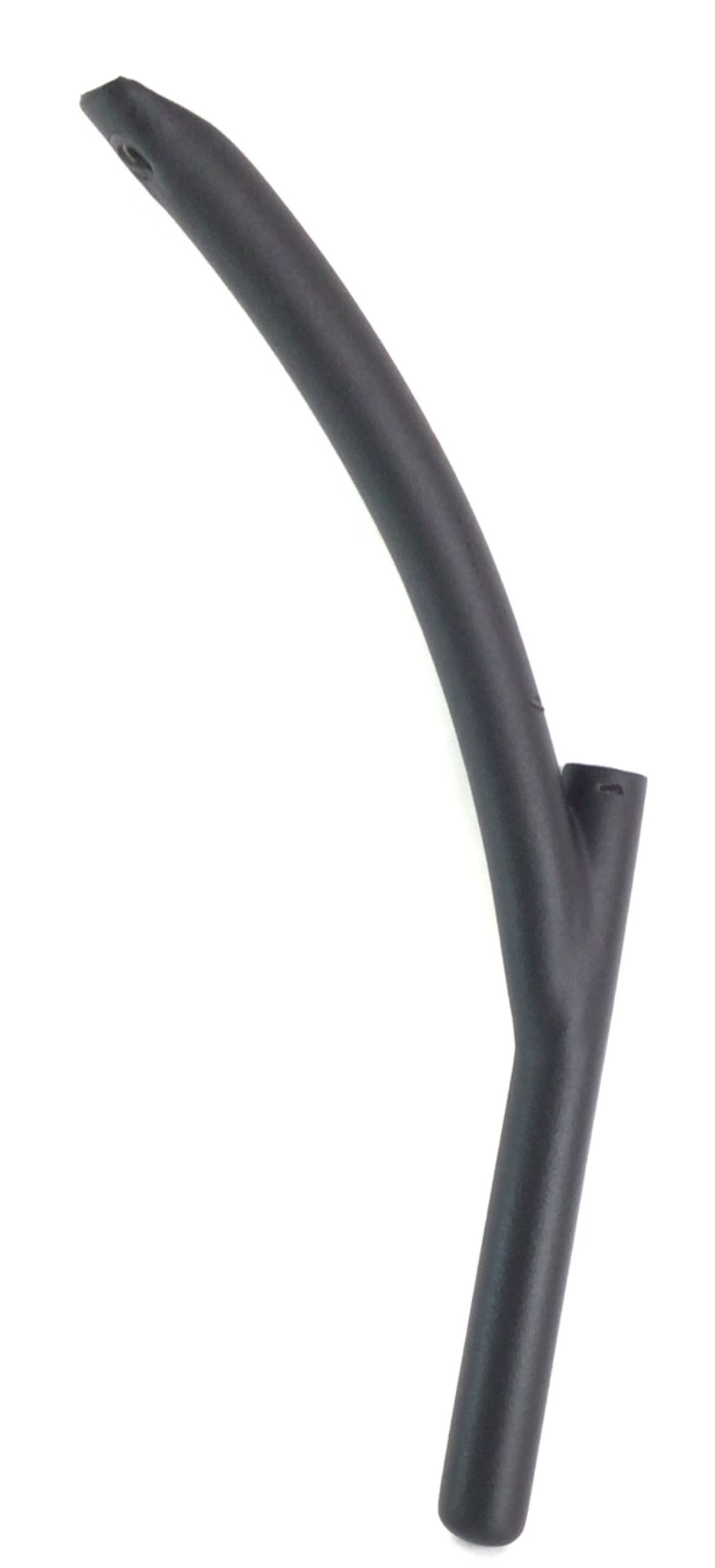

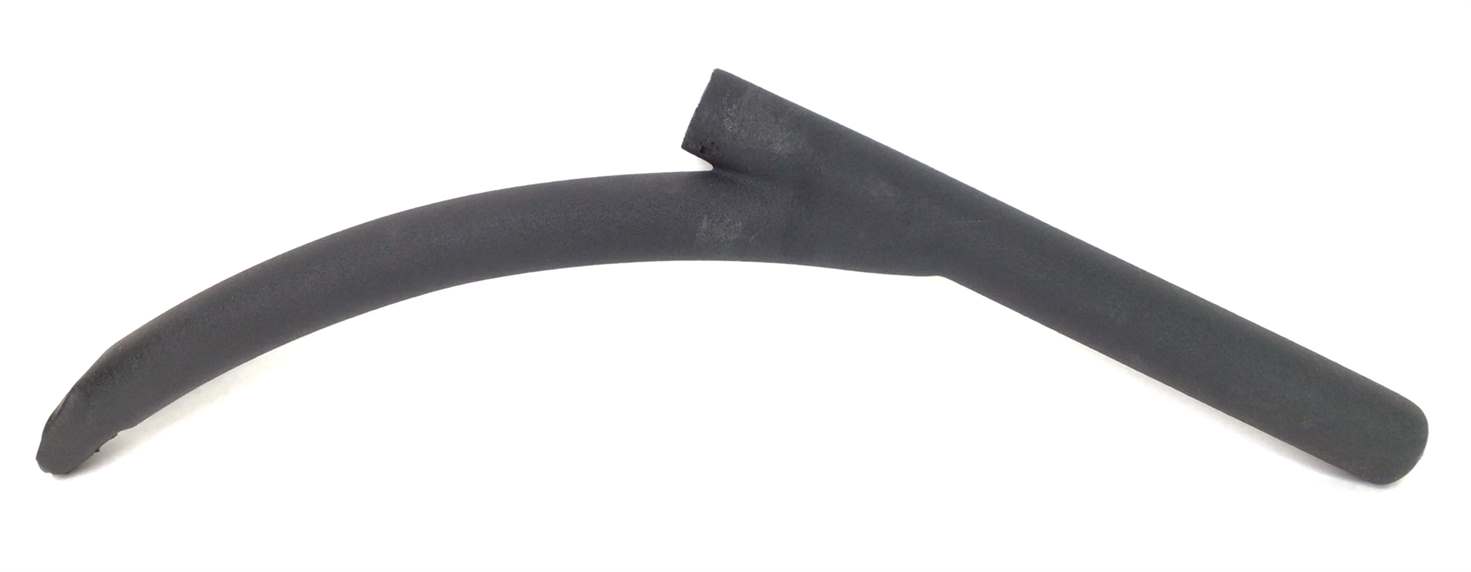

Side Handlebar-Left (Used) 1028827 015944-AA 0 1 Side Handlebar-Left (Used) No Model Compatibility List $29.99 / Each

1
TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) 1029470 0000085207 P06 1 TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) Yes Model Compatibility List $10.00 / Each

M 1029909 004480-Z M45 Screw (Used) Yes Model Compatibility List $5.00 / Each

Front Drive Pulley Roller 1000018 016110-Z Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8
M 1000188 1000111822 M01 DC Drive Motor Yes Model Compatibility List $189.00 / Each
4,5,6,10
A 1000694 014670-E AR1 Front Drive Roller Yes Model Compatibility List $51.99 / Each

8
M 1000201 032671-HF M03 Motor Control Board Controller Yes Model Compatibility List $169.00 / Each
Out Of Stock 		48
A 1000695 014670-E AR1 Front Drive Roller No Model Compatibility List $99.00 / Each

8
A 1000696 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $59.99 / Each

P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

A 1000697 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $219.99 / Each

P 1002652 003346-00 P04 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $19.99 / Each

9,4,5,6
Rear Idler Roller 1001050 1000108449 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock 		1
M 1002738 039043-00 M02 Incline Lift Elevation Motor Yes Model Compatibility List $79.99 / Each

28
M 1002678 1000111822 M01 2.0HP DC Drive Motor Yes Model Compatibility List $125.99 / Each
4,5,6,10
Rear Idler Roller 1002835 014683-B Rear Idler Roller Yes Model Compatibility List $69.99 / Each

26
Optical RPM Disc 1003522 003660-00 Optical RPM Disc Yes Model Compatibility List $12.99 / Each
Out Of Stock
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

M 1001115 1000111822 M01 DC Drive Motor Yes Model Compatibility List $499.00 / Each
4,5,6,10
N 1002538 016167-Z N33 Safety Key Set Yes Model Compatibility List $26.99 / Each

1
M 1003635-R 032671-HF M03 Lower Control Board Motor Controller Yes Model Compatibility List $169.00 / Each
Out Of Stock 		48
P 1001765 002169-A P07 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Power Entry Assembly Switch Filter Inlet 1008480 stwch-ent-480 Power Entry Assembly Switch Filter Inlet Yes Model Compatibility List $24.99 / Each

DC Drive Motor (New) 1000608 1000106039 DC Drive Motor (New) Yes Model Compatibility List $289.00 / Each
Out Of Stock
jht170L8r 1000109551 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

Motor Control Board Lower Controller KO-L4L6-HFVV JC22-001 Motor Control Board Lower Controller Yes Model Compatibility List $268.65 / Each

Round Internal Endcap 1012460 intr-rnd-60 Round Internal Endcap Yes Model Compatibility List $11.99 / Each

DC Drive Motor TO-RME3-JC6E JM05-015 T101 DC Drive Motor Yes Model Compatibility List $134.10 / Each
Out Of Stock
R hori170J8 1000109577 R03 Drive Motor Belt (New) Yes Model Compatibility List $66.99 / Each

15,10
M A1-0NN9-NPTB 032671-HF M03 Lower Control Board Motor Controller LPCA Digital Drive 1.75 2.0 HP (New) Yes Model Compatibility List $259.99 / Each
Out Of Stock 		48
P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P04 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

N 911968 004620-00 N12 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M08 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q17 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
