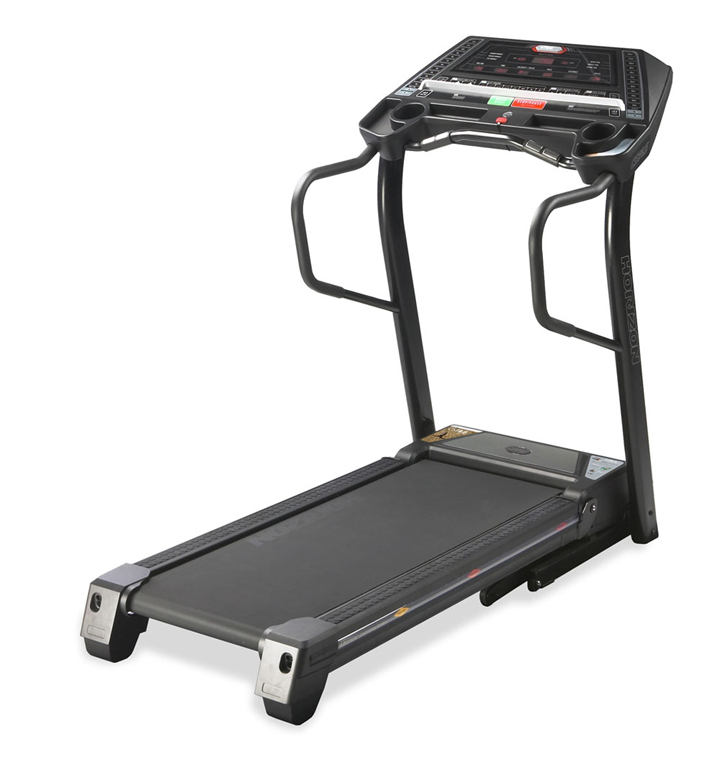

Horizon Fitness - CST4.6 - 2007

Repair Parts for Horizon Fitness CST4.6 TM209

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: CST4.6

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
D 700019 000032-CC D08 Wheel;Fold Frame No Model Compatibility List $3.82 / Each

8,3
700021 000037-CA B22 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
K 700023 000038-C K22 Wheel;Base Frame Stabilizer Yes Model Compatibility List $3.82 / Each

700132 000485-00 K12 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
K 700135 000491-B K11 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

700402 001251-F B12 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

700700 001952-00 KIT Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
700746 002124-B P05 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P35 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P08 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 700850 002513-B P15 Power Cable;Control Board;1000L;16AWG;Black No Model Compatibility List $0.03 / Each

7,4,5,6
P 700851 002514-B P16 Power Cable;Control Board;1000L;16AWG;White No Model Compatibility List $1.90 / Each

7,4,5,6
701013 003326-00 P01 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

701020 003346-00 P02 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P07 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M28 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
Z 701326 004379-00 Z10 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701328 004381-00 P33 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

701375 004425-B B13 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

701432 004480-Z M34 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

701440 004483-00 Z15 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

R 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $9.80 / Each

R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

701530 004562-00 B11 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
M 701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
N 701574 004608-00 N21 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701579 004613-00 B61 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

701588 004618-00 Q30 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701590 004619-AB N22 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N20 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701605 004627-00 B73 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

701699 004724-00 Z08 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

Z 701719 004739-AB Z06 Screw;BH;M8X1.25PX65L-20L;;HS;;;;BP;P-T No Model Compatibility List $1.79 / Each

2
701742 004764-00 K24 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere No Model Compatibility List $2.00 / Each

701759 004780-AB B67 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere; No Model Compatibility List $1.85 / Each

2
K 701779 004795-00 K19 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
701781 004796-00 B74 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Q 701846 004863-00 Q31 Screw;5x13L No Model Compatibility List $1.66 / Each

2
701847 004864-00 Z05 Screw;4x12L No Model Compatibility List $2.00 / Each

701848 004865-00 Q29 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701862 004884-00 R10 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701866 004889-00 P31 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M22 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

B 701912 004941-00 B76 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

D 701921 004953-00 D14 Nut;Nylon;M10X1.5P No Model Compatibility List $3.69 / Each

2
701934 004972-00 K16 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

702008 005045-00 B70 Washer;Flat;8.2x22x3.0T No Model Compatibility List $2.00 / Each

B 702009 005046-00 B78 Washer;Flat;8.4x15.5x2.0T No Model Compatibility List $1.79 / Each

2
702013 005048-00 Z09 Washer;Flat;8.2x15.0x1.2T No Model Compatibility List $2.00 / Each

702033 005065-00 B68 Washer;Flat;10x30x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

702084 005117-00 M38 Washer;Flat;8.2x16.0x2.0T No Model Compatibility List $2.00 / Each

2
702092 005125-00 B21 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

702121 005146-A M18 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

Z 702138 005169-00 Z12 Washer;Arc;8.4x20.0x1.5T No Model Compatibility List $2.00 / Each

2
702153 005189-00 K17 Washer;Teflon;10.5x25x1.0T No Model Compatibility List $2.00 / Each

2
B 702166 005206-BB B71 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

702262 005408-A KIT Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

B 702455 007526-D B37 Belt Guide No Model Compatibility List $9.57 / Each

15
703442 014683-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

26
703881 018951-A B77 Elastomer;Front/Rear;Black Yes Model Compatibility List $13.91 / Each

703916 019316-A N70 Safety Key Reed Switch Yes Model Compatibility List $9.57 / Each

4,5,6
704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.59 / Each

B 704197 020468-A B75 Washer;Flat;8.2x14x1.0T No Model Compatibility List $2.00 / Each

705040 032669-IF M41 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $499.00 / Each

48
705264 039454-00 M03 Elevation Motor Set; JM14-017 110V/120mm Yes Model Compatibility List $378.53 / Each

10
N 705285 040613-B N74 Ground Wire;250 No Model Compatibility List $1.90 / Each

4,5,6
705323 040839-00 K25 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

B 705491 049297-A B66 Spring;Foot Lock Latch No Model Compatibility List $4.00 / Each

2,9,3
M 705516 049816-B M04 Fix Plate;Motor Control Board D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $3.82 / Each

7,3,10
B 705529 050233-A B62 Washer No Model Compatibility List $1.85 / Each

2
B 705530 050235-BX B63 Sleeve;Frame No Model Compatibility List $3.82 / Each

3
705563 050470-AX B41 Air Shock Yes Model Compatibility List $42.56 / Each

1
Z 705699 055203-A Z11 Screw;Umbrella Hex Socket;M8x1.25Px115L No Model Compatibility List $4.00 / Each

2
705700 055204-A B38 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

V 705707 055269-AX V03 Decal;Faceplate No Model Compatibility List $3.82 / Each

R 705736 055553-B R02 Running Belt;495x2840x1.6T No Model Compatibility List $249.13 / Each

15
N 705815 056303-AA N07 Tray Pad;Left No Model Compatibility List $3.54 / Each

12,13,14
N 705816 056304-AA N08 Tray Pad;Right No Model Compatibility List $3.54 / Each

12,13,14
G 705817 056306-AA G06 Foam Grip No Model Compatibility List $10.01 / Each

11
N 705830 056326-AA N12 Reading Rack No Model Compatibility List $13.10 / Each

4,5,6
N 705850 056365-AA N10 E-log Button;Console No Model Compatibility List $17.73 / Each

7
705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
Q 705862 056388-CA Q03 End Cap, Foot Rail - L No Model Compatibility List $18.85 / Each

9,3
Q 705868 056395-CA Q04 End Cap, Foot Rail - R No Model Compatibility List $18.85 / Each

9,3
Q 705872 056401-CA Q07 Front Side Rail Cap;Left No Model Compatibility List $1.90 / Each

9
Q 705873 056402-CA Q08 Front Side Rail Cap;Right No Model Compatibility List $1.90 / Each

9
P 705895 056440-A P03 Console Cable;Upper;720 Yes Model Compatibility List $28.73 / Each

4,5,6,7
P 705898 056450-A P04 Console Cable;Mast;1700L Yes Model Compatibility List $57.49 / Each

7,4,5,6
N 705906 056474-AX N61 Overlay No Model Compatibility List $35.46 / Each

1
N 705912 056514-A N68 Membrane Key;Incline;Left No Model Compatibility List $35.46 / Each

9,10
N 705913 056515-A N69 Membrane Keys;Speed;Right No Model Compatibility List $38.32 / Each

9
N 705916 056530-A N71 Pulse Sensor Set;1200 No Model Compatibility List $17.03 / Each

12,13,14
Q 705931 056655-A Q10 Acrylic Plate No Model Compatibility List $48.23 / Each

3,4,5,6
N 705968 057742-BDX N60 Upper Control Board w/ soldered HR receiver No Model Compatibility List $383.27 / Each

7,12,13,14
A 705991 058020-A AR1 Front Roller Set No Model Compatibility List $191.62 / Each

8
M 706013 058158-AB M05 Bracket;Drive Motor No Model Compatibility List $28.52 / Each

2,3,4,5,6,10
Q 706074 058895-CA Q28 Grip;Side Rail No Model Compatibility List $23.69 / Each

9,11
706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $35.52 / Each

1
B 706250 060607-A B27 Running Deck;682x1220x18T No Model Compatibility List $249.13 / Each

3
V 706254 060618-AX V59 Decal, Motor Cover No Model Compatibility List $3.54 / Each

7,9,3,10
V 706258 060626-AX V62 Decal, Motor Cover - L POP No Model Compatibility List $8.87 / Each

7,9,3,10,12,13,14
V 706259 060627-AX V63 Decal, Motor Cover - R POP No Model Compatibility List $8.87 / Each

7,9,3,10,12,13,14
V 706260 060628-AX V64 Decal, POP - Console No Model Compatibility List $1.77 / Each

7,3,12,13,14
V 706262 060633-AX V58 Decal;E Trak;Console No Model Compatibility List $1.77 / Each

7,3
706470 062526-AA AG03 Support Tube, L No Model Compatibility List $166.53 / Each

3
706471 062529-AAX N06 Console Shell, Rear No Model Compatibility List $61.54 / Each

7
K 706481 062649-A KIT Hardware Pack No Model Compatibility List $22.98 / Each

4,5,6
K 706551 063276-A KIT Water Bottle No Model Compatibility List $11.73 / Each

1
A 706571 063541-Z AN01 Console Frame Set No Model Compatibility List $92.74 / Each

7,3
A 706572 063544-ZR AG02 Handelbar w/ foam, R No Model Compatibility List $50.36 / Each

1
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

R 709101 1000109551 R03 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $60.22 / Each

709111 1000109776 B64 Screw;RND;M6x1.0Px8L;HS;CHM;BP;G8.8 No Model Compatibility List $2.47 / Each

2
M 709140 1000110344 M01 Drive Motor Set;Digital Yes Model Compatibility List $778.00 / Each

1
Safety Key Set 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $42.74 / Each

P 1020937 002124-B P05 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

A 014683-B 014683-B AR2 1 Rear Idler Roller Yes Model Compatibility List $207.99 / Each

26
Digital DC Drive Motor 1000113141 1000113141 0 1 Digital DC Drive Motor Yes Model Compatibility List $648.70 / Each

28
B 1026014 018951-A B77 1 Spring Deck (Used) Yes Model Compatibility List $7.40 / Each

P 1001381 003326-00 P01 1 Power Switch Yes Model Compatibility List $29.99 / Each

R 1002356 1000109551 R03 1 Belt Drive Yes Model Compatibility List $31.99 / Each

M 1029909 004480-Z M34 Screw (Used) Yes Model Compatibility List $5.00 / Each

Front Drive Pulley Roller 1000018 016110-Z Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8
P 1000573 003326-00 P01 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

P 1002652 003346-00 P02 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P07 Power Entry Module Yes Model Compatibility List $19.99 / Each

9,4,5,6
Rear Idler Roller 1001050 1000108449 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock 		1
M 1003520 032669-IF M41 Lower Controller Board Yes Model Compatibility List $169.00 / Each

48
A 1002835 014683-B AR2 Rear Idler Roller Yes Model Compatibility List $69.99 / Each

26
P 1001433 002248-D P08 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

P 1001765 002169-A P35 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Power Entry Assembly Switch Filter Inlet 1008480 stwch-ent-480 Power Entry Assembly Switch Filter Inlet Yes Model Compatibility List $24.99 / Each

jht170L8r 1000109551 R03 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

Z 1020604 004483-00 Z15 Front Roller Screw M8-1.25"x25mm No Model Compatibility List $11.99 / Each

P 1034434 003326-00 P01 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P01 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P02 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

N 911968 004620-00 N20 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M40 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

N 911958 004608-00 N21 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
