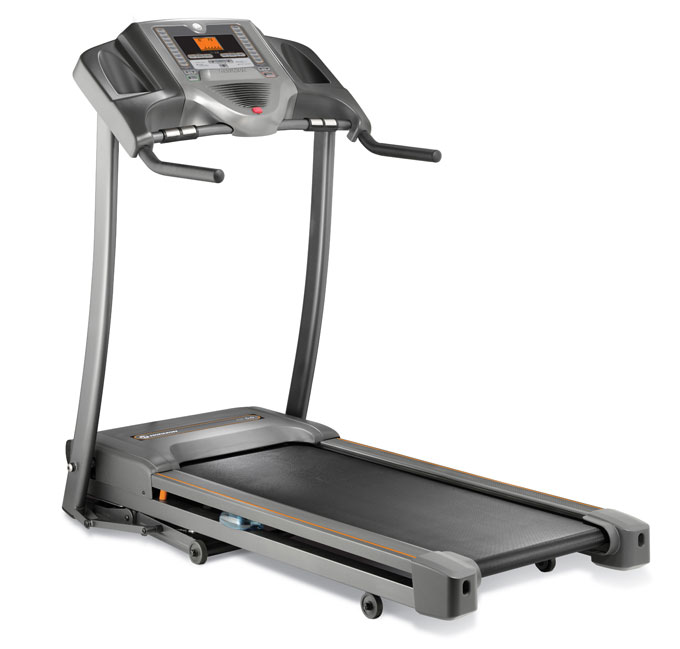

Horizon Fitness - CT5.0 - 2009

Repair Parts for Horizon Fitness CT5.0 TM602B

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: CT5.0

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
DC Drive Motor Johnson 1000111822 JM05-015 0 1 DC Drive Motor Johnson Yes Model Compatibility List $674.57 / Each

1
Belt Drive 1002025 1000109551 0 1 Belt Drive Yes Model Compatibility List $27.99 / Each

Belt Drive 1002356 1000109551 0 1 Belt Drive Yes Model Compatibility List $27.99 / Each

DC Drive Motor (New) 1000608 1000106039 DC Drive Motor (New) Yes Model Compatibility List $289.00 / Each
Out Of Stock
jht170L8r 1000109551 Motor Drive Belt (New) Yes Model Compatibility List $27.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

Running Belt 1037138 075197 Running Belt Yes Model Compatibility List $229.23 / Each

DC Drive Motor TO-RME3-JC6E JM05-015 T101 DC Drive Motor Yes Model Compatibility List $134.10 / Each
Out Of Stock
Running Belt 1037354 075197 Running Belt Yes Model Compatibility List $118.50 / Each
Out Of Stock
Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Rear Idler Roller (Used) 1031207 9135512 Rear Idler Roller (Used) Yes Model Compatibility List $47.99 / Each

26
728462 094971 AC1 Console Mast Set;Left No Model Compatibility List $335.58 / Each

728463 094972 AC2 Console Mast Set;Right No Model Compatibility List $335.58 / Each

Arm Rest Set;L;Semi-Assy;TM602-1US 728808 097657 AG1 Arm Rest Set;L;Semi-Assy;TM602-1US No Model Compatibility List $22.36 / Each

A 707203 1000091171 AH1 Elevation Rack Set;Painting;TM602-1US No Model Compatibility List $128.18 / Each

4,5,6,10
A 707204 1000091172 AH2 Fold Frame No Model Compatibility List $114.76 / Each

3
Console Base Set;Semi-Assy;TM602-1US 728810 097666 AN2 Console Base Set;Semi-Assy;TM602-1US No Model Compatibility List $229.87 / Each

Safety Key Set 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $42.74 / Each

703439 014670-E AR1 Front Roller Set No Model Compatibility List $126.26 / Each

8
A 1000694 014670-E AR1 Front Drive Roller Yes Model Compatibility List $31.19 / Each

8
A 1000695 014670-E AR1 Front Drive Roller No Model Compatibility List $99.00 / Each

8

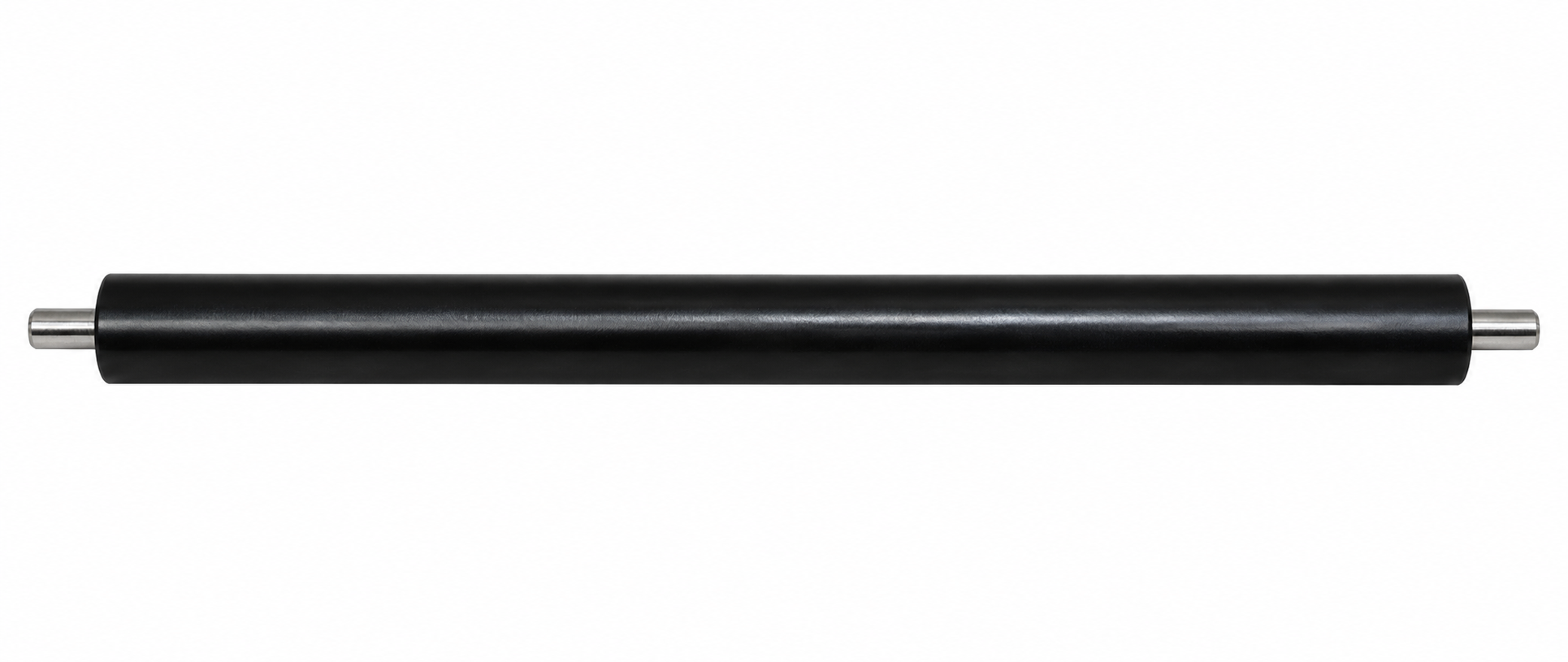

709031 1000108437 AR2 Roller Set;Rear;TM116 Yes Model Compatibility List $191.62 / Each

A 1000696 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $59.99 / Each

A 1000697 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $219.99 / Each

Hardware Kit Set;Semi-Assy;TM602-1US 728812 097673 AZ1 Hardware Kit Set;Semi-Assy;TM602-1US No Model Compatibility List $82.03 / Each

Running Deck;682x1140x18T;TM602-1US 728806 097651 B27 Running Deck;682x1140x18T;TM602-1US No Model Compatibility List $249.13 / Each

B 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

B 911951 004571-00 B28 Deck screw M8X1.25PX28L (New) No Model Compatibility List $13.99 / Each

Fixing Axle;Console;;S20C 728612 095629 B30 Fixing Axle;Console;;S20C No Model Compatibility List $21.50 / Each

701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

700402 001251-F B35 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

B 705954 056905-A B36 Stopper;Side Rail No Model Compatibility List $1.79 / Each

9
701613 004632-00 B37 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

Air Cushion;TPU(ADR) 726406 081671 B38 Air Cushion;TPU(ADR) Yes Model Compatibility List $17.94 / Each

B 702762 009562-AX B41 Air Shock;85-90KG(125L) Yes Model Compatibility List $34.27 / Each

1
701964 005005-00 B43 Washer;Spring;Lock;8.2x15.4x2.0t Yes Model Compatibility List $1.59 / Each

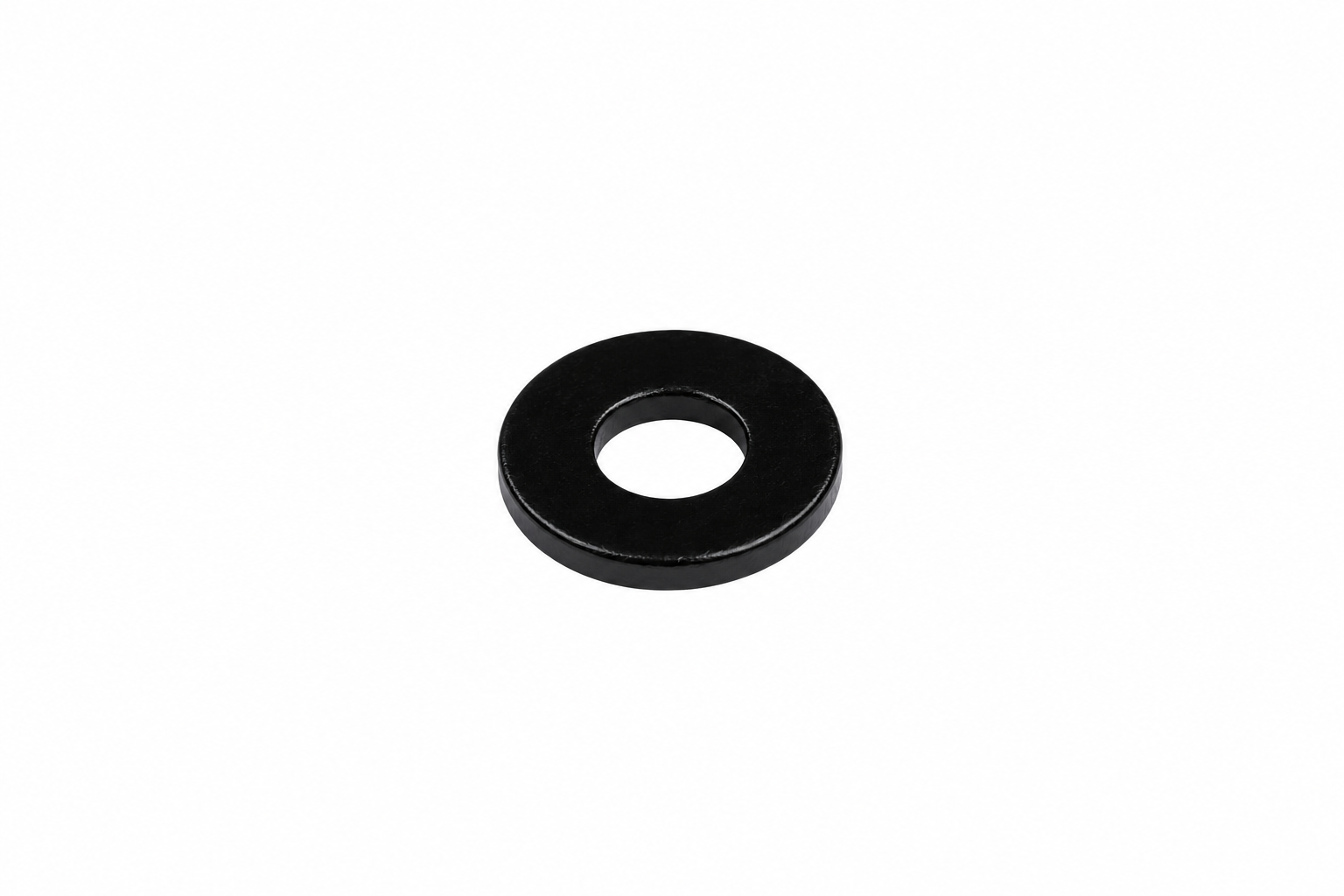

B 702032 005064-A B44 Washer;Flat;8.2x20x3.0T No Model Compatibility List $1.85 / Each

2
B 700245 000767-D B46 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B47 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

End Cap 725760 076073 C10 End Cap Yes Model Compatibility List $3.54 / Each

Arm Rest Set;R;Semi-Assy;TM602-1US 728809 097658 G02 Arm Rest Set;R;Semi-Assy;TM602-1US No Model Compatibility List $22.36 / Each

G 700323 000960-AA G05 End Cap;Upper Vertical Handlebar Yes Model Compatibility List $3.89 / Each

9,11
H 701534 004565-00 H06 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
H 700418 001299-B H08 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
H 707343 1000092177 H16 CON Plate;Console Mast;Painting;TM602-1U No Model Compatibility List $35.88 / Each

7,3
H 706178 059929-B H18 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

702186 005229-00 H20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

Screw;Special;M8X1.25PX33L-8L; 728606 095610 H21 Screw;Special;M8X1.25PX33L-8L; No Model Compatibility List $4.00 / Each

Screw;Special;Fixing;12x34L 728607 095611 H22 Screw;Special;Fixing;12x34L No Model Compatibility List $4.00 / Each

702160 005196-00 H23 Washer;Teflon;10.5x20.0x1.0T Yes Model Compatibility List $1.59 / Each

701699 004724-00 H25 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

H 700410 001278-B H26 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
H 702171 005212-A H28 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
H 702292 005493-A H30 Spring;Ext;60MN;Zinc No Model Compatibility List $2.00 / Each

2
H 725134 101973 H33 Foam;Hook;20x50x1.3T;TM604 No Model Compatibility List $1.77 / Each

1
701862 004884-00 H38 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

K 705259 039400-BA K13 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

K 1035628 039400-BA K13 1 Transport Wheel (Used) Yes Model Compatibility List $5.00 / Each

K 701912 004941-00 K14 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

709278 1000111822 M01 Motor set;Semi-Assy;;BLACK C;2.25HP/90V; Yes Model Compatibility List $648.70 / Each
4,5,6,10
M 1000188 1000111822 M01 DC Drive Motor Yes Model Compatibility List $189.00 / Each
4,5,6,10
M 1002678 1000111822 M01 2.0HP DC Drive Motor Yes Model Compatibility List $125.99 / Each
4,5,6,10
M 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

28
M 039043-00 039043-00 M02 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

28
M 1002738 039043-00 M02 Incline Lift Elevation Motor Yes Model Compatibility List $79.99 / Each

28
705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

48
M 1000201 032671-HF M03 Motor Control Board Controller Yes Model Compatibility List $169.00 / Each
Out Of Stock 		48
M A1-0NN9-NPTB 032671-HF M03 Lower Control Board Motor Controller LPCA Digital Drive 1.75 2.0 HP (New) Yes Model Compatibility List $259.99 / Each
Out Of Stock 		48
M 707591 1000093557 M05 Drive Motor Bracket Yes Model Compatibility List $25.97 / Each

2,3,4,5,6,10
705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 702136 005165-00 M08 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

701897 004926-00 M12 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

M 976932 004926-00 M12 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

M 701476 004523-00 M13 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

M 701562 004595-00 M14 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
702030 005062-00 M21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

701908 004934-00 M22 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

706218 060295-CA M47 Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
Console Shell 726513 082498 N01 Console Shell No Model Compatibility List $43.91 / Each

N 725115 101813 N02 Console Overlay;InjectionDS099;TM602 No Model Compatibility List $57.49 / Each

7
703916 019316-A N13 Safety Key Reed Switch Yes Model Compatibility List $15.99 / Each

4,5,6
N 701635 004660-A N16 Screw;Oval Tapping;5x15L No Model Compatibility List $2.00 / Each

701591 004620-00 N19 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

N 911968 004620-00 N19 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

700700 001952-00 N22 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 701851 004870-00 N32 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

705313 040816-A N33 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

N 704087 020210-00 N35 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
Cover;Fan;Front 725763 076092 N40 Cover;Fan;Front No Model Compatibility List $10.32 / Each

Cover;Fan;Rear 725764 076093 N41 Cover;Fan;Rear Yes Model Compatibility List $10.32 / Each

701939 004975-00 N59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

N 707850 1000096354 N60 Upper Control Board;UCB;T91;H102S701noRoHS No Model Compatibility List $316.78 / Each

7
Overlay;Halftone Printing;TM602B-1US 728912 098915 N61 Overlay;Halftone Printing;TM602B-1US No Model Compatibility List $134.13 / Each

N 705707 055269-AX N63 Decal;Faceplate No Model Compatibility List $3.82 / Each

N 705918 056532-A N64 Pulse Sensor Set;600 Yes Model Compatibility List $38.32 / Each

12,13,14
Ground Wire;Pulse;250-6;350 726683 084100 N67 Ground Wire;Pulse;250-6;350 No Model Compatibility List $3.54 / Each

Console Fan 725571 073303 N68 Console Fan Yes Model Compatibility List $38.12 / Each

701590 004619-AB N75 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

P 706349 061300-A P01 Console Cable;Upper;550L Yes Model Compatibility List $31.33 / Each

4,5,6,7
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $20.00 / Each

P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

P 1002652 003346-00 P04 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1009798 003346-00 P04 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

700746 002124-B P09 Connecting Cable;Socket/Breaker;60;16AWG Black Yes Model Compatibility List $3.82 / Each

P 1020937 002124-B P09 1 Power Entry Socket Input Module Yes Model Compatibility List $25.99 / Each

701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $5.99 / Each

9,4,5,6
P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
P 1001433 002248-D P14 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47

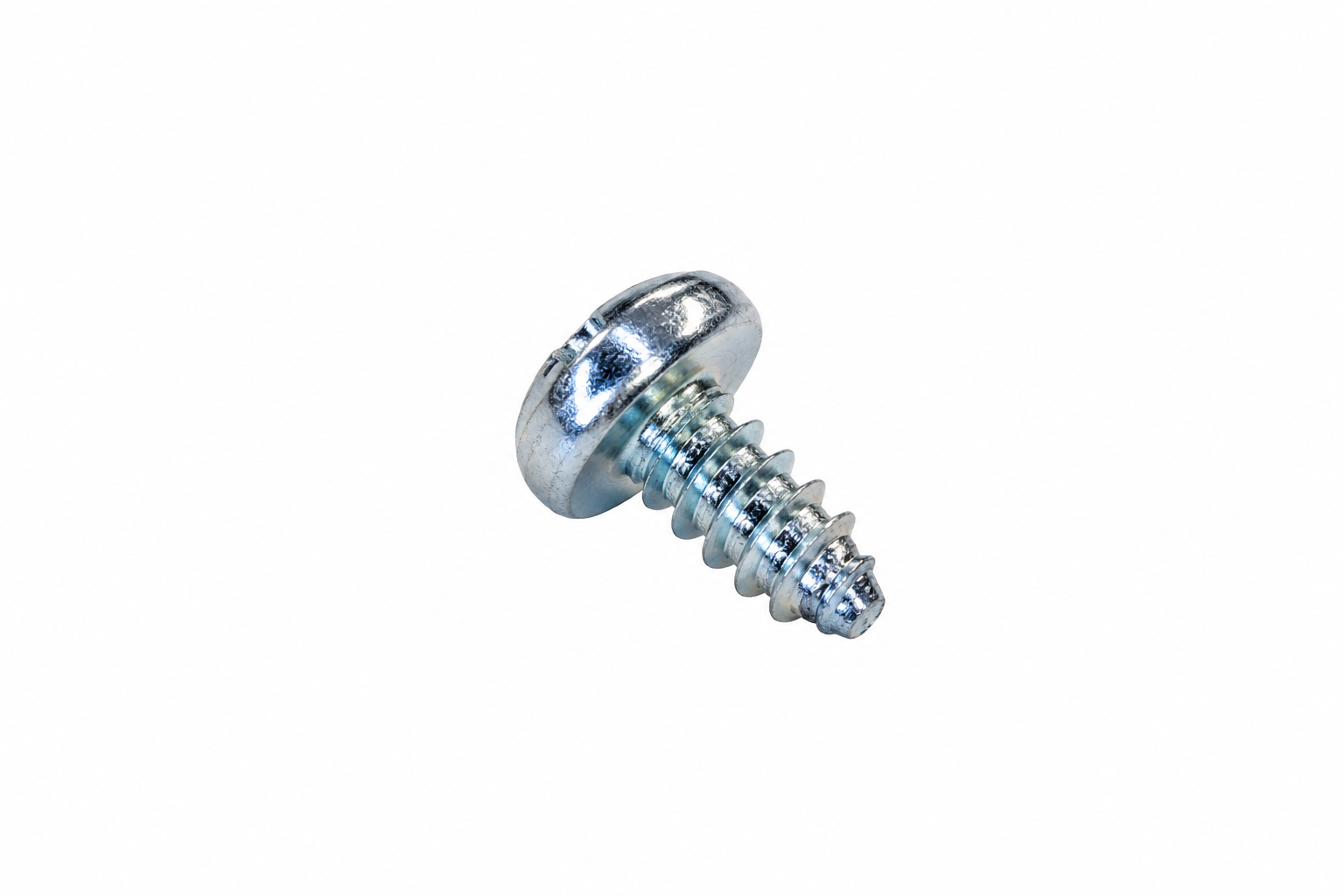

701578 004612-AB P15 Screw;Phillip;Round;M3x0.5Px8L;Zn+3 No Model Compatibility List $2.00 / Each

701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

700847 002508-A P20 Power Wire;Control Board;550;16AWG;Black No Model Compatibility List $1.90 / Each

7,4,5,6
700848 002509-A P21 Power Wire;Control Board;550;16AWG;White Yes Model Compatibility List $1.90 / Each

7,4,5,6
P 700741 002108-C P30 Console Cable;Mast;1500L(5557 SERIES+2.5-12P) Yes Model Compatibility List $40.92 / Each

4,5,6,7
700755 002169-A P33 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
P 1001765 002169-A P33 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
726507 082459 Q01 Motor Cover;Upper;Gray Yes Model Compatibility List $86.14 / Each

Q 700098 000357-CD Q02 Motor Cover;Bottom No Model Compatibility List $51.32 / Each

9,10
Q 725223 103105 Q05 Side Rail Set No Model Compatibility List $40.25 / Each

9
End Cap;Right Rear 726512 082495 Q07 End Cap;Right Rear No Model Compatibility List $17.58 / Each

702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

Q 957398 005330-00 Q17 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 700319 000945-AA Q18 End Cap;Handlebar;O31.8;Black No Model Compatibility List $1.90 / Each

9,4,5,6,11
Q 703883 018972-00 Q19 TUBE END CAP No Model Compatibility List $1.77 / Each

9,3
725961 078561 Q22 Tape;Foam;One Sided;8x16x50;Black No Model Compatibility List $3.54 / Each

701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

Q 705470 049263-A Q31 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $2.00 / Each

701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

701849 004867-A Q33 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
725728 075197 R02 Running Belt;;;Black;;495x2590x1.6t Yes Model Compatibility List $249.13 / Each

709102 1000109577 R03 Drive Belt;Poly-V;170-J8 Yes Model Compatibility List $60.22 / Each

15,10
R hori170J8 1000109577 R03 Drive Motor Belt (New) Yes Model Compatibility List $66.99 / Each

15,10
704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed Yes Model Compatibility List $4.00 / Each

7,2,8,12,13,14
R 701478 004525-00 R05 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

V 725144 102139 V01 Sticker;Motor Up Cover;TM602B No Model Compatibility List $3.54 / Each

9,10
V 725142 102135 V06 Sticker; Console;L;TM602B No Model Compatibility List $1.77 / Each

7
V 725143 102136 V07 Sticker; Console;R;TM602B No Model Compatibility List $1.77 / Each

7
V 725146 102146 V32 Manual;Manipulate;France;Rev.1.1;TM602B No Model Compatibility List $8.87 / Each

1
V 725145 102145 V33 Manual;Manipulate;Rev.1.1;TM602B No Model Compatibility List $8.87 / Each

1
704229 020668-00 Z01 Wrench;Hex;L-Type;#10mmx170L; No Model Compatibility List $4.00 / Each

Z 702257 005393-00 Z02 Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

Z 701827 004847-AB Z05 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
Z 702011 005047-00 Z07 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702798 010680-00 Z08 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $2.00 / Each

2,3
Z 701841 004859-00 Z09 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Z 706838 066044-A Z21 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
