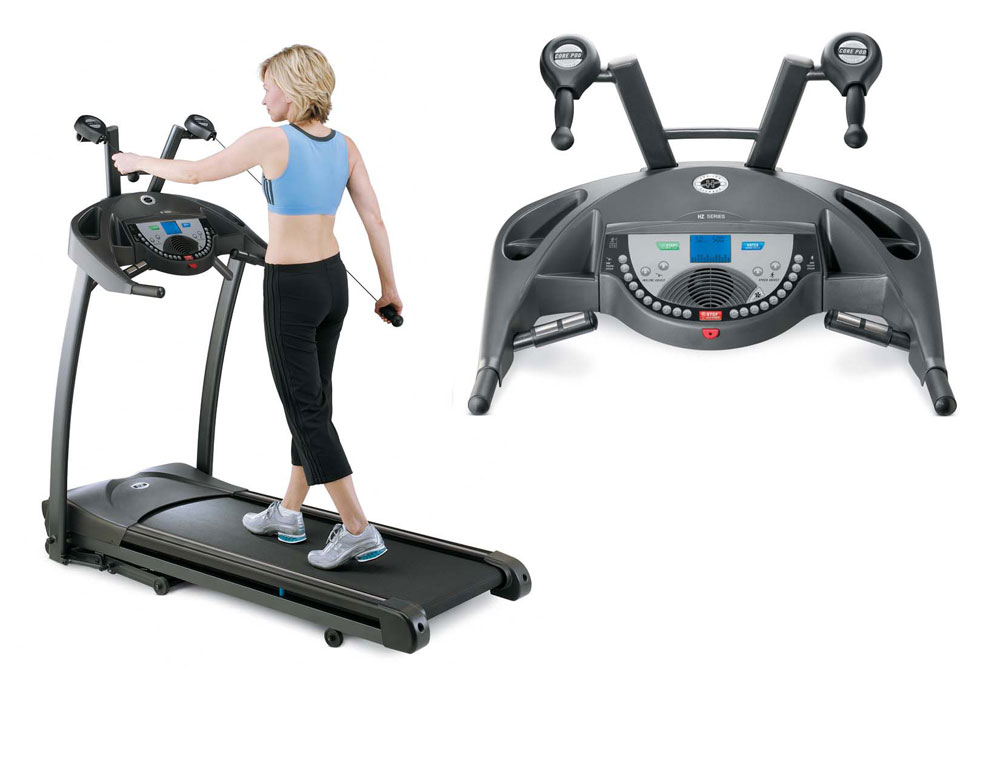

Horizon Fitness - CT61 - 2006

Repair Parts for Horizon Fitness CT61 TM190

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: CT61

Version: 2006

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700021 000037-CA L06 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
700097 000357-CA Q02 Motor Cover;Bottom No Model Compatibility List $50.36 / Each

9,10
Q 700099 000362-CA Q01 Motor Cover;Upper Yes Model Compatibility List $72.44 / Each

9,10
Q 700120 000445-BA Q21 Cover;Strengthen Tube Yes Model Compatibility List $3.54 / Each

9,3
N 700204 000636-A N16 Foam Grip;Handlebar;31.8x3tx140L No Model Compatibility List $1.90 / Each

11
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

700318 000940-A N17 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

N 700343 001055-DA N01 Console Shell;Charcoal Gray No Model Compatibility List $84.86 / Each

7
700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

C 700416 001294-B C24 End Cap;Support Tube Base;AF002(1/2) 19 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $2.00 / Each

9,3
H 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
N 700420 001315-DA N02 Faceplate No Model Compatibility List $16.56 / Each

3,4,5,6
Q 700430 001357-EA Q08 End Cap;Foot Rail;Right No Model Compatibility List $9.57 / Each
Out Of Stock 		9,3
N 700704 001963-A N13 Console Safety Key Reed Switch;250L(2.5-2P) E192542 Yes Model Compatibility List $14.22 / Each

4,5,6
P 700741 002108-C P30 Console Cable;Mast;1500L(5557 SERIES+2.5-12P) Yes Model Compatibility List $40.92 / Each

4,5,6,7
700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
P 700850 002513-B P09 Power Cable;Control Board;1000L;16AWG;Black No Model Compatibility List $0.03 / Each

7,4,5,6
P 700851 002514-B P10 Power Cable;Control Board;1000L;16AWG;White No Model Compatibility List $1.90 / Each

7,4,5,6
N 700992 003183-C N06 Membrane Key;Speed/Elevation;28 Key - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $38.32 / Each
Out Of Stock 		9,10
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
N 701047 003432-B N26 Pulse Sensor Set;Single;750 Yes Model Compatibility List $21.27 / Each

12,13,14

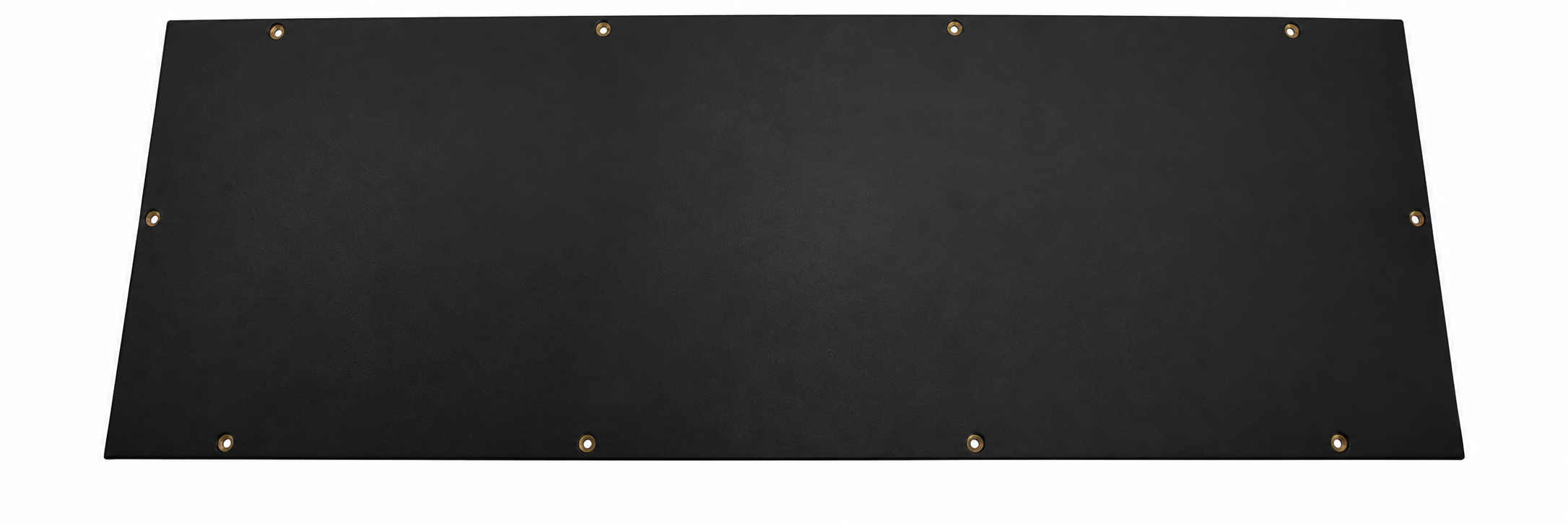

B 701256 004316-00 B27 Running Deck No Model Compatibility List $249.13 / Each

3
701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

R 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 701476 004523-00 M46 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
H 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
M 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M10 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701591 004620-00 N15 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

701613 004632-00 Q31 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

N 701615 004635-A N59 Screw;Oval Tapping;3x7L No Model Compatibility List $2.00 / Each

N 701621 004640-A N58 Screw;Umbrella Cross Tapped;4X35L No Model Compatibility List $2.00 / Each

2
701699 004724-00 N55 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

701848 004865-00 B39 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701867 004889-Z Q33 Nut, hex head; M5x0.8P No Model Compatibility List $0.00 / Each
Out Of Stock 		2
R 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $2.00 / Each

2
701897 004926-00 M08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M12 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

L 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

C 701916 004945-00 C23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

C 702021 005056-00 C25 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

L 702065 005093-00 L15 Washer;Flat;3.5x8.0x1.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
H 702114 005141-A H25 Washer;Flat;12.5x19x1.5T No Model Compatibility List $1.85 / Each

2
702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

H 702130 005157-00 H20 WASHER;FLT;Diam.8.2XDiam.20.0X1.4T;;BAN; No Model Compatibility List $1.85 / Each

2
702135 005163-00 Z01 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

C 702169 005210-A C26 Washer;Teflon;20.3x25x1.0T No Model Compatibility List $2.00 / Each

2
Z 702170 005211-A Z12 WASHER;FLT;Diam.12.1XDiam.20.0X1.0T;;; No Model Compatibility List $1.85 / Each

2
H 702171 005212-A H24 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
H 702189 005232-A H22 Washer;Wavy;12.7x18x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Q 702240 005365-00 Q17 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

H 702283 005475-D H30 Spring;Foot Lock Latch;SUS304 No Model Compatibility List $4.00 / Each

2,9,3
V 702326 006087-AX V18 Decal;Console Logo No Model Compatibility List $1.77 / Each

7,3
V 702327 006089-A V03 Decal;Console Logo No Model Compatibility List $3.82 / Each

7,3
702446 007384-E B25 Fixing Plate;Motor Control Board No Model Compatibility List $9.59 / Each

7,3,10
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

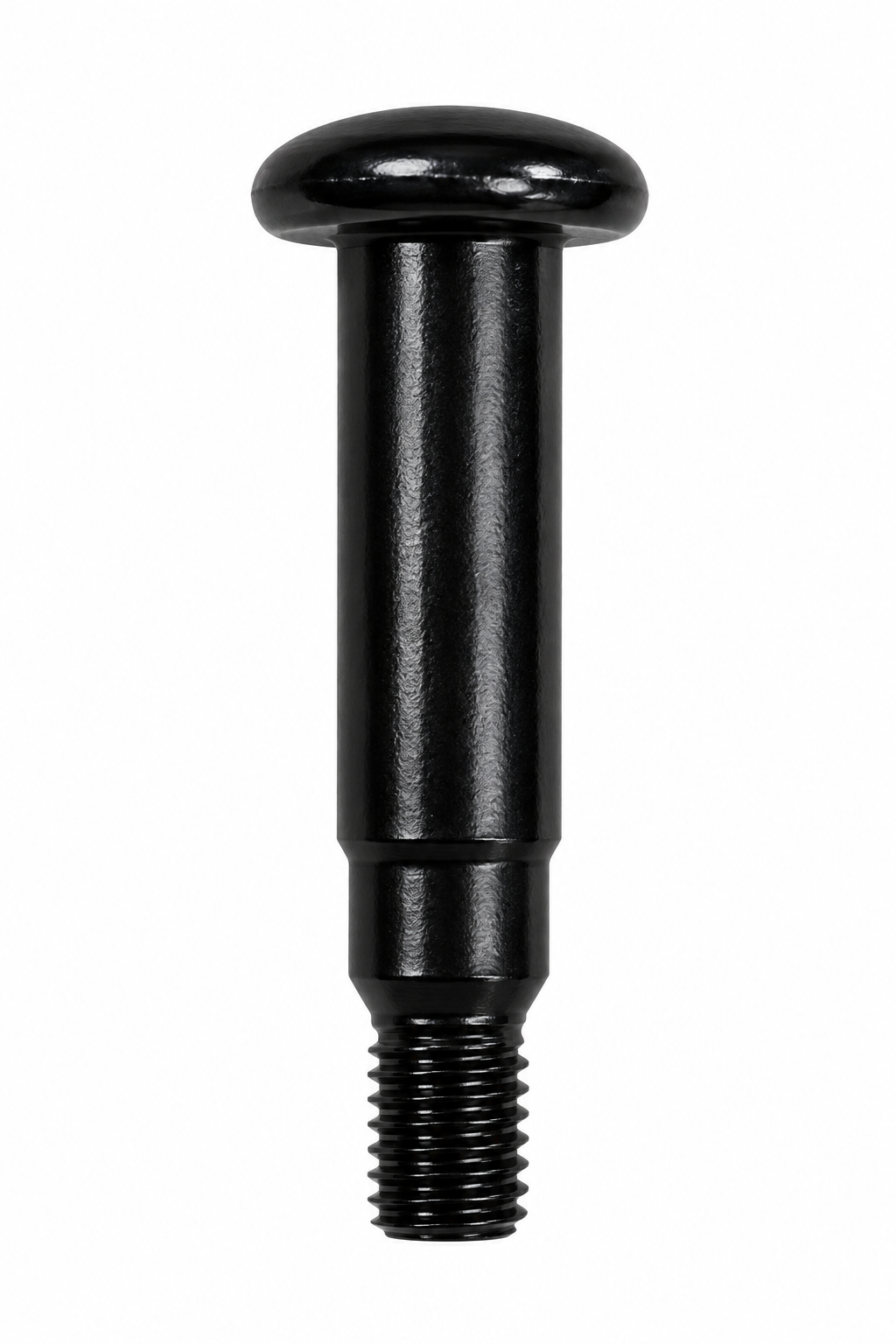

H 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $4.00 / Each

2,3
B 702762 009562-AX B56 Air Shock;85-90KG(125L) Yes Model Compatibility List $34.27 / Each

1
Z 702798 010680-00 Z03 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $2.00 / Each

2,3
M 702854 012804-00 M02 Elevation Motor;110V No Model Compatibility List $249.13 / Each

1
703439 014670-E AR1 Front Roller Set No Model Compatibility List $126.26 / Each

8
C 703473 014857-AA C28 Strengthen Tube;Right Mast Yes Model Compatibility List $52.05 / Each

3
C 703477 014893-AA C27 Strengthen Tube;Left Mast Yes Model Compatibility List $52.05 / Each

3
A 703485 014949-BA AH1 Elevation Frame Set No Model Compatibility List $131.66 / Each

3,10
A 703488 014961-BA AH2 Fold Frame No Model Compatibility List $152.59 / Each

3
A 703492 015006-AA AH3 Linkage Arm;Console Mast;Lower No Model Compatibility List $62.22 / Each

7,3
703770 016167-Z N33 Safety Key Set Yes Model Compatibility List $40.14 / Each

1
703771 016172-Z M01 Drive Motor Set;Digital-1.75HP Yes Model Compatibility List $450.00 / Each

10
704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed Yes Model Compatibility List $4.00 / Each

7,2,8,12,13,14
K 704087 020210-00 KIT Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
A 704662 024683-AA AC1 Support Tube;Left;Metal Carbon Gray No Model Compatibility List $127.35 / Each

3
A 704666 024703-AA AC2 Support Tube,Right;Metal Carbon Gray No Model Compatibility List $127.35 / Each

3
705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

48
705141 038132-BBX N37 Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
705700 055204-A Z06 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
P 706218 060295-CA P14 Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

M 707591 1000093557 M05 Drive Motor Bracket Yes Model Compatibility List $25.97 / Each

2,3,4,5,6,10
H 708619 1000104244 H31 Foot Lock Latch No Model Compatibility List $24.62 / Each

9,3
709031 1000108437 AR2 Roller Set;Rear;TM116 Yes Model Compatibility List $191.62 / Each

709102 1000109577 R03 Drive Belt;Poly-V;170-J8 Yes Model Compatibility List $60.22 / Each

15,10
Console Cable; Upper; 450L(2.5-12P+5557 SERIES) 725951 078539 KIT Console Cable; Upper; 450L(2.5-12P+5557 SERIES) Yes Model Compatibility List $28.73 / Each

P 1020937 002124-B P08 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

M 012804-00 012804-00 M02 1 Smooth AFG Treadmill Incline Elevation Motor No Model Compatibility List $246.99 / Each

1
DC Drive Motor Johnson 016172-Z JM05-017 0 1 DC Drive Motor Johnson No Model Compatibility List $388.70 / Each

1
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

Belt Drive 1002356 1000109551 0 1 Belt Drive Yes Model Compatibility List $31.99 / Each

M 1029909 004480-Z M45 Screw (Used) Yes Model Compatibility List $5.00 / Each

Front Drive Pulley Roller 1000018 016110-Z Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8
DC Drive Motor With Bracket 1000574 016172-Z 1000093557 DC Drive Motor With Bracket Yes Model Compatibility List $149.99 / Each
Out Of Stock
A 1000694 014670-E AR1 Front Drive Roller Yes Model Compatibility List $51.99 / Each

8
M 1000201 032671-HF M03 Motor Control Board Controller Yes Model Compatibility List $169.00 / Each
48
A 1000695 014670-E AR1 Front Drive Roller No Model Compatibility List $99.00 / Each

8
A 1000696 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $59.99 / Each

P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

A 1000697 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $219.99 / Each

P 1002652 003346-00 P04 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $5.99 / Each

9,4,5,6
Rear Idler Roller 1001050 1000108449 Rear Idler Roller Yes Model Compatibility List $69.99 / Each
Out Of Stock 		1
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

DC Drive Motor 1001114 016172-Z DC Drive Motor No Model Compatibility List $460.00 / Each
Out Of Stock
N 1002538 016167-Z N33 Safety Key Set Yes Model Compatibility List $26.99 / Each

1
P 1001765 002169-A P07 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
Power Entry Assembly Switch Filter Inlet 1008480 stwch-ent-480 Power Entry Assembly Switch Filter Inlet Yes Model Compatibility List $24.99 / Each

jht170L8r 1000109551 Motor Drive Belt (New) Yes Model Compatibility List $66.99 / Each

12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

R hori170J8 1000109577 R03 Drive Motor Belt (New) Yes Model Compatibility List $66.99 / Each

15,10
M A1-0NN9-NPTB 032671-HF M03 Lower Control Board Motor Controller LPCA Digital Drive 1.75 2.0 HP (New) Yes Model Compatibility List $259.99 / Each
48
P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P04 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

N 911968 004620-00 N15 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M08 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
