Horizon Fitness - CT7.0 - 2009

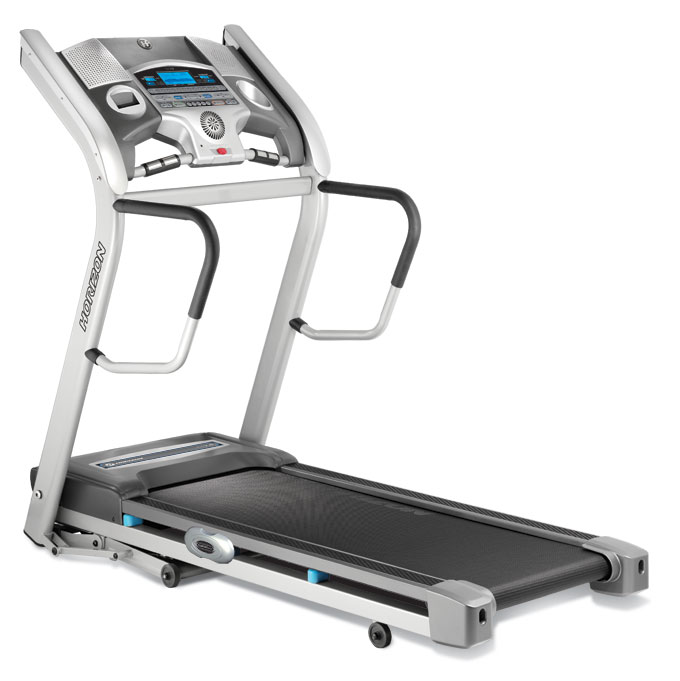

Repair Parts for Horizon Fitness CT7.0 TM608B

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: CT7.0

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

B 700246 000768-D B46 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

Q 700321 000955-BC Q09 End Cap;Base Frame;Front Yes Model Compatibility List $3.82 / Each

9,3
700402 001251-F B28 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

H 700410 001278-B H62 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
H 700418 001299-B H08 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
G 700533 001552-AC G03 Cover;Handlebar No Model Compatibility List $1.90 / Each

9,11
700700 001952-00 N76 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
700746 002124-B P05 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P02 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700773 002248-D P06 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

47
700893 002671-A N69 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

701013 003326-00 P07 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

701020 003346-00 P08 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

701026 003363-00 P04 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M26 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $57.49 / Each

23
P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

P 701364 004415-Z P14 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

701454 004502-00 M41 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

M 701476 004523-00 M46 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

R 701478 004525-00 R09 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

H 701534 004565-00 H06 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
B 701544 004571-00 B26 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

M 701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701581 004614-AB N59 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
701590 004619-AB N17 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701591 004620-00 N34 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

701613 004632-00 B23 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

Z 701683 004714-AD Z13 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $2.00 / Each

2
701699 004724-00 H25 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

Z 701700 004724-AC Z09 Screw;Hex Socket;BH;M8x1.25Px15L;Cr No Model Compatibility List $2.00 / Each

2
701847 004864-00 Q31 Screw;4x12L No Model Compatibility List $2.00 / Each

701849 004867-A Q30 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
701858 004880-00 P15 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701862 004884-00 H38 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701908 004934-00 M22 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

B 701912 004941-00 B63 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701970 005009-AB Z08 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

Z 702011 005047-00 Z07 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702030 005062-00 H24 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

702084 005117-00 M38 Washer;Flat;8.2x16.0x2.0T No Model Compatibility List $2.00 / Each

2
Z 702119 005145-AC Z22 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

702121 005146-A M18 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702160 005196-00 H23 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

H 702171 005212-A H28 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
702186 005229-00 H20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

Z 702257 005393-00 Z01 Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

702259 005395-00 KIT Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

702262 005408-A KIT Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

702263 005411-Z KIT Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

H 702292 005493-A H30 Spring;Ext;60MN;Zinc No Model Compatibility List $2.00 / Each

2
702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed Yes Model Compatibility List $4.00 / Each

7,2,8,12,13,14
704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.59 / Each

N 704087 020210-00 N18 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
B 704215 020487-ZA B62 Washer;Flat;10.5x18x2.5T No Model Compatibility List $2.00 / Each

704229 020668-00 Z04 Wrench;Hex;L-Type;#10mmx170L; No Model Compatibility List $4.00 / Each

705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $499.00 / Each

48
M 705182 039043-00 M11 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

28
B 705259 039400-BA B35 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

N 705285 040613-B N78 Ground Wire;250 No Model Compatibility List $1.90 / Each

4,5,6
B 705470 049263-A B66 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $2.00 / Each

705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
B 705954 056905-A B22 Stopper;Side Rail No Model Compatibility List $1.79 / Each

9
V 706171 059814-AX V03 Decal;Console;Horizon Logo No Model Compatibility List $8.87 / Each

7,3
H 706178 059929-B H18 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $35.52 / Each

1
B 707070 1000090017 B30 Fix Axle;Console;S20C;Cr Plat;TM608 No Model Compatibility List $21.09 / Each

7,8
A 707196 1000091161 AC3 Crossbar No Model Compatibility List $78.99 / Each

1
M 707390 1000092479 M05 immobility shelf;Motor;Painting;KD-A578- No Model Compatibility List $41.52 / Each

10
707391 1000092480 AC1 Support Tube;Console;L;Extrawork;TM608-1 No Model Compatibility List $379.68 / Each

7,3
A 707392 1000092481 AC2 Support Tube;Console;R;Extrawork;TM608-1 No Model Compatibility List $380.54 / Each

7,3
A 707393 1000092483 AG2 HANDLEBAR SET-L/R No Model Compatibility List $218.79 / Each

11
A 707394 1000092485 AH1 Elevation Rack Set;Painting;TM608-1US No Model Compatibility List $149.03 / Each

4,5,6,10
A 707395 1000092486 AH2 Tube Support Set;Painting;TM608-1US No Model Compatibility List $120.95 / Each

3
H 707397 1000092488 H16 CON Plate;Console Mast;Painting;KD-A578- No Model Compatibility List $33.23 / Each

7,3
707398 1000092490 AN2 CONSOLE FRAME SET No Model Compatibility List $496.37 / Each

7,3
Q 707399 1000092492 Q05 SIDERAIL SET No Model Compatibility List $88.27 / Each

9
K 707538 1000093302 KIT Owner-s Manual-French No Model Compatibility List $8.84 / Each

1
709031 1000108437 AR2 Roller Set;Rear;TM116 Yes Model Compatibility List $191.62 / Each

709331 1000113141 M01 Drive Motor Set;Digital;2.75HP Yes Model Compatibility List $574.91 / Each

28
R 724964 100274 R02 Running Belt;Black;495x2820x1.6t;TM607-1US No Model Compatibility List $287.46 / Each

15,4,5,6
B 724975 100471 B41 Air Shock;90KG(125L);;TM604-1US No Model Compatibility List $40.82 / Each

1
N 724985 100631 N07 Console ;Side Rail;L;75140; No Model Compatibility List $16.30 / Each

7,9
N 724986 100632 N08 Console ;Side Rail;R;75140 No Model Compatibility List $16.30 / Each

7,9
V 725134 101973 V20 Foam;Hook;20x50x1.3T;TM604 No Model Compatibility List $1.77 / Each

1
N 725152 102225 N61 Overlay;Halftone Printing;TM608B-1US/// D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $134.13 / Each

1
K 725194 102606 KIT Owner-s Manual-English No Model Compatibility List $8.87 / Each

1
A 725220 103005 AZ1 Hardware Kit Set;Semi-Assy;TM608 No Model Compatibility List $79.38 / Each

1
V 725233 103212 V12 POP Decal-Console;TM608B No Model Compatibility List $3.54 / Each

7,3,12,13,14
V 725234 103214 V02 Sticker; Motor Cover;TM608B No Model Compatibility List $3.54 / Each

9,10
B 725249 103265 B48 Elastomer Set;TM608 No Model Compatibility List $15.31 / Each

1
V 725250 103272 V64 Decal;Adjustable Cushion No Model Compatibility List $8.87 / Each

7,3
Z 725264 103405 Z21 Washer;Flat;20.2x27.0x2.5t;Cr Plat; No Model Compatibility List $1.85 / Each

2
End Cap, Support Tube 725355 070422 F05 End Cap, Support Tube No Model Compatibility List $3.82 / Each

725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $64.04 / Each

Ipod spacer 725568 073164 N39 Ipod spacer No Model Compatibility List $1.90 / Each

Foam Holder; Ipod Nano 725675 074681 N40 Foam Holder; Ipod Nano Yes Model Compatibility List $7.00 / Each

Screw;Phillip;Round;M3x8L;Zn+3(White); 725690 074787 N11 Screw;Phillip;Round;M3x8L;Zn+3(White); No Model Compatibility List $1.85 / Each

Console Cable 725706 074975 P03 Console Cable No Model Compatibility List $57.49 / Each

725756 075998 P01 Power Wire;Control Board;;;500;16AWG+150 Yes Model Compatibility List $10.71 / Each

Sticker;Audio In 725856 077114 V04 Sticker;Audio In No Model Compatibility List $1.77 / Each

Sticker;Audio Out 725857 077115 V05 Sticker;Audio Out No Model Compatibility List $1.90 / Each

Motor Cover; Bottom 725870 077449 Q02 Motor Cover; Bottom No Model Compatibility List $27.59 / Each

725961 078561 Q22 Tape;Foam;One Sided;8x16x50;Black No Model Compatibility List $3.54 / Each

Foam Holder;Ipod Mini 725978 078843 N40 Foam Holder;Ipod Mini Yes Model Compatibility List $7.00 / Each

Foam Holder;IPOD;20/30/60/80gb 725979 078844 N40 Foam Holder;IPOD;20/30/60/80gb Yes Model Compatibility List $7.00 / Each

Screw;Hex Socket;Umbrella;;;M8x1.25Px120 726010 079300 Z10 Screw;Hex Socket;Umbrella;;;M8x1.25Px120 No Model Compatibility List $4.00 / Each

Washer;Arc;8.4x17.0x1.0t;Cr; 726011 079301 Z12 Washer;Arc;8.4x17.0x1.0t;Cr; No Model Compatibility List $2.00 / Each

Screw;Phillip;Big Umbrella;Tapped;;4x10 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $2.00 / Each

Foam Holder MP3 Player Universal 726374 081448 N40 Foam Holder MP3 Player Universal Yes Model Compatibility List $16.69 / Each

726402 081639 Q20 Tape;Foam;single;2.5tx20x70;black Yes Model Compatibility List $1.90 / Each

Safety Key Set 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $42.74 / Each

726507 082459 Q01 Motor Cover;Upper;Gray Yes Model Compatibility List $86.14 / Each

End Cap;Right Rear 726512 082495 Q07 End Cap;Right Rear No Model Compatibility List $17.58 / Each

Running Deck;;1220x682x18t;TM604 728599 095572 B27 Running Deck;;1220x682x18t;TM604 No Model Compatibility List $249.13 / Each

Hook;Painting;KD-A578-A;TM608-1US 728605 095608 H26 Hook;Painting;KD-A578-A;TM608-1US No Model Compatibility List $1.77 / Each

Screw;Special;M8X1.25PX33L-8L; 728606 095610 H21 Screw;Special;M8X1.25PX33L-8L; No Model Compatibility List $4.00 / Each

Screw;Special;Fixing;12x34L 728607 095611 H22 Screw;Special;Fixing;12x34L No Model Compatibility List $4.00 / Each

Amp Control Board;VFD 3W H101 728753 096744 N67 Amp Control Board;VFD 3W H101 Yes Model Compatibility List $55.20 / Each

Control Board;IPOD;H103;SOO-C135B 728782 097357 KIT Control Board;IPOD;H103;SOO-C135B Yes Model Compatibility List $64.40 / Each

Speaker;300MM 728790 097409 N68 Speaker;300MM No Model Compatibility List $12.87 / Each

Sensor Set;Pulse;1000mm31.8+2.5-2P 728791 097413 N66 Sensor Set;Pulse;1000mm31.8+2.5-2P No Model Compatibility List $16.90 / Each

Sensor Wire;Safety Switch;300L(9216+2.5- 728838 097922 N70 Sensor Wire;Safety Switch;300L(9216+2.5- No Model Compatibility List $9.57 / Each

Fan;83.5 DC12V 0.41A10%;TM608-1US 728839 097923 N09 Fan;83.5 DC12V 0.41A10%;TM608-1US No Model Compatibility List $18.20 / Each

IPOD ELASTOMER 728858 098078 N16 IPOD ELASTOMER No Model Compatibility List $1.77 / Each

Console;U;TM608-1US 728859 098093 N01 Console;U;TM608-1US No Model Compatibility List $49.95 / Each

Console;D;TM608-1US 728860 098094 N02 Console;D;TM608-1US No Model Compatibility List $67.70 / Each

IPOD SEAT;Painting;TM608-1US 728861 098095 N14 IPOD SEAT;Painting;TM608-1US No Model Compatibility List $3.82 / Each

Faceplate;Console;Painting;TM608-1US 728878 098227 N03 Faceplate;Console;Painting;TM608-1US No Model Compatibility List $35.46 / Each

Cover;Speaker;L;Painting;TM608-1US 728879 098228 N04 Cover;Speaker;L;Painting;TM608-1US No Model Compatibility List $11.08 / Each

Cover;Speaker;R;Painting;TM608-1US 728880 098229 N05 Cover;Speaker;R;Painting;TM608-1US No Model Compatibility List $11.08 / Each

Kettle Rack;R;Painting;TM608-1US 728881 098230 N15 Kettle Rack;R;Painting;TM608-1US No Model Compatibility List $13.21 / Each

728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $3.82 / Each

728899 098562 N70 Connected Wire; Earphone; PCB Yes Model Compatibility List $6.42 / Each

Connected Wire;Console 728900 098563 N74 Connected Wire;Console No Model Compatibility List $21.71 / Each

Connected Wire;IPOD-PCB;TM608 728903 098653 N67 Connected Wire;IPOD-PCB;TM608 No Model Compatibility List $8.87 / Each

Connected Wire;IPOD-PCB;180mm(XHS-6Y)x2 728909 098803 N57 Connected Wire;IPOD-PCB;180mm(XHS-6Y)x2 No Model Compatibility List $9.57 / Each

728947 099122 N68 Audio Out Set No Model Compatibility List $3.82 / Each

P 1020937 002124-B P05 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

M 039043-00 039043-00 M11 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

28
M 1000113141 1000113141 M01 1 Digital DC Drive Motor Yes Model Compatibility List $648.70 / Each

28
P 1001381 003326-00 P07 1 Power Switch Yes Model Compatibility List $29.99 / Each

M 1029909 004480-Z M45 Screw (Used) Yes Model Compatibility List $5.00 / Each

A 1000696 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $59.99 / Each

P 1000573 003326-00 P07 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

A 1000697 1000108437 AR2 Rear Idler Roller Yes Model Compatibility List $219.99 / Each

P 1002652 003346-00 P08 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

P 1002658 003363-00 P04 Power Entry Module Yes Model Compatibility List $5.99 / Each

9,4,5,6
M 1003520 032669-IF M03 Lower Controller Board Yes Model Compatibility List $169.00 / Each

48
M 1002738 039043-00 M11 Incline Lift Elevation Motor Yes Model Compatibility List $79.99 / Each

28
M 1003098 1000113141 M01 DC Drive Motor Yes Model Compatibility List $199.00 / Each
28
M 1001201 1000113141 M01 DC Drive Motor Yes Model Compatibility List $289.00 / Each
28
P 1001433 002248-D P06 RPM Speed Sensor Reed Switch Yes Model Compatibility List $9.99 / Each

47
B 1035628 039400-BA B35 1 Transport Wheel (Used) Yes Model Compatibility List $5.00 / Each

Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

M 1001828 1000113141 M01 DC Drive Motor Yes Model Compatibility List $289.00 / Each

28
P 1001765 002169-A P02 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) 1009513 pwr-cri-13 12AMP Power Circuit Breaker QMB-123-11C3N-3BA (New) Yes Model Compatibility List $32.99 / Each

P 1034434 003326-00 P07 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P07 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 1009798 003346-00 P08 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

B 911951 004571-00 B26 Deck screw M8X1.25PX28L (New) No Model Compatibility List $13.99 / Each

N 911968 004620-00 N34 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

M 976932 004926-00 M40 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q17 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Connected Wire VF Earphone 500mm (Used) 1038387 098561 Connected Wire VF Earphone 500mm (Used) Yes Model Compatibility List $5.00 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
