Brand: Horizon Fitness
Category: Folding
Type: Folding Treadmill

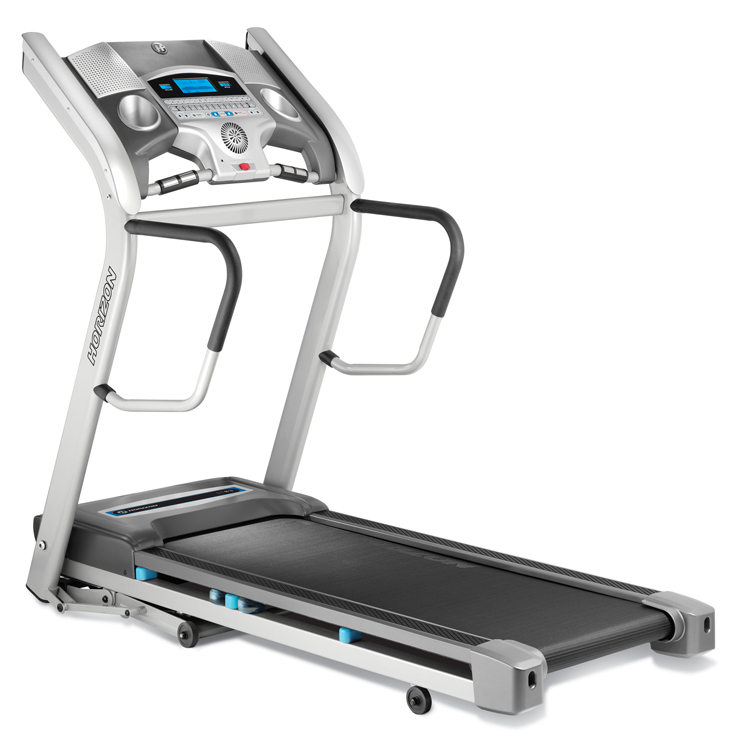

Model Name: CT83
Version: 2008
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
XImage | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
---|---|---|---|---|---|---|---|---|---|
700021 | 000037-CA | L06 | Transport Wheel;Frame | Yes | Model Compatibility List | $6.42 / Each |
|||
![]() |
700022 | 000037-CC | L05 | Wheel;Nylon | No | Model Compatibility List | $3.82 / Each |
||
![]() |
700245 | 000767-D | B57 | Elastomer;Orange;20x44L | Yes | Model Compatibility List | $19.21 / Each |
||
![]() |
700246 | 000768-D | B58 | Elastomer;Blue;20x44L | Yes | Model Compatibility List | $18.64 / Each |
||
700402 | 001251-F | L10 | Rail Lock;Fixing Washer;Side Rail | Yes | Model Compatibility List | $7.90 / Each |
|||
![]() |
700418 | 001299-B | H05 | Cover;Elevation Frame;PVC | No | Model Compatibility List | $9.57 / Each |
||
![]() |
700533 | 001552-AC | G03 | Cover;Handlebar | No | Model Compatibility List | $1.90 / Each |
||
700700 | 001952-00 | N76 | Fixing Plate;Reed Switch | No | Model Compatibility List | $1.90 / Each |
|||
![]() |
700717 | 002021-A | KIT | ESD Board | Yes | Model Compatibility List | $49.89 / Each |
||
700746 | 002124-B | P08 | Connecting Cable;Socket/Breaker;60;16AWG Black | No | Model Compatibility List | $3.82 / Each |
|||
700755 | 002169-A | P07 | Power Cord;16AWG | Yes | Model Compatibility List | $60.22 / Each |
|||
700773 | 002248-D | P14 | Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) | Yes | Model Compatibility List | $18.15 / Each |
|||
700893 | 002671-A | N69 | Audio Wire;Three-D Earphone | Yes | Model Compatibility List | $9.99 / Each |
|||
701013 | 003326-00 | P02 | Power Switch;Large;RF-1004 | Yes | Model Compatibility List | $32.71 / Each |
|||
701020 | 003346-00 | P04 | Circuit Breaker;12A;125V/250V | Yes | Model Compatibility List | $30.11 / Each |
|||
701026 | 003363-00 | P11 | Power Socket;100-600-60(O TYPE END);16AWG | Yes | Model Compatibility List | $9.57 / Each |
|||
![]() |
701033 | 003386-A | M28 | Ferrite Core;T31x16x19-C | No | Model Compatibility List | $13.26 / Each |
||
701203 | 004158-00 | R03 | Drive Belt;Poly-V;200-J8 | Yes | Model Compatibility List | $57.49 / Each |
|||
701328 | 004381-00 | P17 | Screw;Oval Head;M5x0.8Px25L | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701364 | 004415-Z | P13 | Screw;M3x0.5Px10L;Power Socket | No | Model Compatibility List | $1.79 / Each |
||
701375 | 004425-B | L11 | Screw;Phillip;Sink;Tapped;5x15L; | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701401 | 004454-00 | R08 | Screw;Round;Hex Socket;M5X0.8PX15L | No | Model Compatibility List | $1.79 / Each |
||
![]() |
701432 | 004480-Z | M45 | Screw;Hex Socket;Round;M8x1.25Px30L | Yes | Model Compatibility List | $7.20 / Each |
||
![]() |
701444 | 004486-00 | R04 | Screw;Round;Hex Socket;M8X1.25PX85L | Yes | Model Compatibility List | $9.80 / Each |
||
701454 | 004502-00 | M07 | Screw;Hex Socket;Round;5/16-18UNCx16L;Ad | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701476 | 004523-00 | R09 | Screw;Hex Socket;Round;M8x1.25Px40L;Adhe | No | Model Compatibility List | $2.00 / Each |
||
701530 | 004562-00 | B36 | Bolt;Deck;M8x1.25Px35L | Yes | Model Compatibility List | $5.85 / Each |
|||
![]() |
701534 | 004565-00 | H50 | Screw;Hex Socket;Sink;M8x1.25Px12L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701559 | 004590-Z | M20 | Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) | Yes | Model Compatibility List | $1.79 / Each |
||
![]() |
701562 | 004595-00 | M16 | Screw;Hex;3/8-16UNC-42L/Tooth14L; | No | Model Compatibility List | $2.00 / Each |
||
701581 | 004614-AB | N59 | Screw;Phillip;Umbrella;Tapped;3x10L;Black | No | Model Compatibility List | $2.00 / Each |
|||
701586 | 004617-00 | B15 | Screw;Console Case;Oval Tapping;4x15L | No | Model Compatibility List | $2.00 / Each |
|||
701590 | 004619-AB | N17 | Screw;Phillip;BH;Oval Tapped;4x8L | No | Model Compatibility List | $2.00 / Each |
|||
701591 | 004620-00 | B61 | Screw;Self Tapping;4x12L | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701612 | 004631-00 | Q32 | Screw;Phillip;BH;Tapped;4x25L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701613 | 004632-00 | N34 | Screw;Phillip;BH;Tapped;4x16L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
701683 | 004714-AD | Z13 | Screw;Hex Socket;BH;M6x1.0Px15L;Adhere | No | Model Compatibility List | $2.00 / Each |
||
701699 | 004724-00 | Z09 | Bolt;M8x1.25Px15L | Yes | Model Compatibility List | $2.00 / Each |
|||
701847 | 004864-00 | Q30 | Screw;4x12L | No | Model Compatibility List | $2.00 / Each |
|||
701848 | 004865-00 | N37 | Screw;Self Tapping;4x10L | No | Model Compatibility List | $2.00 / Each |
|||
701849 | 004867-A | Q31 | Screw;Phillip;Big BH;Tapped;4x15L | No | Model Compatibility List | $2.00 / Each |
|||
701858 | 004880-00 | P16 | Nut;Zero Switch Cable;M3x0.5Px3H | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
701876 | 004903-Z | R10 | Nut;Hex;M5x0.8Px4H | No | Model Compatibility List | $2.00 / Each |
||
701897 | 004926-00 | M40 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
|||
701908 | 004934-00 | M22 | Nut;Nylon;3/8 | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
701912 | 004941-00 | L08 | Nut;Nylon;M10x1.5P | No | Model Compatibility List | $2.00 / Each |
||
701939 | 004975-00 | B59 | Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) | No | Model Compatibility List | $1.90 / Each |
|||
701964 | 005005-00 | M09 | Washer;Spring;Lock;8.2x15.4x2.0t | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
701970 | 005009-AB | Z08 | Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating | No | Model Compatibility List | $2.00 / Each |
||
702007 | 005044-00 | R06 | Washer;Flat8.3x16x1.3T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702011 | 005047-00 | Z07 | Washer;Flat;8.2x20x1.8T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702030 | 005062-00 | L07 | Washer;Flat;10.2x19x2.0T;Chromed | No | Model Compatibility List | $1.59 / Each |
||
![]() |
702063 | 005091-00 | B40 | Washer;Flat;4.2X10.0X1.2T;BAN | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702073 | 005104-00 | M08 | Washer;Flat;8.2x16.0x0.8T | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702084 | 005117-00 | M38 | Washer;Flat;8.2x16.0x2.0T | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702119 | 005145-AC | Z22 | Washer;Flat;8.2x19.0x2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
702121 | 005146-A | M18 | Washer;Flat;10.5x20x2.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702130 | 005157-00 | H22 | WASHER;FLT;Diam.8.2XDiam.20.0X1.4T;;BAN; | No | Model Compatibility List | $1.85 / Each |
||
702160 | 005196-00 | H27 | Washer;Teflon;10.5x20.0x1.0T | No | Model Compatibility List | $1.59 / Each |
|||
702161 | 005198-00 | H29 | Washer;Teflon;15.9x28.4x1.0T | No | Model Compatibility List | $2.00 / Each |
|||
![]() |
702171 | 005212-A | H28 | Washer;Teflon;12.2x18x1.0T | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702180 | 005222-00 | H33 | Washer;Wavy;16.7x22.5x0.3T | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702186 | 005229-00 | H20 | Washer;Wavy;20.5x29.0x1.5T;Nylon | No | Model Compatibility List | $2.00 / Each |
||
702217 | 005330-00 | Q17 | Tinnamen Nut | Yes | Model Compatibility List | $1.59 / Each |
|||
![]() |
702254 | 005386-00 | Z06 | Wrench;Open;17mm | No | Model Compatibility List | $4.00 / Each |
||
![]() |
702257 | 005393-00 | Z01 | Wrench;T-Type;6mm | No | Model Compatibility List | $10.24 / Each |
||
![]() |
702259 | 005395-00 | Z02 | Wrench;T-Type;5mm | No | Model Compatibility List | $10.01 / Each |
||
702450 | 007490-C | B52 | Fix Plate;Speed Sensor | No | Model Compatibility List | $1.90 / Each |
|||
![]() |
702556 | 008625-C | H19 | Bolt;Incline Support;M8x1.25Px32L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
702558 | 008628-B | H14 | Bolt;Special;Support Tube Base;M8x1.25Px54L | No | Model Compatibility List | $4.00 / Each |
||
![]() |
702761 | 009561-AX | B56 | Air Shock;100KG(125L) | Yes | Model Compatibility List | $35.98 / Each |
||
![]() |
702846 | 012324-00 | J2 | Audio Input Board-T83,84 | No | Model Compatibility List | $3.54 / Each |
||
703438 | 014669-B | AR1 | Front Roller Set | Yes | Model Compatibility List | $191.62 / Each |
|||
703442 | 014683-B | AR2 | Rear Roller Set | Yes | Model Compatibility List | $191.62 / Each |
|||
![]() |
703915 | 019304-A | N63 | Amp Control Board | No | Model Compatibility List | $55.54 / Each |
||
703916 | 019316-A | N70 | Safety Key Reed Switch | Yes | Model Compatibility List | $9.57 / Each |
|||
![]() |
704064 | 020162-A | H10 | Screw;Hex Head;M10X1.5PX40L-15L | No | Model Compatibility List | $4.00 / Each |
||
704068 | 020179-00 | M60 | Screw;Phillip;BH;Tapped;4x12L;Flat End | No | Model Compatibility List | $1.59 / Each |
|||
![]() |
704087 | 020210-00 | N18 | Screw;Phillip;Round;3x20L | No | Model Compatibility List | $2.00 / Each |
||
![]() |
704215 | 020487-ZA | H21 | Washer;Flat;10.5x18x2.5T | No | Model Compatibility List | $2.00 / Each |
||
704229 | 020668-00 | Z04 | Wrench;Hex;L-Type;#10mmx170L; | No | Model Compatibility List | $4.00 / Each |
|||
705040 | 032669-IF | M03 | Motor Control Board;Digital;2.25/2.5HP | Yes | Model Compatibility List | $499.00 / Each |
|||
705181 | 039042-A | N66 | Pulse Sensor Set | Yes | Model Compatibility List | $18.28 / Each |
|||
![]() |
705182 | 039043-00 | M02 | Elevation Motor Set;110V/80mm(225/3.96-4Pin) | Yes | Model Compatibility List | $331.29 / Each |
||
![]() |
705271 | 039664-00 | B35 | Screw;Phillip;Round;3x8L;Zn+3(White); | No | Model Compatibility List | $1.85 / Each |
||
705857 | 056374-AA | M06 | Rubber Pad;Drive Motor;Shockproof | No | Model Compatibility List | $9.57 / Each |
|||
![]() |
706171 | 059814-AX | V03 | Decal;Console;Horizon Logo | No | Model Compatibility List | $8.87 / Each |
||
706219 | 060295-DA | KIT | Digital Speed Sensor | No | Model Compatibility List | $35.52 / Each |
|||
706479 | 062625-A | P05 | Console Cable;Mast;1500L;2.5-12P+JST-12P;Black | Yes | Model Compatibility List | $57.49 / Each |
|||
![]() |
706838 | 066044-A | Z21 | Washer;Flat;20.2x27.0x2.5T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
![]() |
707196 | 1000091161 | AC3 | Crossbar | No | Model Compatibility List | $78.99 / Each |
||
![]() |
707834 | 1000096169 | AH1 | Elevation Frame | No | Model Compatibility List | $173.50 / Each |
||
709331 | 1000113141 | M01 | Drive Motor Set;Digital;2.75HP | Yes | Model Compatibility List | $574.91 / Each |
|||
![]() |
725355 | 070422 | F05 | End Cap, Support Tube | No | Model Compatibility List | $3.82 / Each |
||
![]() |
725366 | 070669 | P15 | Wire,Speaker Board to Power Switch & MCB | No | Model Compatibility List | $14.95 / Each |
||
725367 | 070670 | P11 | Speaker Board; Adaptor;AC100-240V;12V/1. | Yes | Model Compatibility List | $64.04 / Each |
|||
![]() |
725371 | 070675 | N71 | Cable, IPOD | No | Model Compatibility List | $9.46 / Each |
||
![]() |
725481 | 071830 | H18 | Swivel Axle | No | Model Compatibility List | $15.76 / Each |
||
![]() |
725500 | 072019 | H30 | Spring; Foot Lock Latch | No | Model Compatibility List | $4.00 / Each |
||
![]() |
725589 | 073735 | AH2 | Fold Frame | No | Model Compatibility List | $117.34 / Each |
||
![]() |
725690 | 074787 | N11 | Screw;Phillip;Round;M3x8L;Zn+3(White); | No | Model Compatibility List | $1.85 / Each |
||
![]() |
725723 | 075178 | N61 | Keypad | No | Model Compatibility List | $134.13 / Each |
||
![]() |
725734 | 075250 | P10 | Connect Wire;Speaker;;;1600L;HX4500+3.96 | No | Model Compatibility List | $20.44 / Each |
||
![]() |
725789 | 076593 | B31 | Air Cell | No | Model Compatibility List | $14.17 / Each |
||
![]() |
725790 | 076594 | B29 | Shim;;Front;;; | No | Model Compatibility List | $3.54 / Each |
||
![]() |
725791 | 076595 | B32 | Fix Axle;Console | No | Model Compatibility List | $3.54 / Each |
||
![]() |
725792 | 076618 | M05 | Bracket, Drive Motor | No | Model Compatibility List | $20.33 / Each |
||
![]() |
725793 | 076621 | N01 | Cover;Console;Front | No | Model Compatibility List | $64.19 / Each |
||
![]() |
725794 | 076623 | N02 | Cover;Console;Rear | No | Model Compatibility List | $76.88 / Each |
||
![]() |
725795 | 076626 | N04 | Cover;Speaker;Left | No | Model Compatibility List | $8.87 / Each |
||
![]() |
725796 | 076628 | N05 | Cover;Speaker;Right | No | Model Compatibility List | $8.87 / Each |
||
725797 | 076633 | N08 | Cover;Console Frame;Right | No | Model Compatibility List | $15.44 / Each |
|||
![]() |
725798 | 076635 | N14 | BottleHolder;L;Painting; | No | Model Compatibility List | $10.32 / Each |
||
![]() |
725799 | 076636 | N15 | BottleHolder;R;Painting; | No | Model Compatibility List | $10.32 / Each |
||
725800 | 076647 | R02 | Running Belt;2850Lx505Wx2.2T | No | Model Compatibility List | $249.13 / Each |
|||
![]() |
725820 | 076795 | Q01 | Cover;Motor;Upper | No | Model Compatibility List | $64.19 / Each |
||
![]() |
725821 | 076797 | Q06 | End Cap;Left | No | Model Compatibility List | $16.69 / Each |
||
![]() |
725822 | 076798 | Q07 | End Cap;Right. D/C, NO REPL: Part will show as orderable until stock is depleted. | No | Model Compatibility List | $16.69 / Each |
||
![]() |
725858 | 077117 | J3 | Audio Output Board-T83,84 | No | Model Compatibility List | $3.54 / Each |
||
![]() |
725870 | 077449 | Q02 | Motor Cover; Bottom | No | Model Compatibility List | $27.59 / Each |
||
![]() |
725892 | 077734 | P06 | Connector Wire;650L 2.5-12P;SM-12Y | No | Model Compatibility List | $33.23 / Each |
||
![]() |
725961 | 078561 | Q22 | Tape;Foam;One Sided;8x16x50;Black | No | Model Compatibility List | $3.54 / Each |
||
![]() |
726007 | 079287 | V01 | Label;Console Cover; | No | Model Compatibility List | $2.55 / Each |
||
![]() |
726009 | 079295 | B30 | Fix Axle;Console;;S20C;;;;;TM298-B33D | No | Model Compatibility List | $21.81 / Each |
||
![]() |
726010 | 079300 | Z10 | Screw;Hex Socket;Umbrella;;;M8x1.25Px120 | No | Model Compatibility List | $4.00 / Each |
||
![]() |
726011 | 079301 | Z12 | Washer;Arc;8.4x17.0x1.0t;Cr; | No | Model Compatibility List | $2.00 / Each |
||
![]() |
726034 | 079406 | H31 | Latch; Foot lock | No | Model Compatibility List | $18.54 / Each |
||
![]() |
726035 | 079407 | AH3 | Link Arm Set; Left | No | Model Compatibility List | $31.15 / Each |
||
![]() |
726036 | 079408 | AH4 | Link Arm Set; Right | No | Model Compatibility List | $40.01 / Each |
||
![]() |
726043 | 079444 | AZ1 | Hardware Pack | No | Model Compatibility List | $34.92 / Each |
||
![]() |
726099 | 079932 | V02 | Decal,Motor Cover-CT83 | No | Model Compatibility List | $10.87 / Each |
||
![]() |
726100 | 079939 | V43 | Owner-s Manual-CT83 | No | Model Compatibility List | $9.57 / Each |
||
![]() |
726236 | 080875 | P21 | Screw;Phillip;Big Umbrella;Tapped;;4x10 | No | Model Compatibility List | $2.00 / Each |
||
![]() |
726392 | 081585 | B14 | Side Rail Accent Piece;TM298 | No | Model Compatibility List | $1.77 / Each |
||
726402 | 081639 | Q20 | Tape;Foam;single;2.5tx20x70;black | Yes | Model Compatibility List | $1.90 / Each |
|||
![]() |
726403 | 081640 | B27 | Running Deck;;1220X682X18;;;TM298 | No | Model Compatibility List | $249.13 / Each |
||
![]() |
726484 | 082291 | Q05 | Side Rail Set | No | Model Compatibility List | $62.82 / Each |
||
![]() |
726500 | 082397 | AN3 | Safety Key Set | Yes | Model Compatibility List | $42.74 / Each |
||
728756 | 096830 | N62 | Speaker;3W;XHS-2Y;680mm | Yes | Model Compatibility List | $15.11 / Each |
|||
728898 | 098561 | N69 | Wire;Headphone Jack;500mm | No | Model Compatibility List | $3.82 / Each |
|||
728899 | 098562 | N70 | Connected Wire; Earphone; PCB | Yes | Model Compatibility List | $6.42 / Each |
|||
![]() |
1001381 | 003326-00 | P02 | 1 | Power Switch | Yes | Model Compatibility List | $29.99 / Each |
|
![]() |
1029909 | 004480-Z | M45 | Screw (Used) | Yes | Model Compatibility List | $5.00 / Each |
||
![]() |
1000573 | 003326-00 | P02 | Power Entry Switch On/Off | Yes | Model Compatibility List | $20.99 / Each |
||
![]() |
1002652 | 003346-00 | P04 | Power 12a Circuit Breaker | Yes | Model Compatibility List | $8.99 / Each |
||
![]() |
1002658 | 003363-00 | P11 | Power Entry Module | Yes | Model Compatibility List | $19.99 / Each |
||
![]() |
1003520 | 032669-IF | M03 | Lower Controller Board | Yes | Model Compatibility List | $169.00 / Each Out Of Stock |
||
![]() |
1002738 | 039043-00 | M02 | Incline Lift Elevation Motor | Yes | Model Compatibility List | $79.99 / Each |
||
![]() |
1002835 | 014683-B | AR2 | Rear Idler Roller | Yes | Model Compatibility List | $69.99 / Each |
||
![]() |
1003098 | 1000113141 | M01 | DC Drive Motor | Yes | Model Compatibility List | $199.00 / Each |
||
![]() |
1001201 | 1000113141 | M01 | DC Drive Motor | Yes | Model Compatibility List | $289.00 / Each |
||
![]() |
1001433 | 002248-D | P14 | RPM Speed Sensor Reed Switch | Yes | Model Compatibility List | $9.99 / Each |
||
![]() |
1002483 | 002169-A | Power Supply Cord | Yes | Model Compatibility List | $24.99 / Each |
|||
![]() |
1001828 | 1000113141 | M01 | DC Drive Motor | Yes | Model Compatibility List | $289.00 / Each |
||
![]() |
1001765 | 002169-A | P07 | Replacement AC Power Cord | Yes | Model Compatibility List | $27.99 / Each |
||
![]() |
1034434 | 003326-00 | P02 | Power Entry On Off Switch EP212 | Yes | Model Compatibility List | $16.99 / Each |
||
![]() |
4K-UYTS-4IA5 | 003326-00 | P02 | Power Switch on Off (New) | Yes | Model Compatibility List | $29.99 / Each |
||
![]() |
1009798 | 003346-00 | P04 | Power Circuit Breaker 12AMP (New) | Yes | Model Compatibility List | $32.99 / Each |
||
![]() |
912107 | 1000465333 | Nut Locking Nylon 3/8'-16UNC (New) | No | Model Compatibility List | $11.99 / Each |
|||
![]() |
911968 | 004620-00 | B61 | Self Tapping Screw 4X12L (New) | No | Model Compatibility List | $12.99 / Each |
||
![]() |
976932 | 004926-00 | M40 | Nylon Lock Nut M8x1.25P (New) | No | Model Compatibility List | $12.99 / Each |
||
![]() |
957398 | 005330-00 | Q17 | Gear Rower Retainer Clip (New) | Yes | Model Compatibility List | $11.99 / Each |
||
![]() |
1038387 | 098561 | Connected Wire VF Earphone 500mm (Used) | Yes | Model Compatibility List | $5.00 / Each Out Of Stock |
|||
|
