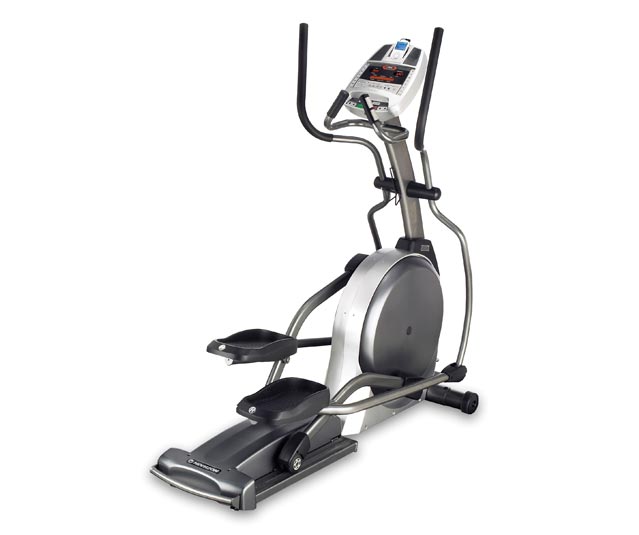

Horizon Fitness - E1200 - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L03 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock
8
700132 000485-00 B23 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B24 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700184 000595-A G10 Foam Grip;Handlebar No Model Compatibility List $3.82 / Each

11
C 700257 000798-A C08 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
700318 000940-A P14 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

L 700355 001115-F L02 Wheel;Nylon No Model Compatibility List $9.57 / Each

8
Z 700410 001278-B Z09 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
J 700462 001424-BA J07 End Cap;Crank Cover No Model Compatibility List $3.82 / Each

8,9
700746 002124-B P17 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

700755 002169-A P15 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
700893 002671-A KIT Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

701013 003326-00 P05 Power Switch;Large;RF-1004 Yes Model Compatibility List $13.99 / Each

R 701042 003413-00 R18 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
E 701089 003709-00 E13 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
E 701153 004071-00 E11 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

E 701155 004073-A3 E11 Ball Bearing;6001ZZ;12x28x8T No Model Compatibility List $9.57 / Each

8
R 701160 004078-A2 R11 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

B 701180 004110-00 B26 Bearing;Dry;;PAP 2015;Shun De No Model Compatibility List $9.57 / Each

8
H 701190 004133-00 H16 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
R 701214 004175-A R10 Drive Belt;Poly-V;420-J8 No Model Compatibility List $57.49 / Each

15,10
701300 004364-00 Z25 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701305 004366-AB M11 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
N 701326 004379-00 N40 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

Z 701557 004586-AB Z16 Screw;Hex Socket;M8X1.25PX15L;Chromed Yes Model Compatibility List $2.00 / Each

701561 004592-00 F26 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

701577 004612-00 P07 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701581 004614-AB P20 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
701586 004617-00 L07 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701591 004620-00 E24 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701613 004632-00 S08 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

701699 004724-00 Z12 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701703 004725-AB Z07 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
701731 004757-00 L05 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

Z 701841 004859-00 Z01 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
F 701864 004887-00 F28 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

701869 004891-00 S05 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

H 701874 004901-00 H17 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

701897 004926-00 Z05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

S 701904 004931-00 S06 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701927 004964-00 R15 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 B22 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

C 701937 004973-00 C06 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701939 004975-00 L09 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

F 701941 004976-00 F37 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
701964 005005-00 Z14 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

G 701988 005026-00 G16 Washer;Flat;25.5x35.0x1.0T No Model Compatibility List $2.00 / Each

2
Z 701997 005035-00 Z13 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

E 702015 005049-00 E19 Washer;Flat;8.2x18.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702018 005053-00 F31 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
702053 005081-00 Z24 Washer;Flat;5.2x18.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 702072 005103-Z L04 Washer;Flat;5/16x30.0x1.5T No Model Compatibility List $1.90 / Each

2
Z 702078 005110-00 Z17 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
702135 005163-00 Z02 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702160 005196-00 F22 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

Z 702173 005215-AB Z15 Washer;Split Teflon;15.9x28.4x1.5T Yes Model Compatibility List $2.00 / Each

2
702180 005222-00 L08 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
G 702185 005228-00 G12 Washer;Wavy;25.5x34.0x2.0T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
702193 005239-00 R21 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 Q04 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702241 005366-00 R04 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

Z 702253 005382-00 Z21 Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

702262 005408-A Z20 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

702263 005411-Z Z23 Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

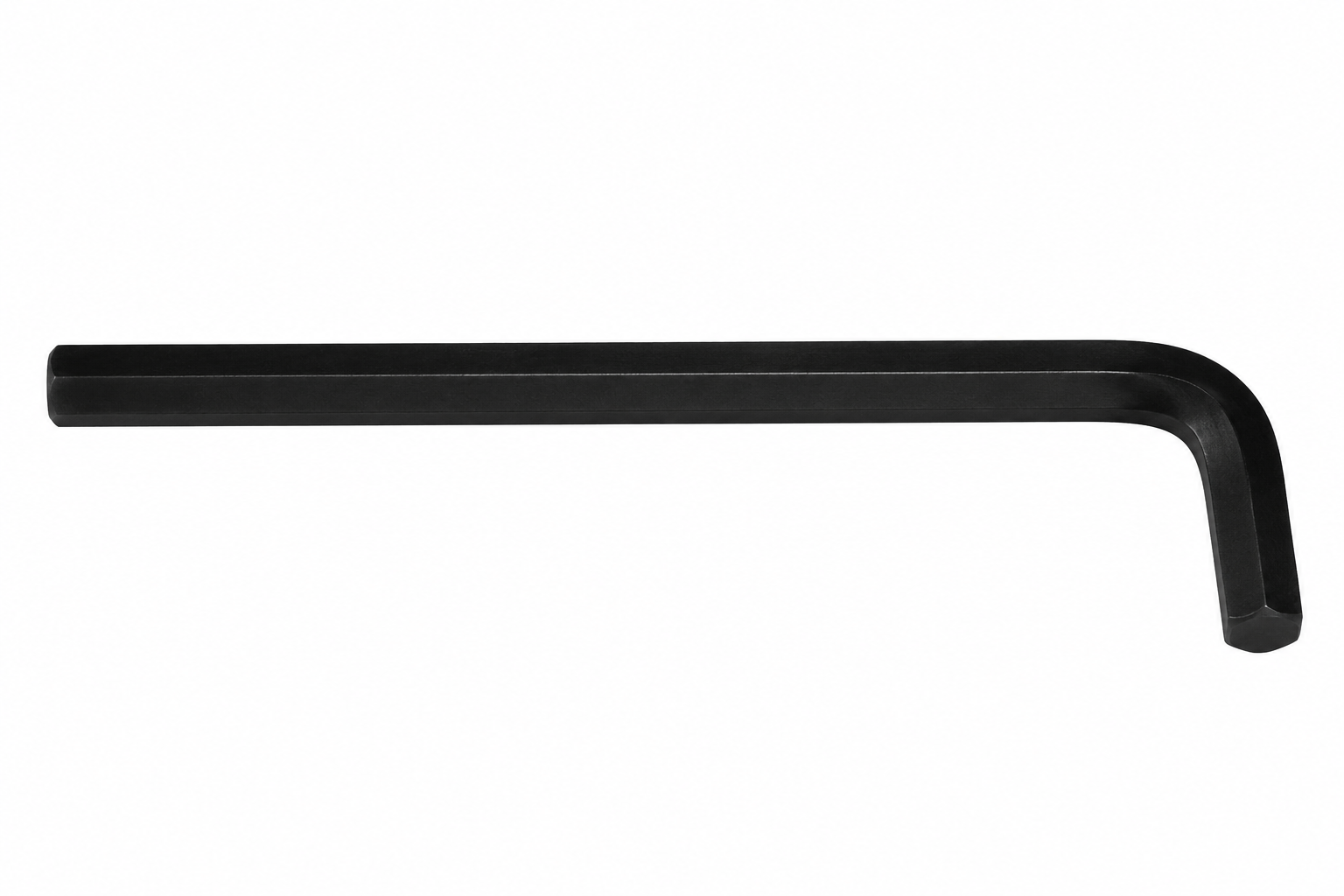

Z 702268 005423-00 Z18 Wrench-L-Type;5mmx70L No Model Compatibility List $2.00 / Each

2

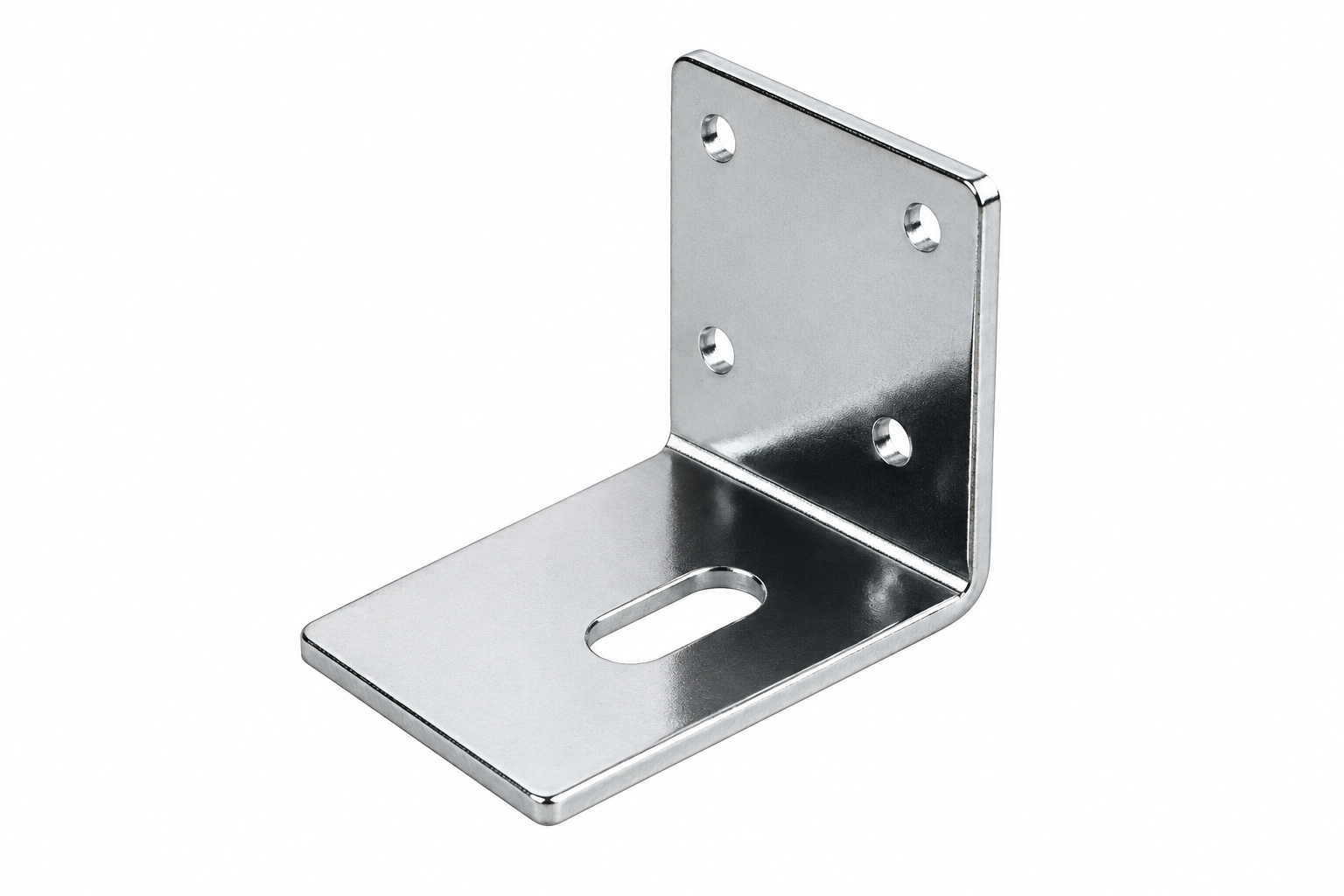

P 702452 007494-C P30 Fix Plate;Speed Sensor No Model Compatibility List $2.00 / Each

3
702483 007964-00 Q09 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
S 702512 008394-00 S07 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

Z 702634 009092-B Z06 Sleeve;Pin;Ball Joint Yes Model Compatibility List $7.10 / Each

3,12,13,14
S 702857 012847-00 S09 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
P 703929 019459-A P16 MCB Power Wire;500 BL 250HSG;TM147-P09A No Model Compatibility List $1.90 / Each

4,5,6
P 703930 019460-A P18 Wire;MCB Power;500;16AWG;White No Model Compatibility List $1.90 / Each

4,5,6
Z 703976 020042-00 Z03 Screw;Phillip;BH;M4x0.7Px8L No Model Compatibility List $2.00 / Each

C 704042 020127-AB C11 Screw;Hex Socket;M8x1.25Px12L;Zinc No Model Compatibility List $1.85 / Each

2
704079 020196-A N39 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

G 704201 020475-A G13 Washer;Flat;8.2x38x2.0T No Model Compatibility List $2.00 / Each

2
E 705270 039654-00 E13 C-Clip;S-12 No Model Compatibility List $2.00 / Each

2
705278 040420-BX S02 Drive Axle Set Yes Model Compatibility List $172.46 / Each

8,10
705700 055204-A Z10 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

V 705707 055269-AX V04 Decal;Faceplate No Model Compatibility List $3.82 / Each

P 705915 056528-A P03 Socket;Power;100,250,60 16AWG;;TM209; Yes Model Compatibility List $9.57 / Each

4,5,6

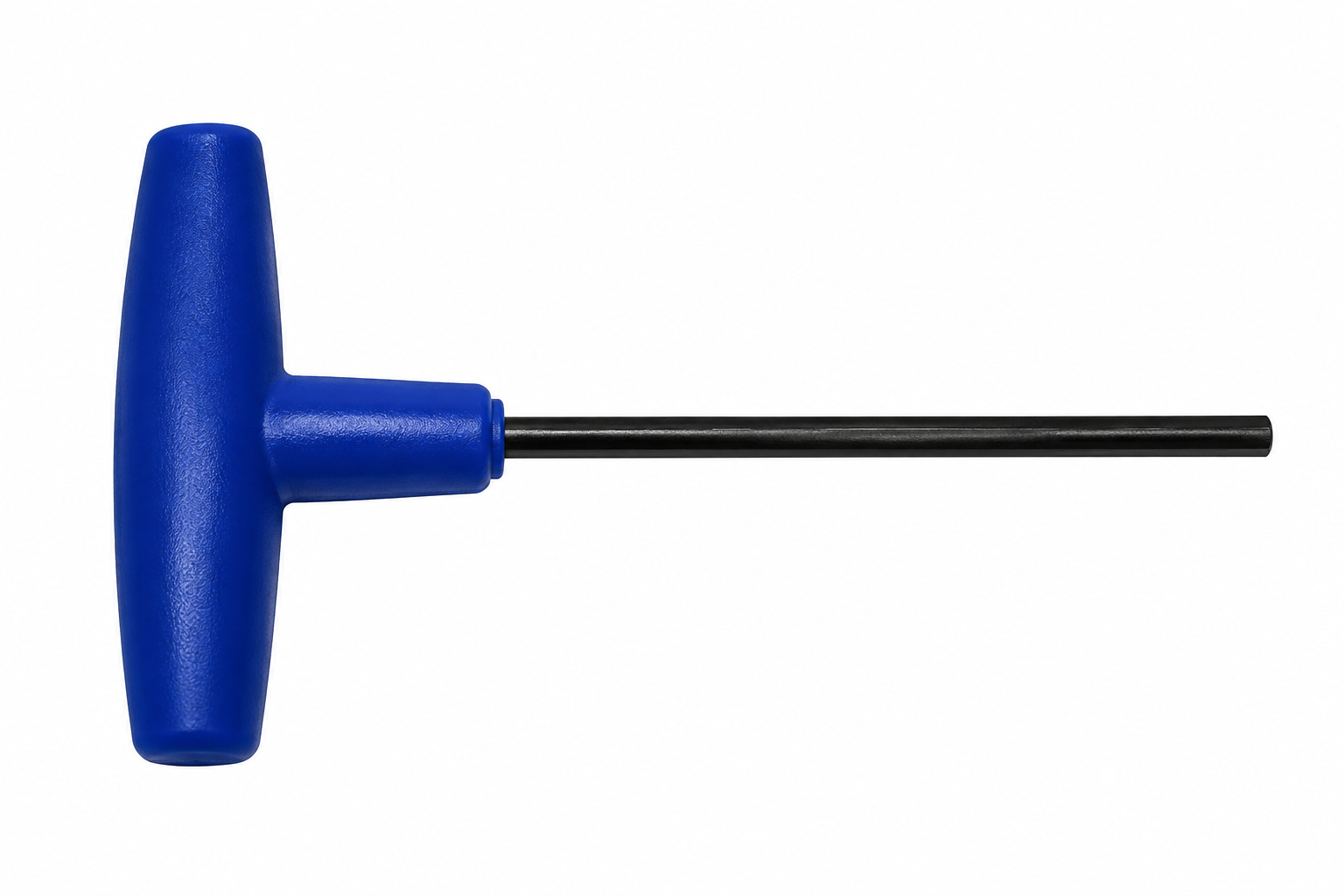

Z 705930 056554-00 Z19 Wrench;Hex;T Type;#5x210L No Model Compatibility List $3.69 / Each

2
P 706549 063270-A P04 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

M 706895 066767-C M10 Set Screw;M8x1.25Px8L No Model Compatibility List $2.00 / Each

2
E 707151 1000090498 E18 Screw;Phillip;BH;;M8x1.25Px40L;8.8 No Model Compatibility List $2.00 / Each

2

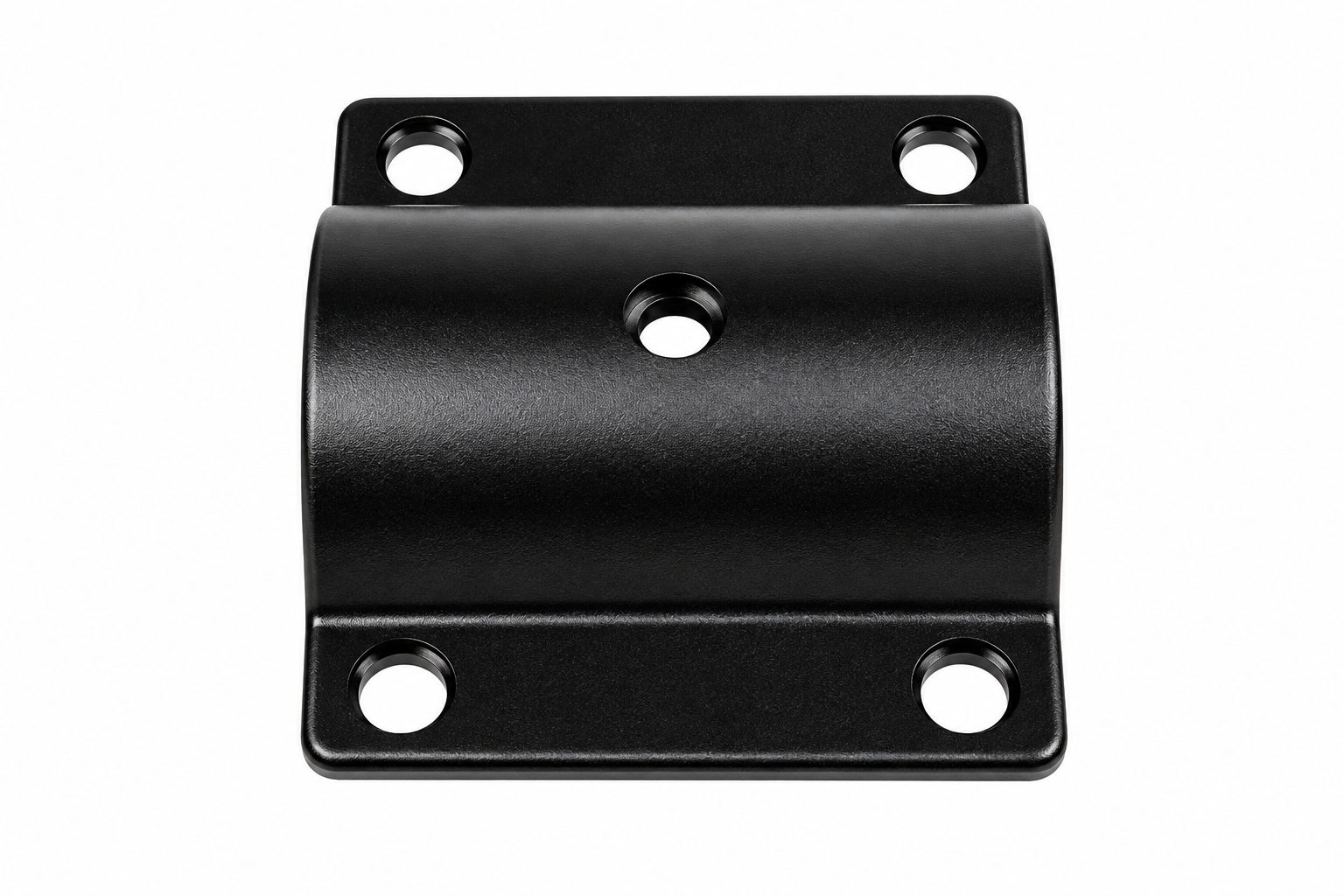

M 707364 1000092326 M09 Bracket No Model Compatibility List $17.58 / Each

2,3,4,5,6
707715 1000094431 Q05 BRACKET FRONT Yes Model Compatibility List $12.99 / Each

2,3,4,5,6
E 708142 1000100448 E24 Roller Wheel Set;Old Yes Model Compatibility List $57.49 / Each

8
G 725256 103296 G11 Bushing No Model Compatibility List $9.57 / Each

8
E 725258 103298 E15 Bushing;Pivot Block;Pedal Arm No Model Compatibility List $11.96 / Each

8,9,3
725259 103299 E14 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
AC elevation motor;110V/117mm 725336 070066 AM1 AC elevation motor;110V/117mm Yes Model Compatibility List $383.27 / Each

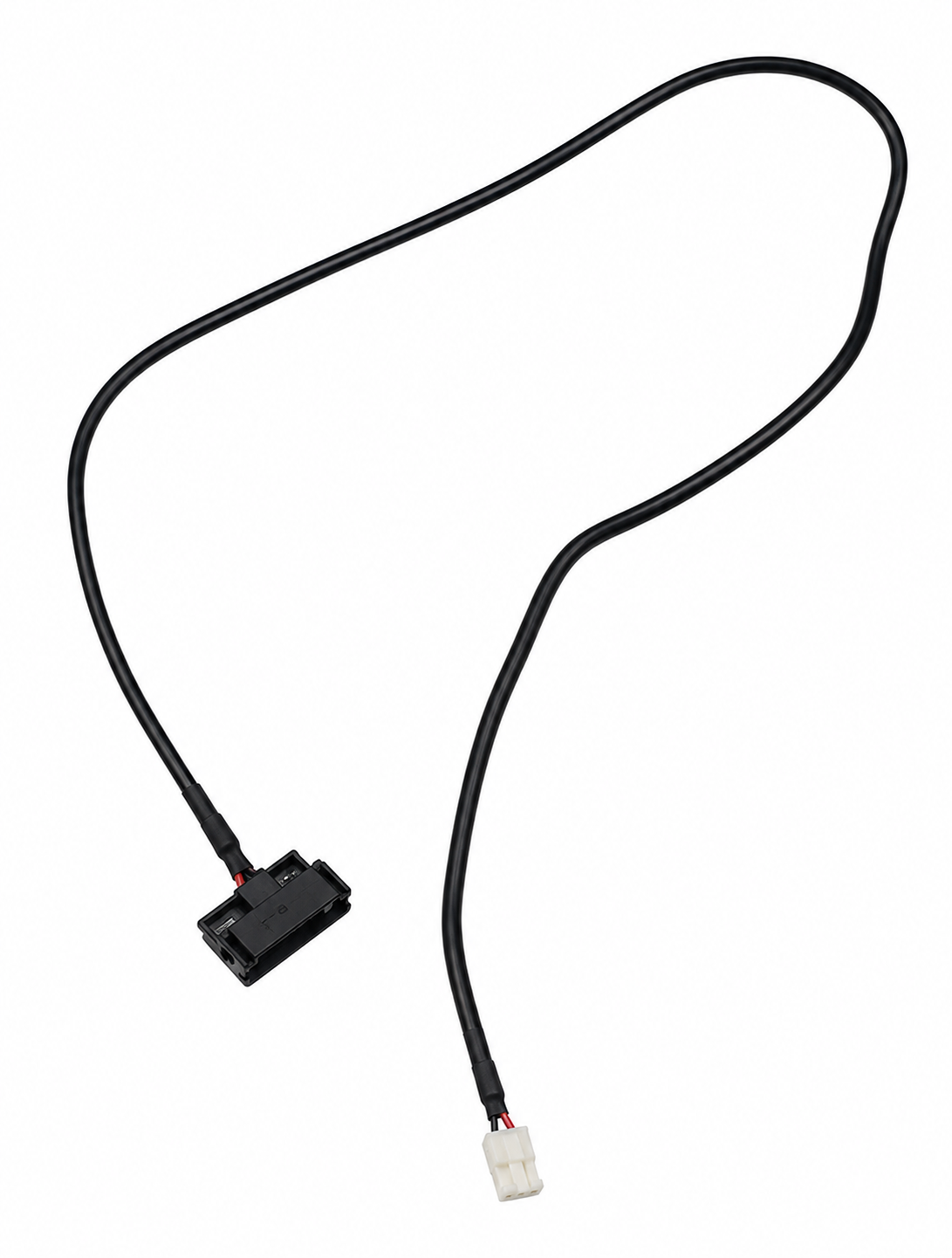

Wire;Sensor;;(2.54-3P+OKIx 725347 070270 P09 Wire;Sensor;;(2.54-3P+OKIx Yes Model Compatibility List $13.81 / Each

Console Cable; 1500L; 8 Pin 725406 070930 P02 Console Cable; 1500L; 8 Pin Yes Model Compatibility List $57.49 / Each

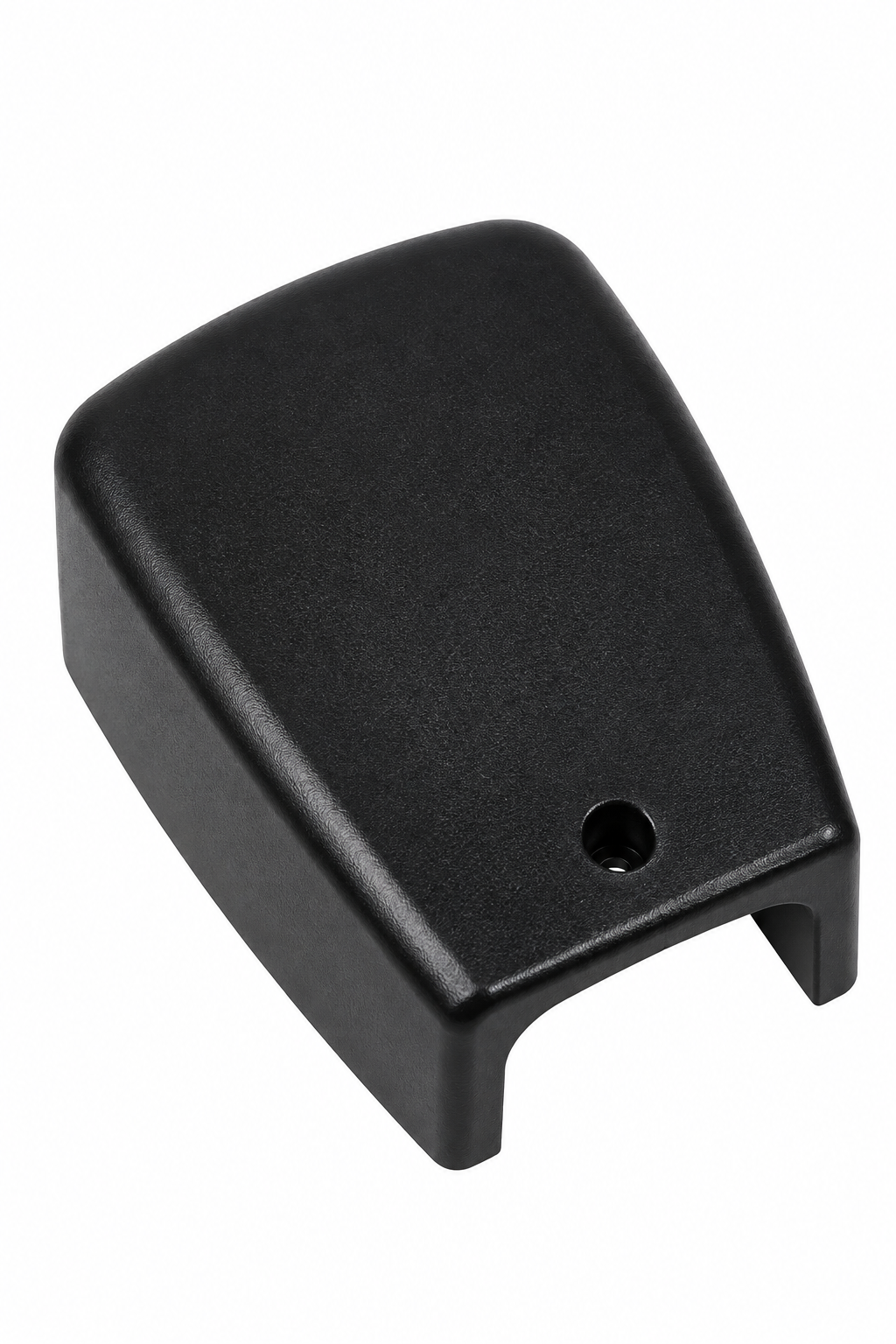

Pedal Arm Cover; Black 725415 071042 E15 Pedal Arm Cover; Black Yes Model Compatibility List $20.36 / Each

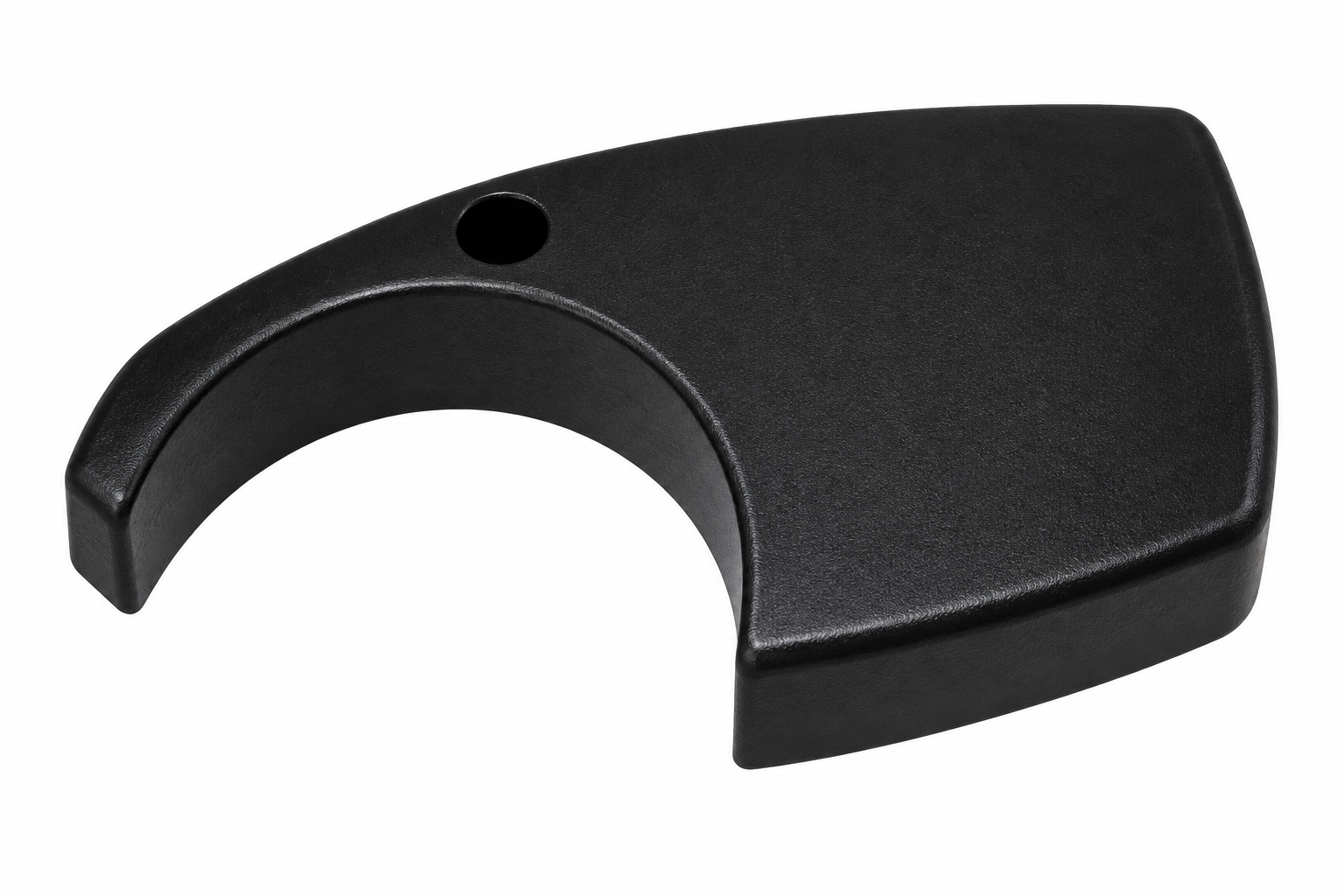

Cover; Roller Wheel; Right 725416 071043 E12 Cover; Roller Wheel; Right No Model Compatibility List $9.57 / Each

Cover; Roller Wheel; Left 725417 071044 E27 Cover; Roller Wheel; Left No Model Compatibility List $9.57 / Each

Guide Rail Swivel Axle 725429 071175 F10 Guide Rail Swivel Axle No Model Compatibility List $59.10 / Each

725430 071176 F11 Cover; Incline Motor No Model Compatibility List $120.54 / Each

Elevation; Support Axle 725431 071179 F13 Elevation; Support Axle Yes Model Compatibility List $17.47 / Each

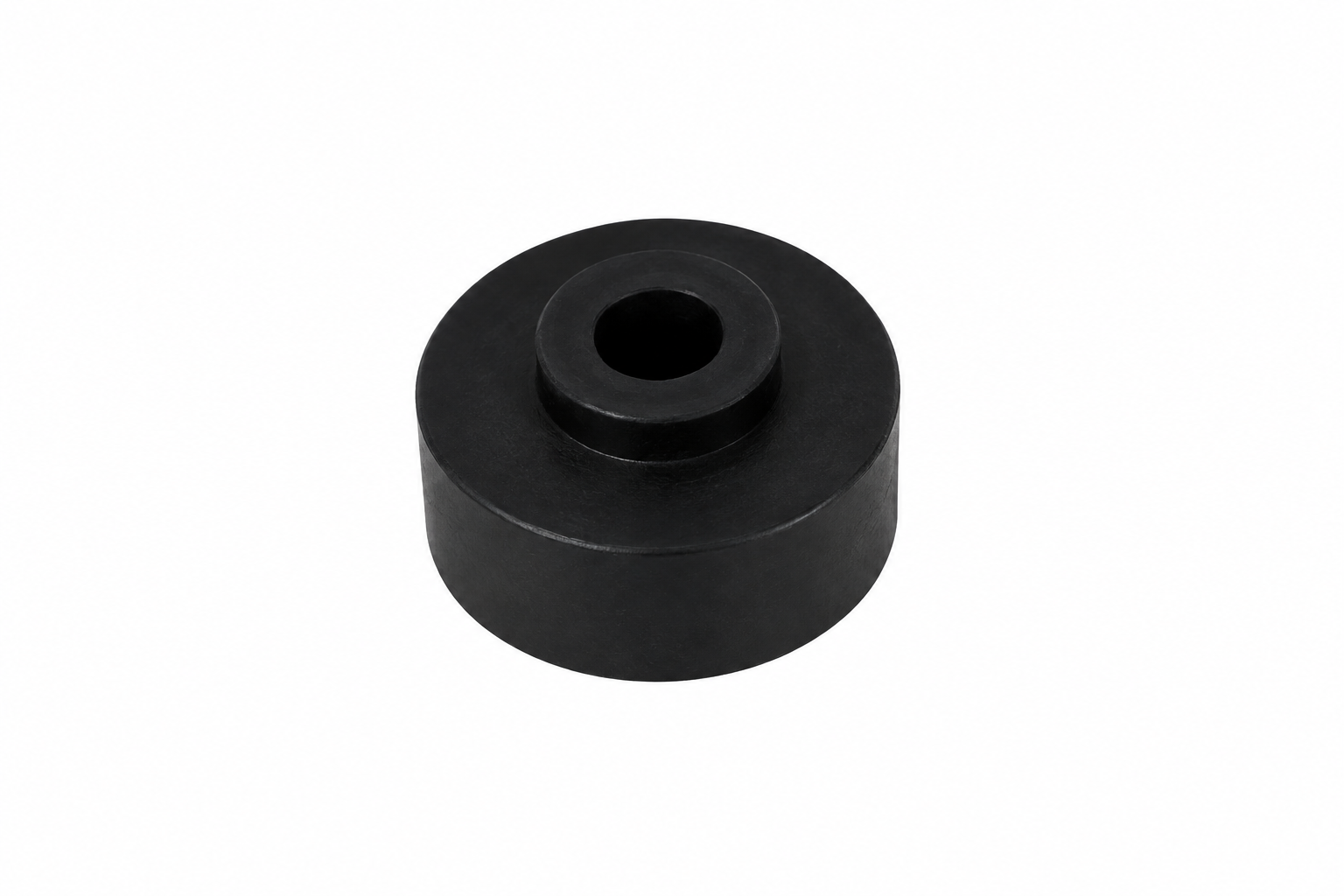

Elevation; Roller 725432 071180 F14 Elevation; Roller Yes Model Compatibility List $8.87 / Each

Cover; Handlebar; Rear 725433 071187 G05 Cover; Handlebar; Rear Yes Model Compatibility List $9.57 / Each

Cover; Handlebar; Front 725434 071188 G06 Cover; Handlebar; Front Yes Model Compatibility List $9.57 / Each

Hardware Pack 725440 071278 AZ1 Hardware Pack No Model Compatibility List $59.10 / Each

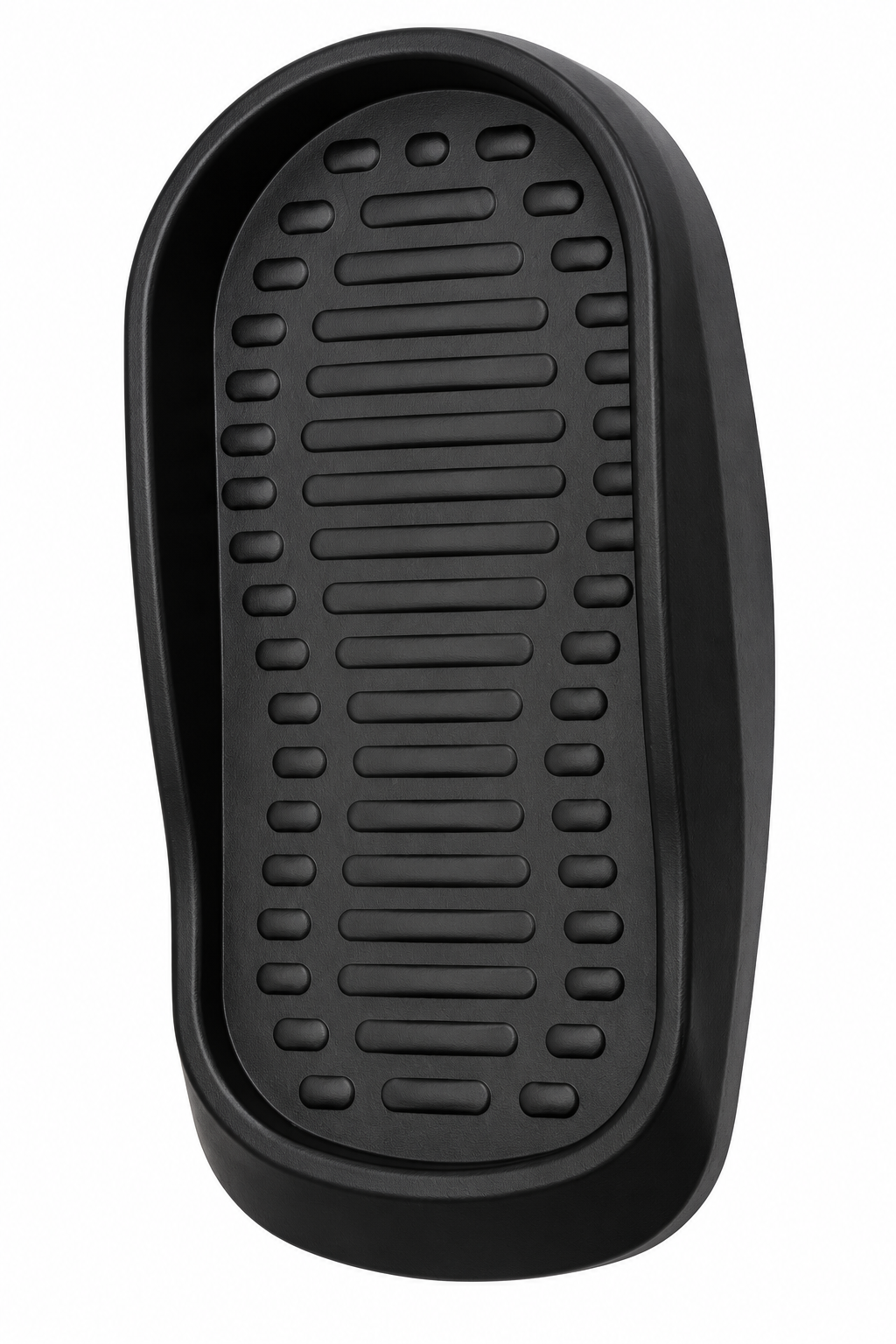

Foot Pad 725441 071318 H09 Foot Pad Yes Model Compatibility List $59.10 / Each
Out Of Stock
Cover; Link Arm; Left 725442 071319 H10 Cover; Link Arm; Left No Model Compatibility List $17.94 / Each
Out Of Stock
Cover; Link Arm; Right 725443 071320 H11 Cover; Link Arm; Right No Model Compatibility List $17.94 / Each
Out Of Stock
Owners Manual 725448 071393 V09 Owners Manual No Model Compatibility List $9.57 / Each

Right Side Cover; Silver 725451 071419 Q01 Right Side Cover; Silver No Model Compatibility List $110.03 / Each

725452 071421 Q02 Left Side Cover; Silver No Model Compatibility List $110.03 / Each

Plastic Cover; Mp3 holder 725462 071514 AN2 Plastic Cover; Mp3 holder No Model Compatibility List $1.90 / Each

Crank Arm 725467 071668 AJ1 Crank Arm Yes Model Compatibility List $177.42 / Each

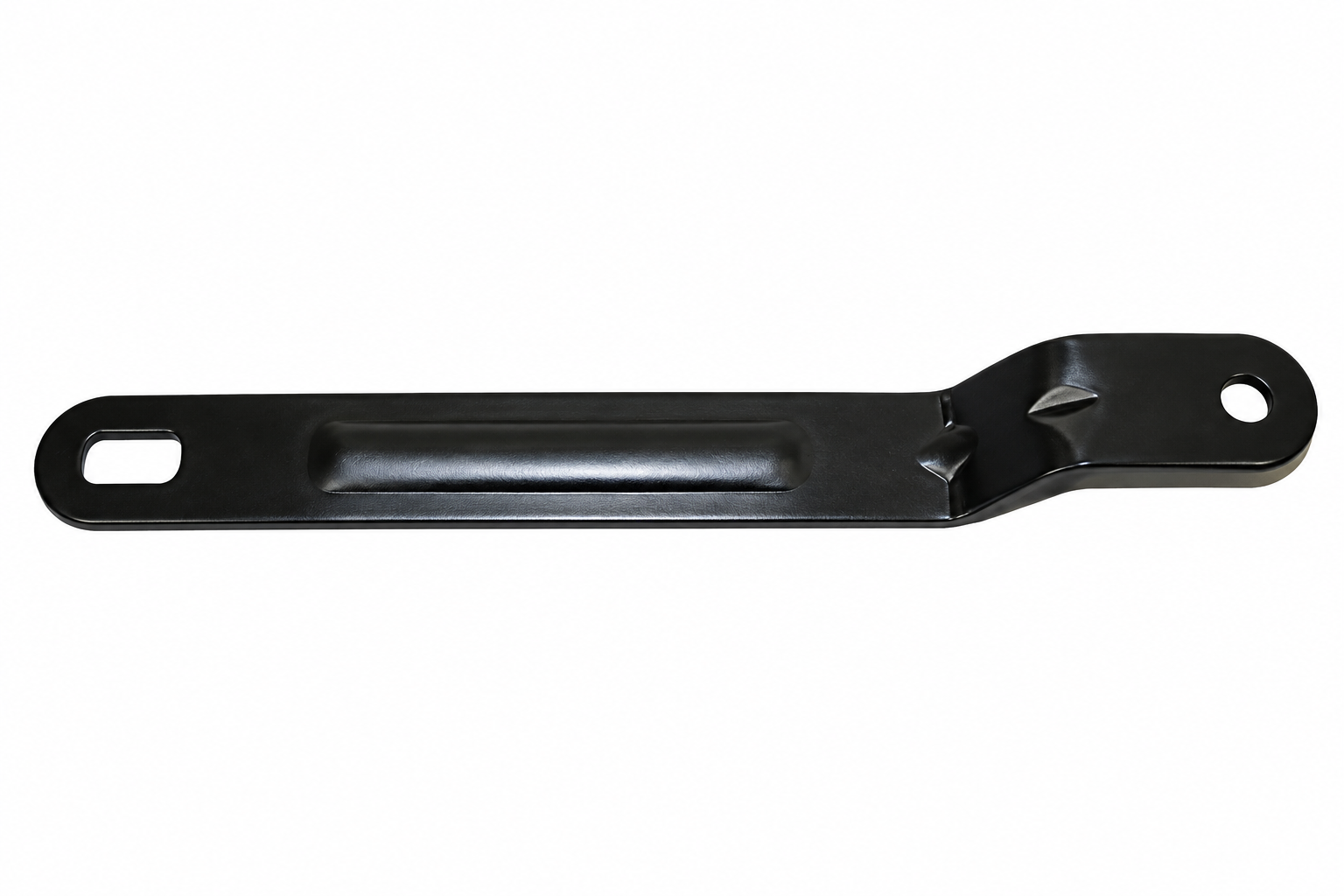

Arm; Incline Motor 725530 072686 F12 Arm; Incline Motor Yes Model Compatibility List $17.03 / Each

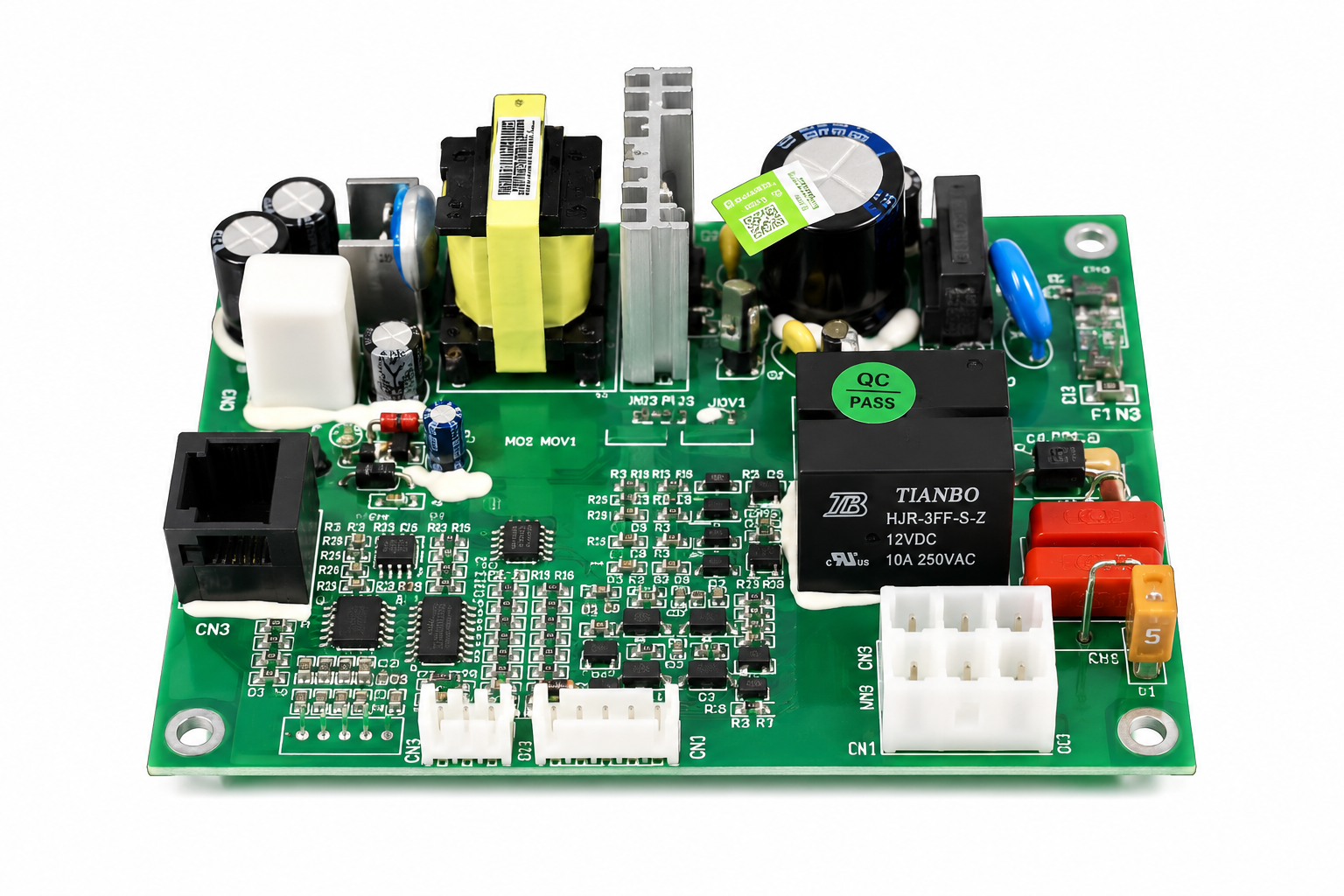

Motor Control Board; 100~240V 725585 073575 AM2 Motor Control Board; 100~240V Yes Model Compatibility List $383.27 / Each

Ipod Plug; Console - D/C, NO REPL Part will show as orderable until stock is depleted 725721 075170 KIT Ipod Plug; Console - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $3.82 / Each

Screw;BH;(10.4);4X15L;SM;PH;BAN;POT 725736 075252 Q24 Screw;BH;(10.4);4X15L;SM;PH;BAN;POT No Model Compatibility List $1.85 / Each

LINK ARM SWIVEL AXLE 725747 075731 E21 LINK ARM SWIVEL AXLE Yes Model Compatibility List $37.83 / Each

Elevation Label;NO-ROHS;EP177 725832 076877 V11 Elevation Label;NO-ROHS;EP177 No Model Compatibility List $9.91 / Each

Decal,Console Mast-E1200 725833 076878 V03 Decal,Console Mast-E1200 No Model Compatibility List $8.87 / Each

725936 078444 AG2 Handlebar Set;Left No Model Compatibility List $207.19 / Each

Pedal Axle Set 725937 078450 R01 Pedal Axle Set Yes Model Compatibility List $173.63 / Each

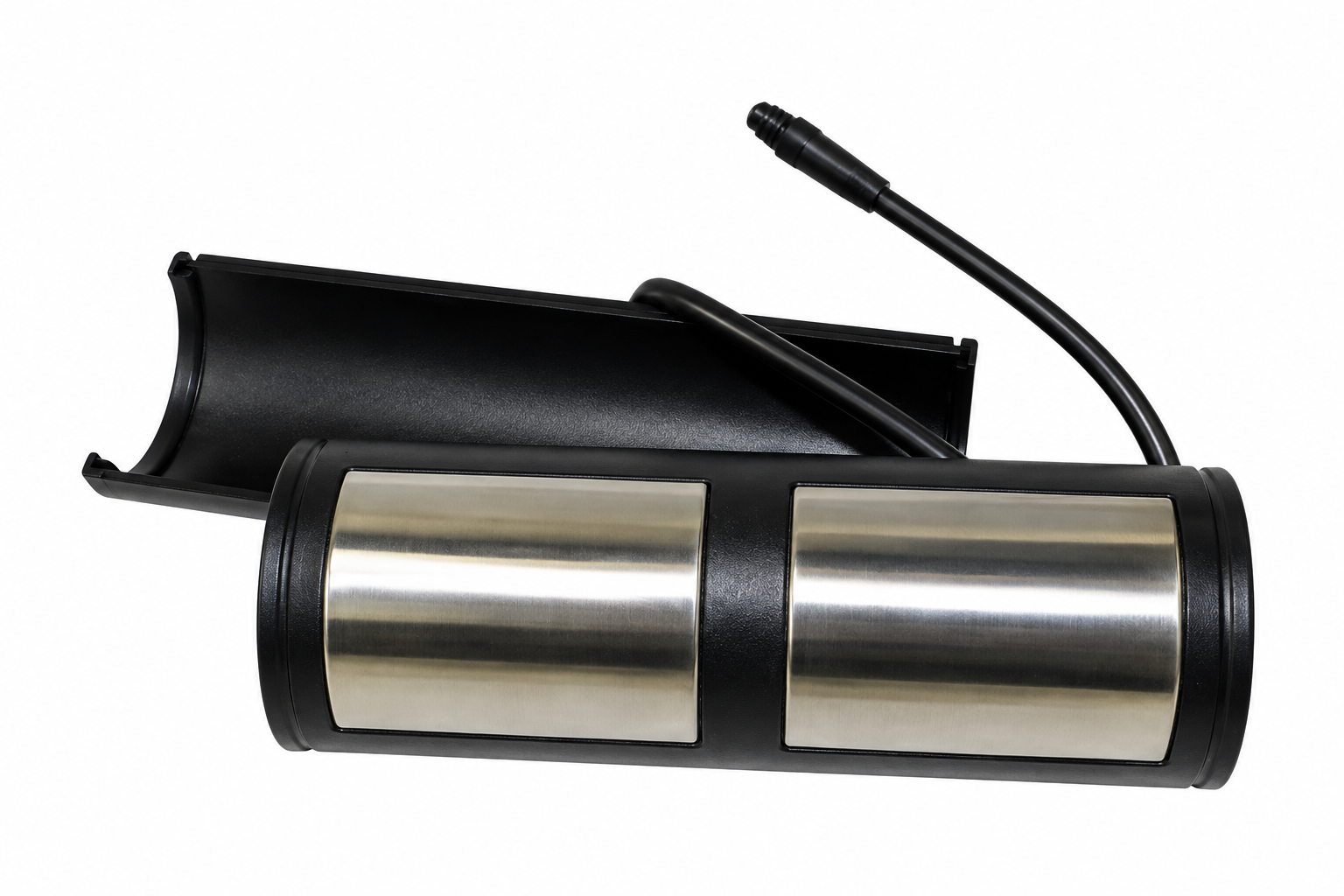

Hand Pulse Set 725970 078700 P02 Hand Pulse Set Yes Model Compatibility List $24.86 / Each

Connect Wire;ECB;E1200;EP178 725971 078703 P01 Connect Wire;ECB;E1200;EP178 Yes Model Compatibility List $11.39 / Each

Bearing;Dry;;PAP2029; Center Rail Stablizer 725973 078717 B35 Bearing;Dry;;PAP2029; Center Rail Stablizer Yes Model Compatibility List $9.57 / Each

MP3 Player Holder;Console;IPOD Nano 725982 078922 KIT MP3 Player Holder;Console;IPOD Nano No Model Compatibility List $11.08 / Each

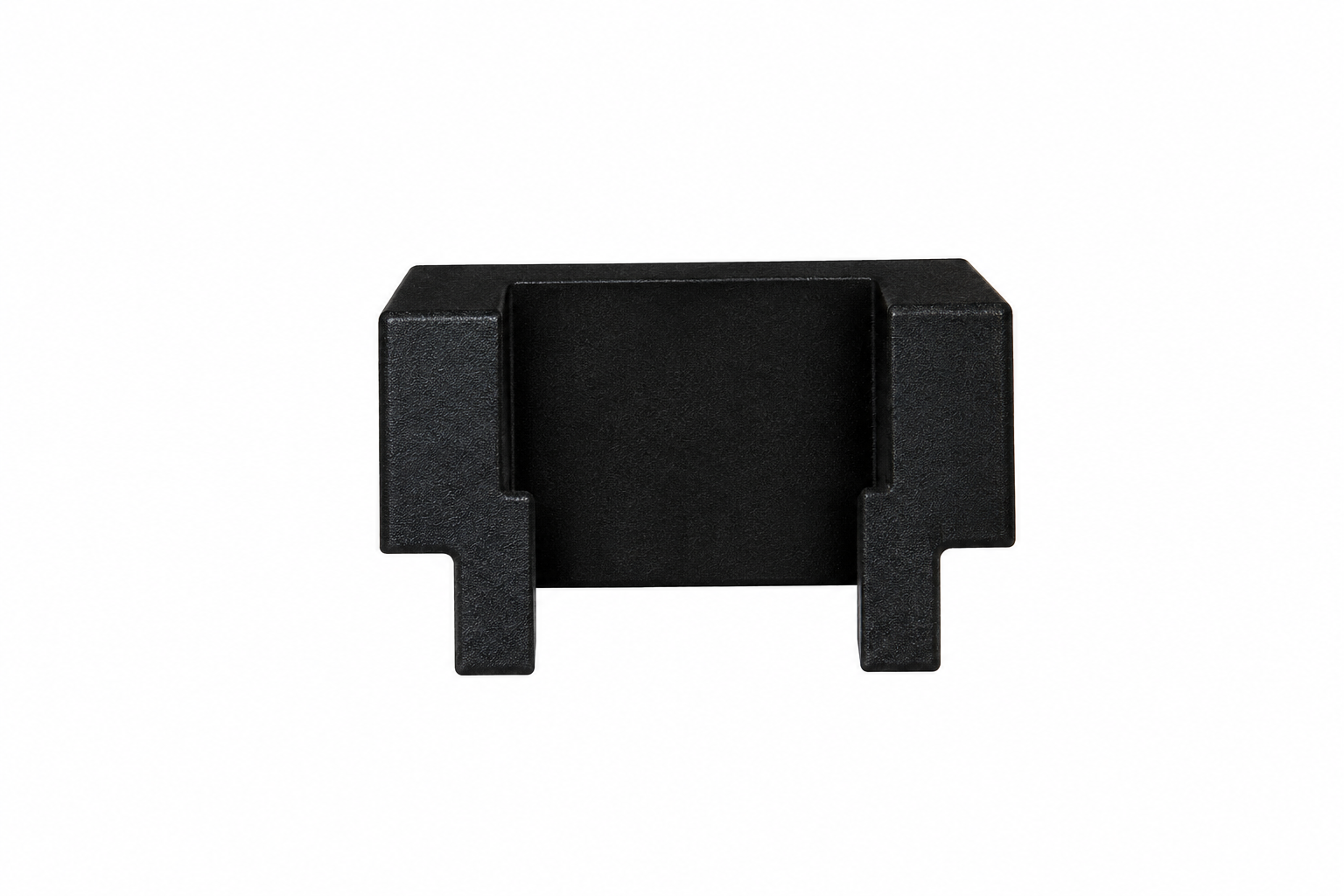

MP3 Player Holder;Console;Other MP3 725983 078923 KIT MP3 Player Holder;Console;Other MP3 No Model Compatibility List $8.94 / Each

MP3 Player Holder;Console;Mini 725984 078924 KIT MP3 Player Holder;Console;Mini No Model Compatibility List $8.87 / Each

Screw;Phillip;Umbrella;Tapped;;4x15;Zin 725985 078938 Q07 Screw;Phillip;Umbrella;Tapped;;4x15;Zin No Model Compatibility List $1.85 / Each

Pedal Arm Set;Right 725994 079116 AE1 Pedal Arm Set;Right No Model Compatibility List $184.08 / Each

Pedal Arm Set;Left 725995 079117 AE2 Pedal Arm Set;Left No Model Compatibility List $184.08 / Each

Bracket;Incline Motor 726092 079912 M07 Bracket;Incline Motor No Model Compatibility List $73.14 / Each

Bolt;Stopper 726103 079954 F30 Bolt;Stopper Yes Model Compatibility List $4.00 / Each

Roller Wheel Set 726244 080903 E08 Roller Wheel Set Yes Model Compatibility List $57.49 / Each

Mp3 Player Holder-Console-30/60/80gb Ipod 726385 081520 KIT Mp3 Player Holder-Console-30/60/80gb Ipod No Model Compatibility List $12.77 / Each

Steel Rope;400L+66L 726621 083556 M06 Steel Rope;400L+66L Yes Model Compatibility List $14.74 / Each

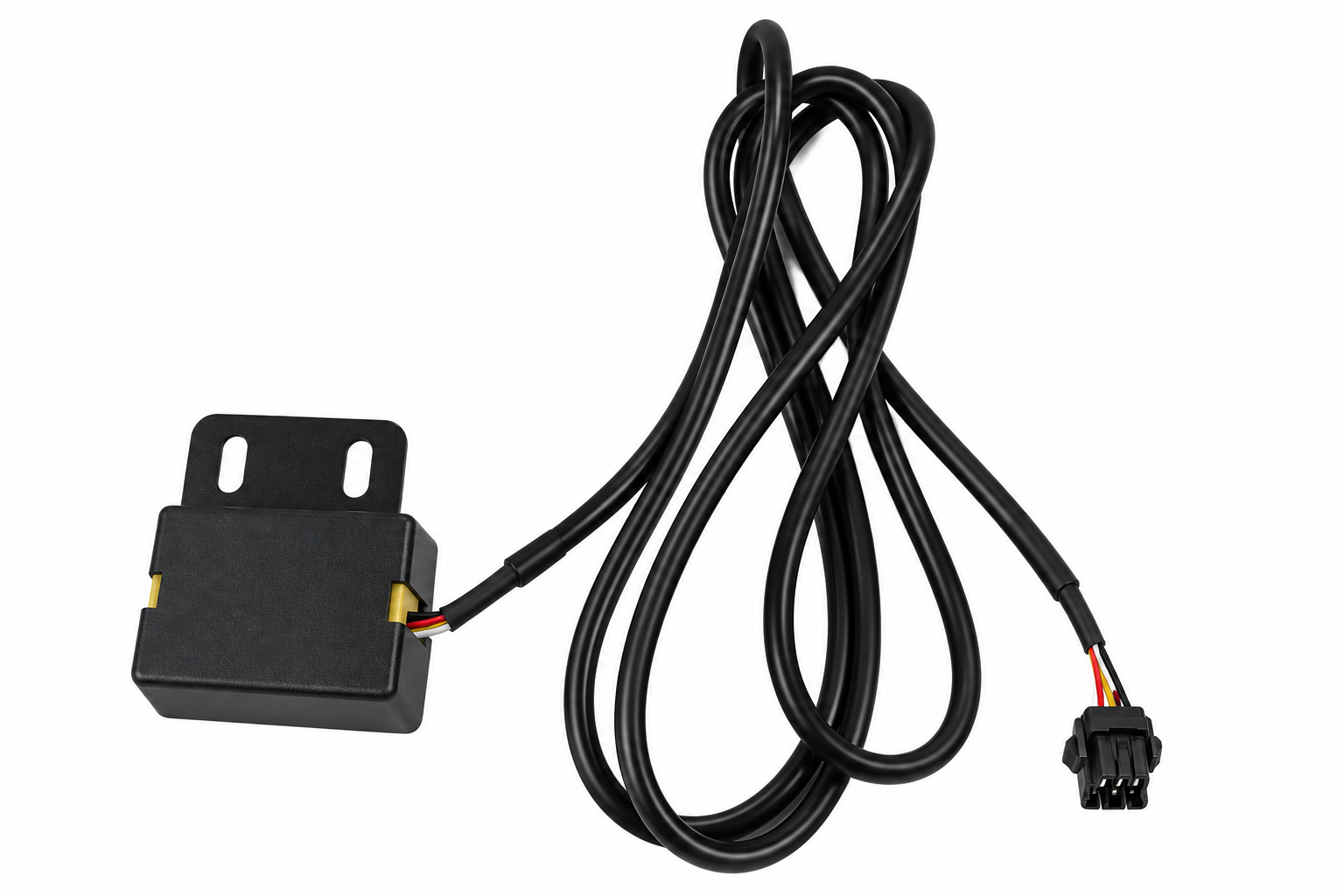

Inside Receiver Set;1200L+E2380142 726762 084651 P11 Inside Receiver Set;1200L+E2380142 Yes Model Compatibility List $93.70 / Each

Bushing;Pivot Block Set 727576 090075 E20 Bushing;Pivot Block Set Yes Model Compatibility List $8.50 / Each

P 1020937 002124-B P17 1 Power Entry Socket Input Module No Model Compatibility List $25.99 / Each

AFG Advanced Fitness Group Elliptical Wheel Roller 080903 2.0AE 3.0AE (Used) 1003397 2.0AE-WR 0 7 AFG Advanced Fitness Group Elliptical Wheel Roller 080903 2.0AE 3.0AE (Used) No Model Compatibility List $29.24 / Each

1
Mast boot (Used) 1023732 071423 Q03 1 Mast boot (Used) No Model Compatibility List $19.49 / Each

1
Pivot Block Complete (Used) 1023730 078449 AE3 1 Pivot Block Complete (Used) Yes Model Compatibility List $89.70 / Each

1
Horizon Advanced Fitness Group Elliptical Foot Pedal Pad 071318 (Used) 1023552 E1200-FPP E09 2 Horizon Advanced Fitness Group Elliptical Foot Pedal Pad 071318 (Used) No Model Compatibility List $55.89 / Each
Out Of Stock
1
S 012847-00 012847-00 S09 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
P 1001381 003326-00 P05 1 Power Switch Yes Model Compatibility List $29.99 / Each

P 1000573 003326-00 P05 Power Entry Switch On/Off Yes Model Compatibility List $8.99 / Each

S 1003402 012847-00 S09 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock
1
Wheel Roller 1003675 080903 Wheel Roller Yes Model Compatibility List $64.99 / Each

Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

Incline Lift Elevation Motor Actuator 1003633 070066 Incline Lift Elevation Motor Actuator Yes Model Compatibility List $195.99 / Each

P 1001765 002169-A P15 Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
F 701972 005010-00 F27 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

P 1034434 003326-00 P05 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P05 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

E 911968 004620-00 E24 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

Z 976932 004926-00 Z05 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q04 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Open Key Wrench 13x15 (New) 972262 005382-00  Open Key Wrench 13x15 (New) Yes Model Compatibility List $17.99 / Each

View Drawing
