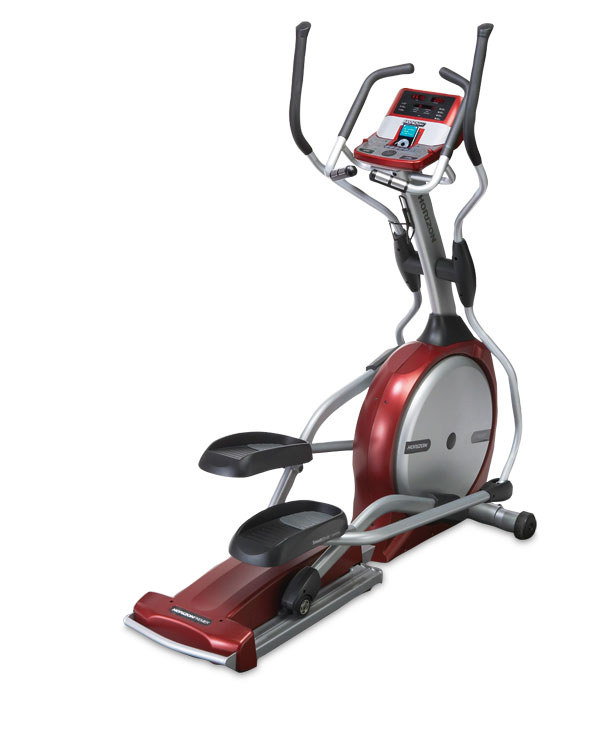

Horizon Fitness - E1201 - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L03 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock
8
700132 000485-00 B25 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B26 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
C 700257 000798-A C10 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
700318 000940-A G21 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

L 700355 001115-F L02 Wheel;Nylon No Model Compatibility List $9.57 / Each

8
Z 700410 001278-B Z15 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
700755 002169-A KIT Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

1
P 700770 002231-B P15 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
P 700849 002510-A P12 PWR Wire;CTL Board;250 16AWG; WH; TM80B No Model Compatibility List $1.77 / Each

4,5,6
700893 002671-A KIT Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

701013 003326-00 P05 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

R 701042 003413-00 R18 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
G 701049 003443-C G27 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
E 701089 003709-00 E13 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
E 701153 004071-00 E20 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

E 701155 004073-A3 E20 Ball Bearing;6001ZZ;12x28x8T No Model Compatibility List $9.57 / Each

8
R 701160 004078-A2 R20 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

B 701180 004110-00 B28 Bearing;Dry;;PAP 2015;Shun De No Model Compatibility List $9.57 / Each

8
H 701190 004133-00 H13 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
R 701222 004191-A R13 Drive Belt;Poly-V;390-J10 Yes Model Compatibility List $57.49 / Each

15,10
G 701294 004359-00 G06 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

701305 004366-AB M11 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
J 701307 004368-00 J06 Screw;Phillip;BH;M5x0.8Px20L; No Model Compatibility List $1.79 / Each

701308 004369-00 C09 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

N 701316 004372-00 N18 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

701343 004389-00 Z21 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
Z 701557 004586-AB Z12 Screw;Hex Socket;M8X1.25PX15L;Chromed Yes Model Compatibility List $2.00 / Each

701561 004592-00 M19 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

P 701574 004608-00 P19 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701576 004610-00 N22 Screw;Phillip;BH;Tapped;3x25L No Model Compatibility List $1.79 / Each

2
701588 004618-00 Q06 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
P 701589 004619-00 P18 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

701597 004621-00 S03 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701613 004632-00 L07 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

701642 004676-00 R09 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
Z 701693 004720-AC Z01 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
701699 004724-00 Z03 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701703 004725-AB Z18 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
701731 004757-00 L05 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

J 701841 004859-00 J10 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
F 701864 004887-00 F28 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

701869 004891-00 R36 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

701897 004926-00 Z16 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R14 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

R 701927 004964-00 R15 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 B24 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

C 701937 004973-00 C08 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701939 004975-00 L09 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

F 701941 004976-00 F32 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
701964 005005-00 Z30 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

C 701988 005026-00 C16 Washer;Flat;25.5x35.0x1.0T No Model Compatibility List $2.00 / Each

2
Z 701997 005035-00 Z19 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

702018 005053-00 F30 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
702029 005061-00 R23 Washer;Flat;10.5x18x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702030 005062-00 M09 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702053 005081-00 Z31 Washer;Flat;5.2x18.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 702072 005103-Z L04 Washer;Flat;5/16x30.0x1.5T No Model Compatibility List $1.90 / Each

2
Z 702078 005110-00 Z11 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
702107 005136-A Z05 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
702135 005163-00 Z04 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702160 005196-00 F22 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

F 702169 005210-A F31 Washer;Teflon;20.3x25x1.0T No Model Compatibility List $2.00 / Each

2
Z 702173 005215-AB Z13 Washer;Split Teflon;15.9x28.4x1.5T Yes Model Compatibility List $2.00 / Each

2
J 702185 005228-00 J12 Washer;Wavy;25.5x34.0x2.0T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
R 702193 005239-00 R21 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 Q09 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702241 005366-00 R07 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

Z 702264 005412-00 Z22 Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

702483 007964-00 Q08 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R22 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

Z 702634 009092-B Z17 Sleeve;Pin;Ball Joint Yes Model Compatibility List $7.10 / Each

3,12,13,14
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
G 703886 018992-BA G30 Cap;;;PVC;;BL;;;EP108B;EP108B-G09B; No Model Compatibility List $3.82 / Each

P 703918 019353-A P10 Connecting Cable;Socket/Breaker No Model Compatibility List $1.51 / Each

4,5,6
P 703926 019456-A P11 CONTROL BOARD PWR WIRE(BLACK);TB80-P13A No Model Compatibility List $1.77 / Each

7,4,5,6
H 703974 020039-A H20 Screw;Phillip;BH;M4x0.7Px10L; No Model Compatibility List $1.79 / Each

2
Z 703976 020042-00 Z32 Screw;Phillip;BH;M4x0.7Px8L No Model Compatibility List $2.00 / Each

G 704087 020210-00 G28 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
F 704176 020426-00 F29 Washer;Flat;8.2x30.0x1.5T No Model Compatibility List $2.00 / Each

2
J 704201 020475-A J11 Washer;Flat;8.2x38x2.0T No Model Compatibility List $2.00 / Each

2
L 704210 020482-00 L08 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
F 705010 029110-AA F35 Washer;Flat;Teflon;25.3x35.0x1.0t; No Model Compatibility List $9.28 / Each

2
E 705270 039654-00 E13 C-Clip;S-12 No Model Compatibility List $2.00 / Each

2
705278 040420-BX R10 Drive Axle Set Yes Model Compatibility List $172.46 / Each

8,10
705700 055204-A Z33 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

Z 705930 056554-00 Z23 Wrench;Hex;T Type;#5x210L No Model Compatibility List $3.69 / Each

2
P 706549 063270-A P04 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

J 706624 063869-AA J07 CAP DISK D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $3.82 / Each

9
P 706707 064795-A P03 Power Socket; 16AWG No Model Compatibility List $9.57 / Each

4,5,6
M 706895 066767-C M10 Set Screw;M8x1.25Px8L No Model Compatibility List $2.00 / Each

2
E 707151 1000090498 E27 Screw;Phillip;BH;;M8x1.25Px40L;8.8 No Model Compatibility List $2.00 / Each

2
Q 707226 1000091309 Q10 Sticker;Cover;EP226 No Model Compatibility List $13.62 / Each

9
V 707228 1000091323 V21 Manual;EP226 No Model Compatibility List $10.53 / Each

1
A 707294 1000091788 AJ1 Crank Pin Set;Panting;LM445;EP230 No Model Compatibility List $414.70 / Each

8,12,13,14
L 707344 1000092221 L01 Front Stabilizer Set No Model Compatibility List $219.86 / Each

1
A 707345 1000092222 AG2 Handlebar Set;Left No Model Compatibility List $344.53 / Each

11
A 707346 1000092223 AG1 Handlebar Set;Right No Model Compatibility List $344.53 / Each

11
A 707347 1000092224 AH2 Lower Link Arm Right No Model Compatibility List $499.85 / Each

3
A 707348 1000092225 AH1 Lower Link Arm Left No Model Compatibility List $499.85 / Each

3
A 707349 1000092227 AE2 Pedal Arm Set;Left No Model Compatibility List $347.49 / Each

8,9,3
707350 1000092228 R01 Pedal Axle Set No Model Compatibility List $195.94 / Each

8,9
A 707351 1000092230 AC1 Console Mast Set No Model Compatibility List $373.07 / Each

7
H 707380 1000092373 H12 Foot Pad Insert D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $22.07 / Each

9,3,12,13,14
707401 1000092537 AG3 SMALL HANDLEBAR SET No Model Compatibility List $339.22 / Each

11
F 707415 1000092586 F11 Elevation COVER No Model Compatibility List $157.79 / Each

9,10
Q 707416 1000092589 Q04 Right Cover No Model Compatibility List $135.64 / Each

9
Q 707417 1000092591 Q03 Left Cover No Model Compatibility List $135.64 / Each

9
A 707418 1000092594 AN1 Console Set No Model Compatibility List $887.22 / Each

7
V 707498 1000093041 V01 Decal, Pedal, Left No Model Compatibility List $3.54 / Each

7,8,9,3
V 707499 1000093042 V02 Decal, Pedal, Right No Model Compatibility List $3.54 / Each

7,8,9,3
V 707500 1000093043 V03 POP Sticker;Disk;HORIZON;EP226 No Model Compatibility List $1.77 / Each

12,13,14
V 707501 1000093044 V04 POP Sticker;Disk;PREMIER;EP226 No Model Compatibility List $1.77 / Each

12,13,14
A 707637 1000093830 AE3 Pedal Arm Pin Sleeve Set No Model Compatibility List $112.01 / Each

8,9,3,12,13,14
Q 707719 1000094570 Q07 Fixing Base;Power Switch No Model Compatibility List $9.57 / Each

3,4,5,6
E 708142 1000100448 E11 Roller Wheel Set;Old Yes Model Compatibility List $57.49 / Each

8
P 725222 103072 P02 Connect Wire;Console;1500(300,300) No Model Compatibility List $57.49 / Each

7,4,5,6
G 725256 103296 G11 Bushing No Model Compatibility List $9.57 / Each

8
E 725258 103298 E15 Bushing;Pivot Block;Pedal Arm No Model Compatibility List $11.96 / Each

8,9,3
AC elevation motor;110V/117mm 725336 070066 AM1 AC elevation motor;110V/117mm Yes Model Compatibility List $383.27 / Each

Cover; Roller Wheel; Right 725416 071043 E12 Cover; Roller Wheel; Right No Model Compatibility List $9.57 / Each

Cover; Roller Wheel; Left 725417 071044 E27 Cover; Roller Wheel; Left No Model Compatibility List $9.57 / Each

Guide Rail Swivel Axle 725429 071175 F10 Guide Rail Swivel Axle No Model Compatibility List $59.10 / Each

Elevation; Support Axle 725431 071179 F13 Elevation; Support Axle Yes Model Compatibility List $17.47 / Each

Elevation; Roller 725432 071180 F14 Elevation; Roller Yes Model Compatibility List $8.87 / Each

Cover; Link Arm; Left 725442 071319 H10 Cover; Link Arm; Left No Model Compatibility List $17.94 / Each
Out Of Stock
Cover; Link Arm; Right 725443 071320 H11 Cover; Link Arm; Right No Model Compatibility List $17.94 / Each
Out Of Stock
Cover; Handlebar 725545 072918 G07 Cover; Handlebar No Model Compatibility List $9.57 / Each

Cover; Handlebar 725546 072919 G08 Cover; Handlebar No Model Compatibility List $9.57 / Each

Boot; Console Mast 725548 072927 Q02 Boot; Console Mast No Model Compatibility List $14.90 / Each

Insert Boot; IPOD 725624 074262 N40 Insert Boot; IPOD Yes Model Compatibility List $3.82 / Each

Foam Holder; Ipod Nano 725675 074681 N40 Foam Holder; Ipod Nano Yes Model Compatibility List $7.00 / Each

Fix Plate; Speed Sensor 725680 074727 P16 Fix Plate; Speed Sensor No Model Compatibility List $3.54 / Each

LINK ARM SWIVEL AXLE 725747 075731 E21 LINK ARM SWIVEL AXLE Yes Model Compatibility List $37.83 / Each

Elevation Label;NO-ROHS;EP177 725832 076877 V11 Elevation Label;NO-ROHS;EP177 No Model Compatibility List $9.91 / Each

Nut;Rod End Bearing;M12X1.75PX7H;SS41;BZ 725843 076952 H22 Nut;Rod End Bearing;M12X1.75PX7H;SS41;BZ No Model Compatibility List $2.00 / Each

Bearing;Dry;;PAP2029; Center Rail Stablizer 725973 078717 B35 Bearing;Dry;;PAP2029; Center Rail Stablizer Yes Model Compatibility List $9.57 / Each

Foam Holder;Ipod Mini 725978 078843 N40 Foam Holder;Ipod Mini Yes Model Compatibility List $7.00 / Each

Foam Holder;IPOD;20/30/60/80gb 725979 078844 N40 Foam Holder;IPOD;20/30/60/80gb Yes Model Compatibility List $7.00 / Each

Bracket;Incline Motor 726092 079912 M07 Bracket;Incline Motor No Model Compatibility List $73.14 / Each

Bolt;Stopper 726103 079954 F30 Bolt;Stopper Yes Model Compatibility List $4.00 / Each

Roller Wheel Set 726244 080903 E08 Roller Wheel Set Yes Model Compatibility List $57.49 / Each

Foam Holder MP3 Player Universal 726374 081448 N40 Foam Holder MP3 Player Universal Yes Model Compatibility List $16.69 / Each

Steel Rope;400L+66L 726621 083556 M06 Steel Rope;400L+66L Yes Model Compatibility List $14.74 / Each

Bushing;Pivot Block Set 727576 090075 E20 Bushing;Pivot Block Set Yes Model Compatibility List $8.50 / Each

Pedal;PP;Black;EP216 - D/C, NO REPL Part will show as orderable until stock is depleted 728424 094742 H11 Pedal;PP;Black;EP216 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $57.95 / Each
Out Of Stock
Lower Control Board;Mimic AC;100~240V 728781 097354 AM3 Lower Control Board;Mimic AC;100~240V Yes Model Compatibility List $383.27 / Each

728824 097834 Q01 Cover;Disk;Right No Model Compatibility List $283.95 / Each

Decal;Console;Horizon Logo 728829 097875 N12 Decal;Console;Horizon Logo No Model Compatibility List $12.56 / Each

Elevation Rack Se;Painting;LM445 728890 098311 F12 Elevation Rack Se;Painting;LM445 No Model Compatibility List $47.48 / Each

Hardware Pack E1201 728892 098479 KIT Hardware Pack E1201 No Model Compatibility List $62.53 / Each

K 729396 ZMS2000030 KIT Crank puller;22mm No Model Compatibility List $38.32 / Each

S 012847-00 012847-00 S01 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
P 1001381 003326-00 P05 1 Power Switch Yes Model Compatibility List $29.99 / Each

P 1000573 003326-00 P05 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

S 1003402 012847-00 S01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
1
Power Supply Cord 1002483 002169-A Power Supply Cord Yes Model Compatibility List $24.99 / Each

K 1001765 002169-A KIT Replacement AC Power Cord Yes Model Compatibility List $27.99 / Each

1
P 1034434 003326-00 P05 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P05 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

Z 976932 004926-00 Z16 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q09 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

P 911958 004608-00 P19 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

S 957090 004621-00 S03 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
View Drawing
