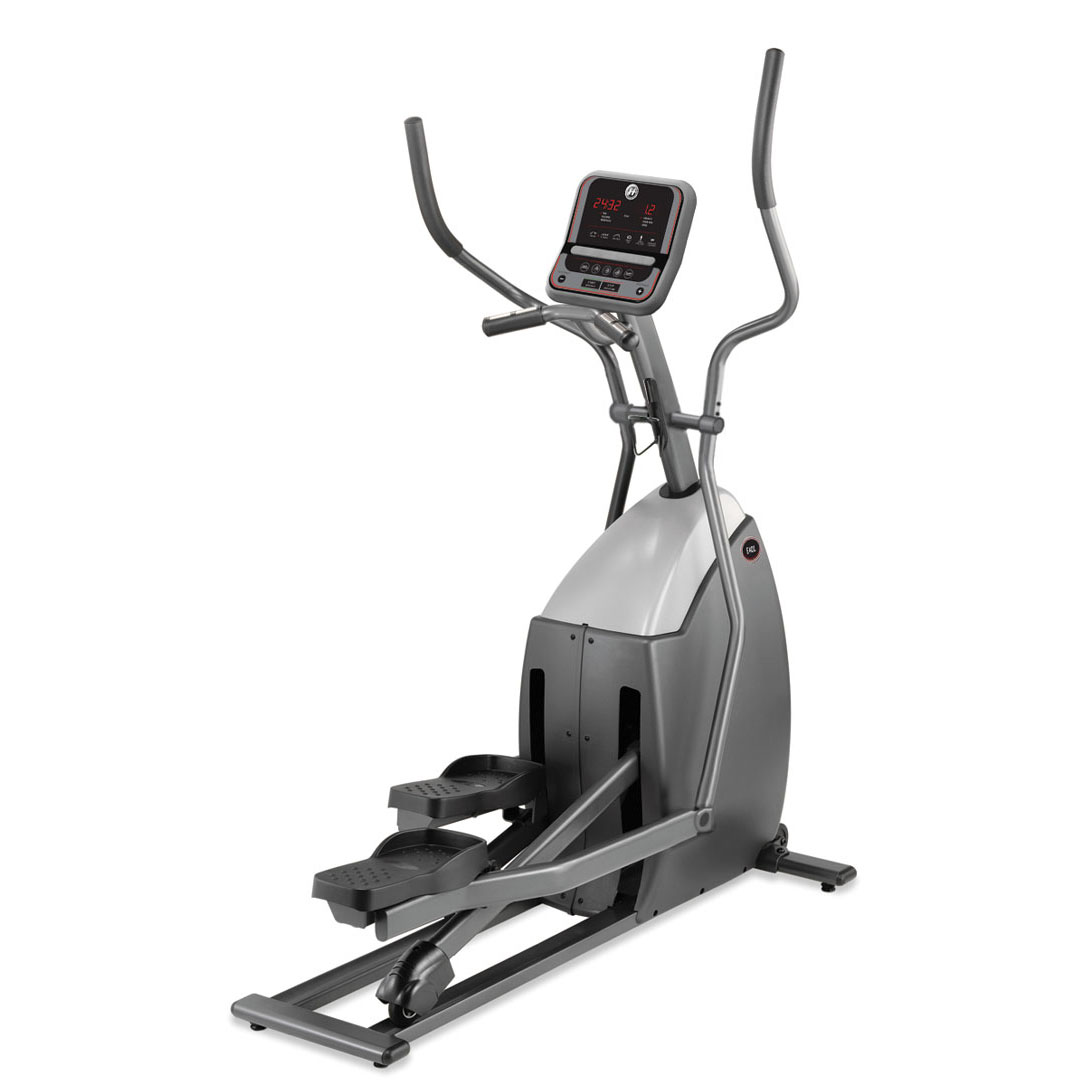

Horizon Fitness - E401 - 2009

Repair Parts for Horizon Fitness E401 EP503

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: E401

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700014 000021-B L04 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

G 700065 000241-EA G20 Cover;Handlebar;Front Left or Rear Right Yes Model Compatibility List $8.40 / Each

9,11
G 700066 000242-DA G21 Cover;Handlebar;Front Right or Rear Left Yes Model Compatibility List $8.40 / Each

9,11
Q 700127 000476-BA Q13 Cover;Roller Wheel Yes Model Compatibility List $9.57 / Each

8,9
700132 000485-00 L07 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
L 700135 000491-B L06 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
C 700255 000787-00 C17 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700318 000940-A C15 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

L 700359 001129-B L03 End Cap;Front Stabilizer No Model Compatibility List $1.90 / Each

P 700734 002074-B P03 Console Cable;1330(180,150,120);EP109 Yes Model Compatibility List $57.49 / Each

7,4,5,6
R 701042 003413-00 R16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
E 701089 003709-00 E19 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
R 701128 003949-EX R05 Drive Axle Set;6.5Kg No Model Compatibility List $172.46 / Each

8,10
Q 701143 004029-B Q08 Foot Pad Yes Model Compatibility List $40.25 / Each

9,3,12,13,14
E 701153 004071-00 E10 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

R 701165 004081-A2 R12 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

701215 004177-A R15 Drive Belt;Poly-V;390-J8 Yes Model Compatibility List $57.49 / Each

701265 004326-00 N05 Screw;Phillip;Round;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
701288 004356-00 Q14 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

701300 004364-00 Q09 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 C13 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

Z 701557 004586-AB Z08 Screw;Hex Socket;M8X1.25PX15L;Chromed Yes Model Compatibility List $2.00 / Each

P 701574 004608-00 P07 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701613 004632-00 S03 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

R 701650 004691-A R09 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 C12 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

E 701728 004751-00 E21 Screw;Hex Socket;BH;M8x1.25Px13L;Adhere No Model Compatibility List $2.00 / Each

2
L 701732 004758-00 L10 Screw;Hex Socket;BH;M10x1.5Px50L(Tooth20) No Model Compatibility List $2.00 / Each

2
701748 004771-00 Z06 Screw;Oval;Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
Z 701779 004795-00 Z01 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
G 701796 004811-A G10 Screw;Umbrella Hex Socket;M8x1.25Px15L No Model Compatibility List $2.00 / Each

2
G 701827 004847-AB G15 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
701849 004867-A Q15 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
B 701864 004887-00 B21 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

701893 004925-00 E11 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 Z11 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R11 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

L 701913 004942-00 L08 Nut;Nylon;M10x1.5P;Black Zinc No Model Compatibility List $2.00 / Each

701927 004964-00 R13 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 B20 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

L 701941 004976-00 L09 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701982 005017-AC Z02 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
C 701991 005029-00 C09 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702018 005053-00 G18 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
J 702020 005055-00 J04 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
R 702021 005056-00 R17 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
E 702046 005075-00 E25 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702074 005106-00 Z03 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

Z 702078 005110-00 Z30 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
702092 005125-00 L05 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

702161 005198-00 Z05 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
G 702163 005200-A G19 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

E 702166 005206-BB E13 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
702178 005220-00 C10 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702180 005222-00 J03 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
E 702191 005237-00 E20 Washer;Lock;10.5x25.0x1.0tT No Model Compatibility List $2.00 / Each

2
702193 005239-00 R14 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 B23 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

R 702240 005365-00 R07 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

Z 702253 005382-00 Z23 Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

702262 005408-A Z27 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

Z 702264 005412-00 Z26 Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

Z 702272 005427-A Z24 Wrench;Hex;L-Type;M6x80L No Model Compatibility List $4.00 / Each

G 702298 005505-00 G13 Screw;M4x7Px20L No Model Compatibility List $1.90 / Each

2
702483 007964-00 B24 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R10 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

702625 009053-D Z07 Inner Bushing;Pedal Arm No Model Compatibility List $3.82 / Each

8,9,3
P 702778 009659-B P01 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
R 702890 013111-Z R01 Pedal Axle Set Yes Model Compatibility List $96.82 / Each

8,9
E 702898 013124-Z E09 Roller Wheel Set Yes Model Compatibility List $60.22 / Each

1
Q 703863 018800-AC Q05 Console Mast Boot Yes Model Compatibility List $9.99 / Each

7
E 703946 019849-00 E14 Washer;Flat;Teflon;35.0x45.0x1.0T No Model Compatibility List $2.00 / Each

2
Q 704298 022352-B Q06 Grommet;Console Mast Boot No Model Compatibility List $1.90 / Each

7,2
A 704966 026806-B AJ1 crank set;-;-;welding;EP109 Yes Model Compatibility List $57.49 / Each

8
S 705770 056124-A S02 Tension Cable No Model Compatibility List $11.73 / Each

H 705961 057060-A H12 Bushing No Model Compatibility List $10.24 / Each

8
A 706193 060158-Z AE2 Pivot Tube Set Yes Model Compatibility List $57.49 / Each

8,3
B 706691 064534-A B25 Foam;One-Sided;30x20x10t No Model Compatibility List $1.77 / Each

1
Z 724982 100596 Z10 Washer;Teflon;Open-Type;20.2x30.0x1.0t No Model Compatibility List $2.00 / Each

2
Q 724987 100758 Q03 Cover;ABS;DS018;EP132C Yes Model Compatibility List $31.51 / Each

9
A 724990 100828 AC1 CONSOLE MAST SET No Model Compatibility List $349.34 / Each

7
724991 100829 AG4 LEFT LOWER HANDLEBAR SET Yes Model Compatibility List $188.66 / Each

11
A 724992 100830 AG3 RIGHT LOWER HANDLEBAR SET Yes Model Compatibility List $188.66 / Each

11
724993 100831 AG2 LEFT UPPER HANDLEBAR SET Yes Model Compatibility List $86.45 / Each

11
A 724994 100832 AG1 RIGHT UPPER HANDLEBAR SET Yes Model Compatibility List $86.45 / Each

11
A 724995 100833 AH2 LEFT LOWER LINK ARM SET Yes Model Compatibility List $228.25 / Each

3
A 724996 100834 AH1 RIGHT LOWER LINK ARM SET Yes Model Compatibility List $228.25 / Each

3
A 724997 100835 AE1 PEDAL ARM SET Yes Model Compatibility List $188.47 / Each

8,9,3
A 724998 100836 AL1 FRONT STABILIZER SET No Model Compatibility List $156.94 / Each

1
G 725255 103295 G12 Bushing;Pedal Arm Axle;31.8x3.0tx329mm No Model Compatibility List $20.12 / Each

8,9,3
725259 103299 E12 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Sticker; Pedal 725474 071801 V11 Sticker; Pedal No Model Compatibility List $1.90 / Each

Pulse Sensor Set 727120 087239 N68 Pulse Sensor Set Yes Model Compatibility List $38.32 / Each

Console Set;NO ROHS;EP503-1US 728816 097738 AN1 Console Set;NO ROHS;EP503-1US Yes Model Compatibility List $532.32 / Each

Model Decal;NO ROHS;EP503-1US 728837 097921 V03 Model Decal;NO ROHS;EP503-1US No Model Compatibility List $3.54 / Each

POP Decal;1;EP503 728882 098252 V08 POP Decal;1;EP503 No Model Compatibility List $3.54 / Each

Manual;Manipulate;NO-ROHS;EP503-1US 728883 098256 V21 Manual;Manipulate;NO-ROHS;EP503-1US Yes Model Compatibility List $8.87 / Each

Hardware Pack 728884 098262 AZ1 Hardware Pack No Model Compatibility List $70.28 / Each

SwivelAxle;Zn Plate; EP503 728891 098335 Z09 SwivelAxle;Zn Plate; EP503 No Model Compatibility List $17.81 / Each

Hand Arm Set;Painting;DM337;EP503 728893 098490 AG5 Hand Arm Set;Painting;DM337;EP503 No Model Compatibility List $24.28 / Each

PWR Adapter;;120V 12V/1A 728904 098773 P05 PWR Adapter;;120V 12V/1A Yes Model Compatibility List $76.65 / Each

Wire;PluseSensor160(OKI+SMR-2P)E401 728970 099994 P06 Wire;PluseSensor160(OKI+SMR-2P)E401 Yes Model Compatibility List $11.39 / Each

AFG Horizon Tempo Vision Fitness Treadmill Leveling Foot Leveler 000485-00 1.5 1003847 14.0AE-LFL1.5 0 51 AFG Horizon Tempo Vision Fitness Treadmill Leveling Foot Leveler 000485-00 1.5" (Used) No Model Compatibility List $8.44 / Each

1

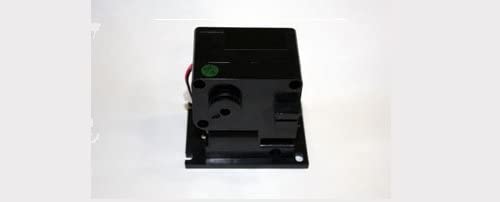

S 012847-00 012847-00 S01 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
E 1000465 013124-Z E09 1 Roller Wheel Yes Model Compatibility List $53.99 / Each

1
S 1003161 012847-00 S01 1 Motor Resistance Yes Model Compatibility List $119.99 / Each

1
Cover (Used) 1034286 100759 0 1 Cover (Used) No Model Compatibility List $15.00 / Each

R 1000628 004177-A R15 Poly V Drive Belt 8 Ribs Yes Model Compatibility List $39.99 / Each

S 1003402 012847-00 S01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
Resistance Brake kit 1036691 056124-A & 012847-00 & 003949-EX Resistance Brake kit Yes Model Compatibility List $99.00 / Each

Round Internal Endcap 1012460 intr-rnd-60 Round Internal Endcap Yes Model Compatibility List $5.99 / Each

Tensioner w Idler Pulley 1007099 0000095430 Tensioner w Idler Pulley Yes Model Compatibility List $26.99 / Each

734894 005404-00 Not Shown Screwdriver;Phillip;4.5x50L No Model Compatibility List $0.00 / Each
Out Of Stock
Z 976932 004926-00 Z11 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

B 957398 005330-00 B23 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Button Head Phillip Screw (New) 986204 004374-00 Button Head Phillip Screw (New) No Model Compatibility List $12.99 / Each
Out Of Stock
L 917260 004942-00 L08 Black Nylon Nut (New) No Model Compatibility List $12.99 / Each

P 911958 004608-00 P07 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

Open Key Wrench 13x15 (New) 972262 005382-00  Open Key Wrench 13x15 (New) Yes Model Compatibility List $17.99 / Each

Rower Self Tapping Screw (New) 957090 004621-00 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
