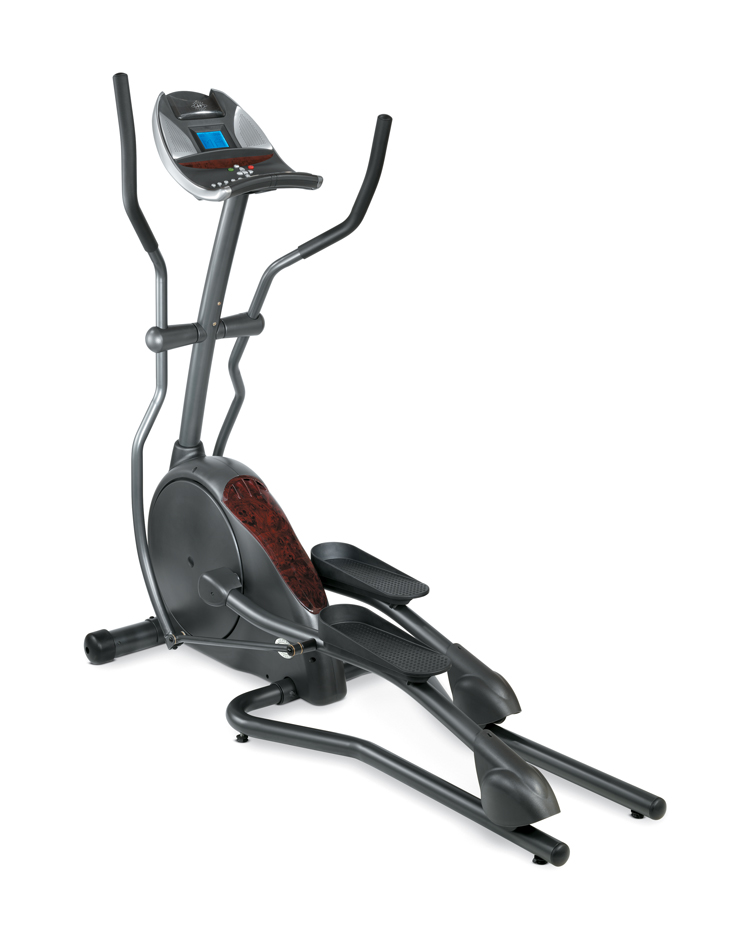

Horizon Fitness - E52 - 2005

Repair Parts for Horizon Fitness E52 EP29D

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: E52

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - S27 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
L 700009 000014-00 L05 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
Q 700033 000130-F Q01 Side Cover;Right Yes Model Compatibility List $49.71 / Each

9
Q 700051 000203-C Q15 Boot;Console Mast No Model Compatibility List $3.54 / Each

7
700132 000485-00 F09 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F08 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700191 000609-A G21 Foam Grip;Handlebar;31.8x28x3.0tx500L No Model Compatibility List $9.57 / Each

4
E 700366 001138-B E56 Cover;Pedal Arm;Right Yes Model Compatibility List $3.82 / Each

8,9,3
E 700368 001139-B E57 Cover;Pedal Arm;Left D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $7.72 / Each

3,8,9
Q 700376 001161-C Q19 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
E 700385 001188-B E62 Cover;Roller Wheel Yes Model Compatibility List $12.77 / Each

8,9
E 700409 001272-A E10 Spacer,Pedal Arm No Model Compatibility List $2.00 / Each

2,8,9,3,4,5,6
L 700432 001360-00 L02 Sleeve;Mobile Wheel Yes Model Compatibility List $3.82 / Each

8,3
Q 700455 001412-A Q17 End Cap;Crank Cover No Model Compatibility List $1.77 / Each
Out Of Stock 		8,9
Q 700532 001544-BB Q03 Crank Cover;Round Disk No Model Compatibility List $29.67 / Each

8,9
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
P 700901 002703-A P07 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R37 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701051 003486-A2 P09 Power Adapter;14.5Volts;2M 120V/60Hz 14.5V/1A No Model Compatibility List $76.65 / Each

4,5,6
R 701127 003948-D R03 Flywheel Set w/ ECB Set; 8.0KG No Model Compatibility List $182.26 / Each

8
701154 004072-A2 E25 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
R 701159 004077-A2 R08 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

E 701176 004102-00 E18 Needle Bearing; HK1616 No Model Compatibility List $9.57 / Each

8
701221 004189-A R10 Drive Belt;Poly-V;410-J8 Yes Model Compatibility List $57.49 / Each

15,10
L 701270 004331-AB L08 Screw,oval head; M6x1.0Px25L No Model Compatibility List $2.00 / Each

2
Q 701294 004359-00 Q42 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

701300 004364-00 P05 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 N54 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

701328 004381-00 E60 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

E 701358 004409-00 E61 Screw;Phillip;BH;M5x0.8Px20L No Model Compatibility List $2.00 / Each

701577 004612-00 S55 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701586 004617-00 Q30 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701588 004618-00 Z13 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
701591 004620-00 S04 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

Z 701633 004654-00 Z12 SCREW;RND;Diam.4X15L;SM;PH;;BZN;;POT No Model Compatibility List $3.69 / Each

2
Q 701635 004660-A Q44 Screw;Oval Tapping;5x15L No Model Compatibility List $2.00 / Each

701699 004724-00 E70 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

E 701714 004731-00 E21 SCREW;BH;M8X1.25PX95L;;HS;;;; No Model Compatibility List $3.33 / Each

2
701731 004757-00 Z09 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

701737 004762-00 Z01 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.00 / Each

2
701781 004796-00 Z14 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Z 701830 004849-00 Z11 Set Screw;M8x1.25Px10L No Model Compatibility List $2.00 / Each

2
701848 004865-00 J06 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701858 004880-00 P51 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701869 004891-00 R16 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

R 701870 004892-00 R18 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
701897 004926-00 H08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R15 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

Z 701906 004932-Z Z02 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
Z 701912 004941-00 Z07 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701927 004964-00 R11 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 F05 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

C 701937 004973-00 C11 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
G 701988 005026-00 G20 Washer;Flat;25.5x35.0x1.0T No Model Compatibility List $2.00 / Each

2
702018 005053-00 G22 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
Z 702020 005055-00 Z04 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
702040 005070-00 L10 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Q 702063 005091-00 Q43 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

702066 005094-00 S54 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

702076 005109-00 Z08 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
G 702078 005110-00 G12 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
702135 005163-00 Z03 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
E 702141 005171-A E63 Washer;Arc;4.2x15x1.0T No Model Compatibility List $1.85 / Each

2
702161 005198-00 H07 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
G 702163 005200-A G23 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

Z 702166 005206-BB Z06 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
702180 005222-00 Z05 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
G 702184 005227-Z G19 Washer;Wavy;26x34x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702193 005239-00 R51 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 Q26 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702236 005361-00 E54 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
E 702237 005362-00 E68 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

R 702240 005365-00 R34 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702241 005366-00 G15 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

702483 007964-00 Q25 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

G 702571 008692-D G09 Inner Bushing;Lower Link Arm No Model Compatibility List $1.90 / Each

8,3
R 702601 008914-B R12 Nut;Fixing;S46C;AN04 M20x1.0Px6t;BED; No Model Compatibility List $4.00 / Each

A 702907 013194-Z AE3 Pivot Tube Set No Model Compatibility List $57.49 / Each

1
702909 013200-Z R01 R02 Pedal Axle Set No Model Compatibility List $157.64 / Each

8,9
E 702911 013209-Z E03 Roller Wheel Set Yes Model Compatibility List $57.49 / Each

8
K 702912 013224-Z KIT DC Motor Set w/ Zero Switch Cable; No Model Compatibility List $172.46 / Each

4,5,6,10
A 703570 015523-BE AJ1 Crank Set;Left/Right Yes Model Compatibility List $57.49 / Each

8
E 704233 020700-00 E04 Pin;Thread;Cross;M4x12L; D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.77 / Each

7,12,13,14
705700 055204-A L06 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

G 725256 103296 G11 Bushing No Model Compatibility List $9.57 / Each

8
728977 N/A AE2 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,,1,,1
K 729396 ZMS2000030 KIT Crank puller;22mm No Model Compatibility List $38.32 / Each

Z 701972 005010-00 Z10 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

S 911968 004620-00 S04 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

H 976932 004926-00 H08 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q26 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
