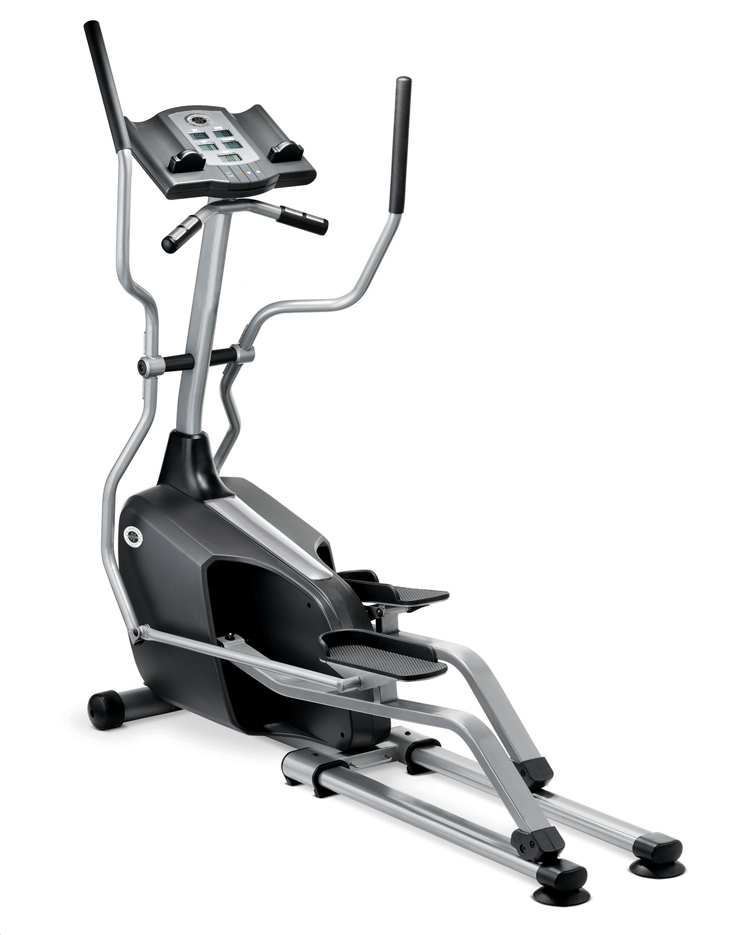

Horizon Fitness - E70 - 2006

Repair Parts for Horizon Fitness E70 EP120

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: E70

Version: 2006

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700009 000014-00 L04 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
F 700272 000829-AB F04 Foot Pad;Guide Rail Yes Model Compatibility List $12.48 / Each

3,9,12,13,14
700318 000940-A C27 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

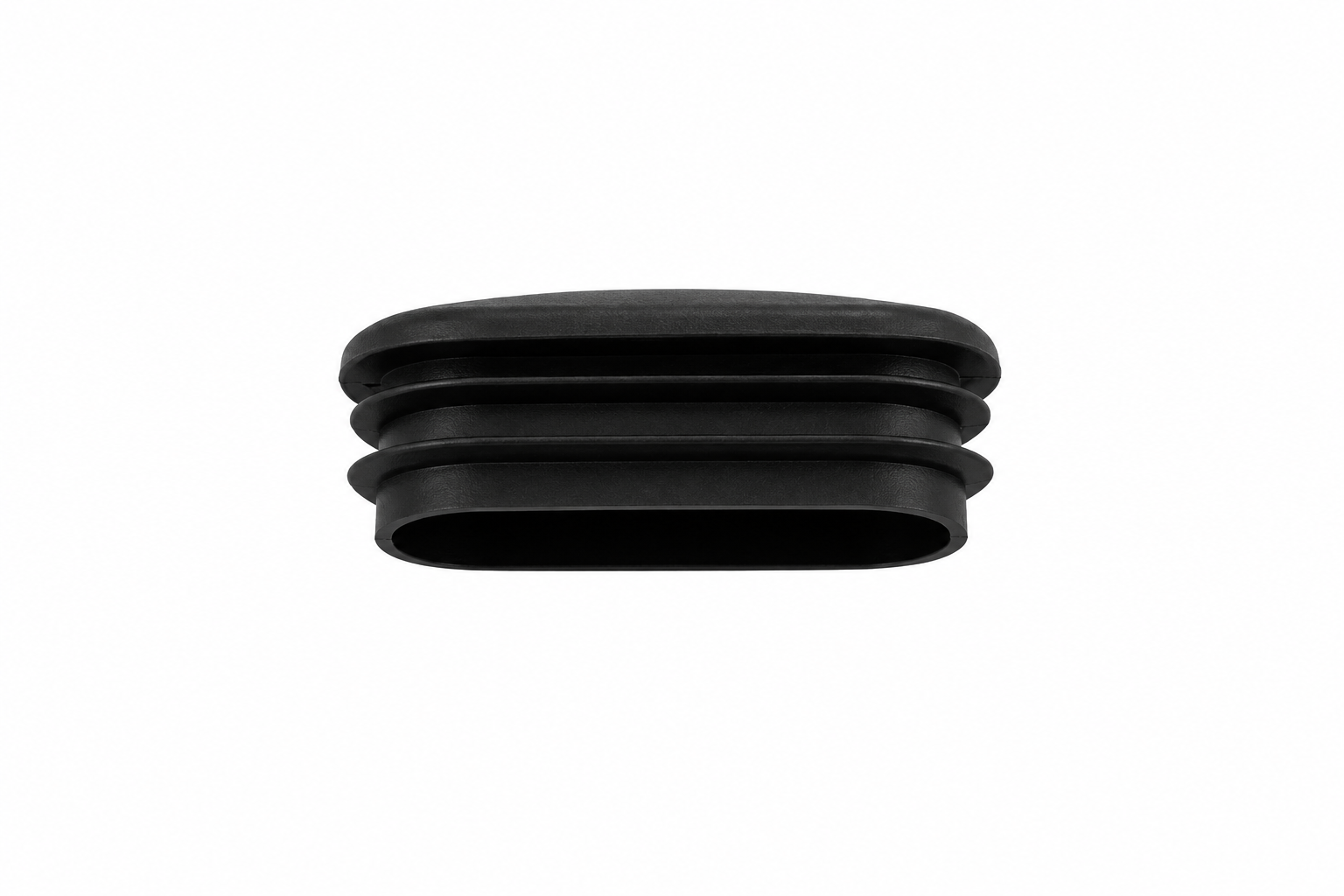

F 700330 000982-AB F02 End Cap;Guide Rail;Front No Model Compatibility List $1.90 / Each

9
L 700432 001360-00 L02 Sleeve;Mobile Wheel Yes Model Compatibility List $3.82 / Each

8,3
N 700433 001363-B N08 Stopper;Water Bottle Holder - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $3.64 / Each
Out Of Stock 		1
H 700472 001453-CB H19 Foot Pad;Pivoting;Left No Model Compatibility List $21.74 / Each

8,9,3,12,13,14
P 700735 002075-A P02 Console Cable; 1450(180 150 120) No Model Compatibility List $57.49 / Each

7,4,5,6
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
P 700901 002703-A P07 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R04 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701049 003443-C P06 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
701050 003478-A2 P09 Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

6
R 701128 003949-EX R05 Drive Axle Set;6.5Kg No Model Compatibility List $172.46 / Each

8,10
701154 004072-A2 R32 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
701156 004074-A4 C33 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
R 701165 004081-A2 R02 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

R 701176 004102-00 R21 Needle Bearing; HK1616 No Model Compatibility List $9.57 / Each

8
R 701214 004175-A R03 Drive Belt;Poly-V;420-J8 No Model Compatibility List $57.49 / Each

15,10
L 701270 004331-AB L07 Screw,oval head; M6x1.0Px25L No Model Compatibility List $2.00 / Each

2
701300 004364-00 P05 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

H 701345 004391-00 H13 Screw;M5x0.8Px10L No Model Compatibility List $2.00 / Each

701393 004448-Z F05 Screw;Round;Hex Socket;M5x0.8Px10L No Model Compatibility List $1.79 / Each

2
F 701408 004462-00 F06 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

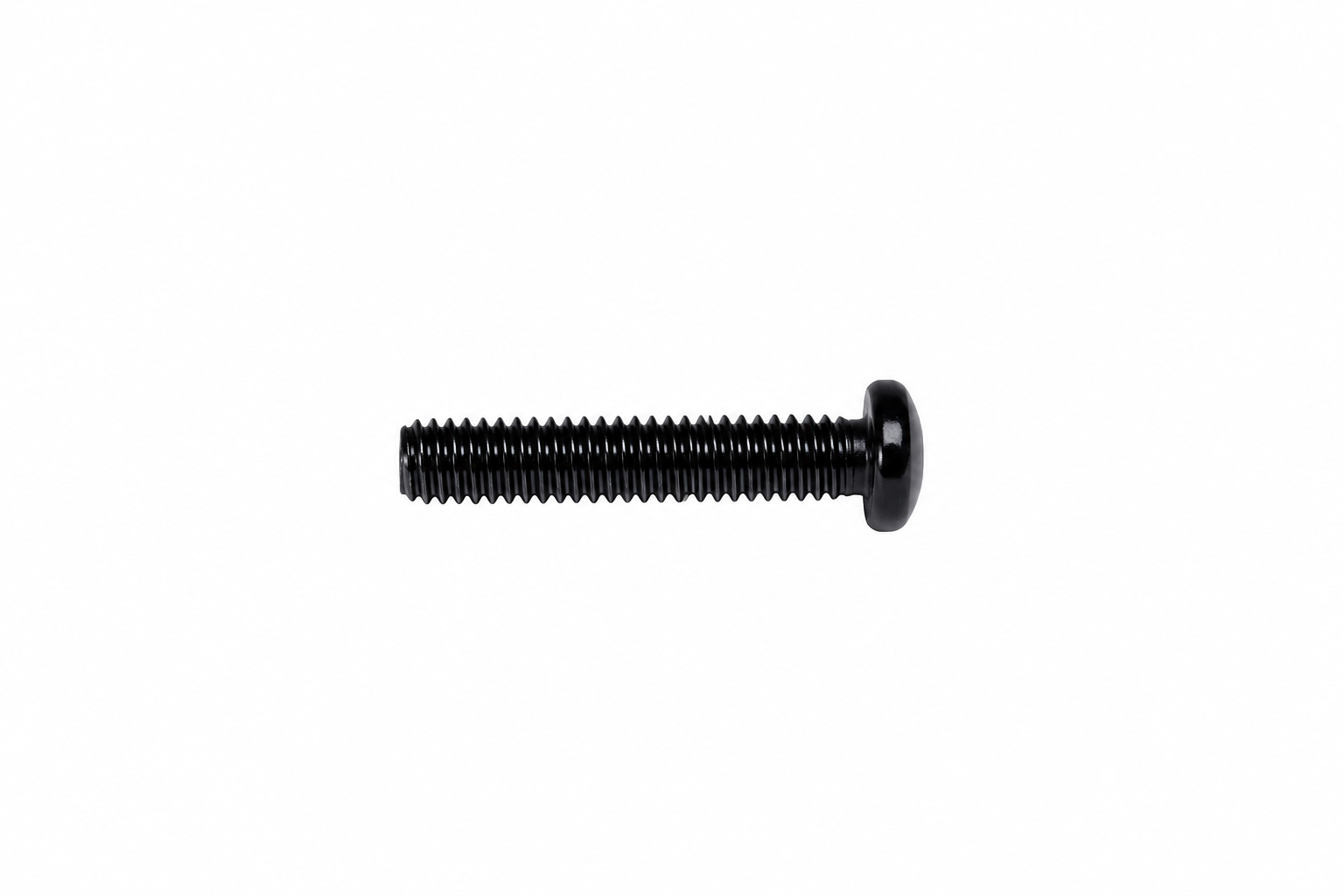

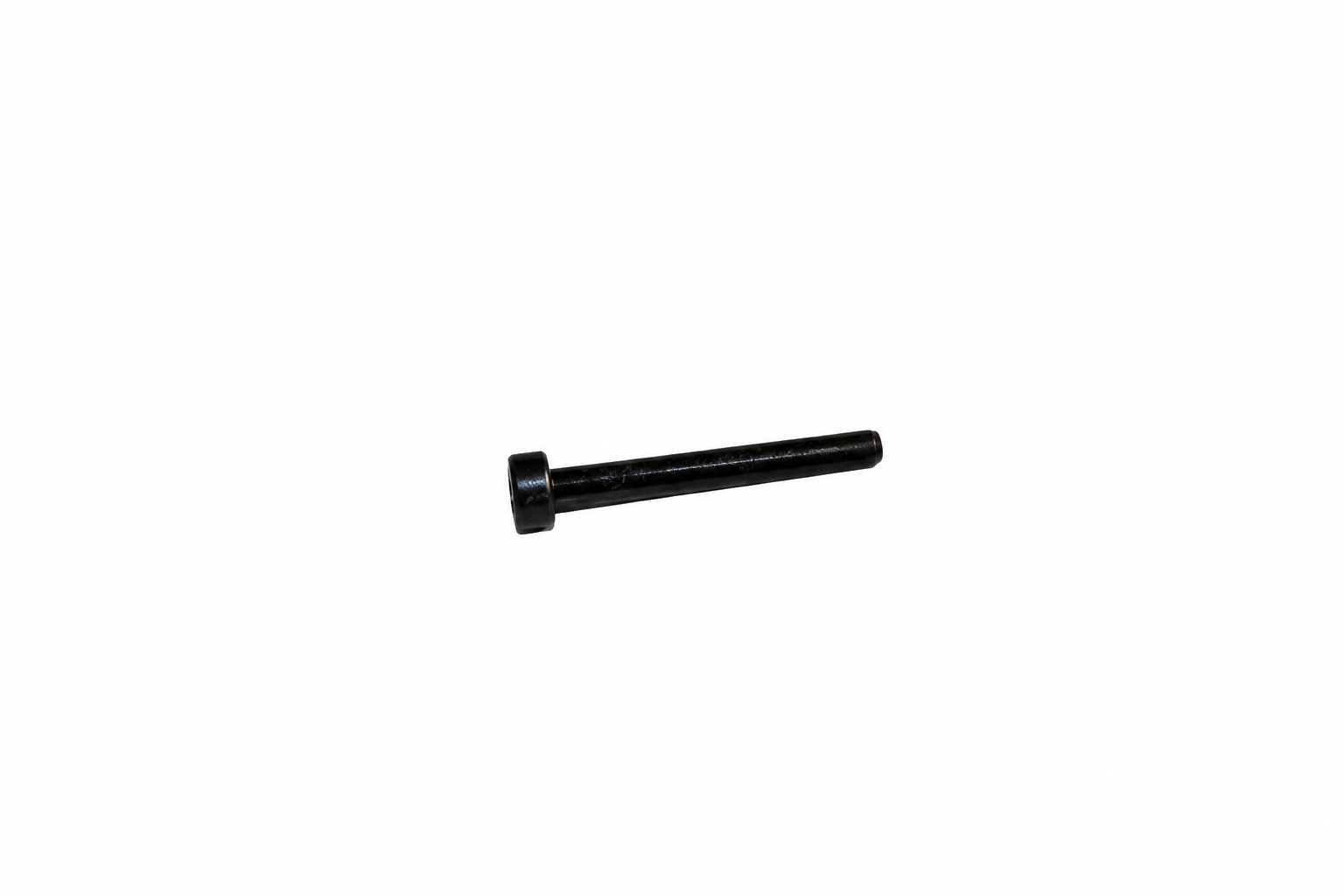

P 701460 004513-Z P08 Screw;Hex Socket;Round;M2x0.4Px16L No Model Compatibility List $1.79 / Each

2
701577 004612-00 S55 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

701586 004617-00 Q07 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701591 004620-00 L05 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

H 701639 004672-00 H23 Screw;M8x1.25Px42L No Model Compatibility List $2.00 / Each

2
701642 004676-00 R07 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 R53 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701731 004757-00 H21 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

701748 004771-00 C20 Screw;Oval;Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
701781 004796-00 Z08 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
G 701827 004847-AB G11 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
701848 004865-00 Q17 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

701858 004880-00 P10 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701869 004891-00 R10 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

701897 004926-00 H24 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

E 701912 004941-00 E21 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701927 004964-00 R15 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701939 004975-00 L03 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

C 701978 005015-00 C21 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

R 701991 005029-00 R20 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702018 005053-00 H20 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
R 702020 005055-00 R24 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
702040 005070-00 L06 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702053 005081-00 H14 Washer;Flat;5.2x18.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702066 005094-00 S54 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

702076 005109-00 R52 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
702161 005198-00 H17 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
H 702163 005200-A H22 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

E 702166 005206-BB E15 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
702180 005222-00 R22 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702186 005229-00 H12 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

702193 005239-00 R17 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 Q14 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702236 005361-00 R33 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
R 702237 005362-00 R23 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

702238 005363-00 C31 C-Clip;External;S-17 No Model Compatibility List $1.79 / Each

R 702240 005365-00 R19 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702483 007964-00 Q13 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
C 702495 008061-A C32 Washer;Flat;17.2x36x1.0t No Model Compatibility List $2.00 / Each

2
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
R 702512 008394-00 R08 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

H 702607 008969-D H16 Bushing;Inner Yes Model Compatibility List $1.90 / Each

8
702874 013036-Z R30 Roller Wheel Set No Model Compatibility List $57.49 / Each

8
R 702918 013273-Z R01 Pedal Axel Set; No Model Compatibility List $140.53 / Each
Out Of Stock 		8,9
A 702930 013334-Z AE2 Pivot Tube Set; Yes Model Compatibility List $57.49 / Each

8,3
K 703432 014536-AX KIT Hardware Pack No Model Compatibility List $69.37 / Each

4,5,6

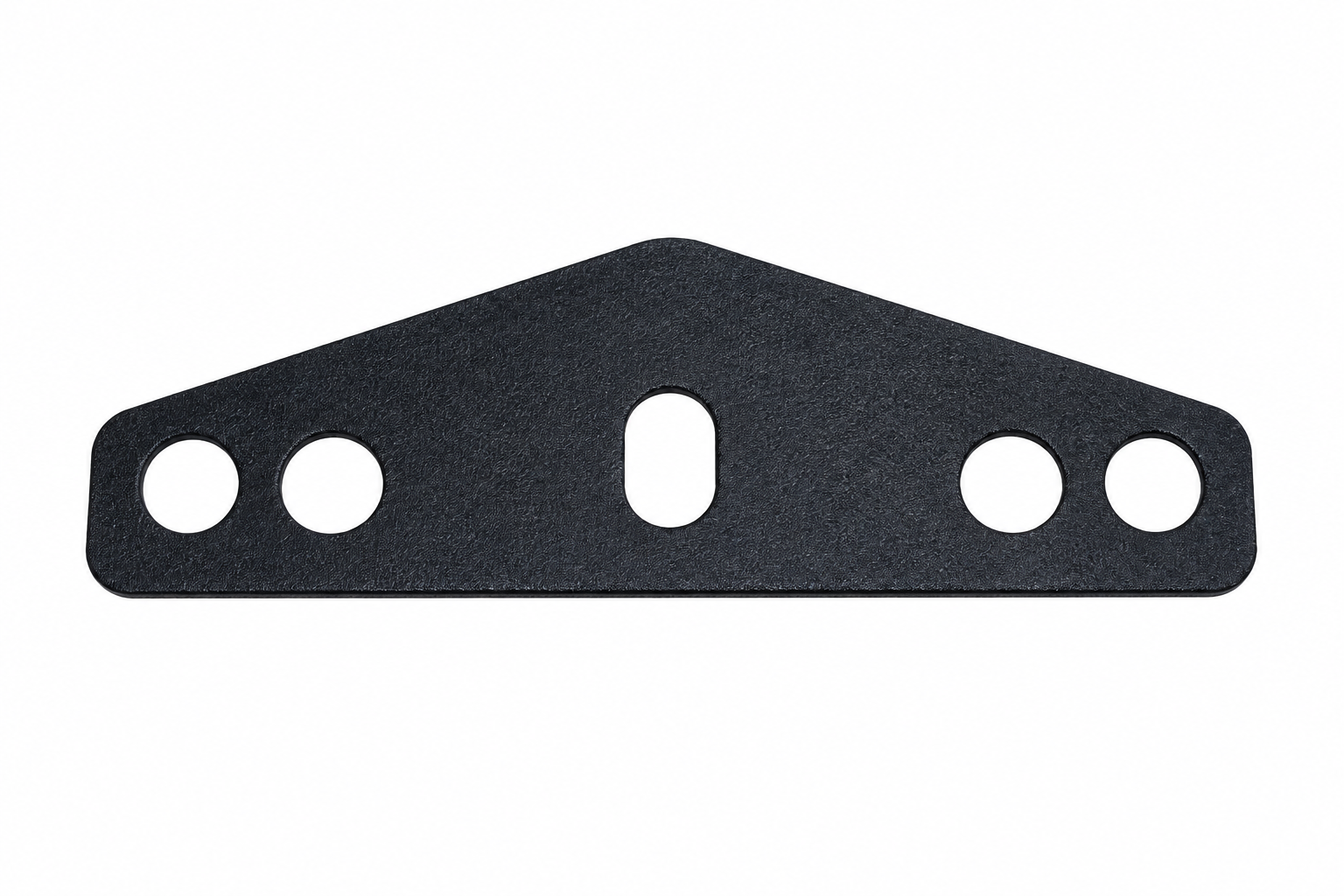

H 703586 015589-AI H10 Connecting Plate;Footpad No Model Compatibility List $10.87 / Each

9,3,12,13,14
A 703799 016873-D AR1 Crank Arm;Left/Right// Yes Model Compatibility List $57.49 / Each

8,3
G 704233 020700-00 G12 Pin;Thread;Cross;M4x12L; D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.77 / Each

7,12,13,14
S 704331 022507-B S01 ECB Steel Cable; No Model Compatibility List $9.41 / Each

4,5,6
L 704374 023516-Z L01 Front Stabilizer Set; EP120 No Model Compatibility List $38.32 / Each

1
S 704375 023517-Z S25 DC Motor Set; EP120 No Model Compatibility List $172.46 / Each

4,5,6,10
E 725257 103297 E22 Bushing;Copper No Model Compatibility List $28.42 / Each

8
725259 103299 H15 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Console Mast Boot - Used 1019620 000187-B 0 1 Console Mast Boot - Used Yes Model Compatibility List $25.99 / Each
Out Of Stock 		9
Endcap Deadshaft Handlebar (Used) 1019609 000986-BC G19 2 Endcap Deadshaft Handlebar (Used) Yes Model Compatibility List $11.69 / Each

9
Screw;Round Tapping;Phillip;4x90MM 1019622 004659-Z H11 4 Screw;Round Tapping;Phillip;4x90MM No Model Compatibility List $6.49 / Each

2
P 1004184 003478-A2 P09 AC Adapter Power Supply Cord Yes Model Compatibility List $38.99 / Each
Out Of Stock 		6
C 936823 004074-A4 C33 Stepper Step Sealed Bearing (New) Yes Model Compatibility List $32.99 / Each

8
L 911968 004620-00 L05 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

H 976932 004926-00 H24 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q14 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
