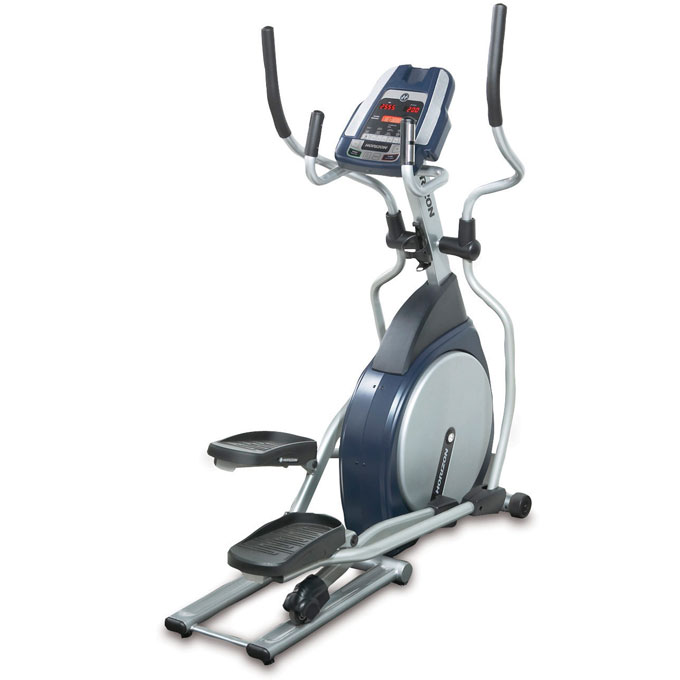

Horizon Fitness - E701 - 2009

Repair Parts for Horizon Fitness E701 EP231

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: E701

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
G 700065 000241-EA G10 Cover;Handlebar;Front Left or Rear Right Yes Model Compatibility List $8.40 / Each

9,11
G 700066 000242-DA G11 Cover;Handlebar;Front Right or Rear Left Yes Model Compatibility List $8.40 / Each

9,11
E 700127 000476-BA E18 Cover;Roller Wheel Yes Model Compatibility List $9.57 / Each

8,9
700132 000485-00 B20 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B19 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
700152 000522-D B25 Leveler Yes Model Compatibility List $11.60 / Each

C 700257 000798-A C07 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
B 700311 000929-00 B22 End Cap;60x1.6T No Model Compatibility List $1.90 / Each

9
700318 000940-A C09 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

700570 001679-00 P08 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

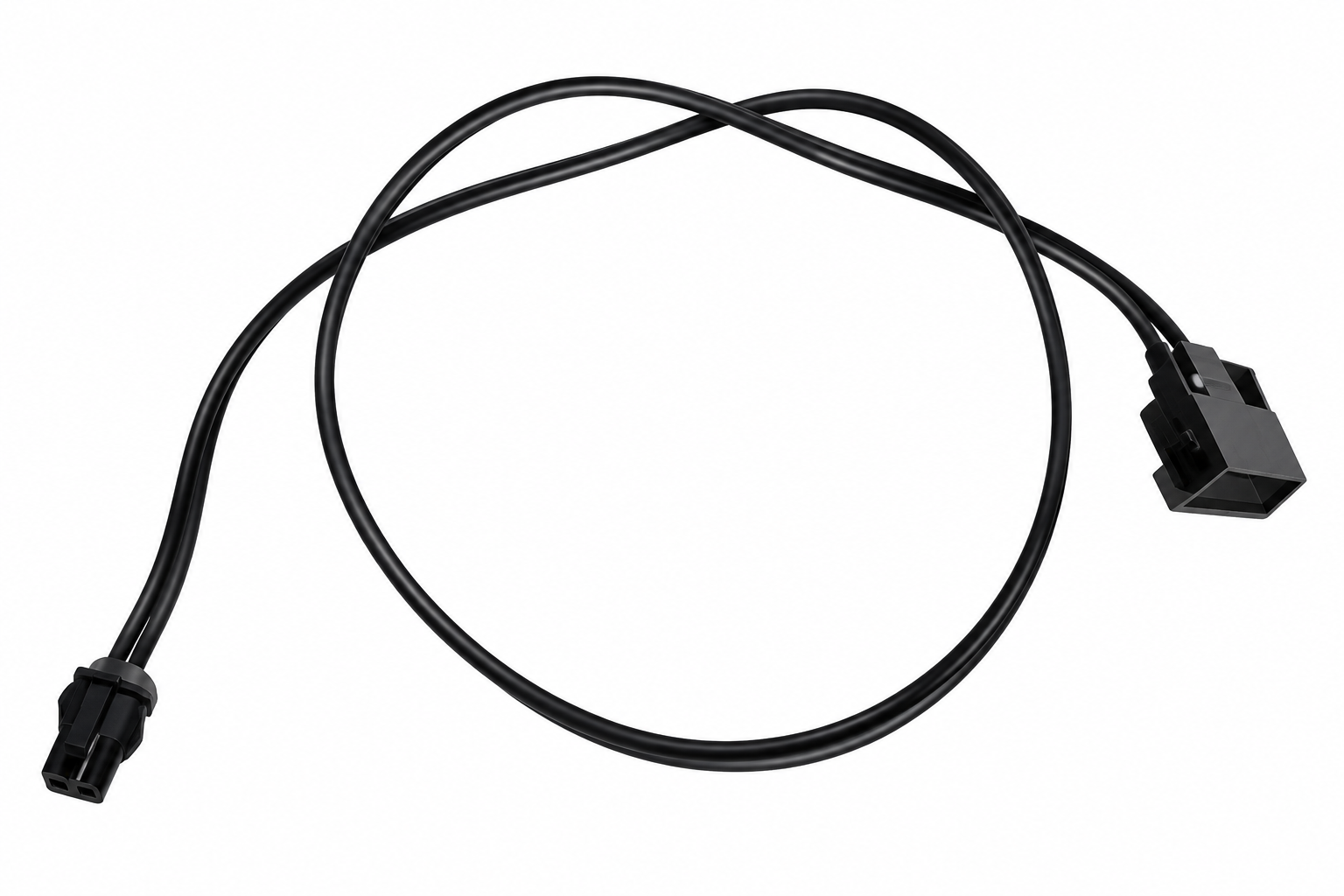

P 700778 002262-C P06 Speed Sensor Wire;450(OKI Magnet Reed Tube9216 Yes Model Compatibility List $14.77 / Each

3,4,5,6,8
700893 002671-A KIT Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

R 701042 003413-00 R16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701049 003443-C P07 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
E 701089 003709-00 E13 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
E 701153 004071-00 E09 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

R 701160 004078-A2 R12 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

701215 004177-A R15 Drive Belt;Poly-V;390-J8 Yes Model Compatibility List $57.49 / Each

701288 004356-00 E20 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

701291 004357-00 Z19 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

701300 004364-00 N40 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 C08 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

701328 004381-00 J07 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

Z 701557 004586-AB Z07 Screw;Hex Socket;M8X1.25PX15L;Chromed Yes Model Compatibility List $2.00 / Each

P 701574 004608-00 P02 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

701597 004621-00 R17 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701613 004632-00 Q09 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

R 701650 004691-A R09 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
Z 701698 004723-00 Z02 Screw;Oval;Hex Socket;M8x1.25Px3/4L No Model Compatibility List $2.00 / Each

2
701699 004724-00 Z32 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701716 004735-00 E25 Screw;Oval Hex Socket;M8x1.25Px45L-15L No Model Compatibility List $2.00 / Each

2
701748 004771-00 Z17 Screw;Oval;Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
G 701796 004811-A G31 Screw;Umbrella Hex Socket;M8x1.25Px15L No Model Compatibility List $2.00 / Each

2
G 701827 004847-AB G14 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
701869 004891-00 R08 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

701893 004925-00 E10 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

701897 004926-00 Z16 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R11 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

701927 004964-00 R13 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

701934 004972-00 B21 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

C 701937 004973-00 C12 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701964 005005-00 Z31 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

C 701991 005029-00 C13 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702018 005053-00 G32 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
E 702046 005075-00 E21 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

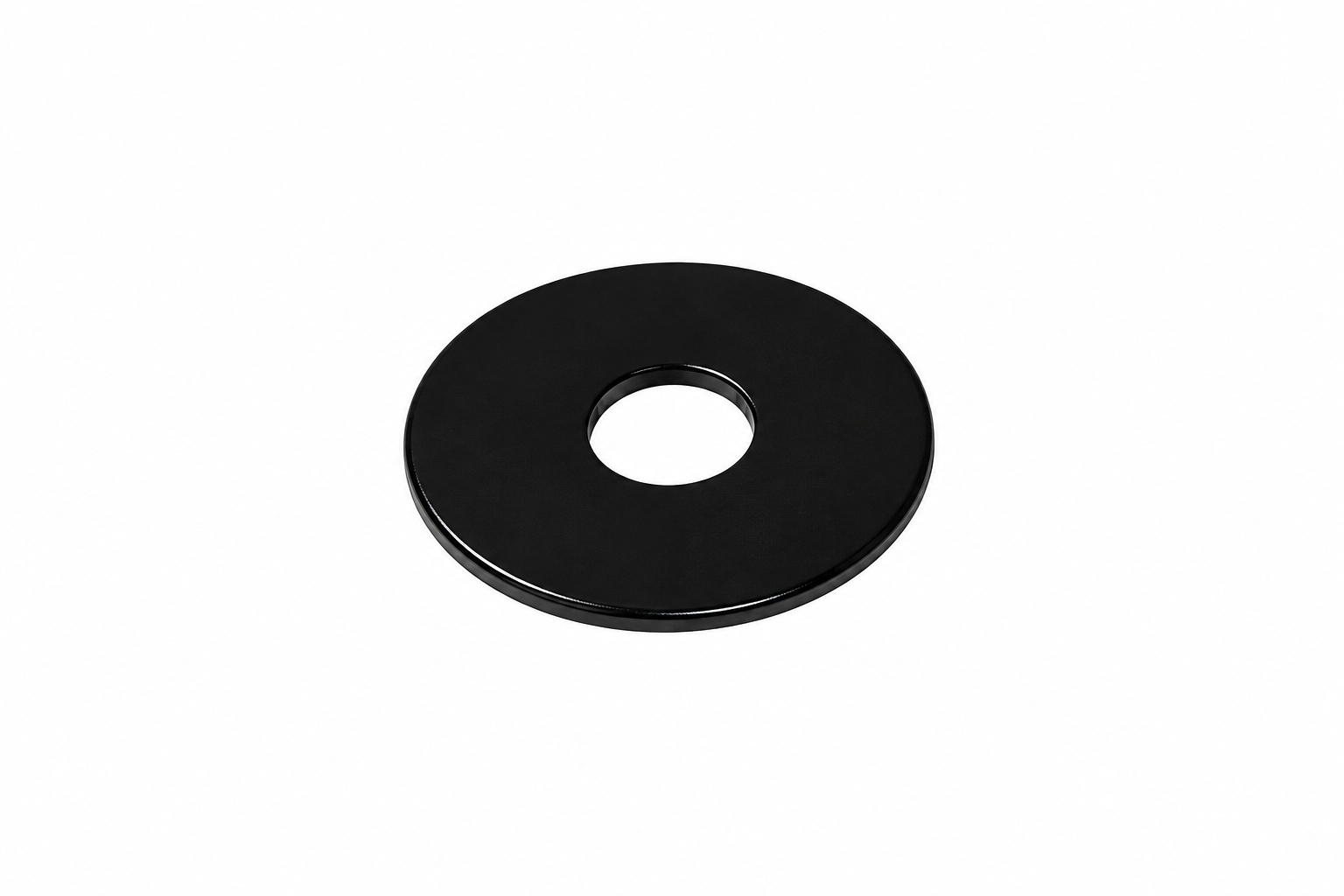

L 702072 005103-Z L06 Washer;Flat;5/16x30.0x1.5T No Model Compatibility List $1.90 / Each

2
702076 005109-00 Z01 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702078 005110-00 Z08 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
702107 005136-A Z33 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
702161 005198-00 Z18 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
702178 005220-00 C14 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702180 005222-00 E27 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702193 005239-00 R14 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 Q08 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

C 702240 005365-00 C17 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

702241 005366-00 R07 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

702259 005395-00 KIT Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

702262 005408-A KIT Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

G 702298 005505-00 G08 Screw;M4x7Px20L No Model Compatibility List $1.90 / Each

2
R 702512 008394-00 R10 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

702625 009053-D Z15 Inner Bushing;Pedal Arm No Model Compatibility List $3.82 / Each

8,9,3
P 702778 009659-B P01 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
R 702857 012847-00 R19 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
E 702898 013124-Z E08 Roller Wheel Set Yes Model Compatibility List $60.22 / Each

1
E 703864 018828-CA E12 Cover;Pedal Arm;Front Yes Model Compatibility List $9.02 / Each
Out Of Stock 		3,8,9
H 703865 018831-AA H23 Cap,Lower Link Arm Yes Model Compatibility List $1.90 / Each

9,3
H 703868 018867-C H14 Cover;Lower Handlebar;Right No Model Compatibility List $9.57 / Each

9,11
704226 020656-X KIT Wrench;Open-Type;13#17# No Model Compatibility List $3.69 / Each

2
Q 704273 022177-A Q07 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

705700 055204-A Z03 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

N 705707 055269-AX N63 Decal;Faceplate No Model Compatibility List $3.82 / Each

B 706705 064736-AA B26 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
A 707300 1000091856 AG6 Connect Sleeve welding drawing;Hand Arm; No Model Compatibility List $86.35 / Each

3
J 707301 1000091859 J05 disc;painting;SLLM445;EP231 No Model Compatibility List $109.23 / Each

1
V 707302 1000091862 V04 Decal, Side Cover;EP231 No Model Compatibility List $9.46 / Each

7,9,3
Q 707303 1000091865 Q02 Cover;Frame;L;ABS;Dark Blue;EP231 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $64.19 / Each

9,3
A 707304 1000091868 AN1 Console Set;Semi-Assy;EP231 No Model Compatibility List $1064.67 / Each

7
V 707305 1000091872 V20 Owner-s Manual;EP231 No Model Compatibility List $12.56 / Each

1
K 707306 1000091880 KIT Hardware;Semi-Assy;EP231-1US No Model Compatibility List $112.32 / Each

1
P 707362 1000092319 P04 Console Wire;Black;XHS-10Y;1200L(320,400 No Model Compatibility List $57.49 / Each

7,4,5,6
V 707654 1000094055 V01 Sticker;Disk;L;EP231 No Model Compatibility List $12.56 / Each

1
V 707655 1000094056 V07 Sticker;Disk;L;EP231 No Model Compatibility List $12.56 / Each

1
707789 1000095424 R02 PEDAL AXLE SET No Model Compatibility List $84.66 / Each

8,9
A 707790 1000095425 AE1 PEDAL ARM SET No Model Compatibility List $347.39 / Each

8,9,3
A 707791 1000095427 AH2 LEFT LOWER LINK ARM SET No Model Compatibility List $312.42 / Each

3
707792 1000095428 AG1 RIGHT LOWER HANDLEBAR SET No Model Compatibility List $288.31 / Each

11
707793 1000095429 AG2 LEFT LOWER HANDLEBAR SET No Model Compatibility List $288.31 / Each

11
H 725123 101895 H21 Pedal;PP;EP505C-1US No Model Compatibility List $37.60 / Each

8,9
G 725255 103295 G13 Bushing;Pedal Arm Axle;31.8x3.0tx329mm No Model Compatibility List $20.12 / Each

8,9,3
725259 103299 E11 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Flywheel Set 725517 072509 R05 Flywheel Set No Model Compatibility List $172.46 / Each

Cap; Disk 725518 072515 J06 Cap; Disk No Model Compatibility List $1.90 / Each

725754 075972 L02 Bushing;Move Wheel;BLACK;EP188 Yes Model Compatibility List $6.68 / Each

Top Cap 725779 076510 Q03 Top Cap No Model Compatibility List $13.62 / Each

Tension Cable; Steel Rope 725836 076885 R18 Tension Cable; Steel Rope No Model Compatibility List $10.63 / Each

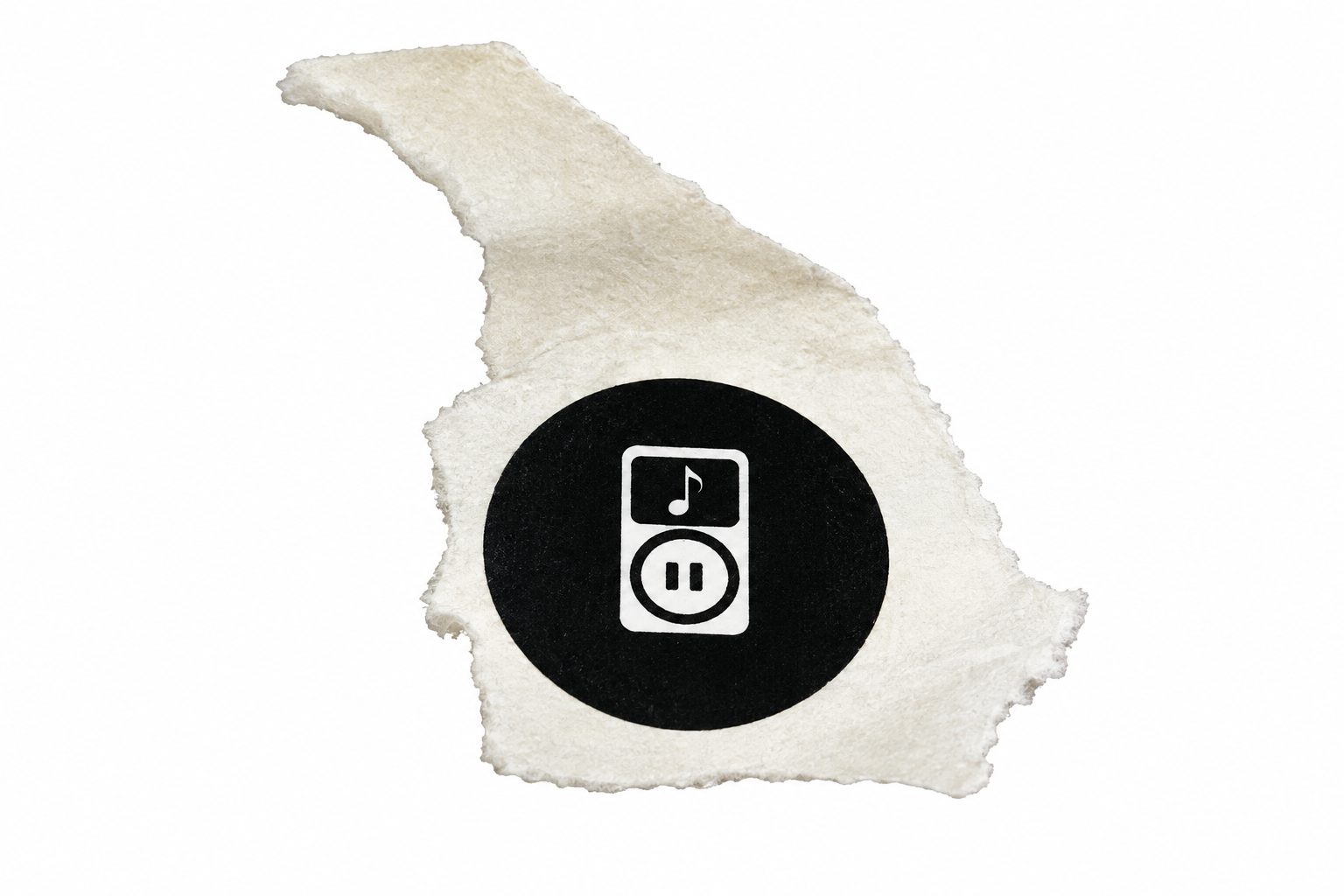

Sticker;Audio In 725856 077114 V04 Sticker;Audio In No Model Compatibility List $1.77 / Each

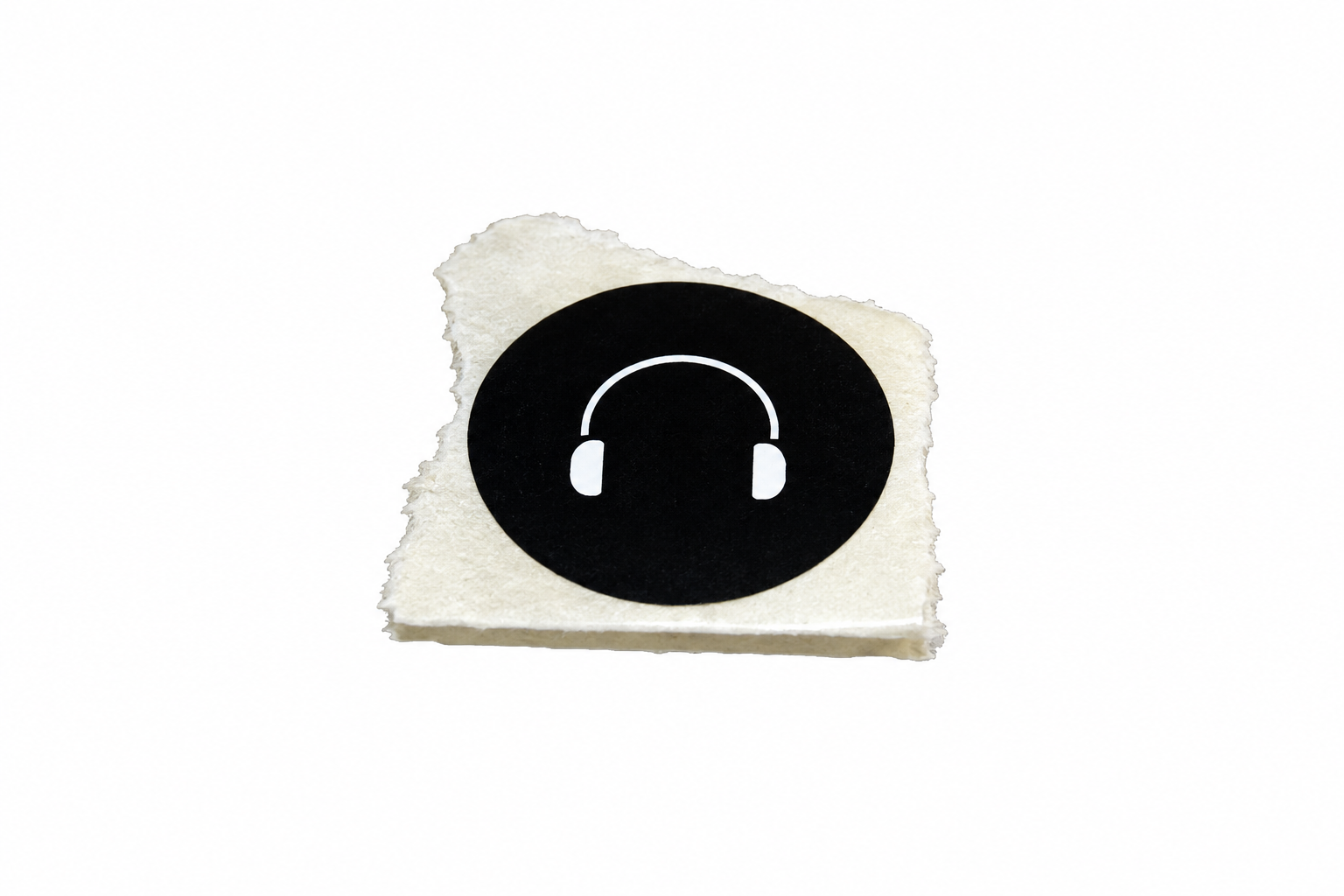

Sticker;Audio Out 725857 077115 V05 Sticker;Audio Out No Model Compatibility List $1.90 / Each

Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

Swivel Axle;Link Arm 726763 084662 Z04 Swivel Axle;Link Arm No Model Compatibility List $12.43 / Each

Adapter;100-240V/50HZ 12V/2A 727278 088261 P05 Adapter;100-240V/50HZ 12V/2A Yes Model Compatibility List $80.29 / Each

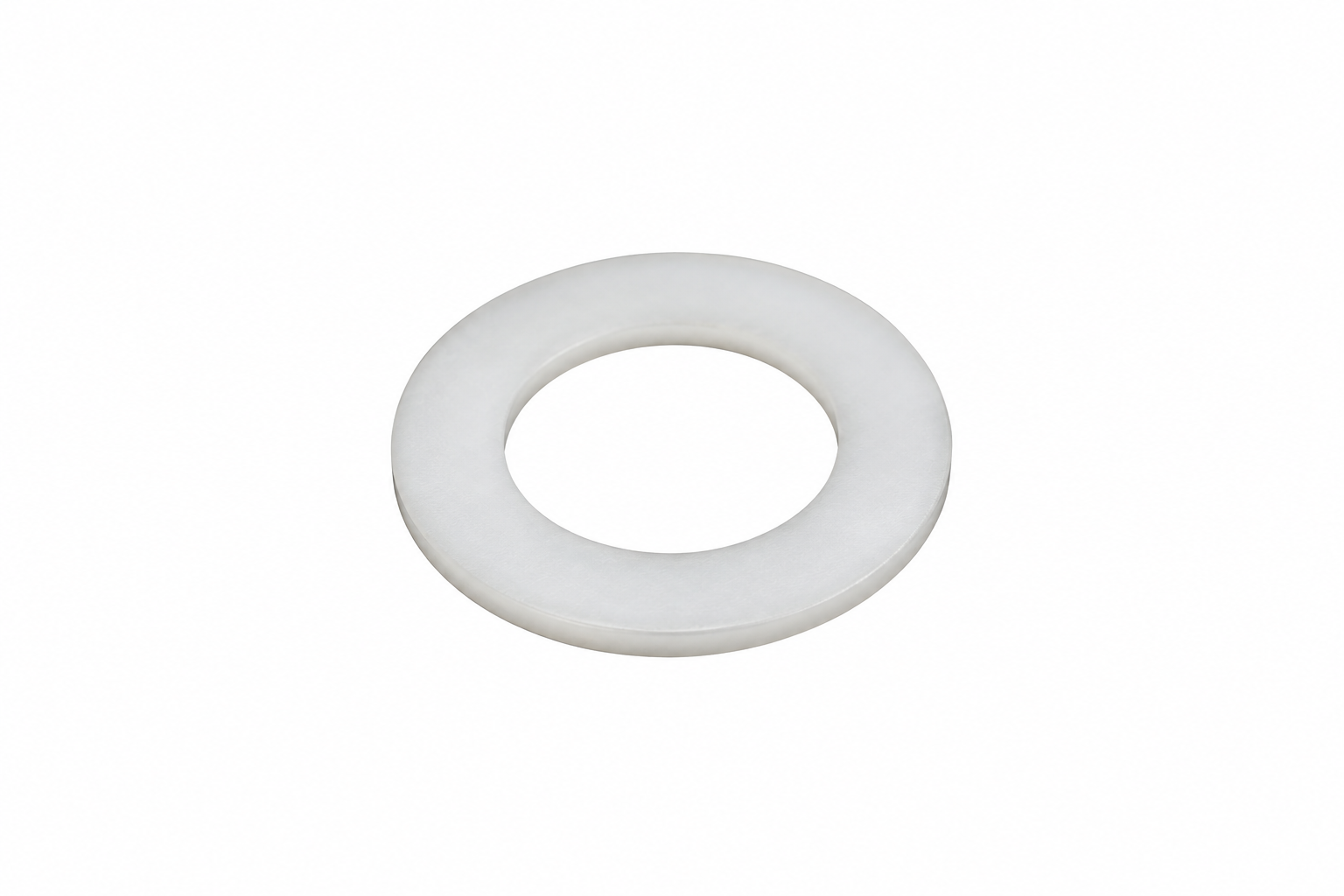

Washer;Flat;Teflon;18.2x30.0x1.5t 727340 088653 F21 Washer;Flat;Teflon;18.2x30.0x1.5t No Model Compatibility List $1.85 / Each

R 012847-00 012847-00 R19 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

R 1000628 004177-A R15 Poly V Drive Belt 8 Ribs Yes Model Compatibility List $39.99 / Each

B 1003512 000522-D B25 Foot Leveler Yes Model Compatibility List $15.99 / Each

R 1003402 012847-00 R19 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
Side Leveling Foot Leveler 1012357 MB0304044D Side Leveling Foot Leveler Yes Model Compatibility List $15.99 / Each

Z 976932 004926-00 Z16 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q08 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

P 911958 004608-00 P02 Rower Button Head Phillip Screw 3x10L (New) No Model Compatibility List $12.99 / Each

R 957090 004621-00 R17 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
Left Lower Handlebar Cover (Used) 1038611 018866-C Left Lower Handlebar Cover (Used) Yes Model Compatibility List $10.00 / Each
Out Of Stock 		44
Right Lower Handlebar Cover (Used) 1038592 018867-C Right Lower Handlebar Cover (Used) Yes Model Compatibility List $9.99 / Each
Out Of Stock 		44
