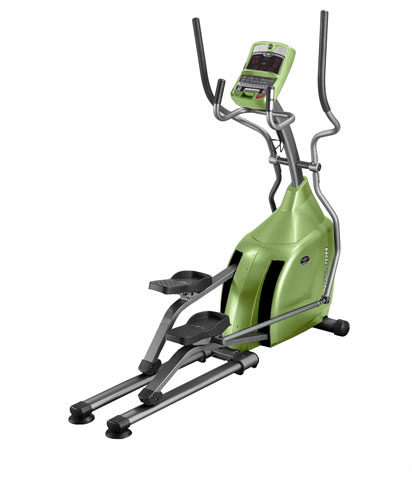

Horizon Fitness - E800 - 2008

Repair Parts for Horizon Fitness E800 EP202D

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: E800

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700009 000014-00 L04 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
C 700257 000798-A C06 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
700318 000940-A C27 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

F 700330 000982-AB F03 End Cap;Guide Rail;Front No Model Compatibility List $1.90 / Each

9
Z 700410 001278-B Z24 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
L 700432 001360-00 L02 Sleeve;Mobile Wheel Yes Model Compatibility List $3.82 / Each

8,3
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R04 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
R 701128 003949-EX R05 Drive Axle Set;6.5Kg No Model Compatibility List $172.46 / Each

8,10
701156 004074-A4 C33 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
R 701165 004081-A2 R11 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

H 701190 004133-00 H18 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
701221 004189-A R12 Drive Belt;Poly-V;410-J8 Yes Model Compatibility List $57.49 / Each

15,10
L 701270 004331-AB L07 Screw,oval head; M6x1.0Px25L No Model Compatibility List $2.00 / Each

2
701300 004364-00 N72 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

701308 004369-00 Z13 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

701393 004448-Z F05 Screw;Round;Hex Socket;M5x0.8Px10L No Model Compatibility List $1.79 / Each

2
F 701408 004462-00 F06 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

701586 004617-00 Q07 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

701591 004620-00 P05 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701613 004632-00 S03 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

R 701650 004691-A R07 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 Z11 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

701703 004725-AB Z19 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
701707 004727-AB Z08 Screw;Hex Socket;BH;M8x1.25Px30L;Adhere No Model Compatibility List $2.00 / Each

701731 004757-00 J23 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

G 701827 004847-AB G11 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
R 701874 004901-00 R10 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

701897 004926-00 Z16 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"--20UNC No Model Compatibility List $1.59 / Each

E 701912 004941-00 E21 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701927 004964-00 R15 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

C 701937 004973-00 C07 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701939 004975-00 L03 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

Z 701978 005015-00 Z06 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

702040 005070-00 L06 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702076 005109-00 Z20 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
E 702166 005206-BB E15 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
702180 005222-00 J22 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702186 005229-00 Z12 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

702193 005239-00 R17 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

702217 005330-00 Q14 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702236 005361-00 R33 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
702238 005363-00 C31 C-Clip;External;S-17 No Model Compatibility List $1.79 / Each

R 702240 005365-00 R19 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

Z 702253 005382-00 Z03 Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

702262 005408-A Z04 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

Z 702264 005412-00 Z02 Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

G 702298 005505-00 G12 Screw;M4x7Px20L No Model Compatibility List $1.90 / Each

2
702450 007490-C P04 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

702483 007964-00 Q13 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
C 702495 008061-A C32 Washer;Flat;17.2x36x1.0t No Model Compatibility List $2.00 / Each

2
R 702512 008394-00 R08 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

Z 702634 009092-B Z18 Sleeve;Pin;Ball Joint Yes Model Compatibility List $7.10 / Each

3,12,13,14
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

1
702874 013036-Z R31 Roller Wheel Set No Model Compatibility List $57.49 / Each

8
H 703582 015589-AA H10 Connecting Plate;Footpad;Platinum Yes Model Compatibility List $9.57 / Each

9,3,12,13,14
P 704087 020210-00 P08 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
704188 020456-00 R28 Washer;Flat;13.2x26x1.0T No Model Compatibility List $1.85 / Each

2
V 705707 055269-AX V25 Decal;Faceplate No Model Compatibility List $3.82 / Each

A 709953 1000205058 AE5 Pivot Tube-E500,700,800 Yes Model Compatibility List $115.99 / Each

3,8
A 709954 1000205068 AJ1 Crank Arm Yes Model Compatibility List $95.81 / Each

8,3
E 725255 103295 E22 Bushing;Pedal Arm Axle;31.8x3.0tx329mm No Model Compatibility List $20.12 / Each

8,9,3
Boot; Console Mast 725576 073497 Q04 Boot; Console Mast No Model Compatibility List $3.82 / Each

Sticker; Left Pedal 725578 073513 H23 Sticker; Left Pedal No Model Compatibility List $1.90 / Each

Sticker; Right Pedal 725579 073514 H24 Sticker; Right Pedal No Model Compatibility List $1.90 / Each

Hardware Pack 725580 073523 KIT Hardware Pack No Model Compatibility List $43.47 / Each

Pulse Grip Set 725588 073707 P06 Pulse Grip Set Yes Model Compatibility List $16.30 / Each

Console Cable 725679 074701 P02 Console Cable Yes Model Compatibility List $57.49 / Each
Out Of Stock
Footpad 726026 079362 H20 Footpad No Model Compatibility List $35.98 / Each

Cover;Roller Wheel;Left 726107 079980 E11 Cover;Roller Wheel;Left Yes Model Compatibility List $3.82 / Each

Cover;Roller Wheel;Right 726108 079981 E10 Cover;Roller Wheel;Right Yes Model Compatibility List $3.82 / Each

Cover;ARM COVER;black;EP194 726109 079982 C10 Cover;ARM COVER;black;EP194 No Model Compatibility List $3.54 / Each

Decal,Side Cover-E800 726179 080647 V04 Decal,Side Cover-E800 No Model Compatibility List $3.54 / Each

Pedal Arm Set (LEFT&RIGHT) 726573 083050 AE1 Pedal Arm Set (LEFT&RIGHT) No Model Compatibility List $176.54 / Each

Link Arm Lower Left 726574 083052 AH1 Link Arm Lower Left No Model Compatibility List $198.87 / Each

726575 083053 AH2 Link Arm Lower Right No Model Compatibility List $198.87 / Each

Handlebar Set,Upper Left-E800 726576 083054 AG2 Handlebar Set,Upper Left-E800 No Model Compatibility List $76.44 / Each

Stabilizer Set; Front 726577 083059 L01 Stabilizer Set; Front No Model Compatibility List $60.37 / Each

Washer;Arc;8.2x18.0x1.5t;Cr; 726608 083459 Z04 Washer;Arc;8.2x18.0x1.5t;Cr; No Model Compatibility List $2.00 / Each

Steel Rope;400L+66L 726621 083556 M06 Steel Rope;400L+66L Yes Model Compatibility List $14.74 / Each

Adapter;100-240V/50HZ 12V/2A 727278 088261 P05 Adapter;100-240V/50HZ 12V/2A Yes Model Compatibility List $80.29 / Each

Console Set; 727721 090607 AN1 Console Set; No Model Compatibility List $532.32 / Each

Screw;Round Tapping;Phillip;4x90MM 1019622 004659-Z H11 4 Screw;Round Tapping;Phillip;4x90MM No Model Compatibility List $6.49 / Each

2
Pedal Pulley Axle Set 1020597 083060 0 1 Pedal Pulley Axle Set No Model Compatibility List $102.70 / Each

8
S 012847-00 012847-00 S01 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
S 1003402 012847-00 S01 Resistance Servo Motor Yes Model Compatibility List $56.99 / Each
Out Of Stock 		1
C 936823 004074-A4 C33 Stepper Step Sealed Bearing (New) Yes Model Compatibility List $32.99 / Each

8
P 911968 004620-00 P05 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

Z 976932 004926-00 Z16 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

Q 957398 005330-00 Q14 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Open Key Wrench 13x15 (New) 972262 005382-00  Open Key Wrench 13x15 (New) Yes Model Compatibility List $17.99 / Each
