Horizon Fitness - Elite U7 - 2014-2015

Repair Parts for Horizon Fitness Elite U7 UB

Brand: Horizon Fitness

Category: Upright

Type: Stationary Bikes

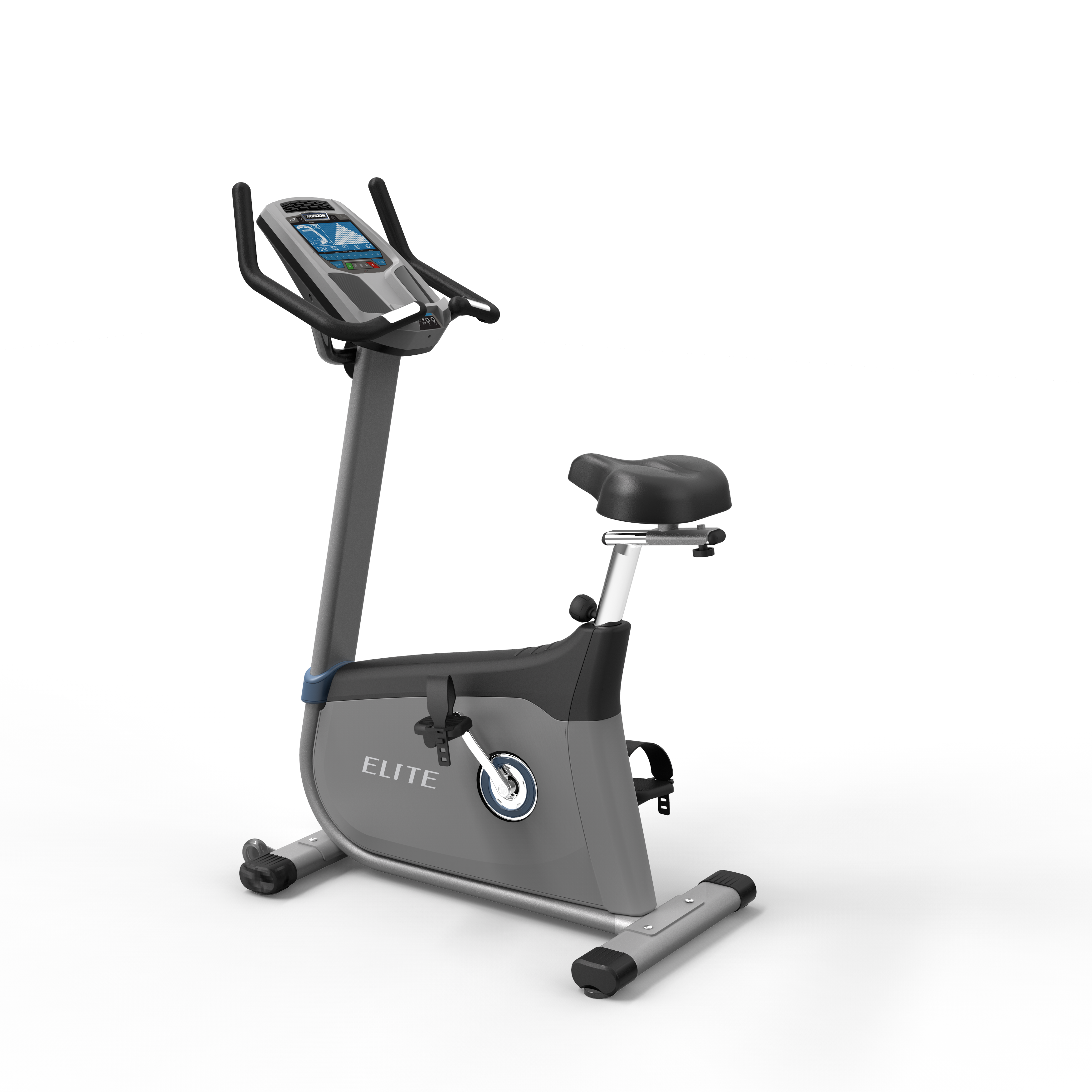

Model Name: Elite U7

Version: 2014-2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
701156 004074-A4 70 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
5 707673 1000094184 52 Nut;Anti Loose;M8x1.25x8t No Model Compatibility List $2.00 / Each

2
7 707674 1000094188 77 Bolt;Inner Hex;M10x35L No Model Compatibility List $2.00 / Each

2
4 707677 1000094212 48 Washer;Flat;13.0x6.5x1.0T No Model Compatibility List $1.85 / Each

2

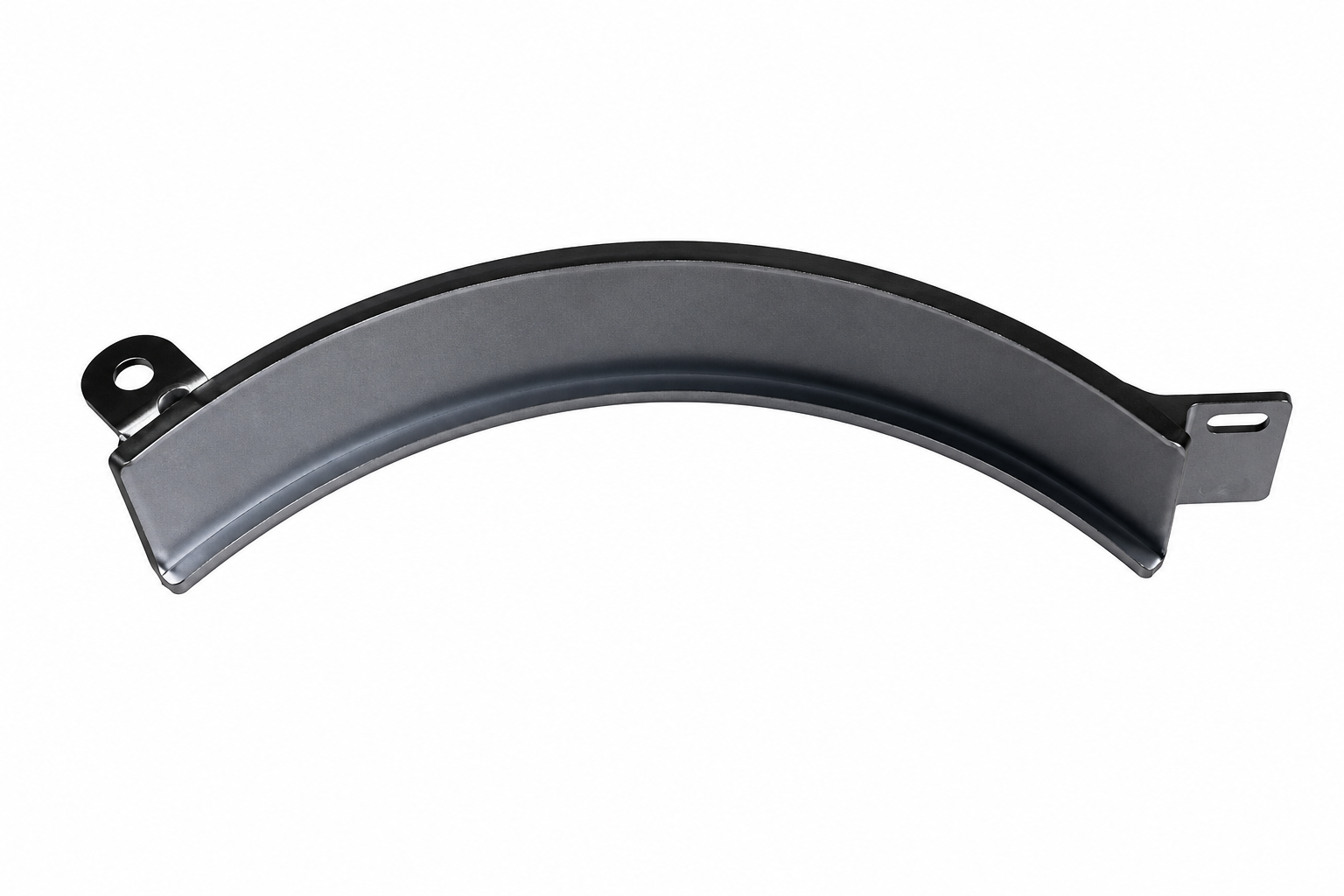

4 707678 1000094215 44 Fixing Bracket;Magnet No Model Compatibility List $22.41 / Each

2,8,3,4,5,6
4 707679 1000094216 46 Nut;Anti Loose;M6x1x6T No Model Compatibility List $1.85 / Each

2
7 707680 1000094217 79 Bolt;Hex;M8x25L No Model Compatibility List $2.00 / Each

2
5 707682 1000094221 57 Washer;Plastic;10.0x24x0.4t No Model Compatibility List $2.00 / Each

2,9
6 707683 1000094224 60 Nut;Anti Loose;M10x1.5x10t No Model Compatibility List $2.00 / Each

2
4 707684 1000094231 49 Nut;Hex;M6x1.0x6t No Model Compatibility List $1.85 / Each

2
8 707685 1000094233 80 Nut;Anti Loose;3/8x26UNFx6.5t No Model Compatibility List $1.90 / Each

2
5 707686 1000094237 51 Bolt;Hex;M6x65L No Model Compatibility List $1.85 / Each

2
4 707687 1000094238 45 Bolt;Hex;M8x52L No Model Compatibility List $2.00 / Each

2
2 707690 1000094279 25 Bolt;Hex;M6x1.0x15L No Model Compatibility List $2.00 / Each

2
2 707691 1000094280 26 Nut;Anti Loose;M6x1.0x6t No Model Compatibility List $2.00 / Each

2
4 707692 1000094310 43 Nut;Anti Loose;M8x1.25x8t No Model Compatibility List $1.85 / Each

2
1 707711 1000094393 15 Washer;Flat;25.0x8.5x2T No Model Compatibility List $2.00 / Each

2
1 707915 1000096885 18 C-Ring S-17 (1T) No Model Compatibility List $1.90 / Each

1
3 707916 1000096900 34 Bolt;M8x1.25x25 No Model Compatibility List $2.00 / Each

2
2 707917 1000096911 23 Washer;Flat;23.0x17.2x1.5t No Model Compatibility List $2.00 / Each

2
2 707918 1000096913 22 Washer;Wave;22.0x17x0.3t No Model Compatibility List $2.00 / Each

2,4,5,6
6 707921 1000096954 69 Magnet No Model Compatibility List $2.00 / Each

8
3 707922 1000096964 33 Bolt Cap No Model Compatibility List $4.00 / Each

2,9
5 707923 1000096988 56 Spring;2.2x14x65L Yes Model Compatibility List $2.00 / Each

2
7 707924 1000096990 76 Seat Insert;Plastic;BL No Model Compatibility List $3.82 / Each

9,12,13,14
5 710298 1000208685 53 Nut;M8x1.25x6t No Model Compatibility List $2.00 / Each

2
5 711414 1000220743 50 Spring;1.0x55L No Model Compatibility List $1.85 / Each

2
6 711416 1000220748 66 SEAT POLE Yes Model Compatibility List $57.26 / Each

12,13,14
8 711420 1000220754 84 Bolt;4.2x15L No Model Compatibility List $2.00 / Each

2
711435 1000220778 27 CRANK AXLE No Model Compatibility List $19.14 / Each

8
3 711438 1000220785 35 Crank;Left Yes Model Compatibility List $57.49 / Each

8
4 711443 1000220790 40 Spacer Ring No Model Compatibility List $2.00 / Each

2,3,4,5,6
8 711445 1000220797 86 Pin;Side Cover Connecting;6.0x26.5x7.7 No Model Compatibility List $2.00 / Each

9,12,13,14
8 711446 1000220798 89 Crank;Right Yes Model Compatibility List $57.49 / Each

8
6 711459 1000220818 61 Upper Side Cover No Model Compatibility List $44.17 / Each

9
711461 1000220824 54 IDLE WHEEL FIXING PIECE No Model Compatibility List $7.64 / Each

8
5 711465 1000220829 58 Washer;Flat;30.0x8.5x2.0t No Model Compatibility List $2.00 / Each

2
8 711467 1000220832 83 Bolt;3.0x10L No Model Compatibility List $2.00 / Each

2
6 711468 1000220833 64 Headphone Cable No Model Compatibility List $12.56 / Each

4,5,6
6 711475 1000220844 62R Pedal;Right No Model Compatibility List $28.73 / Each

8,9
3 711524 1000220933 38 Chain Cover;Right No Model Compatibility List $53.17 / Each

9
4 711525 1000220934 47 Foam No Model Compatibility List $10.58 / Each

1
9 711530 1000220942 90 Chain Cover;Left No Model Compatibility List $53.17 / Each

9
717690 1000346837 A01 Console set;Semi-Assy;;;;CB047-1US;; No Model Compatibility List $897.88 / Each

7
9 718344 1000350652 96 bolt M5x0.8x15L No Model Compatibility List $2.00 / Each

2
1 718348 1000350657 14 elliptical cap Yes Model Compatibility List $1.90 / Each

9
1 718352 1000350661 10 seat Yes Model Compatibility List $40.22 / Each

12,13,14
6 718356 1000350666 62L left pedal No Model Compatibility List $19.14 / Each

8,9
3 718357 1000350667 3 adjustable round wheel Yes Model Compatibility List $3.82 / Each

8
8 718360 1000350670 88 line clip No Model Compatibility List $1.77 / Each

2
9 718364 1000350674 98 spacer ring No Model Compatibility List $2.00 / Each

2,3,4,5,6
6 718395 1000350731 65 protector cover No Model Compatibility List $6.68 / Each

9
6 718402 1000350742 6 elliptical base Yes Model Compatibility List $7.64 / Each

3
6 718417 1000350780 62Lb left belt No Model Compatibility List $9.99 / Each

15
6 718418 1000350781 62Rb right belt No Model Compatibility List $12.99 / Each

15
8 718668 1000352814 8 spring washer No Model Compatibility List $2.00 / Each

2
3 718669 1000352815 30 bolt No Model Compatibility List $2.39 / Each

2
7 718670 1000352816 7 flat washer No Model Compatibility List $2.00 / Each

2
2 718671 1000352817 28 upper protector cover No Model Compatibility List $19.14 / Each

9
1 718672 1000352818 19 bottle hold No Model Compatibility List $14.17 / Each

1
2 718673 1000352819 20 bolt No Model Compatibility List $2.00 / Each

2
6 718688 1000352864 67 handle pulse No Model Compatibility List $7.64 / Each

12,13,14,11
4 718690 1000352866 4 front stabilizer No Model Compatibility List $44.36 / Each

1
5 718691 1000352867 5 round wheel Yes Model Compatibility List $11.49 / Each

8
3 718693 1000352910 31 bolt No Model Compatibility List $2.39 / Each

2
5 718694 1000352913 52 anti-loosen nut No Model Compatibility List $1.77 / Each

2
718695 1000352916 92 cup nut No Model Compatibility List $1.90 / Each

2
2 718696 1000352917 2 rear stabilizer No Model Compatibility List $39.03 / Each

1
718697 1000352920 93 bolt No Model Compatibility List $2.57 / Each

2
4 718702 1000352928 41 flywheel set No Model Compatibility List $191.62 / Each

8
5 718703 1000352929 59 idle wheel No Model Compatibility List $7.64 / Each

8
718704 1000352931 78 bushing No Model Compatibility List $1.90 / Each

8
2 718705 1000352932 24 belt wheel No Model Compatibility List $40.22 / Each

8,15
2 718706 1000352933 21 belt No Model Compatibility List $28.73 / Each

15
9 718708 1000352935 91 pin(## No Model Compatibility List $6.68 / Each

12,13,14
3 718709 1000352936 39 pin No Model Compatibility List $6.68 / Each

12,13,14
8 718713 1000352943 81 adapter;100-120V/50-60Hz;12V/2A No Model Compatibility List $55.56 / Each

1
7 718719 1000352949 74 sensor cable Yes Model Compatibility List $3.82 / Each

4,5,6
8 718720 1000352950 82 Resistance Motor Yes Model Compatibility List $57.43 / Each
Out Of Stock 		10
1 718724 1000352954 100 chest belt No Model Compatibility List $114.97 / Each

15
9 718725 1000352955 99 sensor inductor Yes Model Compatibility List $78.55 / Each

1
N 718726 1000352960 Not Shown Assembly Manual No Model Compatibility List $15.31 / Each

3
N 718727 1000352966 Not Shown Guide manual No Model Compatibility List $11.49 / Each

1
718728 1000352970 17 computer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
9 718729 1000352973 9 bolt No Model Compatibility List $1.85 / Each

2
3 718730 1000352975 32 handlebar welding set No Model Compatibility List $122.64 / Each

11
6 718731 1000352977 68 handle pulse cable No Model Compatibility List $3.54 / Each

4,5,6,12,13,14,11
9 718732 1000352978 95 screw No Model Compatibility List $1.85 / Each

2
718733 1000352984 29 handle post welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14,11
1 718734 1000352986 11 seat adjustable pole welding set No Model Compatibility List $22.98 / Each

12,13,14
1 718735 1000352987 16 knob Yes Model Compatibility List $3.82 / Each

1
718736 1000353001 1 frame welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		3
7 718737 1000353002 75 ball knob Yes Model Compatibility List $11.49 / Each

1
718738 1000353005 36 left chain cover No Model Compatibility List $97.73 / Each

9
3 718739 1000353006 37 right chain cover No Model Compatibility List $97.73 / Each

9
4 718740 1000353013 42 screw cap No Model Compatibility List $2.00 / Each

2,9
6 718741 1000353016 63 electrical cable No Model Compatibility List $13.39 / Each

4,5,6
7 718742 1000353017 71 tension cable Yes Model Compatibility List $9.57 / Each

4,5,6
7 718743 1000353018 72 upper computer cable Yes Model Compatibility List $24.91 / Each

4,5,6
7 718744 1000353019 73 lower computer cable No Model Compatibility List $24.91 / Each

4,5,6
718861 1000353787 A02 Handlebar Set No Model Compatibility List $0.00 / Each
Out Of Stock 		11
718862 1000353788 A03 Console Mast Set No Model Compatibility List $0.00 / Each
Out Of Stock 		7
A 718863 1000353790 A04 Crank Set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
718864 1000353792 A06 Front Stabilizer Set No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718865 1000353793 A07 rear stabilizer set No Model Compatibility List $0.00 / Each
Out Of Stock 		1
A 718866 1000353794 A08 magnet fixing hold set Yes Model Compatibility List $0.00 / Each
8
718867 1000353795 A09 frame set No Model Compatibility List $0.00 / Each
Out Of Stock 		3
A 718868 1000353796 A10 side cover set No Model Compatibility List $266.16 / Each

9
A 718869 1000353797 A11 idler set Yes Model Compatibility List $0.00 / Each
Out Of Stock 		8
A 718870 1000353802 A12 crank axle set Yes Model Compatibility List $86.65 / Each

8
A 718871 1000353803 A13 flywheel set Yes Model Compatibility List $232.70 / Each

8
718872 1000353804 A15 cable set No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
718873 1000353805 A16 seat post set No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
718874 1000353808 12 flat washer No Model Compatibility List $0.00 / Each
Out Of Stock 		2
718875 1000353809 13 anti-loosen nut No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719068 1000355513 85 bolt No Model Compatibility List $0.00 / Each
Out Of Stock 		2
N 719227 1000357945 Not Shown Hardware Pack No Model Compatibility List $18.56 / Each

4,5,6
728998 Order Components Separately A05 Seat Post Adjustment Set No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
7 936823 004074-A4 70 Stepper Step Sealed Bearing (New) Yes Model Compatibility List $32.99 / Each

8
