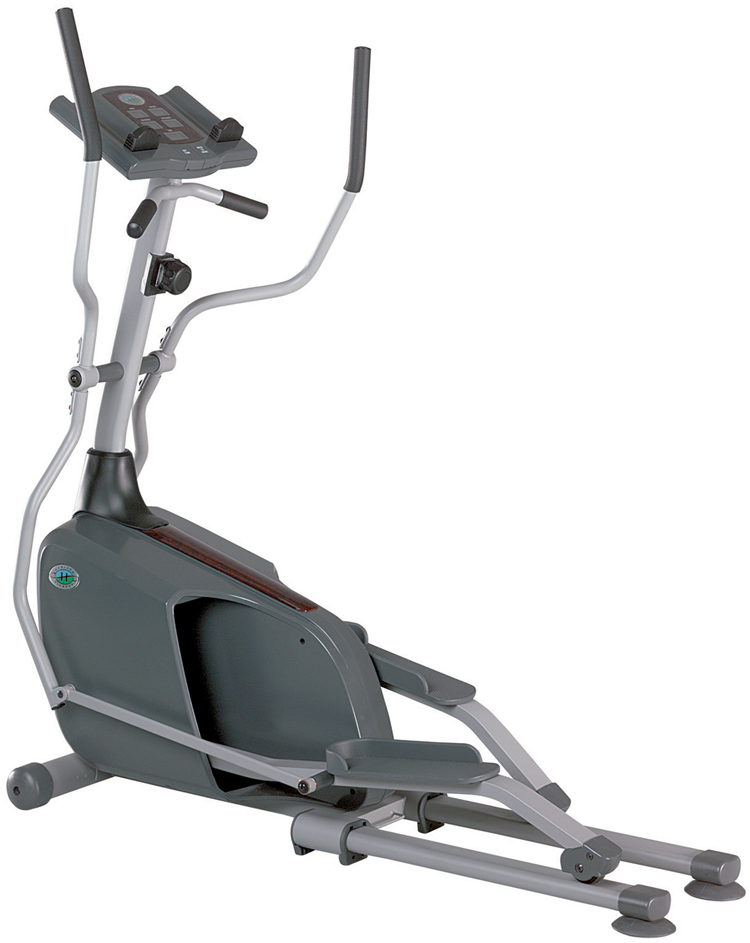

Horizon Fitness - Endurance - 2001

Repair Parts for Horizon Fitness Endurance EP033

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: Endurance

Version: 2001

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Console Mast Boot - Used 1019620 000187-B 0 1 Console Mast Boot - Used Yes Model Compatibility List $23.99 / Each
Out Of Stock 		9
A 702906 013188-Z AE5 Pivot Tube Set, w/ bushings - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $56.24 / Each

8,3
A 702900 013176-Z AG5 Hanblebar Support;With Bearings No Model Compatibility List $101.53 / Each

8,3
728979 no longer available AG5 H-bar Support, w/ bearings No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
701737 004762-00 C20 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.00 / Each

2
E 700413 001283-B E05 Spacer-Pedal Arm No Model Compatibility List $1.92 / Each

2,8,9,3,4,5,6
E 702020 005055-00 E06 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
702153 005189-00 E18 Washer;Teflon;10.5x25x1.0T No Model Compatibility List $2.00 / Each

2
E 702191 005237-00 E19 Washer;Lock;10.5x25.0x1.0tT No Model Compatibility List $2.00 / Each

2
E 701912 004941-00 E20 Nut;Nylon;M10x1.5P Yes Model Compatibility List $2.00 / Each

G 700191 000609-A G08 Foam Grip;Handlebar;31.8x28x3.0tx500L No Model Compatibility List $9.57 / Each

4
702135 005163-00 G10 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
G 702184 005227-Z G18 Washer;Wavy;26x34x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Endcap Deadshaft Handlebar (Used) 1019609 000986-BC G19 2 Endcap Deadshaft Handlebar (Used) Yes Model Compatibility List $14.39 / Each

9
702238 005363-00 G27 C-Clip;External;S-17 No Model Compatibility List $1.79 / Each

702076 005109-00 G28 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
G 702607 008969-D G30 Bushing;Inner Yes Model Compatibility List $1.90 / Each

8
G 701639 004672-00 G31 Screw;M8x1.25Px42L No Model Compatibility List $2.00 / Each

2
701897 004926-00 G32 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

G 976932 004926-00 G32 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

G 702495 008061-A G33 Washer;Flat;17.2x36x1.0t No Model Compatibility List $2.00 / Each

2
701156 004074-A4 G35 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
G 936823 004074-A4 G35 Stepper Step Sealed Bearing (New) Yes Model Compatibility List $32.99 / Each

8
End Cap -Guide Rail 1019607 000982-00 H02 2 End Cap -Guide Rail Yes Model Compatibility List $8.39 / Each

9
Front Sleeve-Guide Rail (Used) 1019608 000828-00 H03 2 Front Sleeve-Guide Rail (Used) Yes Model Compatibility List $14.99 / Each

9
H 700272 000829-AB H04 Foot Pad;Guide Rail Yes Model Compatibility List $12.48 / Each

3,9,12,13,14
701408 004462-00 H07 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed Yes Model Compatibility List $2.00 / Each

701781 004796-00 L04 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
701591 004620-00 L06 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

L 911968 004620-00 L06 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

702040 005070-00 L07 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 701270 004331-AB L08 Screw,oval head; M6x1.0Px25L No Model Compatibility List $2.00 / Each

2
701586 004617-00 N05 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

702254 005386-00 n/a Wrench;Open;17mm No Model Compatibility List $4.00 / Each

2
702259 005395-00 n/a Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

702264 005412-00 n/a Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

P 700769 002230-00 P01 Speed Sensor Wire;480(OKI+SM-2Y);RB18 No Model Compatibility List $3.72 / Each

4,5,6
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
Accent Plate, wood grain (Used) 1019597 001365-00 Q04 1 Accent Plate, wood grain (Used) Yes Model Compatibility List $6.59 / Each

9
Right Glide Wheel Cover 1019596 000284-00 Q05 2 Right Glide Wheel Cover Yes Model Compatibility List $10.19 / Each
Out Of Stock 		9
Left Roller Wheel Cover - Used 1019634 000282-00 Q06 1 Left Roller Wheel Cover - Used Yes Model Compatibility List $10.19 / Each
Out Of Stock 		9
701613 004632-00 Q07 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

Foot Pedal Pad Right - Used 1019648 003996-EB Q09 1 Foot Pedal Pad Right - Used Yes Model Compatibility List $23.99 / Each
Out Of Stock 		9
Foot Pedal Pad Left 1019635 003995-EB Q10 1 Foot Pedal Pad Left Yes Model Compatibility List $15.59 / Each

9
701300 004364-00 Q11 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

702483 007964-00 Q13 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702901 013178-Z R01 Pedal Axle Set No Model Compatibility List $136.03 / Each
Out Of Stock 		8,9
R 701165 004081-A2 R08 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

R 701202 004157-00 R10 Drive Belt;Poly-V;430-J8 Yes Model Compatibility List $57.49 / Each

23
R 1000484 004157-00 R10 1 Main Drive Belt Yes Model Compatibility List $44.99 / Each

23
701927 004964-00 R11 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

725259 103299 R21 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
702180 005222-00 R22 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
R 701996 005034-00 R23 Washer;Flat;8.2x26.5x1.6T No Model Compatibility List $2.00 / Each

2
701690 004719-00 R24 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
R 701991 005029-00 R28 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702874 013036-Z R31 Roller Wheel Set No Model Compatibility List $57.49 / Each

8
701154 004072-A2 R32 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
702236 005361-00 R33 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
702240 005365-00 R34 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

R 701042 003413-00 R37 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
S 701904 004931-00 S11 Nut;Locking;Nylon;1/4"--20UNC Yes Model Compatibility List $1.59 / Each

701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each
